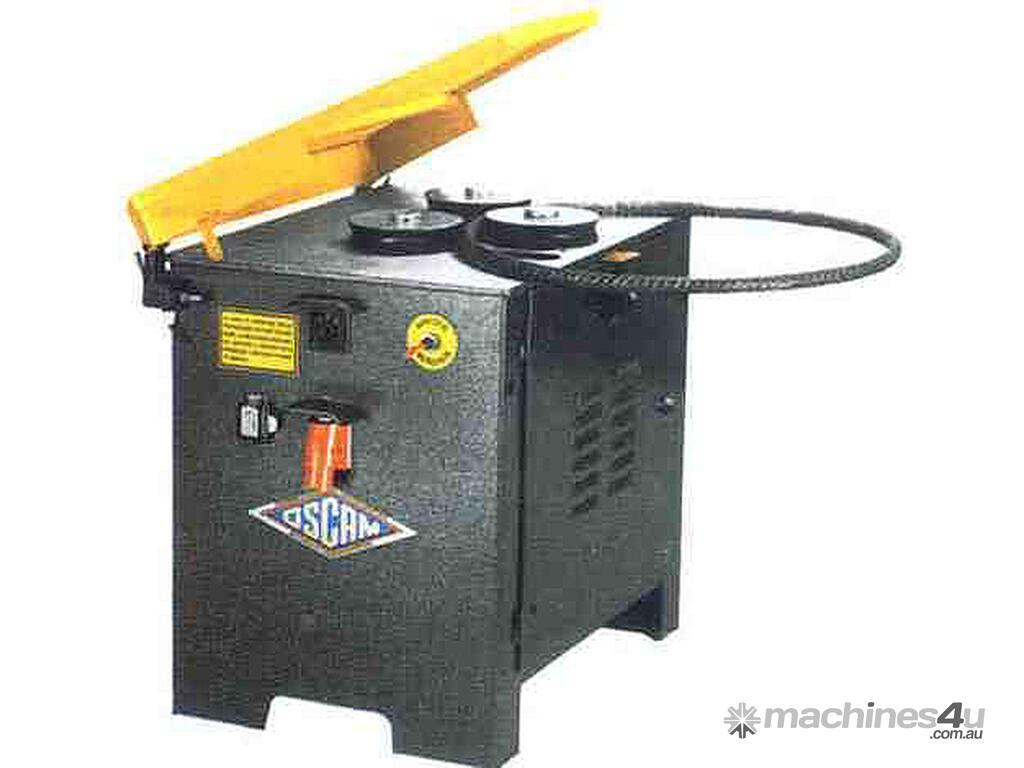

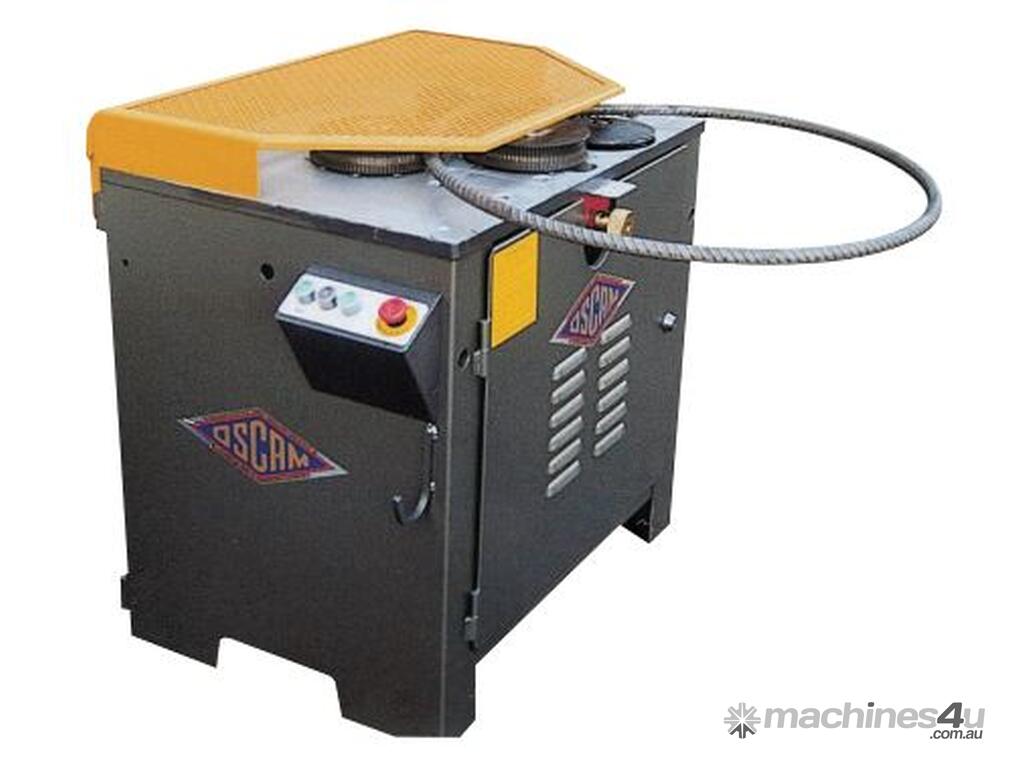

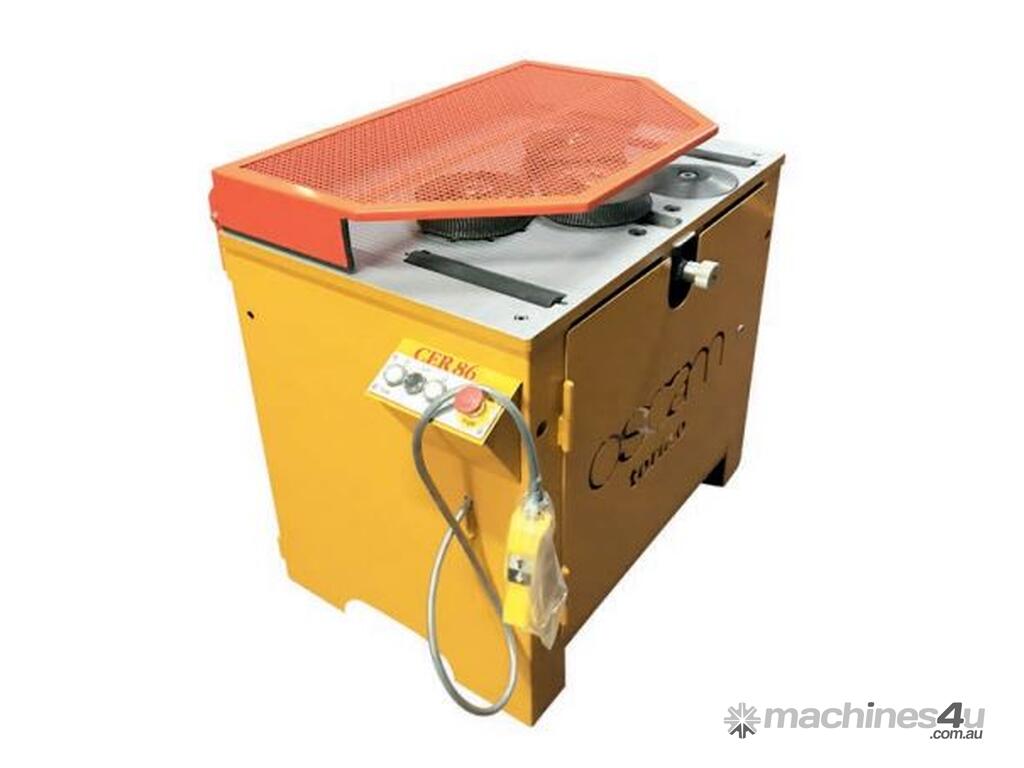

Hoop spiral rebar bending machine model 86 2R [Made in Italy]

To create hoops and spirals with rods from 6 mm to 32 mm in diameter, with double speed

• Minimum diameter of hoops and spirals: approx. 300 mm with bars ø 12 mm
• Maximum diameter no limit
• Feeding speed 30 m/minute – 20 m/minute selected by the appropriate switch
• Nr. 2 motors 2,6 kW
• Dimensions 80 x 90 x 95 (h) cm
• Weight about 400 kg

Capacity of the machine:
Minimum diameter of arch, hoops and spirals:
From 250 mm with rod diameter up to Ø 16 mm
From 300 mm with rod diameter from Ø 18 up to Ø 32 mm
