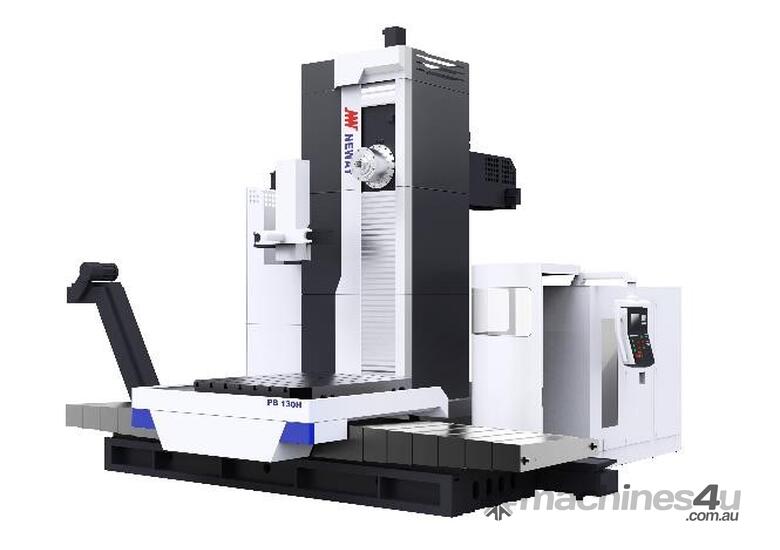

Horizontal Boring and Milling Center PB130H

OVERVIEW

PB130H CNC horizontal milling and boring center is a high-end research and development of advanced design technology in the field of structural design and manufacturing technology. It adopts the latest design technology (such as finite element analysis, virtual prototype simulation) in accordance with the modular design concept CNC machine tools, suitable for multi-step processing of face milling, boring / drilling, tapping, threading, car outer circle, and three-dimensional curved surface of medium-sized parts, which can be completed in multiple processes at one time.

FEATURE

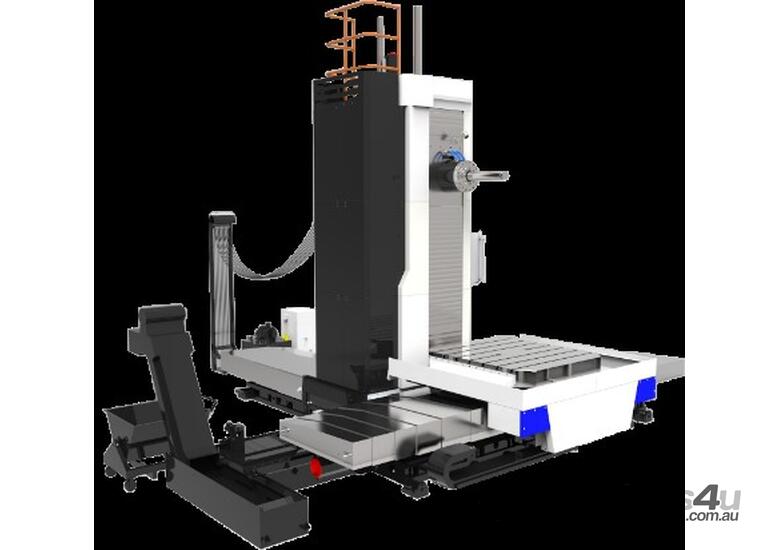

- NEWAY PB130H ultra rigid design of main machine body and column ensure outstanding structural stability.
- One-piece machine base design with hybrid box and linear ways on all axes provides fully support at the table.
- This machine is composed by main machine, rotary worktable and other options.
- Y axis apply electrical brake, B axis apply hydraulic brake.
- X/Y/Z axis is equipped with the linear scale, B axis is equipped with the circular encoder to realize full closed loop control.

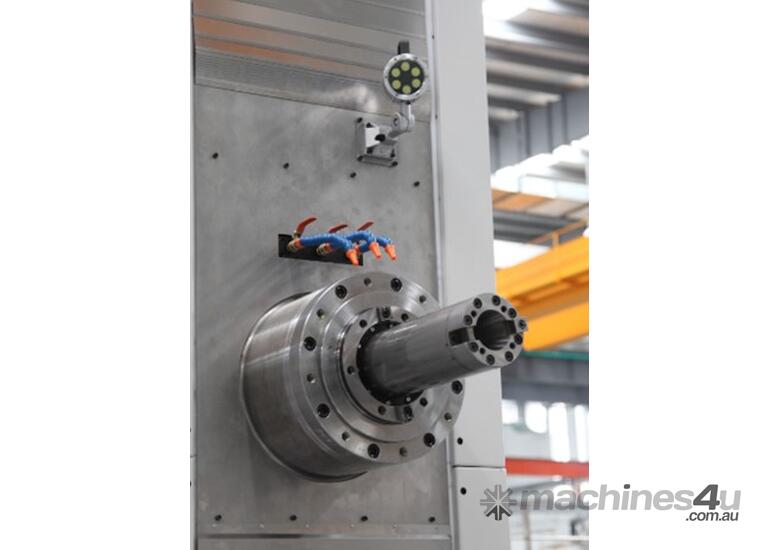

- The 22/30 KW 50 taper spindle runs with 2-speed gear headstock that generates maximum 3868NM to overcome most tough material cutting condition.
- The fully programmable rotary table comes with an angular scale that indexes minimum 0.001 degrees with 15 arc sec in positioning accuracy.
- The maximum part load is even up to 8 tons.
- The high quality of German INA C3 grade ball screws and Fagor linear scales assure the machine positioning in 0.015mm always.
- The optional 40 or 60-tool magazine with double arm ATC accepts tool’s weight up to 55 lbs.

STANDARD CONFIGURATION
- FANUC 0i-MF(1) 2MB system memory, 22/30KW spindle motor
- Max. 2,500 rpm spindle speed
- 0.001°indexing degree of B axis worktable
- Hand wheel
- Lubrication system
- Hydraulic system main parts from Taiwan
- X/Y/Z/W/B axis Fagor linear scale
- High accuracy encoder from Germany/Spain
- Working light & lamp
- Chain type chip conveyor
- Spindle air blow
- Spindle air curtain
- Documents
- Tool kits
- Oil cooler for spindle
- Tool change protection

OPTIONAL ACCESSORIES
- Simens 828D 260, spindle speed 2000, 31kw
- Worktable 2000x2000mm, 15t, X travel 3000mm
- Worktable 2000x2500mm, 15t, X travel 3000mm
- Worktable 2000x2000mm, 20t, X travel 3000mm
- Right angel head FXT1-P18
- Universal head (tuning fork) FXT5-P28
- Extended right-angel milling head FXT7-P37
- Spindle support sleeve milling
- 40 position ATC
- 60 position ATC
- BT50/SK50/CAT50/ISO50
- 20 Bar CTS
- 30 Bar CTS
- 50 Bar CTS
- 70 Bar CTS

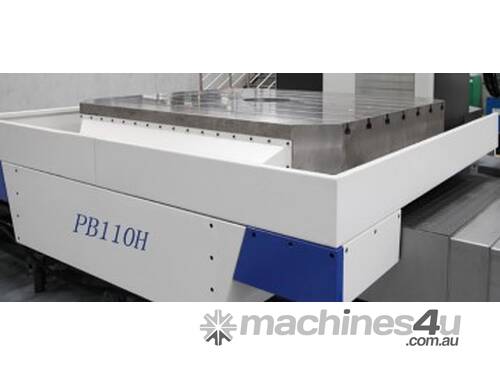

- Full cover for worktable
- Heidenhain linear scale X/Y/Z
- DANDREA facing head UT3-360S
- DANDREA facing head UT3-500S
- Neway made manual mounted facing head NWM-FH50-01(without motor)
- Neway made manual mounted facing head NWM-FH63-01(without motor)
- Renishaw tool setter TS272
- Renishaw workpiece setter OMP60

SPECIFICATION

WORK RANGE
X/Y/Z/W Axis Travel 3000/2000/1600/800mm
B Axis Travel 0?360°
Spindle Center to Work Table (Y) 0-2000mm
Spindle End Face to Worktable 100?2200mm

WORK TABLE
Size 1600×1800 mm
Loading Weight 15Tons
T Slot Width 28mm
Guideway Type Roller/sliding composite guideway

SPINDLE
Spindle Power 22/30kW
Spindle Type BT50
Pull-stud Type MAS403 P50T-1
Spindle Speed 10-2500r/min
Spindle Dia. ?130mm
Torque 2837/3868Nm(30min)
Max Axial Force 25000N

TRAVEL SPEED
Rapid Travel X/Y/Z/W 10/10/10/4m/min
Feed Rate X/Y/Z/W 6/6/6/2m/rpm

AXIS MOVEMENT
X/Y/Z Axis Ball Screw 80x10/63x10/63x10mm
X/Y/Z Axis Motor 6/9/6kW

ACCURACY
Position Accuracy X/Y/Z/W 0.02/0.02/0.02/0.025 mm
Position Accuracy B 15”
Re-position Accuracy X/Y/Z/W 0.015/0.015/0.015/0.020 mm
Re-position Accuracy B 7”

LUBRICATION SYSTEM
Lubrication Tank Volume 3*4L
Lubrication Pump Motor Power 100W

COOLANT SYSTEM
Coolant Tank Volume 900L
Coolant Tank Pump Motor Power 2.2kW
Filter 10/40mesh
Max. Coolant Pressure 0.7Mpa
Max. Flow 66L/min

OTHERS
Power Supply 80KVA/120A
Voltage/Hertz 380V/50Hz
Air Source Pressure 0.6~0.8 MPa
Air Flow 500L/min
Machine Weight 40,000 Kg
Machine Dimension 7543X7158X5094 mm
