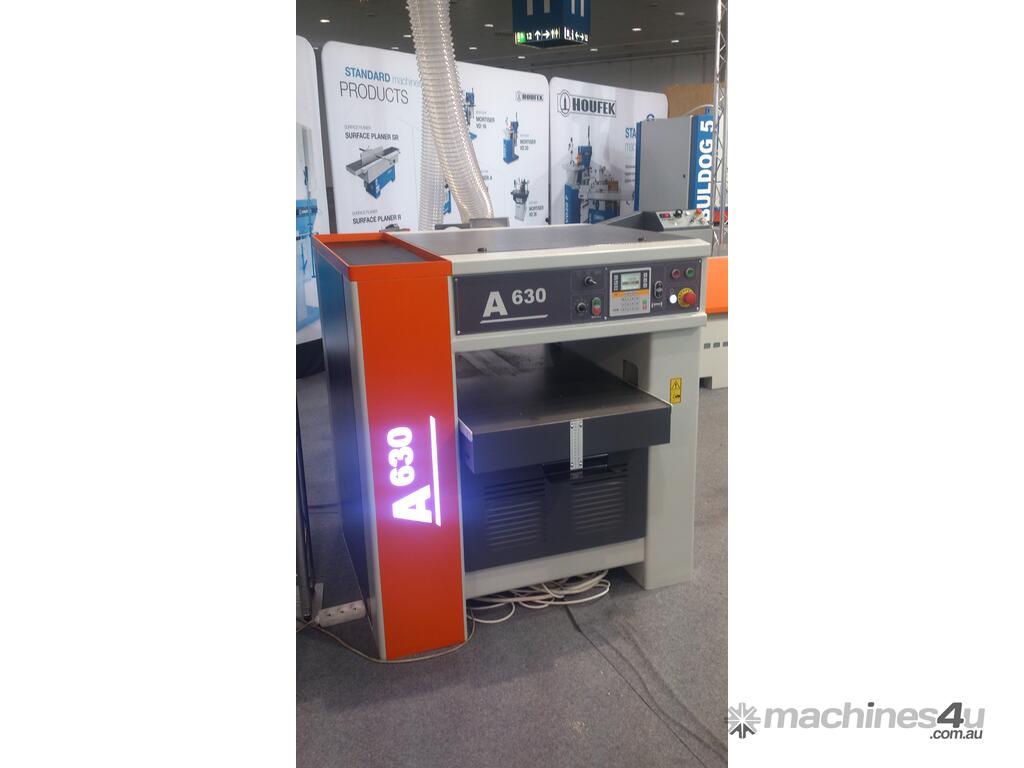

Houfek A630 Aligator Thicknesser with Spiral Cutterblock

Ideal for high production organisations who demand quality output, the Aligator thicknessers are high quality machines that are built for accuracy and built to last. Available in three different working widths to cater for all woodworking outfits, the Aligator A range features high-performance machines with high operator comfort and excellent precision. A great range of features across the range including programmable thickness controller and variable feed speed 4-19m/min with brilliant options including spiral cutterblock, TERSA knives and serrated segmented in-feed roller

The Aligator A630 is a very high quality machine that is robust enough for high volume production but accuracy and user friendliness are made easy.

The Aligator range is available in a variety of sizes from 430mm-800mm wide and can process materials from 3mm-300mm thick. There is a huge range of options including-
- Your choice of 3 x different cutterblocks
- Segmented infeed rollers
- Rubberised or steel outfeed rollers

The heavy duty cast iron table is supported on all 4 corners ensuring the table remains parallel and the rise and fall is both smooth and efficient with the height being digitally controlled.

This machine comes with the following features-

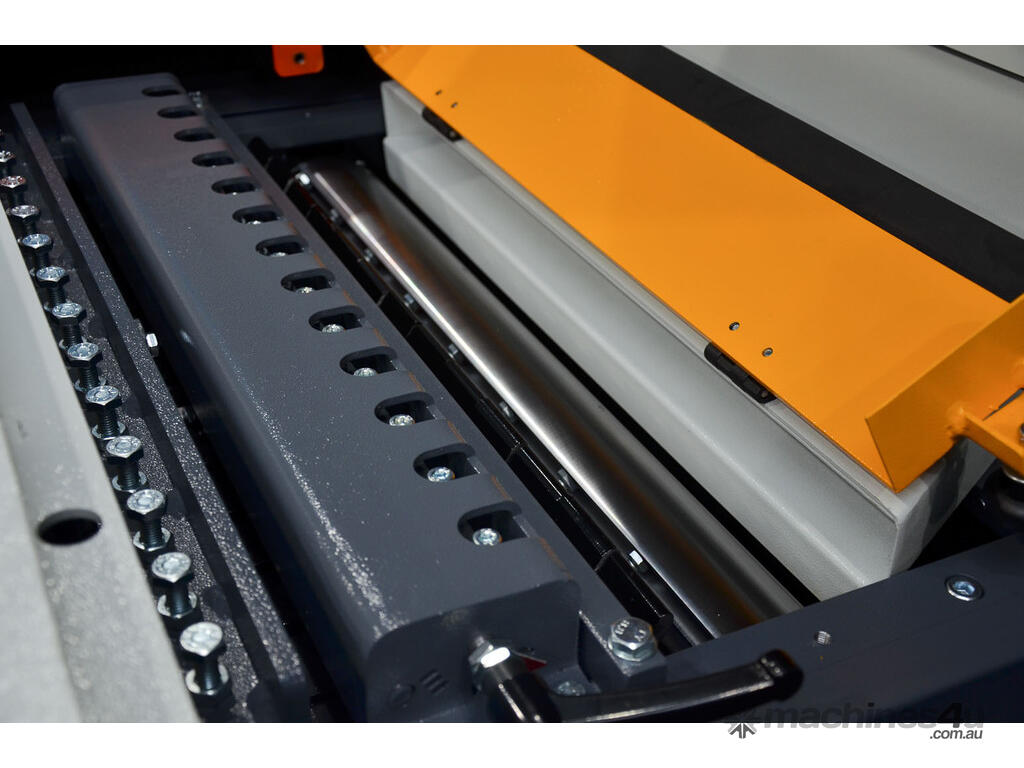

- Serrated segmented infeed roller
- Two height adjustable rollers in the thicknessing table
- Grooved Anti-friction table
- Two rubbered outfeed rollers

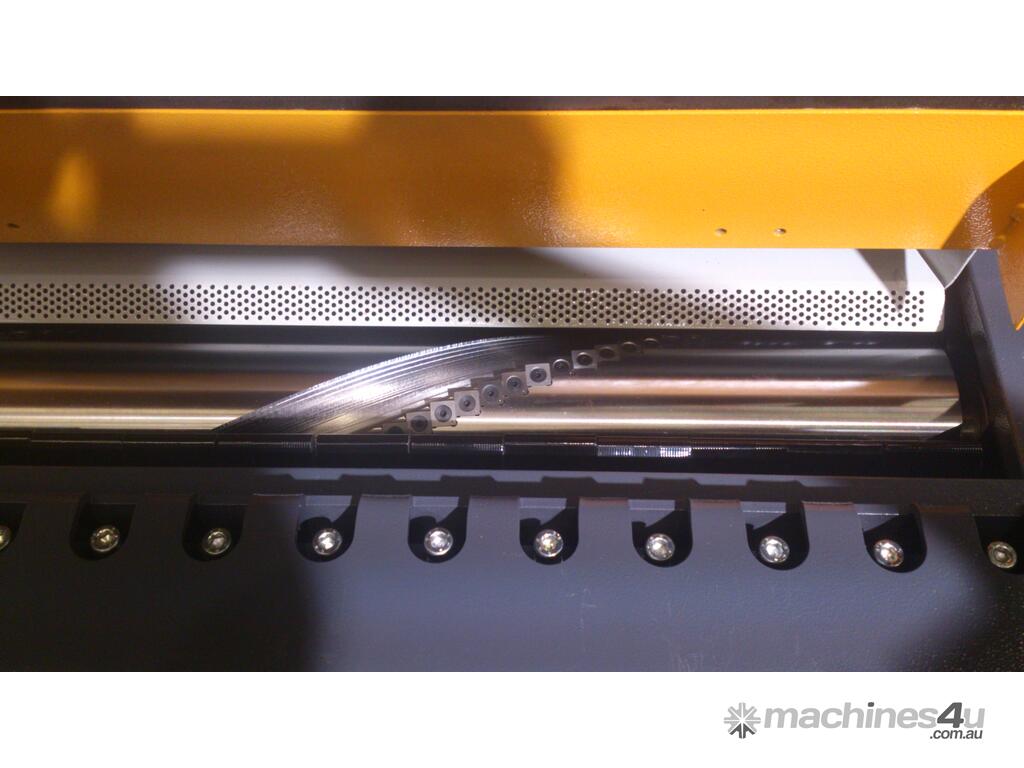

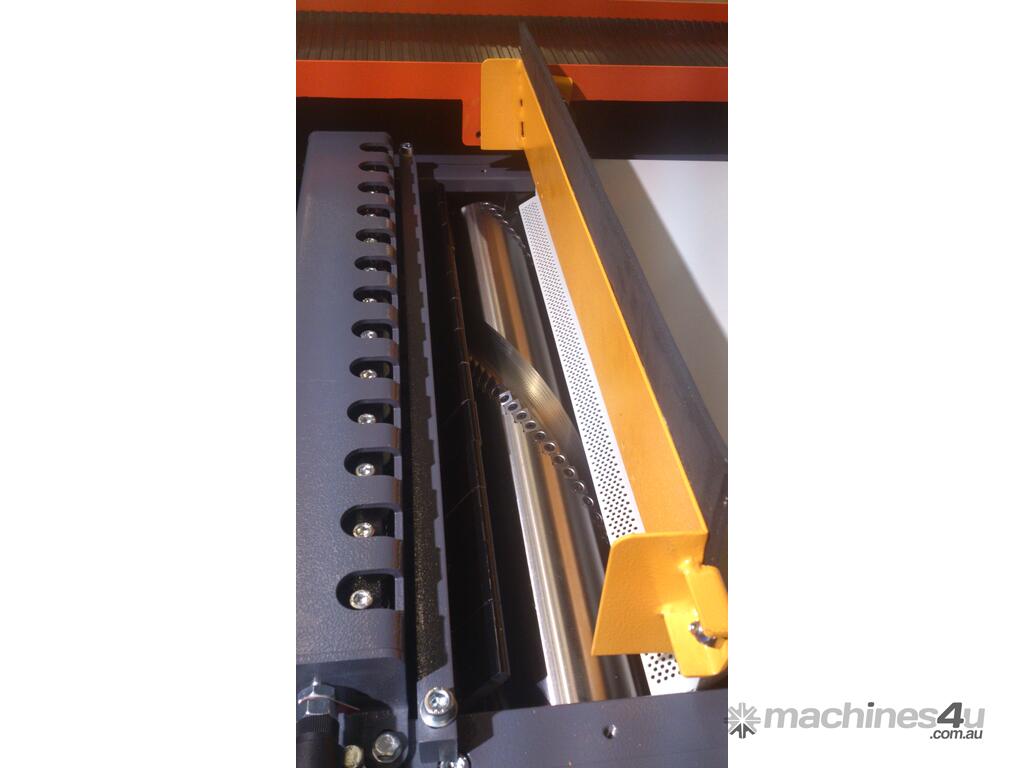

- Spiral cutterhead with insert knives for A 630

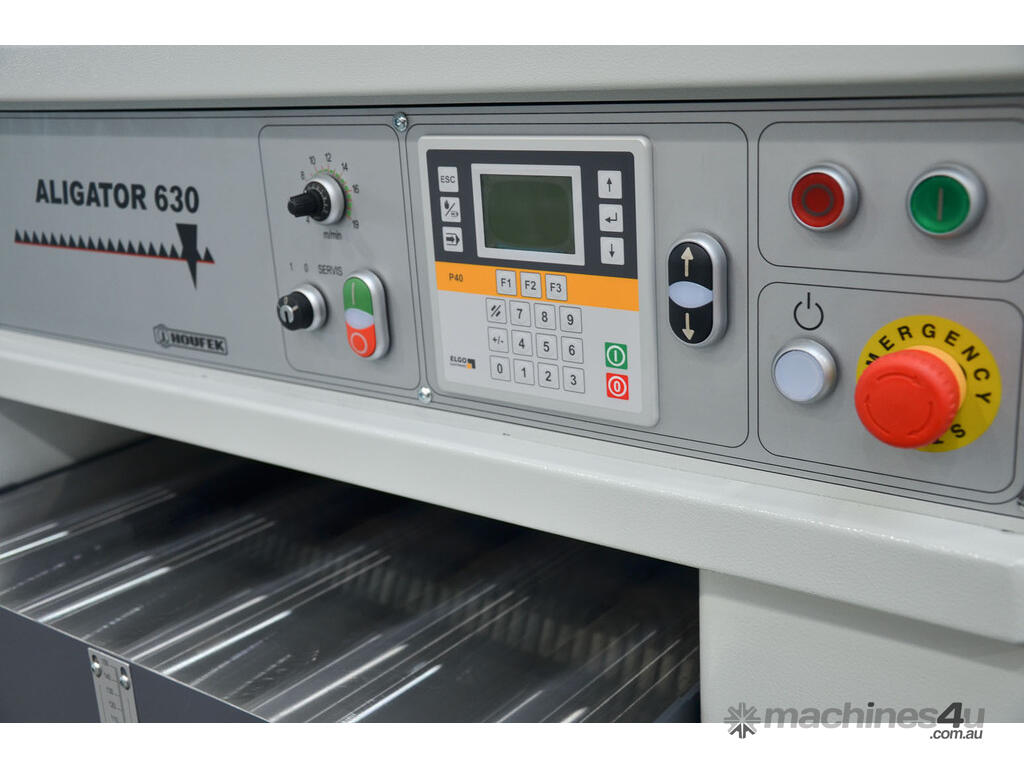

- Motorized table height adjustment, two speeds 1/6 mm/s
- Automatic table height adjustment
- Worktable length 1200 mm
- Automatic star/delta switch
- Electromagnetic brake
- Feed frequency convertor - speed 4 - 19 m/min.

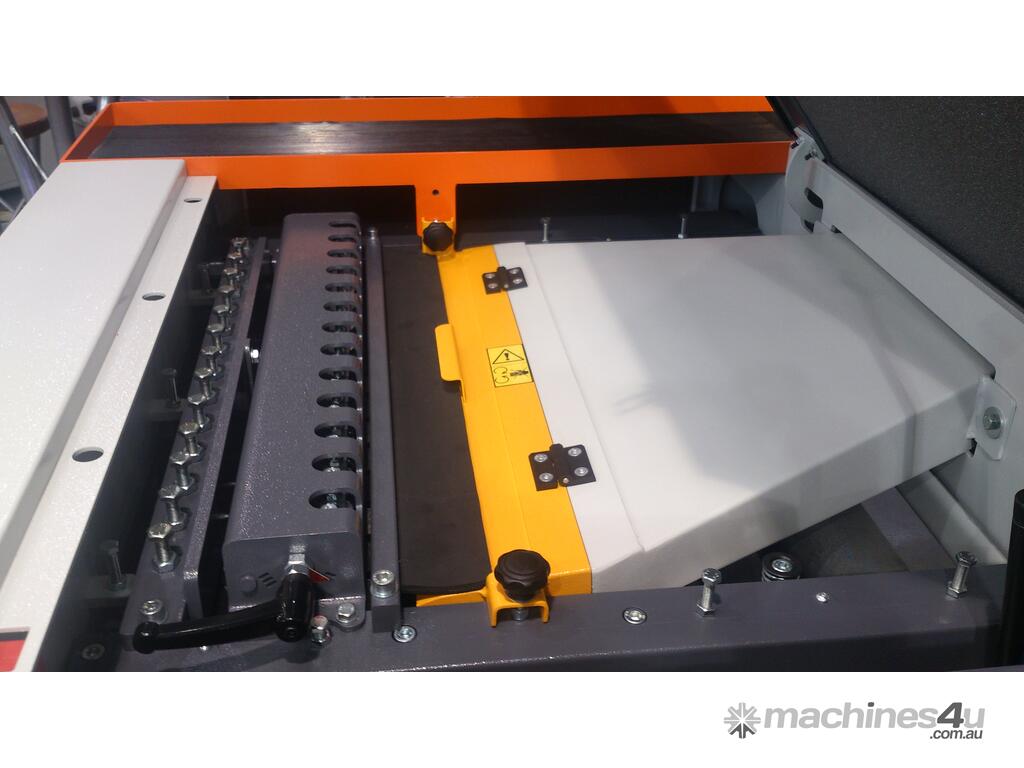

- Divided infeed pressure segments, outfeed pressure bar
- Worktable support - 4 points
- Min./max. working height 3 - 300 mm.

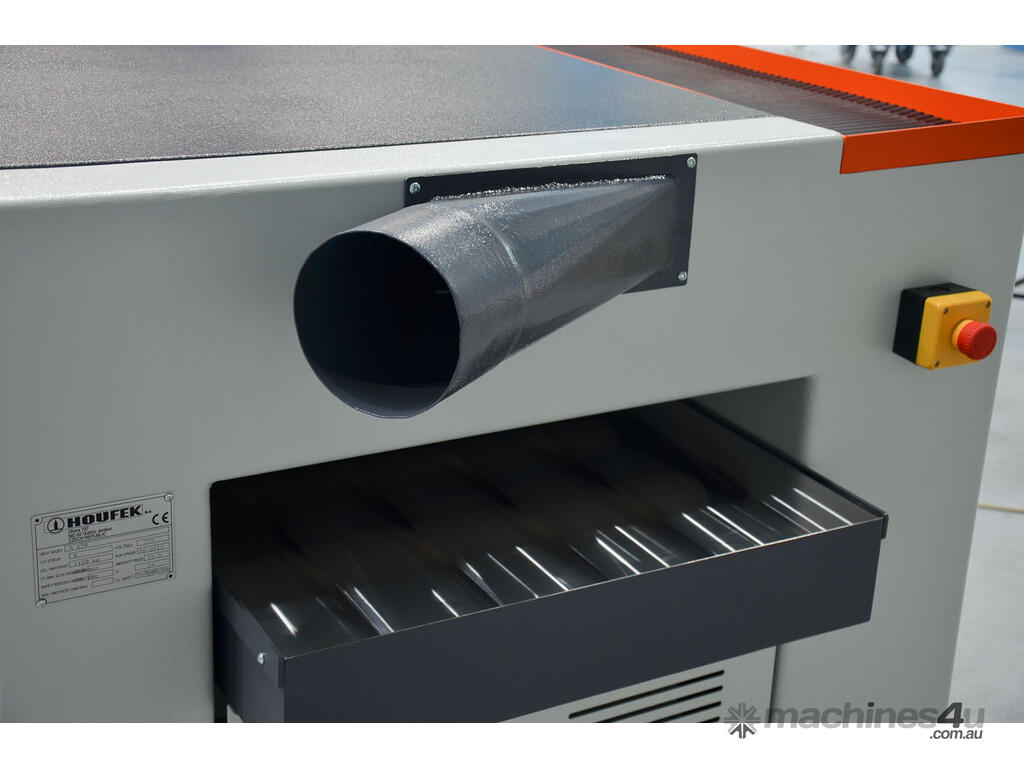

- Exhaust outlet Ø 150 mm,
- Knife setting device with indicator.
- Noise reduction features
- Voltage 400V/50Hz
- Packing PE foil
- CE certification

This machine is perfect for both Australia hard woods and also soft pines.

For full machine specifications please contact Reliance Machinery Pty Ltd.

Visit our showroom in Sunshine to see the range. We deliver throughout Australia.

ABOUT HOUFEK
Based outside of Prague, Czech Republic, Houfek is renowned globally for their range of sanders, planers, spindles and mortisers. They are recognised for their technical precision, reliability, simple operation, and great workshop processing. Exporting across the globe, Houfek uses quality European components and manufacturing processes to meet the strictest of European safety and quality standards to deliver an extremely high-quality product that competes with the best worldwide.
