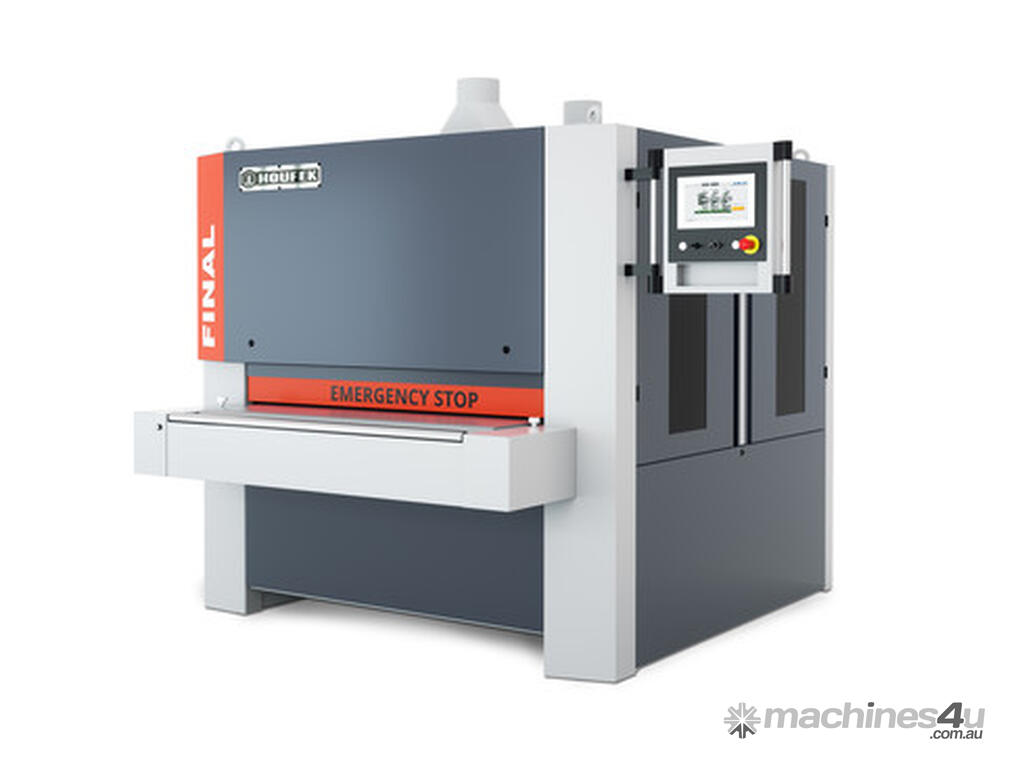

Houfek Final Brush Sander

The Final Brush Sander is the definition of reliability. Designed for the sanding preparation of raw and undercoated material ready for final coating, this machine is like having a team of skilled sanders at the ready.

The Final will sand your material consistently and quickly, removing the vast majority of manual input. This machine will free up your time and significantly save you on labour delivering predictable results each time.

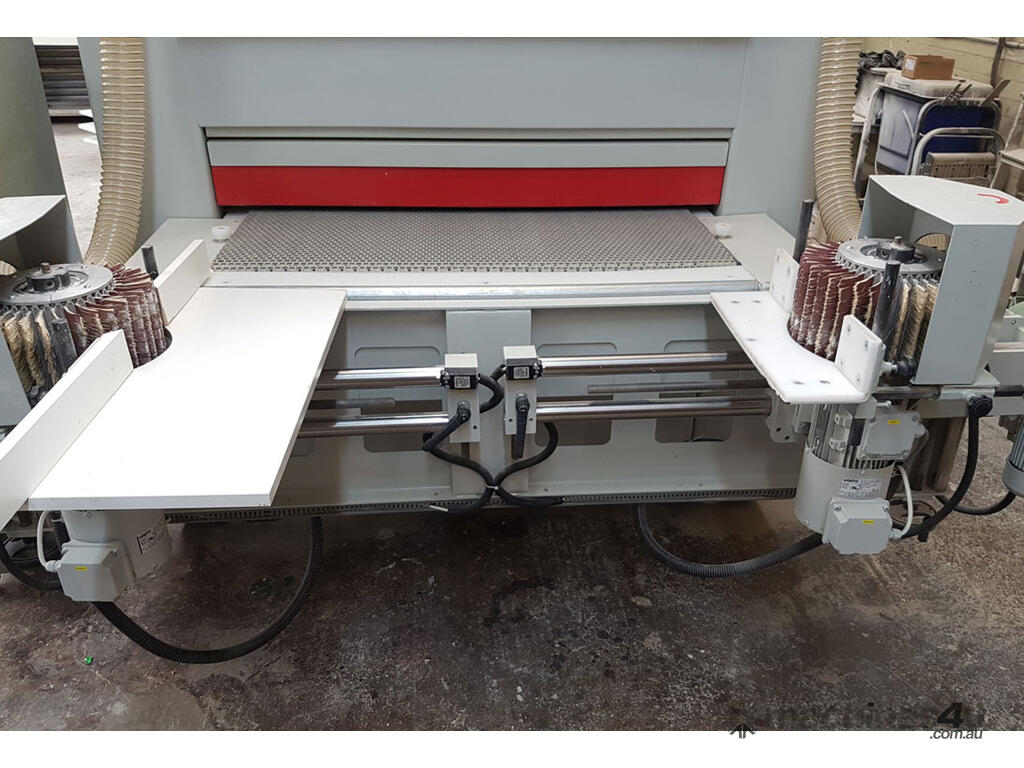

The Houfek Final uses a combination of rotating drums and discs which also oscillate to mimic hand sanding cutting down hand sanding.

This machine can be used on flat panels, shaker doors and moldings.

Inclusions-
Fixed table h=900 mm
Height adjustable work units

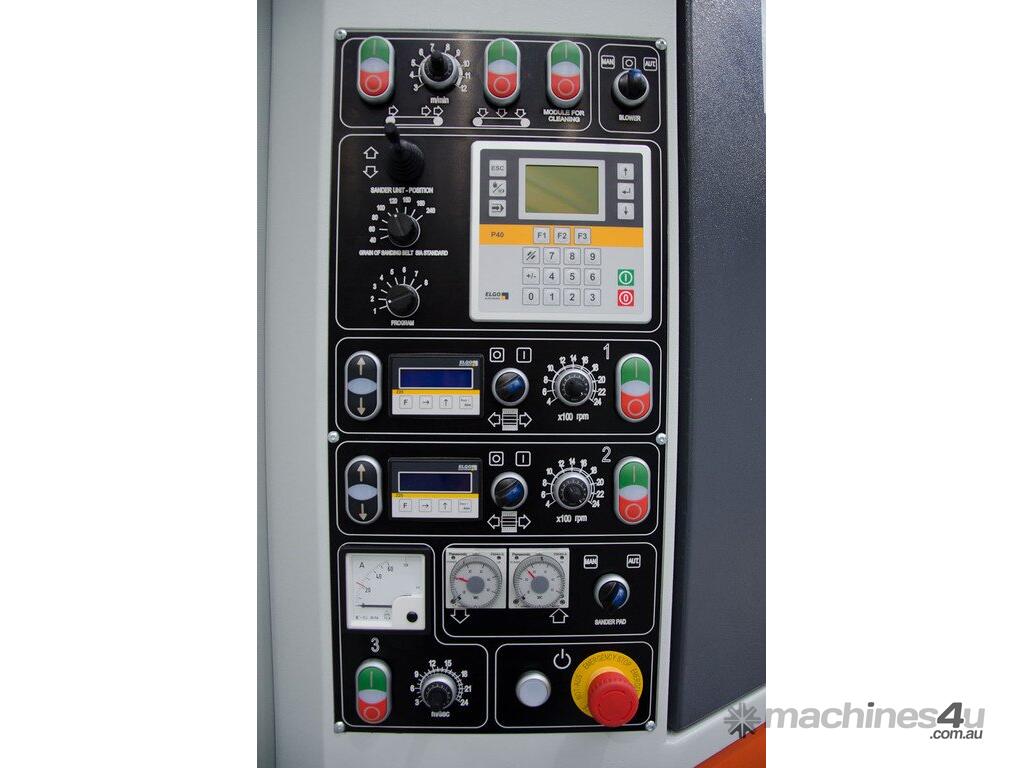

NC machine control color Touchscreen 10.1? B & R – automatic movement of the table to the specified position – control of the working positions of individual aggregates – the possibility of saving different configurations of machine settings in 40 programs – display of the load on the main motors – counter of operating hours of individual aggregates – error messages with graphic by display – the possibility of adding remote diagnostics of the VPN machine – language localization

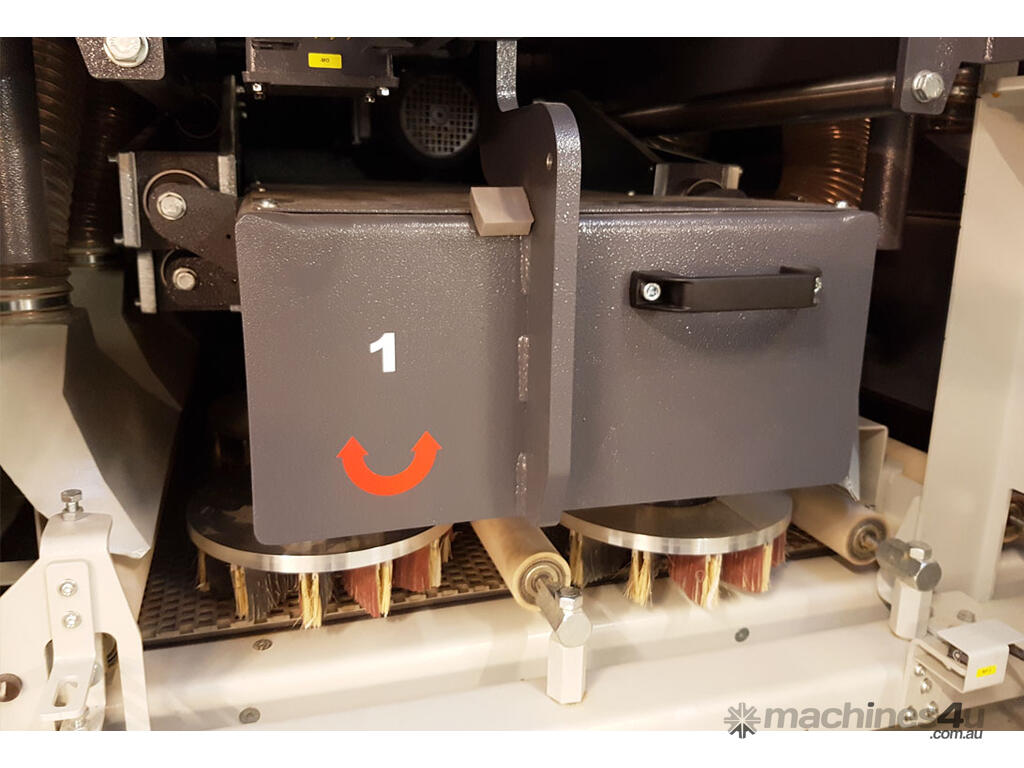

Pull-out unit D – disc rotation unit located in 2 rows with oscillation (only for DB, DBB, DDBB version)
Disc diameter 250 mm, width 1350 mm – 11 discs (only for DB, DBB, DDBB version)
24 grooves on the disc – 12 pairs each , groove length 70 mm (only for DB, DBB, DDBB version)
Smooth regulation of the rotation speed of the discs – range 50 – 300 rpm. (only for DB, DBB, DDBB version)
Manual adjustment of the oscillation range – range 20, 40, 60, 80, 100 mm (only for DB, DBB, DDBB version)
Disk drive oscillation frequency converter 20-60 rpm. (only for DB, DBB, DDBB version)
Brush height 20-100 mm with workpiece thickness 100 mm (only for DB, DBB, DDBB version)
Reverse operation of disk drive D (only for version DB, DBB, DDBB)

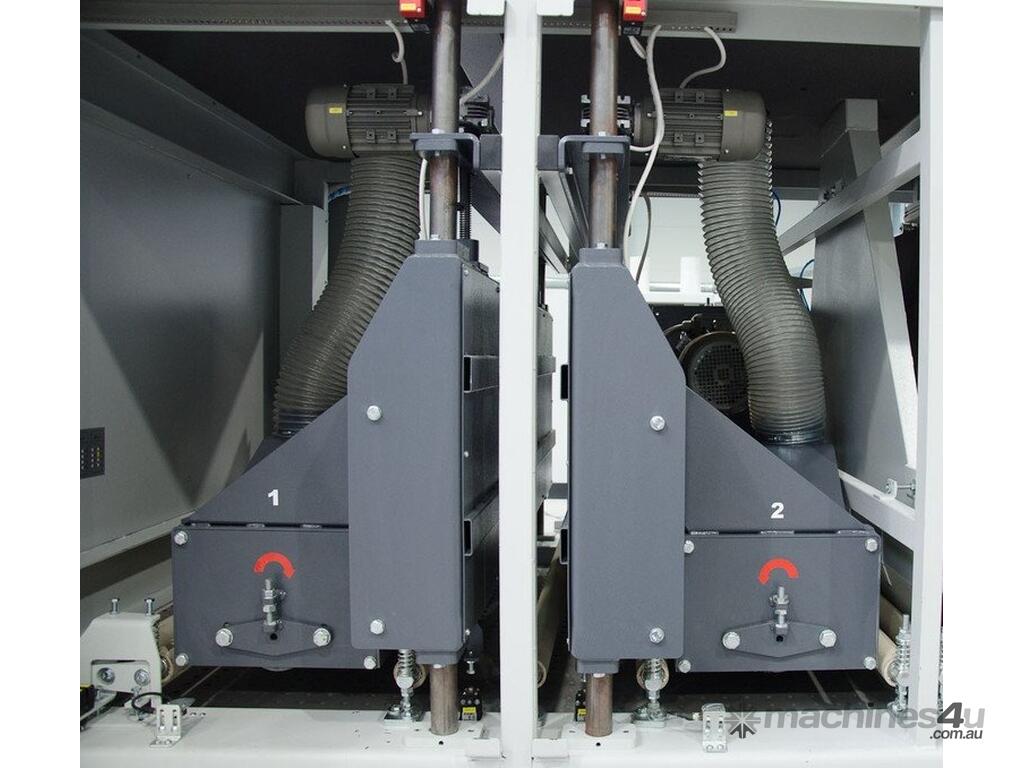

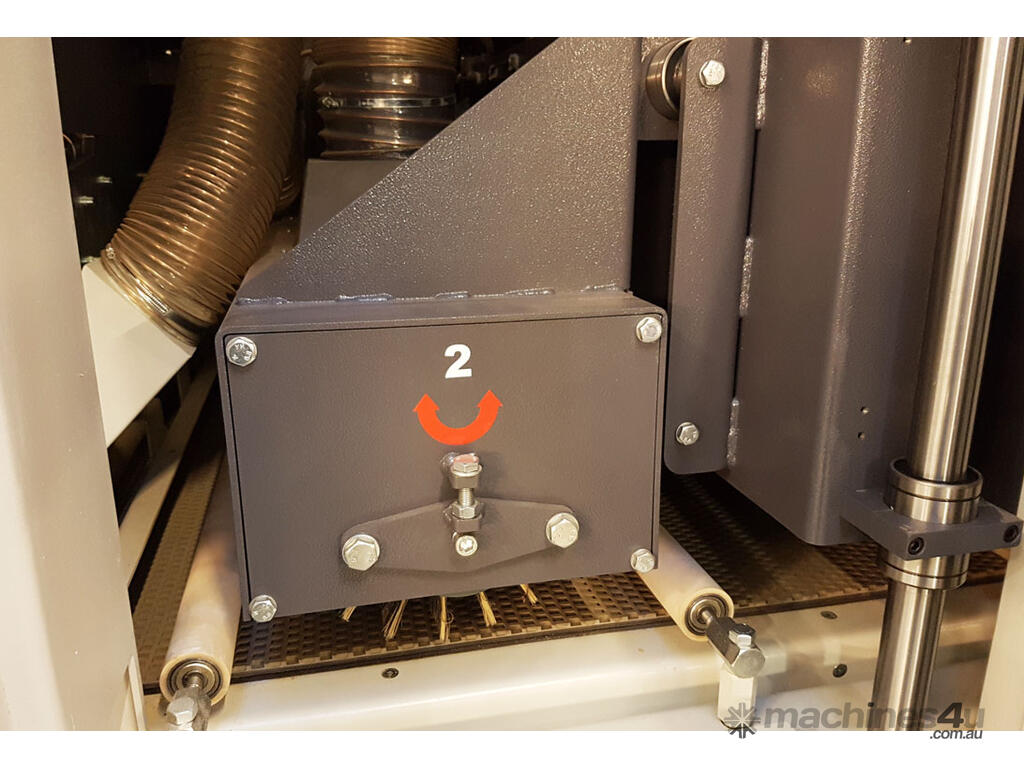

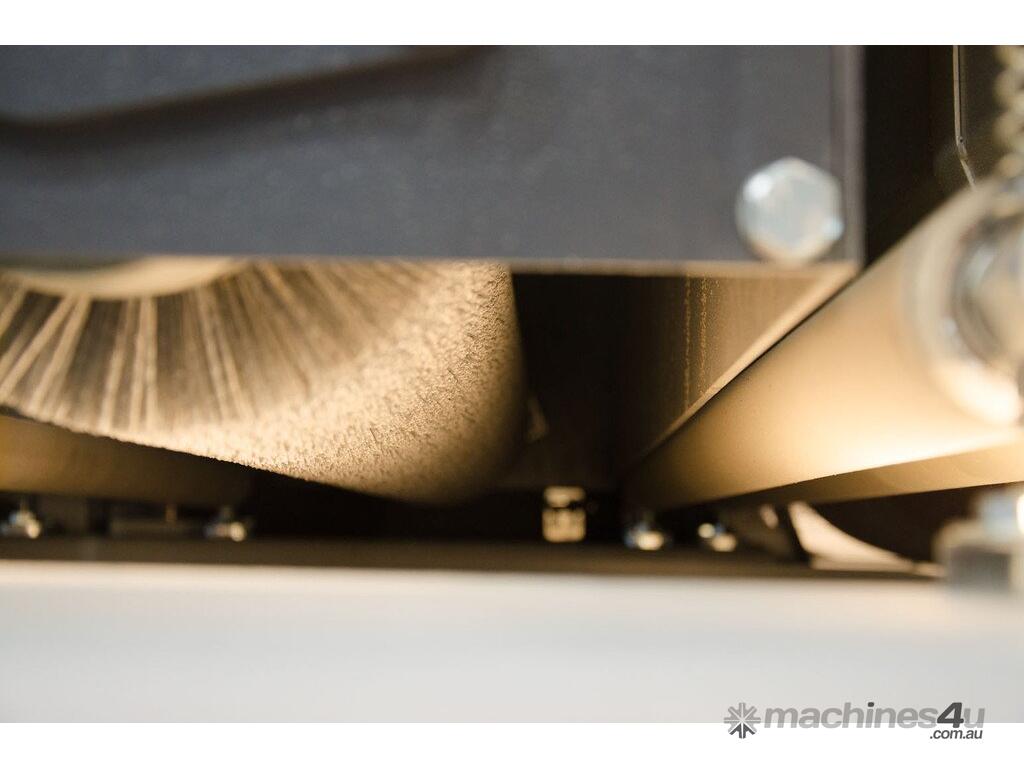

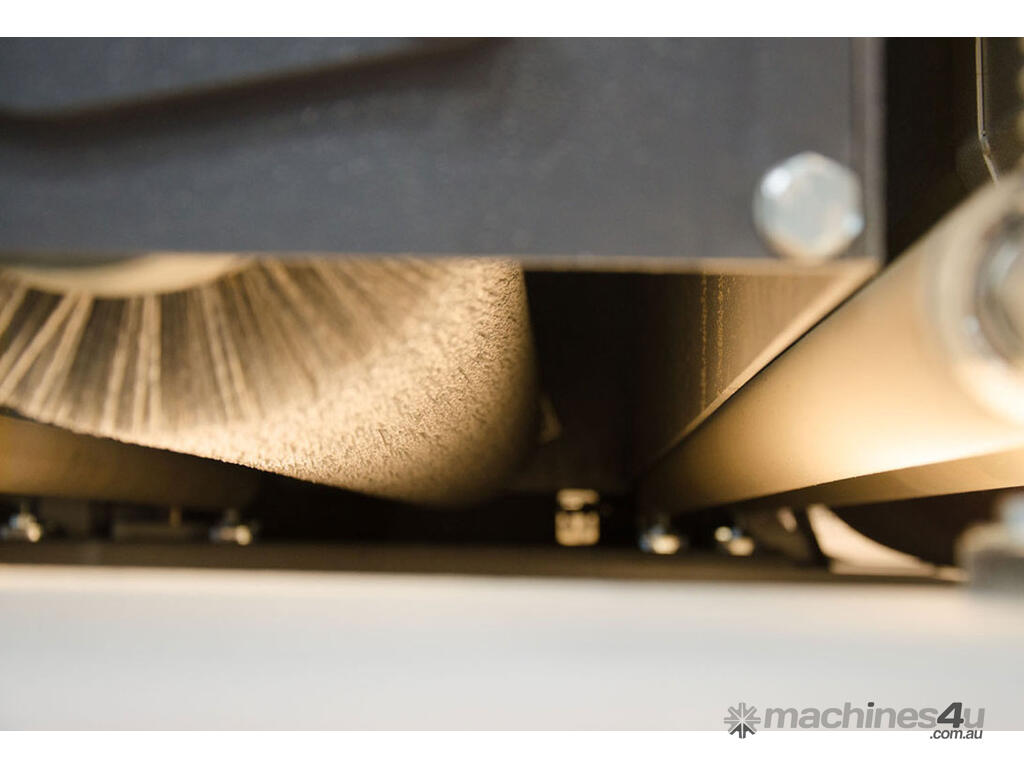

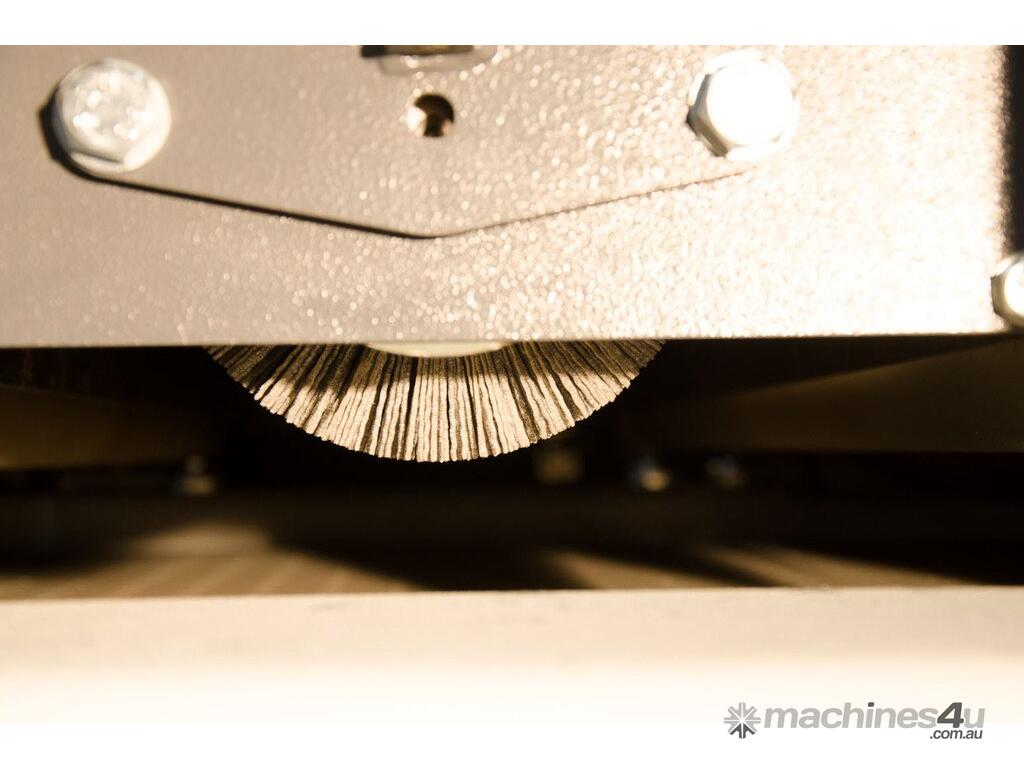

Units B – cylindrical brushing units with oscillation
Shaft speed of unit B 1000 rpm.
Pressure rollers
Motorized lift of the grinding unit – workpiece height 3-100 mm
Automatic star/delta switching

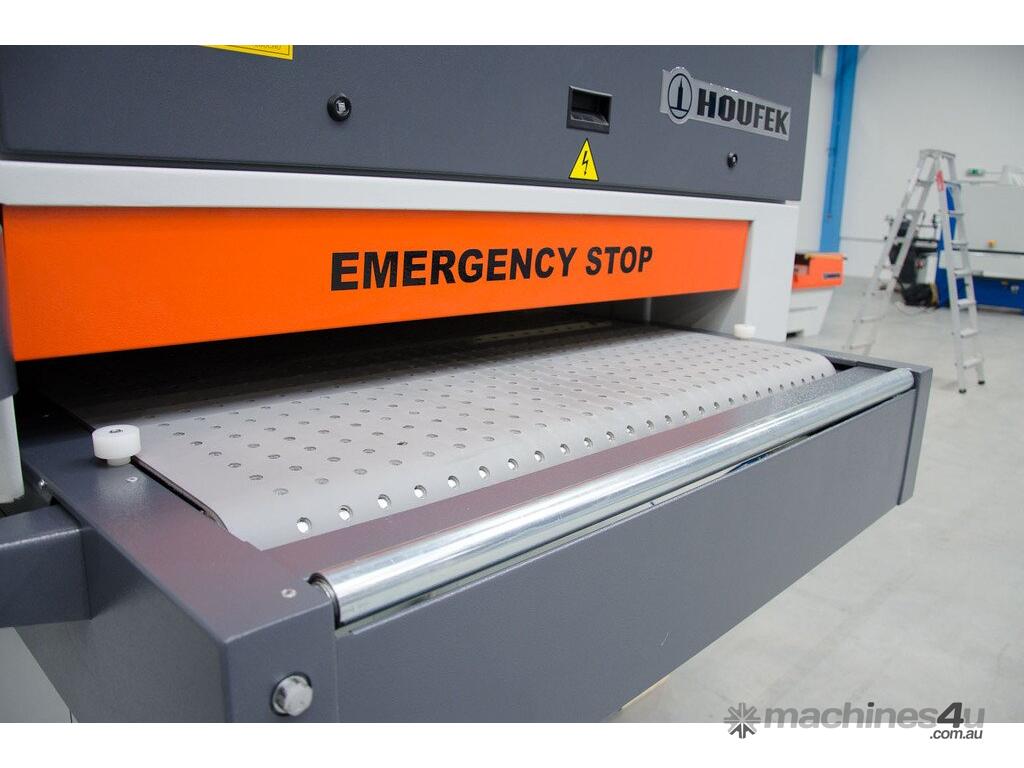

Frequency converter of the speed of the feeding belt 3-15 m/min
Automatic centering of the feed belt
Digital measurement of brush position
Optoelectronic brush calibration sensor
Glass side door
Cylindrical brush shaft diameter 60 mm
Min./max. diameter of the cylindrical brush 150-300 mm
Voltage 400V/50Hz
The machine is manufactured in accordance with CE standards

Review the brochure for the HUGE range of optional extras.

Available in many configurations and can be delivered Australia wide.

ABOUT HOUFEK
Based outside of Prague, Czech Republic, Houfek is renowned globally for their range of sanders, planers, spindles and mortisers. They are recognised for their technical precision, reliability, simple operation, and great workshop processing. Exporting across the globe, Houfek uses quality European components and manufacturing processes to meet the strictest of European safety and quality standards to deliver an extremely high-quality product that competes with the best worldwide.
