Hs Rollers For Pressure PE Pipe (50-1000mm)

ROLLER HS, this device is essential for supporting the pipes while they are being welded with the butt fusion machines. The rollers minimise pipe friction and drag force no matter which is the construction site condition.
Special design for ALL TERRAIN and TRAILER LINE.

- HS ROLLER 250 which can sustain pipes up to Ø 250 mm 8" IPS

- HS ROLLER 355 with a working range up to Ø 355 mm 14” IPS

- HS ROLLER 630 with a working range up to Ø 630 mm 24” DIPS

- HS ROLLER 1000 with a working range up to Ø 1000 mm 36” DIPS- HS ROLLER 250 which can sustain pipes up to Ø 250 mm 8" IPS


HS ROLLER 250




Working range

max Ø 250 mm 8" IPS


Dimensions
1150 x 500 x 756 mm


Weight
26 Kg


Weight capacity
500 Kg




HS ROLLER 355



Working range
max Ø 355 mm 14" IPS


Dimensions
1421 x 600 x 818 mm


Weight
33 Kg


Weight capacity
1000 Kg

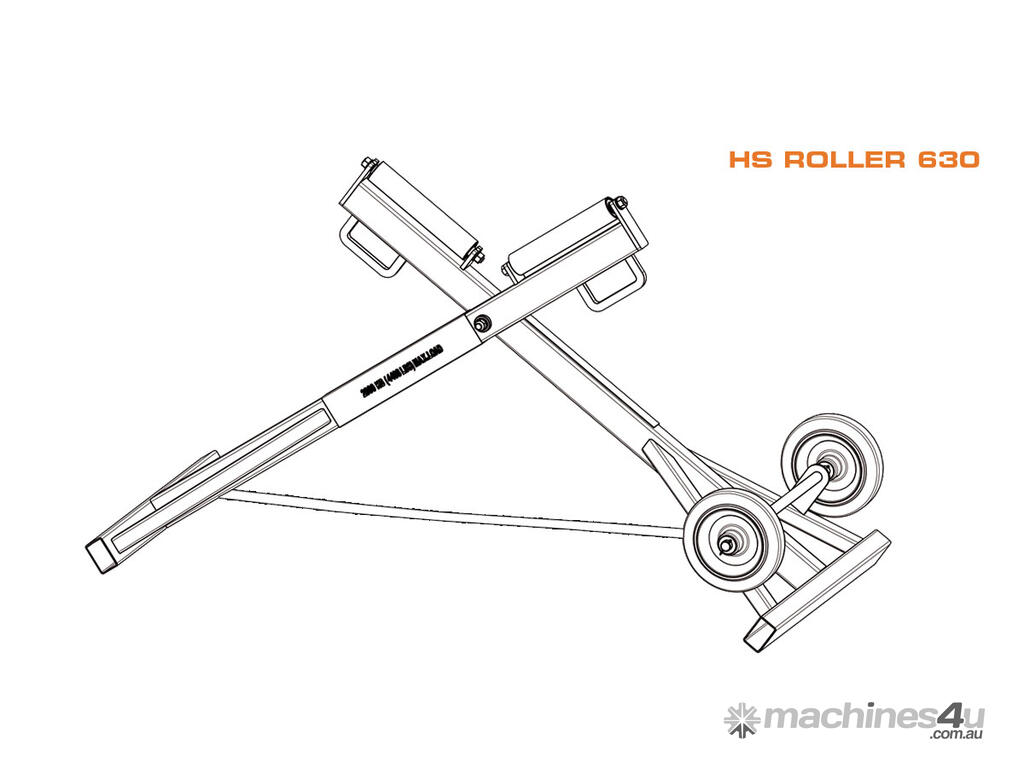

HS ROLLER 630



Working range
max Ø 630 mm 24" DIPS


Dimensions
1766 x 800 x 982 mm


Weight
55 Kg


Weight capacity
2000 Kg






HS ROLLER 1000



Working range
max Ø 1000 mm

36" DIPS


Weight
140 Kg


Weight capacity
3000 Kg
