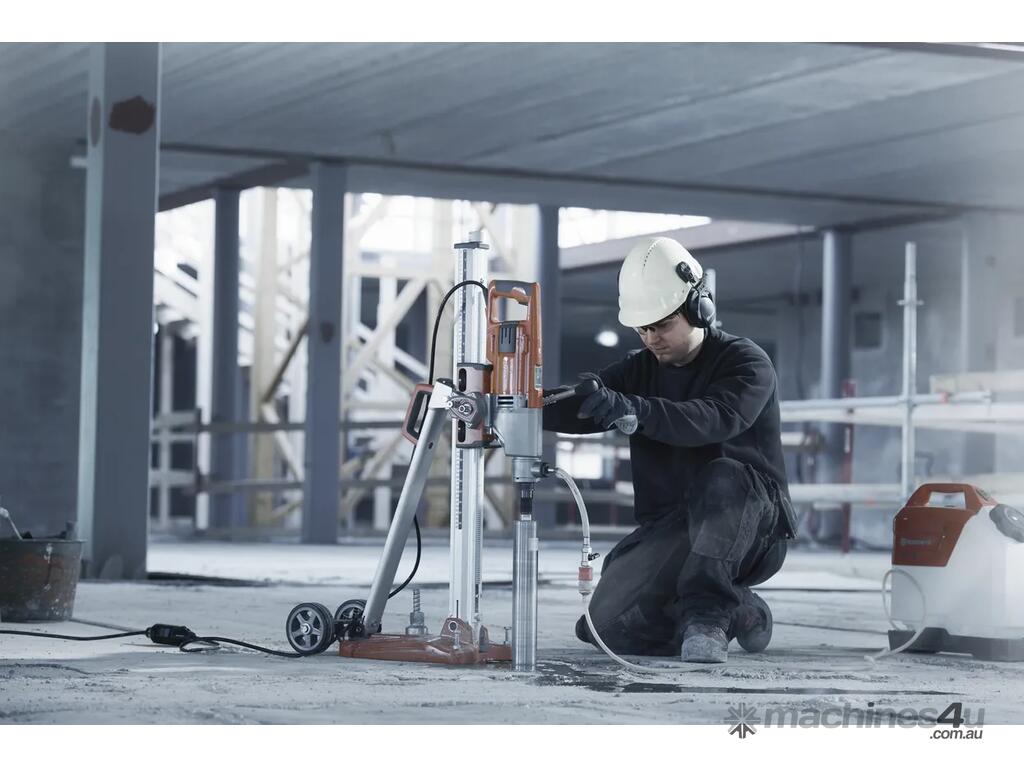

DS 250 is a mid-sized drill stand. This lightweight stand made of aluminium has a combined base plate to enable both anchoring and vacuum. An ideal choice for core drilling applications up to 250 mm diameter. Suitable for stitch and angle drilling for ventilation and plumbing.
Drill bit diameter, max 250 mm
Travel length, max 685 mm
FEATURES
-> Straight and accurate drilling: The carriage has guide rollers which helps drill straight holes.

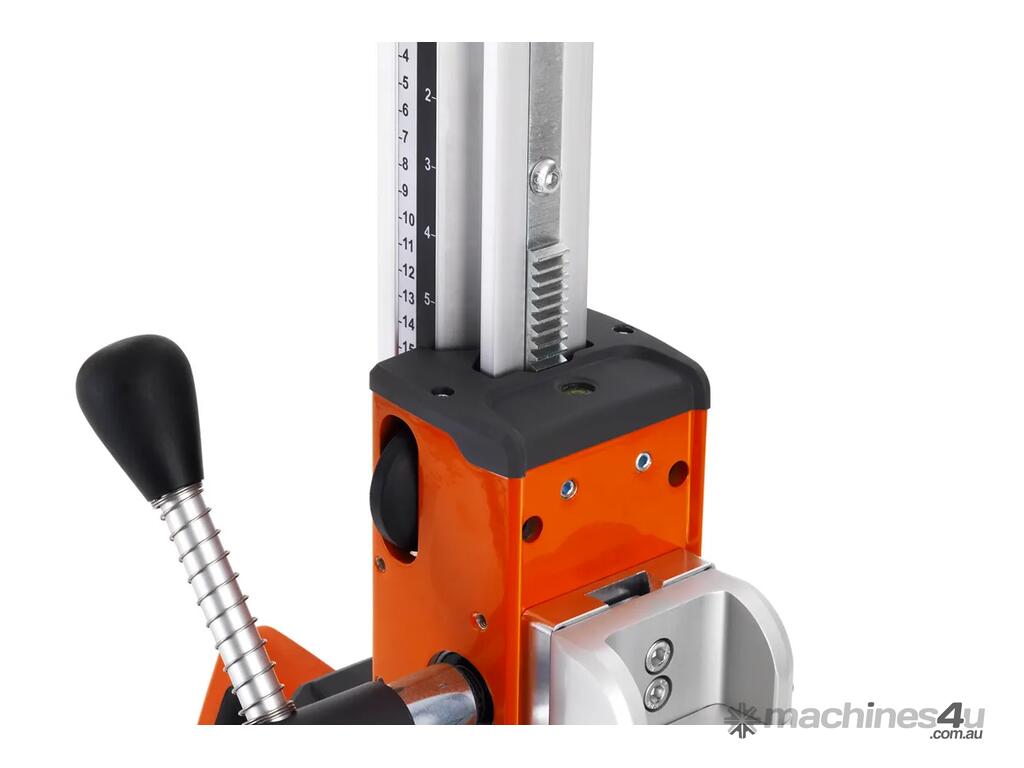

-> Optimum cranking speed: Carriage with single and double gearing for efficient drilling.
-> Angle drilling: The unit can be set for drilling at different angles.
-> Vertical drilling: Drilling upwards and downwards.
Specifications
Drilling equipment
Drill bit diameter, max 250 mm
Drill bit length with recommended drill motor, max 584/700 mm
Travel length, max 685 mm
Dimensions (L x W x H): 409 x 266 1045 mm
Weight 16 kg
Column's angling 0-60º
