Hwacheon Lathe HL 580

The Hwacheon lathe is distinguished from its counterparts for the pure reason that it is a conventional lathe, that is built using high precision technology in mind. This makes the Hwacheon CNC lathe, one of the best lathes in the market. If you require a Hwacheon lathe, then reach out to us today, and we’ll help you find the right lathe for your requirements.

High Quality Precision Universal Lathe

High Precision Conventional Lathe

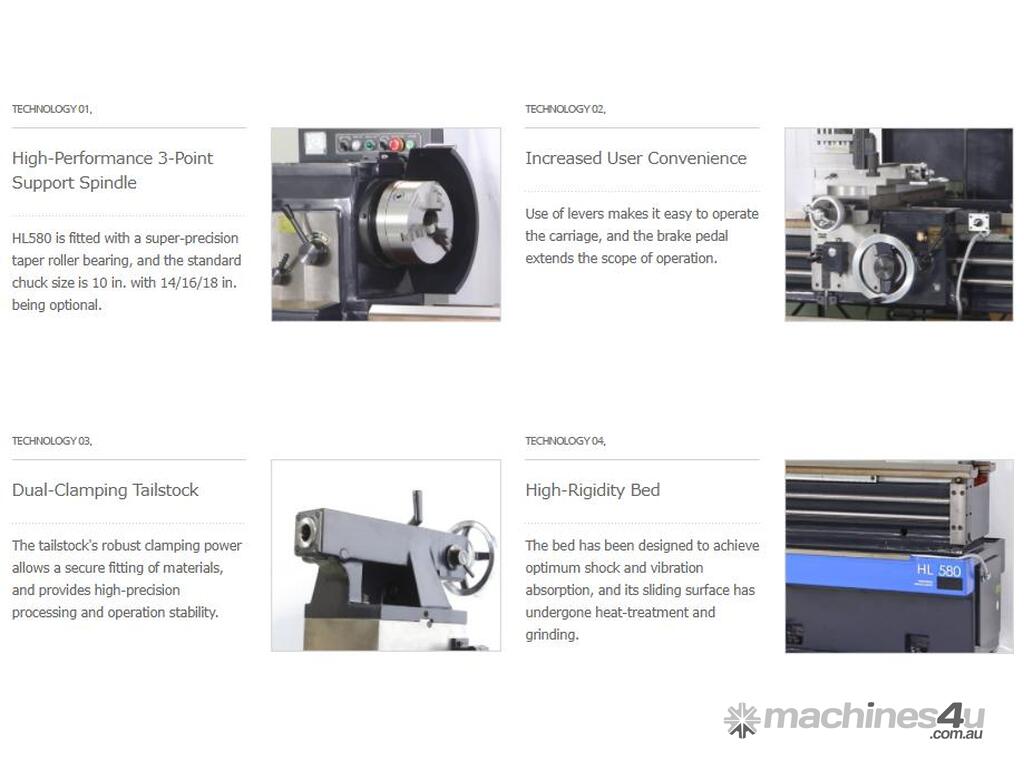

HL 580 is equipped with a jog switch on the head stock. heavy duty spindle bearing, and the wide guiding surface – prefect for any application where it the key.

ITEM
Unit
HL 580
Swing Over Bed
mm
Ø580
Distance Between Centers
mm
1,500/2,000
Swing Over Cross Slide
mm
Ø360
Type of Spindle Nose
KS
A1-8" or D1-8"
Spindle Speed
rpm
1,350
Spindle Taper of Center
M. T
No.5
Taper of Spindle Bore
M. T
No.7
Through Spindle Hole Diameter
mm
Ø77
Quill Taper
M. T
No.5
Spindle Motor
kW
7.5
Electrical Power Supply
kVA
13
