Hydraulic Pan Brake: 2500 x 4mm *AUSTRALIAN MADE*

MADE TO ORDER: DESIGNED & MANUFACTURED IN AUSTRALIA

The EPIC 2500 x 4.0mm Hydraulic Pan Brakes are designed and manufactured in the NSW workshop. EPIC has been manufacturing sheet metal processing equipment for more than 40 years, focusing on providing Australian quality workmanship and meeting Australian standards.

The sturdy construction and proven design will provide accurate bending over the long life of the machine.

HYDRAULIC RAM MOUNTING SYSTEM

EPIC's hydraulic ram mounting system is designed for minimal deflection under recommended loads. The full tonnage delivered by the clamping rams is transferred to the head through the trunnion bearings. The bearings are mounted to the side frames of the machine providing support even at the centre of the machine head and minimise any side movement. When bending at full capacity, this achieves a smaller radius and a nice straight bend or fold.

RAPID HEAD ADJUSTMENT

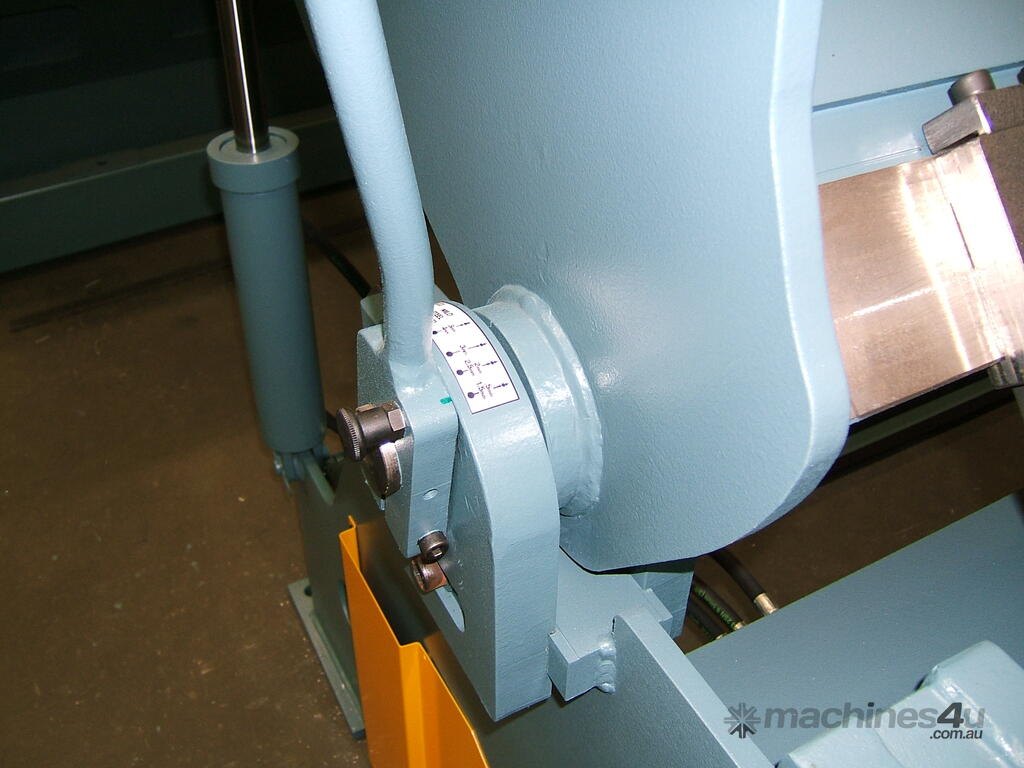

The rapid head adjustment feature allows the operator to quickly and easily change from material as thin as 0.5mm up to the machine's material and thickness capacity. Simply adjust the side handles and indexing pins to the required gauge setting.

CUSTOMISATION

EPIC has technical services Australia-wide. Plus, EPIC offers personal customisation and modification of all machines.

******************************************************************************************************

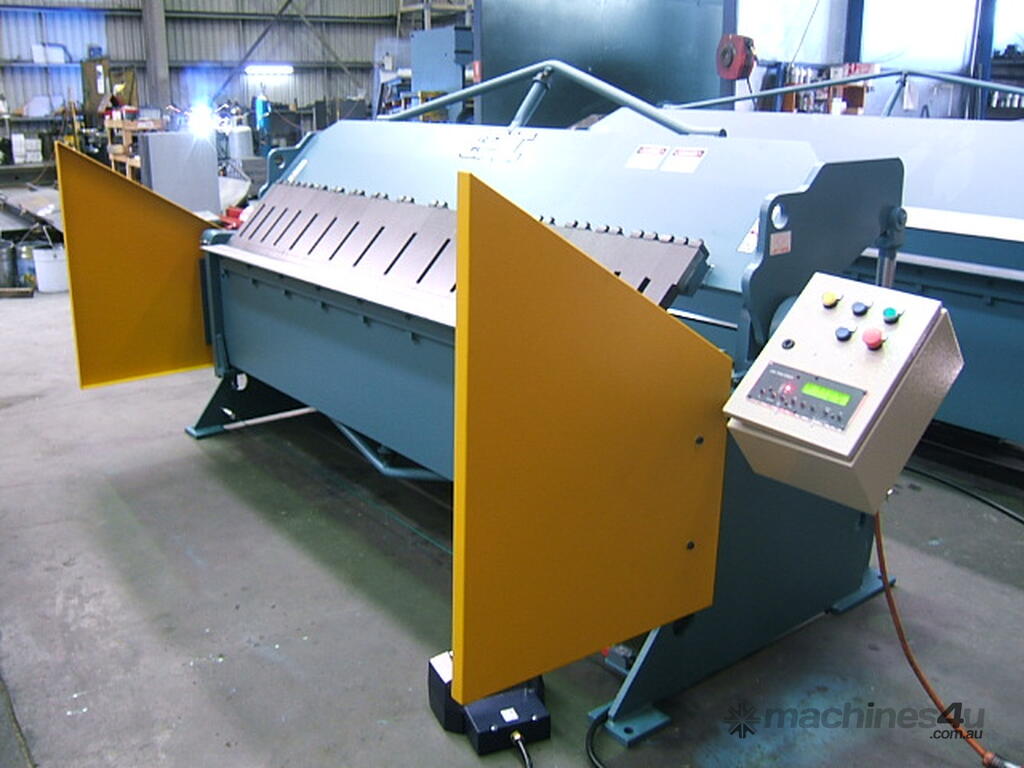

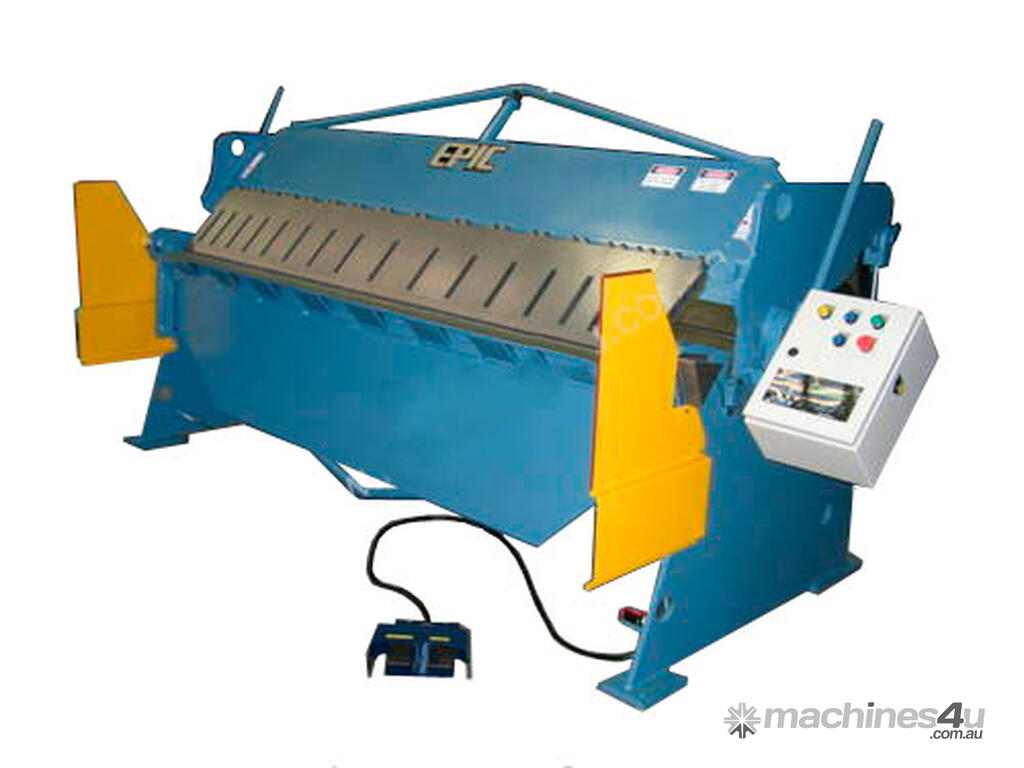

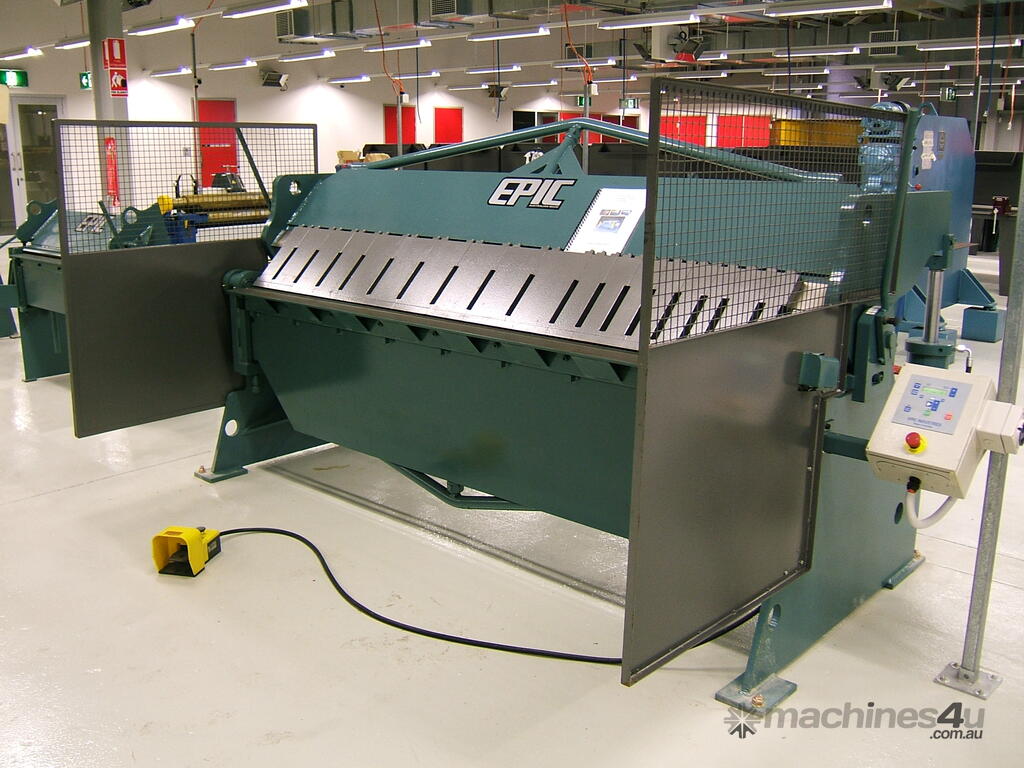

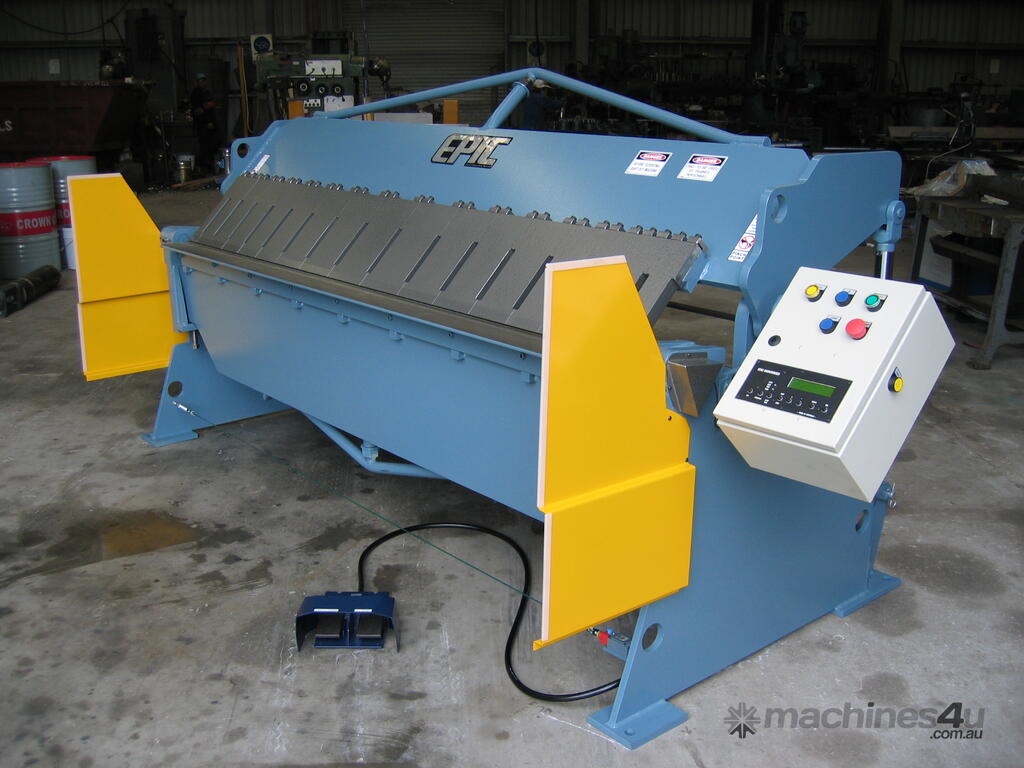

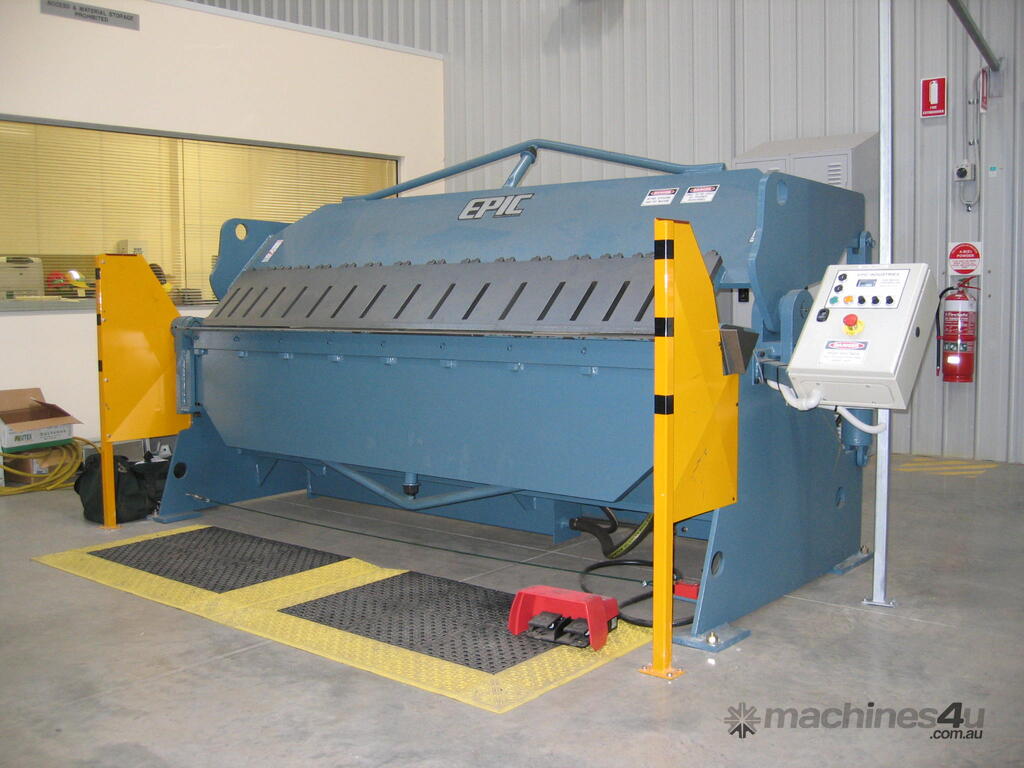

EPIC 2500 x 4.0mm Hydraulic Pan Brake
Model No. 2500HPB4

Machine Capacity:
- 4.0mm mild steel bending capacity
- 2500mm bending length

Standard Features:

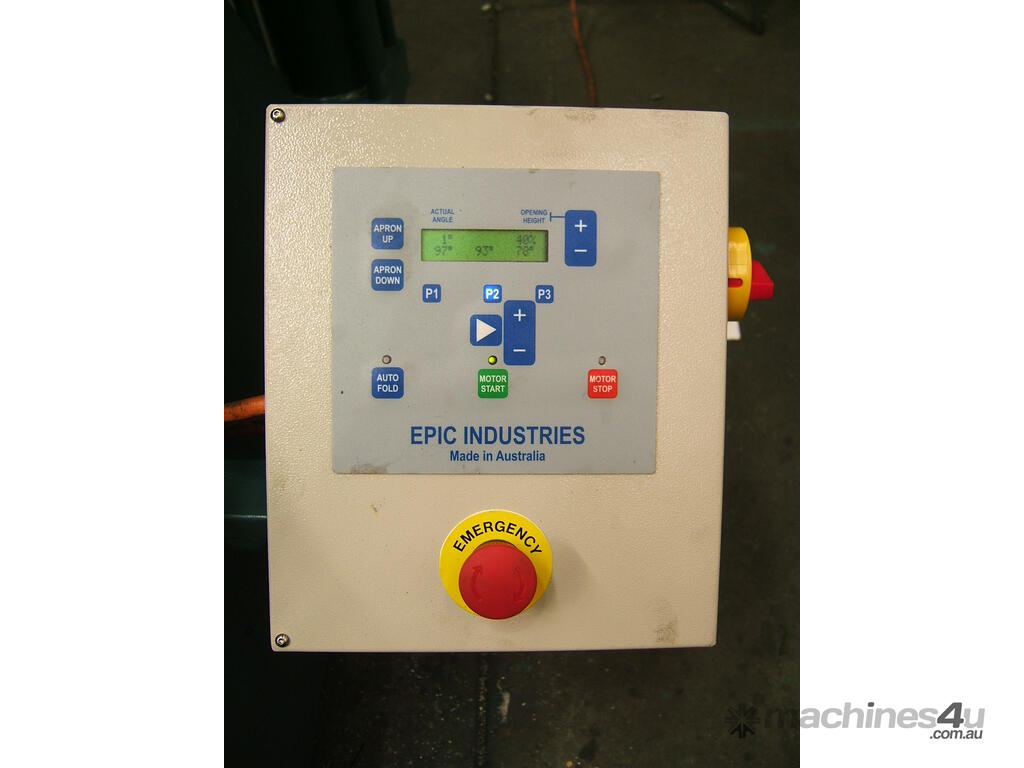

- 3-station electronic control system - Australian-made
- Rapid head adjustment
- Electrics - low 24V foot pedal with limit switches and overload protect
- Controlled unclamp, to allow the operator to regulate the open height

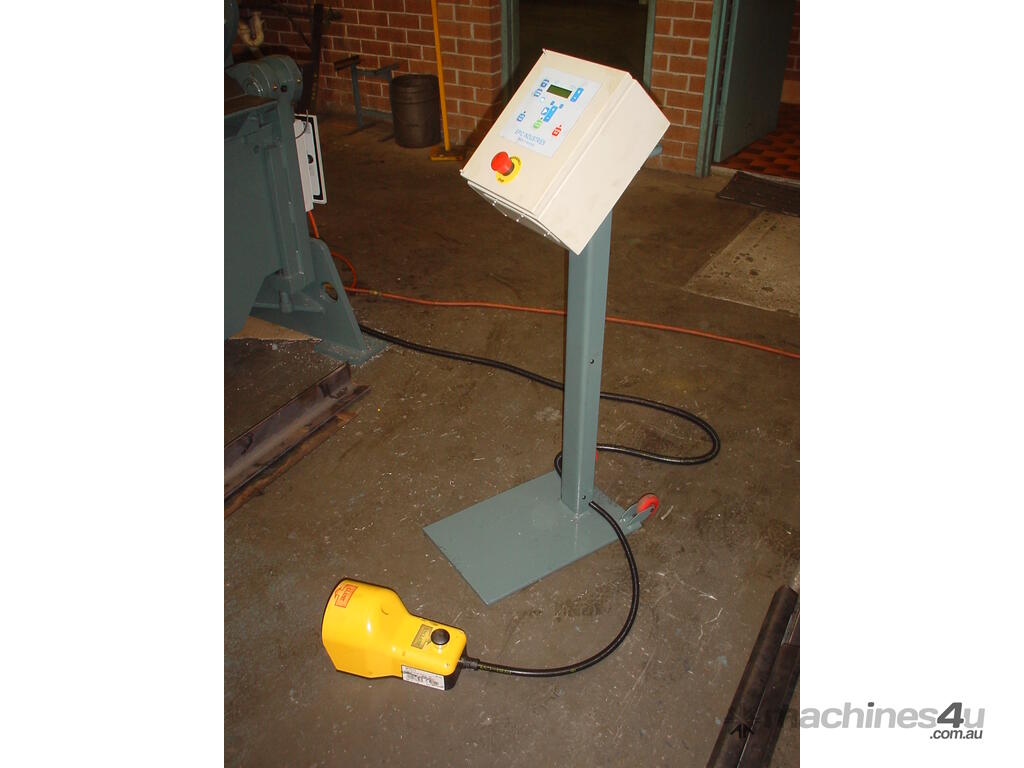

- Clamp and unclamp from one easy-to-operate foot pedal
- High-carbon flame-hardened steel segmented clamping fingers machined from one solid piece high carbon steel, allowing the load to spread over an equal area keeping the fingers straight
- Removable front apron angle support
- High-tensile steel apron blade
- All bearings and wear points come with grease fittings for lubrication

Optional Features:
- 10-station 99-Job electronic control system
- Hydraulic hand-activated valve (Replaces the need for any electrics for a simple to use and affordable machine)
- One-piece clamping blade – commonly used for stainless steel
- Machine paint colours

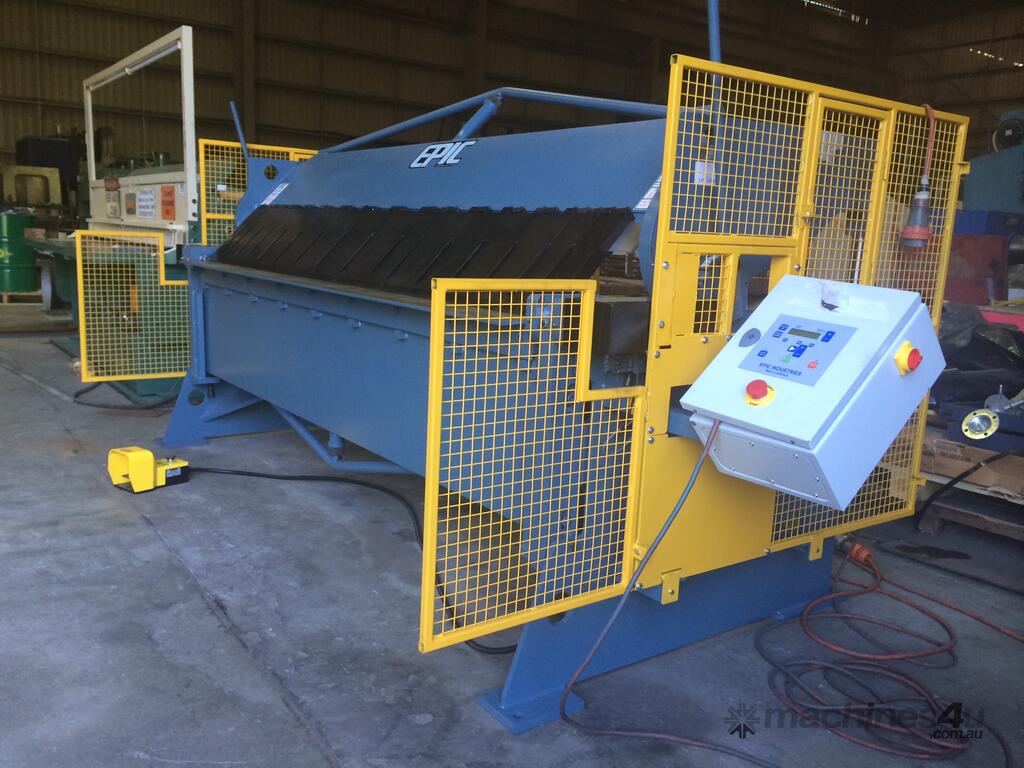

- Extra safety options - suitable for government departments
- Electronic ball screw back gauge, standard 1200mm travel control via 10-station control system to provide a true 2-axis pan brake

The EPIC 4mm Hydraulic Pan Brake range:
- 1250mm x 4.0mm mild steel capacity
- 1860mm x 4.0mm mild steel capacity
- 2500mm x 4.0mm mild steel capacity
- 3070mm x 4.0mm mild steel capacity
- 3710mm x 3.0mm mild steel capacity
- 4020mm x 3.0mm mild steel capacity

Contact us today for more information about our hydraulic pan brakes or any of our EPIC sheet metal machines.
