Hydraulic Straight Blade Folder: 2500 x 4mm - *AUSTRALIAN MADE*

MADE TO ORDER: DESIGNED & MANUFACTURED IN AUSTRALIA

The EPIC 2500 x 4.0mm Hydraulic Straight Blade Folder are designed and manufactured in our NSW workshop. EPIC has been manufacturing sheet metal machinery for more than 40 years, focusing on providing Australian quality workmanship and meeting Australian standards.

With careful construction and proven design, EPIC machines are built for precision and reliability - and they’re made to last. The EPIC 2500 x 4.0mm Hydraulic Straight Blade Folder will provide accurate bending and folding over the life of the machine.

HYDRAULIC RAM MOUNTING SYSTEM

EPIC's hydraulic ram mounting system is designed for minimal deflection under recommended loads. The full tonnage delivered by the clamping rams is transferred to the head through the trunnion bearings. The bearings are mounted to the side frames of the machine providing support even at the centre of the machine head and minimise any side movement. This achieves a smaller radius and a nice straight bend or fold when bending at full capacity.

RAPID HEAD ADJUSTMENT

The rapid head adjustment feature allows the operator to quickly and easily change from material as thin as 0.5mm up to the machine's material and thickness capacity. Simply adjust the side handles and indexing pins to the required gauge setting.

CUSTOMISATION

EPIC has technical services Australia-wide. Plus, EPIC offers personal customisation and modification of all machines.

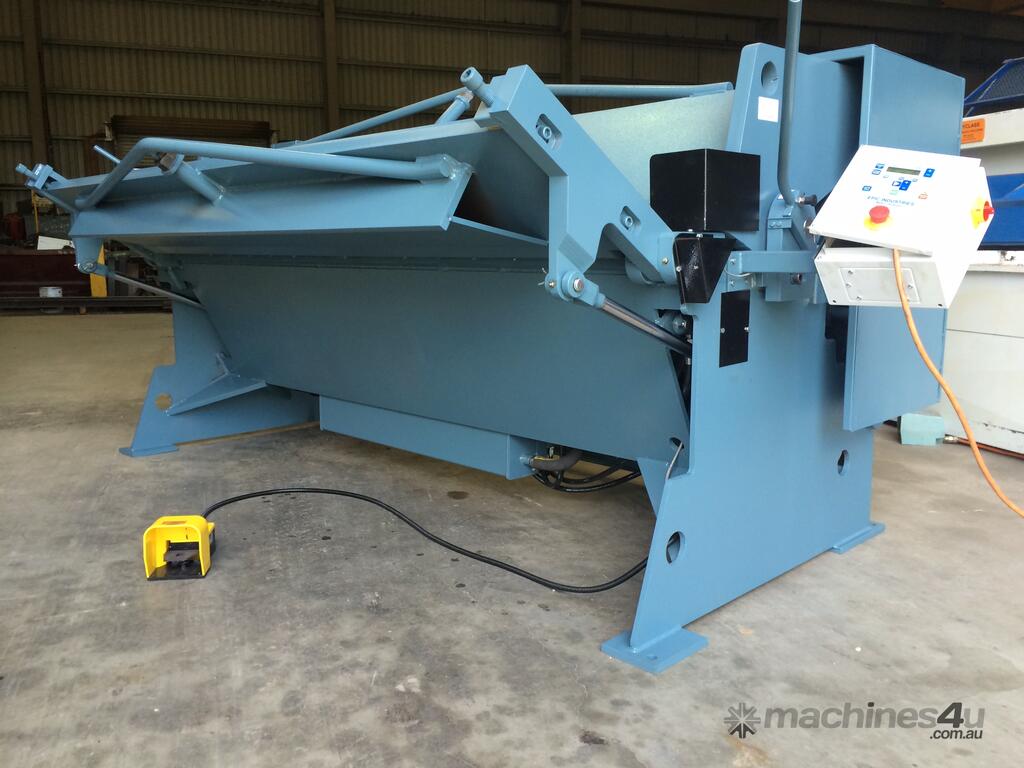

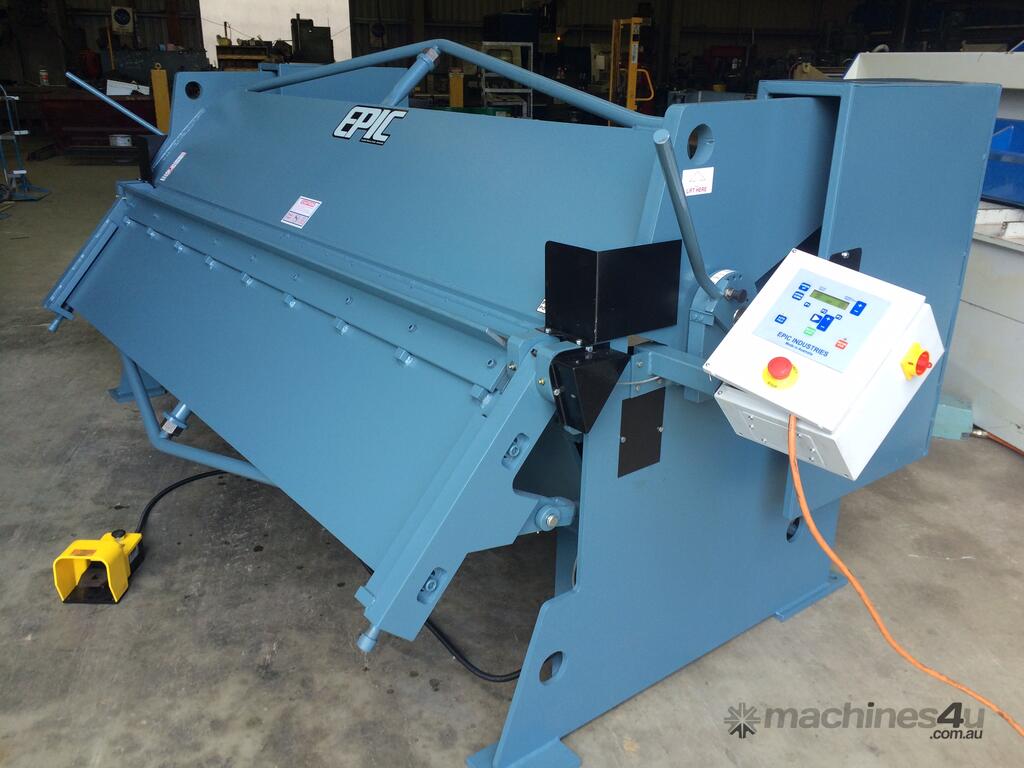

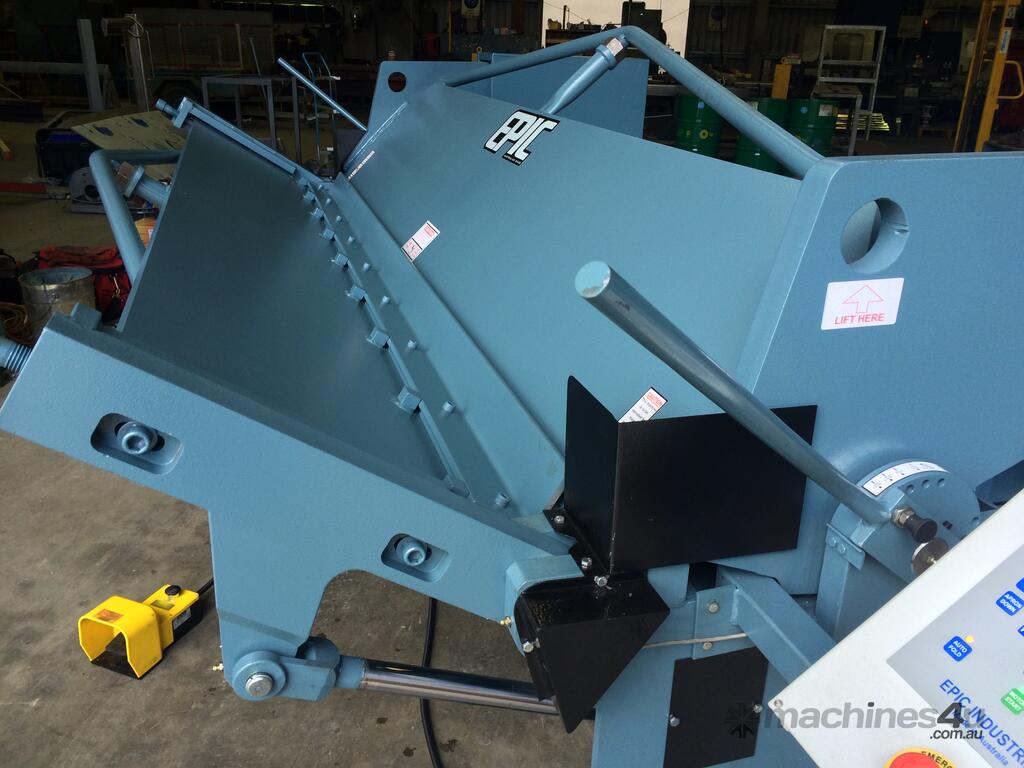

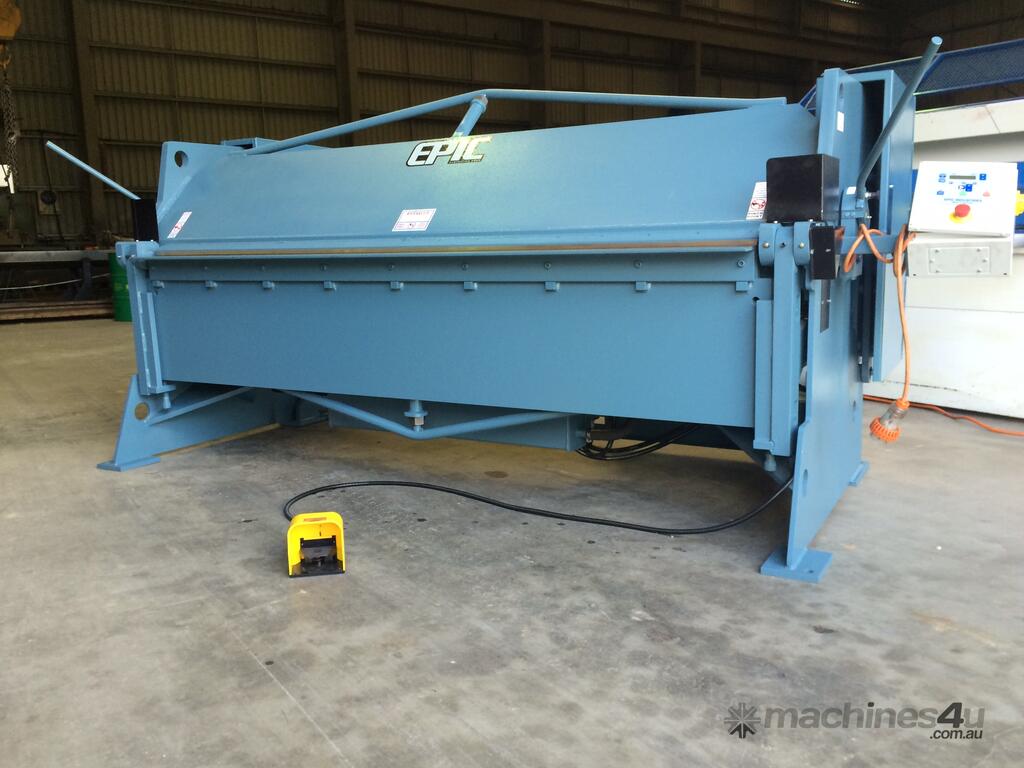

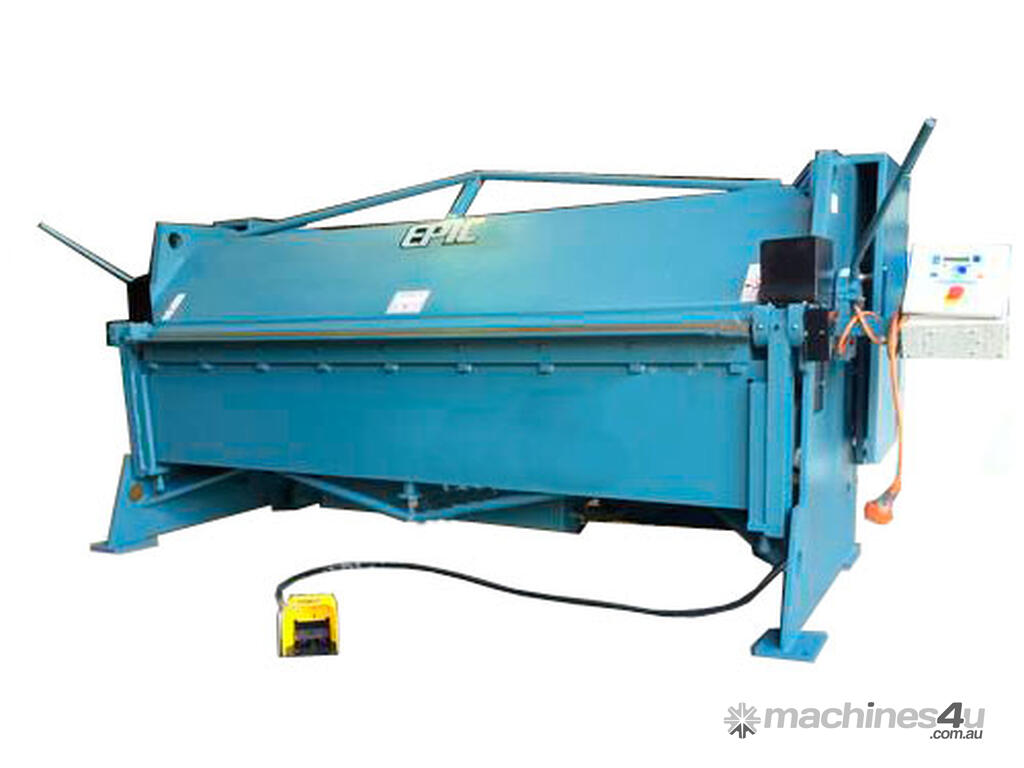

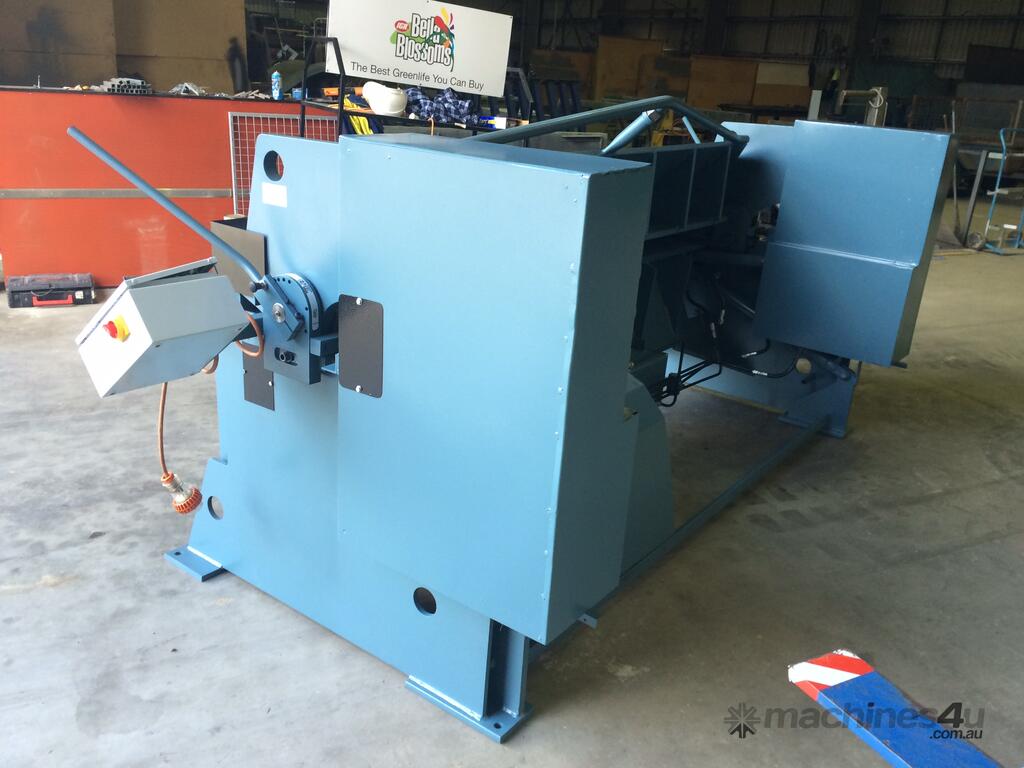

EPIC 2500 x 4.0mm Hydraulic Straight Blade Folder
Model No. 2500HF4

Machine Capacity:
- 4.0mm mild steel bending capacity
- 2500mm bending length

Standard features:
- 3-station electronic control system – Australian-made
- Rapid head adjustment
- Electrics - low 24V foot pedal with limit switches and overload protection
- Controlled unclamp allows the operator to regulate the open height
- Clamp and unclamp from one easy-to-operate foot pedal
- Removable front apron angle support
- High-tensile steel apron blade
- All bearings and wear points come with grease fittings for lubrication

Optional Features:
- 10-station 99 Job electronic control system
- Hydraulic hand-activated valve (Replaces the need for any electrics for a simple to use and affordable machine)
- One-piece clamping finger
- One-piece clamping blade – commonly used for stainless steel applications
- Machine paint colours
- Extra safety options – suitable for government departments

2-AXIS PAN BRAKE

For a true 2-axis pan brake, add an electronic ball screw back gauge with standard 1200mm travel control via 10-station control system.

Contact EPIC to discuss freight and financing, plus any customisation and modifications you require.

The EPIC 4mm Hydraulic Folder range:
- 1250mm x 4.0mm mild steel capacity
- 1860mm x 4.0mm mild steel capacity
- 2500mm x 4.0mm mild steel capacity
- 3070mm x 4.0mm mild steel capacity

Get in touch, to find out more about our hydraulic folders or any of the EPIC sheet metal machinery range.
