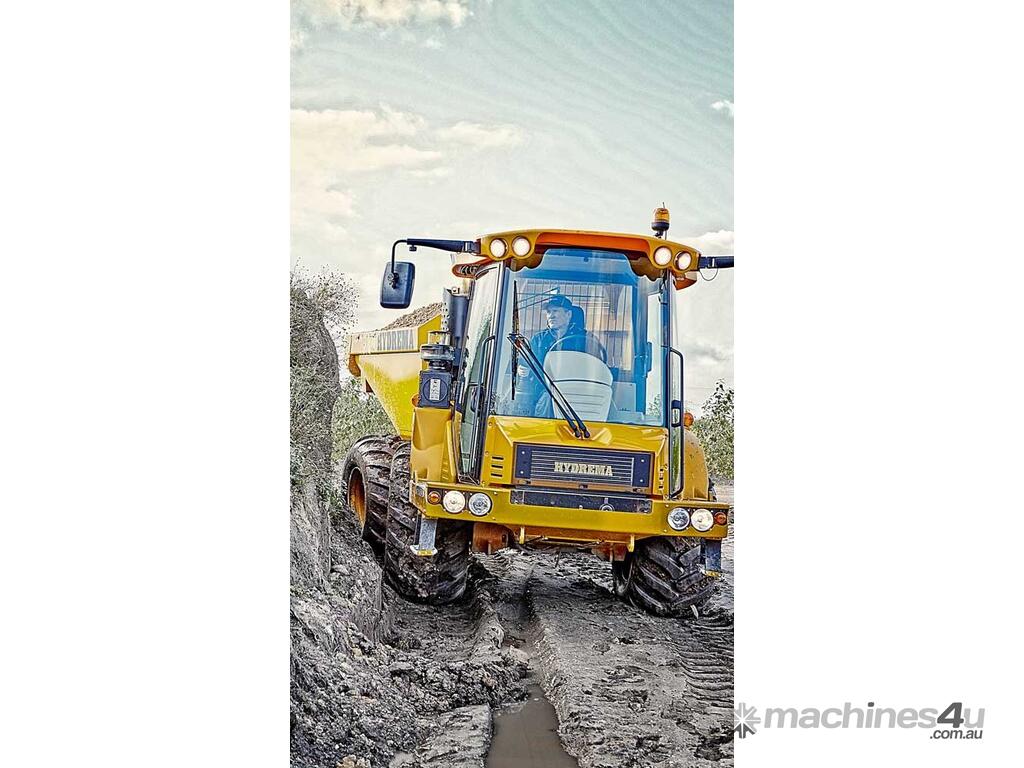

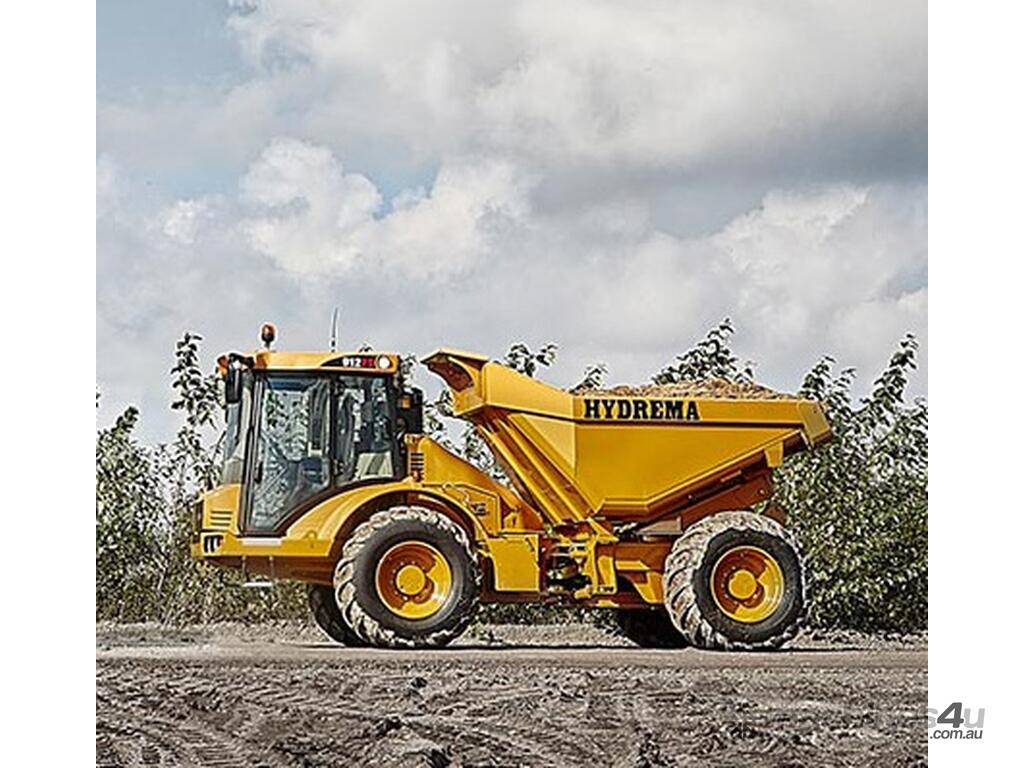

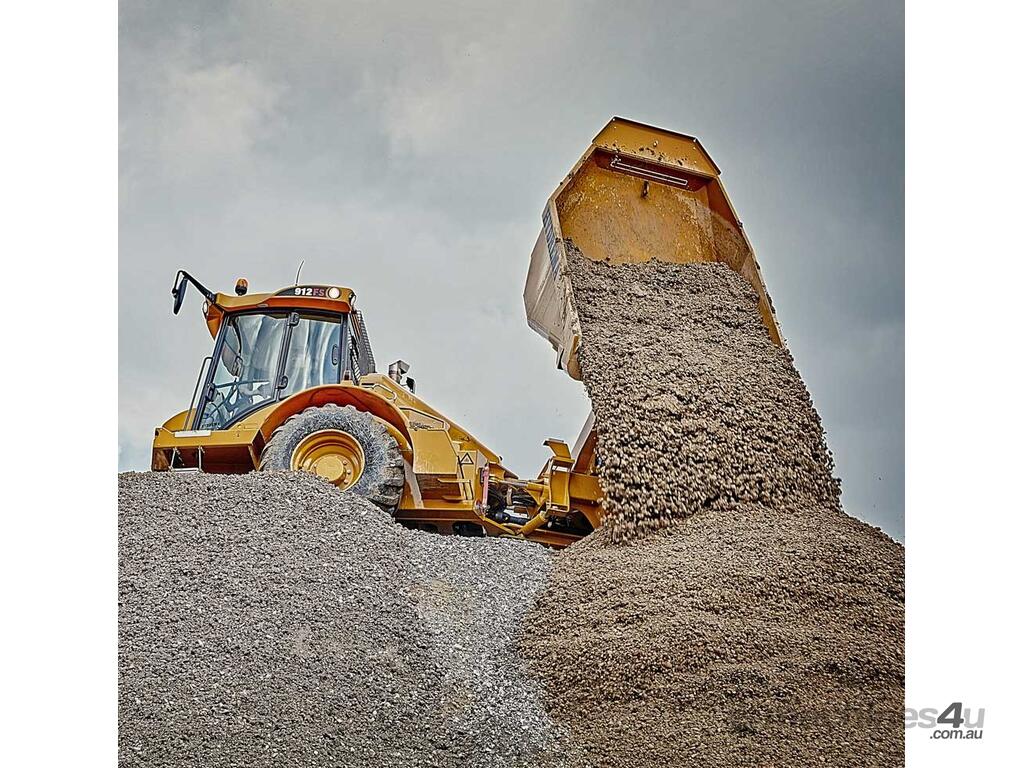

This compact articulated dump truck, with an 8-tonne unladen weight and 10-tonne payload capacity, is perfect for confined spaces and challenging conditions. Its heavy-duty design, 180° rotating body, low ground pressure, and high traction make it ideal for soft ground. The chassis design ensures that front and rear wheels run in the same track for better maneuverability.

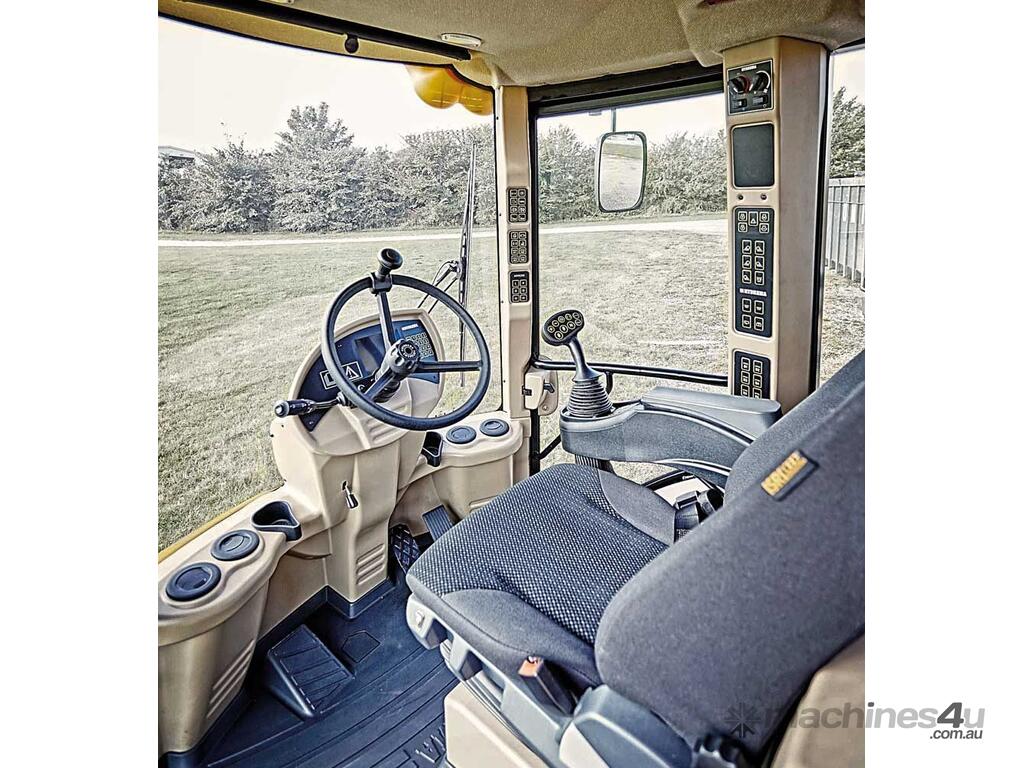

A hydraulic stabilizer system optimizes weight distribution, while the hydro-pneumatic suspension offers excellent stability and comfort. The quiet, ergonomic cab (70 dB(A)) reduces driver fatigue, and multiple chassis configurations provide versatility for various applications.
Key Specifications:
Engine: Four-cylinder, 4.5L capacity
Max Power: 108 kW (147 hp)
Max Torque: 600 Nm
Transmission: 6-speed fully automatic powershift
Speed (Fwd/Rev): 35/28 km/h
Payload Capacity: 10,000 kg
Net Operating Weight: 8,000 kg
Tyres: 600/55-26.5
Ground Pressure (Front Loaded): 124 kPa
Ground Pressure (Rear Loaded): 124 kPa
Body Volume (with/without tailgate): 5.6 m³
Braking System: Hydraulic enclosed oil-cooled multiple discs on all wheels, with a maintenance-free failsafe park brake on the front axle.
ADT offers 20+ years of expertise with top brands like Doosan and Hydrema, delivering reliable, customizable machinery backed by local support. Order now for your solution to success.
