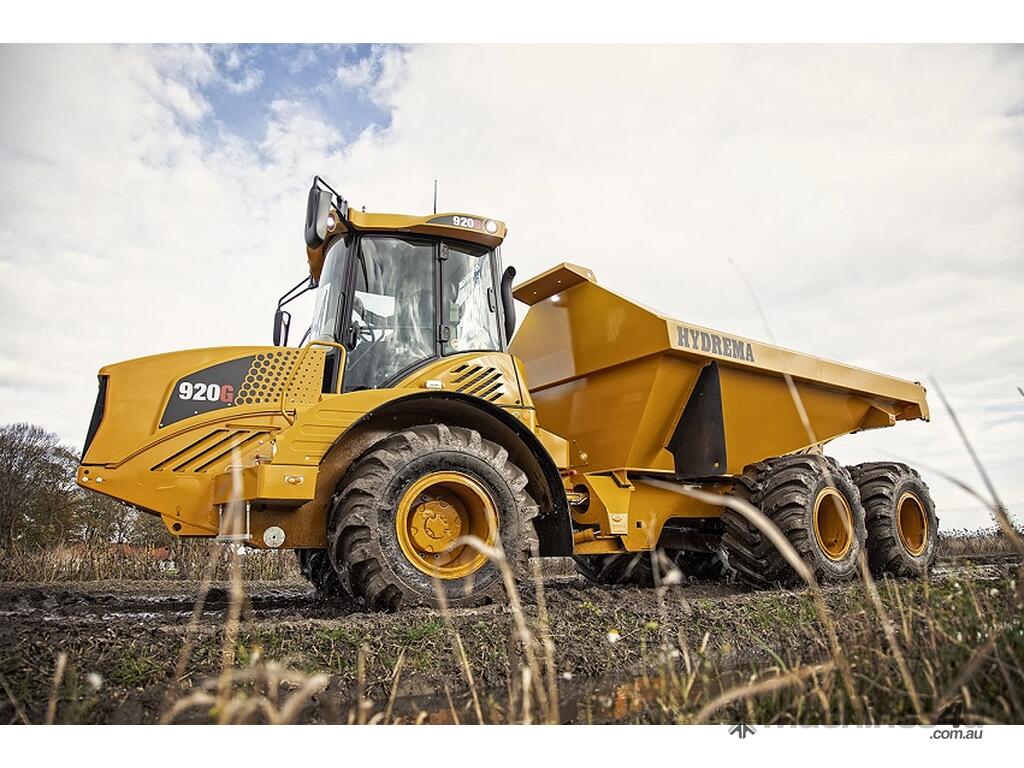

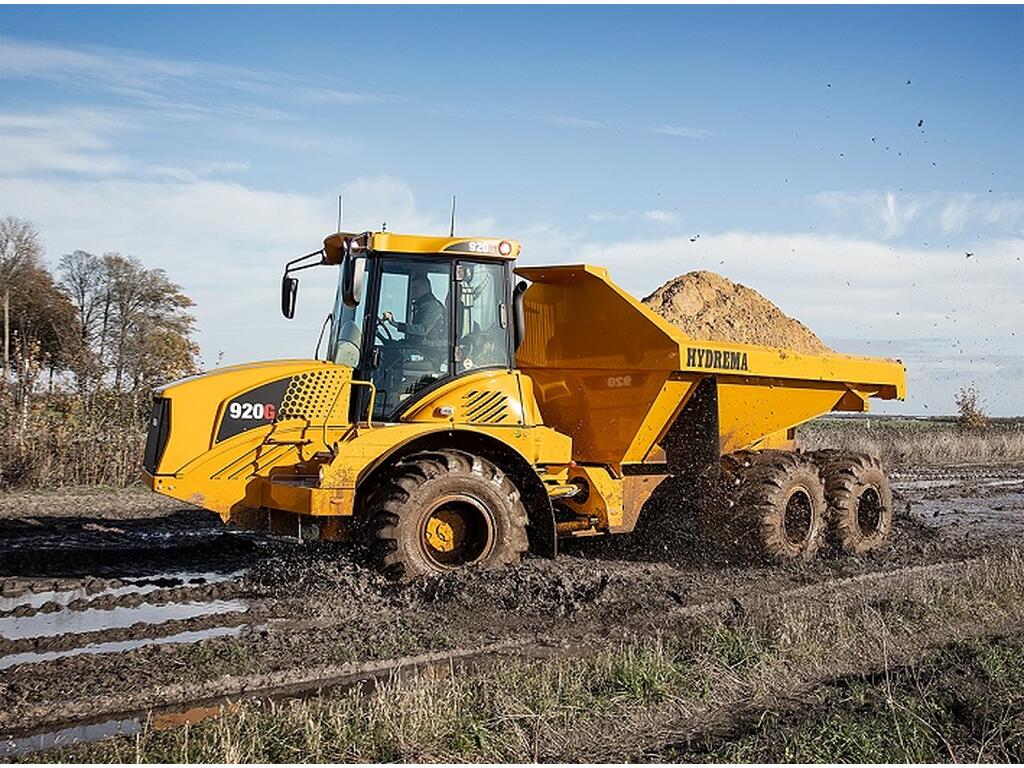

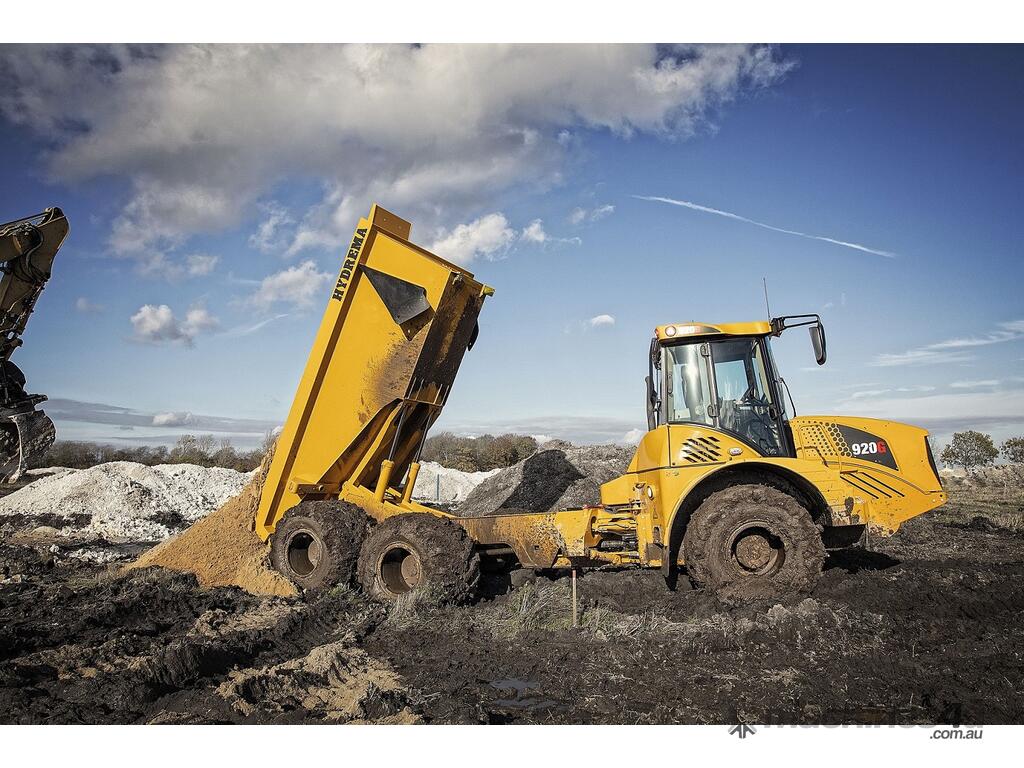

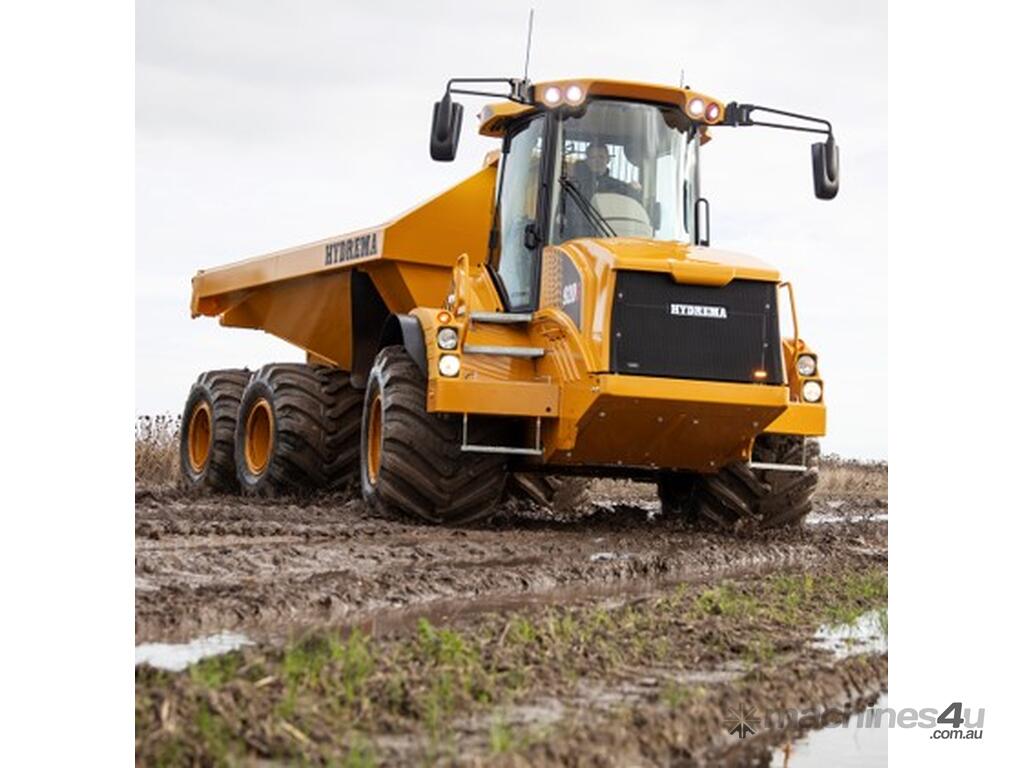

The articulated dump truck features a low unladen weight of 16.8 tonnes and an 18-tonne payload, offering a market-leading power-to-weight ratio for efficient hauling. It delivers excellent ground pressure and traction, enabling operation in soft ground conditions. The rear tandem bogie, combined with a hydraulic stabilizer system, ensures optimal machine stability by automatically distributing weight where needed. The hydro-pneumatic suspension on the front axle provides exceptional operator comfort, while the cab is designed for enhanced safety, visibility, ergonomics, quietness, and ease of operation to reduce driver fatigue. Multiple chassis configurations make it adaptable for various applications.
Key Features:
Engine:
Six-cylinder, 6.7L capacity
Max Power: 231 kW (314 hp)
Max Torque: 1288 Nm
Transmission:
6-speed fully automatic powershift
Speed (Fwd/Rev): 53/35 km/h
Payload Capacity:
18,000 kg
Net Operating Weight:
16,800 kg
Tyres:
920/45-R25
Ground Pressure:
Front (Loaded): 85 kPa
Rear (Loaded): 85 kPa
Body Volume:
12 m³ (with/without tailgate)
Braking and Retarder Systems:
Hydraulic enclosed oil-cooled multiple discs on all wheels, with automatic engine exhaust (does not use service brakes)
ADT offers 20+ years of expertise with top brands like Doosan and Hydrema, delivering reliable, customizable machinery backed by local support. Order now for your solution to success.
