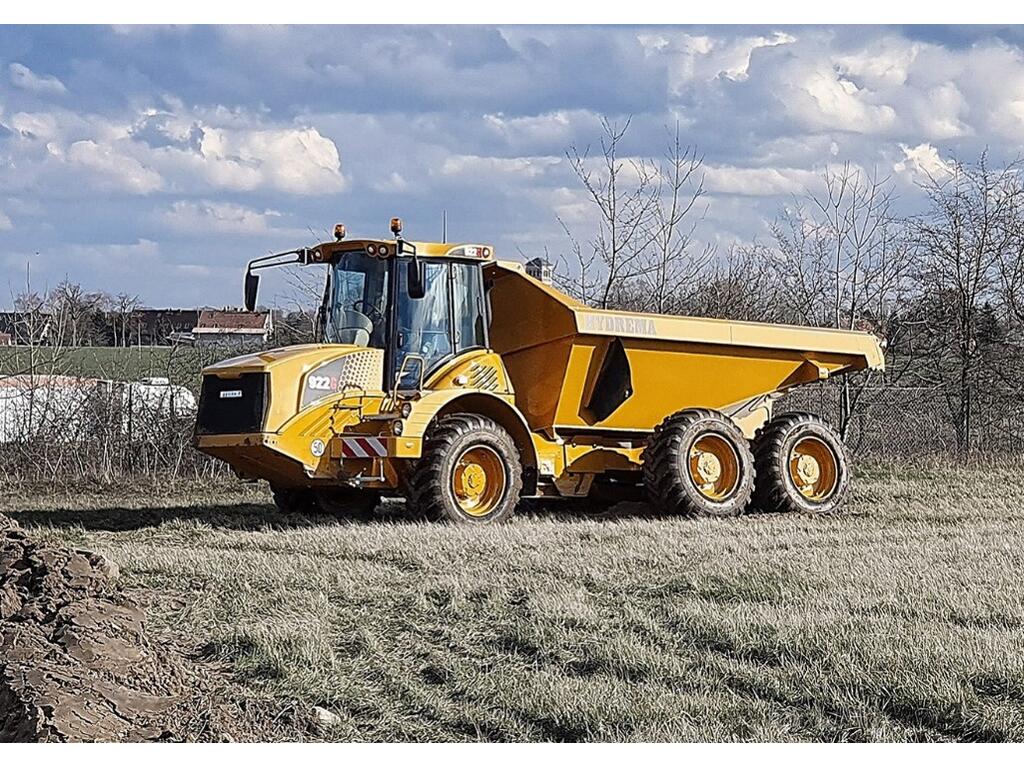

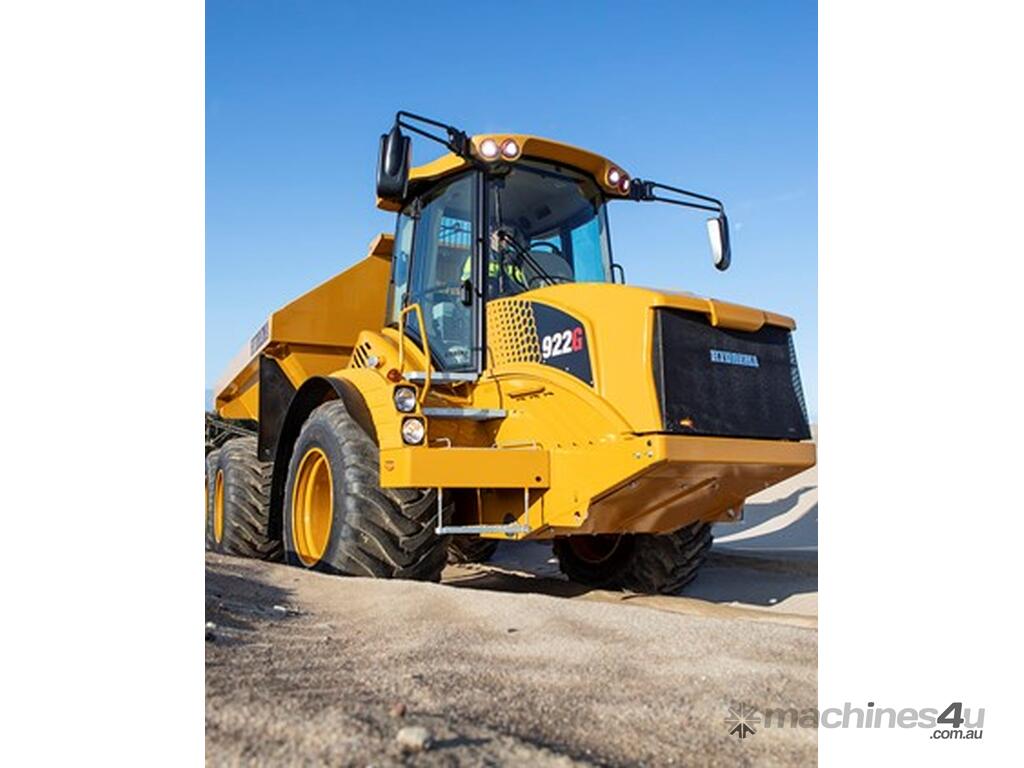

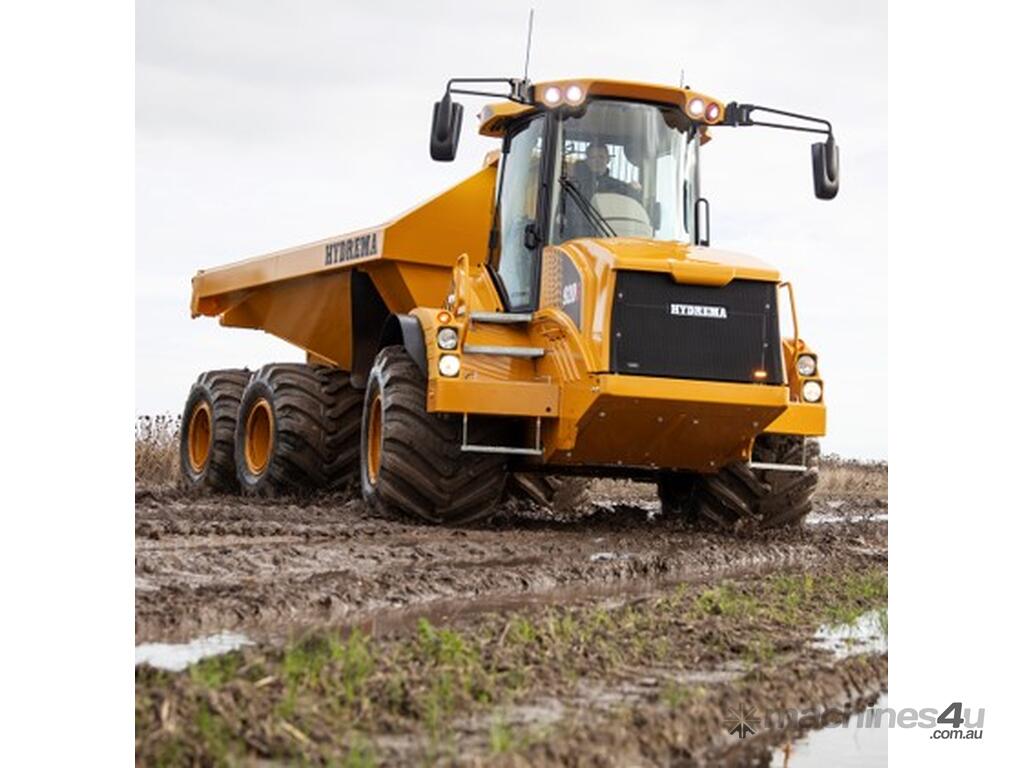

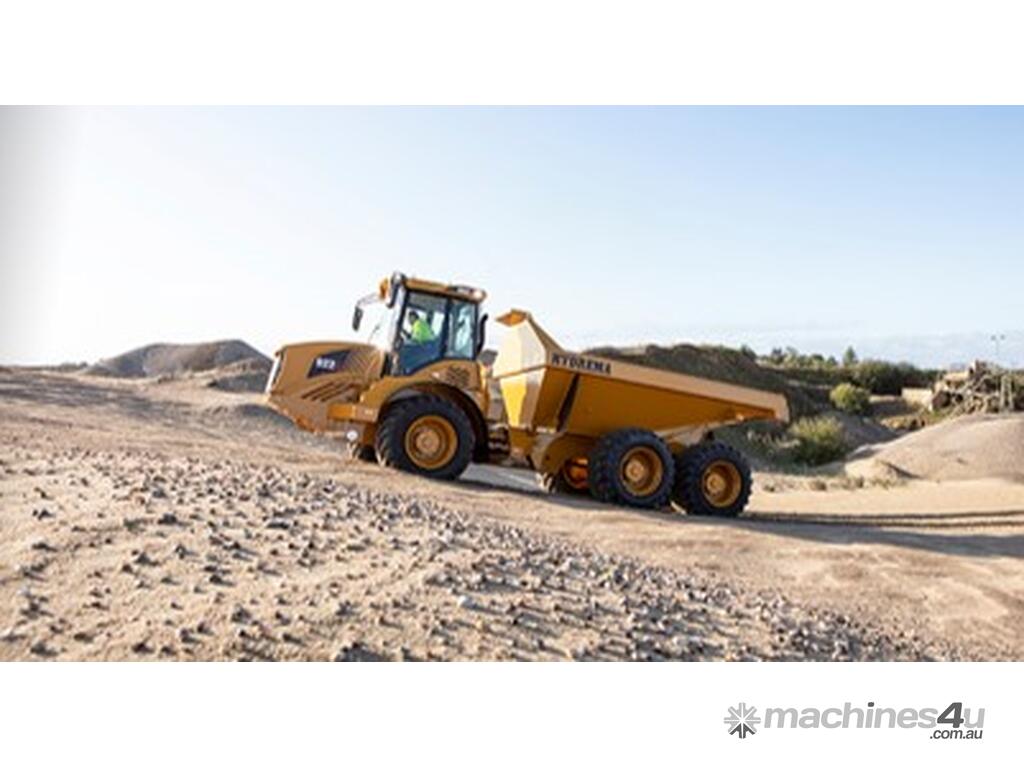

This articulated dump truck features a low unladen weight of 15.8 tonnes and a 20-tonne payload, offering a market-leading power-to-weight ratio for efficient hauling. It delivers exceptional ground pressure and traction, making it ideal for soft ground conditions. Optional 800mm tyres further reduce ground pressure to 82 kPa (11 psi).

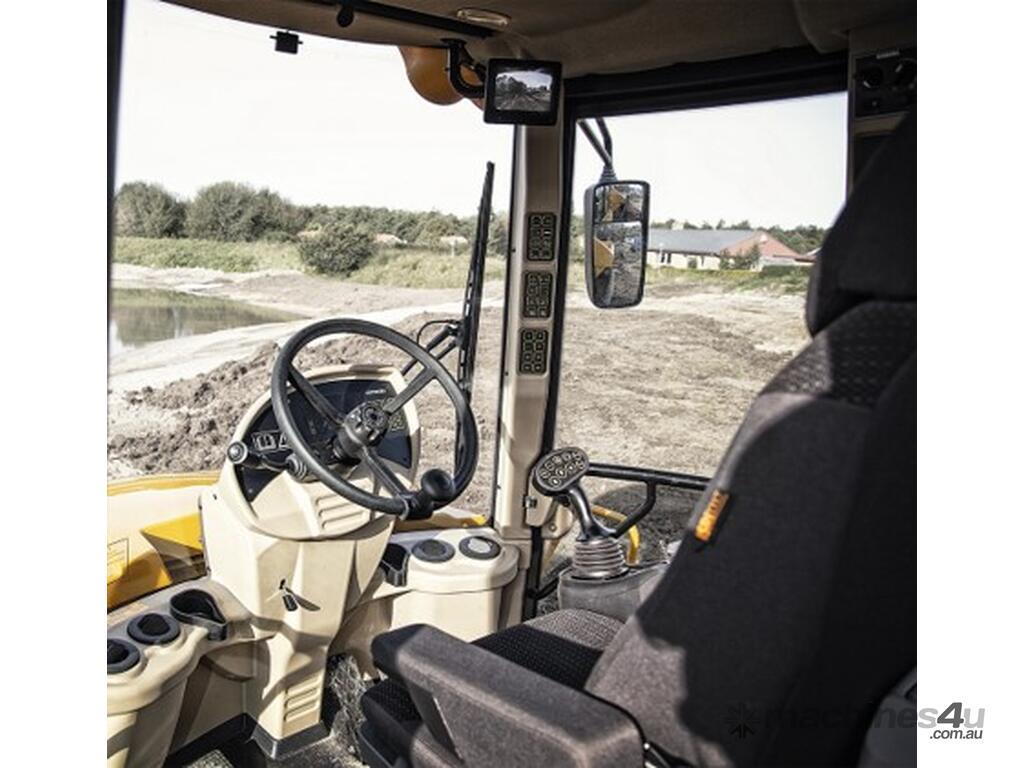

The truck's outstanding stability is ensured by a free-swinging rear tandem bogie and a hydraulic stabilizer system that automatically adjusts the weight distribution. Operator comfort is enhanced by a hydro-pneumatic suspension on the front axle, while the cab provides superior visibility, ergonomics, and quietness. The ease of operation helps reduce driver fatigue. Additionally, multiple chassis configurations allow for versatile applications.
Key Specifications:
Engine: Six-cylinder, 6.7L capacity
Max Power: 231 kW (314 hp)
Max Torque: 1288 Nm
Transmission: 6-speed fully automatic powershift
Speed (Fwd/Rev): 53/35 km/h
Payload Capacity: 20,000 kg
Net Operating Weight: 15,900 kg
Tyres: 600/60-30.5
Ground Pressure (Front, Loaded): 131 kPa
Ground Pressure (Rear, Loaded): 131 kPa
Body Volume (with/without tailgate): 12 m³
Braking and Retarder Systems: Hydraulic enclosed oil-cooled multiple discs on all wheels, with automatic engine exhaust retarder (no use of service brakes)
ADT offers 20+ years of expertise with top brands like Doosan and Hydrema, delivering reliable, customizable machinery backed by local support. Order now for your solution to success.
