Hyster 46T Reach Stacker - Container Handler

The Hyster Reach Stackers are available in both container handling (CH) and intermodal handling (IH) versions for high density container stacking applications up to 5-high and 3-rows deep.

This machine has been designed to achieve maximum space utilization on container terminals, thanks to outstanding maneuverability, superior handling speeds and unrestricted stacking capabilities, in an all-in-one package.

The series is available with a modern clean-running Diesel engine, standard oil-immersed brakes, robust drive-axle and advanced auto-shift transmission, which all combine to maintain maximum productivity and reliability during operation in demanding applications.

Class Leading Performance

The intelligent design includes a right-sized engine, balanced chassis and dedicated boom, putting weight and strength exactly where it needs to be to deliver industry-leading performance. You’ll be getting the recognised Hyster manufacturing quality and proven components from industry leading suppliers, such as the

- QSL9 Tier 3/StageIIIA Cummins engine
- Kessler or Axletech drive axle
- Spicer Off-Highway TE-27 transmission
- Danfoss hydraulics.

World Renowned Spreader Design

Port environments are harsh; operators need a container handler that they can depend on 24/7.

The proven Hyster® spreader is fast and efficient and allows operators to remain productive in challenging port conditions.

Features such as a +/-800mm side shift, optional powered pile slope and powered dampening all combine to make picking up containers easier.

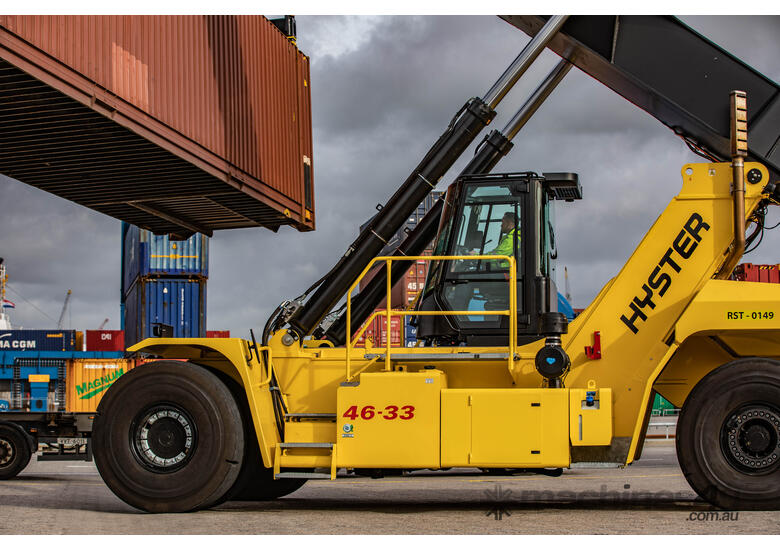

New Cabin Design

- New structure with additional driver space and optional trainer seat
- Enhanced visibility with full glass doors
- Panoramic armoured top glass (FOPS certified)
- The steel bars will remain available via an option
- A new control arm with clearly visible controls
- A seven inch touch screen display with rotary button
- Lateral sliding seat for improved ergonomics
- Extra floor space in front of the cabin has been created in the cab by utilising the space otherwise used by the tilt cylinders

Low Cost of Ownership

On-demand hydraulics and cooling technologies help to lower the overall cost of ownership by saving fuel, increasing component life and reducing service requirements.

Cycle times are more efficient with fast acceleration required for productivity in a container yard. The 2-speed hoist system also significantly boosts unladen lift speeds.

Whilst it’s right-sized engine and transmission inching provides great control during container stacking.

Simple Servicing

All major components are readily accessible for servicing, resulting in shorter down times and increased productivity. 500-hour service intervals and parts common to the RS45 makes life easier for service engineers.

New Options

- Directional control on steering column or joystick
- Top window with armoured glass and additional steel bars (FOPS certified)
- A variety of seat options
- Automatic park brake
- Truck start by key switch with start button or by operator password
- Tyre pressure monitoring system
- Sun visors for front window and a heated rear window
- Automatic truck shutdown with timer (seat switch, idle, sequence)
