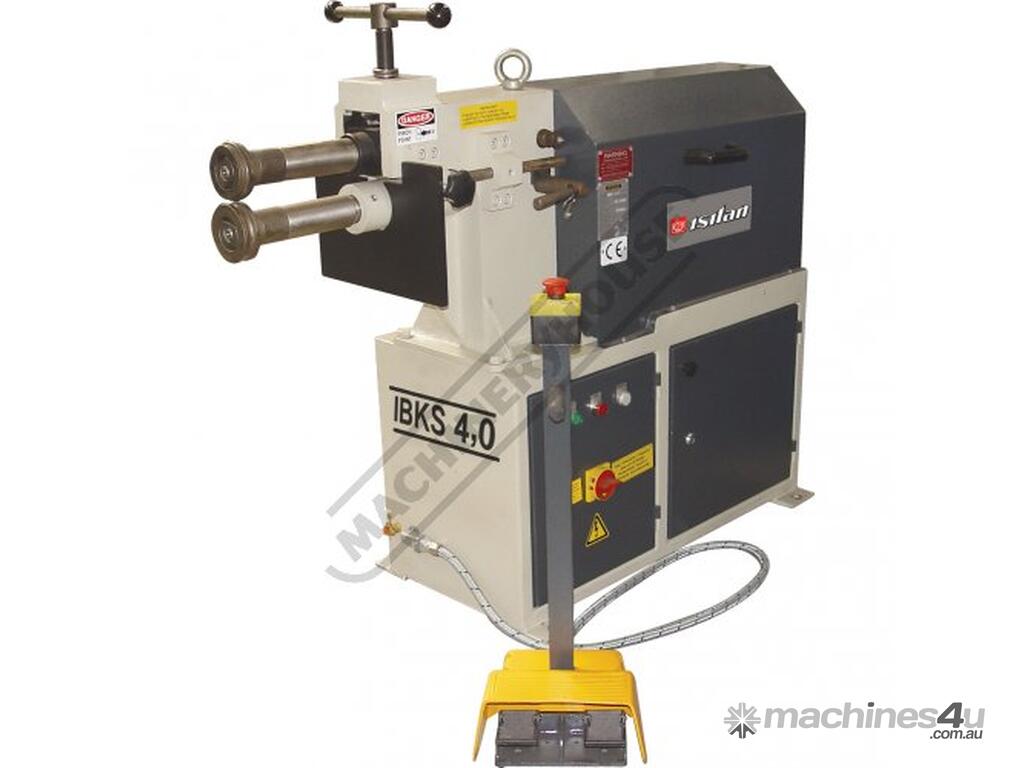

IBKS-4.0 Swage and Jenny - Motorised 4.0mm Mild Steel Thickness Capacity Includes 4 Sets Of Rolls

ISITAN IBKS-4.0 Swage and Jenny - Motorised 4.0mm Mild Steel Thickness Capacity Includes 4 Sets Of Rolls
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S645

Features:
Heavy duty cast iron construction
4 set standard rolls
Adjustable side support
Reduction motor with brake
Roving foot pedal control
Adjustable idle
Made in Turkey
Mild steel capacity is rated on hot rolled material with 250MPA

Includes:
- 1 x Folding roll set
- 1 x Flattening roll set
- 1 x Groove roll set
- 1 x Necking roll set



Specifications:
ORDER CODE: S645
MODEL: IBKS-4.0
Machine (Type): Swage & Jenny - Motrised
Mild Steel - Thickness Capacity (mm / Gauge): 4.0 / 8
Aluminium - Thickness Capacity (mm / Gauge): 4.0 / 8
Throat Depth Maximum (mm): 500
Throat Height (mm): ~
Roll Diameter (mm): 126
Output Drive Speed (rpm): 12
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 500
