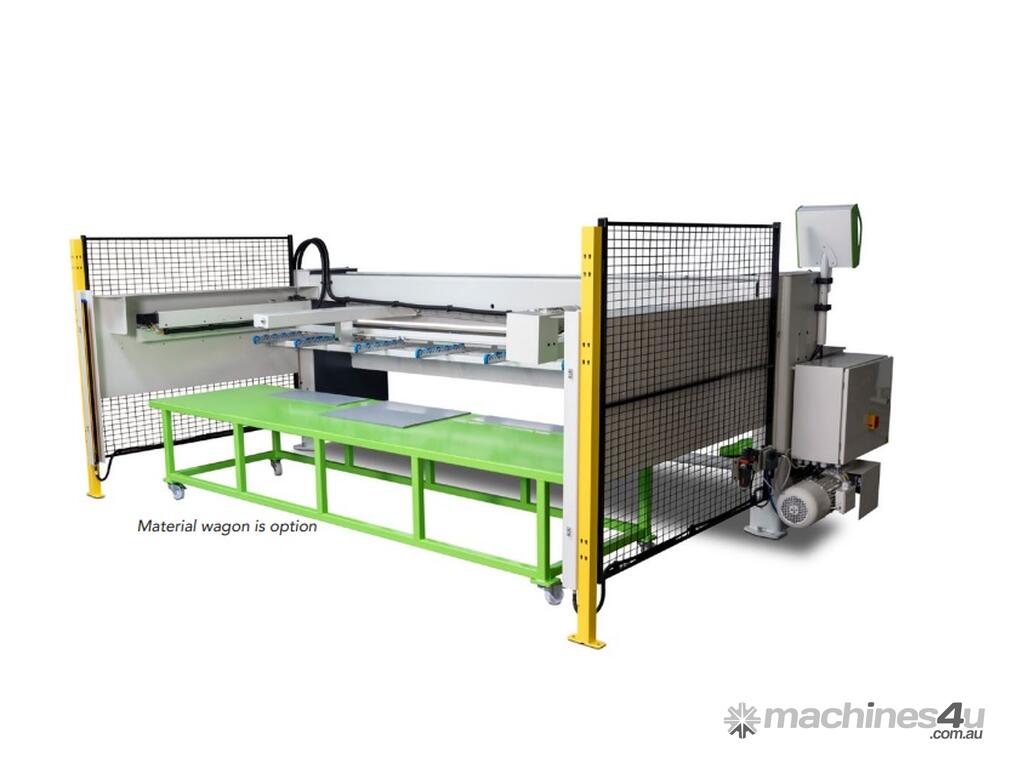

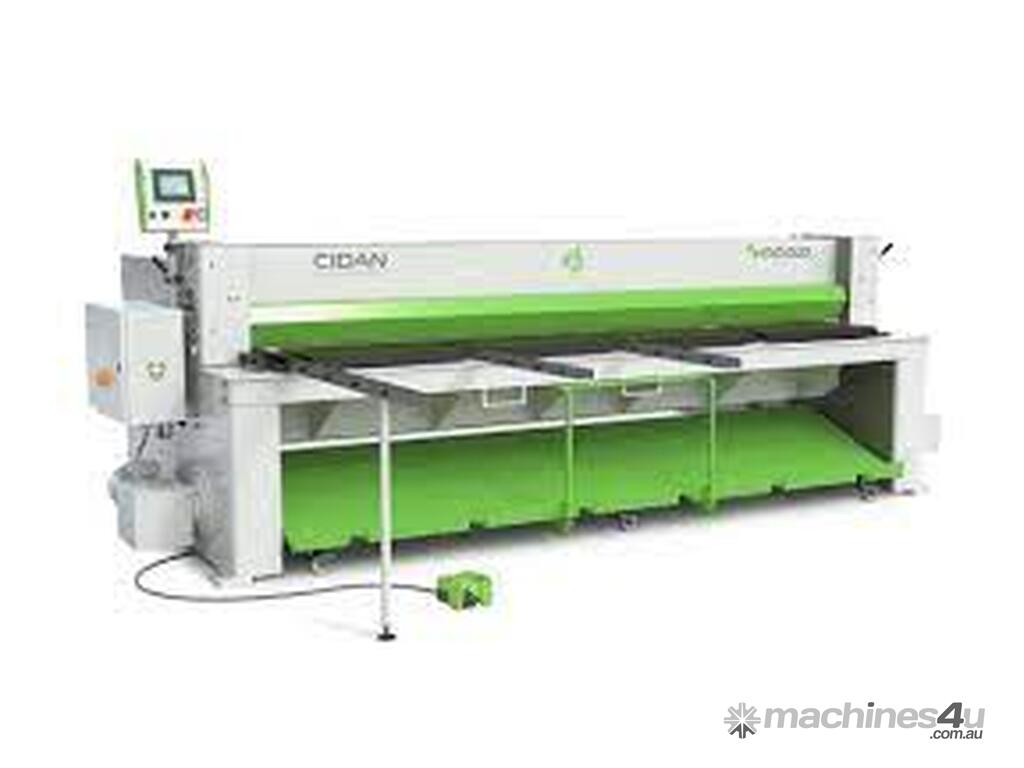

IDEAL FOR HIGH VOLUMES - Cidan RAPIDO 32 SSM Mechanical Guillotine Shear ~ 3200mm x 2.5mm

CIDAN RAPIDO Mechanical Guillotine Shear speeds up your guillotine shear and never leaves you with scratches or dog-ears. There is no smarter, gentler or more efficient backgauge system for high volumes. Swedish quality and precision.

Capacity: 3200mm x 2.5mm (also available in 4100mm)

Cutting speed
* 0 – 100 mm: 35 cuts/min but without SSM-function
* 125 mm: 24 cuts/min
* 750 mm: 15 cuts/min

Back gauge
* Length 1000 mm
* Drive system - Two ball screws with Ø 25 mm
- Two shaft with Ø 30 mm
* Speed: 150 mm/seconds
* Tolerance: +/– 0.1 mm

The guillotine can cut all material qualities – mild steel from 0.4 mm (28 gauge) up to 2.5 mm (13 gauge) without any settings at all and the blade gap stays the same.

UNIQUE FEATURES

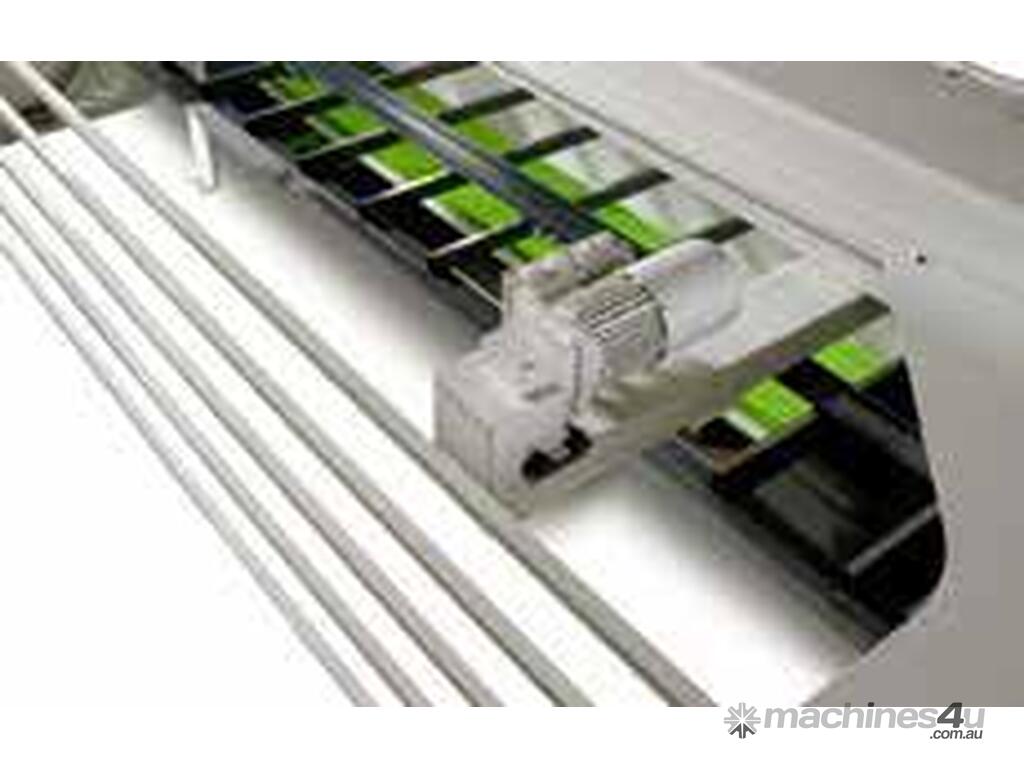

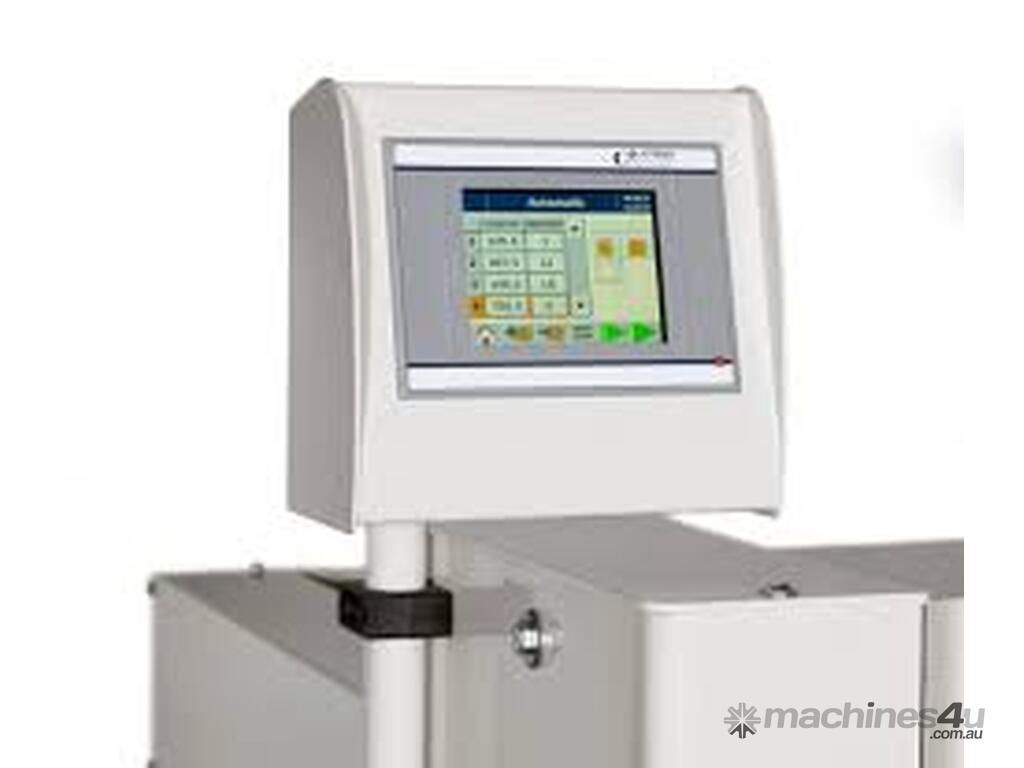

• 1000 mm motorized backgauge with CutLink touch control for single or automatic mode
• Fully mechanical, electrical, no use of oil – not hydraulic.
• Single or continuous stroke control
• Double edged blades
• LED cutting line light
• Finger protection
• Squaring arms on both sides, 380 mm with scale

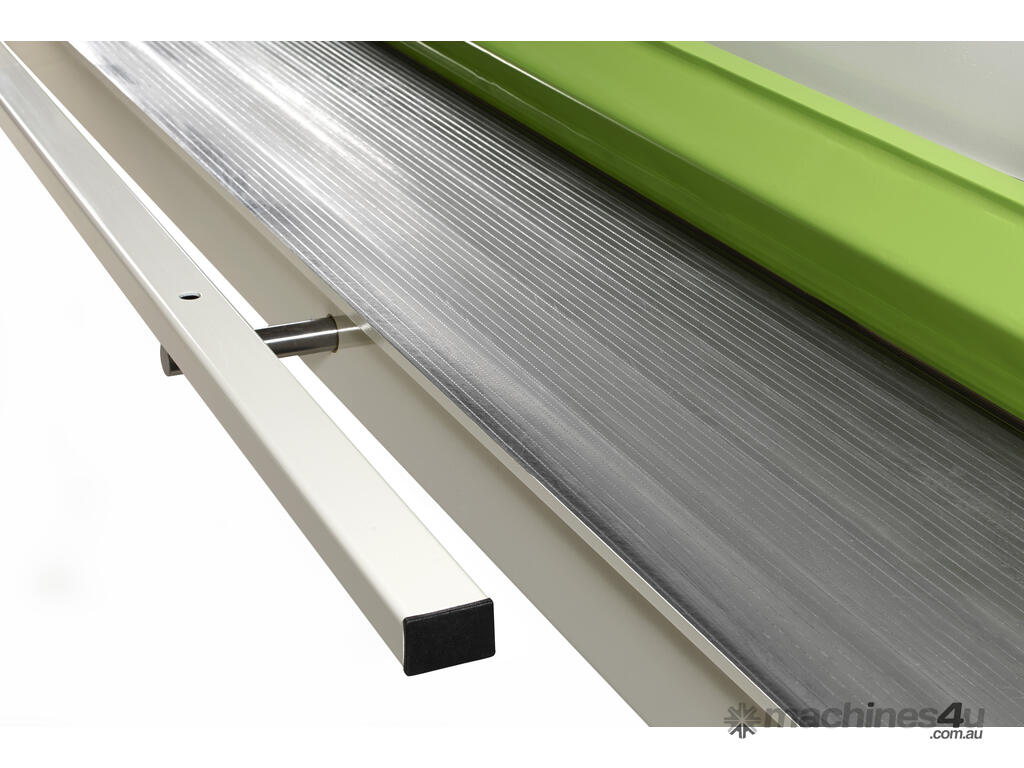

• Table with scored measuring lines

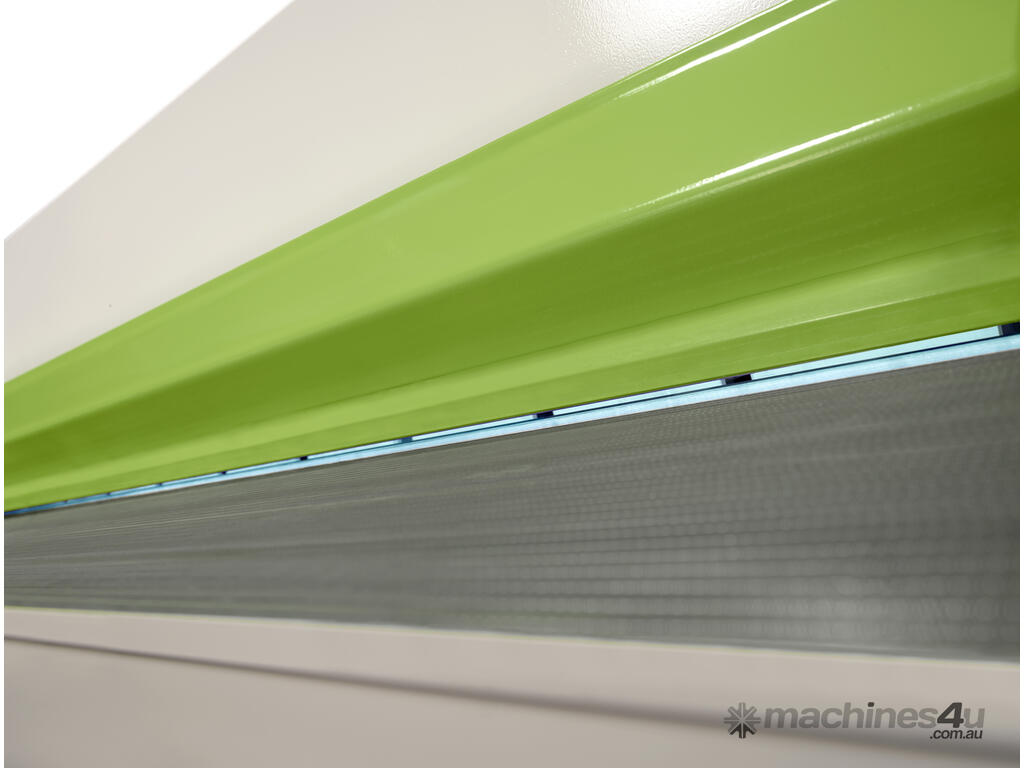

• Pneumatic hold down beam
• Button to start the cut at the electrical cabinet
• Foot pedal to start cut

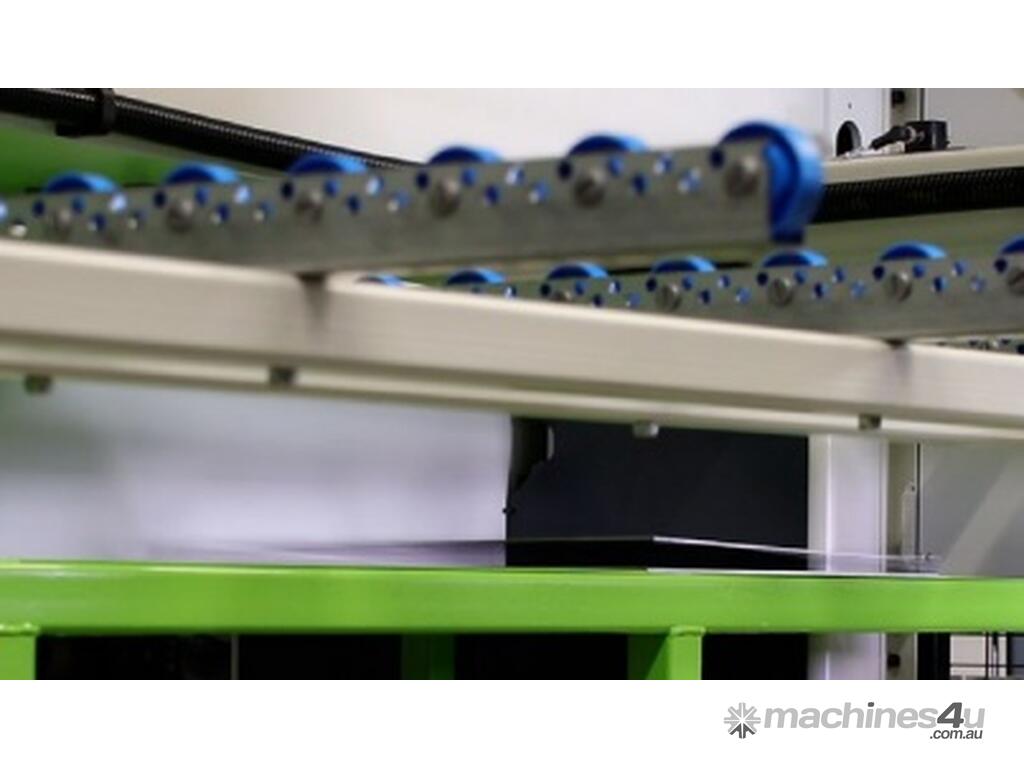

• Sheet support CNC controlled

Suggested model includes:

- Programmable power backgauge with Cutlink control

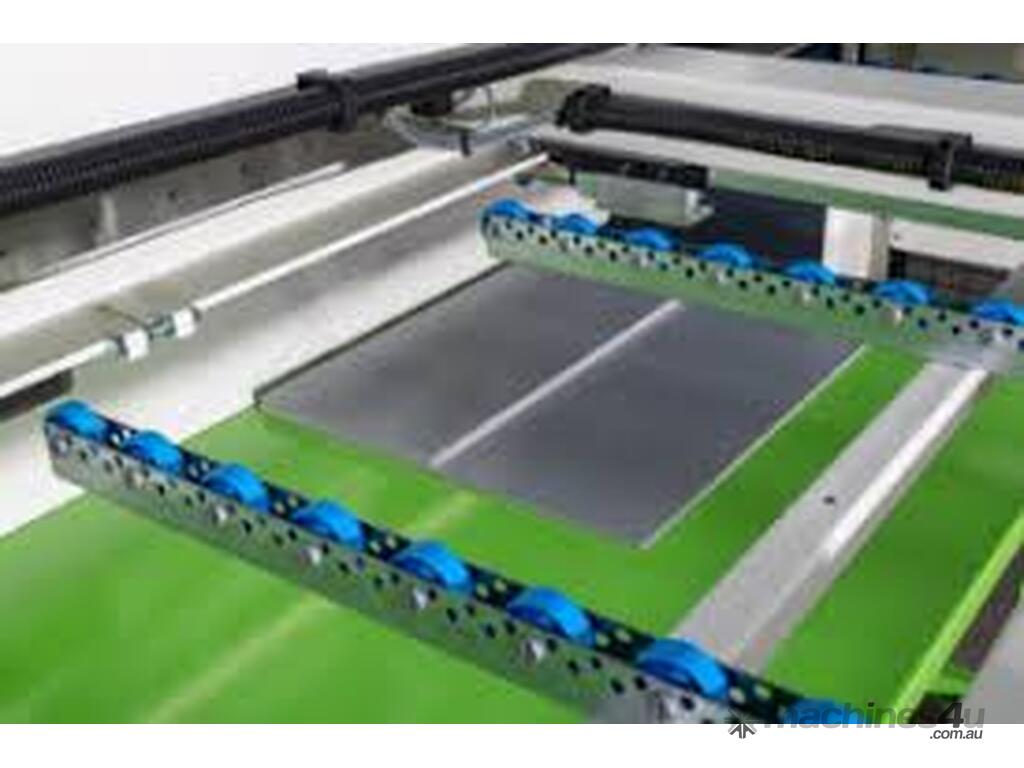

- Sheet support system with return to sender.
