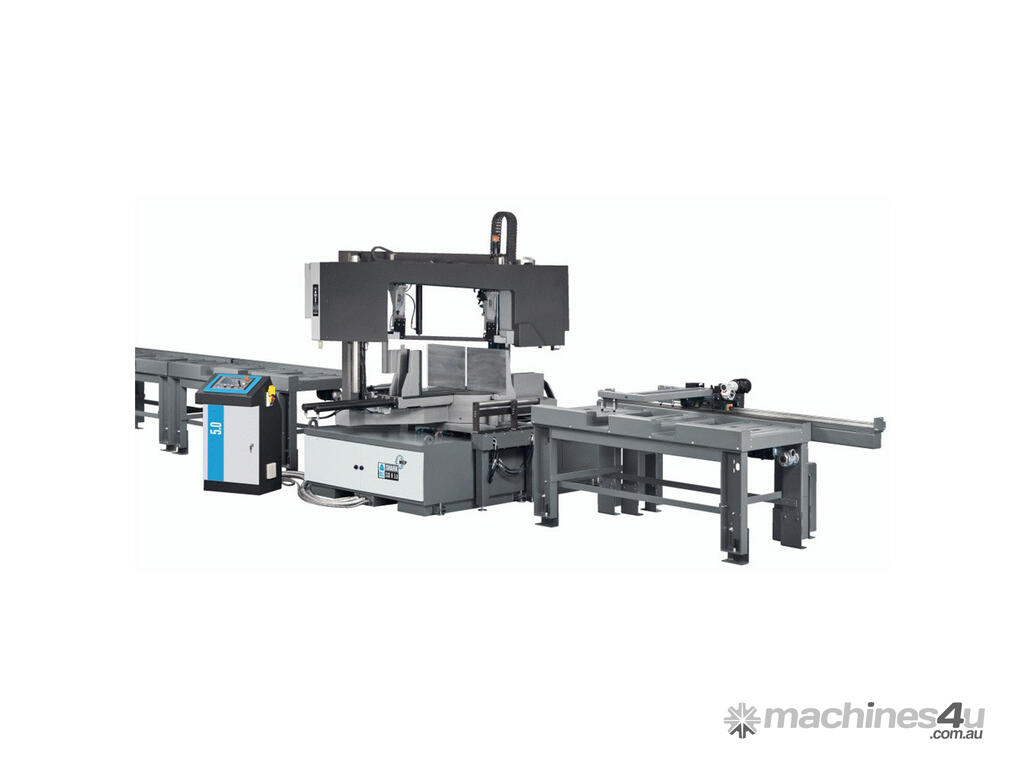

IDEAL FOR PIPES AND BEAMS - Double Mitre Horizontal Band Saw : MEP Shark 652 SXI H 5.0

Capacity 650 x 450mm

MEP Shark 652 SXI H 5.0 has a dual column electro-hydraulic horizontal band saw, equipped with a blade 6700x41x1, 3mm specifically designed to cut pipes and beams up to max 650x450mm at 0° and can mitre from +60° up to -60°

Italian quality construction.


• Structure in sturdy cast iron to absorb vibrations and give the machines better cutting stability and longer blade life.

• Powerful 9,2 kW blade motor with vectorial inverter in order to continuously adjust the blade speed in a single range from 15 to 150m/min.

• Powerful coolant flows wash the cutting area and convey chips.

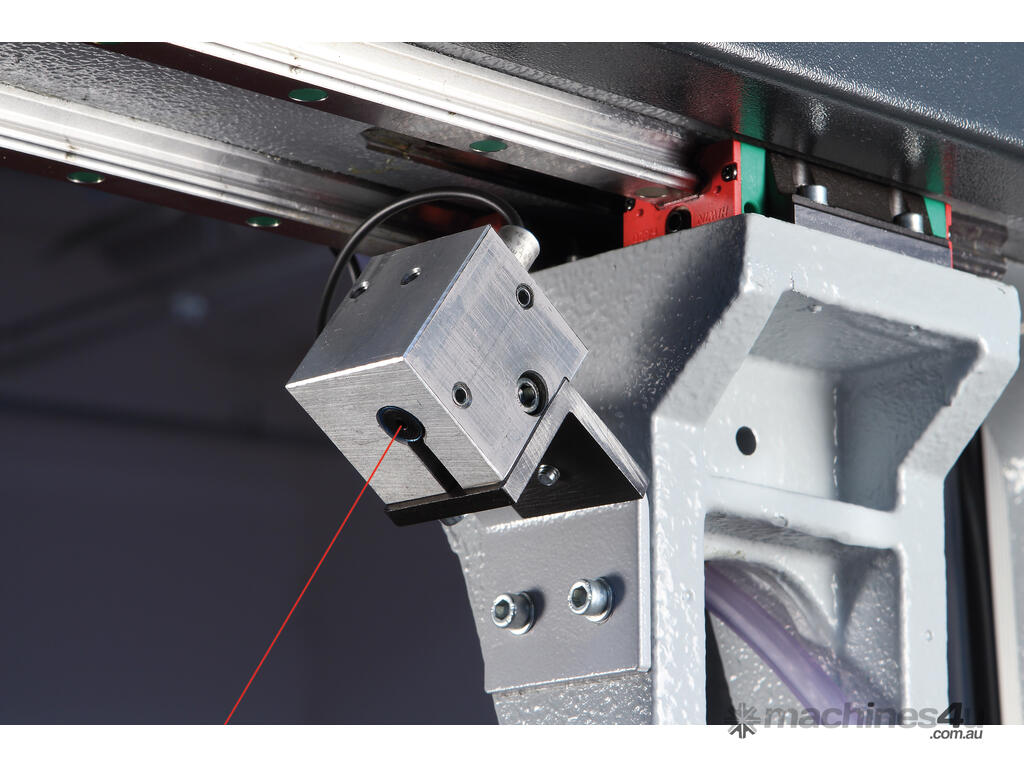

• Work light laser projector to position the bar accurately to carry out non-standard or facing cuts.

• Saw head stroke using double hydraulic cylinders on linear guides with ball bearings and pre-loaded slides (3-canted head to make the chip removal easier for horizontal walls)

• Self-adjustment cutting force using a servo valve mounted on the hydraulic cylinder.

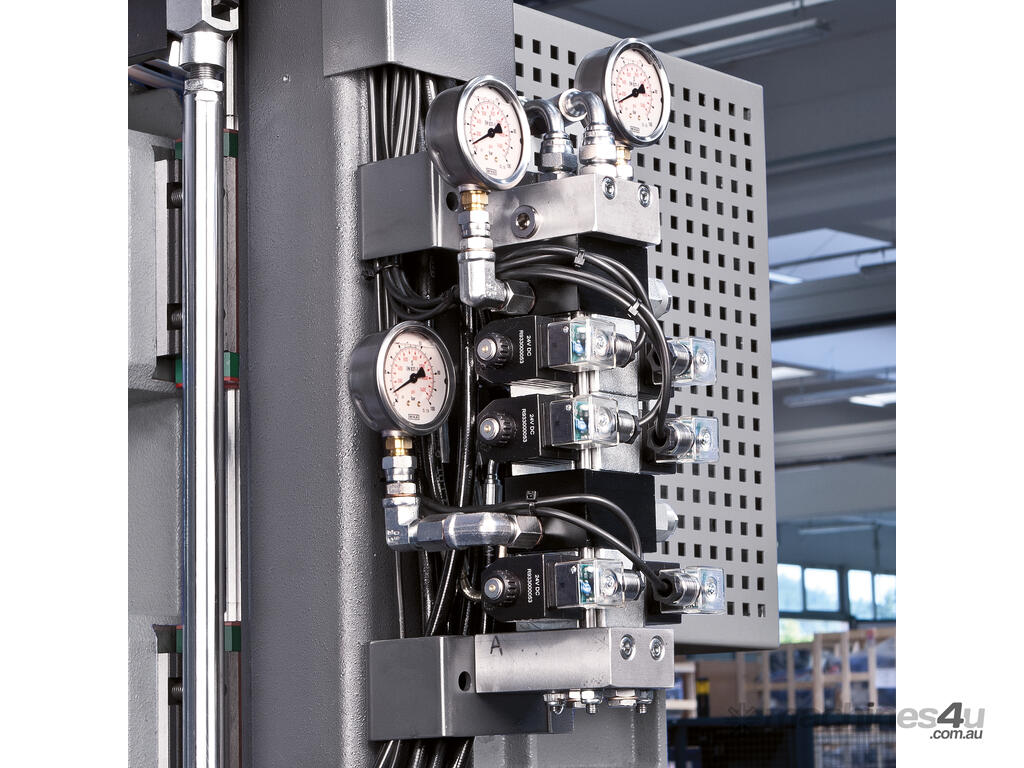

• Latest generation hydraulic control unit, with high efficiency and low energy consumption.

• 7” touch screen with visualization.

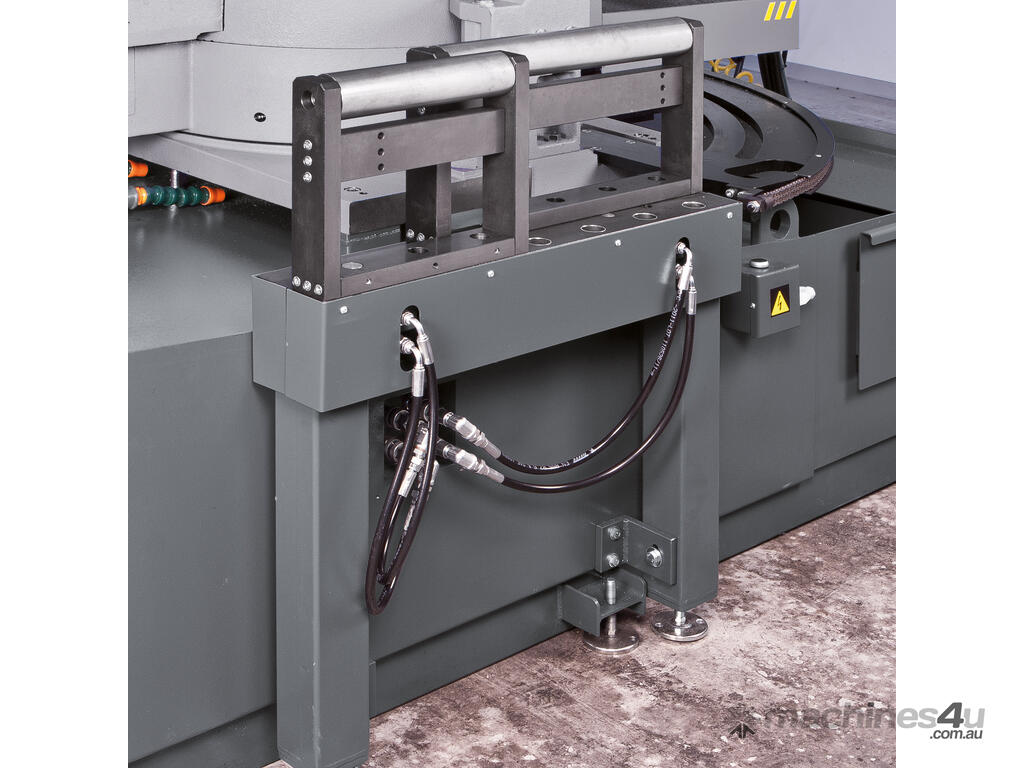

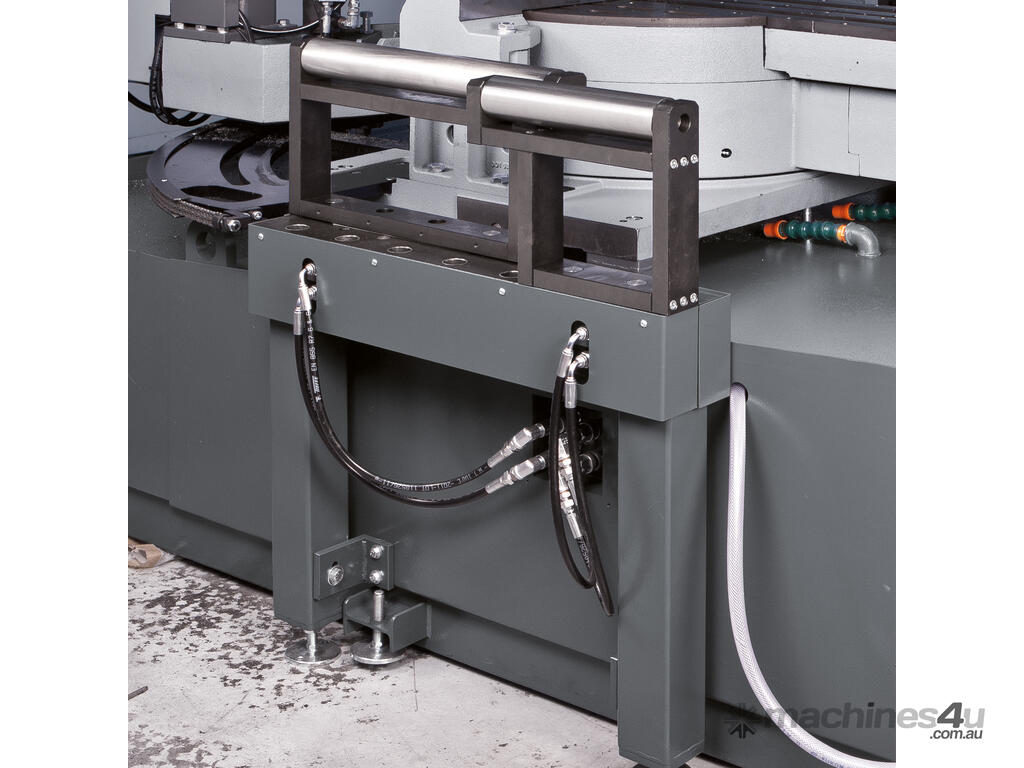

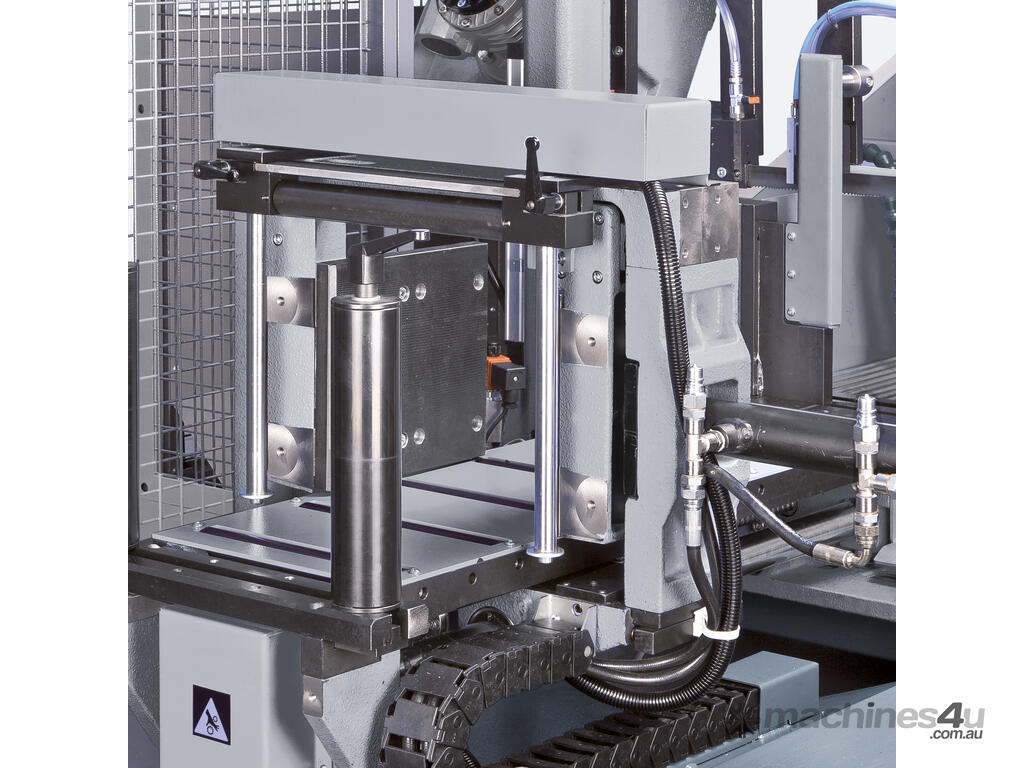

• Two hydraulic cutting vices to clamp the material on both sides and one vertical hydraulic cylinder.

• Automatic adjustment of the front guide arm in relation to the capacity that needs to be cut.

• Adjustable blade-guide heads on steel, with roller and carbide pads.

• Servo control to shift idler pulley for blade changing (2250kg).

• Three coolant pumps to ensure high coolant flood (120L/min) to cool down the blade and wash away chips from the working area.

• Powered blade brush.

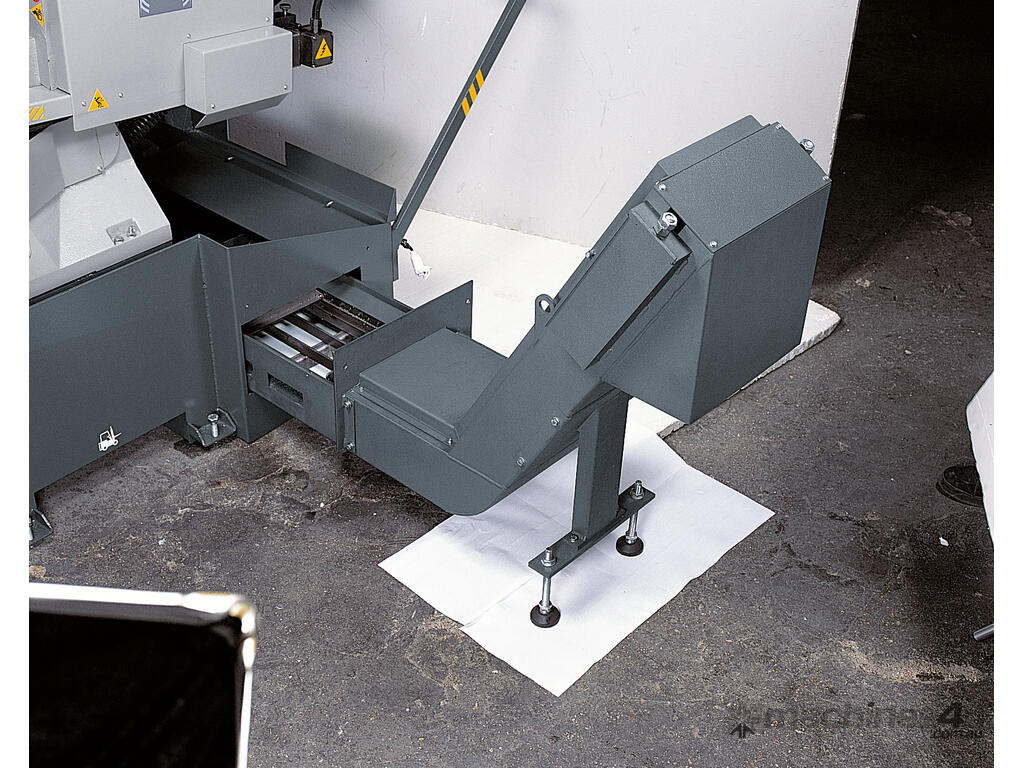

• Belt chip conveyor (OPTIONAL).

• Machine can be handled with both lift truck and crane.

• Bimetal band for the cut of profiles and solid pieces.
