IL MOLINETTO OLIVE PROCESSING

Conceived on the basis of the most advanced technology, IL MOLINETTO is a compact plant, specially designed for those who want to make their own oil easily and cheaply. Made entirely of top-quality stainless steels, the system features minimum overall dimensions and highly advanced technologies allowing to obtain oil of highest quality and excellent yields.

BASIC PLANT
The basic plant is ideal to start with and able to guarantee optimum levels of output and ease of use.
It is equipped with:

a mechanical crusher with olive loading hopper
a kneader with hot water circulation jacket complete with an electrical heating component a thermostat and a recycling pump
a mono pump for paste transfer
a centrifugal extractor for twophase running
a general control panel

OPTIONAL FEATURES:
The basic configuration of IL MOLINETTO can be upgraded by adding:

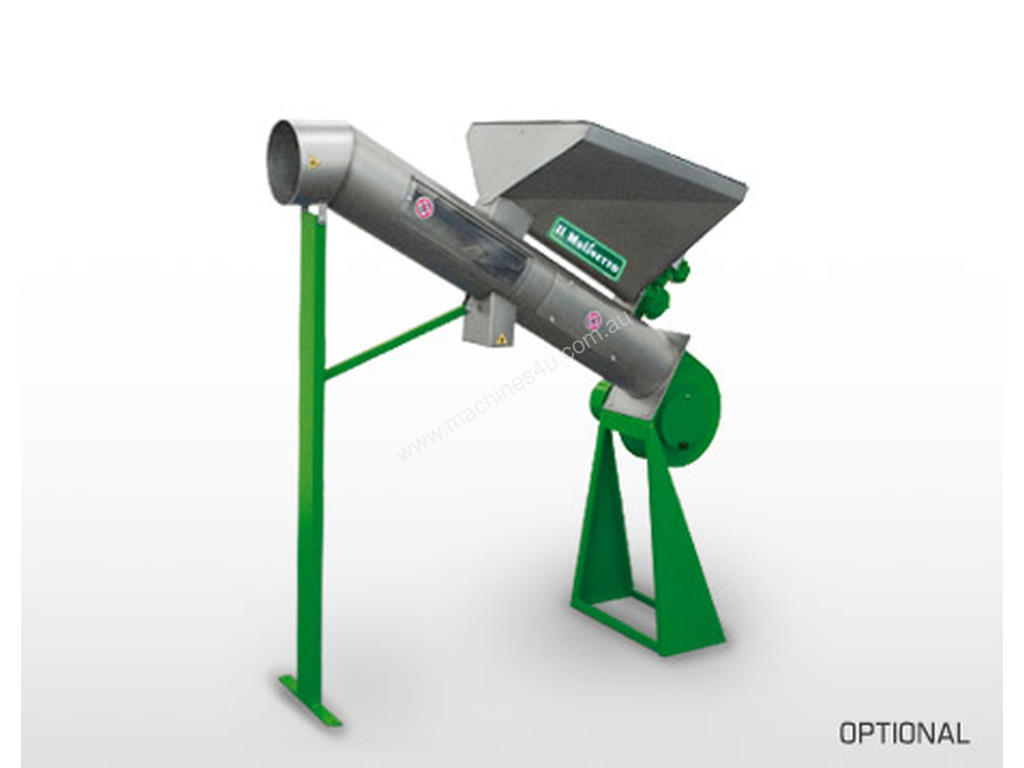

leaves remover

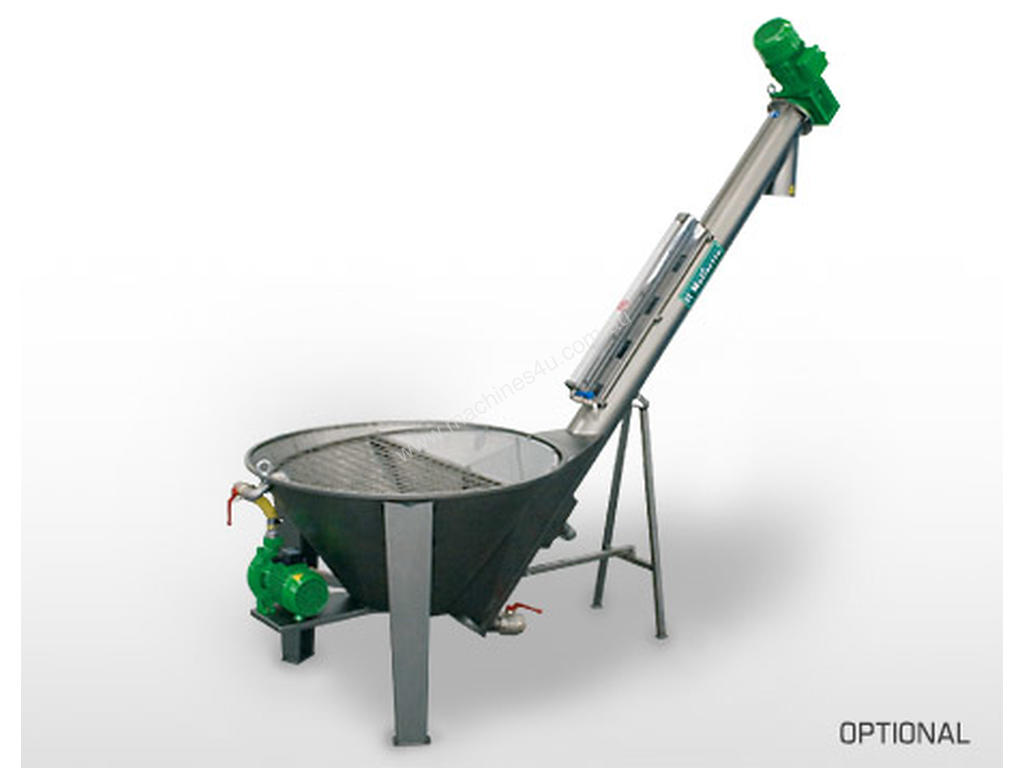

olives washing machine with elevator

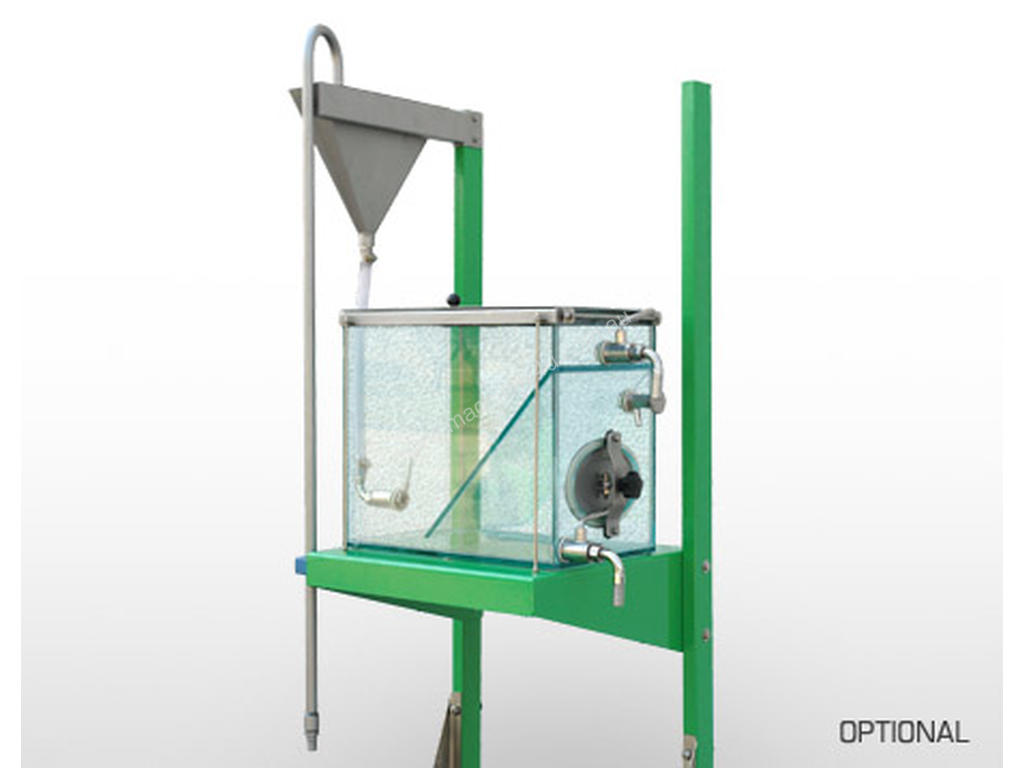

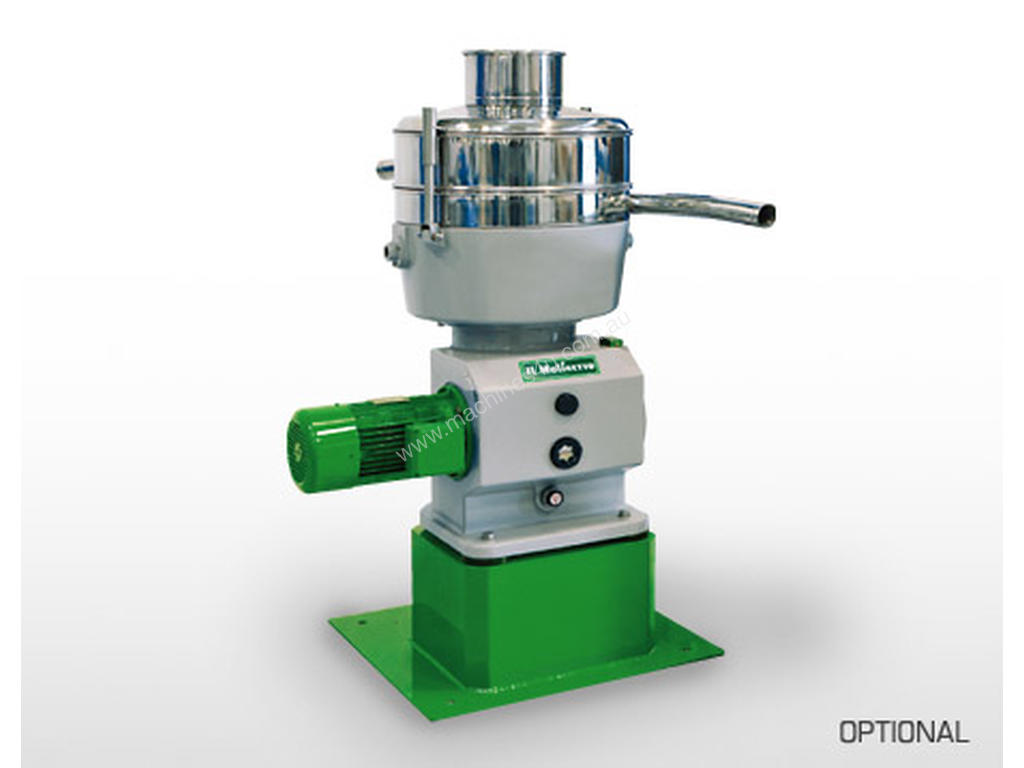

“florentine vase” * or, as an alternative CUCCIOLO separator
oil-collecting tank with filter screen and oil transfer pump
mono pump for husk discharging
stainless steel skid
All accessories can be purchased separately at a later date.

TECHNICAL DATA:
Installed power [kW]: 14
Capacity [l]: 350
Production [Kg/h]: 150 - 300
