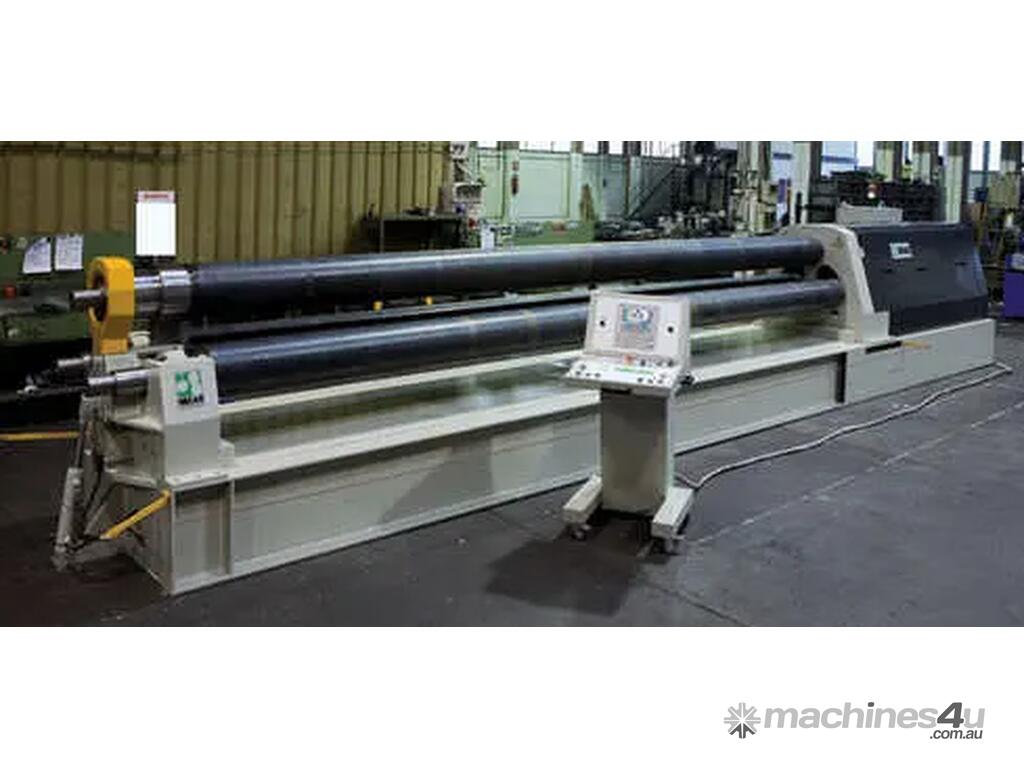

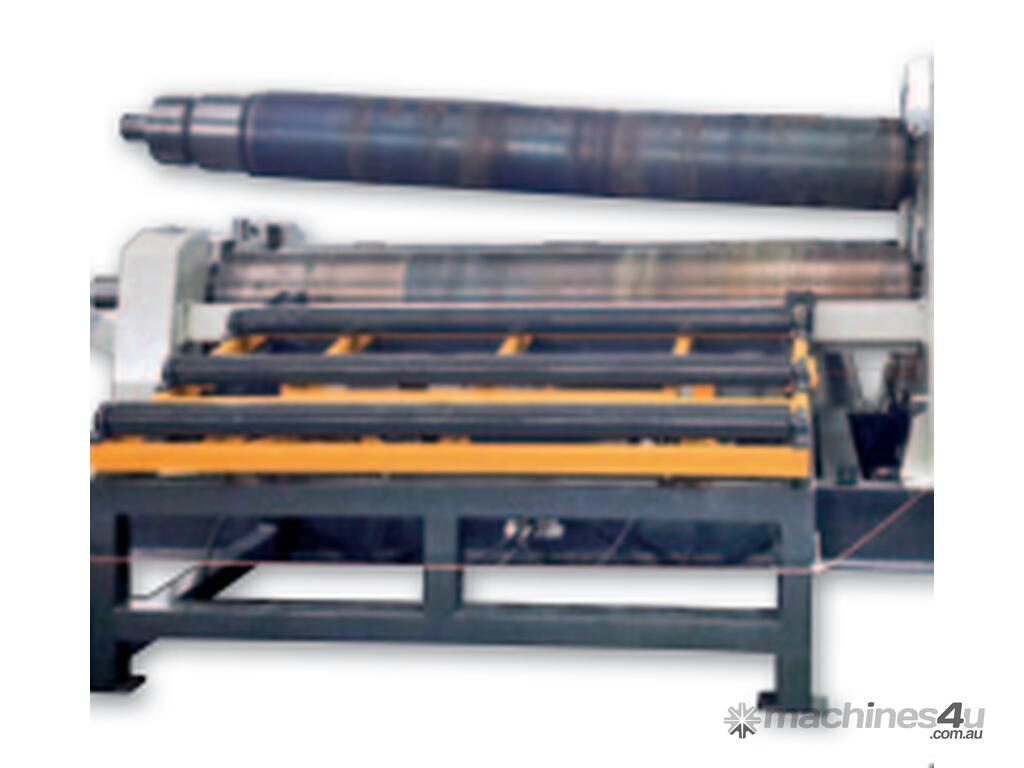

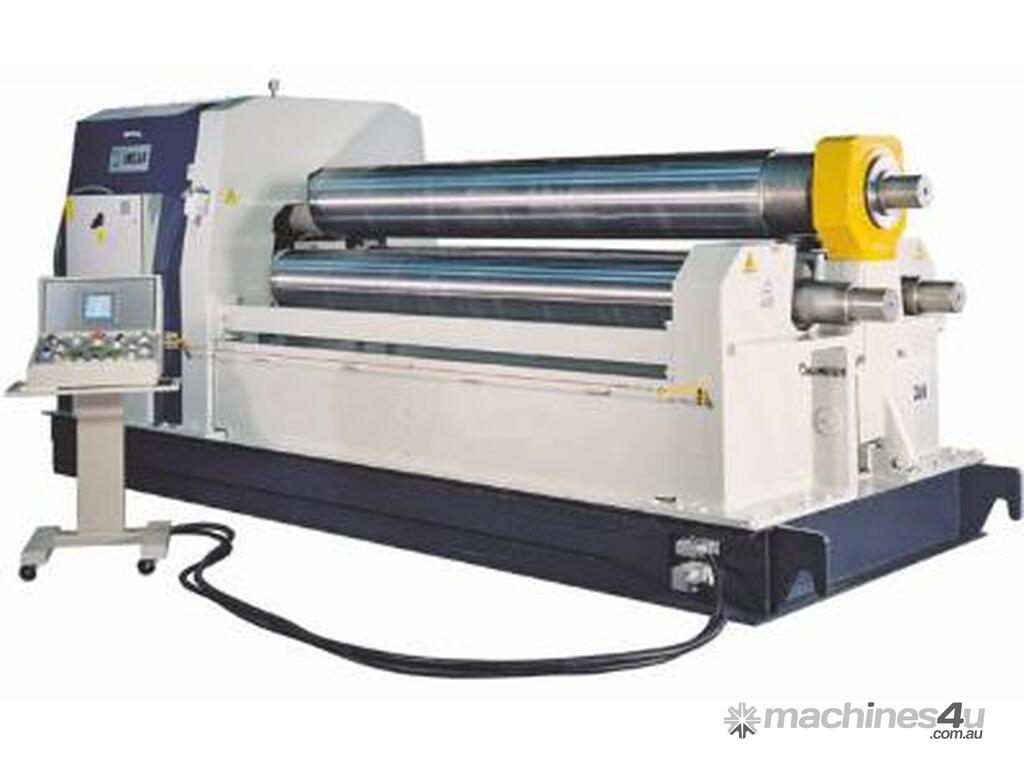

IMCAR Hydraulic 3-Roll Plate Bending Machine!

The Hydraulic 3 Rolls Plate Bending Machine with Pre-Bending is a high-performance, fully hydraulic solution designed for heavy-duty metalworking. Featuring a robust CNC-machined frame and precise control, it ensures consistent results for plates from 20 to 100 mm thick, offering exceptional reliability and durability in demanding applications.

Key Features:
Fully Hydraulic Operation: Optimal control and performance powered by hydraulics.
CNC Machined Frame: Precision-engineered for strength and durability.
High-Capacity Hydraulic System: Oversized components reduce pressure and extend lifespan.
Linear Guide Movement: Smooth, accurate roll adjustments.
Planetary Gear Drives: Reliable and precise roll rotation.
Automatic Speed Compensation: Adjusts top roll speed for consistent bending.
Hardened Rolls: Extended life and superior performance.
Extended Shafts (Select Models): For section bending dies.
Mobile Control Desk: Easy operation with push-button controls.
Hydraulic Shoulder Opening: Safe, controlled from the desk.
Parallelism & Inclination Adjustment: PLC-controlled lateral roll adjustments for precision and conical bending.
Digital Readouts: Four readouts for accurate roll monitoring.
Variable Speeds: Three adjustable rotation speeds for flexibility.

Specifications:
Useful Length: 2000 mm to 4000 mm
Plate Thickness: 20 mm to 100 mm
Hydraulic System: Oversized for longevity
Roll Rotation Speed: Three adjustable speeds
Control Desk: Separate, mobile with push-button control
Inclination Adjustment: Hydraulic for conical bend
