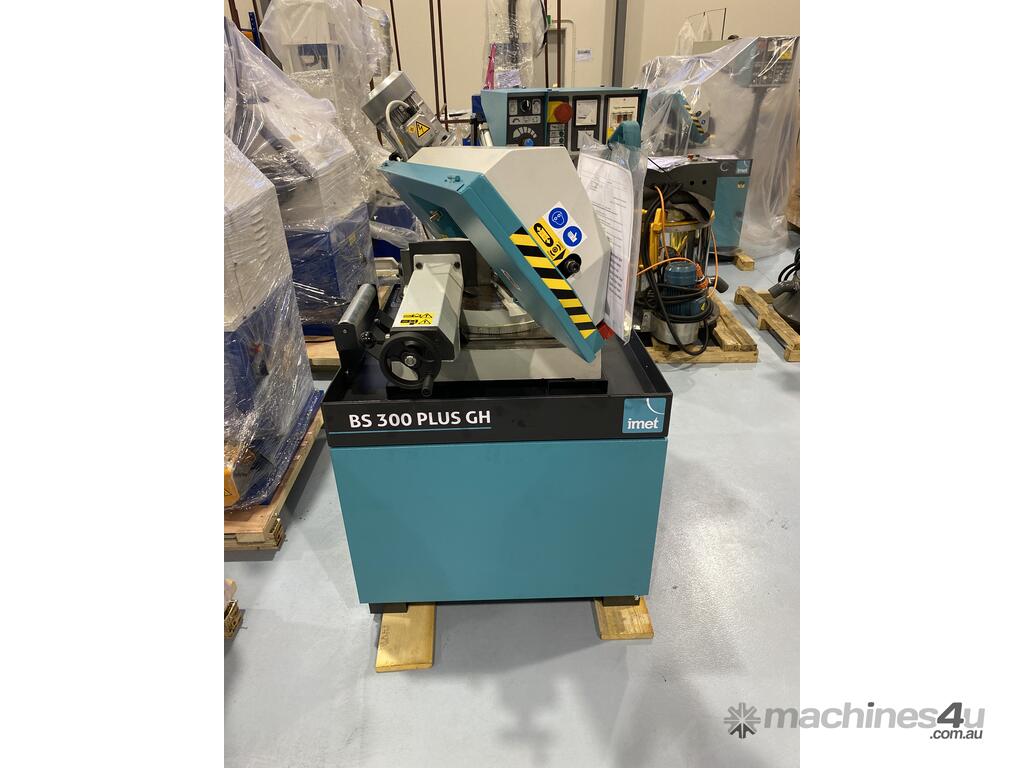

IMET BS 300/PLUS GH BANDSAW | DOUBLE MITRE | MANUAL | 300MM x 180MM (ITALIAN MADE)

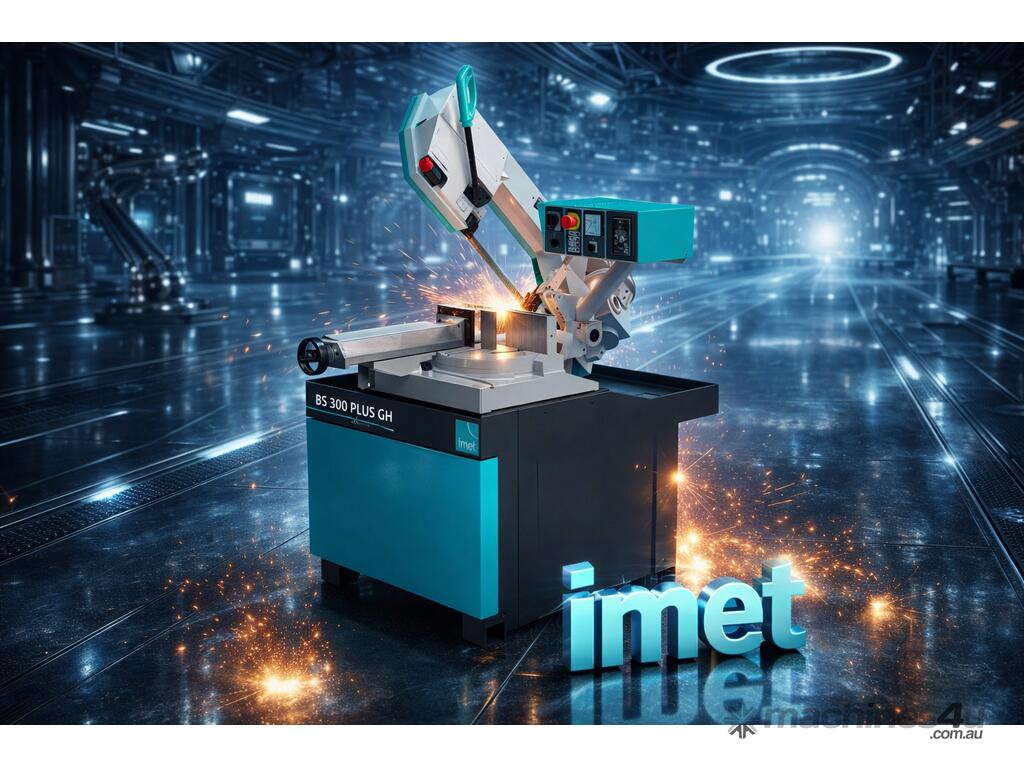

The IMET BS 300 PLUS GH is the BS version with gravity autocut. The machine is suitable to cut both left and right (up to 60° on the left and 45° right). The machine is versatile working tool able to realize small and medium batch production and an easy to use working tool that can be used either in mechanics and steelwork.

Wide working area

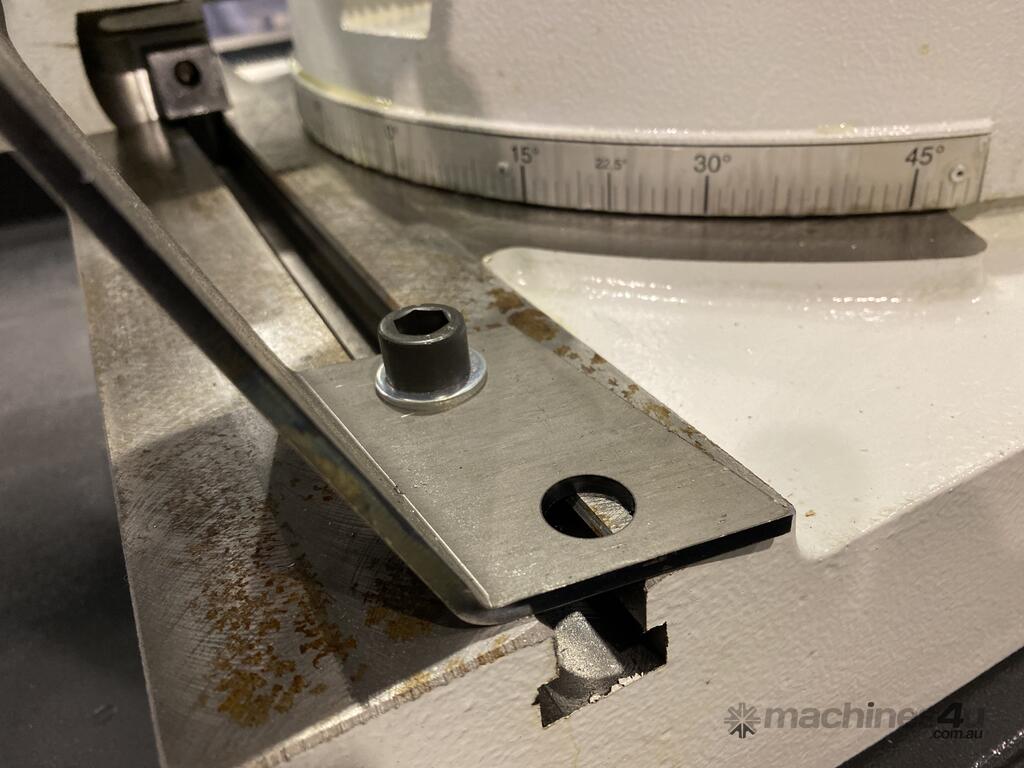

BS 300 PLUS is equipped with a wide diameter working area and a system of automatic easy stops at 0°, 45° and 60° left and 45° right with graduated plate to identify and set different angles.

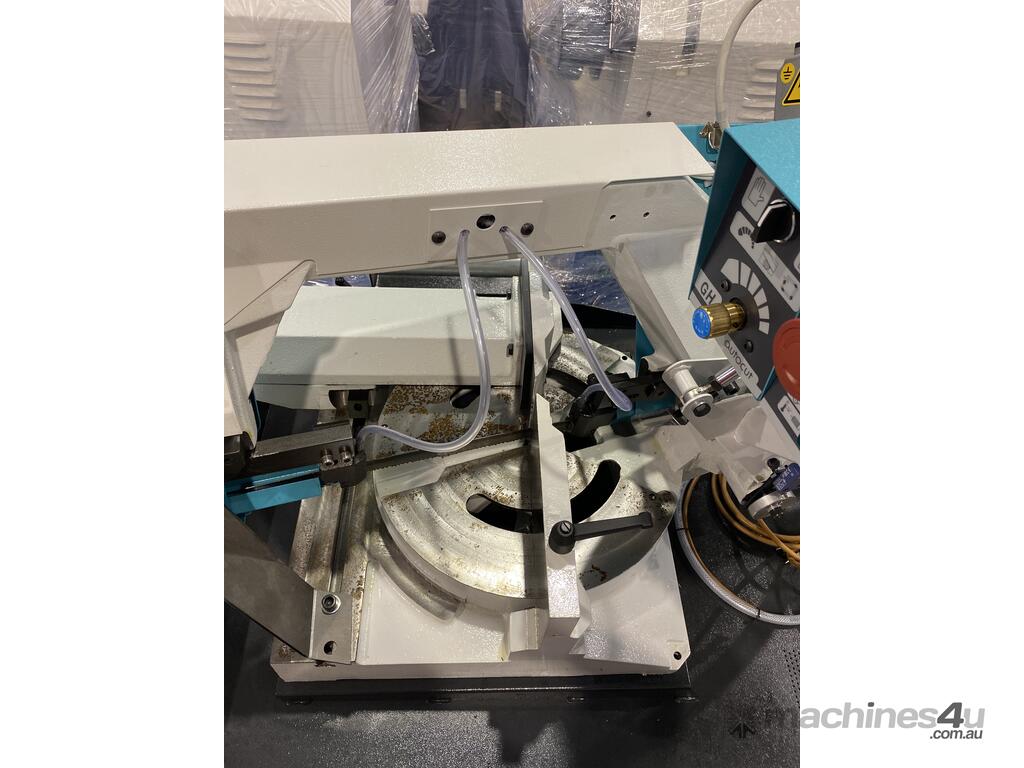

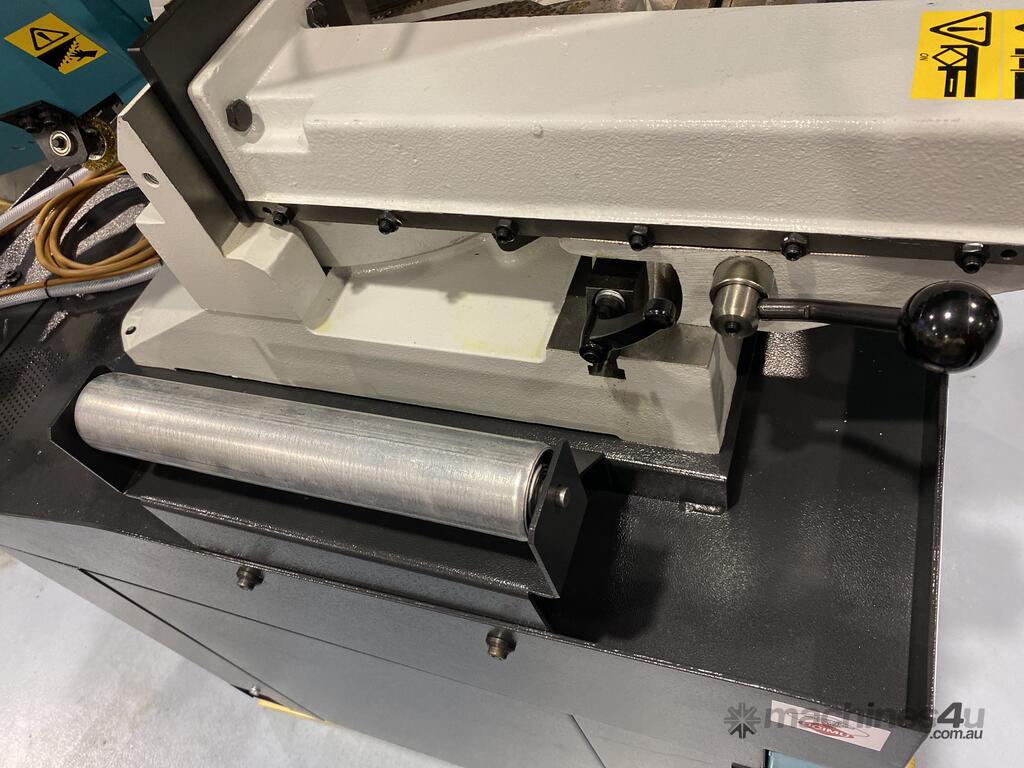

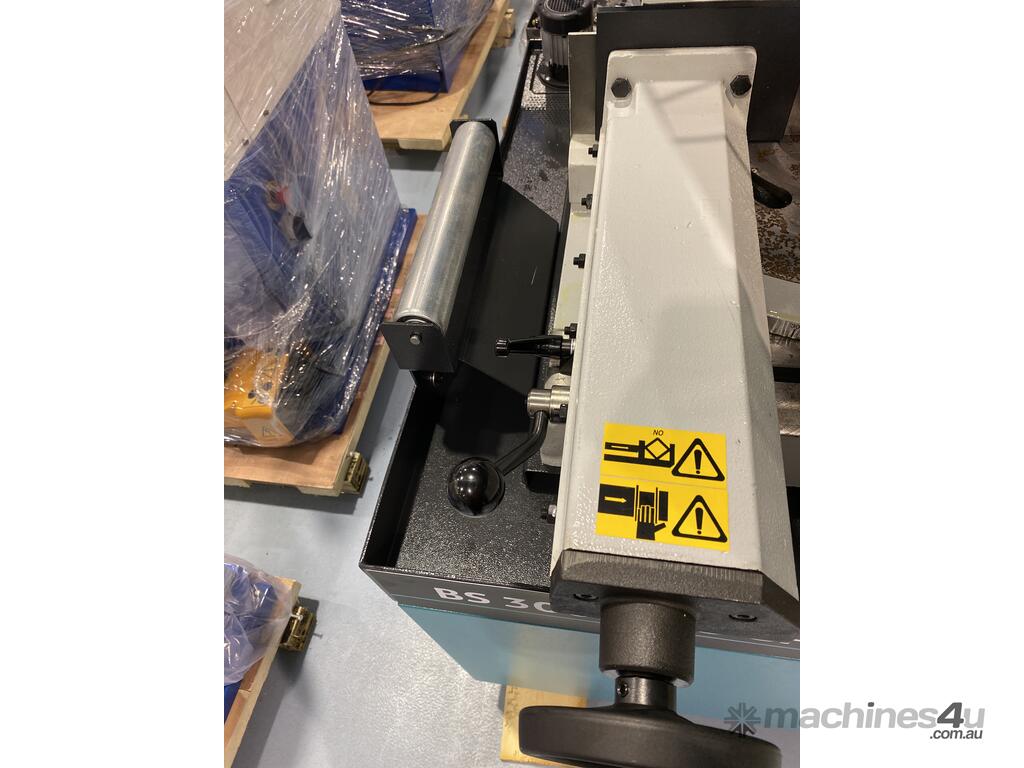

Opening vice
The vice has adjustable guides, free to move alongside the worktable, with rapid approaching and clamping.

Rigid saw frame

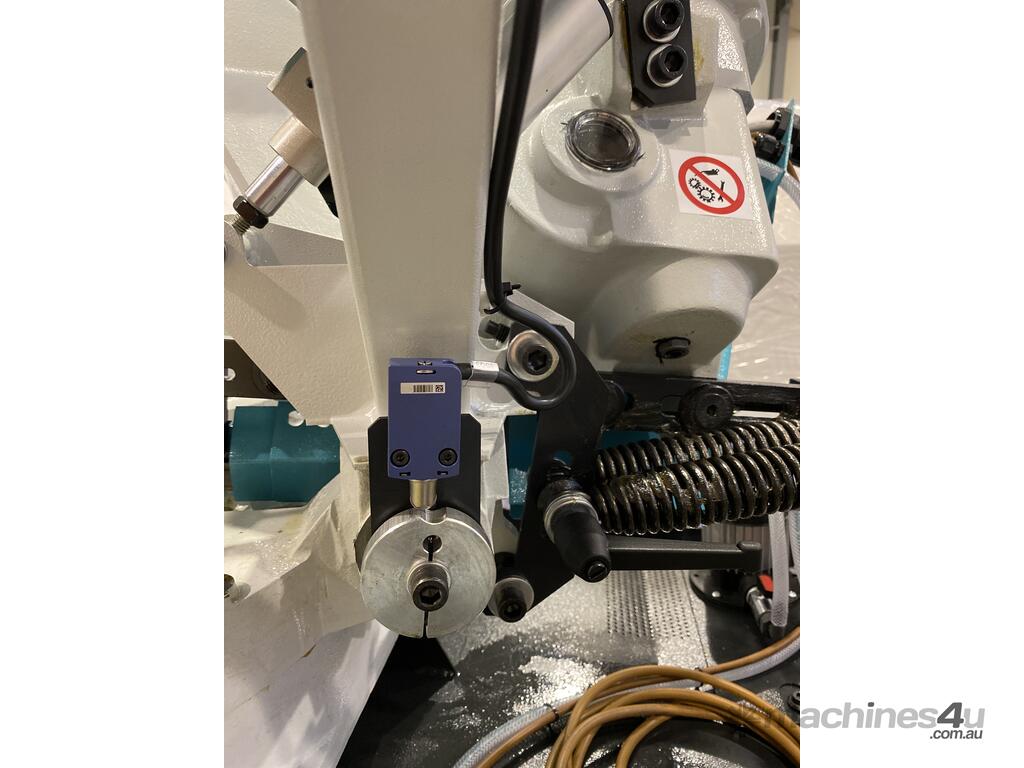

Machine saw frame is rigid cast-iron with tubular section, 320 mm pulleys, high blade tension at 1700 kg/cm2 and to avoid an excessive strain on the blade with frontal regulation and microswitch controller.

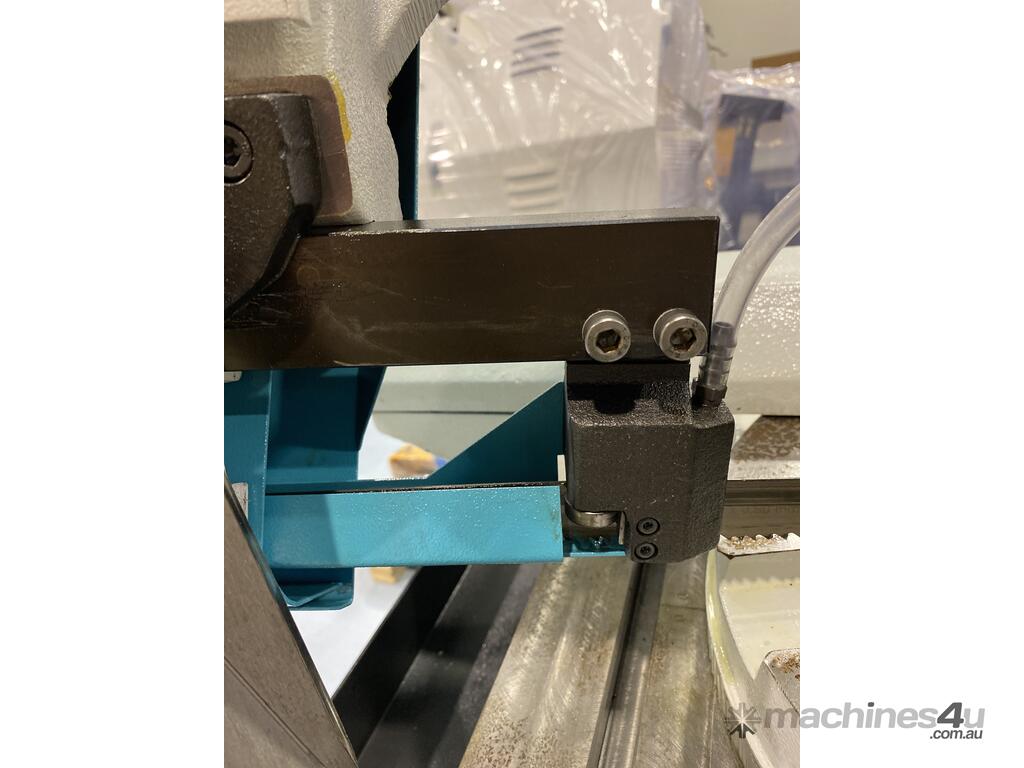

Blade protection

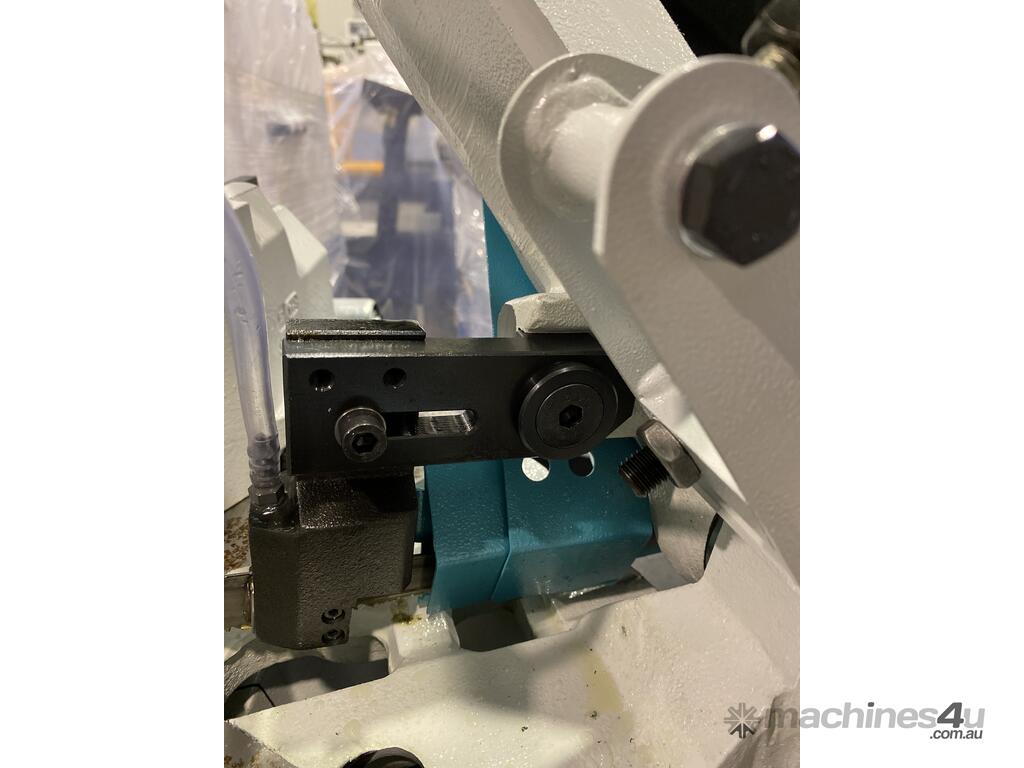

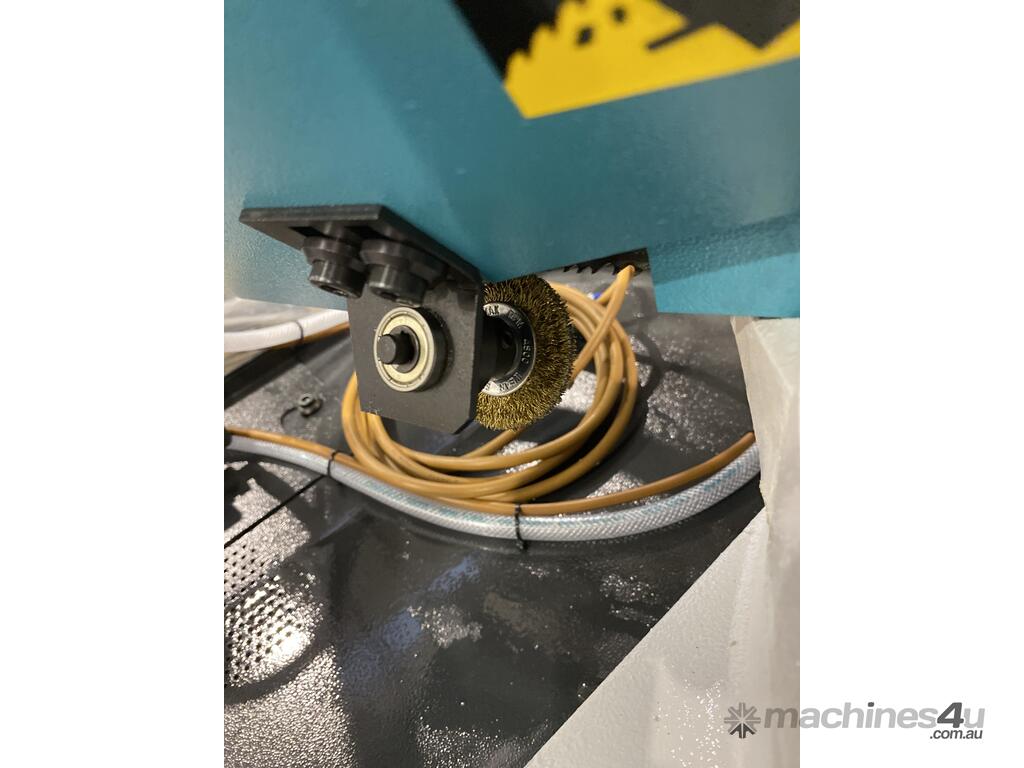

A carter protect the blade, allowing to have easy access for maintenance when needed; a system with blade guides with hard pads, additional lateral bearings provides for the perfect alignment of the blade

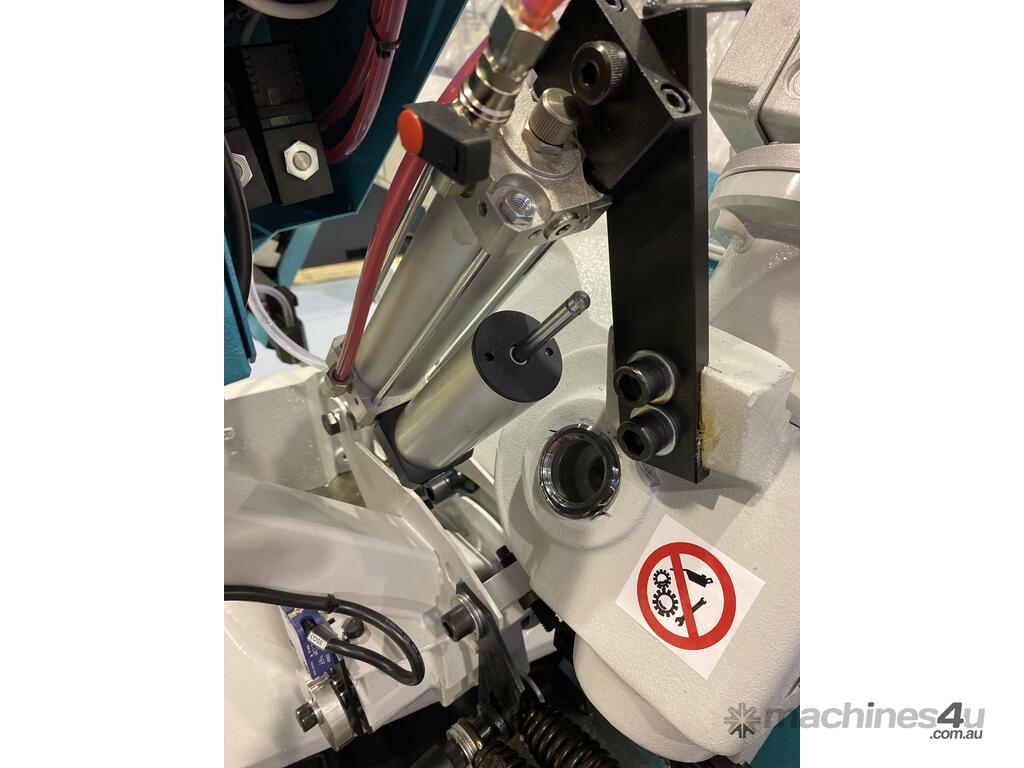

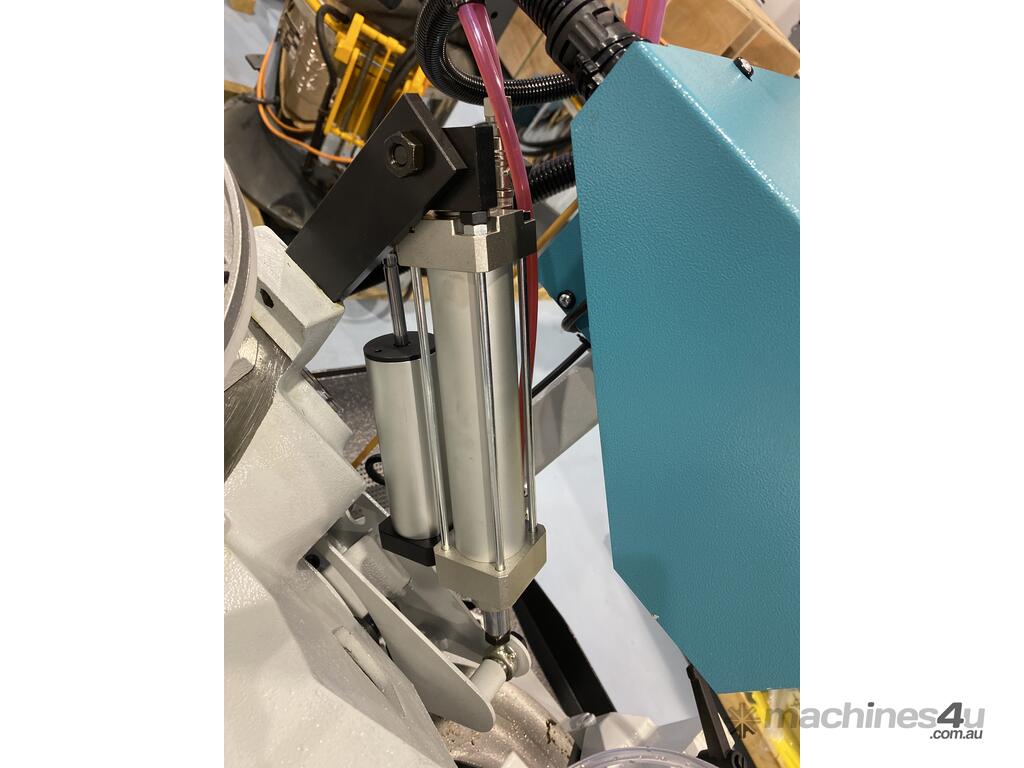

Autocut

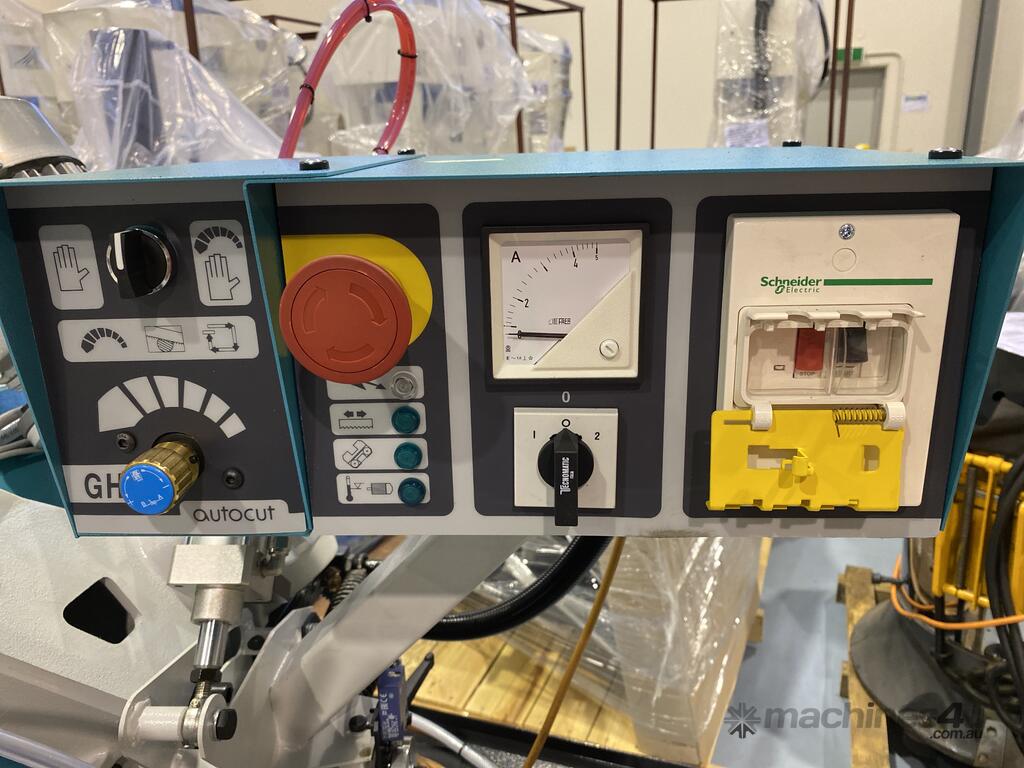

GH version has a 3-mode selector:
Manual cut
Fast approach to the material
Automatic cut with adjustable down-feed rate and stop at cutting ending. The user can move manually the saw frame close to the material, then let the machine makes the cut adjusting only the down-feed rate.

Easy to use

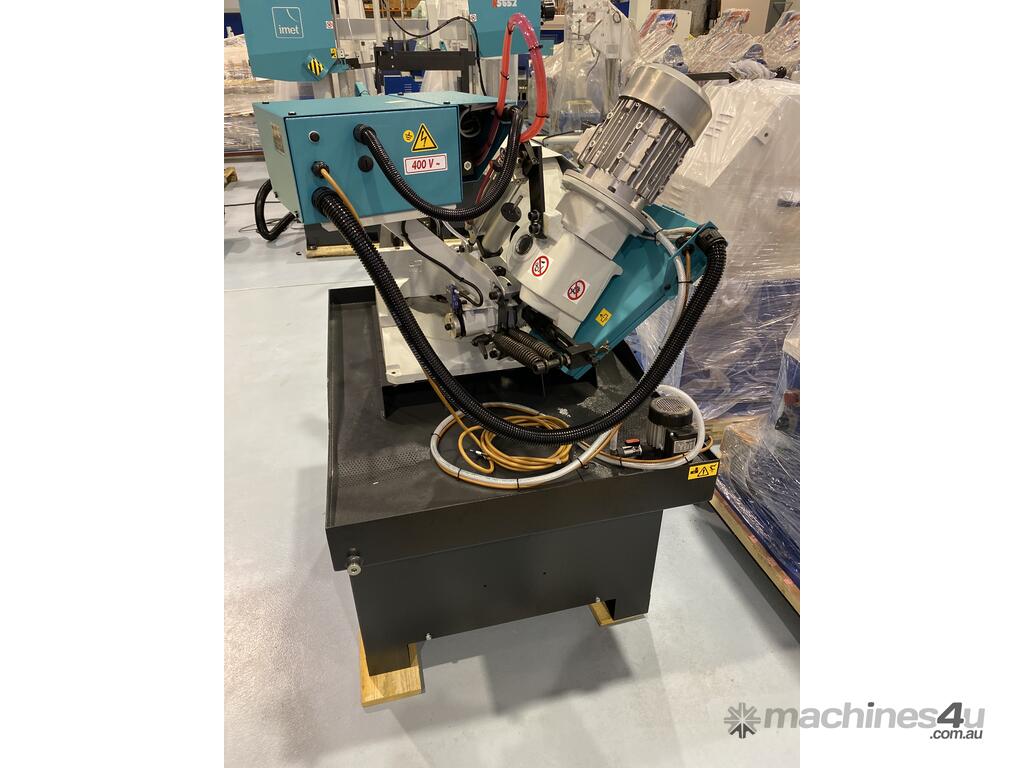

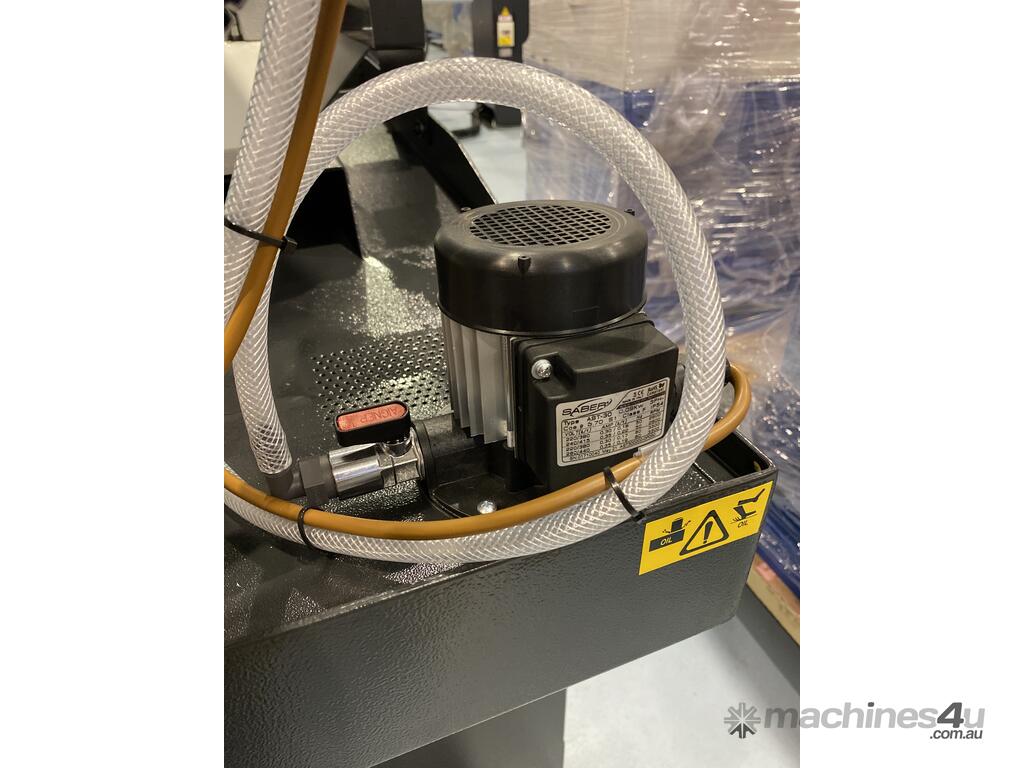

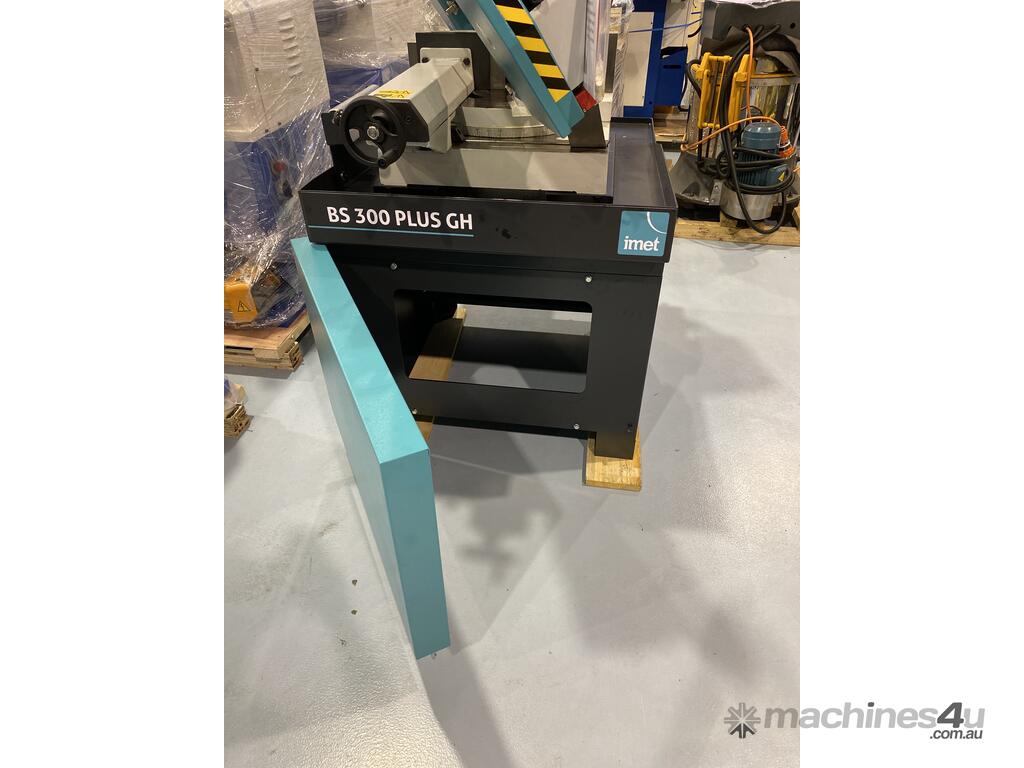

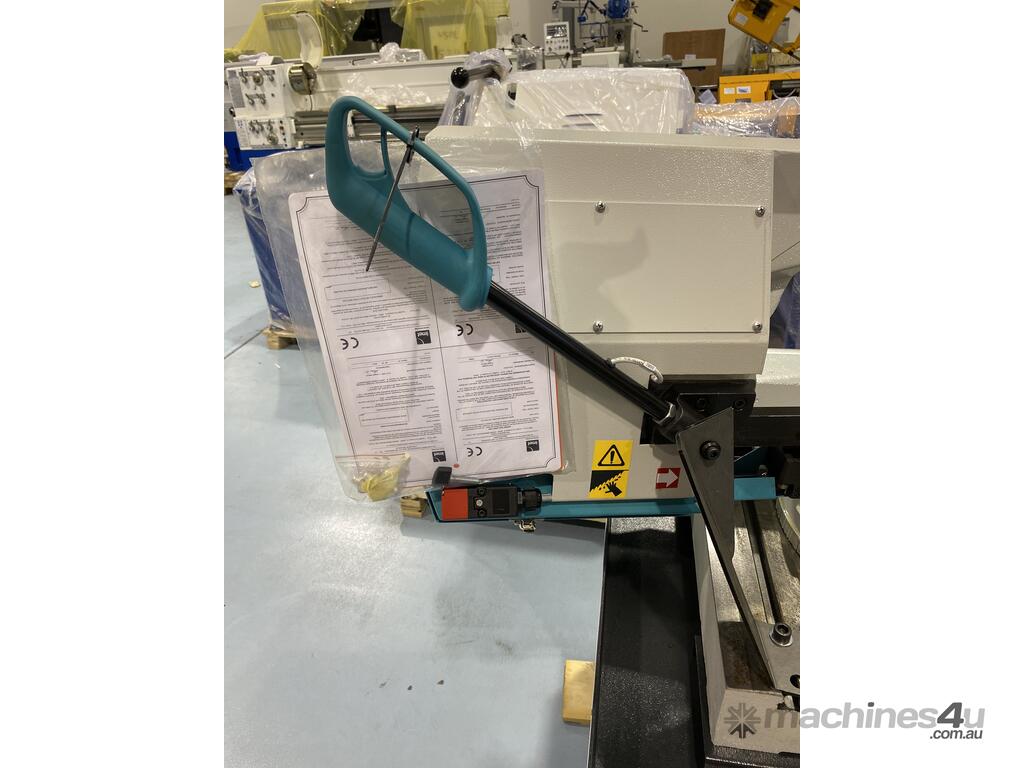

Safe starting through the button on the handle with warning light to inform the use about the correct machine functioning. Coolant-tank and electro pump are placed inside the floor stand.

Electronic inverter (Optional)
If required, the electronic inverter for variable blade speed allows the operator via keyboard to adjust the machine to be able to cut a wide range of materials and different sections. The change of speed is via inverter and it does not affect the power of the engine even at low speeds.

Minimal lubrification system (Optional)
It is possible to require , for all Imet machines, the minimal lubrication system , it avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected.

Pneumatic vice (Optional)
Pneumatic vice, opening/closing synchronized with the saw frame motion

Cutting capacity at 90°

Round 255 mm.
Square 230 mm.
Rectangular 300x180mm

Cutting capacity at 45° right

Round 210 mm.
Square 190 mm.
Rectangular 200x180mm

Cutting capacity at 45° left

Round 180 mm.
Square 160 mm.
Rectangular 180x100mm

Cutting capacity at 60°

left Round 135 mm.
Square 110 mm.
Rectangular 130x100mm

Maximum capacity for full materials 180mm
Blade size. 2765x27x0,9
End-cutting bandsaw inclination 3°

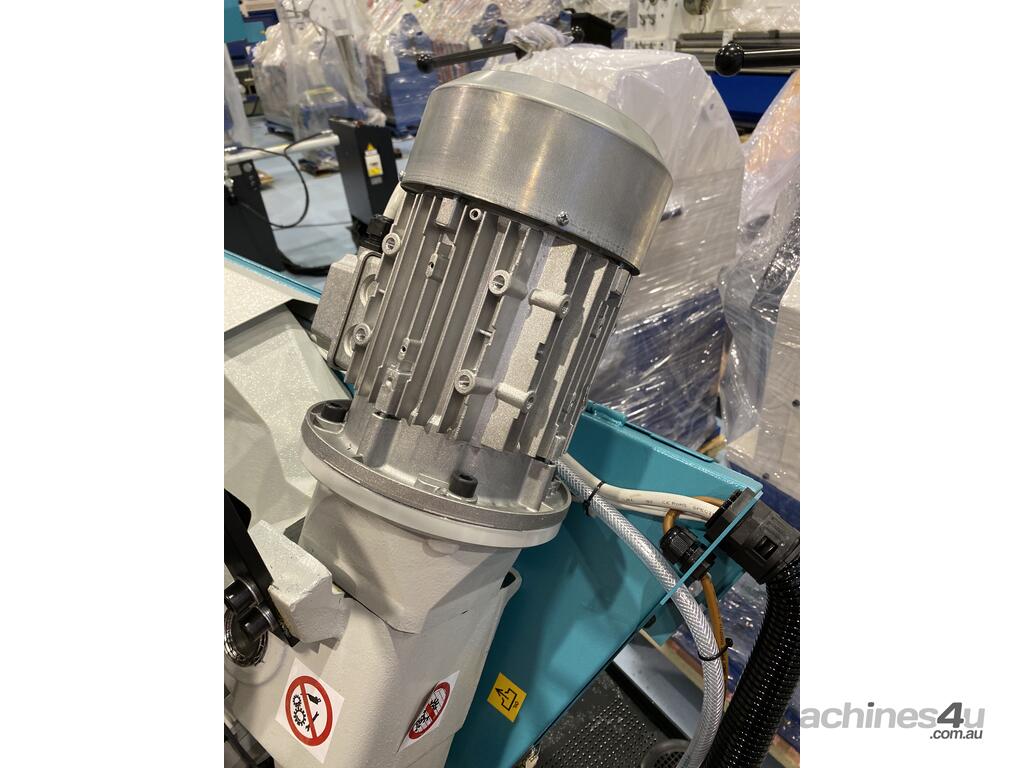

Blade motor 1,5/1,8 kw
Blade speed 35/70
Coolant tank Lt 20

Size 1230x1700x1750 mm
Working table height 940 mm
Weight 412kg
