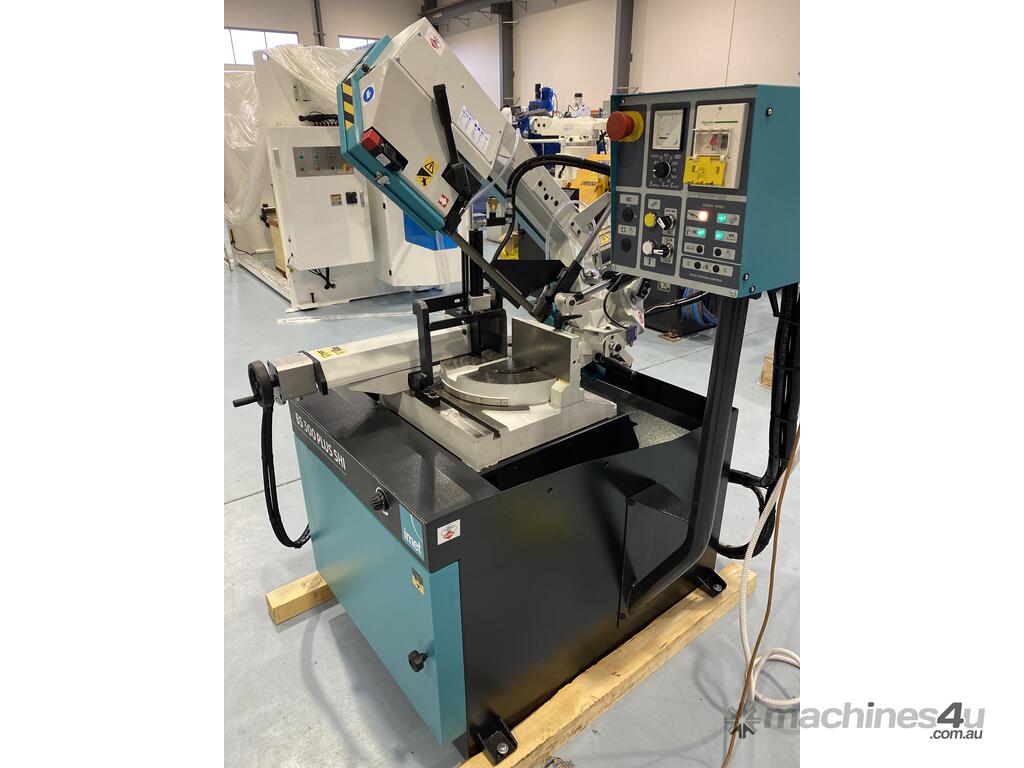

IMET BS 400 SHI BANDSAW | DOUBLE MITRE | SEMI AUTO | 400MM x 250MM (ITALIAN MADE)

The IMET BS 400 SHI is the semi automatic bandsaws intended to cut both left (up to 60°) and right (from 0° to 45°). The machine is a suitable working tool for small and medium batch production for mechanics and steelwork. Hydraulic vice clamping and frame is standard on this model. Italian made quality.

Wide working area

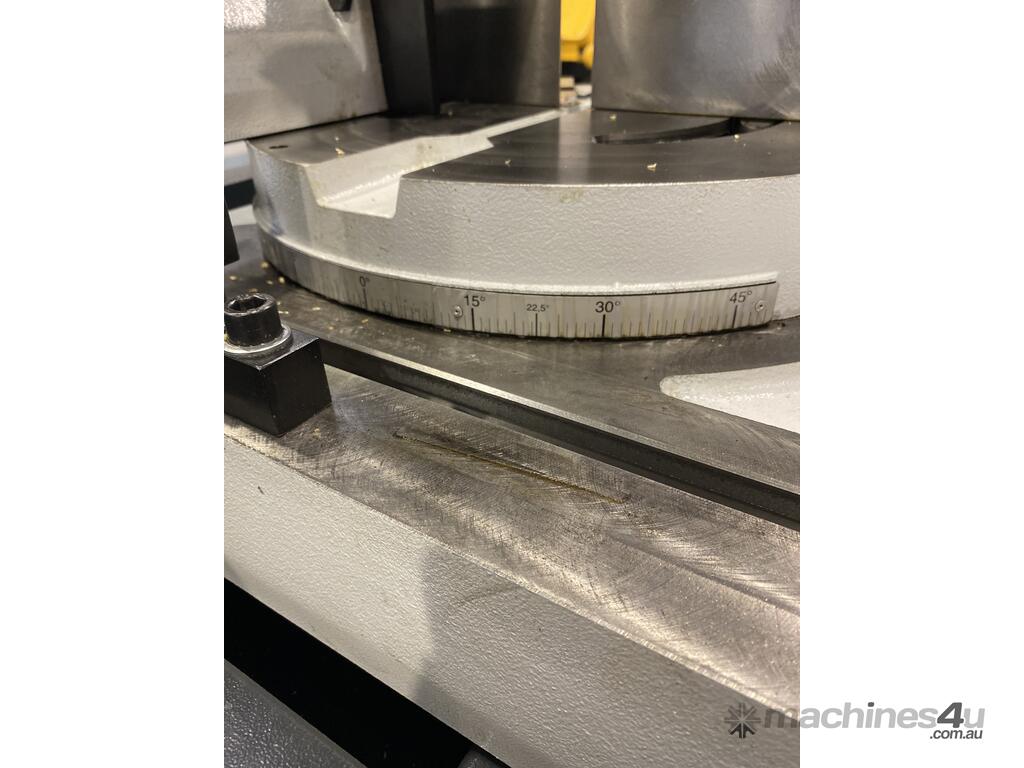

BS 400 SHI is equipped with a wide diameter working area and a system of automatic easy stops at 0°, 45° and 60° left and 45° right with graduated plate to identify and set different angles.

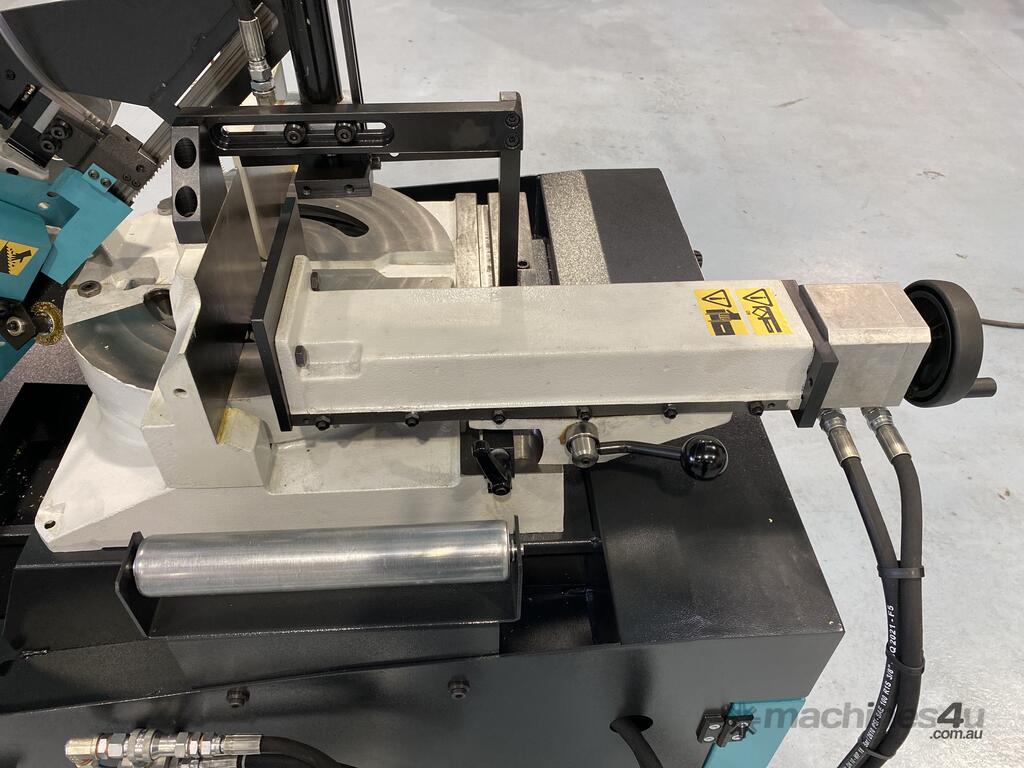

Opening vice
The vice has adjustable guides, free to move alongside the worktable, with rapid approaching and clamping.

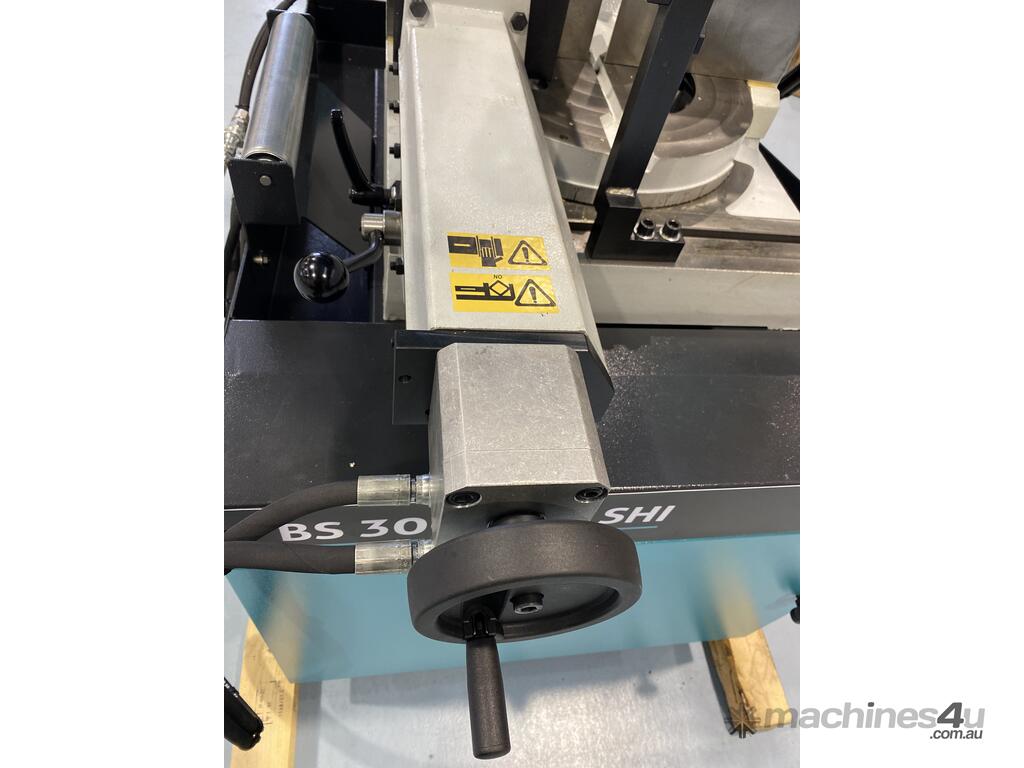

Hydraulic vice
The vice is hydraulic with sliding guides on the blade with fast approach system.

Rigid saw frame
Machine saw frame is rigid cast-iron with tubular section, 360 mm pulleys, high blade tension at 2000 kg/cm2 and to avoid an excessive strain on the blade with frontal regulation and microswitch controller.

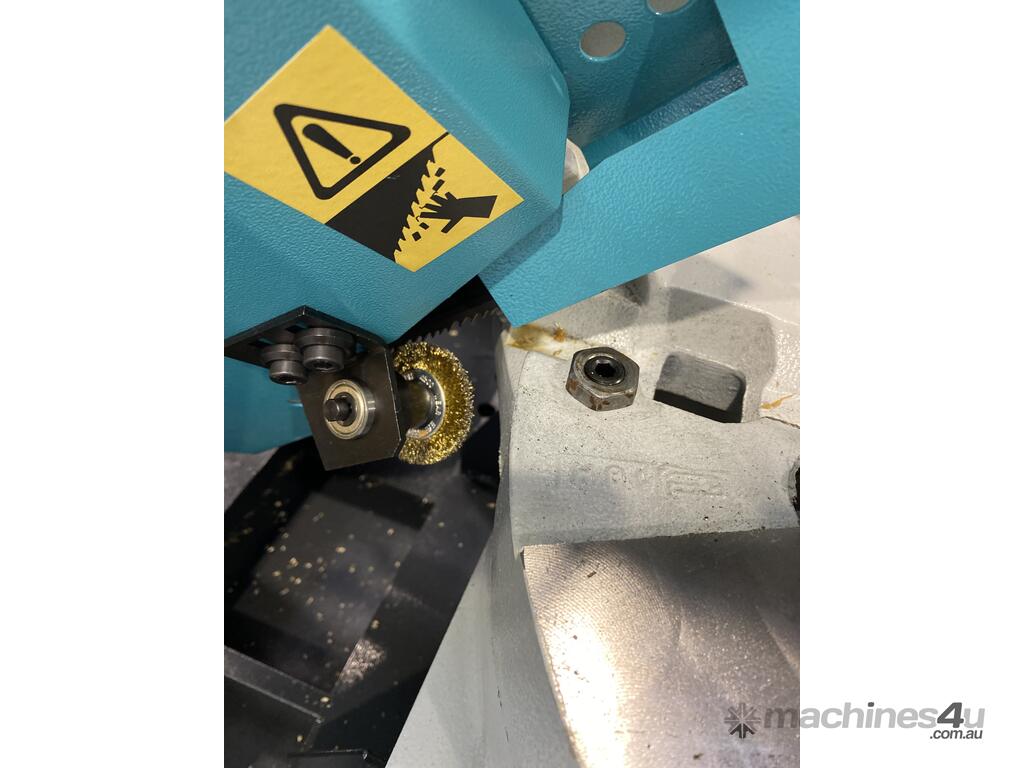

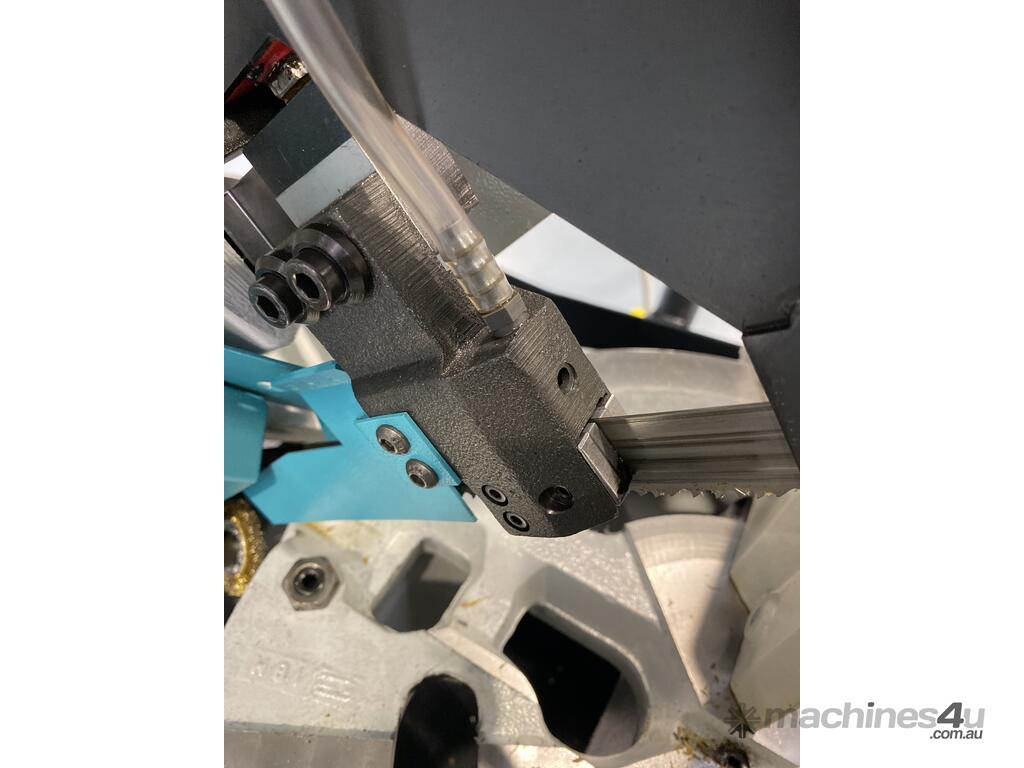

Blade protection

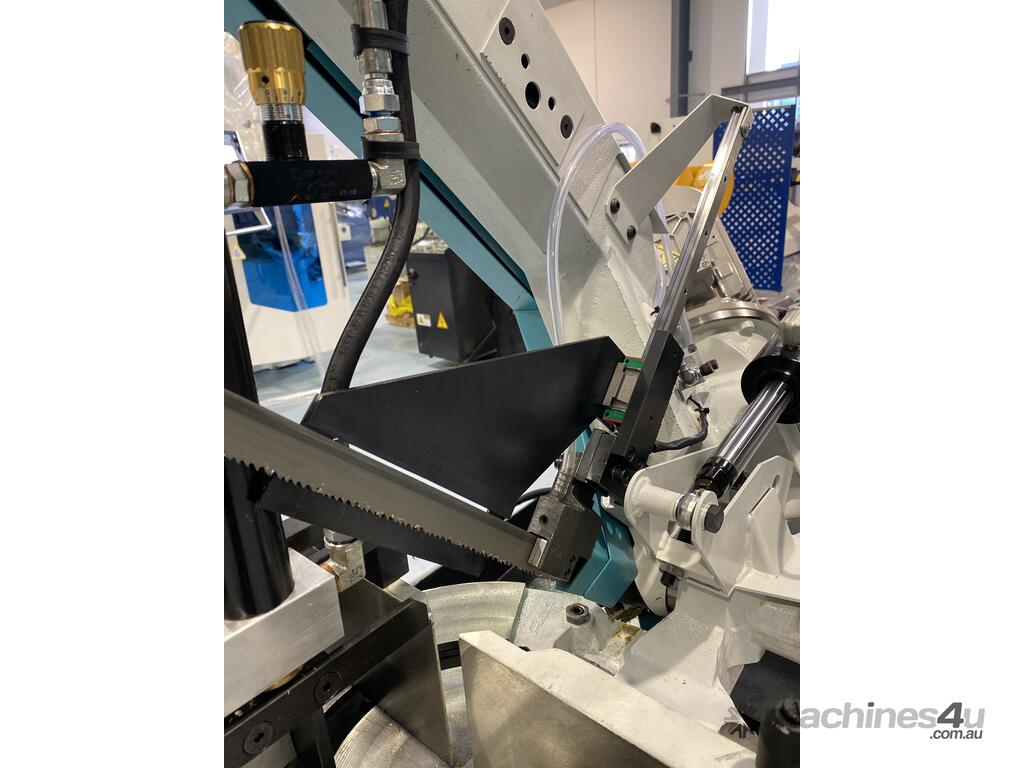

A carter protect the blade, allowing to have easy access for maintenance when needed; a system with blade guides with hard pads, additional lateral bearings provides for the perfect alignment of the blade

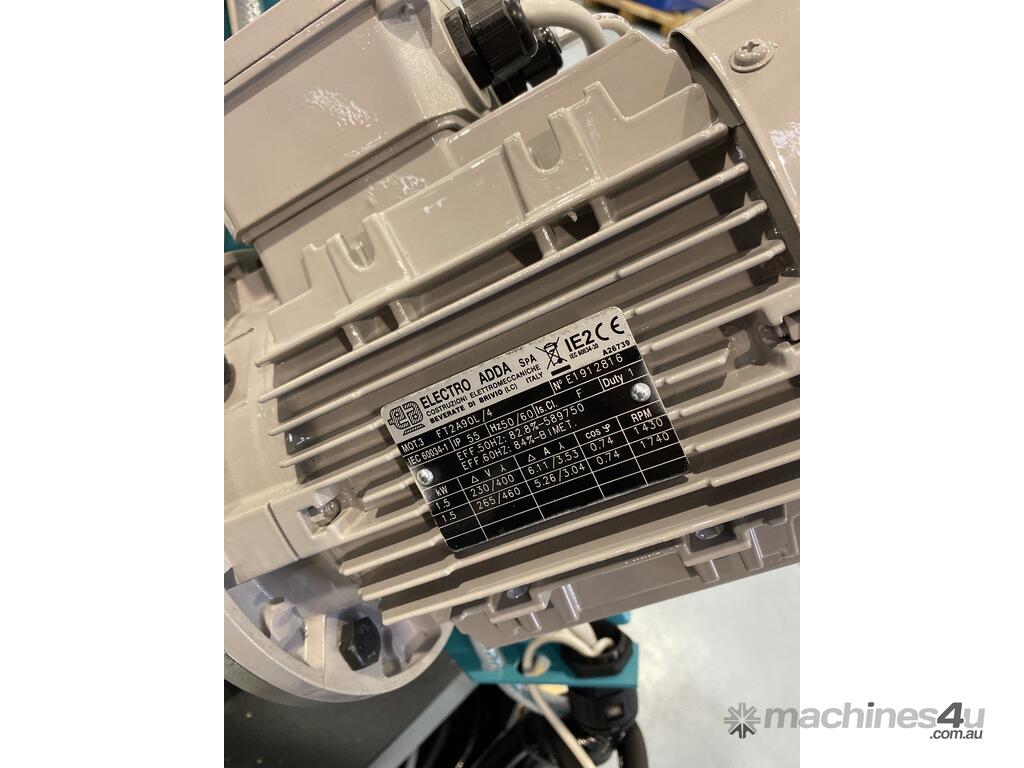

Moto reducer
BS 400 SHI is equipped with a strong, powerful moto reducer made in cast-iron.

Easy to use

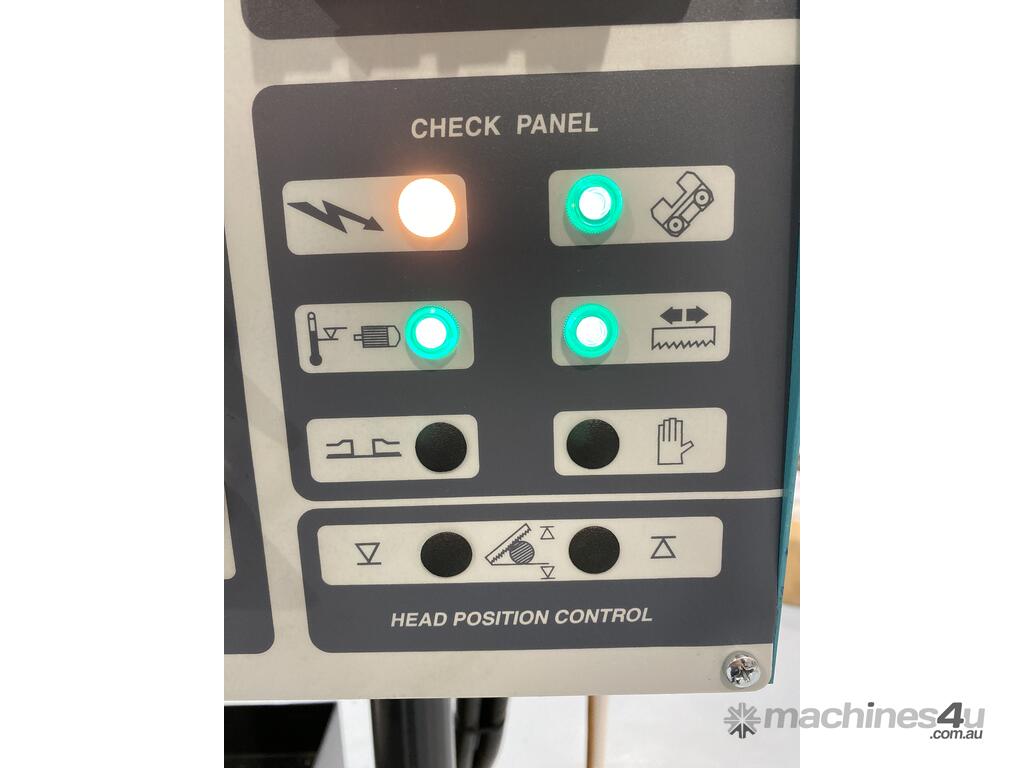

Safe starting through the button on the handle with warning light to inform the use about the correct machine functioning. Coolant-tank and electro pump are placed inside the floor stand.

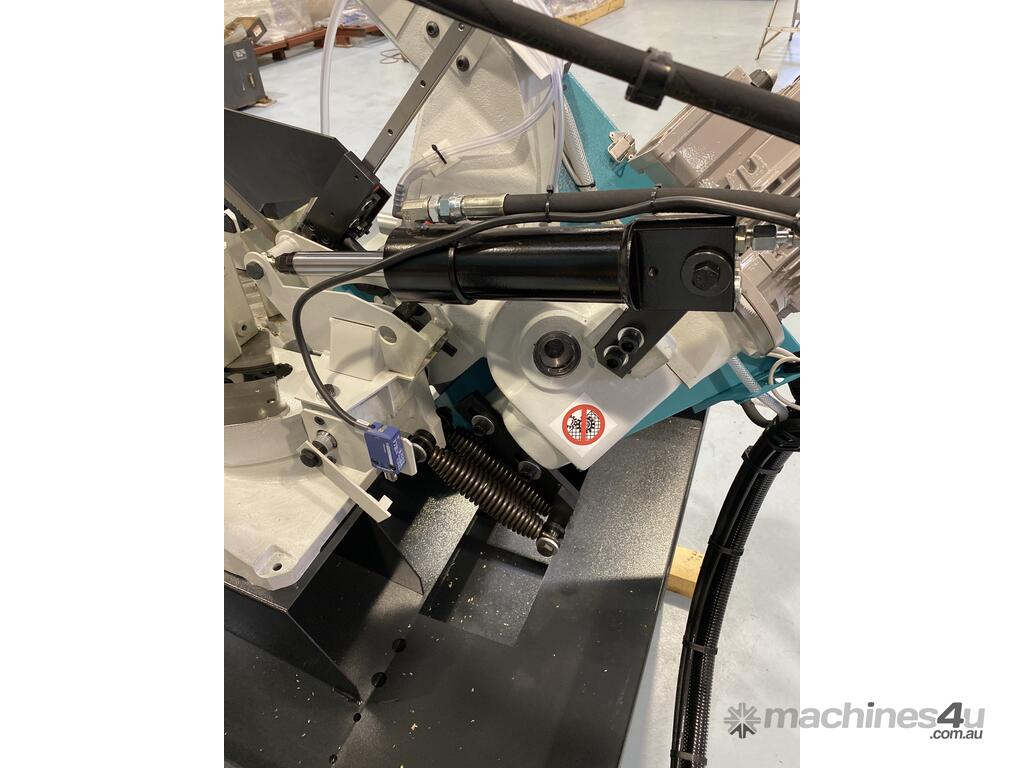

Rapid approach blade arm
The rapid approach blade arm is a mechanism that allows the saw blade to travel down rapidly to the top of the job and then sense the job and automatically go into the set cutting speed, ideal to speed up production.

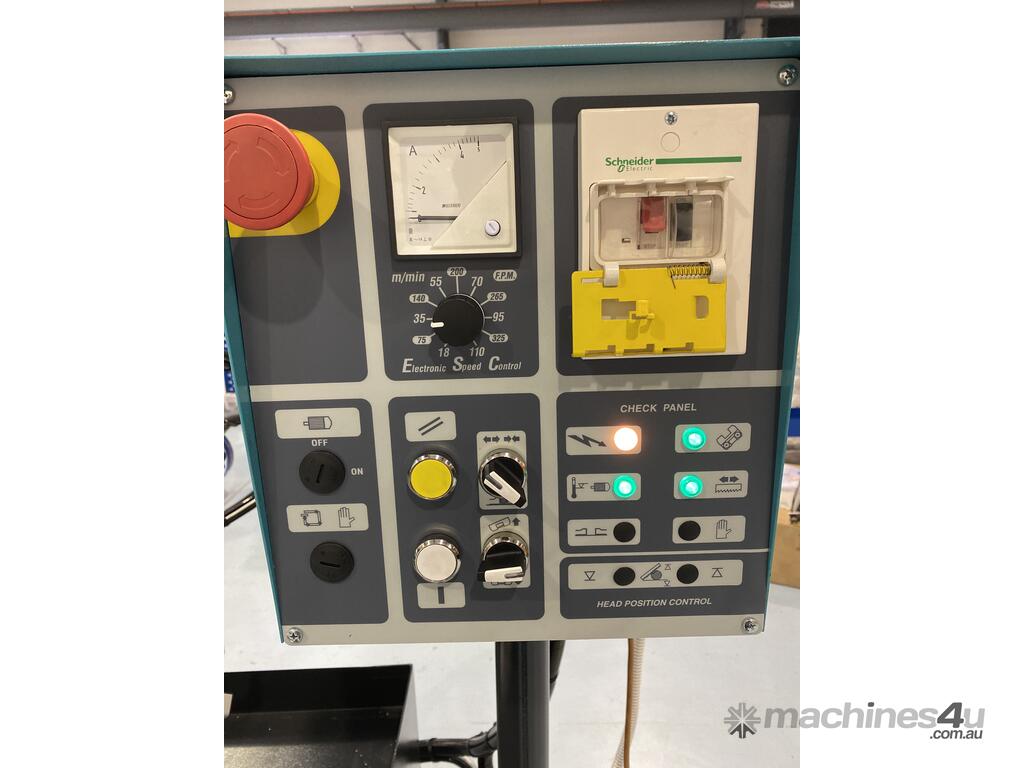

Electronic inverter (INCLUDED)

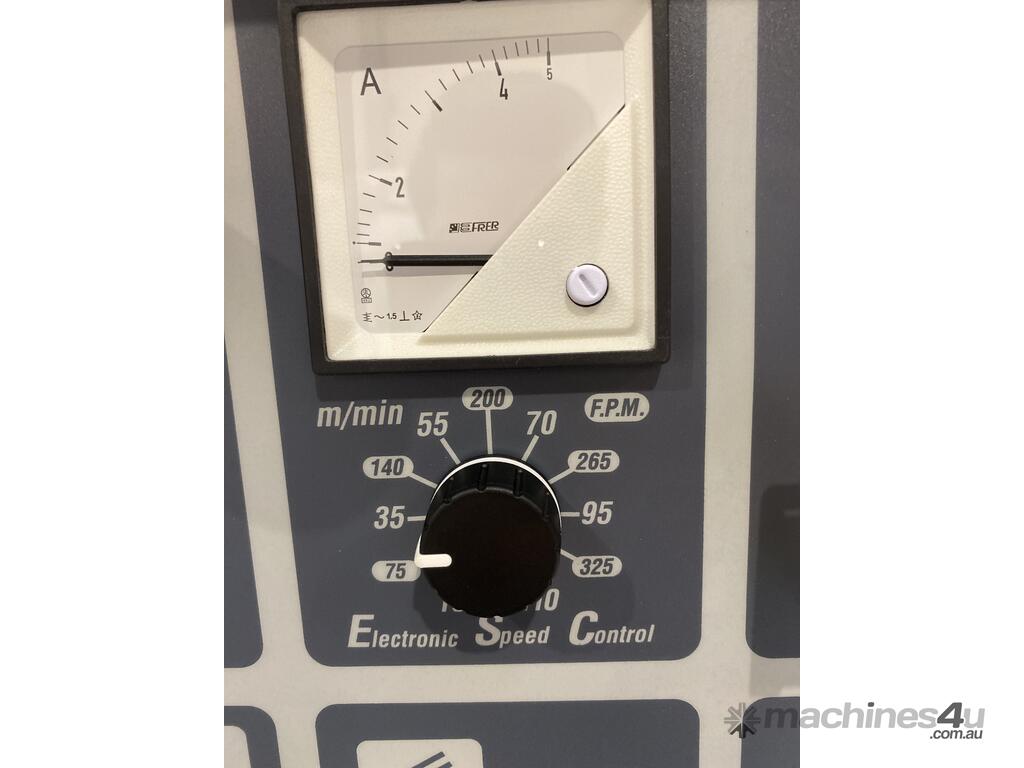

If required, the electronic inverter for variable blade speed allows the operator via keyboard to adjust the machine to be able to cut a wide range of materials and different sections. The change of speed is via inverter and it does not affect the power of the engine even at low speeds.

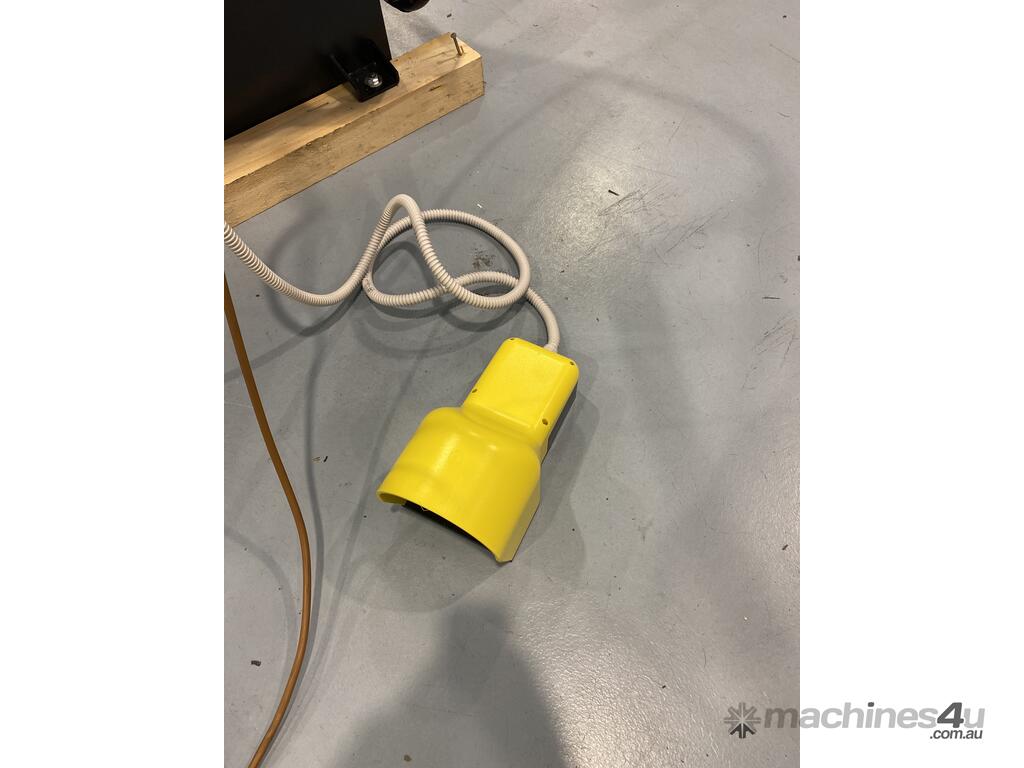

Foot pedal (INCLUDED)
Foot pedal with 3 3m long cable (only for SHI version).

LCD Display (Optional) OPTIONAL
It's available for these machine the LCD display dedicated to view the set cutting
angle. The device is placed below the main panel control, attacched to the
support.

Vertical vice (Optional) OPTIONALXT40002
Unloading side vertical vice. Not compatible with bundle cutting device.

End cut with canted blade
The machines uses an innovative system for the end cut with canted blade to
reduce strain on the blade and increase cutting performances. The canted blade
ease the process even on solid material, allowing to work on material sections and
not on the full solid part.

Bundle cutting (Optional) OPTIONAL 000951-13
BS 400 SHI can be used with an mechanic bundle cutting device to work with
bundles. The bundle allows to cut only at 90°; in the case the user has to cut at a
different angle, the device must be disassembled. Maximum cutting capacity is
280x160mm, minimum capacity is 90x10mm. Not compatible with hydraulic
vertical vice for unloading side.

Minimal lubrification system (Optional)
It is possible to require , for all Imet machines, the minimal lubrication system , it avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected.

Pressure reducer (Optional)
Pressure reducer for hydraulic vice (only for SHI version)

Laser ray (Optional) OPTIONAL
Laser ray to detect the cutting line.

Cutting capacity at 90° Round: 310mm - Square: 280mm - Rectangular: 400x250mm
Cutting capacity at 45° left Round: 280mm - Square: 270mm - Rectangular: 300x220mm
Cutting capacity at 45° right Round: 280mm - Square: 270mm - Rectangular: 300x220mm
Cutting capacity at 60° left Round: 210mm - Square: 200mm - Rectangular: 200x200mm
Cutting capacity at 0° with solids (C45) 250mm
Bundle cutting capacity Max: 280x160mm - Min. 90x10mm
Blade size 4020x34x1.1mm
Blade speed 37/74 m/min
Blade speed with ESC 18-100 m/min
Blade power 1.5/2.2KW
Working table height 940mm
Weight 680Kg
Size 1530x1790x2240mm
