IMET - CUBO 300-NC FLAT CNC automatic bandsaw [made in Italy]

IMET range of bandsaws, circular saws and sawing machines.
Products to meet the increasingly complex client needs, in compliance with the highest standards of safety and environment.

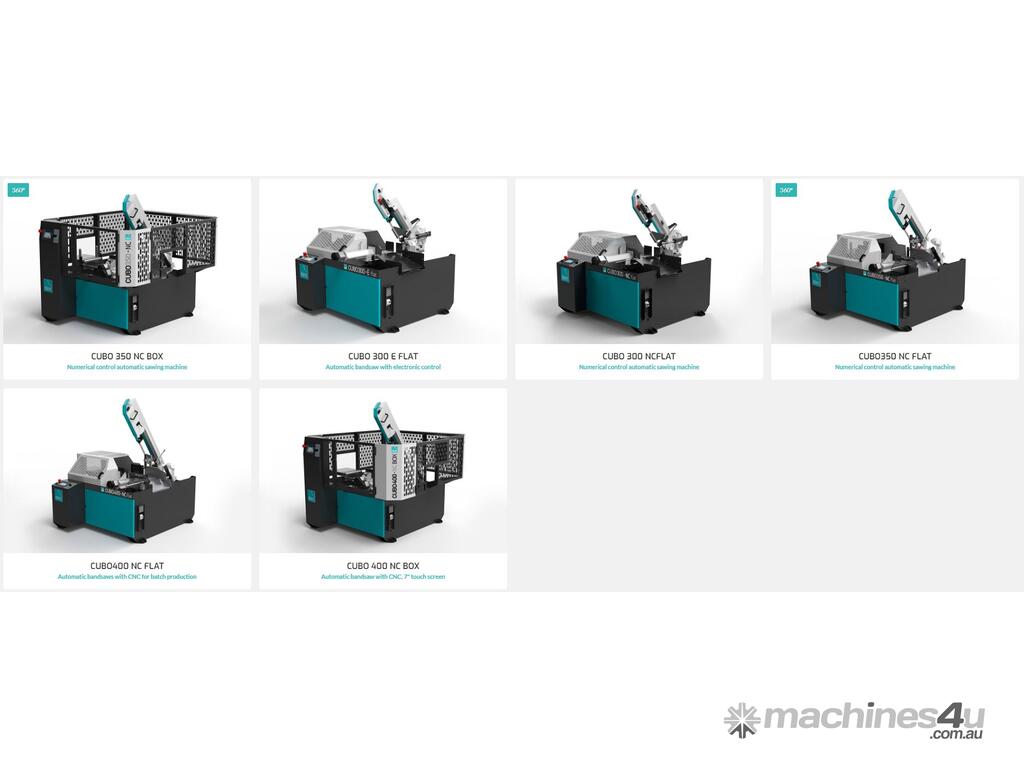

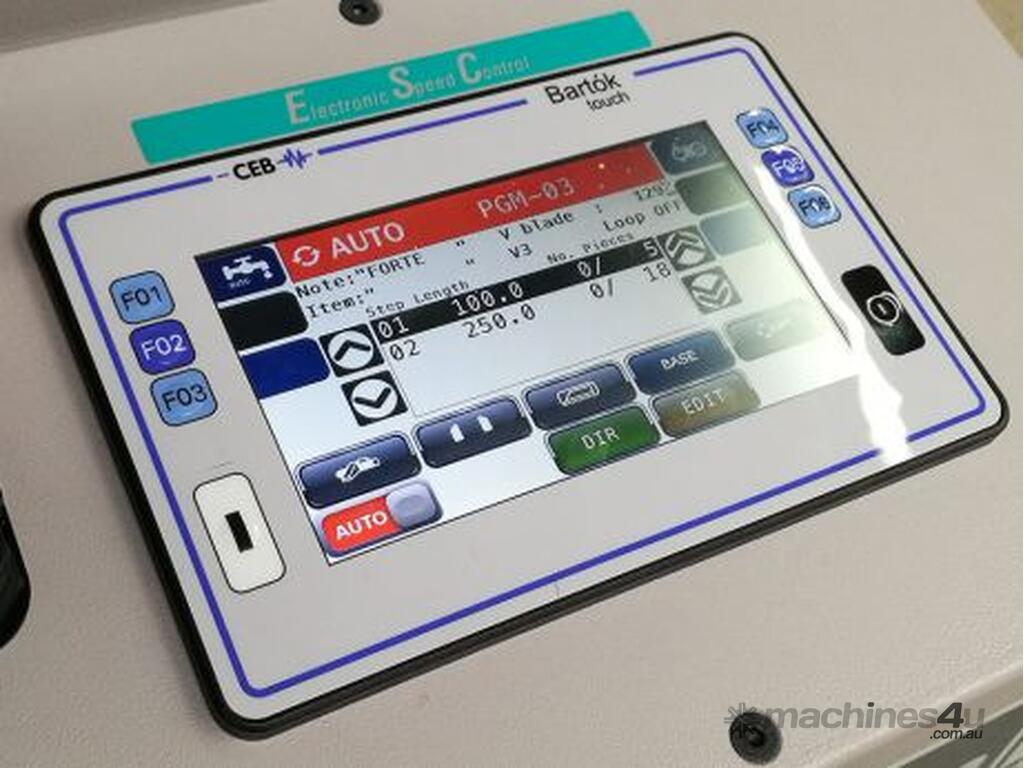

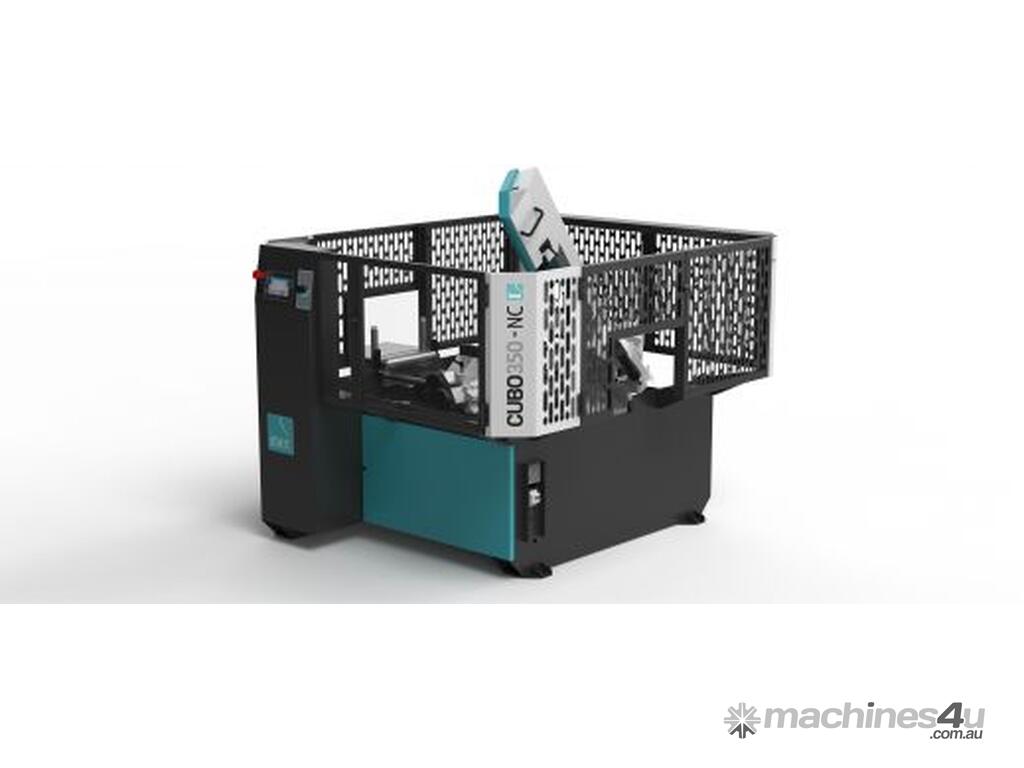

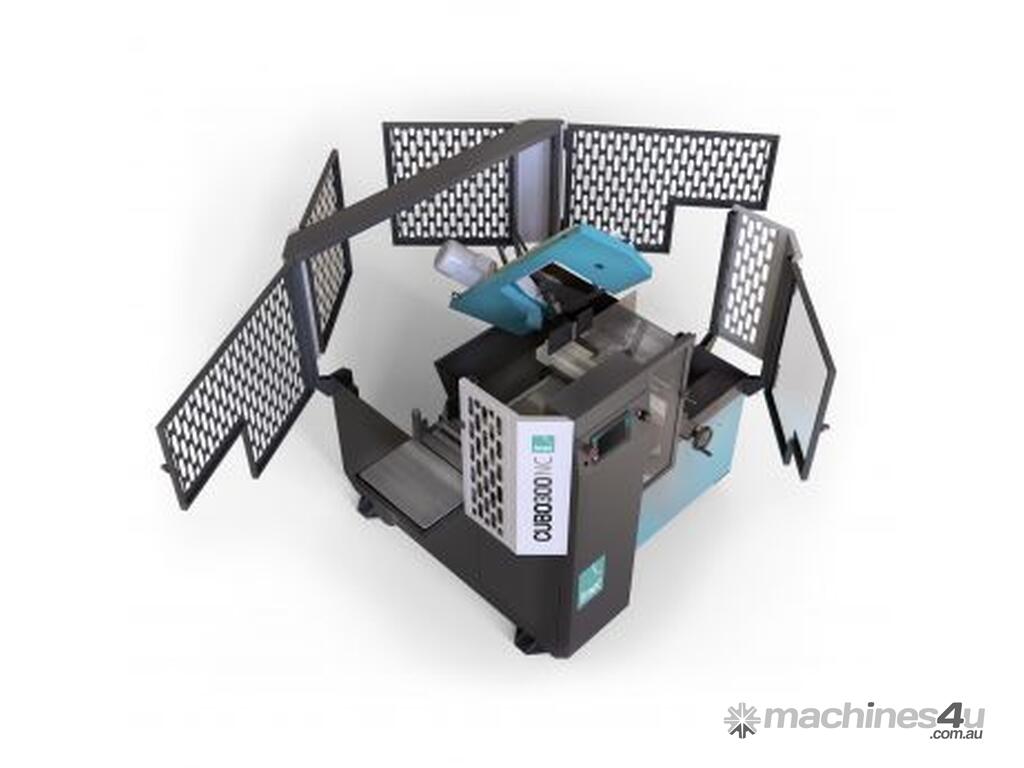

CUBO 300 NC FLAT is the new IMET automatic sawing machine, part of the innovative CUBO Series. Numerical control machine with touch screen display, it is a professional work tool with great ease of use, ideal fori utilizzo, ideal for the production of medium-sized pipes and bars, bow rotation is manual while its has automatic integrated material feeder.

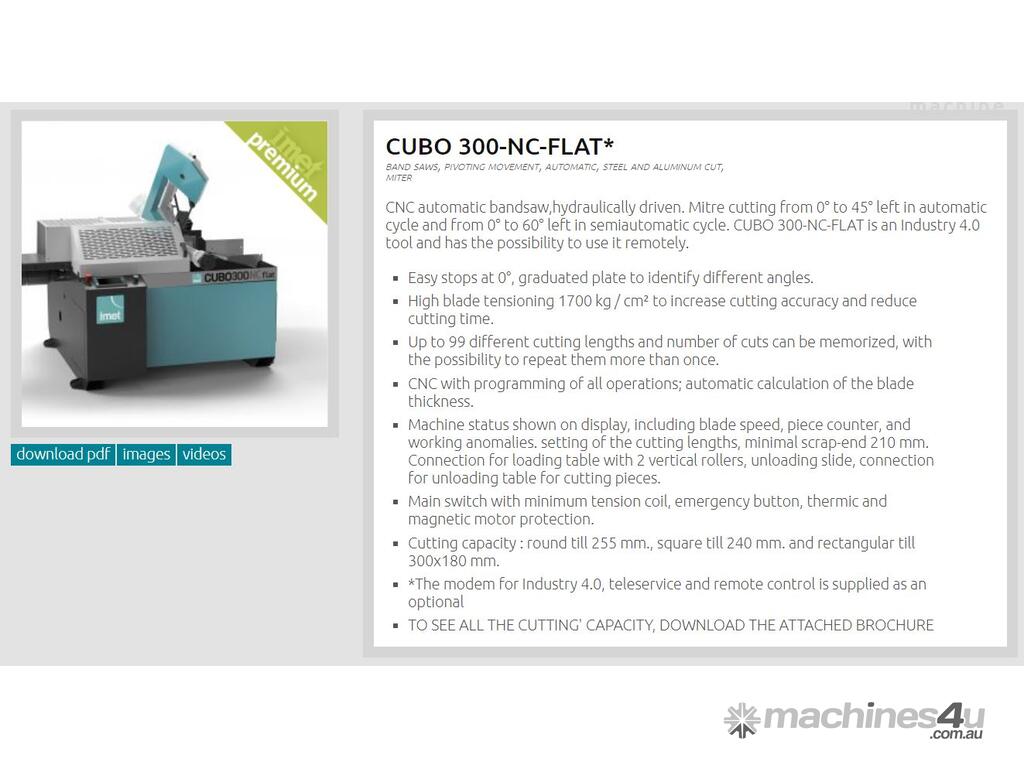

CNC automatic bandsaw, hydraulically driven. Mitre cutting from 0° to 45° left in automatic cycle and from 0° to 60° left in semiautomatic cycle. CUBO 300-NC-FLAT is an Industry 4.0 tool and has the possibility to use it remotely.

- Numerical control automatic sawing machine
- Easy stops at 0°, graduated plate to identify different angles.

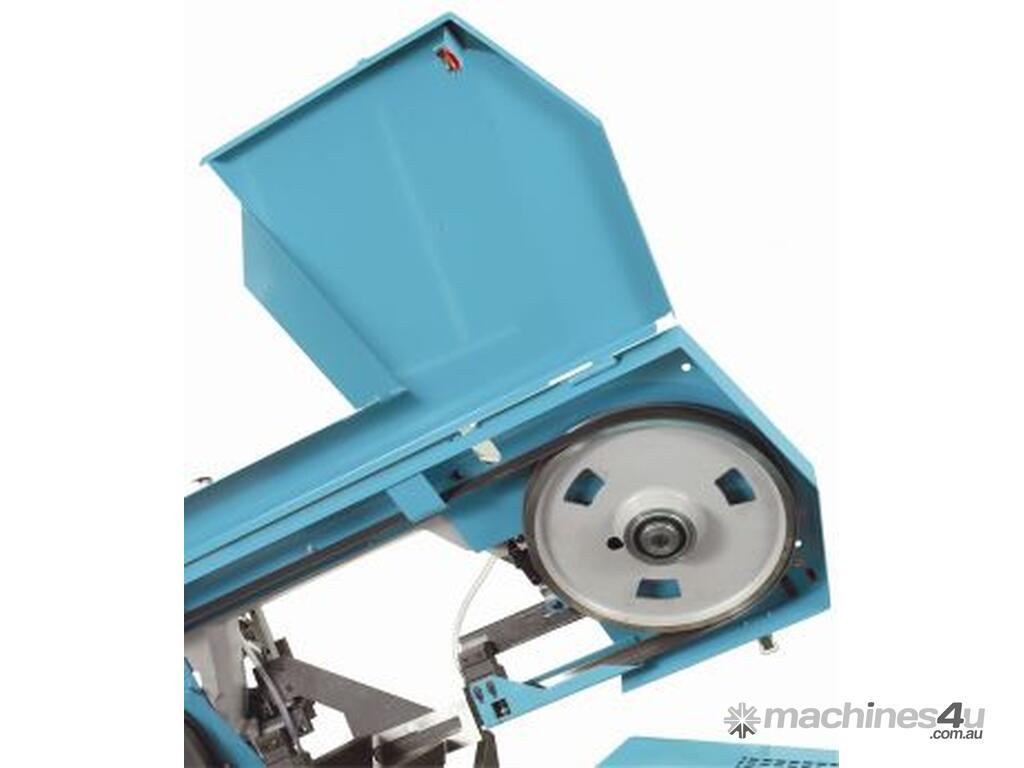

- High blade tensioning 1700 kg / cm² to increase cutting accuracy and reduce cutting time.
- Up to 99 different cutting lengths and number of cuts can be memorized, with the possibility to repeat them more than once.
- CNC with programming of all operations; automatic calculation of the blade thickness.

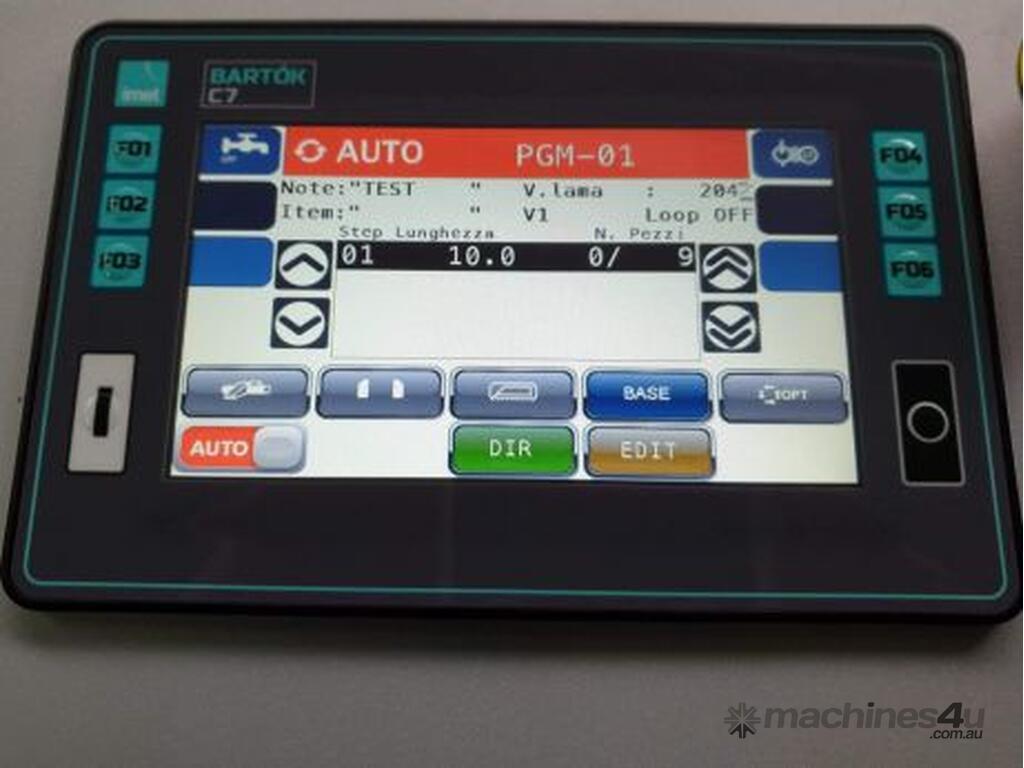

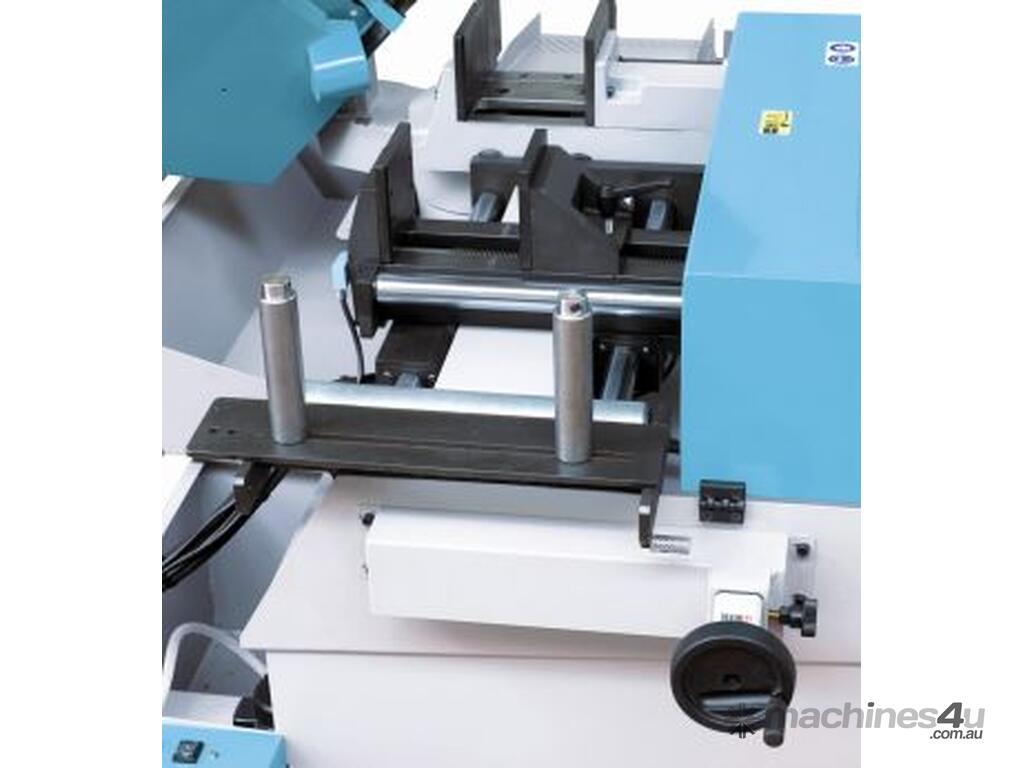

- Machine status shown on display, including blade speed, piece counter, and working anomalies. setting of the cutting lengths, minimal scrap-end 210 mm. Connection for loading table with 2 vertical rollers, unloading slide, connection for unloading table for cutting pieces.
- Main switch with minimum tension coil, emergency button, thermic and magnetic motor protection.
- Cutting capacity : round till 255 mm., square till 240 mm. and rectangular till 300×180 mm.

*The modem for Industry 4.0, teleservice and remote control is supplied as an optional
