The KS450 is the semi-automatics awing machine conceived, designed and developed for cutting metal structural work,
pipes,profilesandbeams.KS450istheonlysawingmachineof itsclasscapableofcuttingupto60°totheright
and to left by positioning the locking vice only once The Imet range is quality made in Italy.

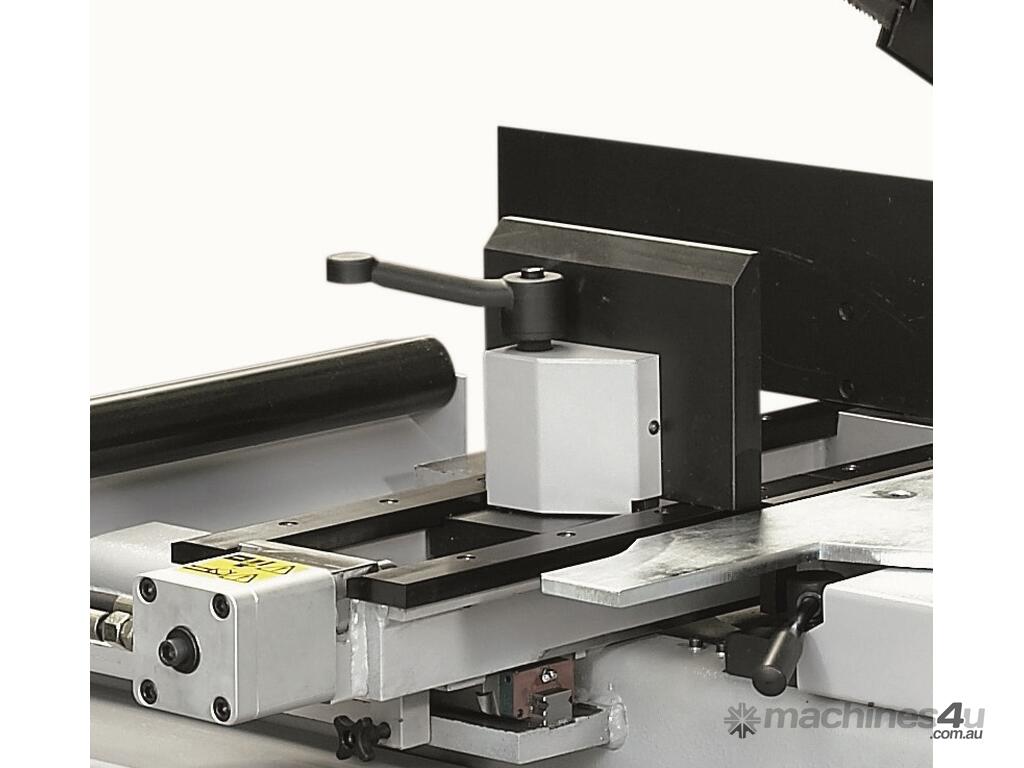

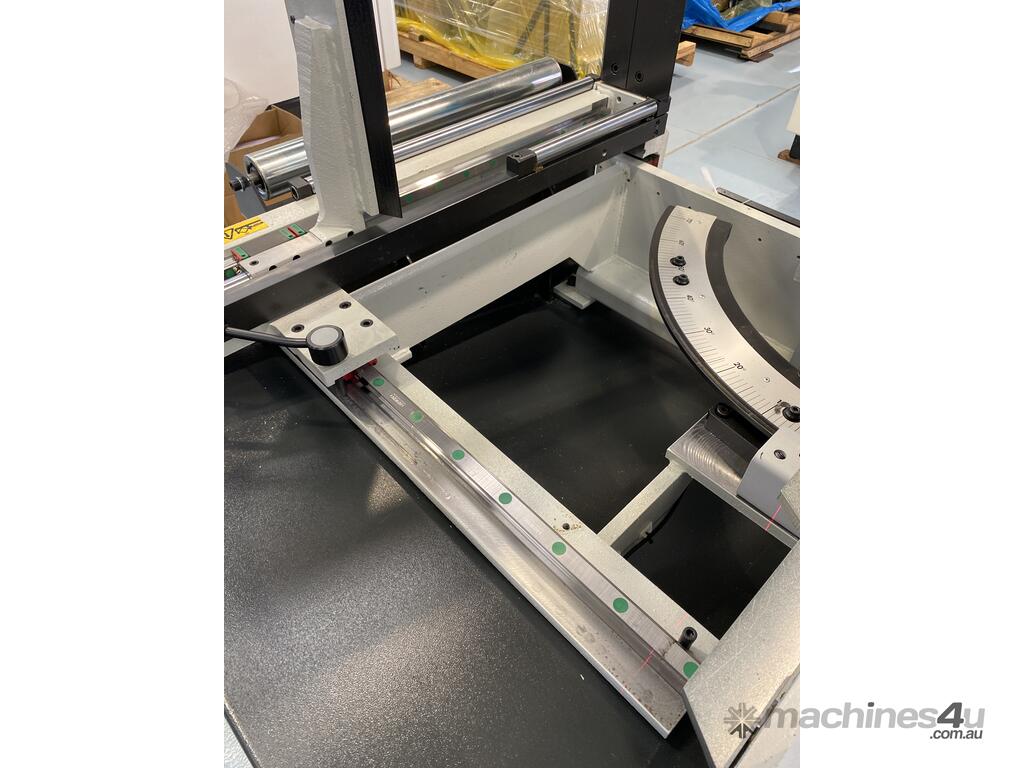

Vice and material positionning
The opening vice measures 460mm sliding transversally on the work surface,
linear guides, locking and rapid approach, complete with standard pressure
reducer. All the saws of KS series (450, 502, 620 and 652) allow to fix the material
clamping vice only once and then to rotate the arc for cutting both right and left
(up to 60 °).

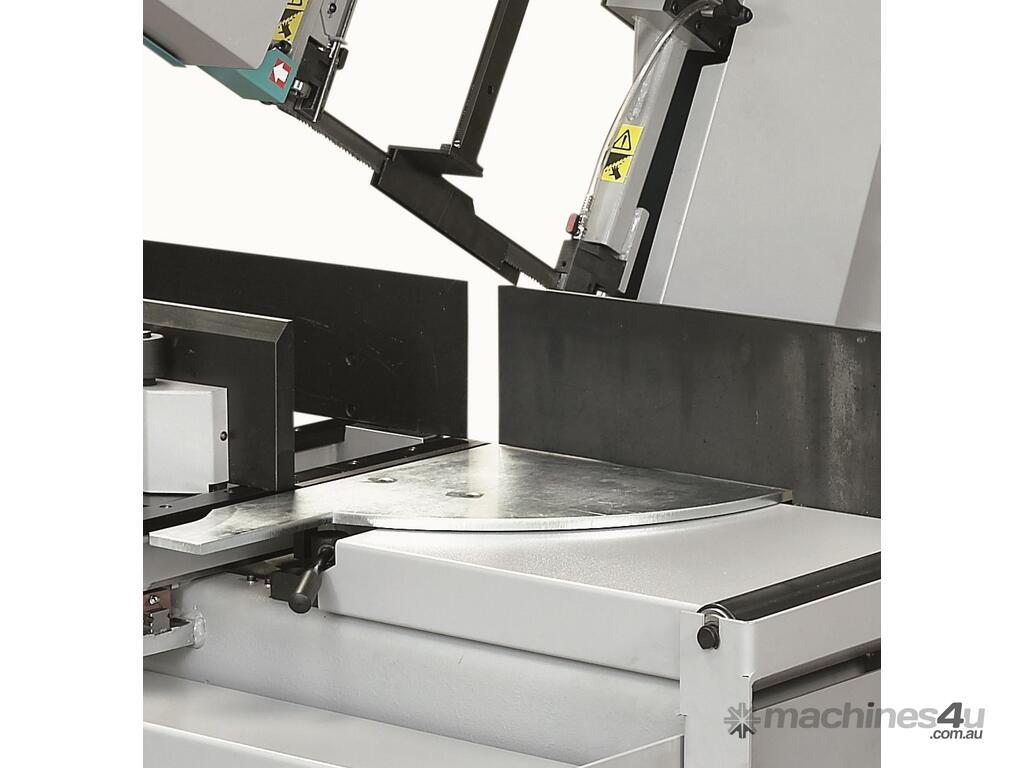

Working table
The working table of KS 450 has a height of 845mm and it's integral with the arc
and passage of the blade so that it can hold the material in all angles.

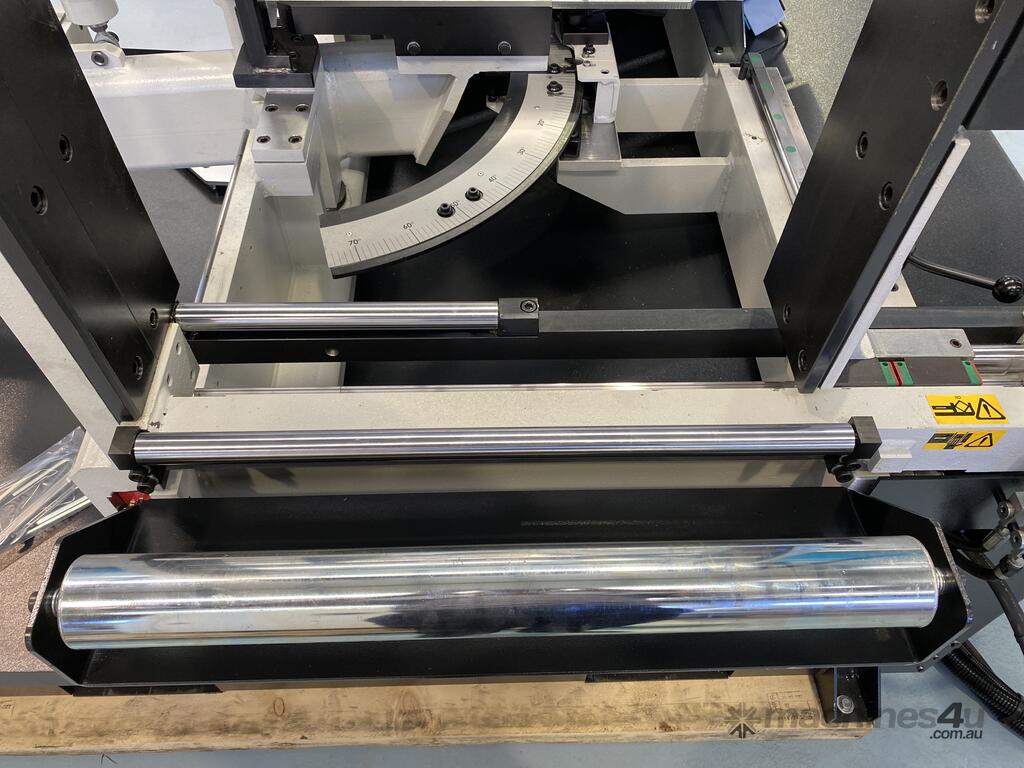

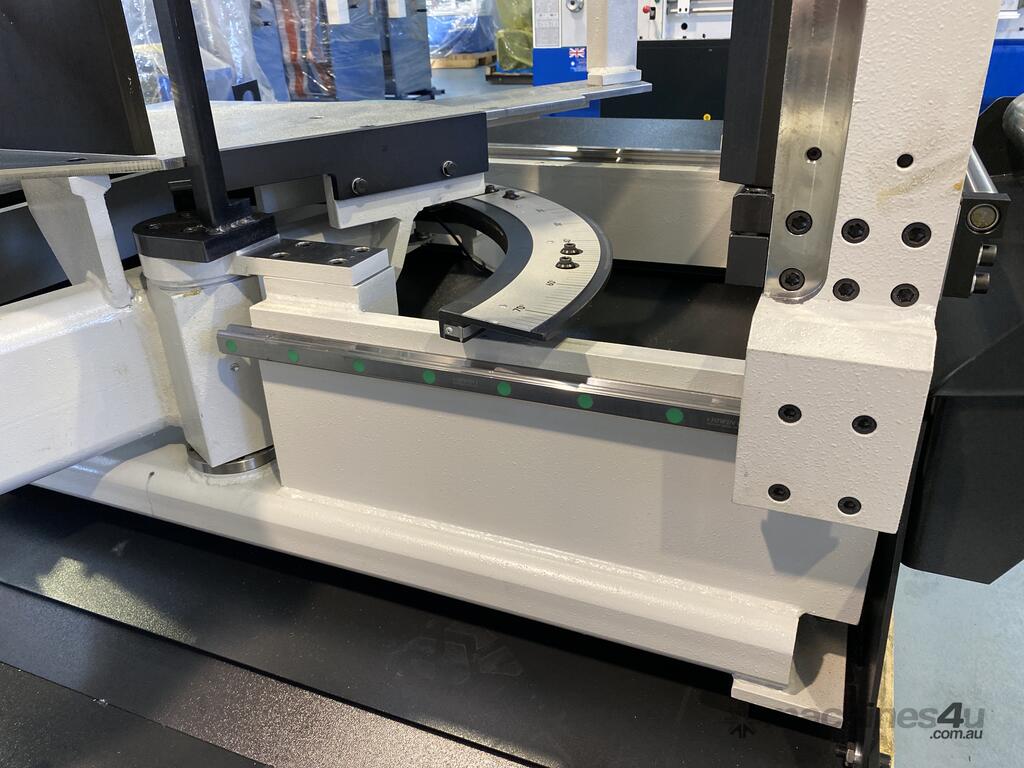

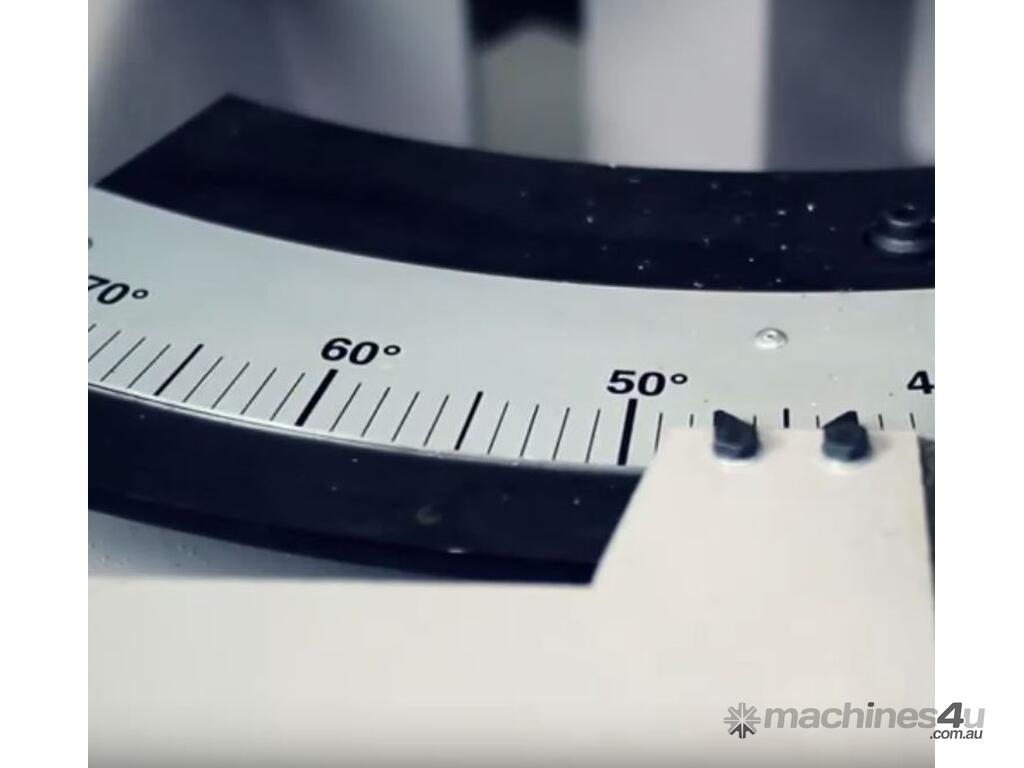

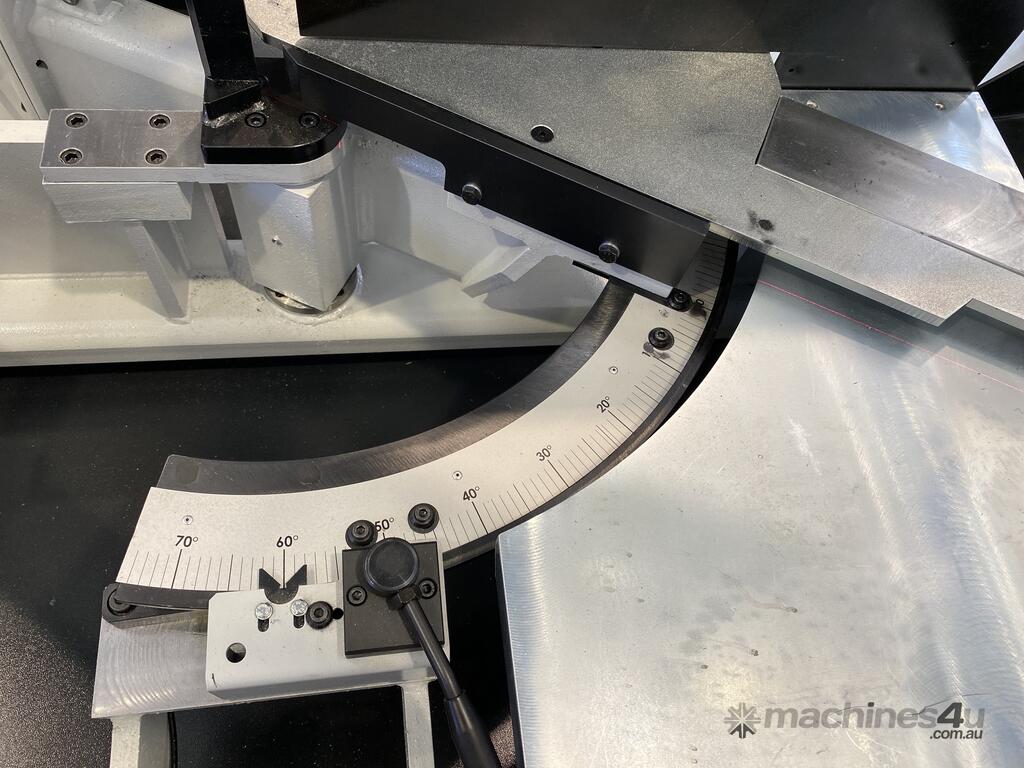

Graduated scale
To obtain a better and higher cutting precision, there is a graduated scale (far
from the centre of the machine , making it easier to read) as a visual reference
with automatic stops at 0 ° and 45 ° (right and left).

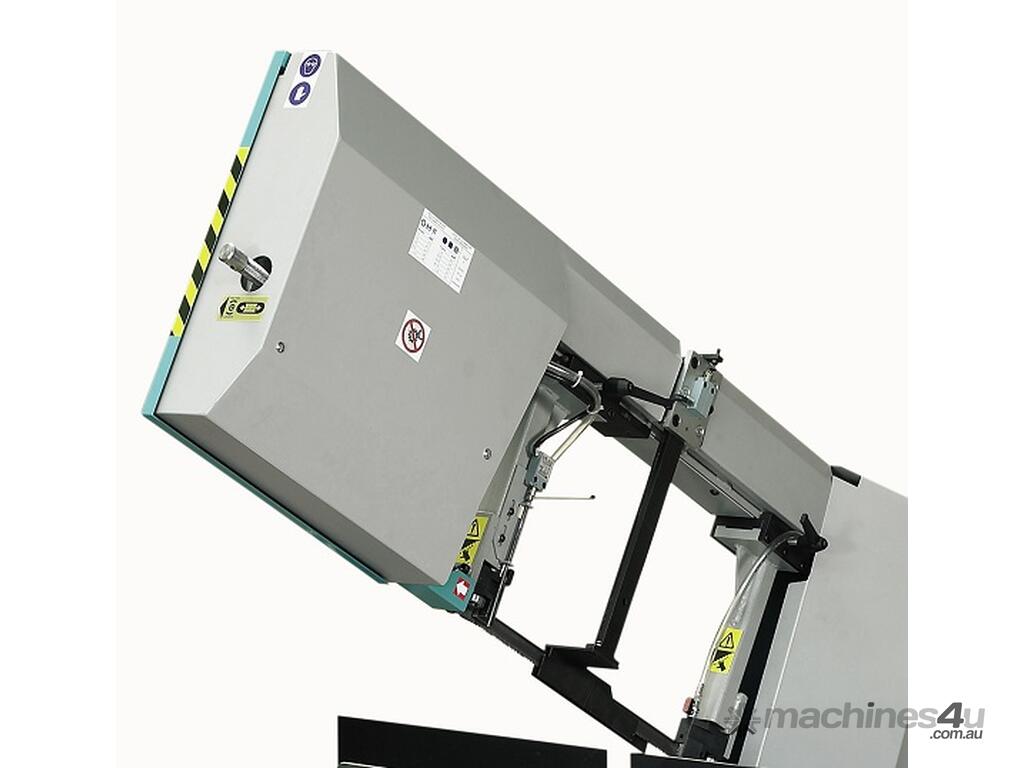

Steel saw frame
KS 450 is equipped with rigid welded steel tubular section arc and 360mm pulleys.
The rotation of the arc is done by preloaded bearing.

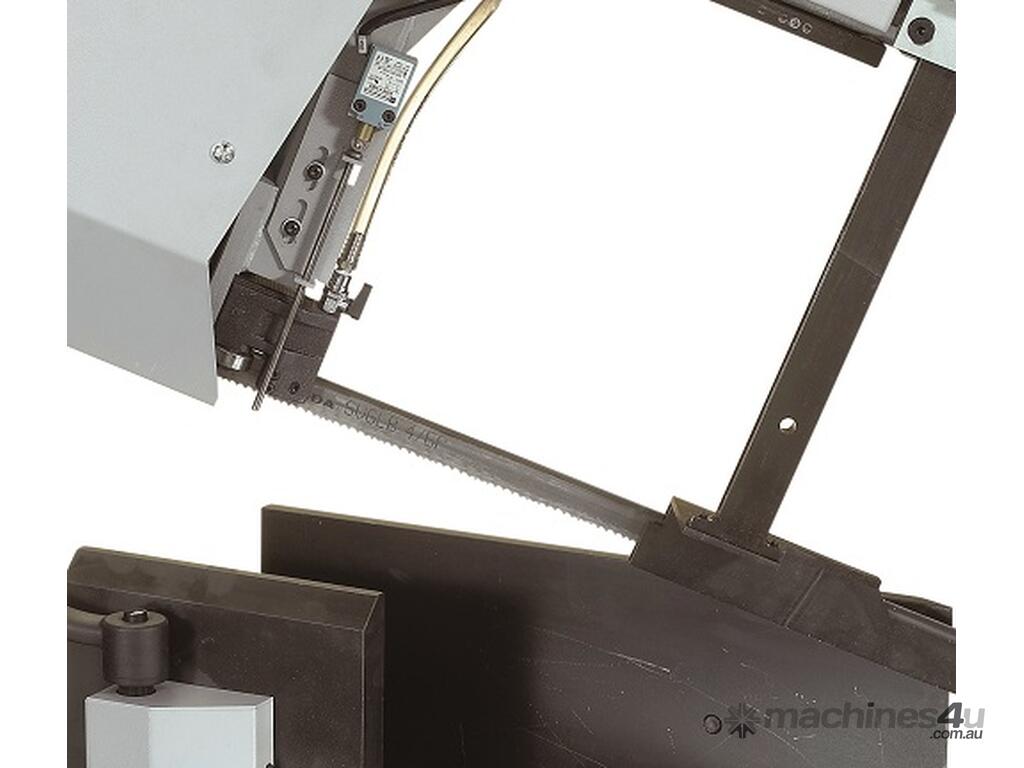

Inclined blade
KS 450 and all the saws of the KS range finish the cut with the blade inclined 6 °,
facilitating the penetration of the blade into the material and allowing to always
cut a section of material even in presence of a solid.

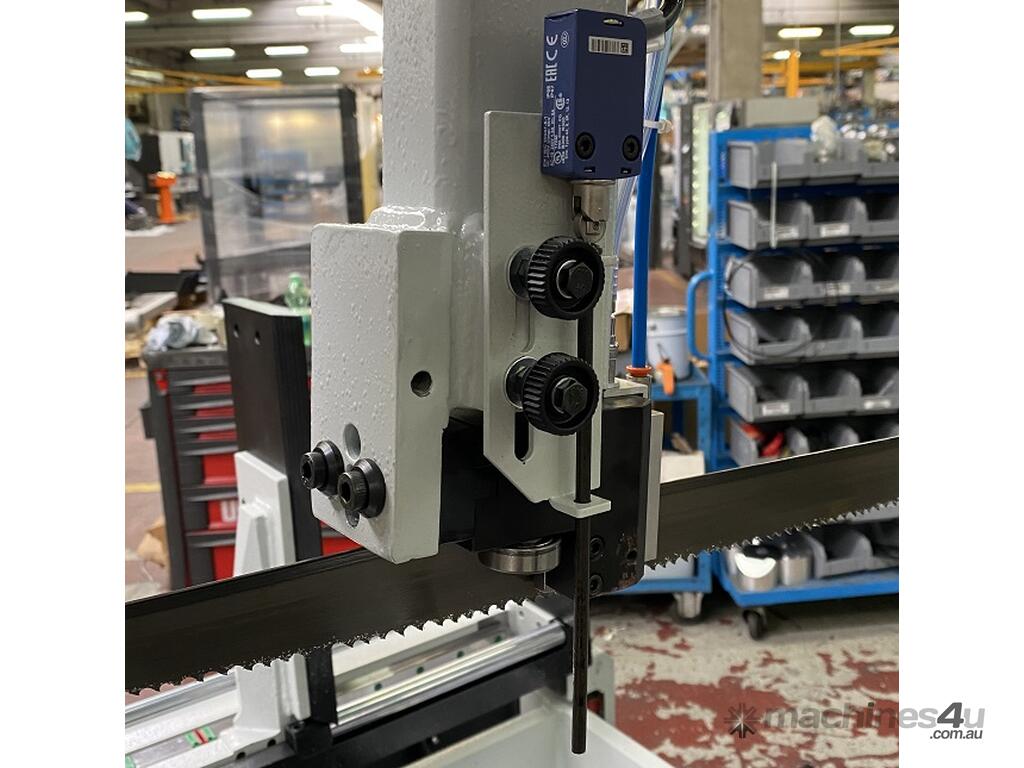

Bimetallic blade
Blade has dimensions of 4250x34x1,1mm . The height of 34mm allows a better
penetration of the blade into the material allowing to obtain maximum efficiency
throughout the process. The blade tension is 2000kg / cm2 with control
microswitch and immediate stop in breakage case. KS 450 is equipped as standard
with the inverter speed variator (18-100 m / min).

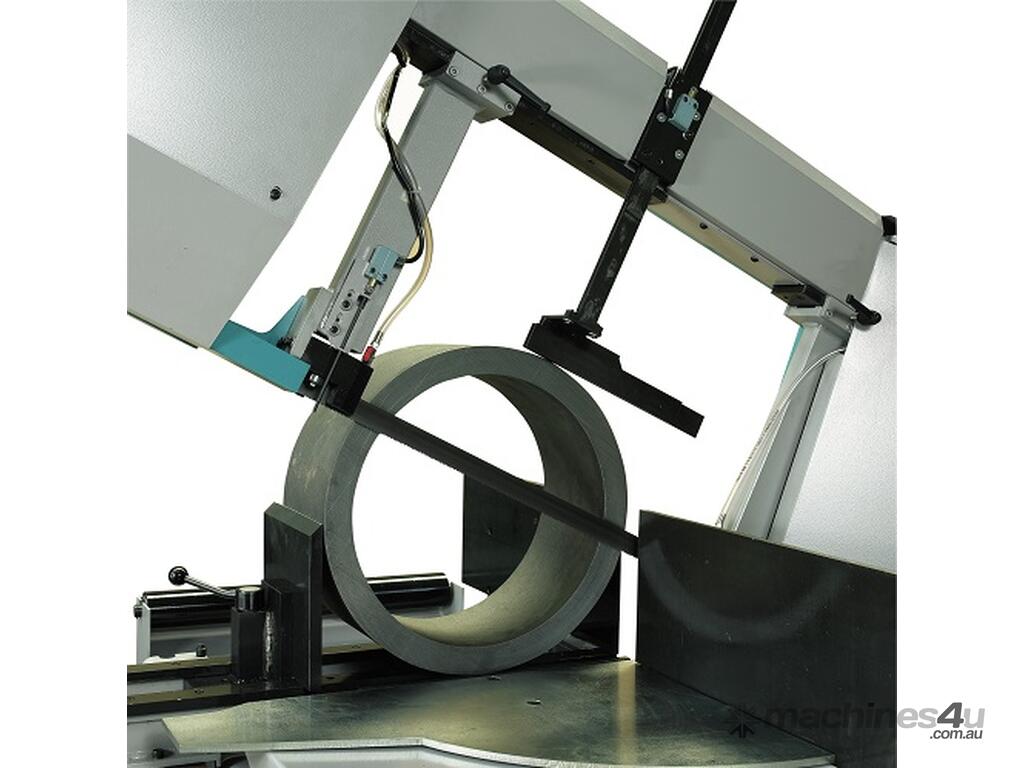

Material detection device
To facilitate the approach of the blade to the material KS450 mounts a device for
detection automatic cutting start and end point. The machine offers the
opportunity to remove the device if you want to increase the cutting capacity at 0
° and 45 ° (right and left).

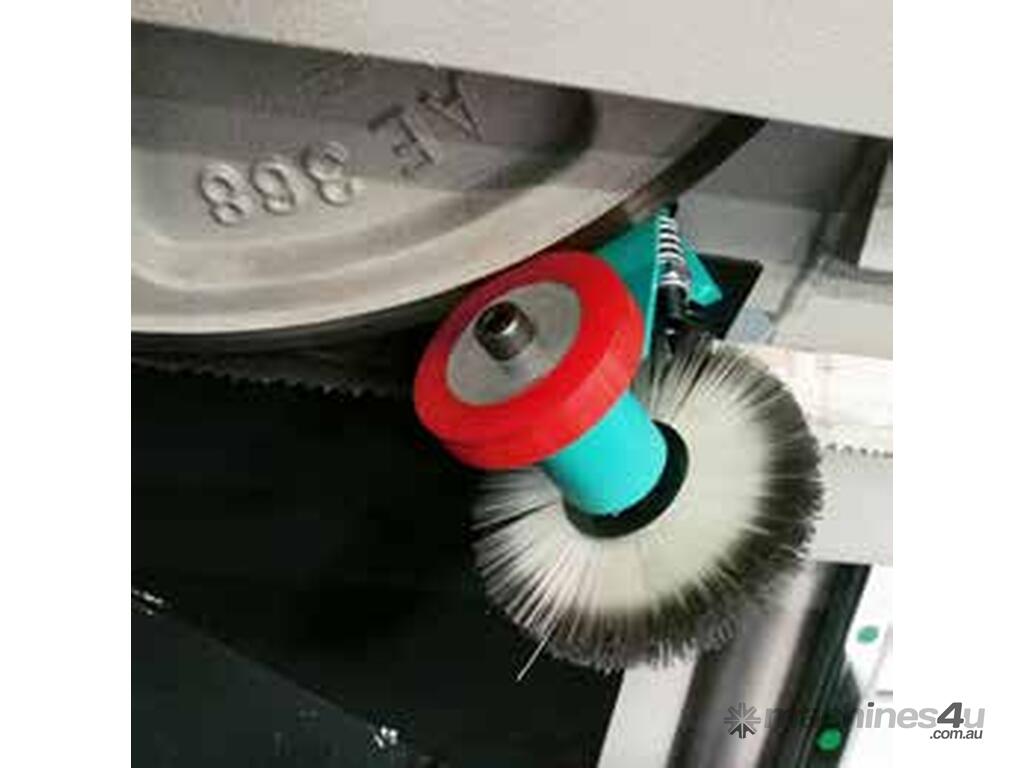

Blade cleaning
Motorized nylon cleaning brush for blade, driven by motor pulley to always keep
in perfect condition the cutting blade.
Cutting capacity at 0° Round: 350mm - Square: 330mm - Rectangular: 450x320mm
Cutting capacity at 45° right/left Round: 330mm - Square: 320mm - Rectangular: 320x300mm
Cutting capacity at 60° left Round: 210mm - Square: 200mm -Rectangular: 180x270mm
Cutting capacity at 60° right Round: 160mm - Square: 150mm -Rectangular: 150x270mm
Cutting capacity at 0° for solids (C45) Round: 250mm
Cutting capacity (BUNDLES) Max. 400x250mm - Min. 160x40mm
Blade size 4250x34x1,1mm
Blade motor 2.2KW
Blade speed 15-100 m/min
Working table (height) 845mm
Weight 980kg
Dimensions 1400x2250x2180mm
