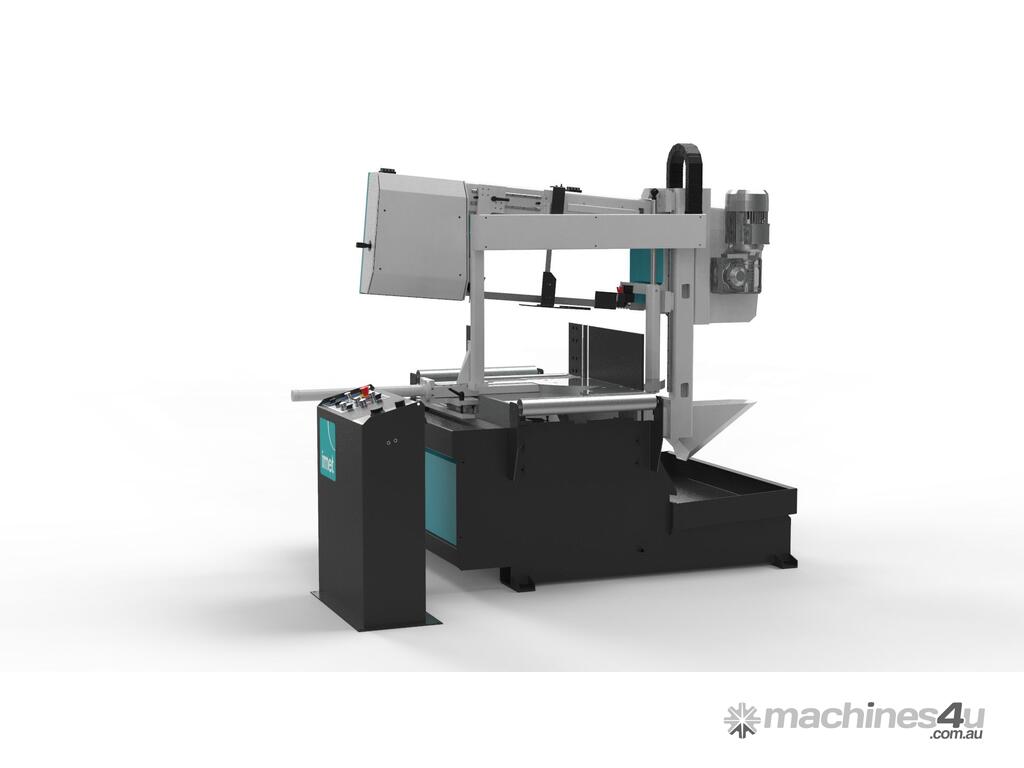

IMET KS 502 BANDSAW | DOUBLE MITRE | SEMI AUTO | DOUBLE COLUMN | 500 X 310MM (ITALIAN MADE)

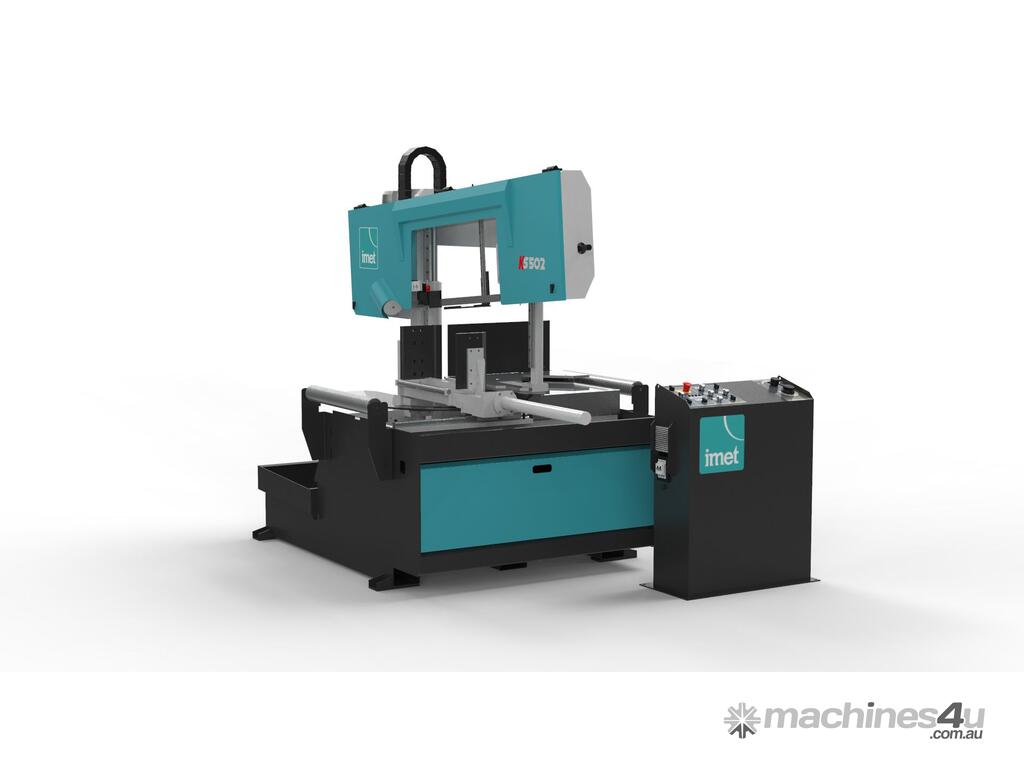

The KS502 is a double-column semi-automatic band saw machine. Designed and conceived for use in the field of
mechanical structure, itisparticularlysuitableforcuttingpipes,profilesandbeams.KS502 can cut right and left up
to a 60°. The Imet range is quality made in Italy.

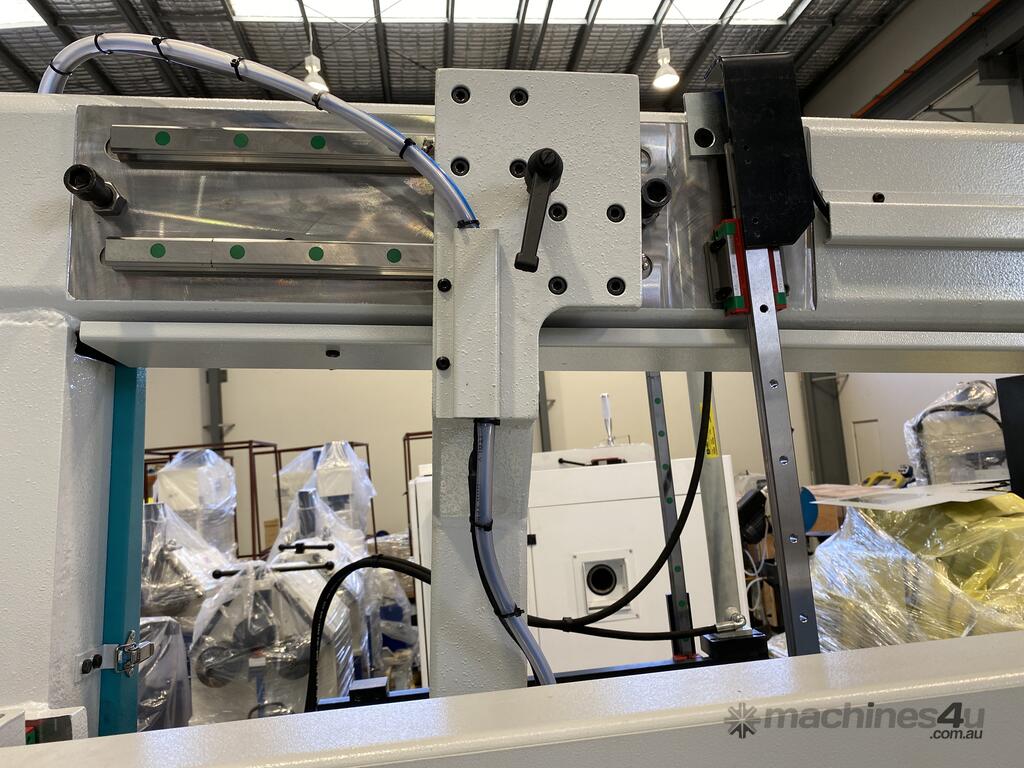

Vice
The vice slides transversally on the work surface, linear guides, locking and rapid approach, complete with standard pressure reducer. All the saws of KS series (450, 502, 620 and 652) allow to fix the material clamping vice only once and then to rotate the arc for cutting both right and left (up to 60 °).

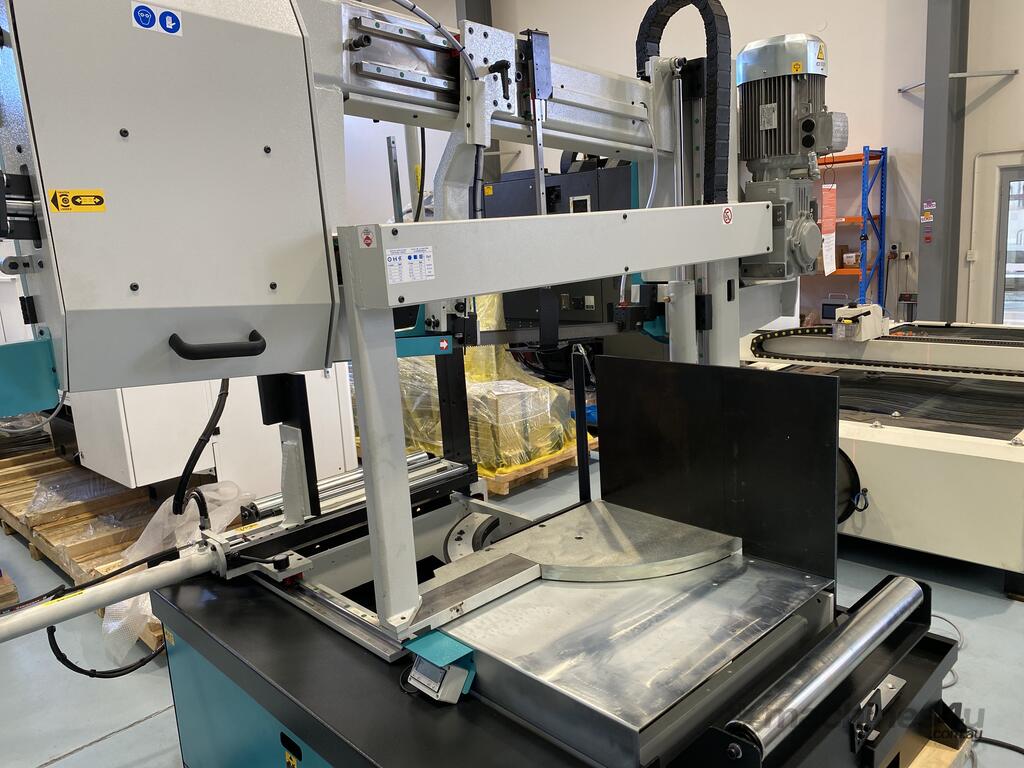

Large working table
Easy to use thanks to the rotating work surface integral with the arc and the blade passage to optimize the material support system during processing in all angles.

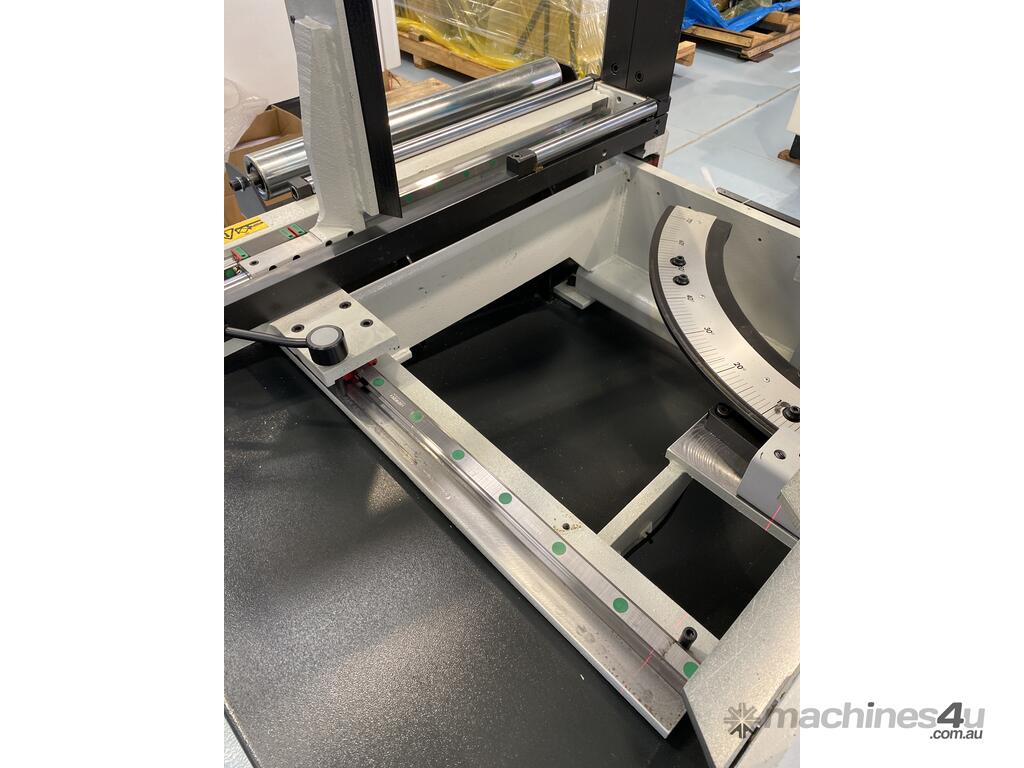

Cutting precision

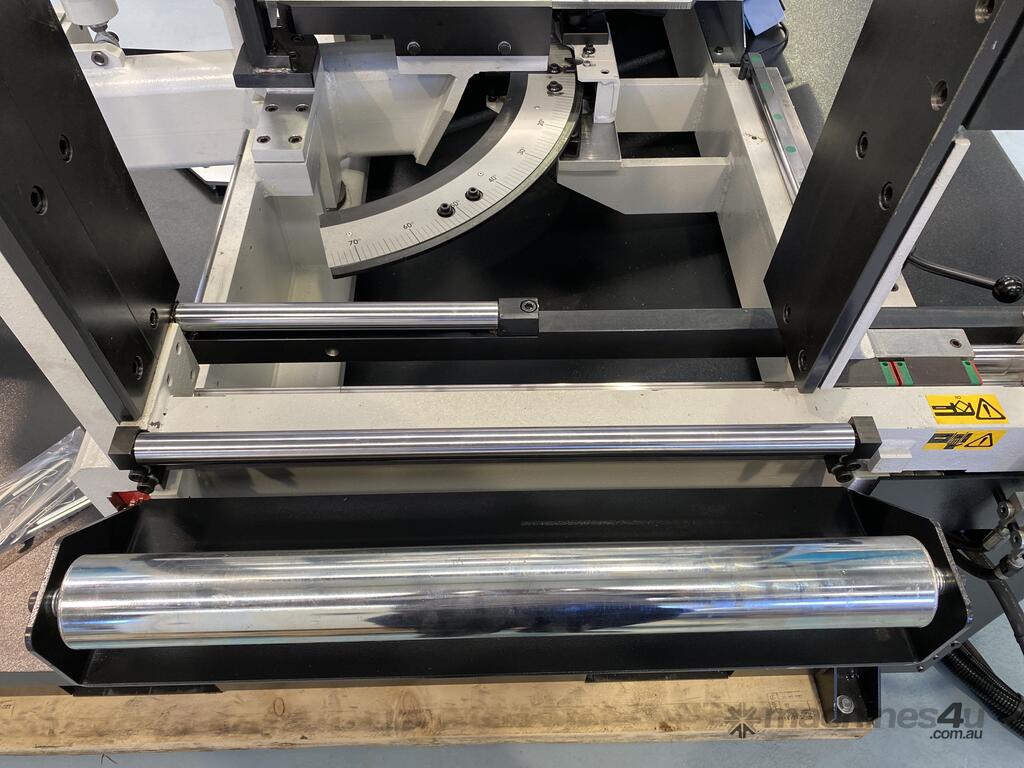

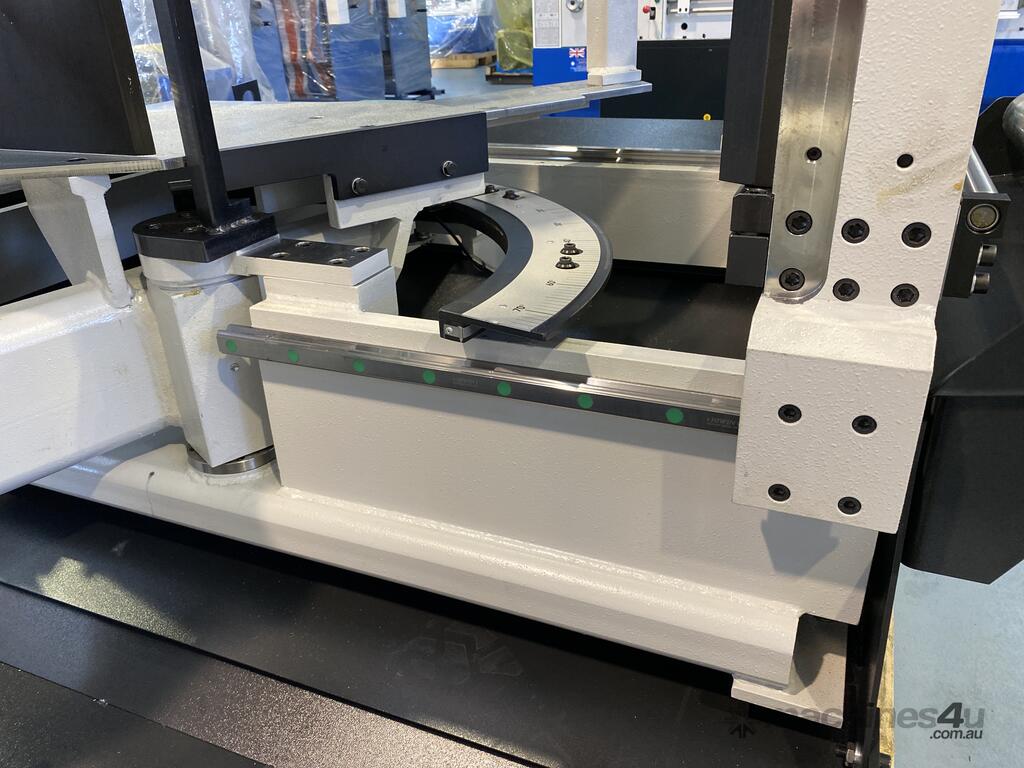

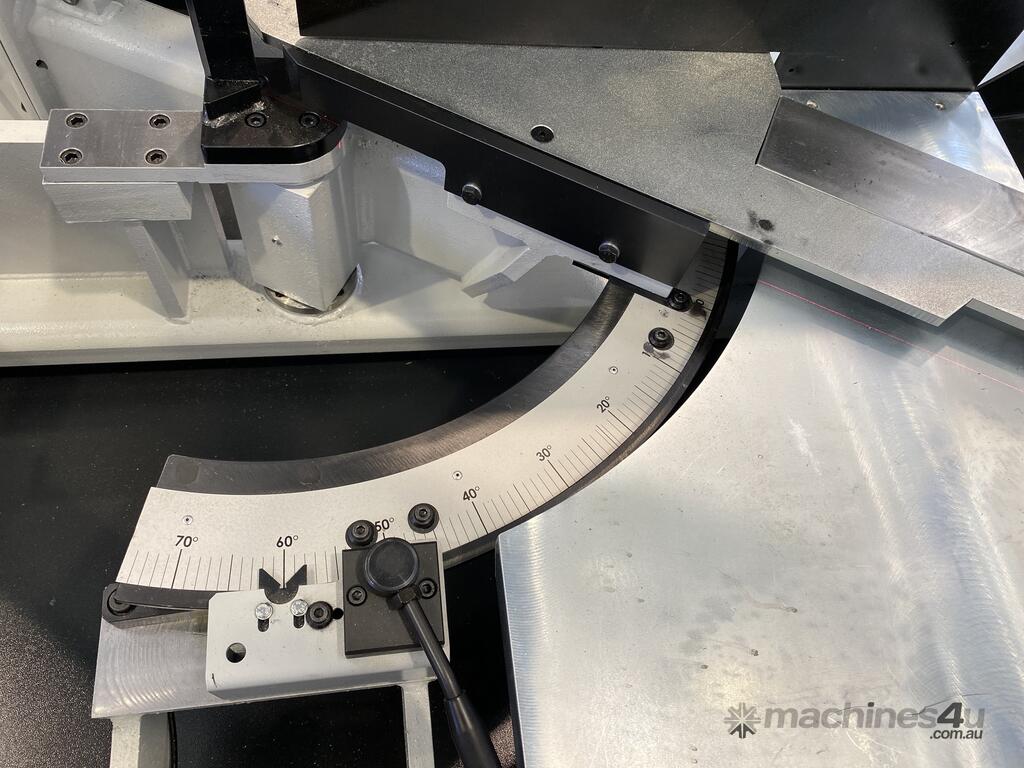

The cutting precision is ensured by the graduated scale (on the work surface) which constitutes a visual reference for the operator in case of angle cutting. There're also automatic stops at 45°left, 0 ° and 45 ° right. To increase cutting precision, IMET band saws are equipped of a system for detecting degrees of cut away from the centre.

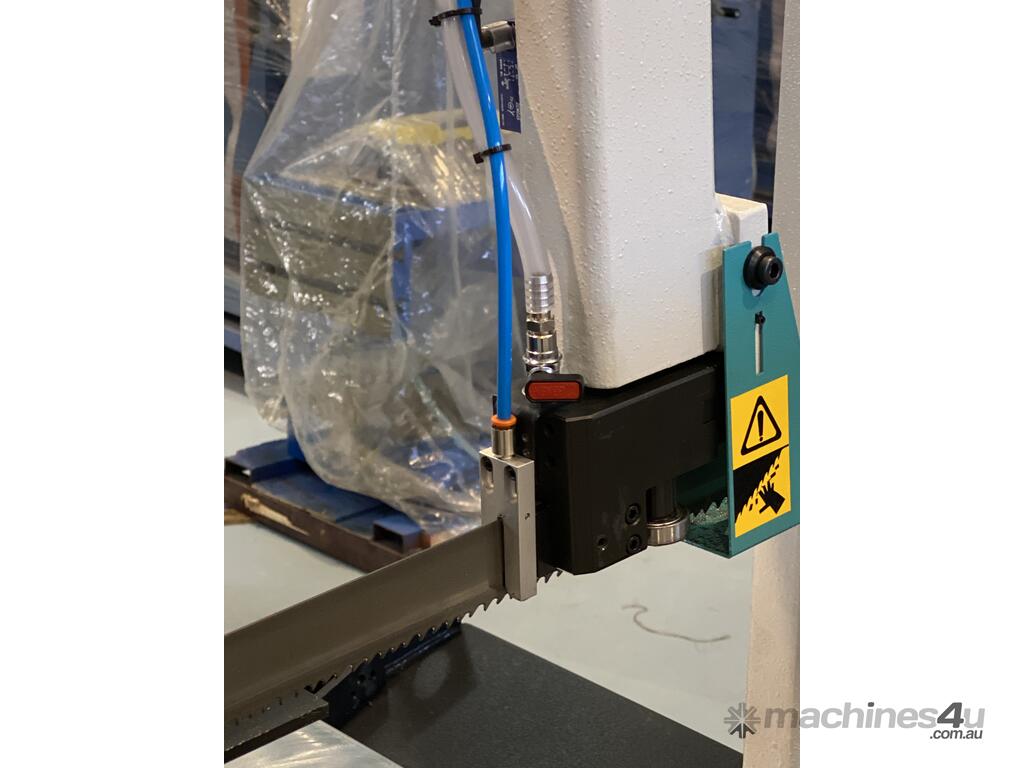

Rigid saw frame
In electro-welded steel, the blade has an inclination of 6° to improve the penetration in the material and optimize the execution of the cut. The rotation of the arc is done by bearing preloaded. The KS 502 blade has has a tensioning of 2000kg / cm2 and is equipped with a control microswitch for immediate stop in case of blade breaking or power failure.

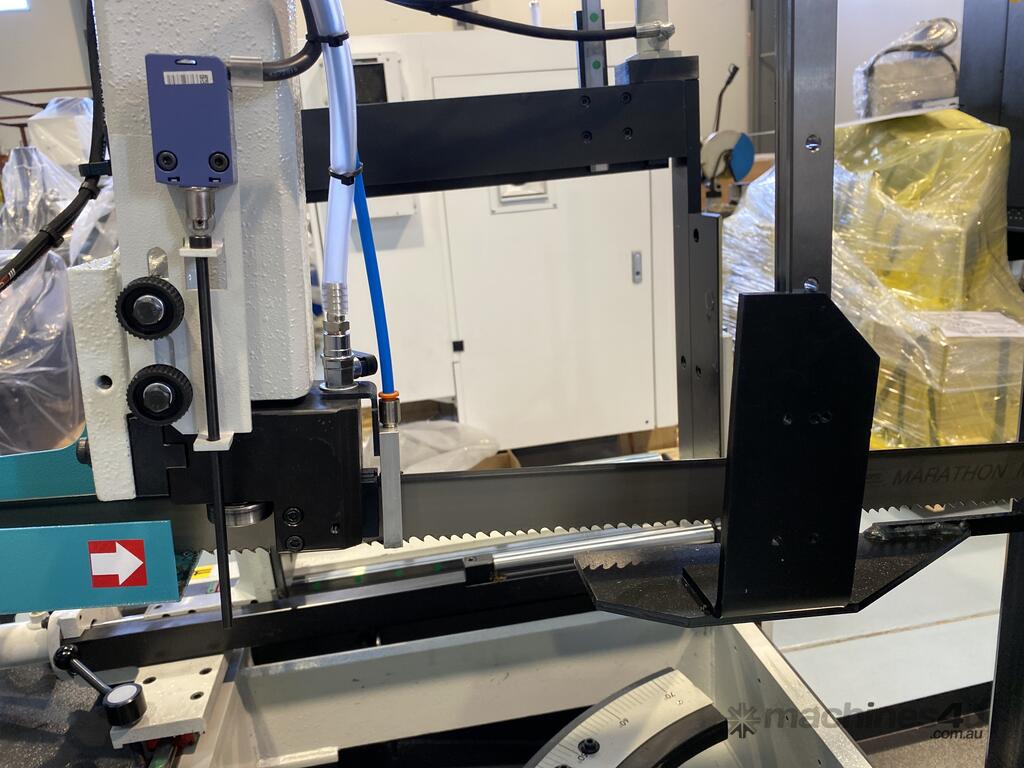

Material detection device
To facilitate the approach of the blade to the material KS450 mounts a device for detection automatic cutting start and end point.

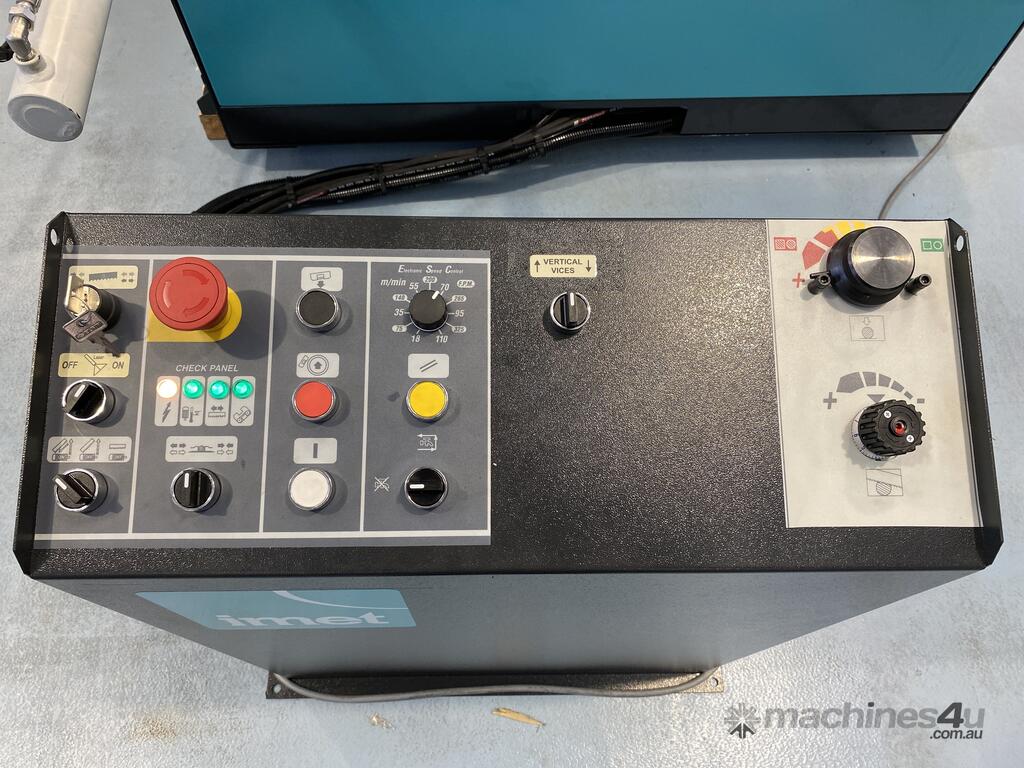

Control panel
KS 502 is equipped with a mobile control console with control LED for tensioning the blade, opening of the blade guard, motor thermal block and electrical tension. Through the control the operator can choose between 3 different ways of cutting end: ascent of the bow with stopped blade, ascent of the bow with blade in movement and end of cycle without bow ascent.

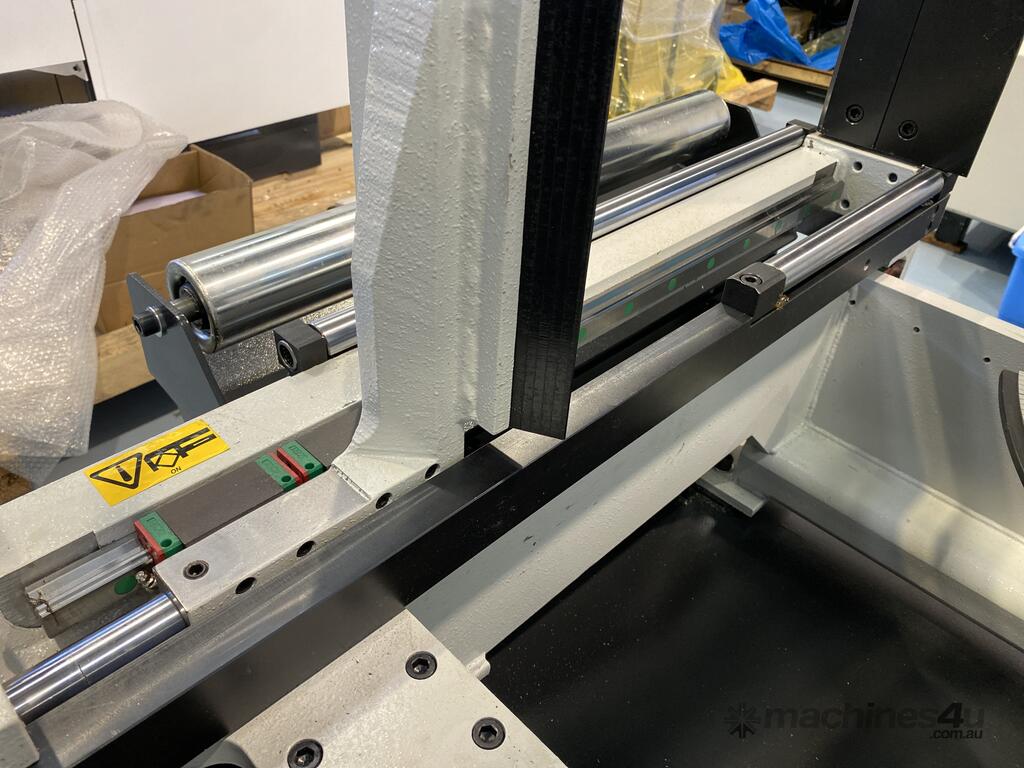

Vice
The vice slides transversally on the work surface, linear guides, complete with
standard pressure reducer. All the machines from the KS series (450, 502, 620 and
652) allow to lock the material by closing the vice once and then to rotate the arc
for cutting both right and left (up to 60 °).

Blade cleaning
Motorized nylon cleaning brush for blade, driven by motor pulley to always keep in perfect condition the cutting blade.

Minimal lubrication system (Included)
The lubrication system cancels the dispersion of the coolant without damaging or affecting the life of the blade. The system is equipped with a 1.3l tank and nozzle.

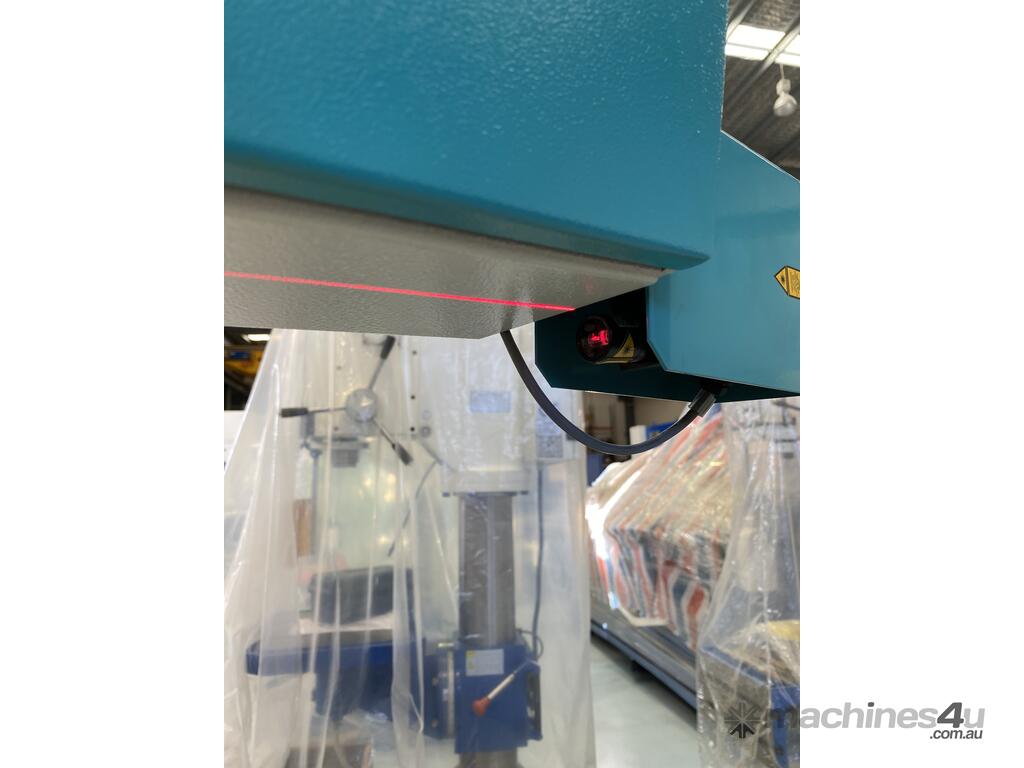

Laser (Included)
It's possible to add as optional a laser ray that points the cutting line on the
material to optimize the user workflow.

Bundle cutting device (Optional)
The bundle cutting device is required when working with bundles of tubes or
profiles. Adding the device will change a little bit the machine cutting capacity:
max. 500x250mm, min. 160x40mm. When the device is mounted, the machine
can only cut at 0°; if the user needs to cut with different angle, the device must be
disassembled

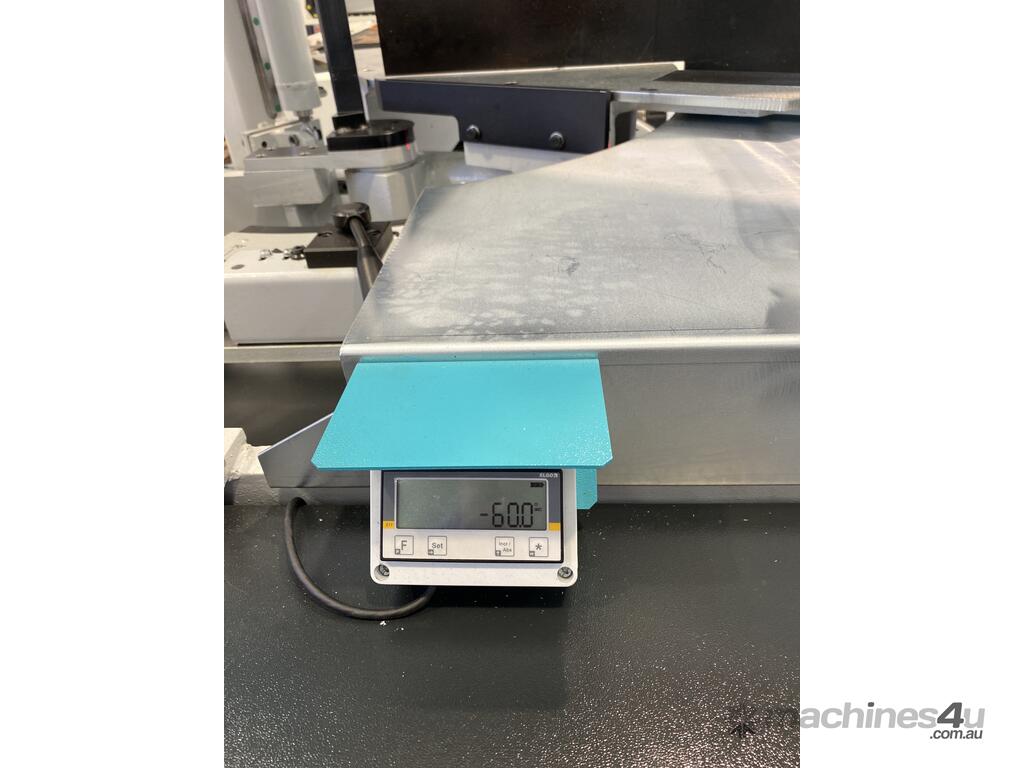

Cutting angle display (Optional)
It's available a LCD display that shows the cutting angle set by the user. The
display, placed on the mobile console, allows to have maximum position accuracy
when cutting at different angles.

Loading/unloading roller table (Optional)
Roller conveyor suitable for the unloading and loading side. Length 1.5m, 1 pedestal, max loading 1500kg.

Unloading roller table (optional)
Unloading roller table with digital reading and manual movement. Available : -RTL3KS600 Measuring length of 3m, 3 pedestals, max loading 3000kg; -RTL6KS600 Measuring length of 6m, 5 pedestals, max loading 6000kg.

Motorized loading roller table (Optional)
Loading motorized roller tables, with chain transmission and motor reducer managed by inverter, with mobile keyboard. Available : -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Motorized unloading roller table (Optional)
Unloading motorized roller table, with chain transmission and motor reducer managed by inverter, available only together with loading roller table. Available: -3m, loading 3000kg; -6m, loading 6000kg; -9m, loading 9000kg; -12m, loading 12000kg.

Digital reading length stop (Optional)
Digital reading length stop with manual positioning with automatic slowdown sensors, available only together with unloading motorized roller table
Measuring length 3m; Measuring length 6m; Measuring length 9m; Measuring length 12m

Motorized length stop (Optional)
Numerical control motorized measurement RR with fast approaching for automatic slowdown of the piece (to be ordered coupled with automatic conveyors) -RR6S 6m measuring length -RR9S 9m measuring length -RR12S 12m measuring length

Cutting capacity at 90° Round: 350mm - Square: 330mm - Rectangular: 500x310mm
Cutting capacity at 45° left Round: 300mm - Square: 300mm - Rectangular: 300x320mm
Cutting capacity at 45° right Round: 320mm - Square: 320mm - Rectangular: 320x320mm
Cutting capacity at 60° left Round: 150mm - Square: 150mm - Rectangular: 150x320mm
Cutting capacity at 60° right Round: 150mm - Square: 150mm - Rectangular: 150x330mm
Cutting capacity (BUNDLE) Max: 500x250mm - Min: 160x40mm
Cutting capacity at 90° for solids(C45) 280mm
Min. scrap-end with bundle 235mm
Blade motor 2.2KW
Blade speed Da 15 a 100 m/min
Blade size 4250x34x1.1mm
Blade tension 2000kg/cm2
Weight 980kg

NB - Some pictures show optional items
