IMET KS 620 BANDSAW | DOUBLE MITRE | SEMI AUTO | PIVOT | 620 X 305MM (ITALIAN MADE)

The KS saws are the only ones in their class that can cut 60° right and left by positioning the locking vice only once.
The vice is sliding transversely on the support surface with locking and rapid approach.

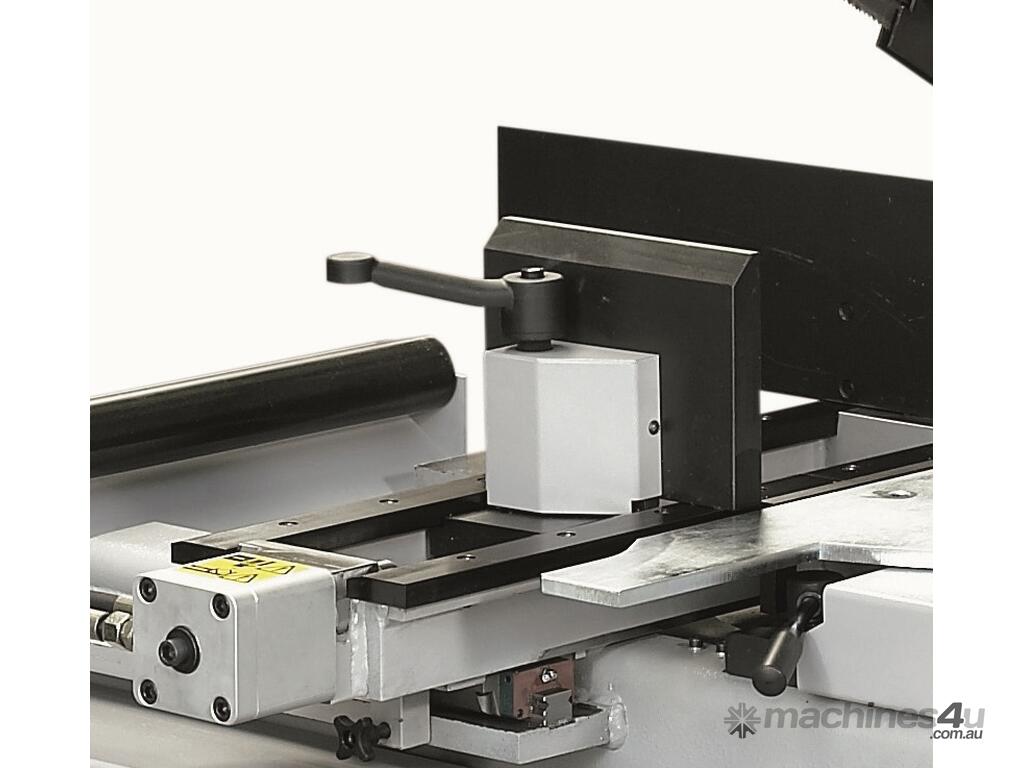

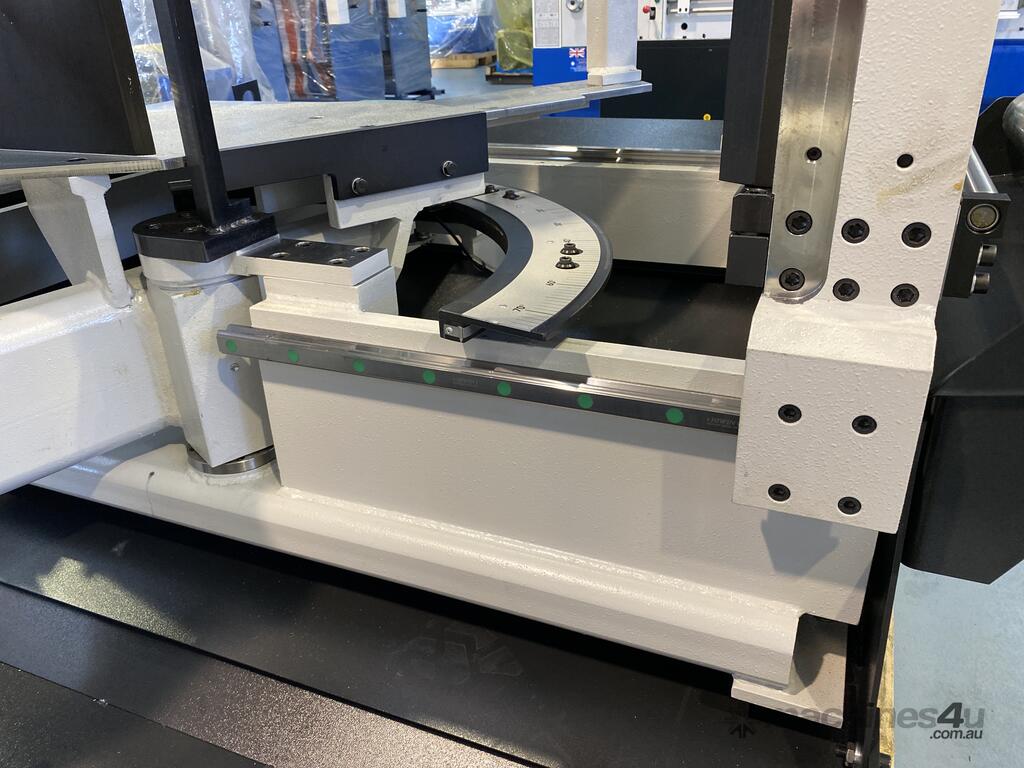

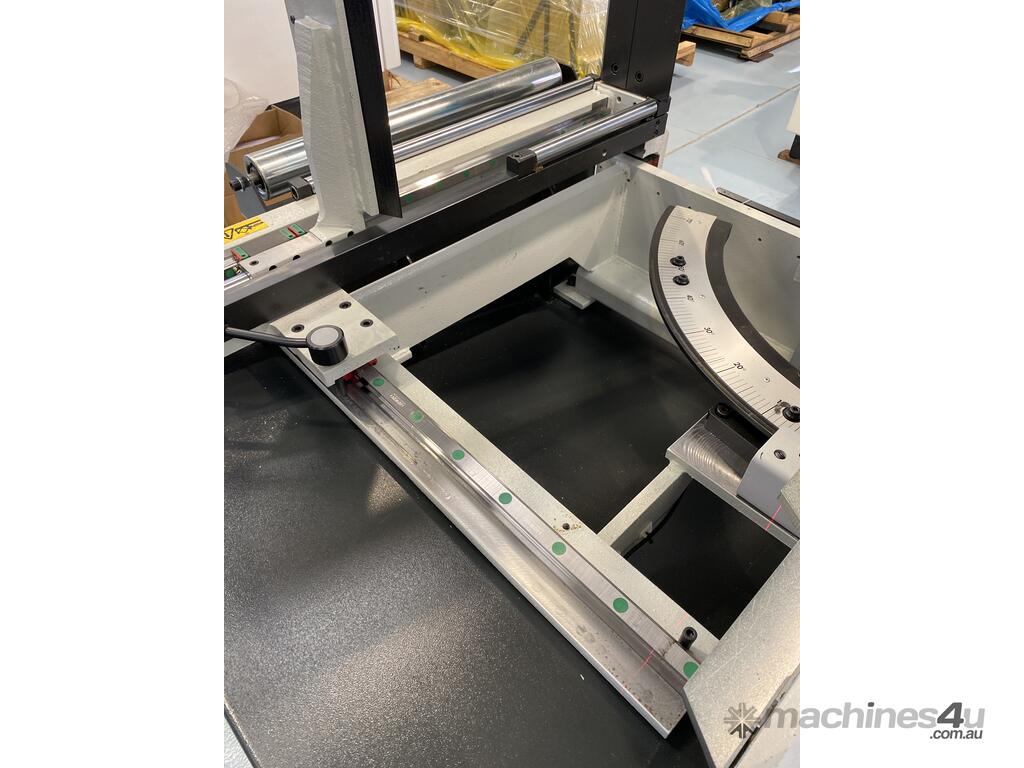

Vice and material positioning
The opening vice measures 460mm sliding transversally on the work surface,
linear guides, locking and rapid approach, complete with standard pressure
reducer. All the saws of KS series (450, 502, 620 and 652) allow to fix the material
clamping vice only once and then to rotate the arc for cutting both right and left
(up to 60 °).

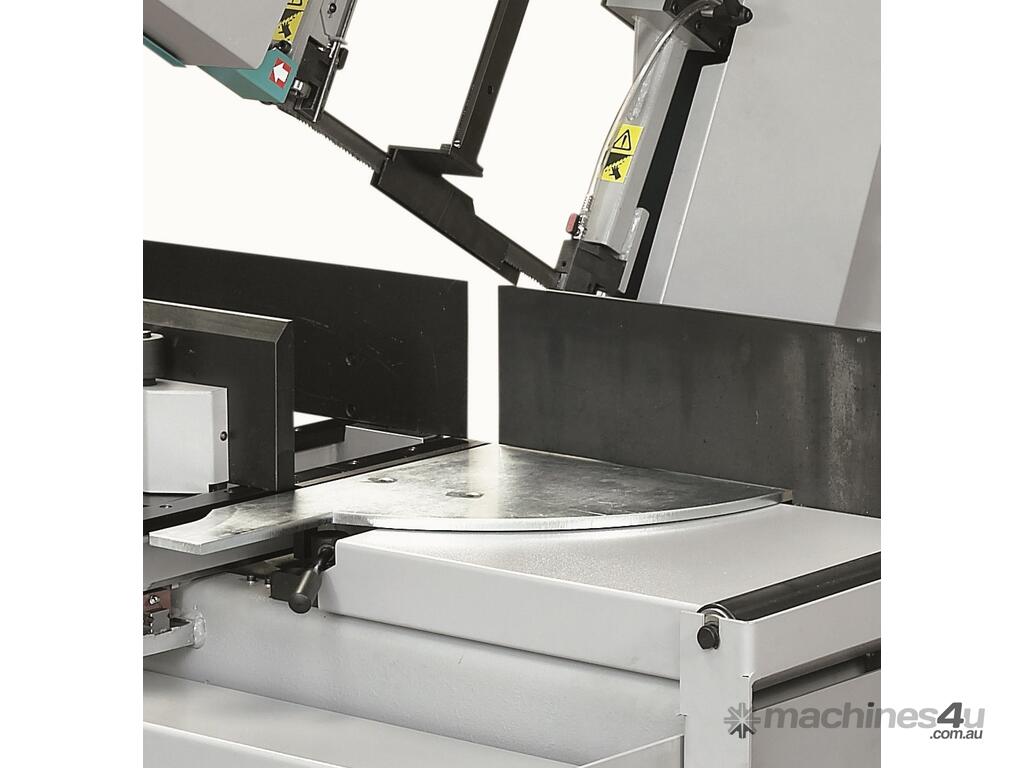

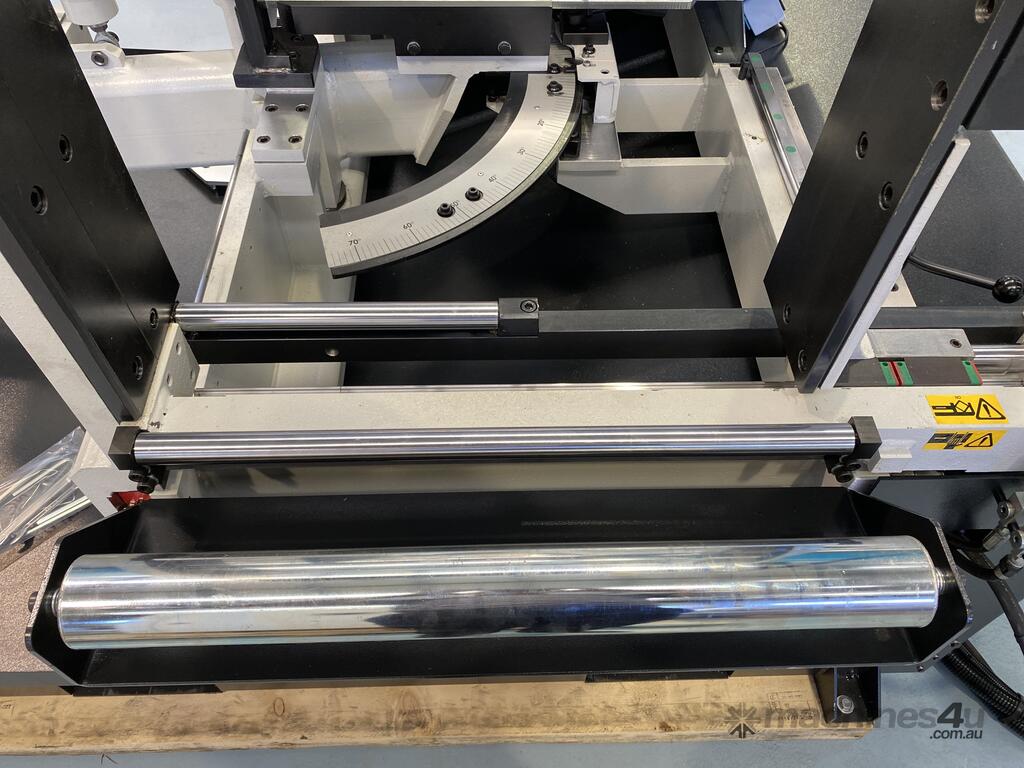

Large working table
Easy to use thanks to the rotating work surface integral with the arc and the blade
passage to optimize the material support system during processing in all angles.

Cutting precision
The cutting precision is ensured by the graduated scale (on the work surface)
which constitutes a visual reference for the operator in case of angle cutting.

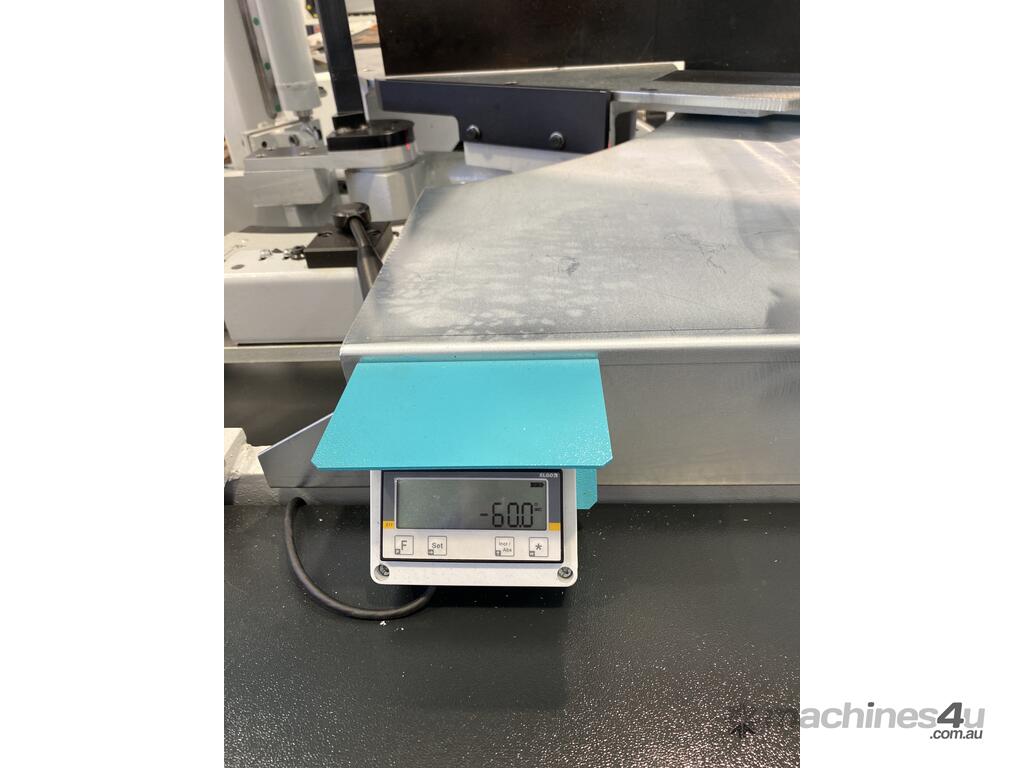

There're also automatic stops at 45°left, 0 ° and 45 ° right. To increase cutting
precision, IMET band saws are equipped of a system for detecting degrees of cut
away from the centre.

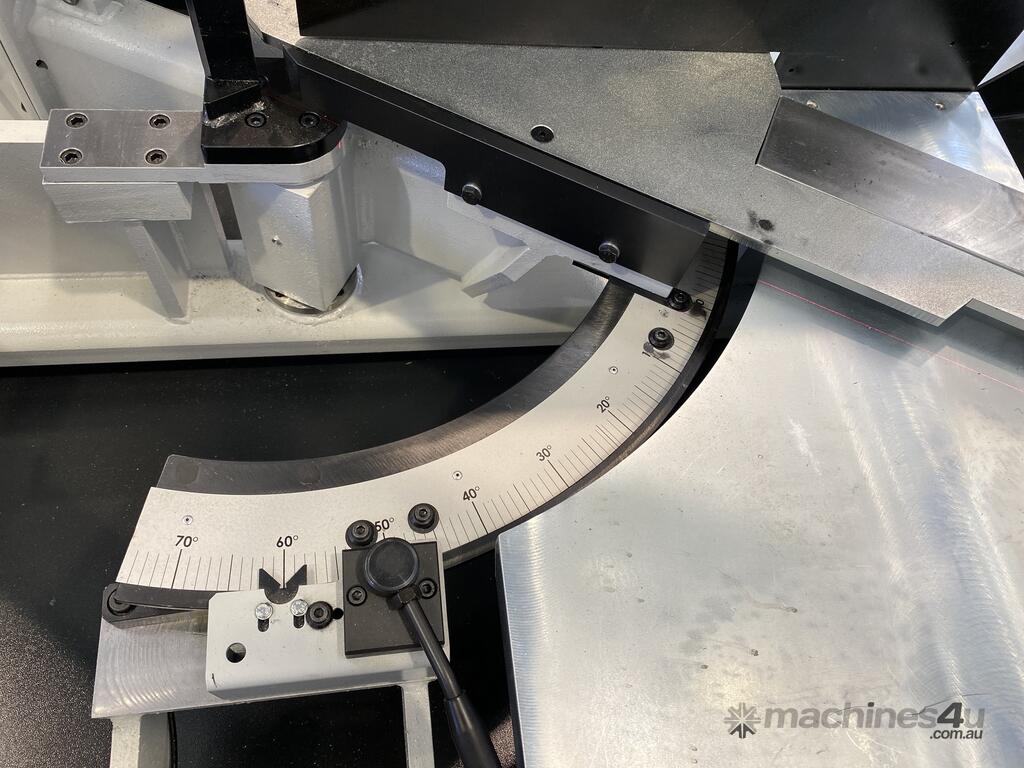

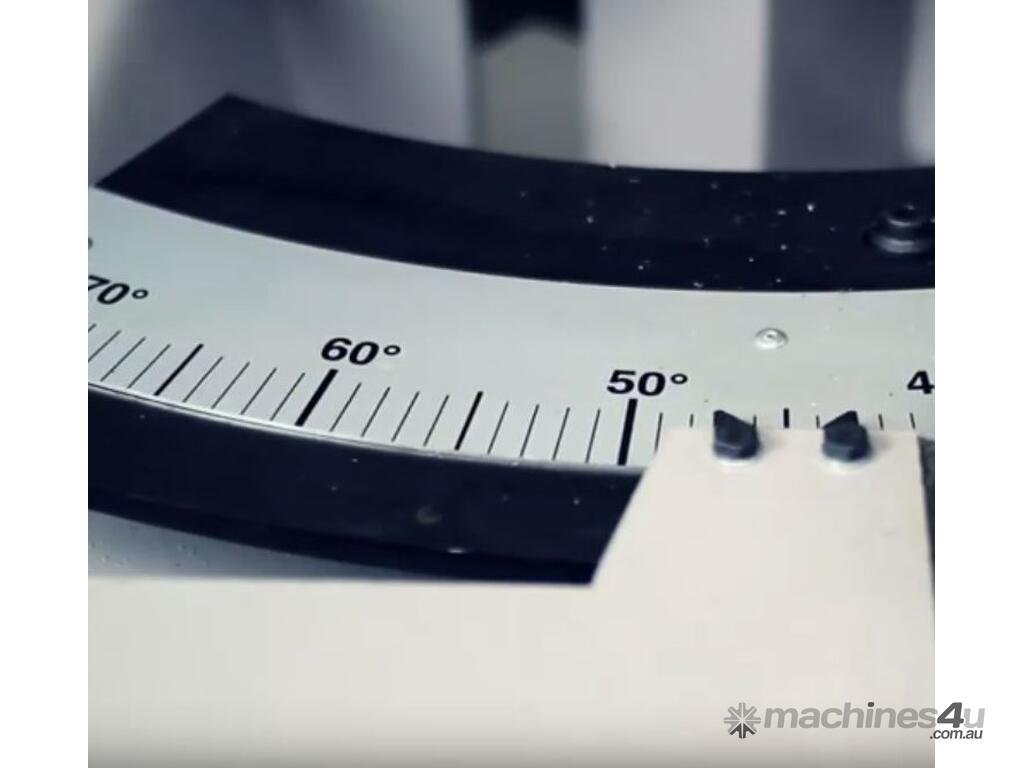

Graduated scale
To obtain a better and higher cutting precision, there is a graduated scale (far
from the centre of the machine , making it easier to read) as a visual reference
with automatic stops at 0 ° and 45 ° (right and left).

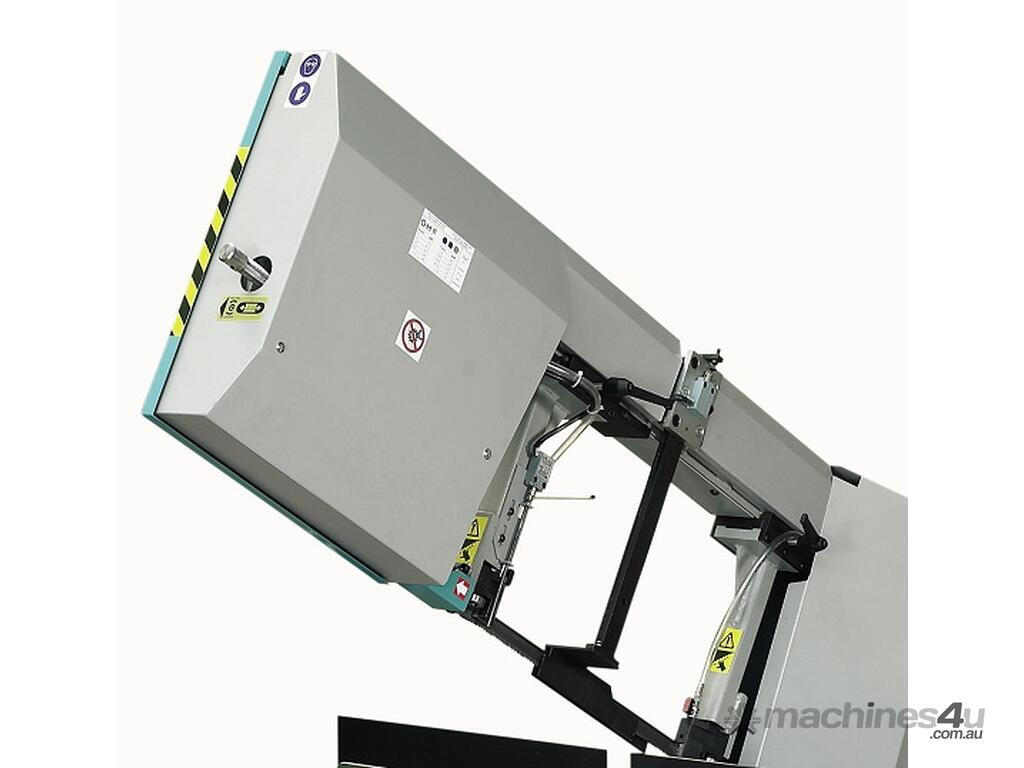

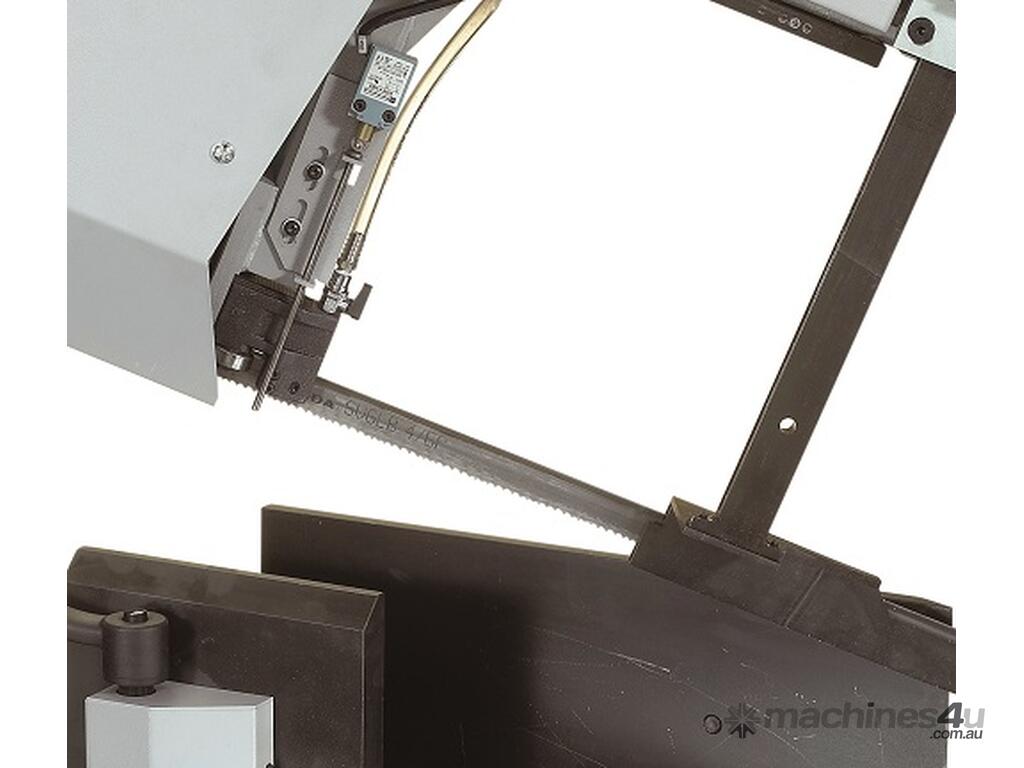

Inclined blade
KS 620 and all the saws of the KS range finish the cut with the blade inclined 6 °,
facilitating the penetration of the blade into the material and allowing to always
cut a section of material even in presence of a solid.

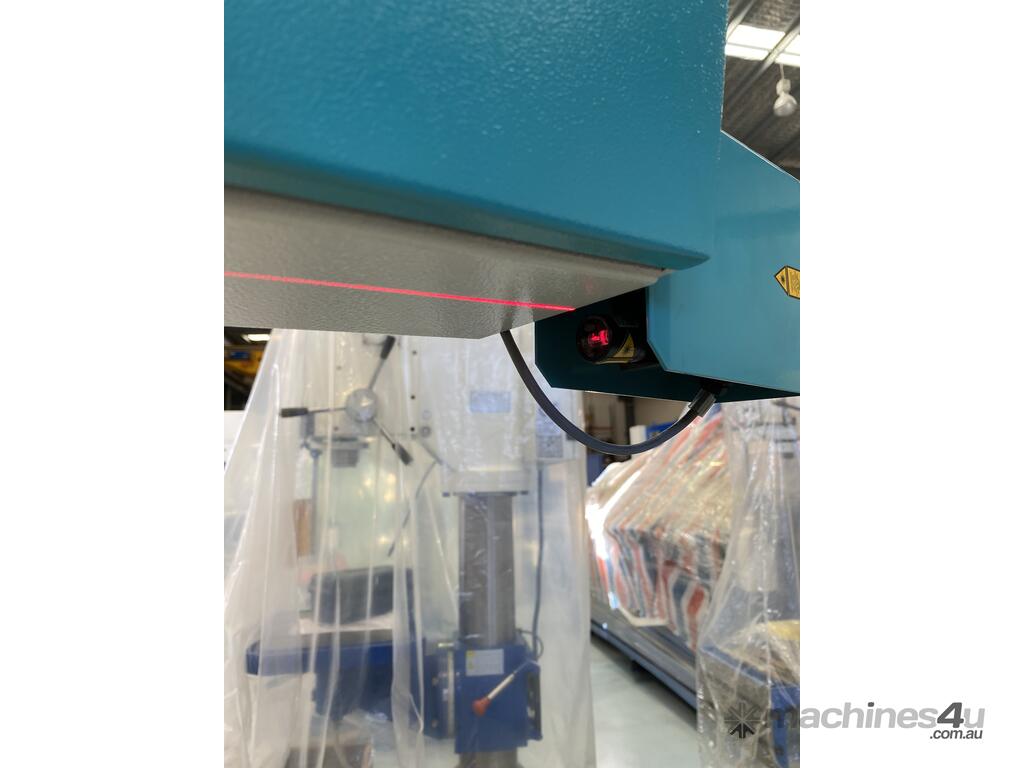

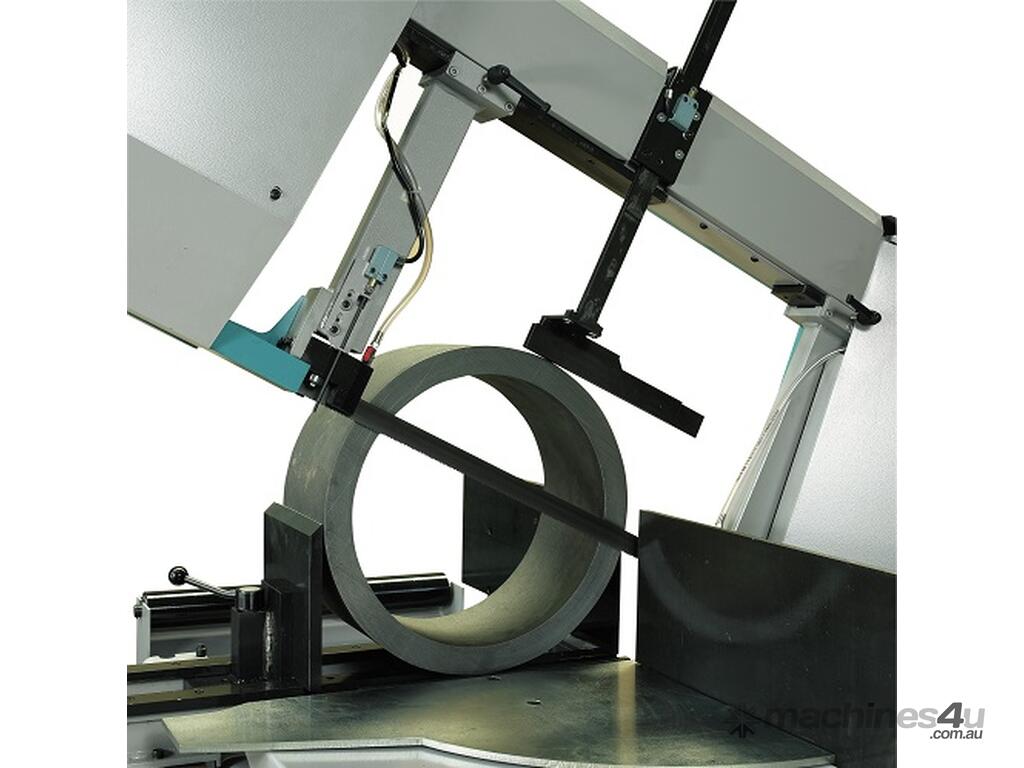

Material detection device
To facilitate the approach of the blade to the material KS450 mounts a device for
detection automatic cutting start and end point. The machine offers the
opportunity to remove the device if you want to increase the cutting capacity at 0
° and 45 ° (right and left).

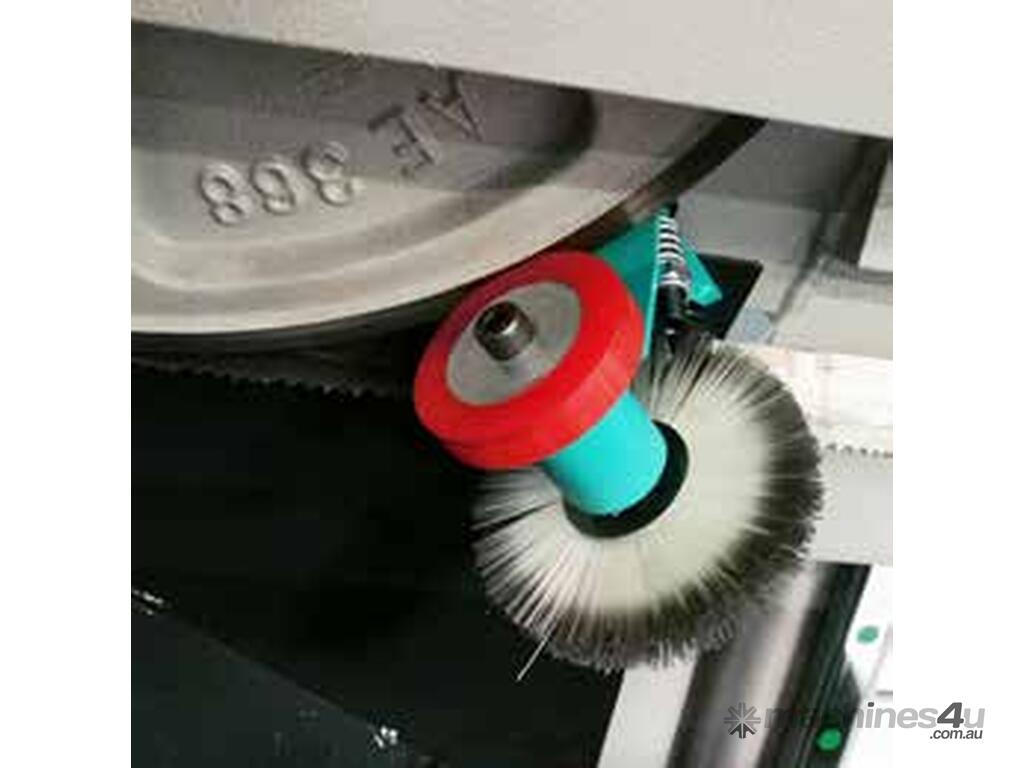

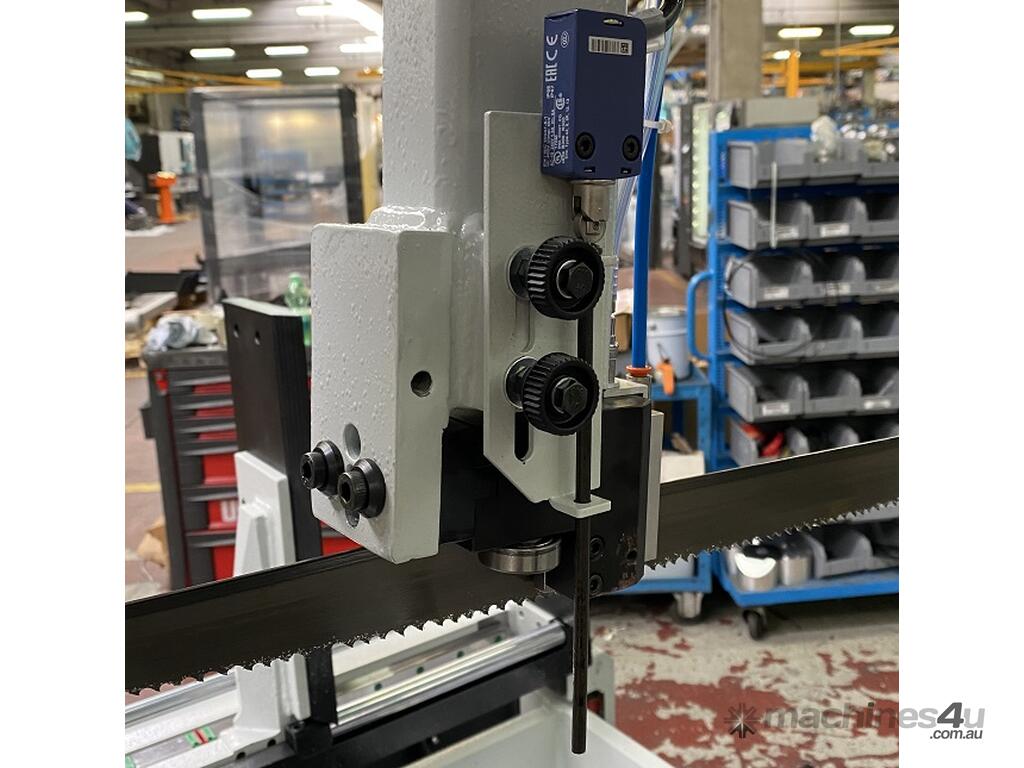

Blade cleaning
Motorized nylon cleaning brush for blade, driven by motor pulley to always keep
in perfect condition the cutting blade.

Cutting capacity at 0° Round: 500mm - Square: 420mm - Rectangular: 620x305mm
Cutting capacity at 45° left/right Round: 445mm - Square: 410mm - Rectangular: 450x250mm
Cutting capacity at 60° left Round: 320mm - Square: 290mm - Rectangular: 280x350mm
Cutting capacity at 60° right Round: 245mm - Square: 240mm - Rectangular: 240x310mm
Cutting capacity (BUNDLE) Max: 500x300mm - Min: 160x40mm
Cutting capacity at 0° solids (C45) 250mm
Blade size 5320x34x1.1mm
Blade speed 15-100m/min
Blade 3KW
Working table height 805mm
Blade inclination 6°
Weight 1450kg
Dimensions 1705x2500x2500mm
