IN STOCK FOR IMMEDIATE DELIVERY

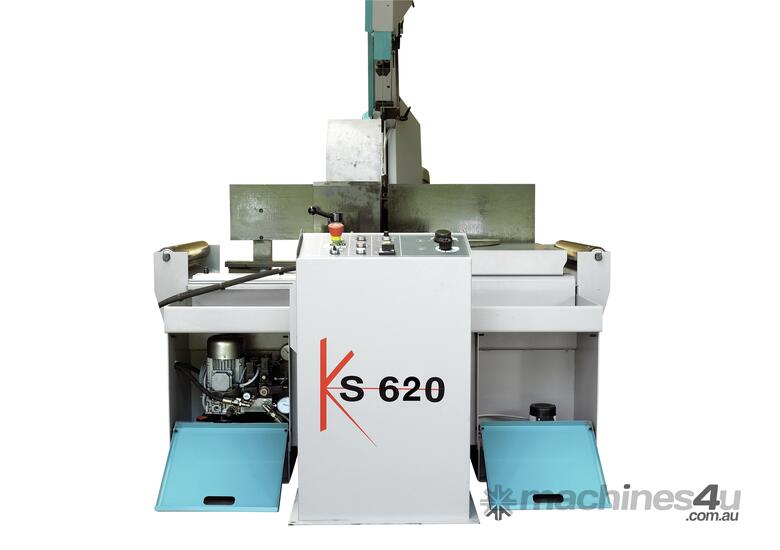

IMET KS 620 complete with factory options Laser line and Minimal lubrication system, all completely fitted.

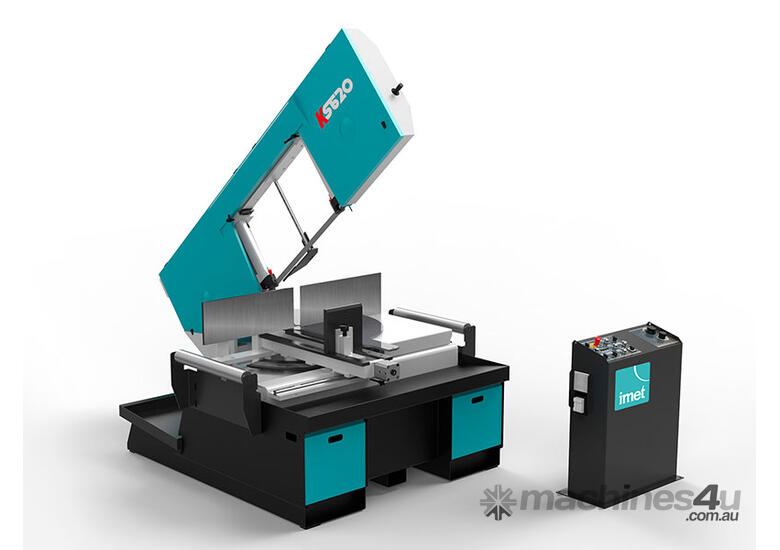

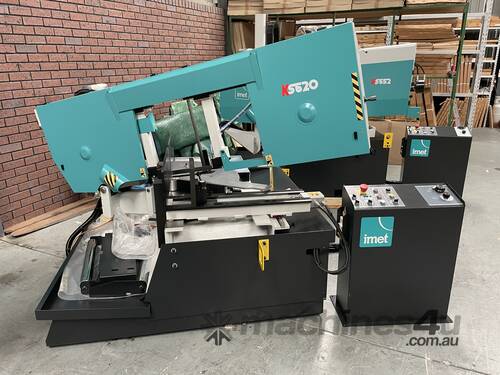

620MM – IMET KS 620 SEMI-AUTOMATIC MITRE BAND SAW
Semi-Automatic bandsaw for steel constructions
IMET KS saws are the only ones in their class that can cut 60° right and left by positioning the locking vice only once. The vice is sliding transversely on the support surface with locking and rapid approach.
Cutting capacity at 0° Round: 500mm
Square: 420mm
Rectangular: 600x400mm
Cutting capacity at 45° left/right Round: 445mm
Square: 410mm
Rectangular: 450x250mm
Cutting capacity at 60° left Round: 320mm
Square: 290mm
Rectangular: 280x350mm
Cutting capacity at 60° right Round: 245mm
Square: 240mm
Rectangular: 240x310mm
Cutting capacity (BUNDLE) Max: 500x300mm
Min: 160x40mm
Cutting capacity at 0° solids (C45) 250mm
Blade size 5320x34x1.1mm
Blade speed 15-100m/min
Blade 3KW
Working table height 805mm
Blade inclination 6°
Weight 1450kg
Dimensions 1705x2500x2500mm
