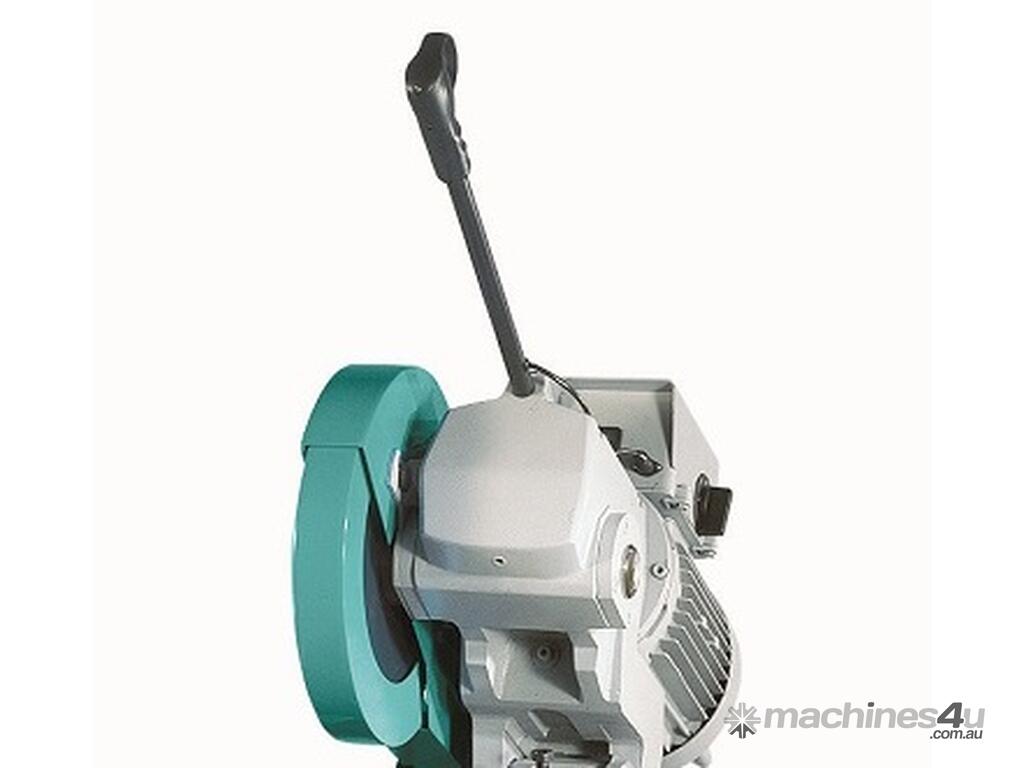

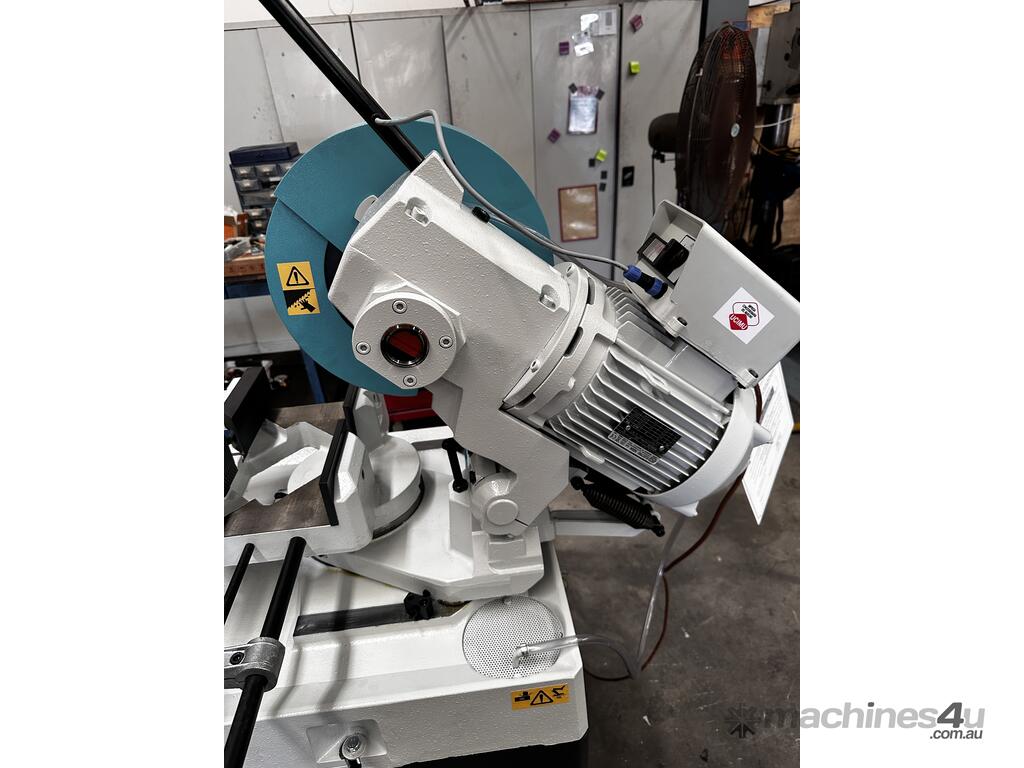

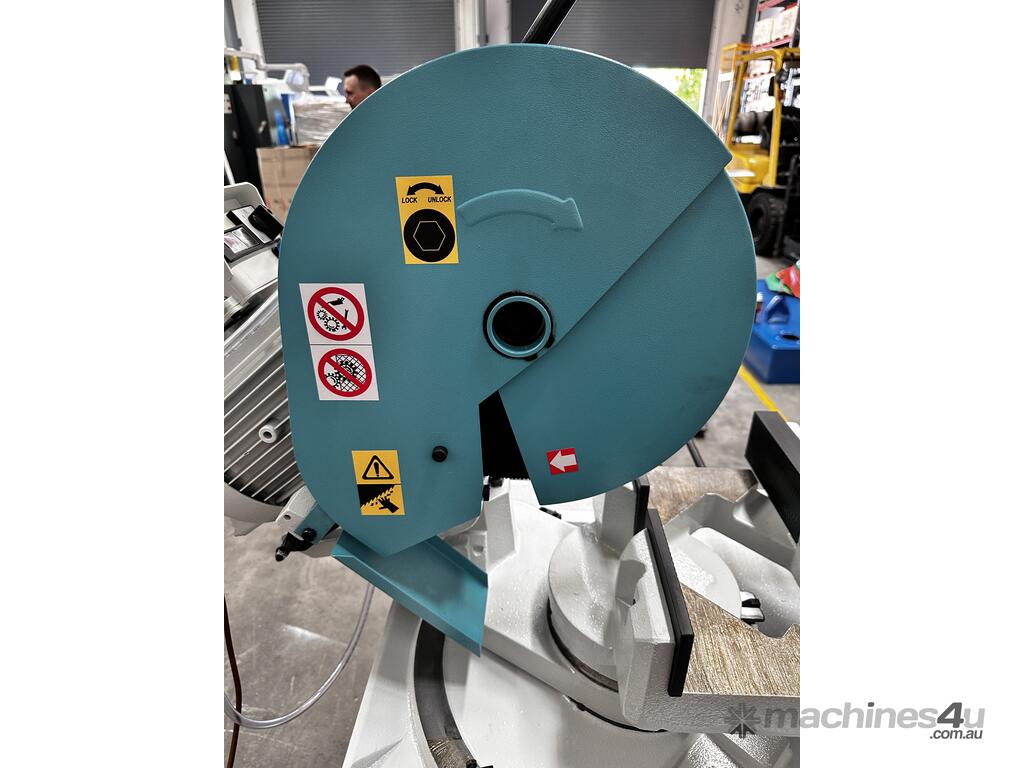

The Imet RECORD 350 sawing machine is a robust and reliable saw for cutting metals (steel with a resistance of 70kg / m2).
Equipped with swivel head and vice, it makes cuts from 0 ° to 45 ° to the right and left, also allowing cutting to 90 ° along the longitudinal axis.
Engineered for heavy duty applications, the Imet Record 350 ferrous metal cutting saws are specifically developed for precision cutting of steel profiles, solids and tubes. Its superior performance and reliability ensures a burr-free, milled finish on every cut.
Three Phase, 415 Volts, 50 Hz

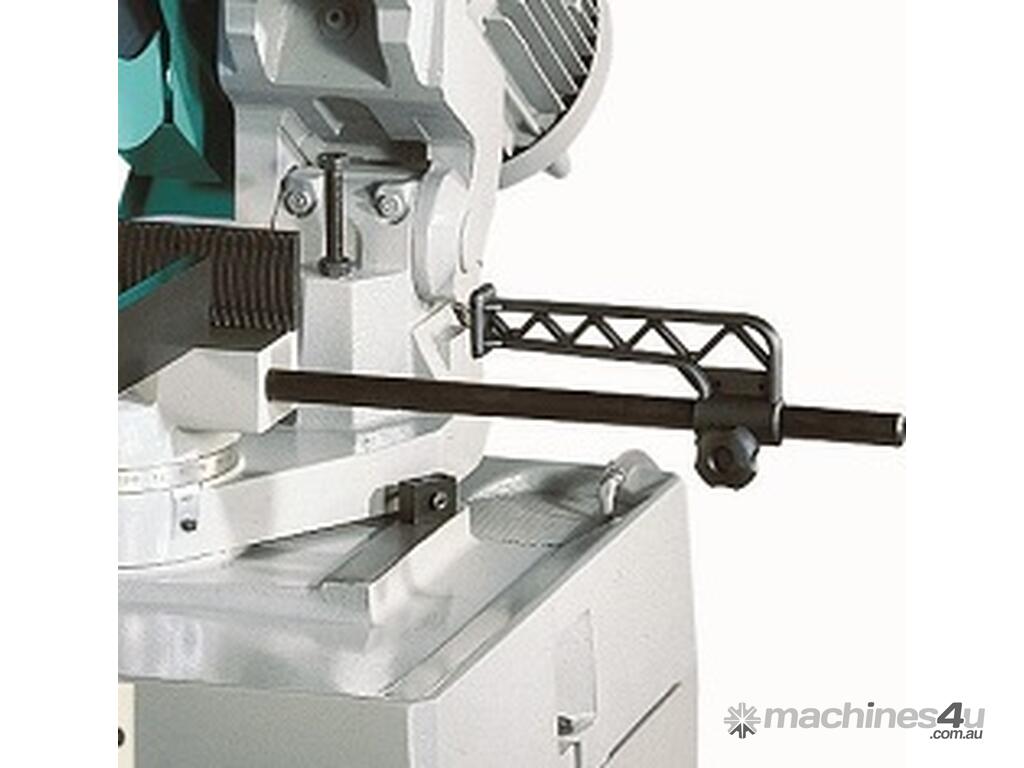

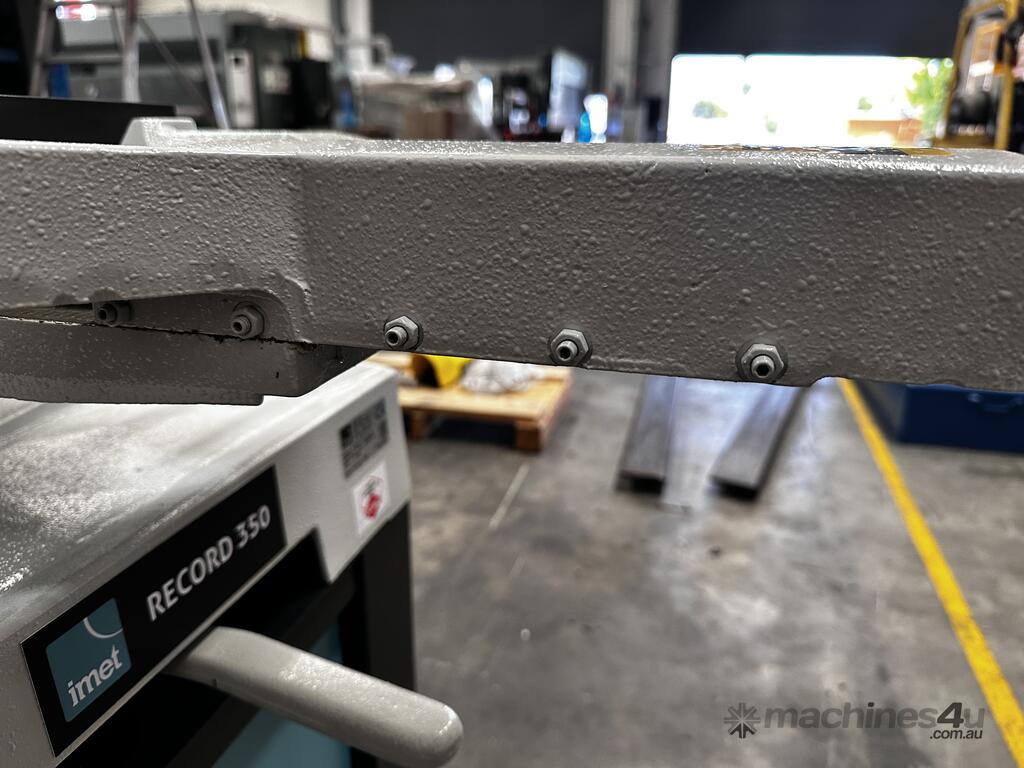

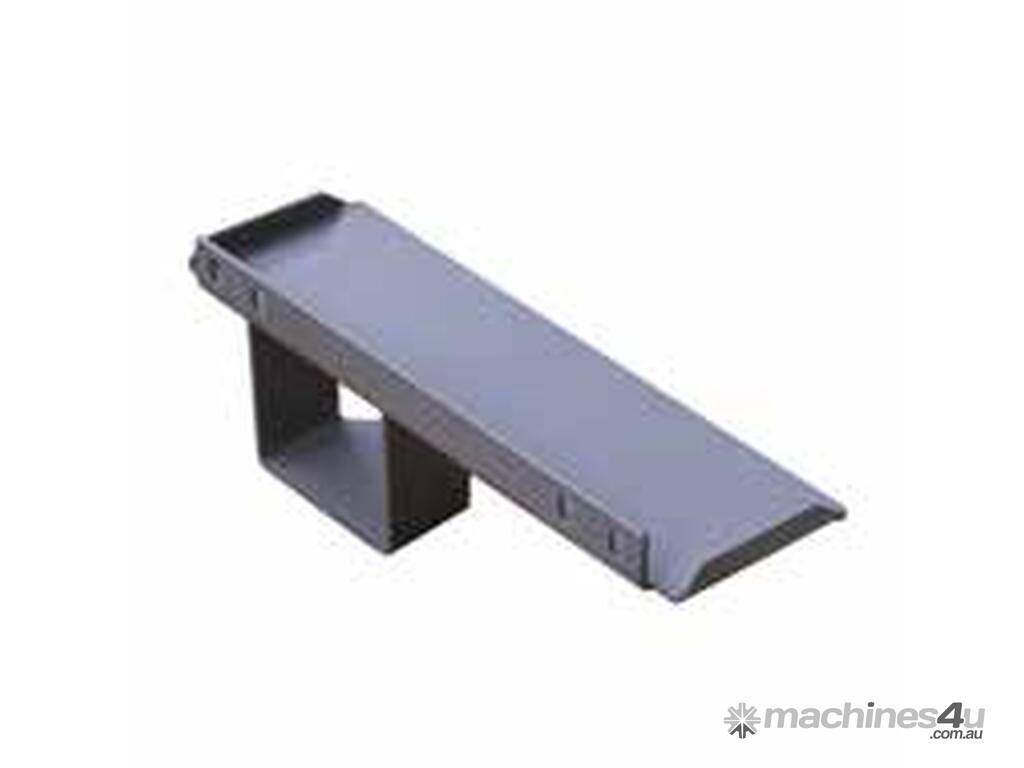

Bar stop
RECORD 350 disc saw is equipped with a standard anti-burr and adjustable bar
stop for making cuts in series.

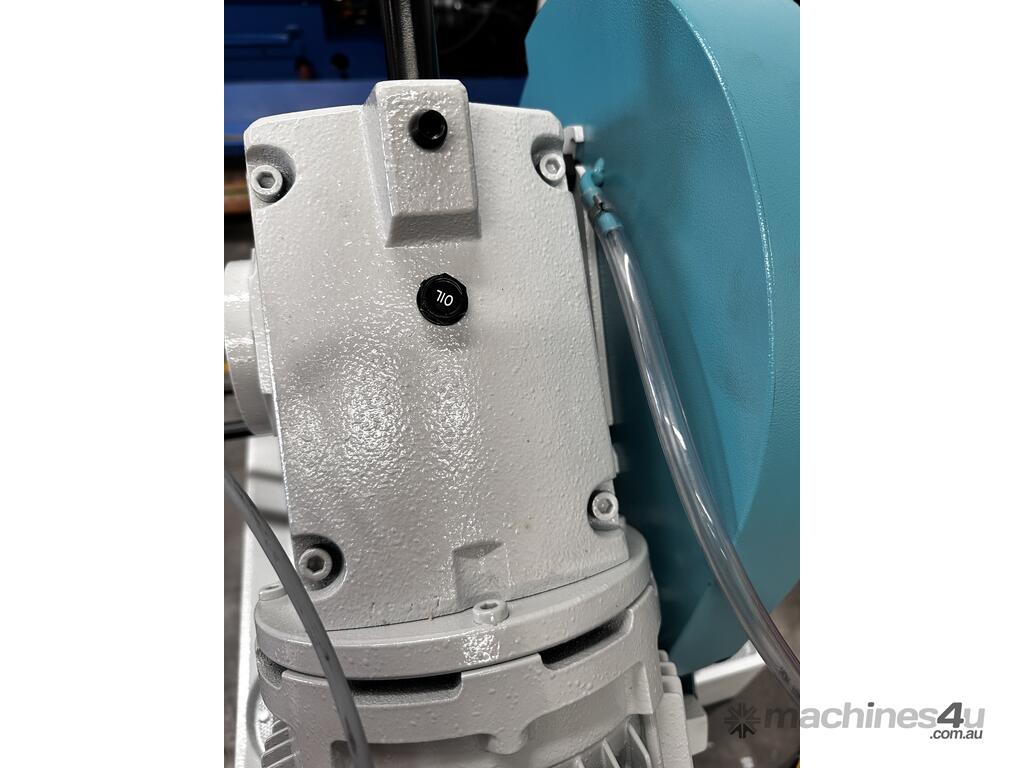

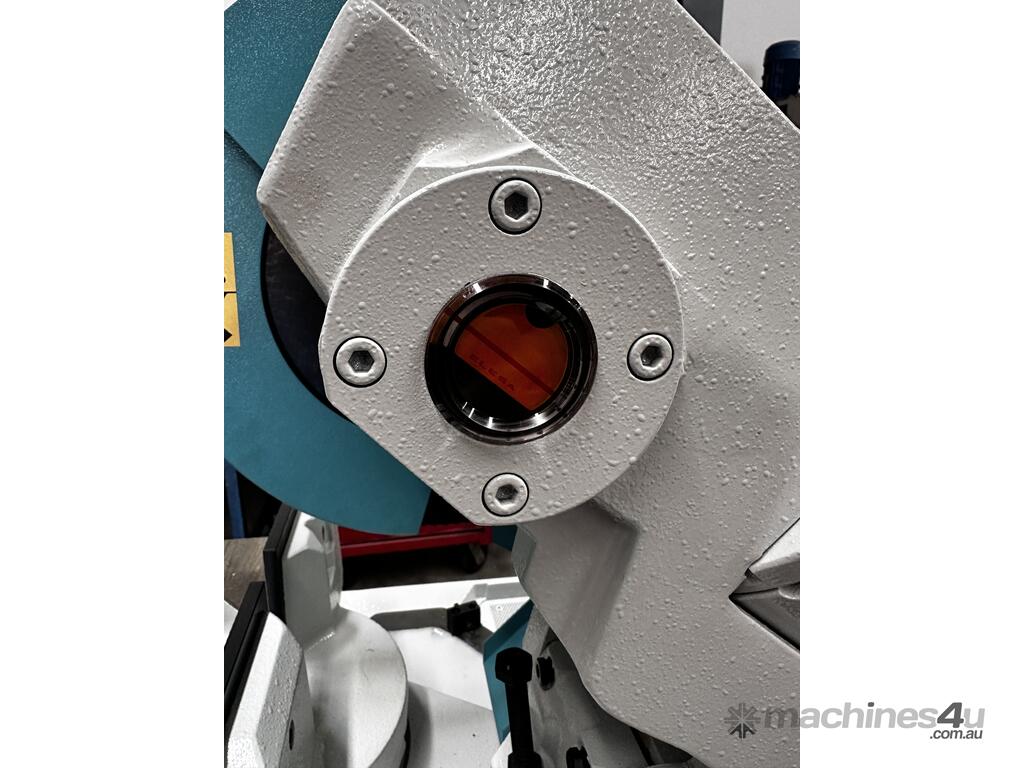

Gearbox
Bronze wheel / endless screw in oil bath with adjustable bearings and elastic
coupling.

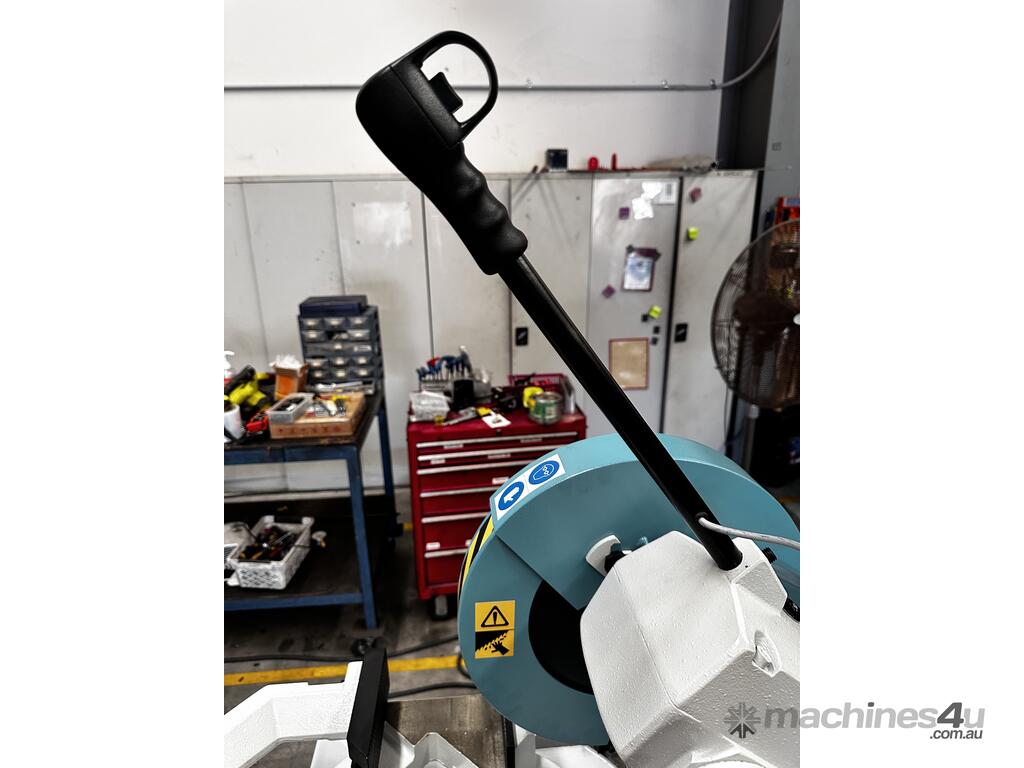

Start
The start button of RECORD 350 is located in the handle.

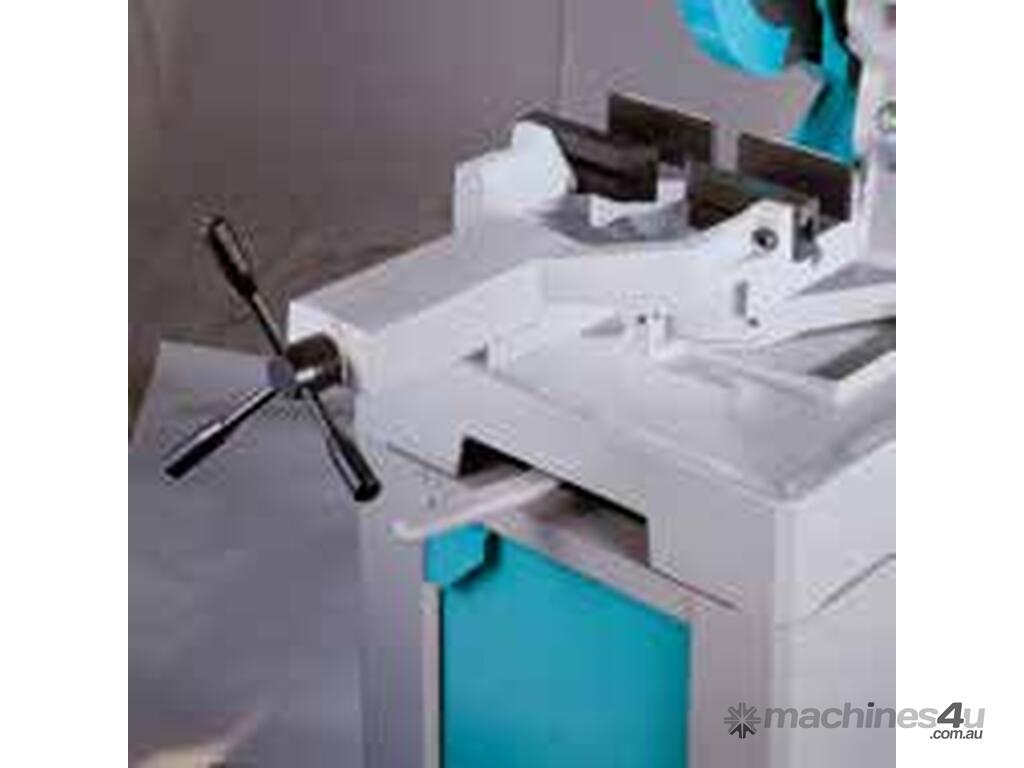

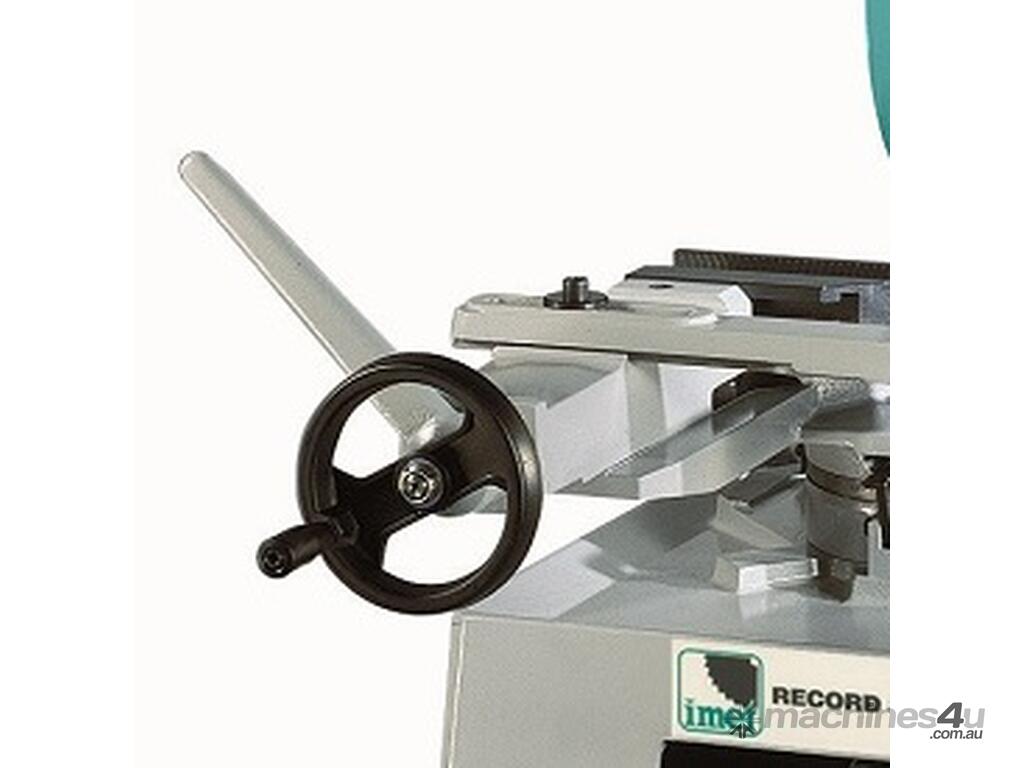

Vice
Screw clamp with quick locking and adjustable guides; a special lever makes it
swivel and removable.

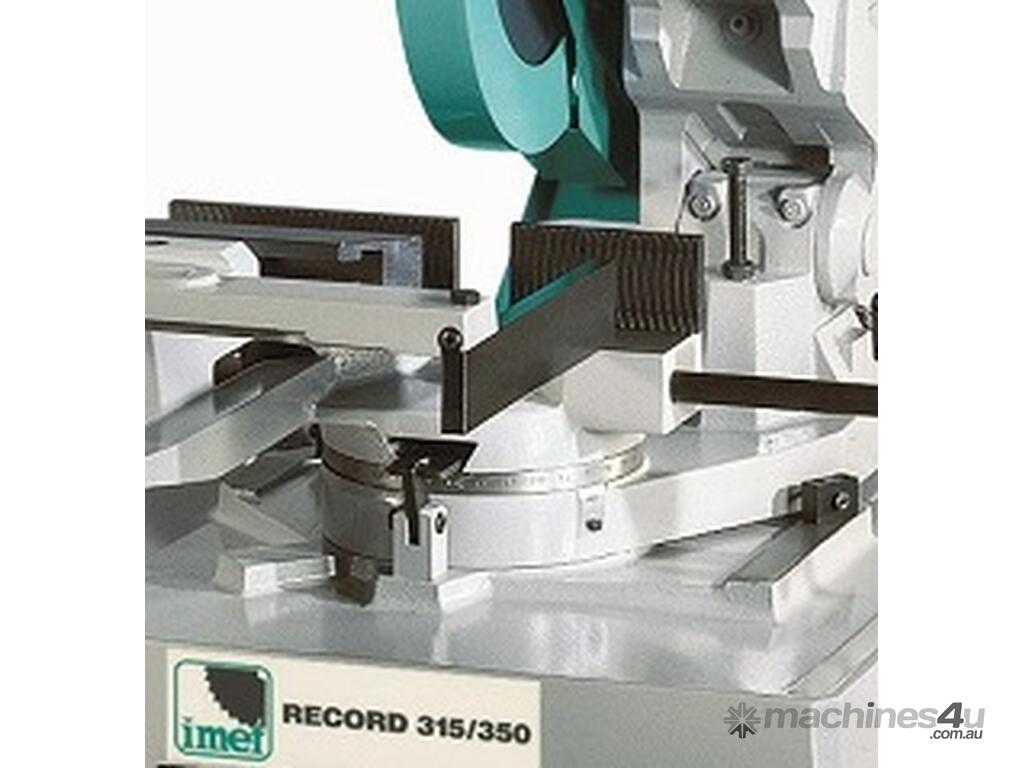

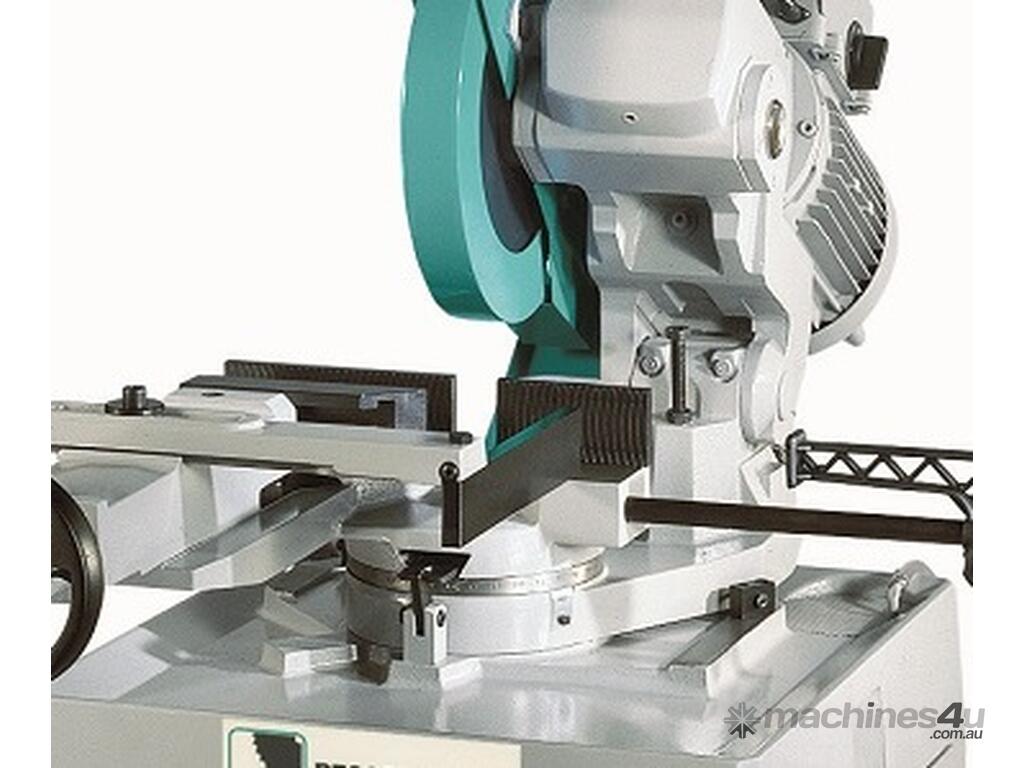

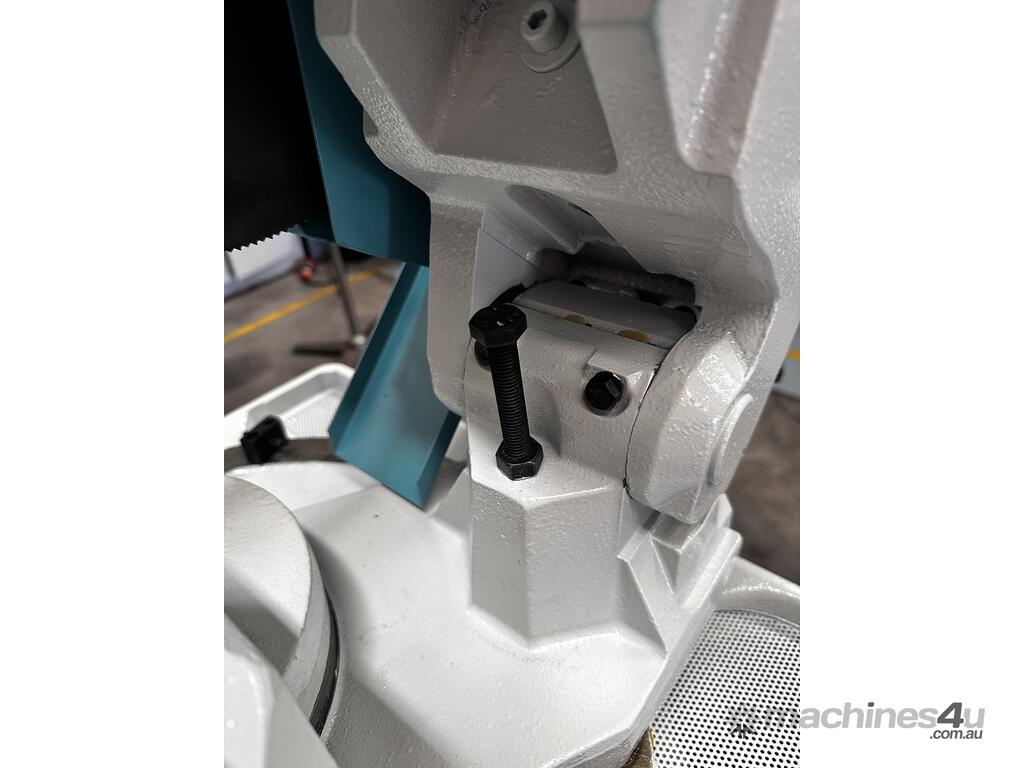

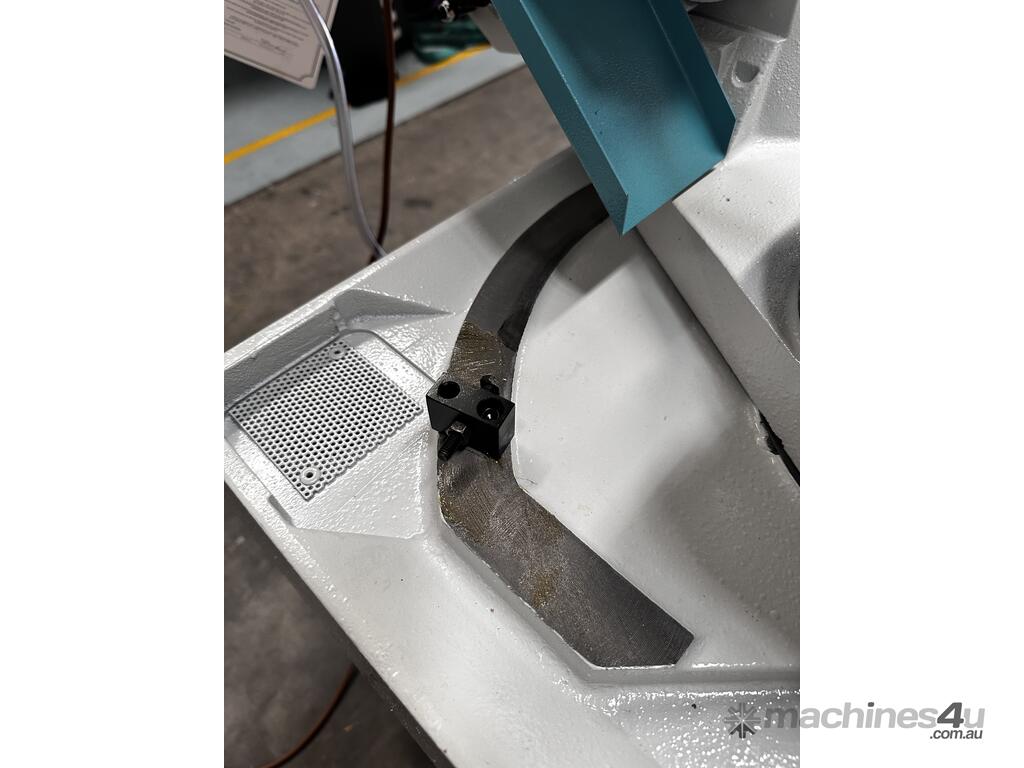

Stops at 0° e 45°
RECORD 350 is equipped with a system of adjustable stops at 0 ° and 45 ° on a
graduated scale on the support surface.

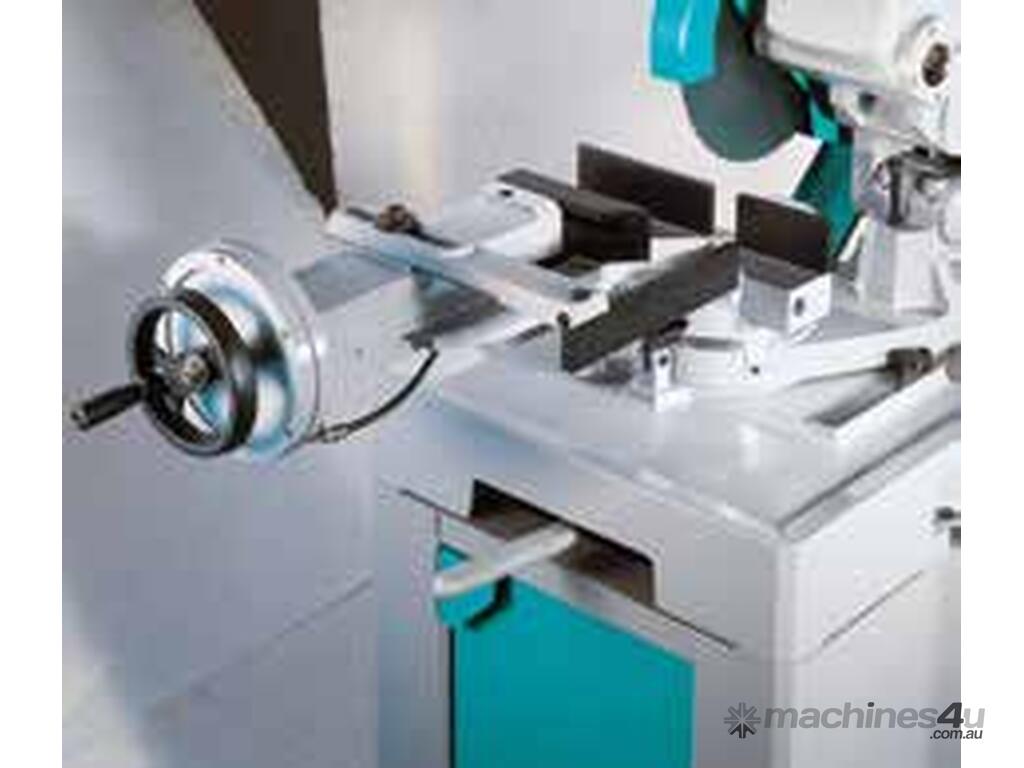

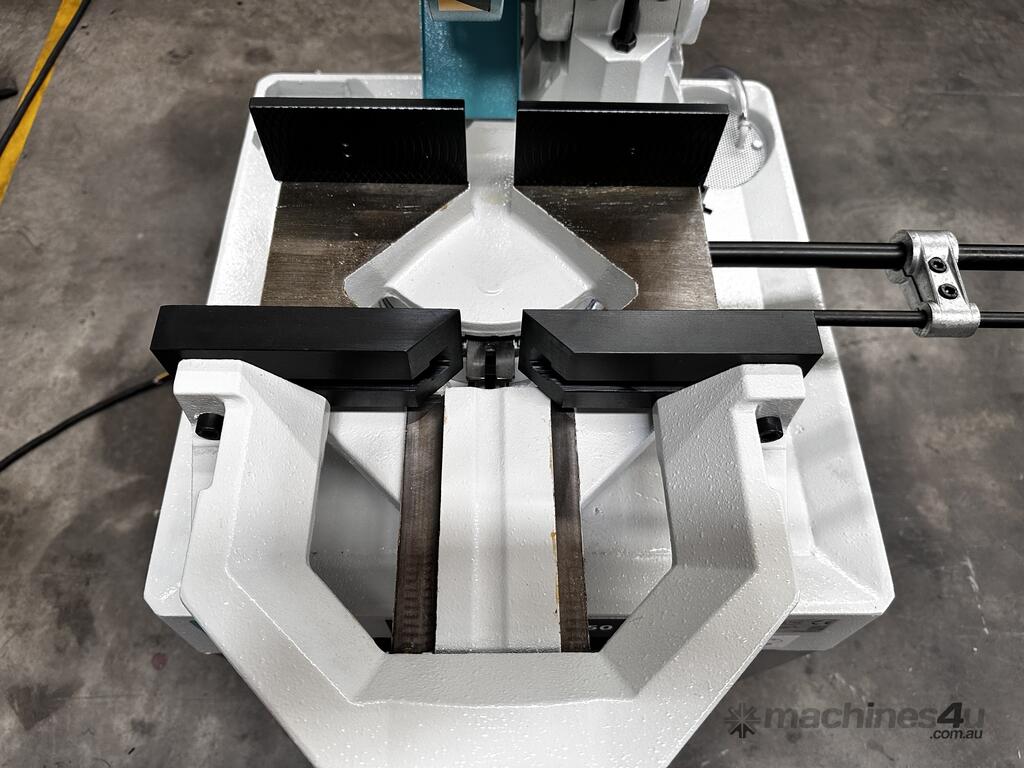

Double vice
A double vice with 160mm opening.

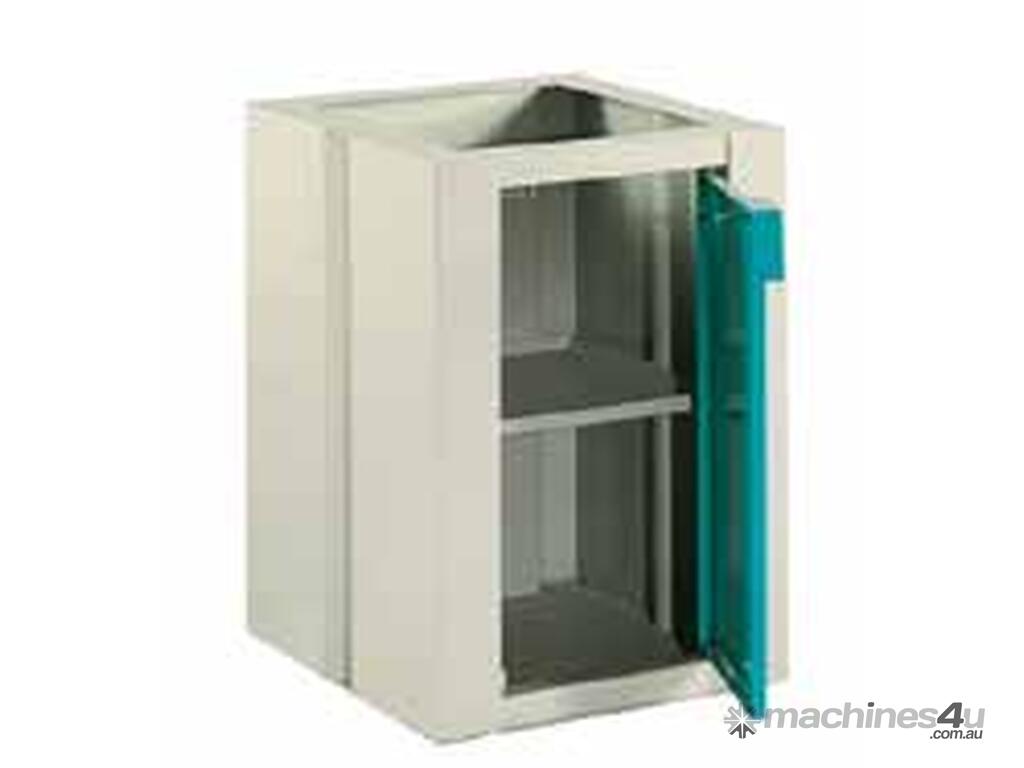

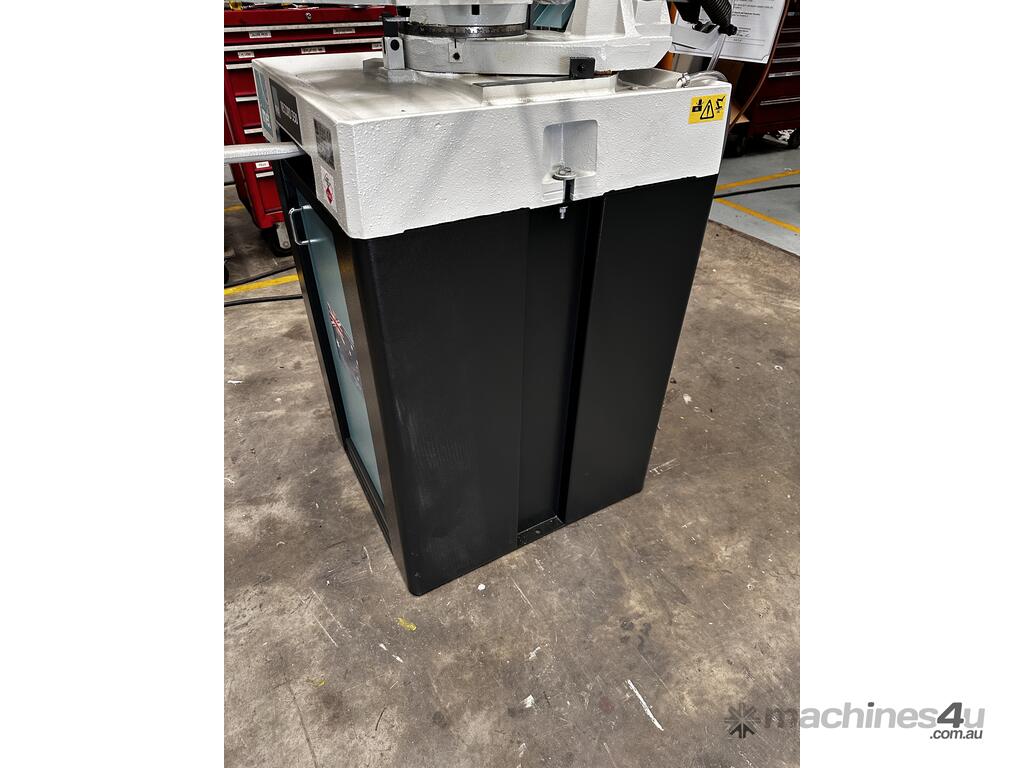

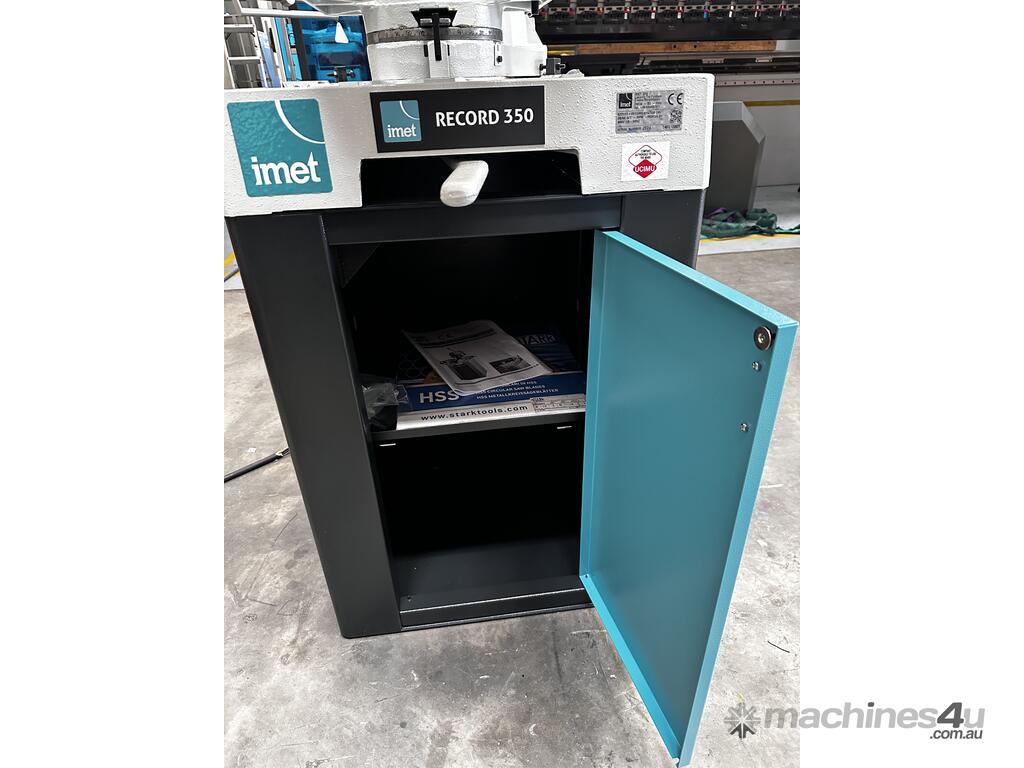

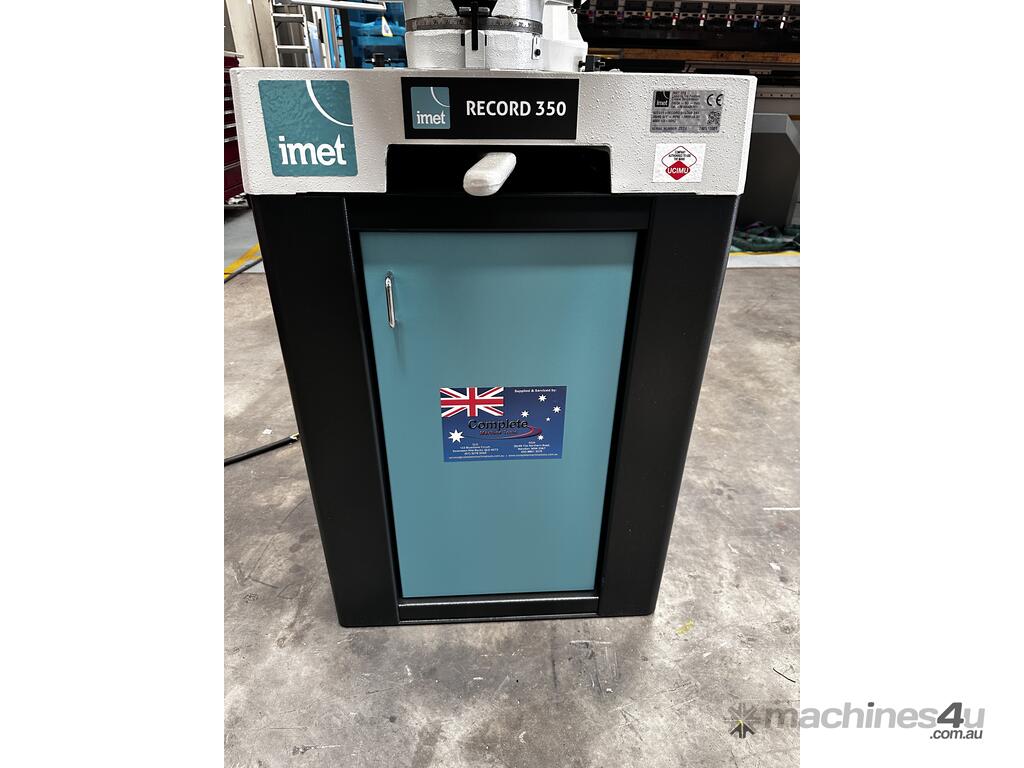

Floor Stand - Included
Pneumatic vice (Optional)
PNEUMATIC VICE (OPENING/CLOSING SYNCHRONYSED WITH THE HEAD MOTION)
Cutting capacity at 0° Round: 125mm - Square: 110mm - Rectangular: 160x90mm
Cutting capacity at 45°left Round: 105mm - Square: 90mm - Rectangular: 80x100mm
Cutting capacity at 45°right Round: 70mm - Square: 65mm - Rectangular: 60x70mm
Blade size 350mm
Blade hole 32mm
Blade speed 30/60rpm
Blade motor power 1.8/2.5KW

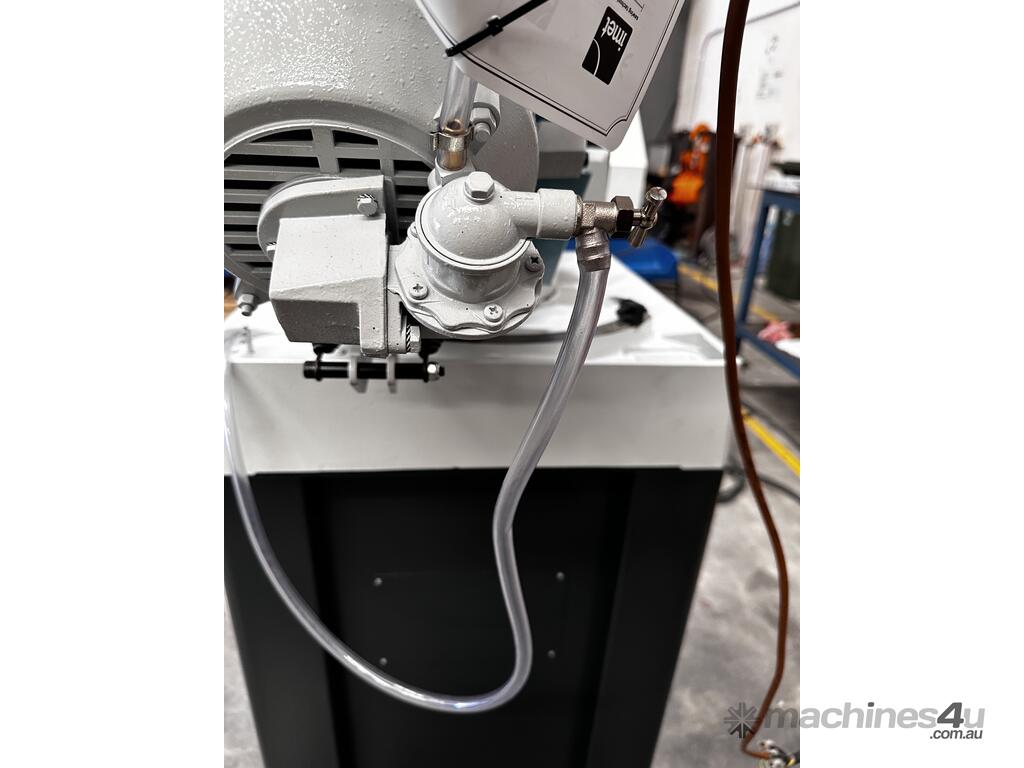

Coolant tank capacity 40l
Weight 206kg
Dimensions 600x1200x1060mm

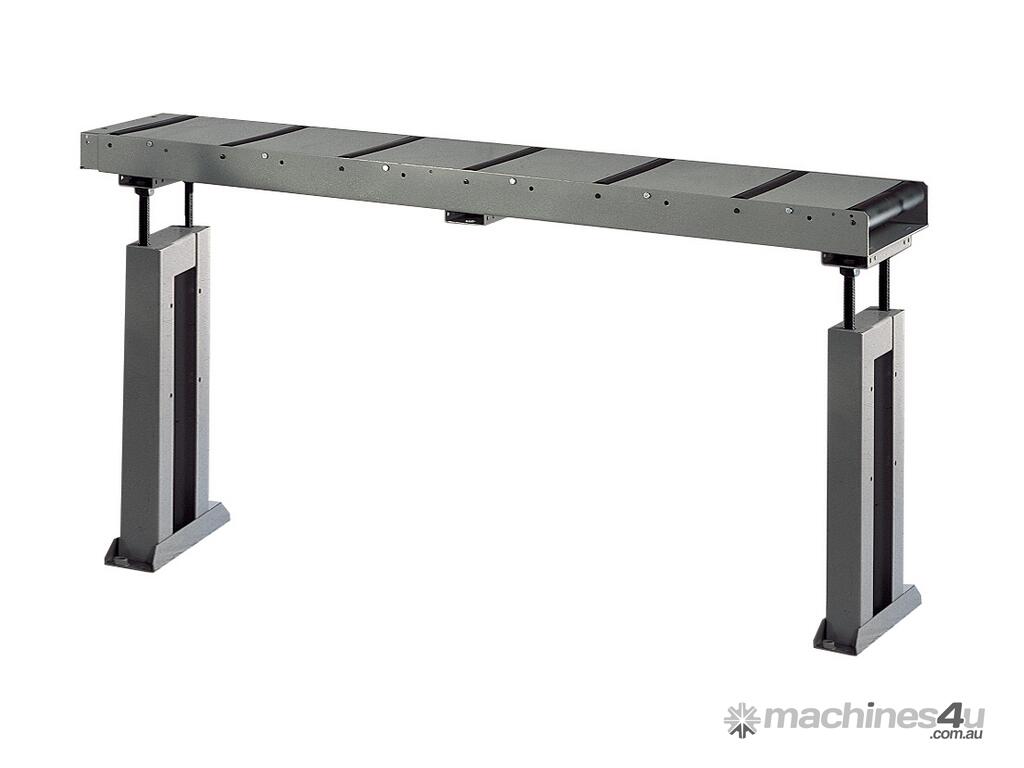

NB - Some pics show optional items
