The IMET SIRIO 315 SH is the semi automatic vertical disc saw for cutting from 0°to45° right and from 0°to60° left. SIRIO
315 SH is the ideal machine for cutting solid and steel profiles (also with high resistance)
Engineered for heavy duty applications, the Imet Sirio 315 SH ferrous metal cutting saws are specifically developed for precision cutting of steel profiles, solids and tubes. Its superior performance and reliability ensures a burr-free, milled finish on every cut.
Three Phase, 415 Volts, 50 Hz
Structure
The SIRIO models have high structural stability to reduce vibrations and
movements of the mitre saw when cutting. The rigid vertical structure is in cast
iron with a large surface of contact between the machine head and the structure
to ensure even more solidity when in use
Cutting precision

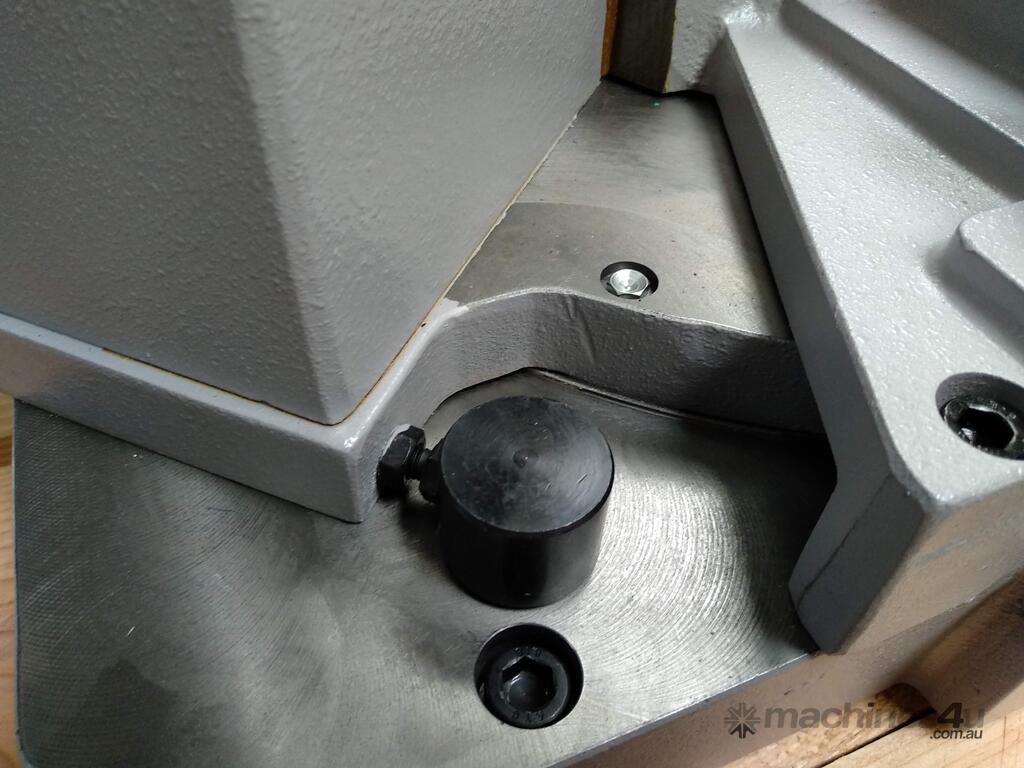

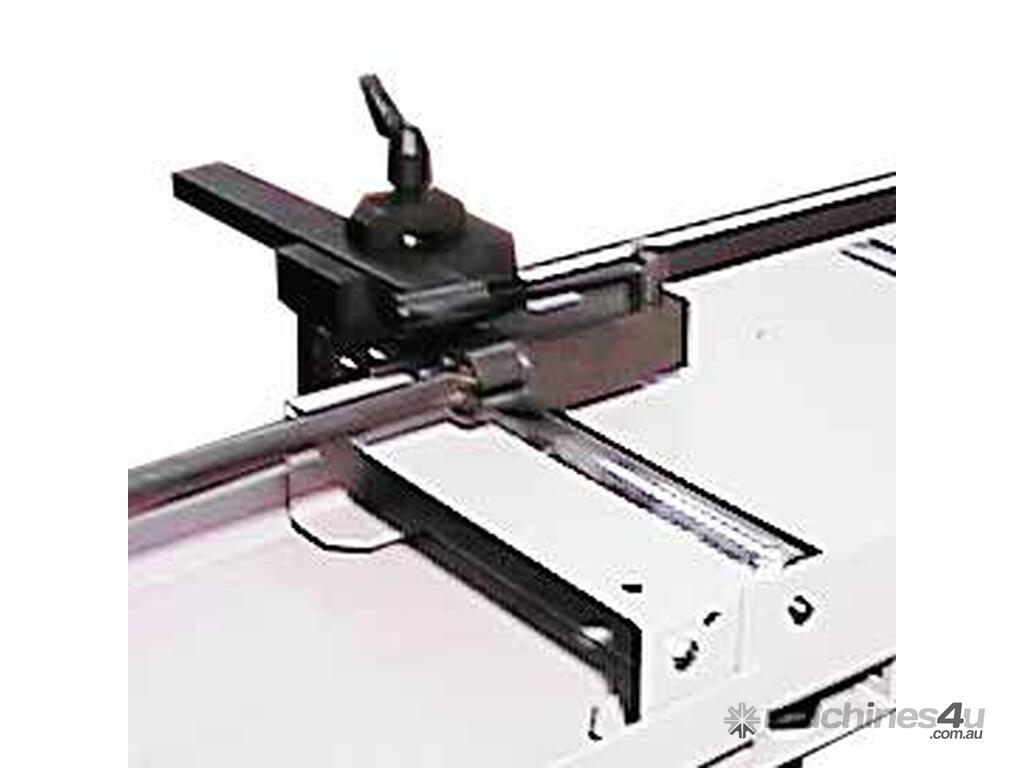

SIRIO is equipped with a system with adjustable stops at 0 ° and 45 °, adjustable
bar stop and graduated scale for other angles and maximum positioning
precision.

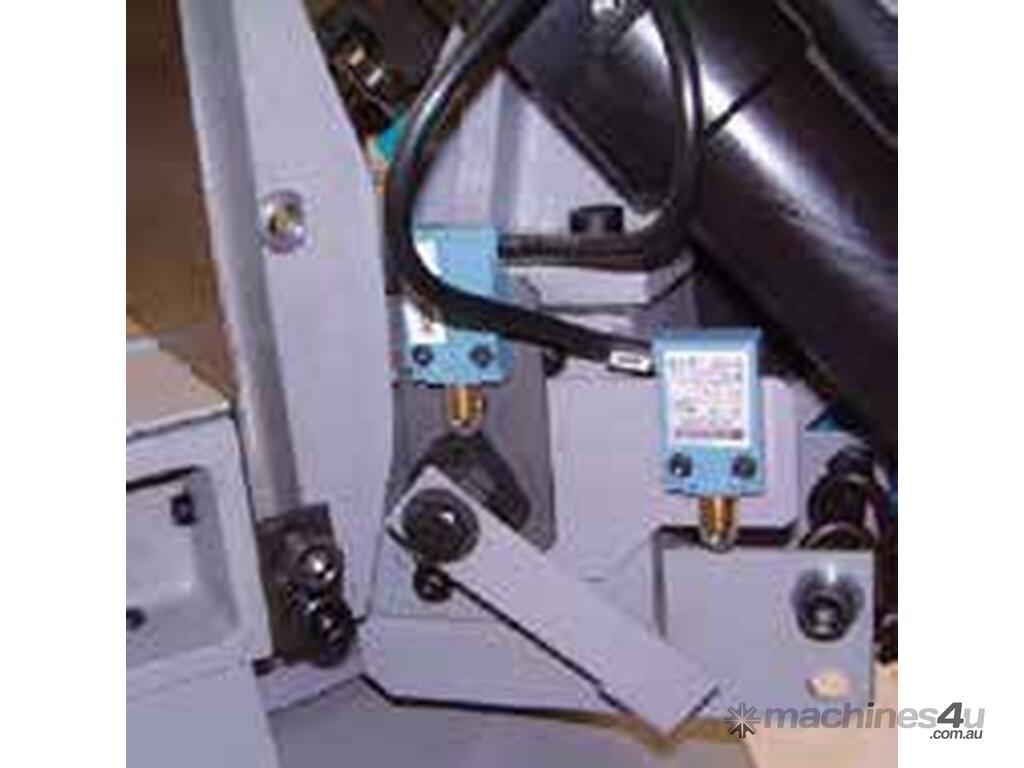

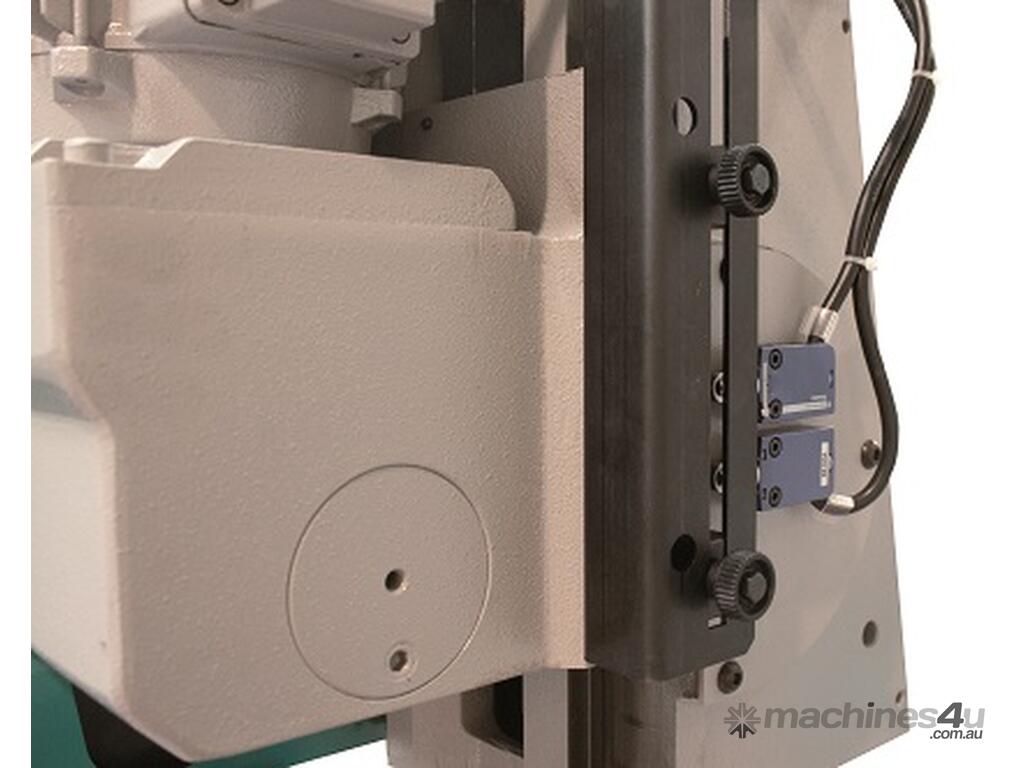

Start and end cut positions
The machine is equipped with a system to optimize the adjustment of the start /
end cutting position thanks two limit switches. Rapid ascent at the end of the
cut.
Pneumatic vice
The semi-automatic disc cutting-off machines Sirio are fitted as standard with the
pneumatic front vice with material locking and transversal movement on the work
surface.
Foot pedal
FOOT PEDAL+CABLE 3M + PLUG

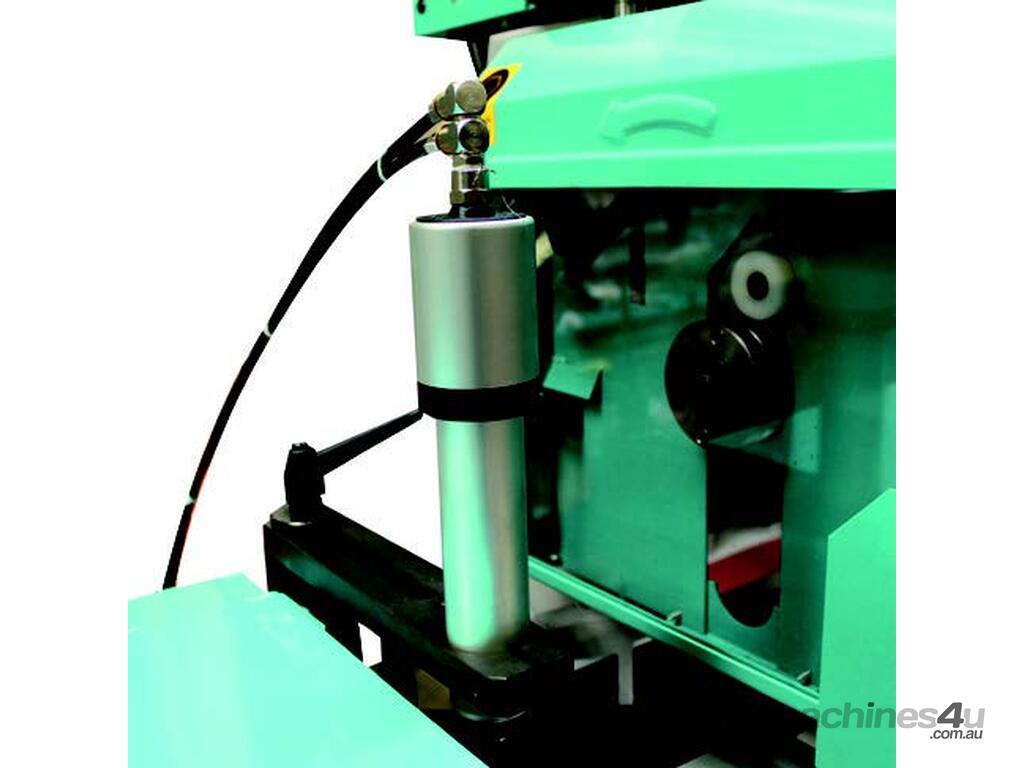

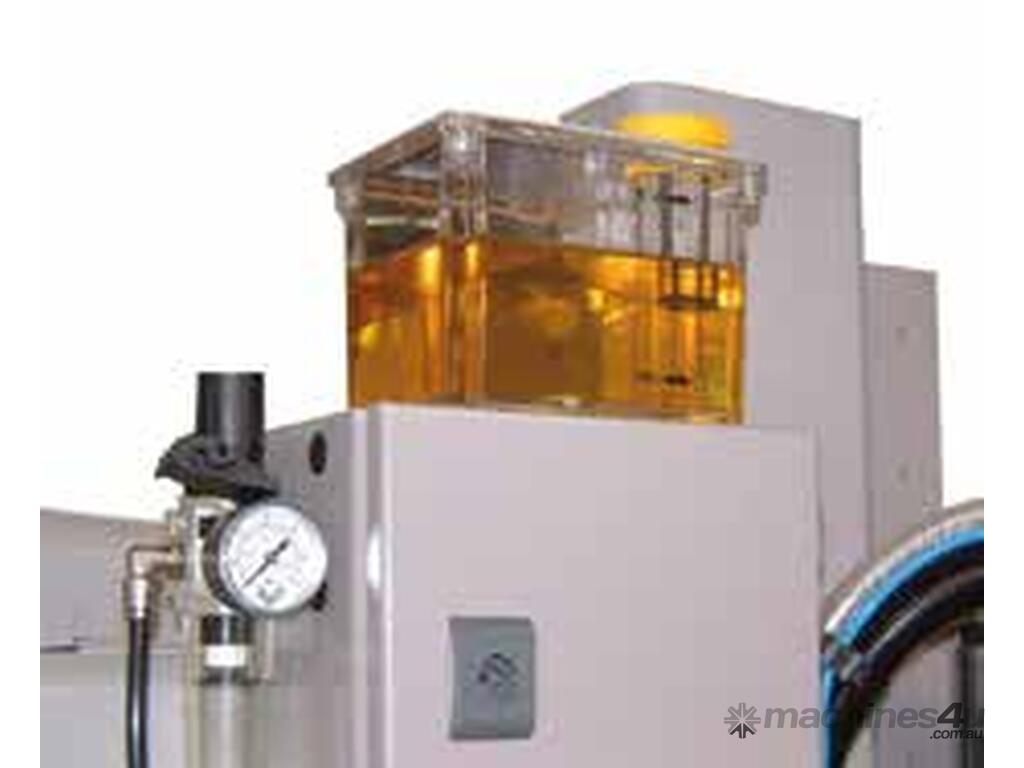

Minimal lubrication system
The lubrication system cancels the dispersion of the coolant with out damaging or
affecting the life of the blade. The system is equipped with a 1.3l tank and
nozzle.

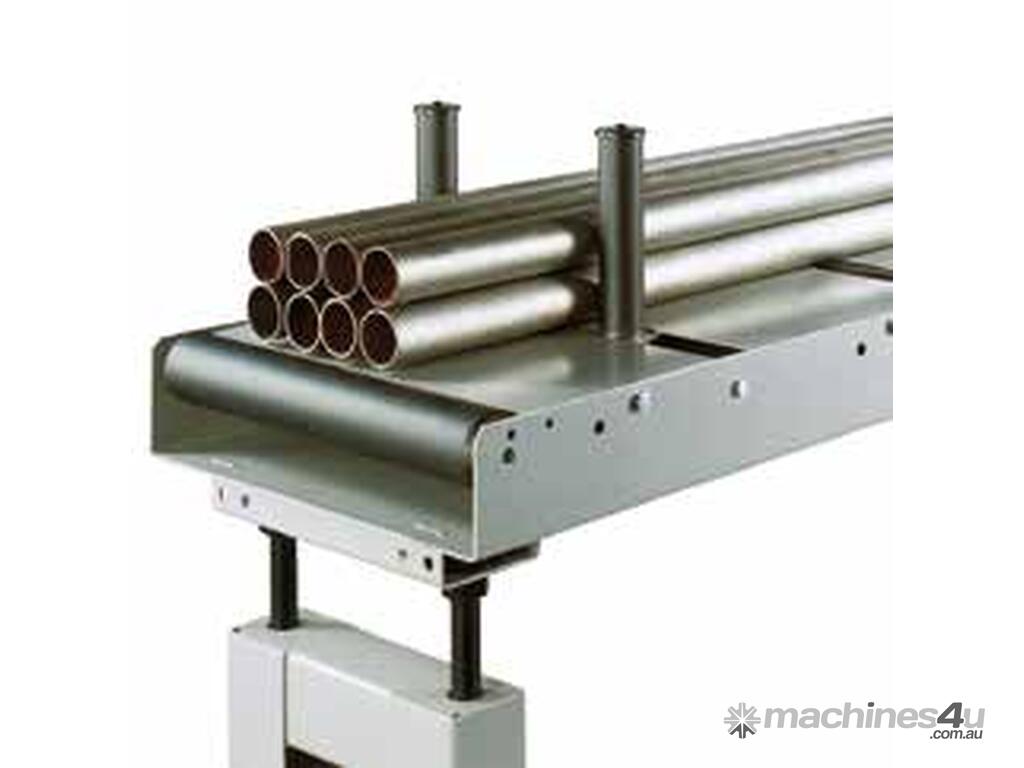

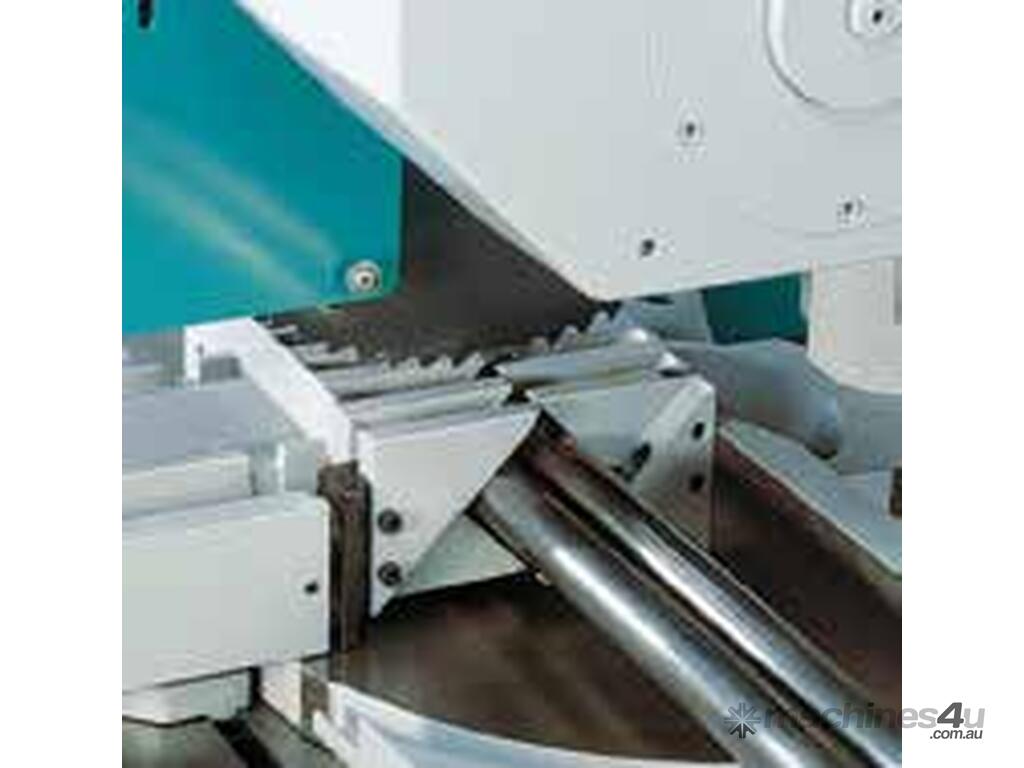

V jaws (Optional) OPTIONAL 506500
Two pairs of cast iron V jaws to fittings bundles and round bars (max diameter 85
mm.) with tools to mount them
Cutting capacity at 0° Tondo: 108mm - Quadrato: 93mm - Rettangolo: 150x90mm
Cutting capacity at 45° left Tondo: 108mm - Quadrato: 93mm - Rettangolo: 105x80mm
Cutting capacity at 46° right Tondo: 108mm - Quadrato: 93mm - Rettangolo: 105x80mm
Cutting capacity at 60° left Tondo: 93mm - Quadrato: 80mm - Rettangolo: 75x90mm
Cutting capacity at 0° with 300mm blade Tondo: 100mm - Quadrato: 84mm - Rettangolo: 140x80mm
Cutting capacity at 0° (solids) 60mm

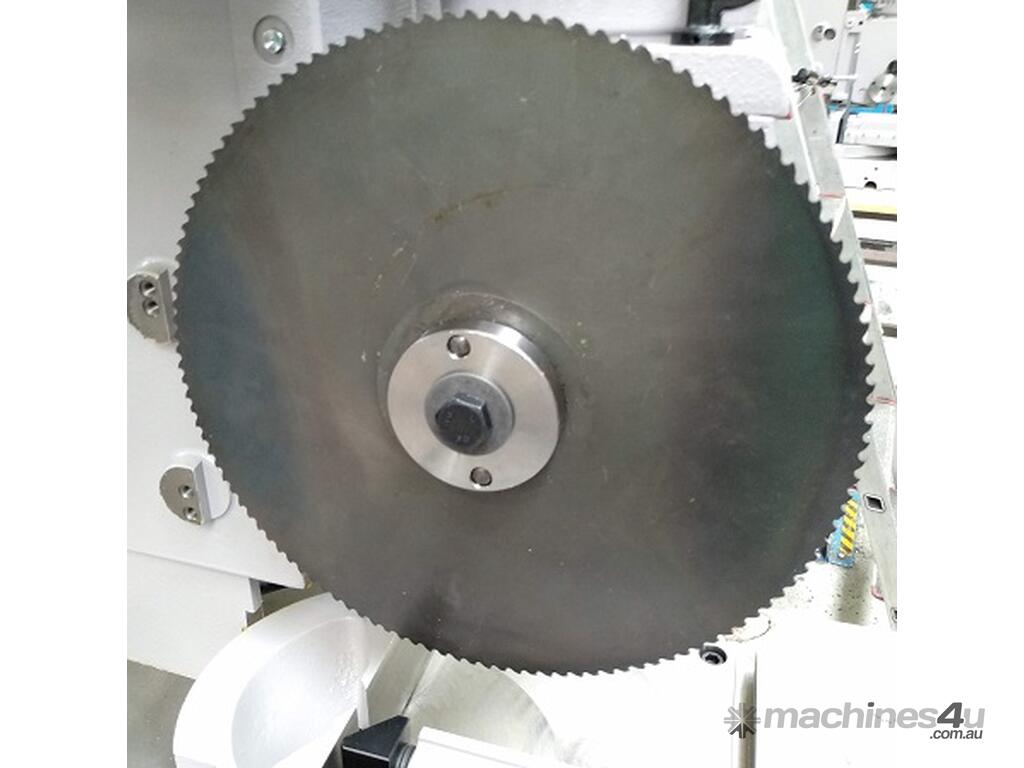

Blade size Diam.: 315mm
Blade speed 17/33 rpm
Blade doubled speed (optional) 33/66 rpm

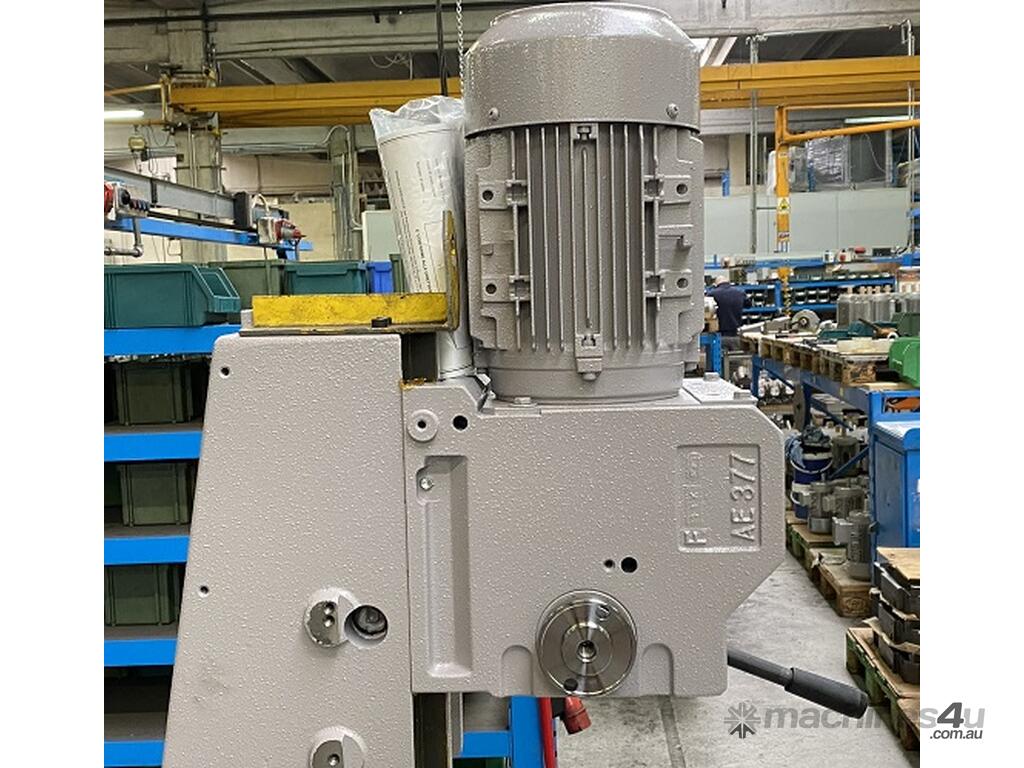

Blade motor power 1.5/1.8 KW
Working table height 920mm
Dimensions 800x900x1950mm
Weight 360kg

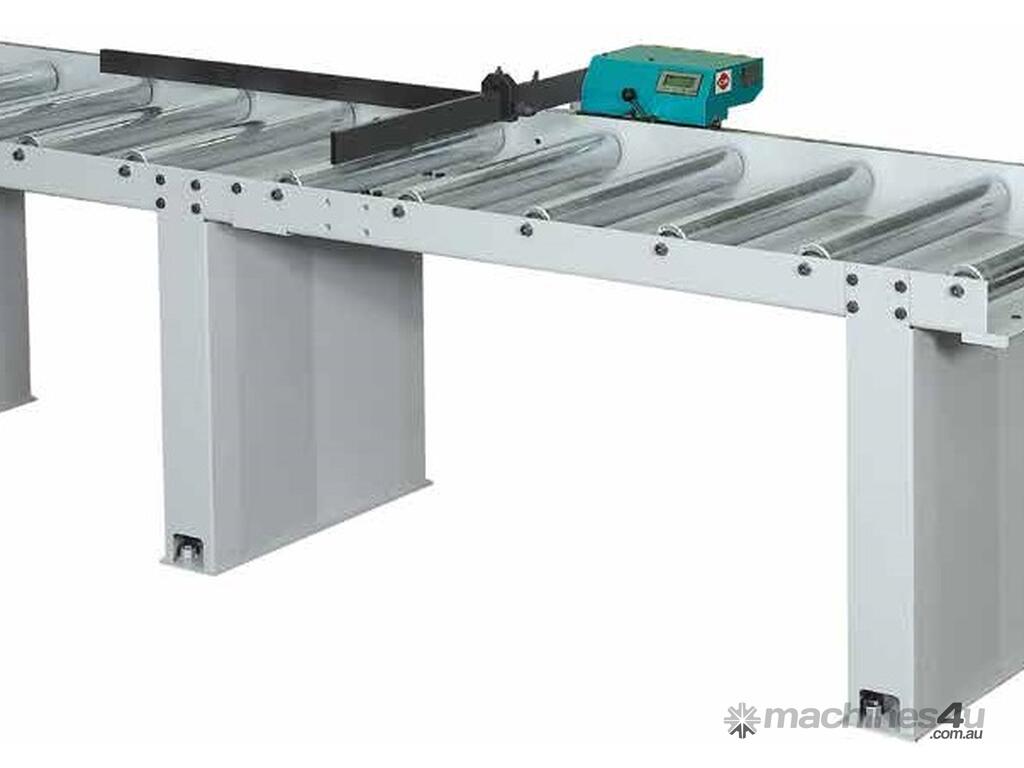

NB - Some pics show optional items
