IMET - Sirio 370 SH-E - Semiautomatic Vertical Circular Saw

Heavy duty semiautomatic vertical saw.

SIRIO 370 is the semi-automatic vertical miter saw for cutting solids and steel profiles also with high resistance; by applying the ESC speed variator, the range of materials go from steel to stainless steel and light alloys.

The machine can cut from 0 ° to 45 ° right and from 0 ° to 60 ° left.

Structure
The SIRIO models have high structural stability to reduce vibrations and movements of the miter saw when cutting. The rigid vertical structure is in cast iron with a large surface of contact between the machine head and the structure to ensure even more solidity when in use

Cutting precision
SIRIO is equipped with a system with adjustable stops at 0 ° and 45 °, adjustable bar stop and graduated scale for other angles and maximum positioning precision.

SH-E version

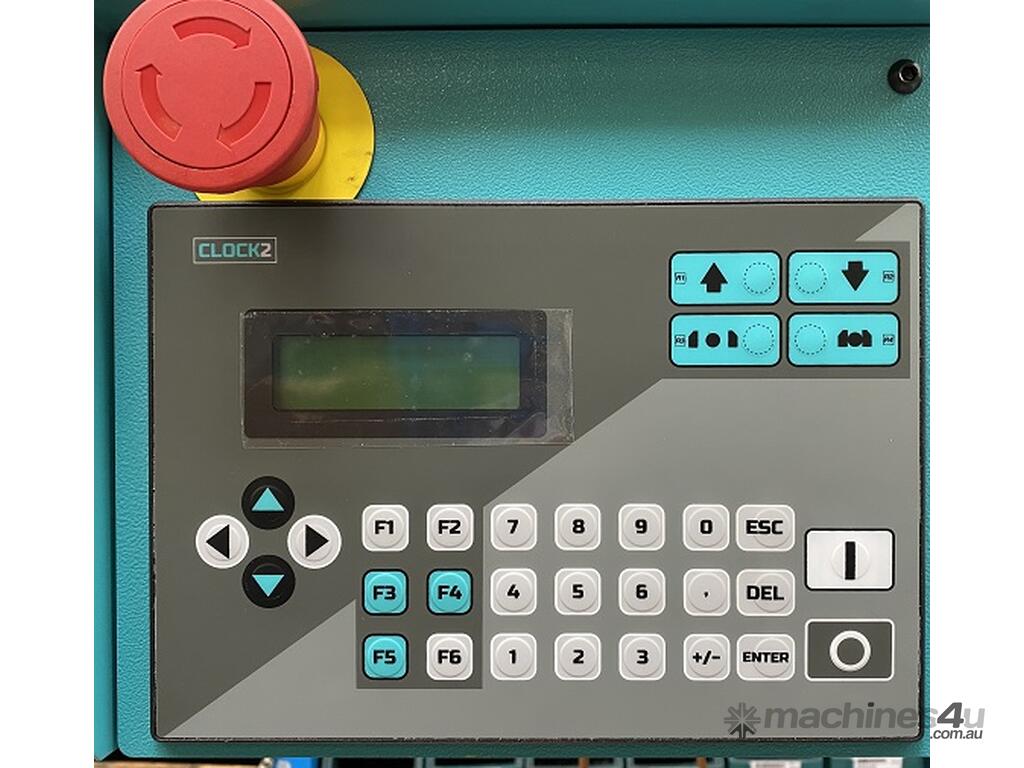

SIRIO 370 SH-E is a semi-automatic machine with electro-pneumatic operation and hydraulic control. Programming of the operator parameters and management of the cut are made by the control panel.

Pneumatic vice
The semi-automatic disc cutting-off machines Sirio are ftted as standard with the pneumatic front vice with material locking and transversal movement on the work surface.

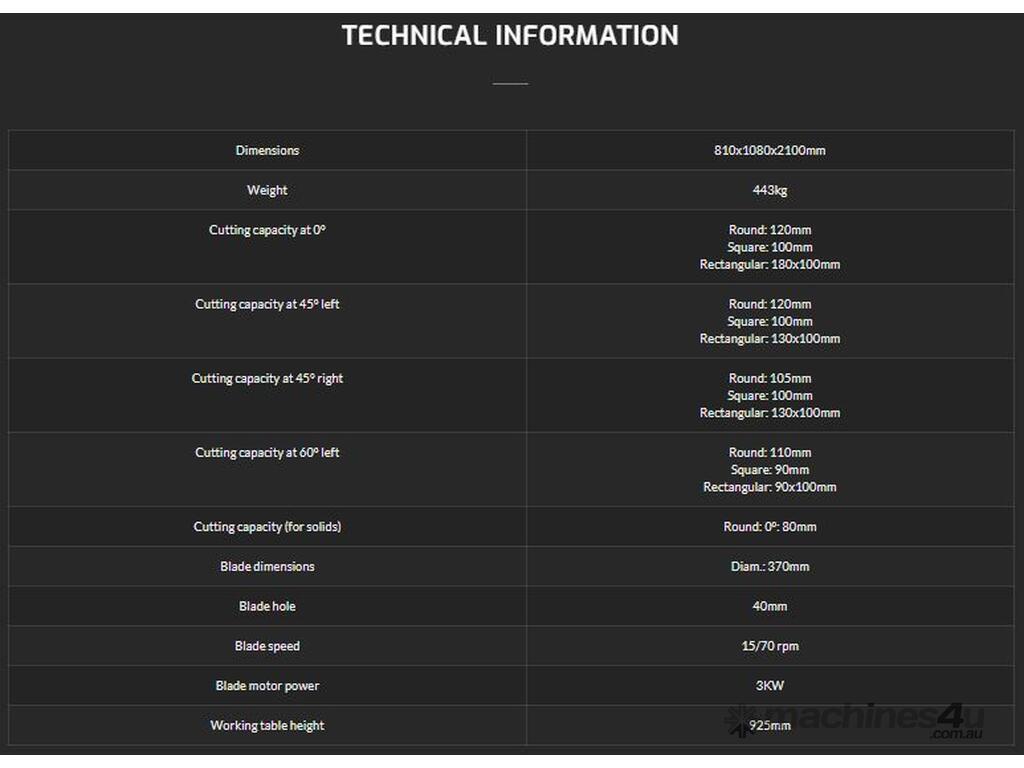

TECHNICAL INFORMATION
Dimensions 810x1080x2100mm
Weight 443kg
Cutting capacity at 0° Round: 120mm
- Square: 100mm
- Rectangular: 180x100mm
Cutting capacity at 45° left Round: 120mm
- Square: 100mm
- Rectangular: 130x100mm
Cutting capacity at 45° right Round: 105mm
- Square: 100mm
- Rectangular: 130x100mm
Cutting capacity at 60° left Round: 110mm
- Square: 90mm
- Rectangular: 90x100mm
Cutting capacity (for solids) 40mm
Blade dimensions Diam.: 370mm
Blade hole 40mm
Blade speed 15/70 rpm
Blade motor power 3KW
Working table height 925mm
