IMET - VELOX 350 AF-NC - Circular Saw

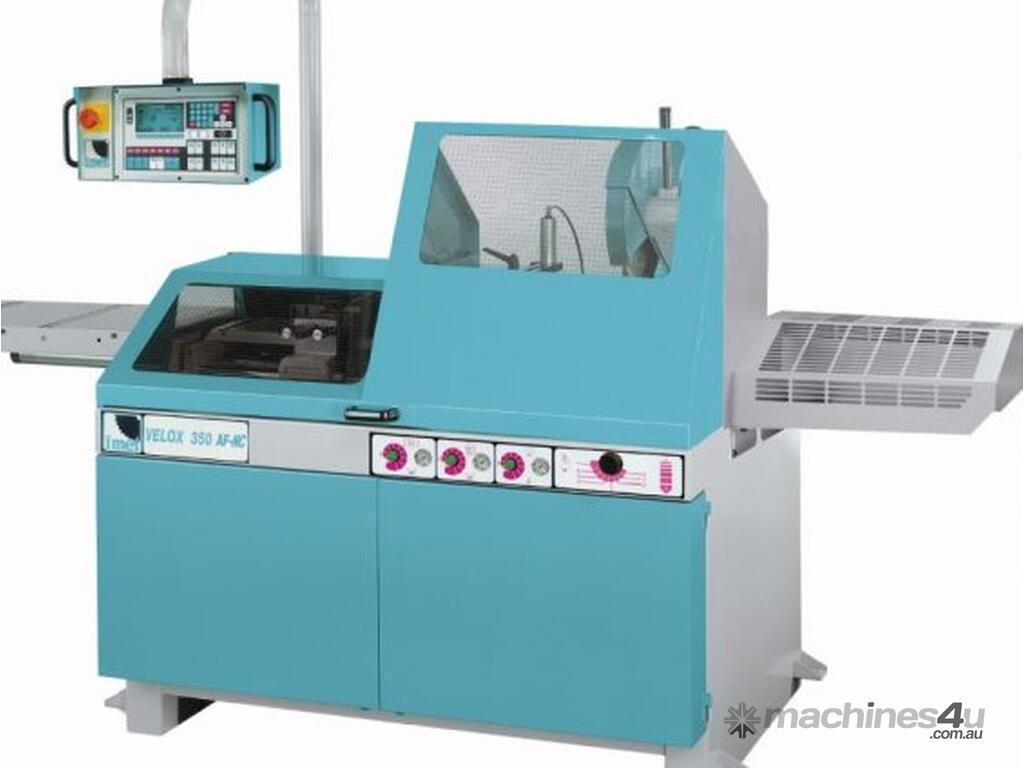

IMET VELOX 350 AF-NC Automatic CNC circular saw suited to cut aluminum light metal solids and profiles.

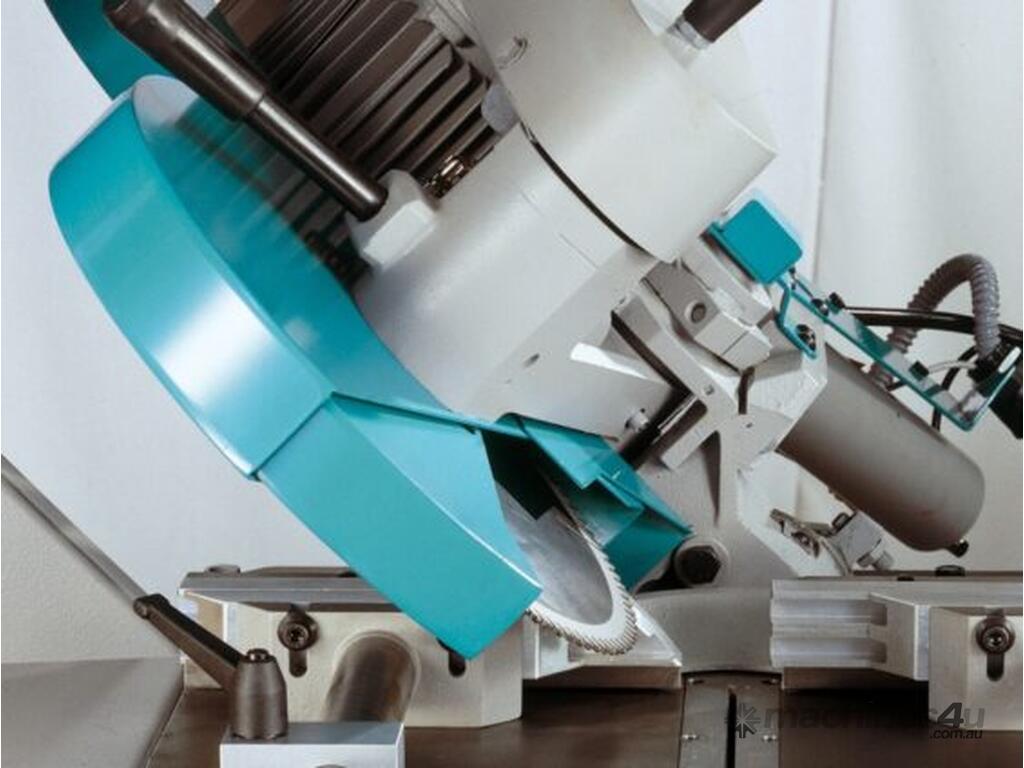

Automatic CNC circular saw suited to cut aluminum light metal solids and profiles with high accuracy. Possibility to set the machine for brass and copper profiles. Mitre cutting from 0° to 45° left and right. (05.) The head bends 45° on the vertical axis to allow inclined cuts.

Easy stops at 0°, 15°, 30°, 45° left and right, hand-wheel to lock the head on all angles.

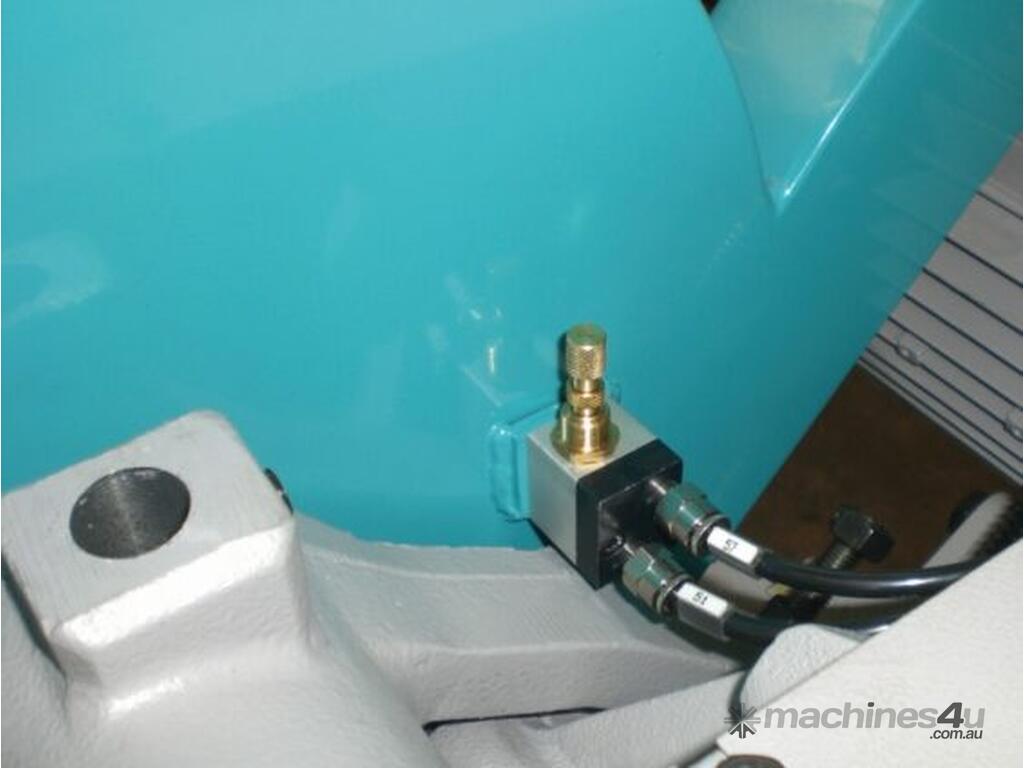

Electro-pneumatic functioning, hydraulic control of the down-feed speed of the head.

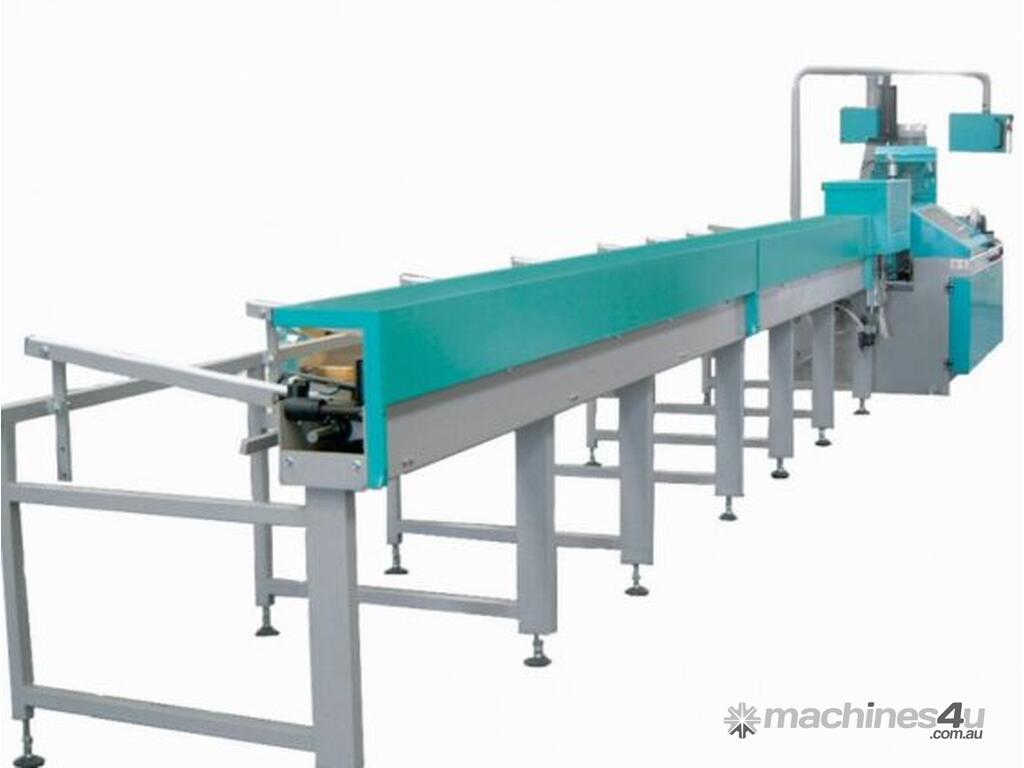

Programming of all operations by means of the CNC driver, including setting of the cutting lengths (min 4 mm) with automatic feeder strokes; start-cut and end-cut points; machine status shown on display, including blade speed, piece counter, total material length to cut; working anomalies and in different languages by means of the keyboard. Feeder with 200 mm opening, moving by electronic motor with inverter.

Minimum stroke 4 mm (minimum scrap-end 355 mm). Up to 99 programs can be memorized, each one with different cutting lengths and number of cuts.

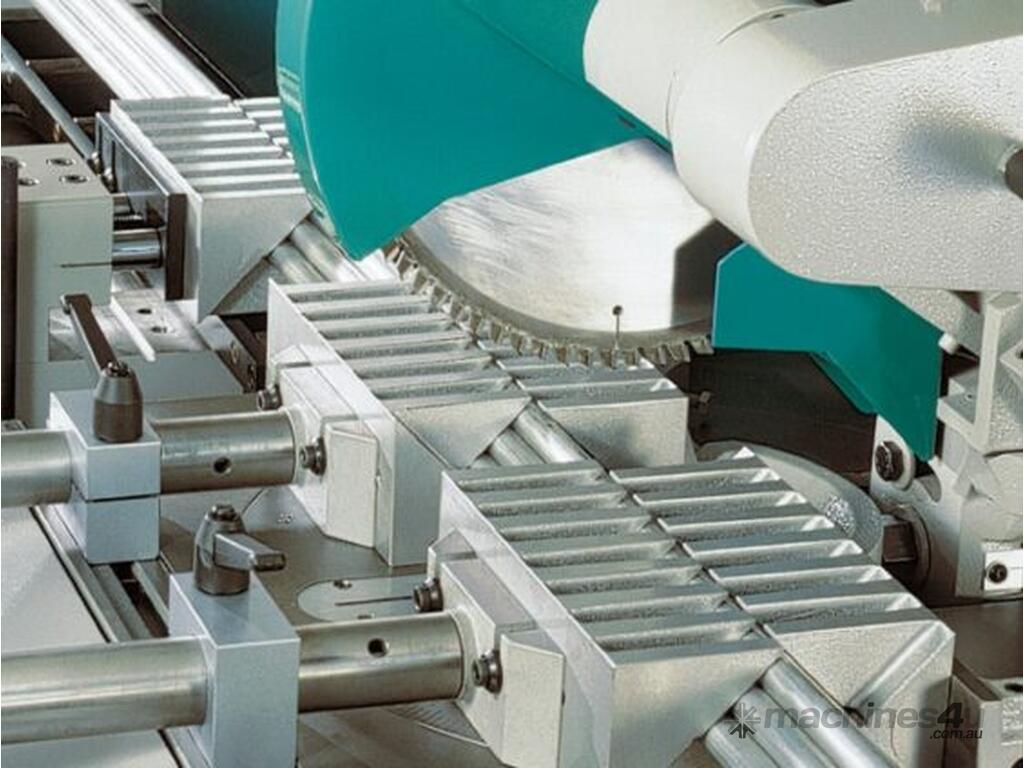

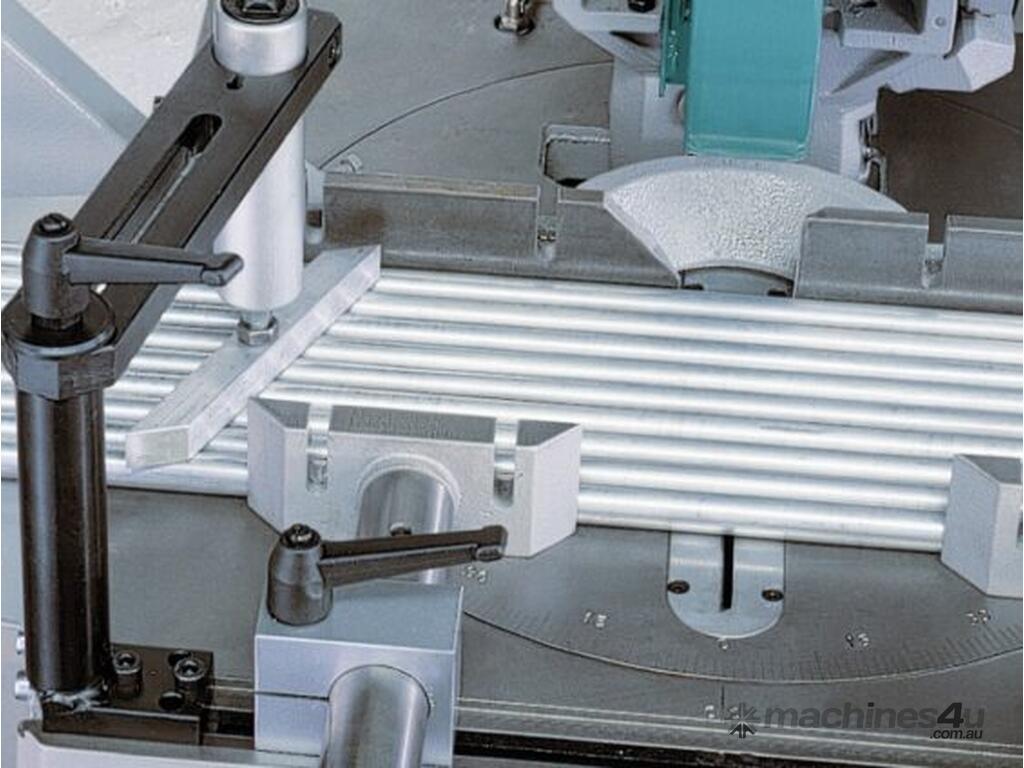

Pair of front pneumatic vices with quick clamping, free to move alongside the worktable, vertical pneumatic vice. Upper roller to cut more bars in a row.

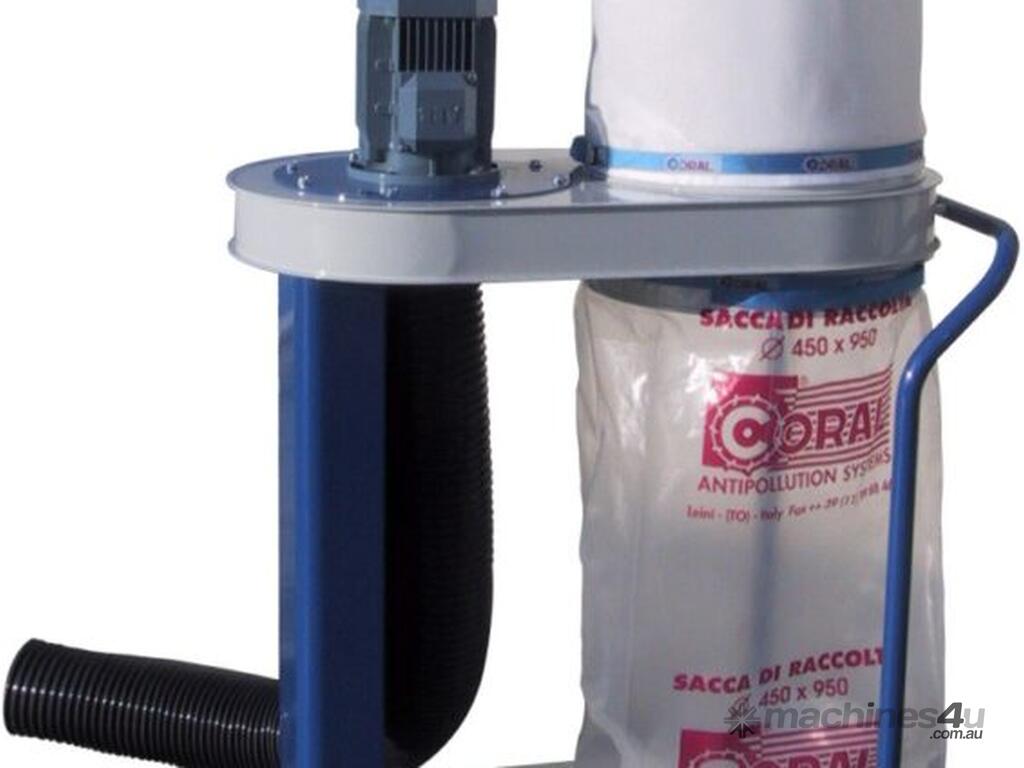

Complete blade protection, able to connect chip suction plant.

Complete guard opens only when the blade is still.

Fixed protection on the unloading side. Floor stand with removable tank and chip collector, connection element to the unloading side.

Lubrication system with spray working only during the cut. Air filter/reducer/ lubrication group.

Main switch with minimum tension coil, emergency button, thermic and magnetic motor protection, motor absorption device, 24V low tension.

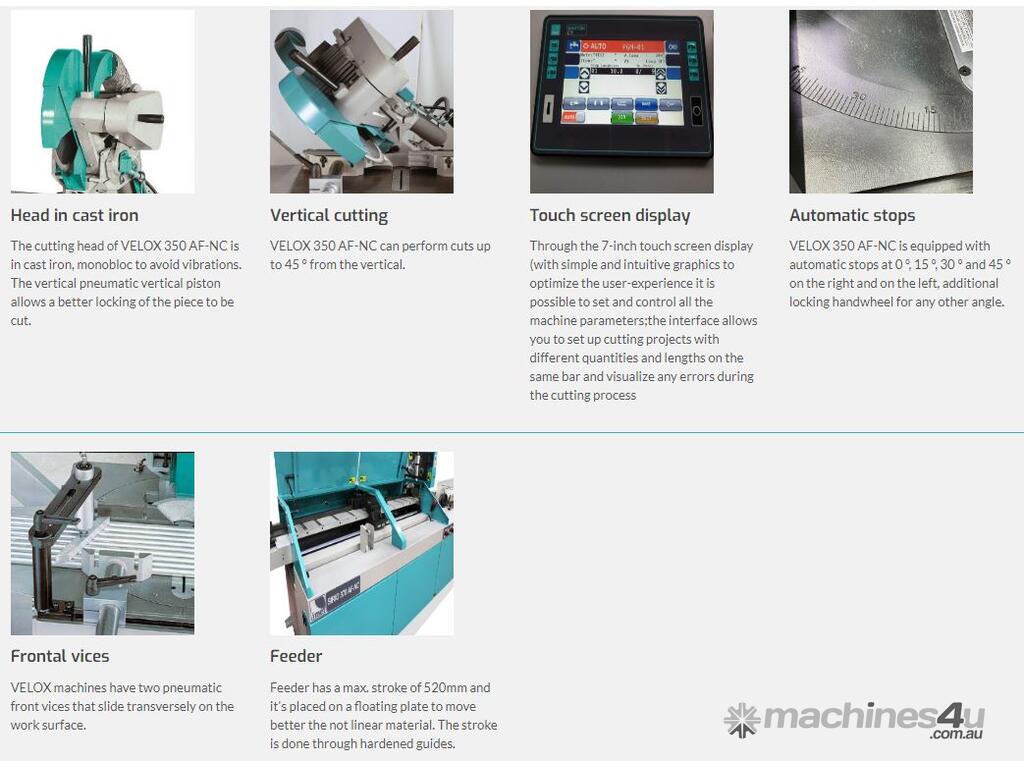

Programming of all operations by CNC control board easy to use complete of display that shows machine status and anomalies.

Cast iron head avoids vibrations. Additional vertical pneumatic vice guarantee a perfect material locking.

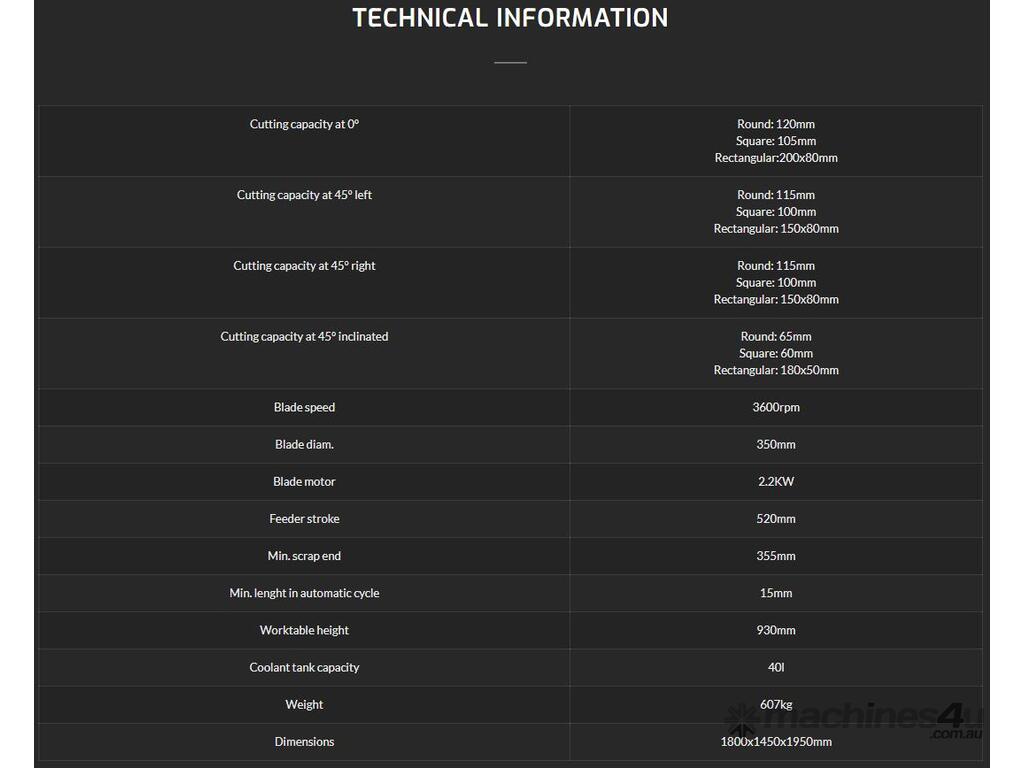

Cutting capacity at 90 ° round till 120 mm., square till 105 mm. 200×80 mm.

*The modem for Industry 4.0, teleservice and remote control is supplied as an optional.
