IMET - VELOX 350 SHE - CIRCULAR SAWS

IMET VELOX 350 SHE Semiautomatic circular saw suited to cut aluminium and light metals.

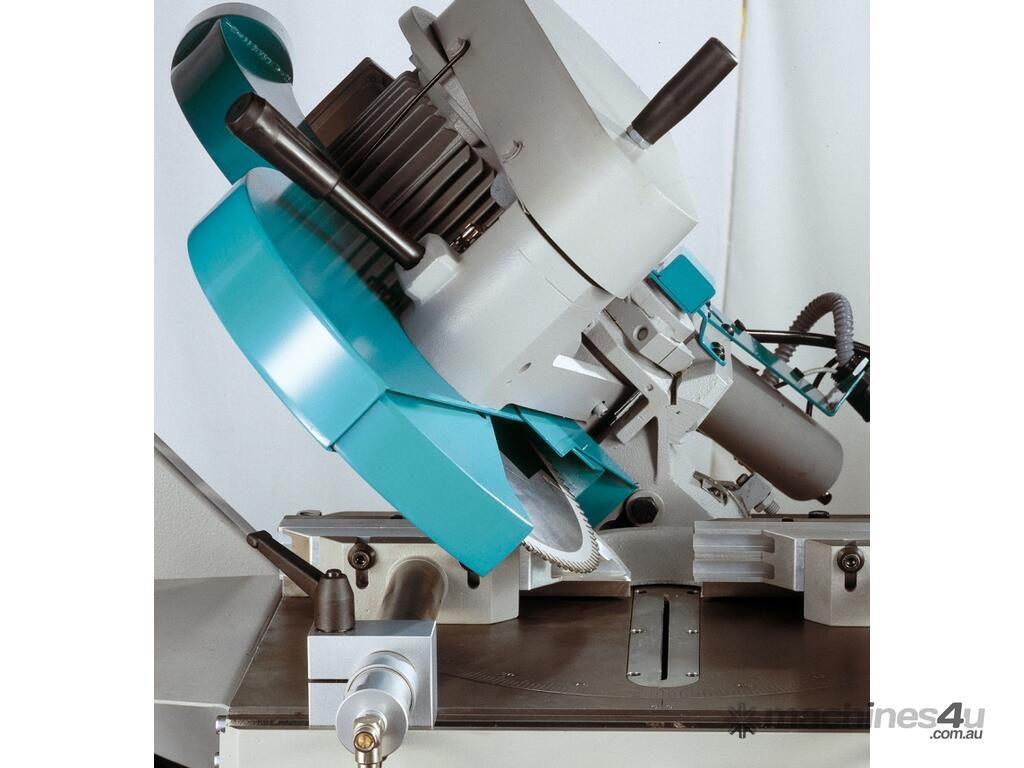

Semiautomatic circular saw suited to cut aluminium and light metals solid and profiles with high accuracy. Possibility to set the machine for brass and copper profiles. The head bends 45° on the vertical axis to allow inclined cuts.

VELOX 350 SHE is the semi-automatic disc sawing machine for cutting aluminum and light alloys. VELOX 350 SHE can cut from 45 ° left to 45 ° right and cuts up to 45 ° inclined on the vertical axis. The miter saw is the tool of ideal job for cutting with high levels of precision and finishing on profiles and solid aluminum.

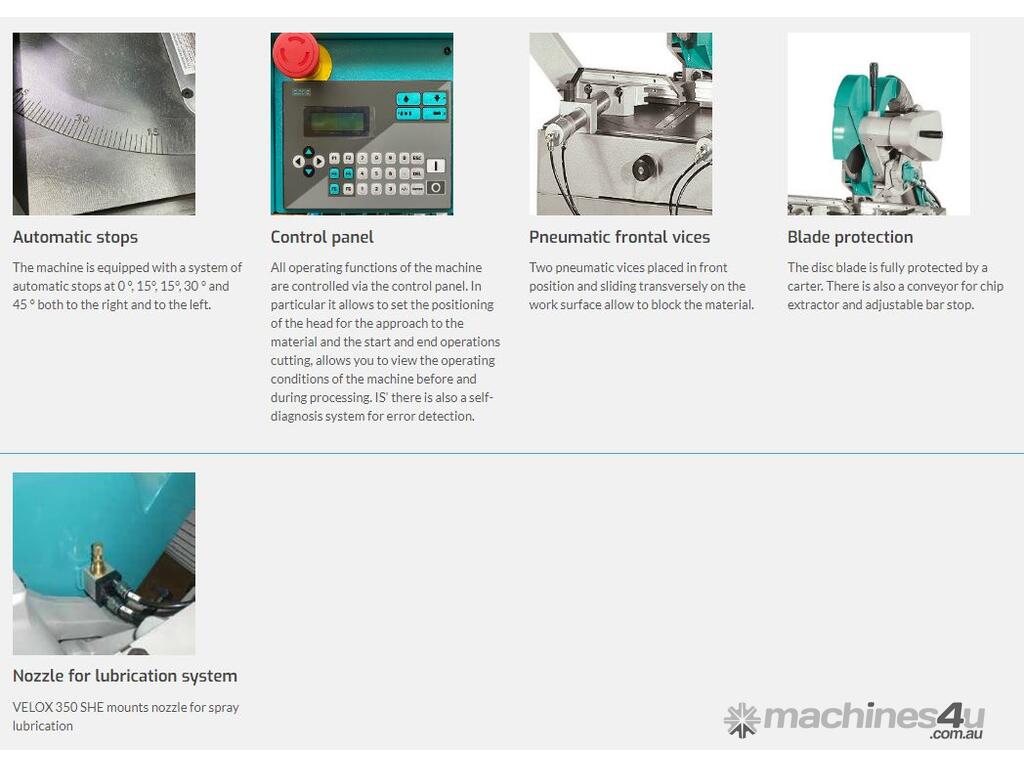

Easy stops at 0°, 15°, 30°, 45° left and right. Hand-wheel to lock the head on all angles, graduation engraved on the worktable.

Suited to cut aluminium, light metal profiles and solids with high accuracy.

Electro-pneumatic functioning, hydraulic control of the down-feed speed of the head.

Programming of all operations by means of the keyboard, including setting of the start-cut and end-cut points; machine status shown on display, including blade life and speed, piece counter, cycle time, motor absorption; working anomalies.

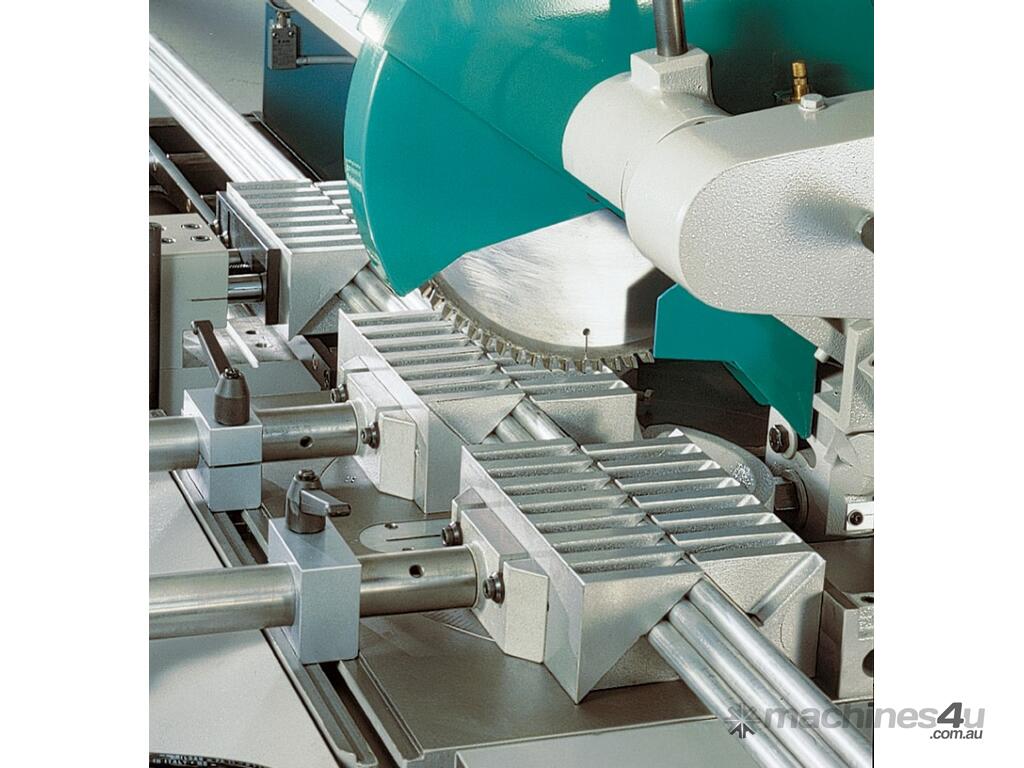

Pair of front pneumatic vices with quick clamping, free to move alongside the worktable.

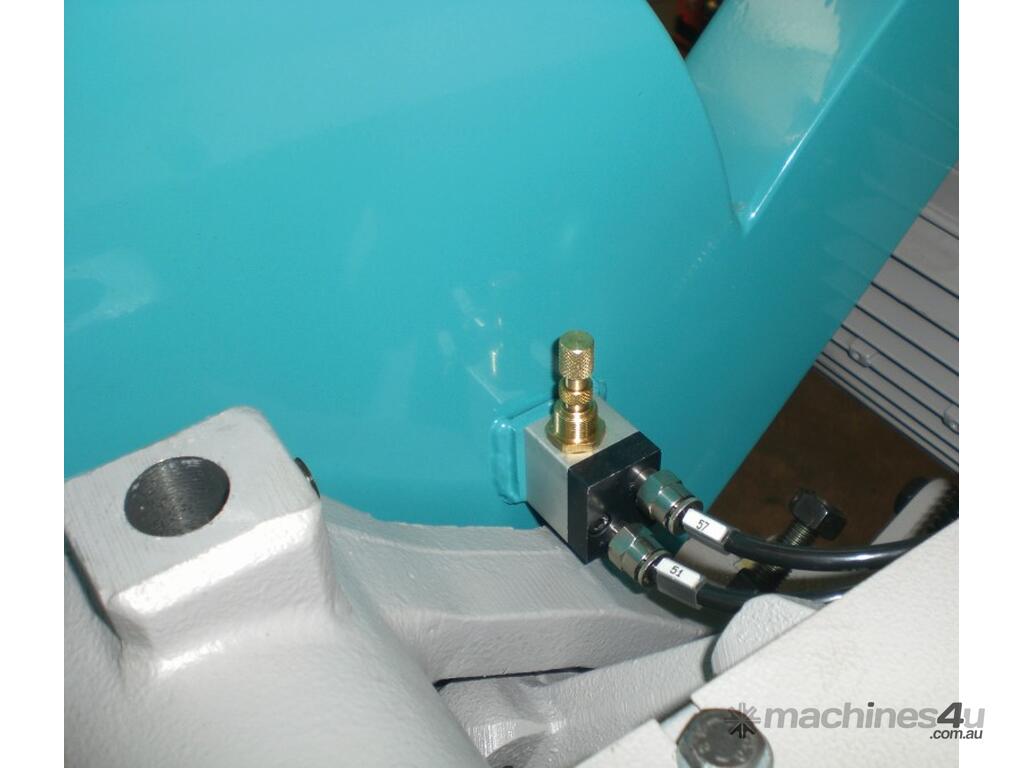

Complete blade protection, device to connect chip suction plant, adjustable length stop. Floor stand with tank, lubrication system with spray and rear chips collector.

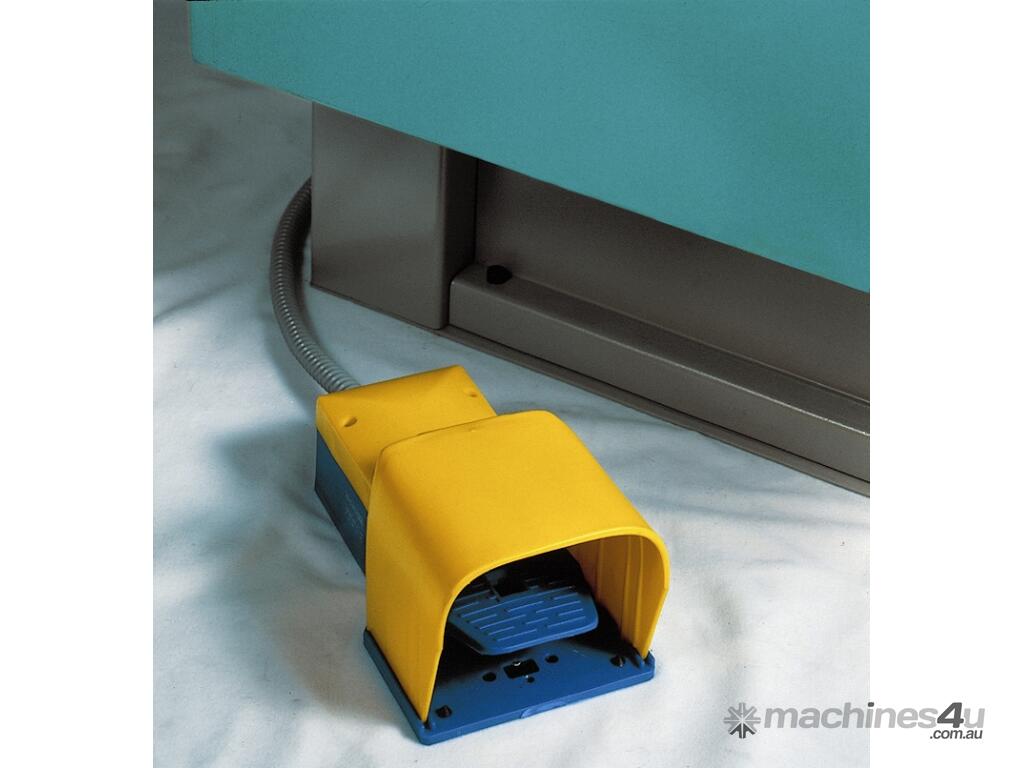

Air filter/reducer/lubrication group. Possibility to connect external devices such as a foot pedal to start the cutting cycle.

Main switch with minimum tension coil, emergency button, thermic and magnetic motor protection, motor absorption device, 24V low tension.

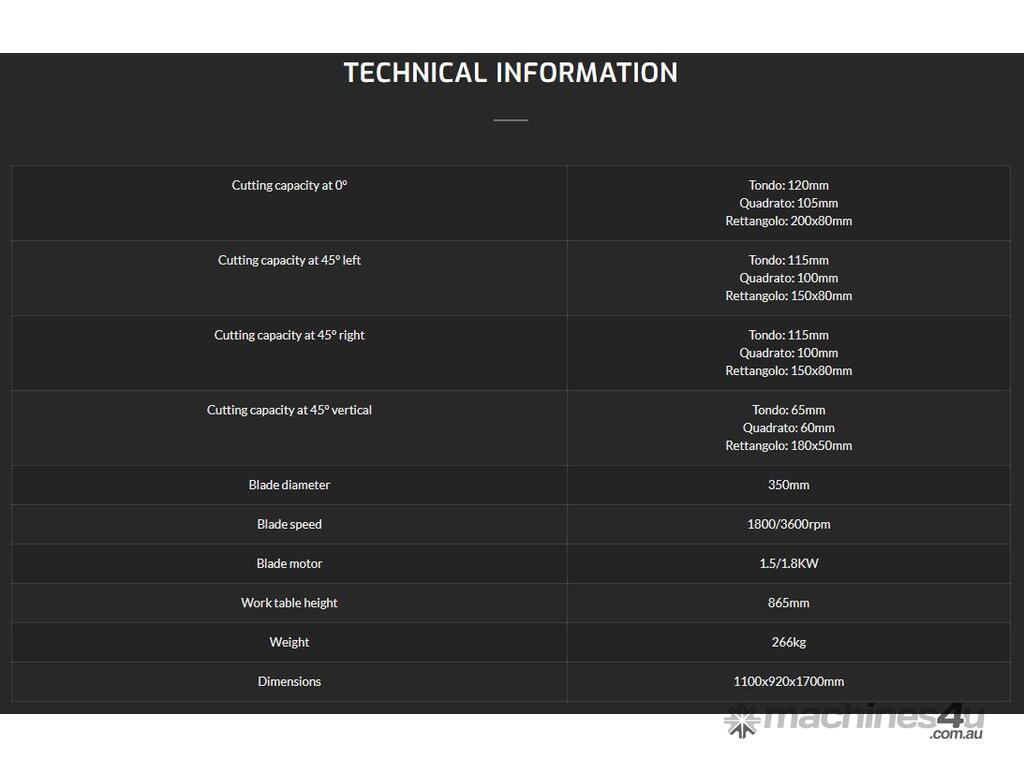

Cutting capacity at 90 ° round till 120 mm., square till 105 mm. 200×80 mm.

Delahanty Machinery offer a range of bandsaws, circular saws and sawing machines. Contact us to discuss the most productive machine for your needs.
