IMS-TRITON CNC 4-AXIS TUBE BENDER (50MM OD CAPACITE) Delivered & Installed Melbourne.

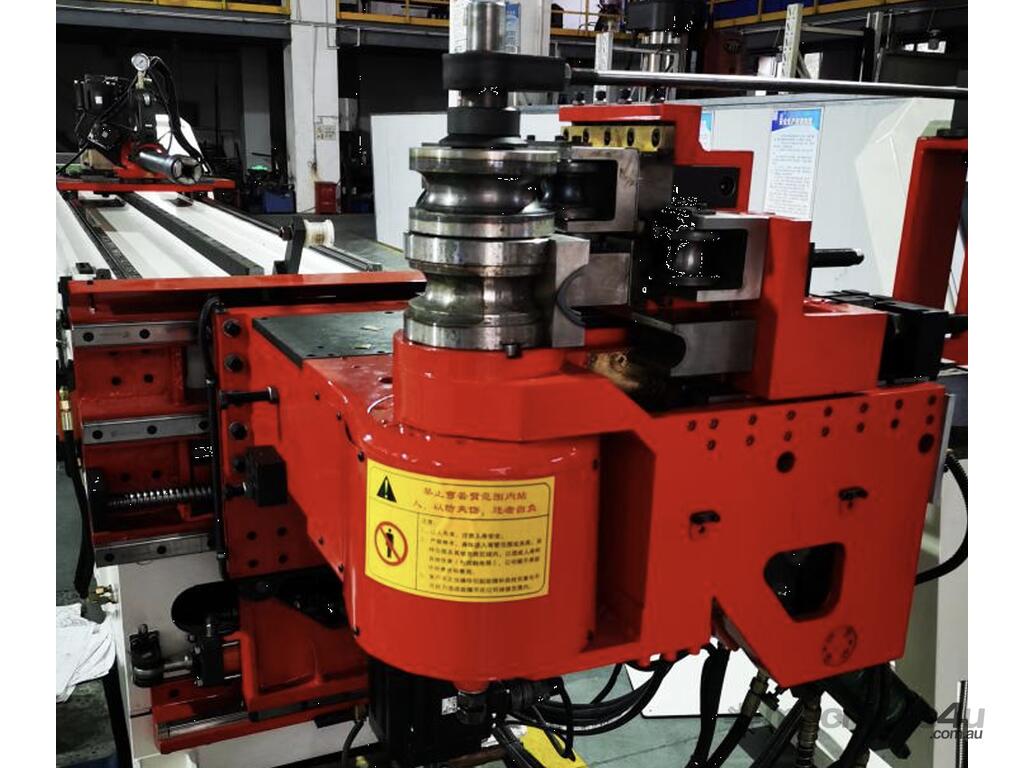

- The machine features a heavy-duty welding structure.

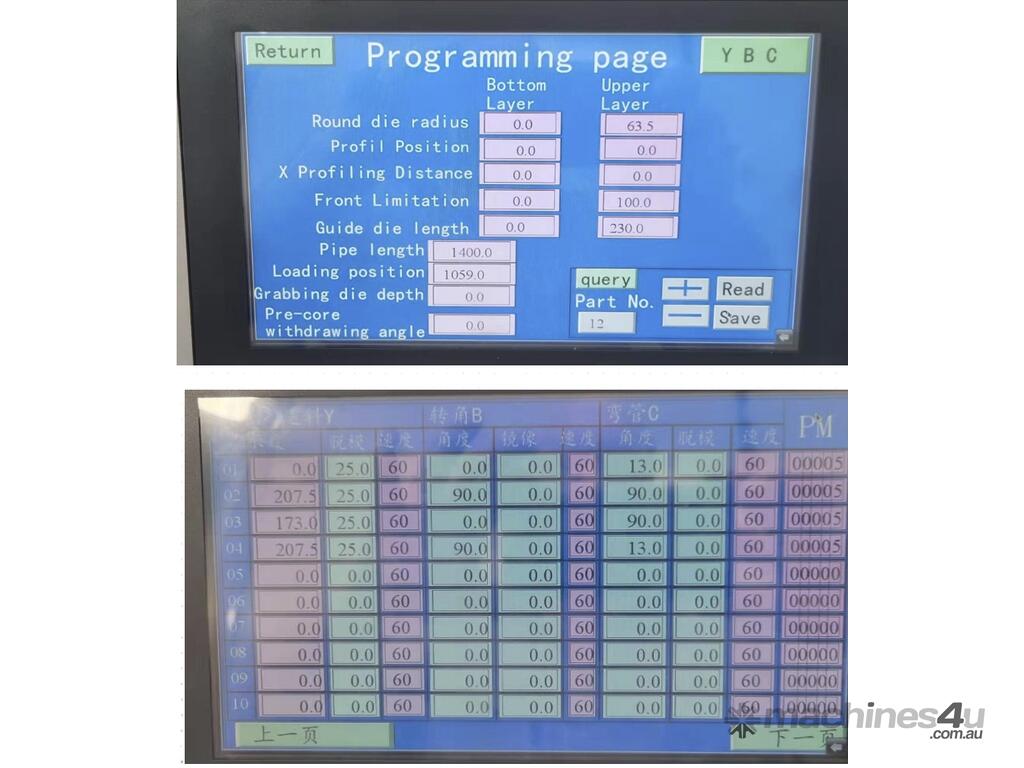

- It has an advanced operating system that is very easy to learn.
- High dynamic performance is achieved through the use of high-end, world-renowned components.
- All axes are equipped with linear guides and servo motors.
- The machine offers high accuracy and reliability.
- Its user-friendly operation is facilitated by our exceptional operating system.
- We provide local training and troubleshooting services in Australia.

- **Maximum Diameter to be Bent (Thickness)** Ø50 x 2 mm mild steel
- **Length to be Bent** 2400 mm
- **Maximum Bending Radius** R200 mm
- **Minimum Bending Radius** R 1.5D
- **Maximum Bending Quantity per Tube** 20
- **Maximum Bending Angle** 190°
- **Maximum Tube Feeding Speed (Servo Motor) ** 1000-3000 mm/s
- **Maximum Tube Turning Speed (Servo Motor) ** 200°/s
- **Feeding Servo Motor Power** 1000 W
- **Bending Servo Motor Power** 5000 W
- **Changing Mold Servo Motor Power** 400 W
- **Tube Turning Servo Motor Power** 750 W
- **Hydraulic Motor Power** 5500 W
- **Bending Accuracy** ±0.1°
- **Tube Feeding Accuracy** ±0.1 mm
- **Tube Turning Accuracy** ±0.1°

The machine is provided with one set of tooling. Additional tooling sets of different sizes are available for an extra cost.

The price includes delivery and installation in Melbourne.

Please get in touch with us for full details on the machine.


**Advantages of IMS and A&S Compared to Other Suppliers: **

1. **Expertise in Technology**: Our R&D technician based in Melbourne has over 40 years of experience.

2. **Local Support**: As an Australian company, we provide local machine service support.

3. **Cost-Effective Manufacturing**: Our manufacturing facility is located in China, enabling us to offer competitive pricing compared to other suppliers and well-known global brands.

4. **Efficient Design**: Our compact design is optimized to reduce shipping costs.
