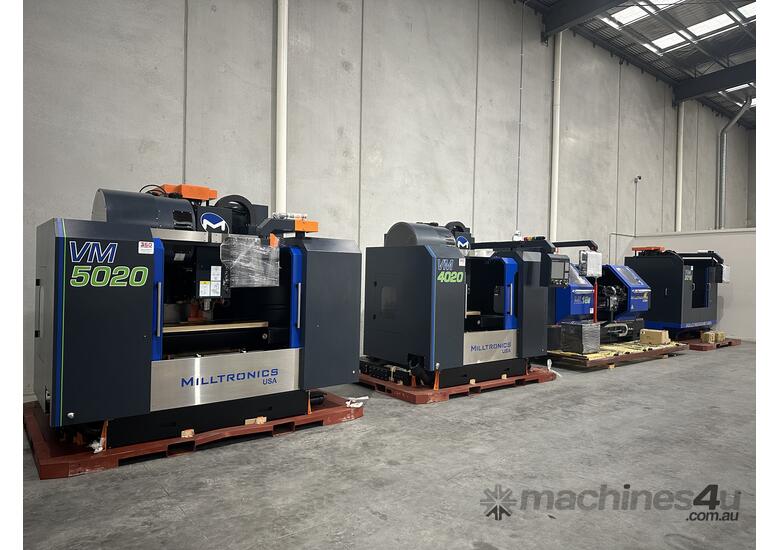

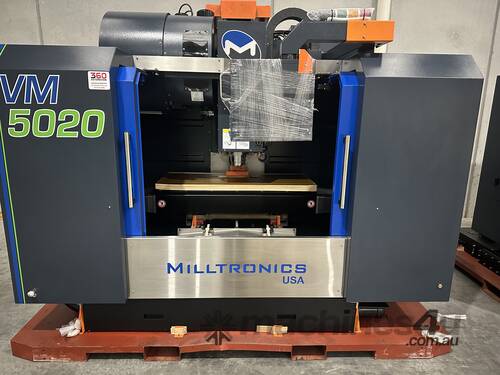

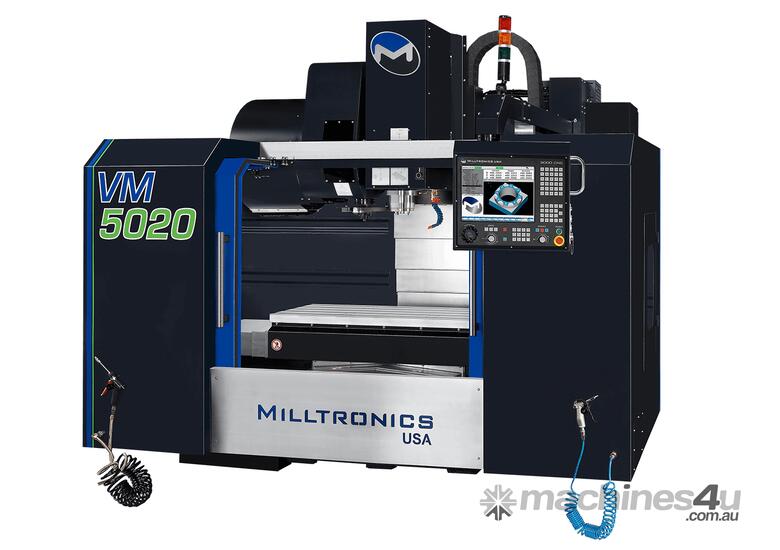

*IN STOCK Melbourne* CNC 3-Axis Vertical Machining Center (Milltronics 1270 x 508 x 508 mm)

***1 of these machines in stock, larger and smaller machines also in stock***

The price indicated includes delivery, installation and training into Melbourne - Sydney - Brisbane - Adelaide - Perth.

- 12 Months Warranty on parts & labour
- Free 1st Service

For only a few dollars more than the VM4020, the VM5020 CNC mill adds 254 mm more X-travel. With a 1,321 x 508 mm table and travels of 1270 x 508 x 508mm this machine is a great value.

Travels: 1270 x 508 x 508 mm
Table Working Surface: 1,321 x 508 mm
Max. Weight on Table: 3770 lbs
Table T-Slots:18 mm
Spindle Taper: BIG-PLUS® ISO No. 40
Spindle Speed (Max.): 10000 RPM
Spindle Power (Max.): 20/15 HP
Spindle Torque (Max.): 75 ft-lbs
Spindle to Nose: 101-610 mm
Tool Shank: BT40
Retention Knob: MAS 60
Tool Capacity / Type: 20 / Double Arm
Max. Tool Diameter: 80 mm
Max. Tool Length: 240 mm
Max. Tool Weight: 7 kg
Rapid Traverse Rate: 945 IPM
Machine Weight: 9400 lbs
Machine Height: 2,565 mm
Footprint: 3,303 x 2,836 mm in Nominal Operating (W x D)
Power Requirement: 22 KVA / 54 Amps
Voltage Requirement: 208-240 Volts / 3 Phase

Standard Features

Included at no extra costs!

- Milltronics 9000-DGI CNC
- Heavily ribbed one piece fine grain cast iron casting
- Fully enclosed machine guard with side doors
- 30/35 mm linear way technology
- Precision ground ballscrews supported at both ends
- Precision ground table surface
- Telescopic metal way covers
- 20 pocket double arm ATC
- CAT 40
- Automatic positive displacement lubrication system
- High torque AC digital servo drives
- High torque closed loop vector spindle drive system
- Work light (right side)
- LCD hour meter
- Spindle taper blow-out and tool release button
- Spare “M” function with CNC “wait” channel
- Programmable on/off flood coolant system
- Rigid tap
- Edit key lockout switch
- Spindle load meter
- Feedrate and spindle speed overrides
- Spindle air purge
- End of cycle light
- One-Year Warranty

Add-On Options

- Coolant through spindle system
- Part and tool probes
- 4th axis options
- 5th axis options
- Chip auger chip removal system
- Lift up chip conveyor chip removal system
- Remote handwheel
- Auxiliary industrial-grade keyboard
- Electronic spindle chiller
- Air gun
- Coolant wash down gun
- Additional work light (left side)
- BT style tooling
- ChipBoss™ Trochoidal Milling Software
- Milltronics Shop View
- Digital Setup Assistant

Who is Milltronics?

Milltronics is a respected leader in CNC machines since the 1970s. They are dedicated to providing fast and reliable support for manufacturers and machine shop owners, ensuring a smooth process from start to finish and contributing to the creation of high-quality products.

360 Automation and Milltronics Partnership.

Milltronics and 360 Automation have partnered to bring advanced CNC machines to a broader audience. 360 Automation is now an appointed representative of Milltronics, ensuring businesses receive comprehensive service and installation support. This collaboration emphasizes the commitment to providing cutting-edge technology for production needs in their respective markets.
