***1 of these machines in stock, larger and smaller machines also in stock***
Watch the video in the ad, to see a popular creator take delivery a Milltronics ML lathe.
The price indicated includes delivery, installation and training into Melbourne - Sydney - Brisbane - Adelaide - Perth.
- 12 Months Warranty on parts & labour
- Free 1st Service

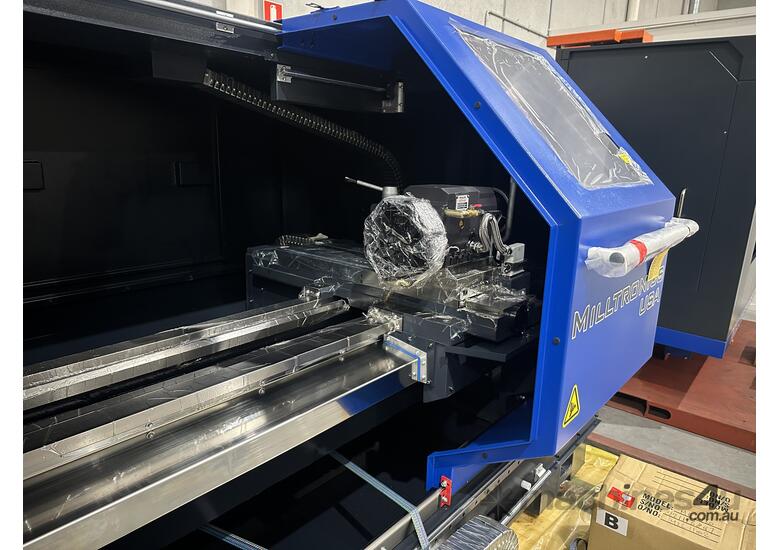

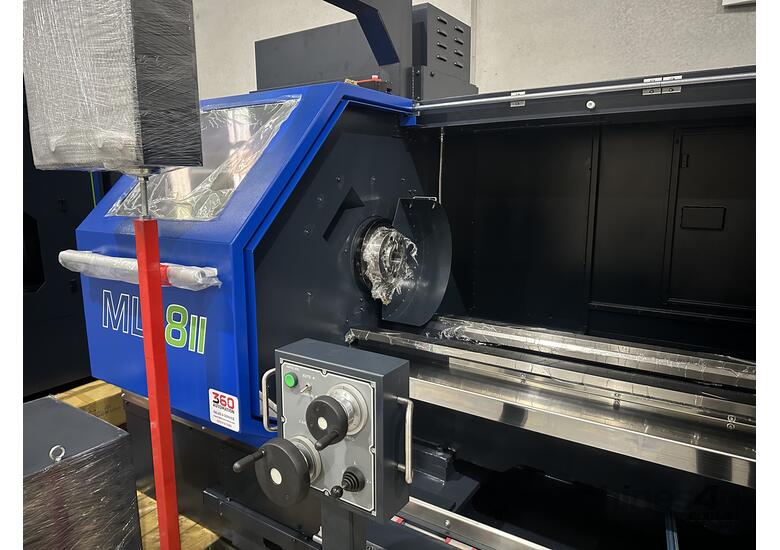

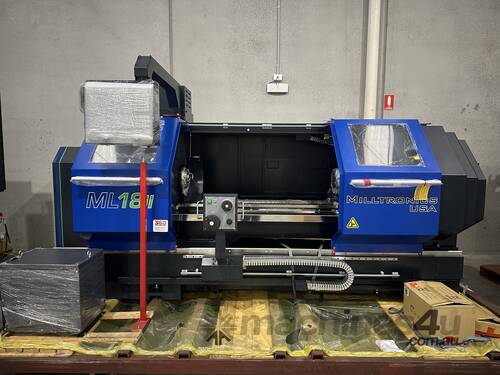

With a generous swing of 475 mm, a length of 1524 mm and a 65 mm spindle bore, the ML18/60 is our most popular tool room lathe. Featuring a 24 HP, 2,600 RPM spindle it produces 255 ft-lbs. of torque. Standard with an 8-station electro-mechanical turret. Options include chucks and chip conveyors.
X/Z Travels: 300/1,600 mm
Swing Over Bed: 475 mm
Swing Over Gap: 710 mm
Gap Distance: 320 mm
Swing Over Cross: 240 mm
Spindle Nose: D1-6
Spindle Bore: 65 mm
Spindle Range: 100-2600 RPM
AC Spindle Motor: 24/15 HP
Spindle Torque: 225 ft-lbs
Tailstock Quill Travel: 150 mm
Tailstock Quill Diameter: 80 mm
Tailstock Quill Taper: MT5
Automatic Turret
Tool Capacity: 8
Tooling Size: 20 mm
Boring Bar Capacity: 32 mm
Tool Selection: Bi-Directional
Rapid Traverse Rate: 500 IPM
Max. Cutting Feed Rate: 100 IPM
Positioning Accuracy: +/– 0.0063 mm
Repeatability: 0.005 mm
Axis Thrust Force: 680 kg
Machine Weight: 3,850 kg
Machine Height: 2,388 mm
Footprint: 3,682 x 2,145 mm in Nominal Operating (W x D)
Power Required: 24 KVA / 60 Amps
Voltage Required: 208-240 Volts / 3 Phase
Standard Features
Included at no extra costs!
- 15-inch LCD color display
- Solid model graphic display
- 120 GB program storage memory
- DXF file import
- Networking
- 35 mm linear way technology
- Automatic lubrication
- Spindle load meter
- Flood coolant with enclosure
- Thread chasing feature (most models)
- 500 IPM rapid traverse rate
- LCD hour meter
- One-year warranty
Add-On Options
- 10 or 14 in bore options for ML35 and ML40
- Live tooling option for ML22 and larger lathes
- Lift-up chip conveyor
- Additional tool holders
- Hydraulic quill for tailstock (most models)
- Bi-directional turning cycle
- Pneumatic 5C collet closer (ML16)
- Additional spare “M” functions
- Automatic tool turrets
- Tool posts
- Steady rest
- Follow rest
- Digital Setup Assistant
- Milltronics Shop View
Who is Milltronics?
Milltronics is a respected leader in CNC machines since the 1970s. They are dedicated to providing fast and reliable support for manufacturers and machine shop owners, ensuring a smooth process from start to finish and contributing to the creation of high-quality products.
360 Automation and Milltronics Partnership.
Milltronics and 360 Automation have partnered to bring advanced CNC machines to a broader audience. 360 Automation is now an appointed representative of Milltronics, ensuring businesses receive comprehensive service and installation support. This collaboration emphasizes the commitment to providing cutting-edge technology for production needs in their respective markets.
