*IND 4.0 READY* AccurlCMT EURO MASTER 135 TON | 3200MM | AUTO ANGLE MEASUREMENT| 7 AXIS|DELEM DA69S

*** THIS ACCURLCMT PRESS BRAKE HAS BEEN ORDERED FOR STOCK TO SHOW CASE THE HIGH TECHNOLOGY THAT THE ACCURLCMT EURO MASTER OFFERS, THIS MACHINE WILL BE USED IN OUR INDUSTRY 4.O SHOWCASE SHOWROOM AREA DEDICATED ENTIRELY TO INDUSTRY 4.0 AND HOW COST EFFECTIVE AND EASY IT IS TO SETUP WITH THE ACCURLCMT RANGE OF SHEET METAL MACHINES. IN THE SAME AREA WILL BE A 6KW LASER SETUP AS WELL FOR INDUSTRY 4.0

THIS PRESS BRAKE WILL BE OPTIONED UP WITH A DUAL SCREEN THAT CAN BE USED TO DISPLAY PRODUCT WORK ORDERS, COMPANY ERP SYSTEM SO UPDATES CAN BE DONE LIVE AND ON THE FLY AND TEH DELEM BENDING SOFTWARE ON THE OTHER SCREEN.

THE UPPER CLAMPING IS A PNEUMATIC SYSTEM THAT ALLOW TOOLING CHANGES TO BE DONE VERTICALLY OR HORIZONTALLY SO YOU CAN VERY QUICKLY AND EFFICIENTLY REMOVE OR PUT IN TOOLING AT THE EXACT PLACE YOU WANT IT WITHOUT HAVING TO REMOVE ANY OTHER TOOLING.

THE BOTTOM DIE IS ALSO PNEUMATIC WITH A 60MM WIDE BASE AND TOOLING CAN BE CHANGED WITH A PRESS OF A BUTTOM TO RELEASE THE CLAMPS. WITH BOTH UPPER AND LOWWER CLAMPING BEING PNEUMATIC THIS ALLOWS FOR LIGHTENING QUICK TOOL CHANGES SO YOU CAN GET ON WITH THE JOB AT HAND FAST.

THE VERY LATEST 3D DELEM DA-69S CONTROLLER IS FITTED, THE iMEASURE MOTORISED AUTOMATIC ANGLE MEASUREMENT SYSTEM AND THE DELEM PRODUCTIVITY MONITOR INTERFACE. WE WILL ALSO HAVE ON SHOW THE DELEM PROFILE 3D OFFLINE SOFTWARE AND THE OPTIONAL iBEND - METALIX 3D BENDING SOFTWARE WITH THE iCUT SOFTWARE FOR THE LASER AND THE FULL SOFTWARE SUITE INTERGRATION. DONT JUST KEEP UP WITH YOUR COMPETITORS, SURPASS THEM ***

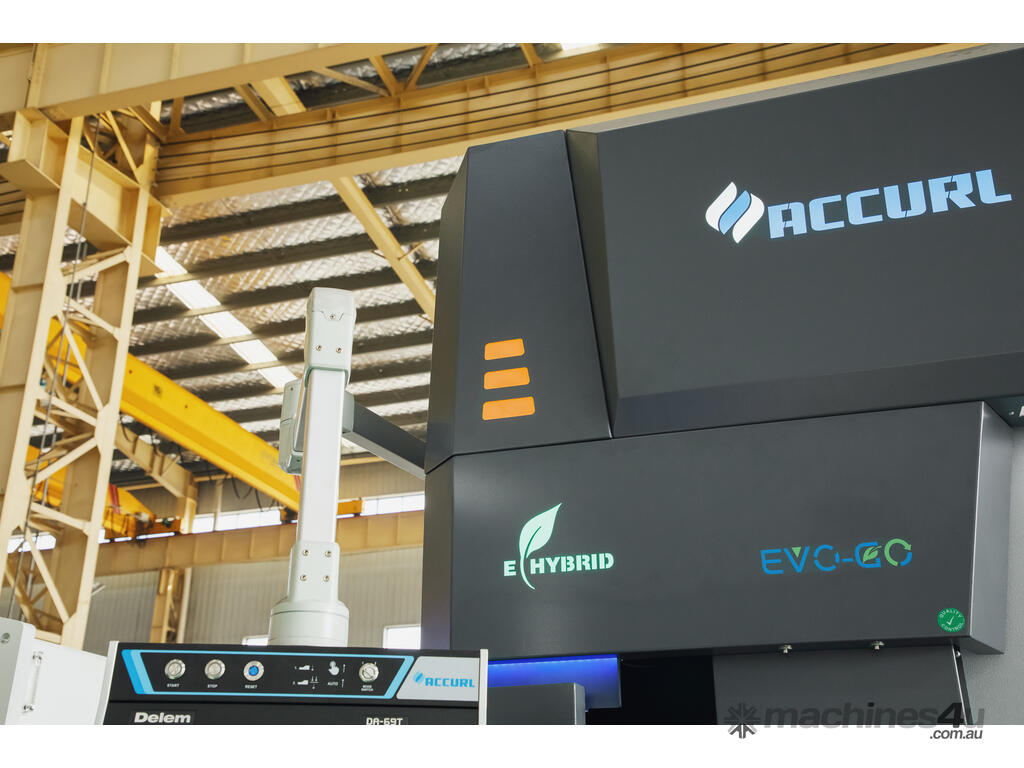

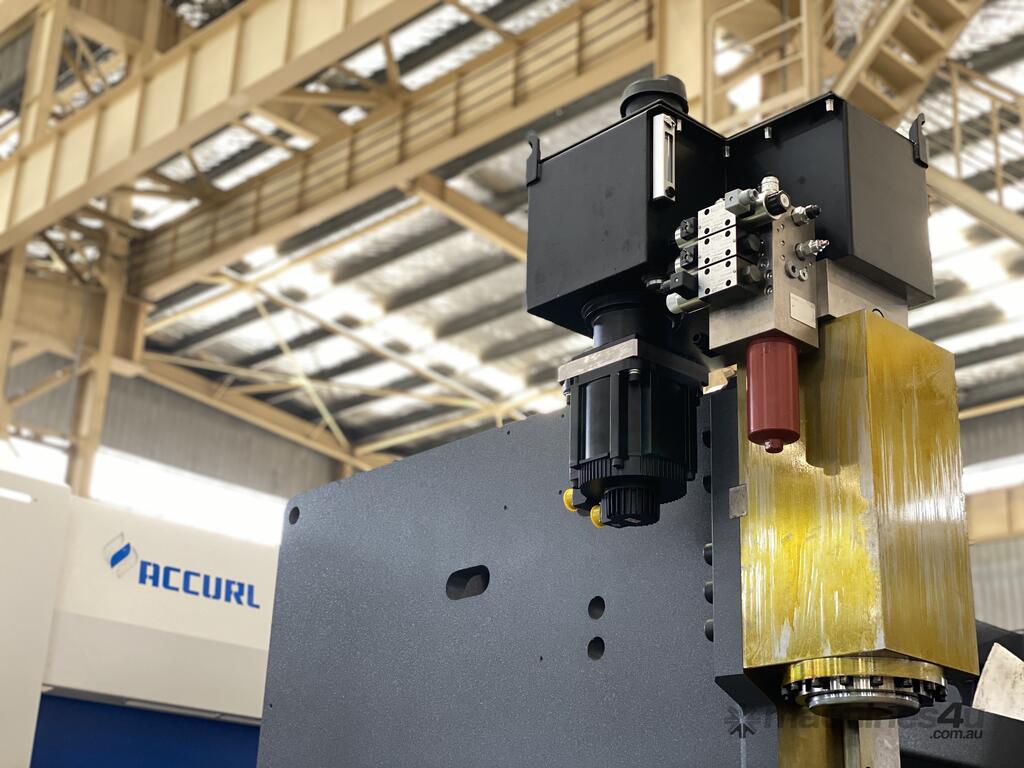

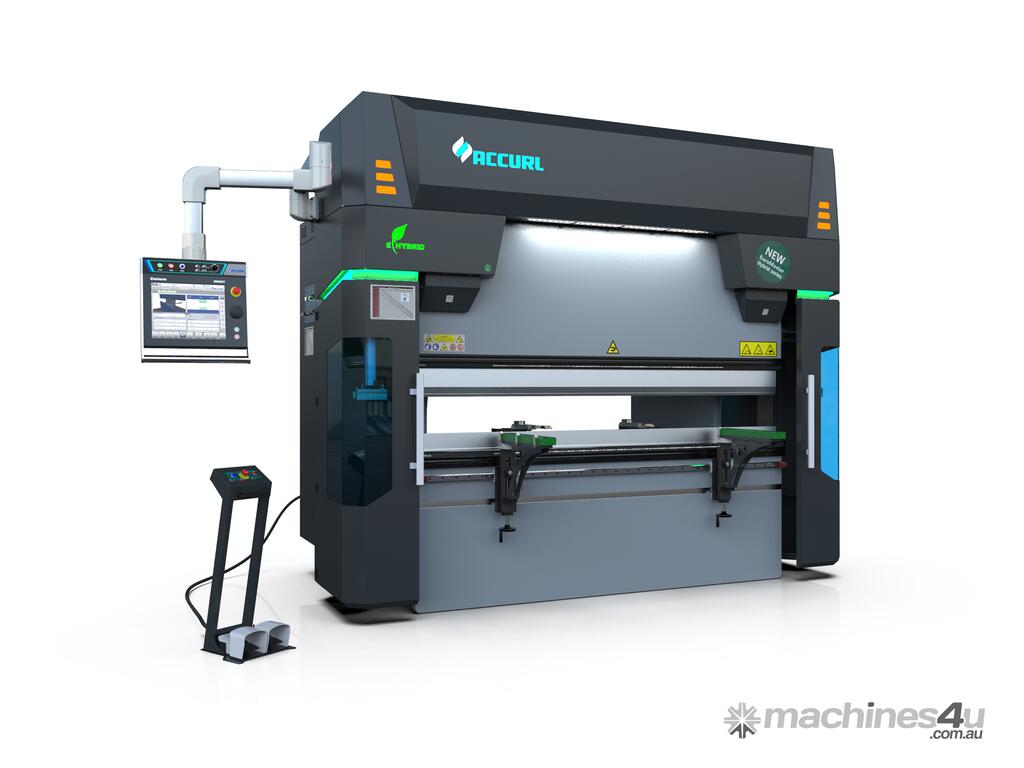

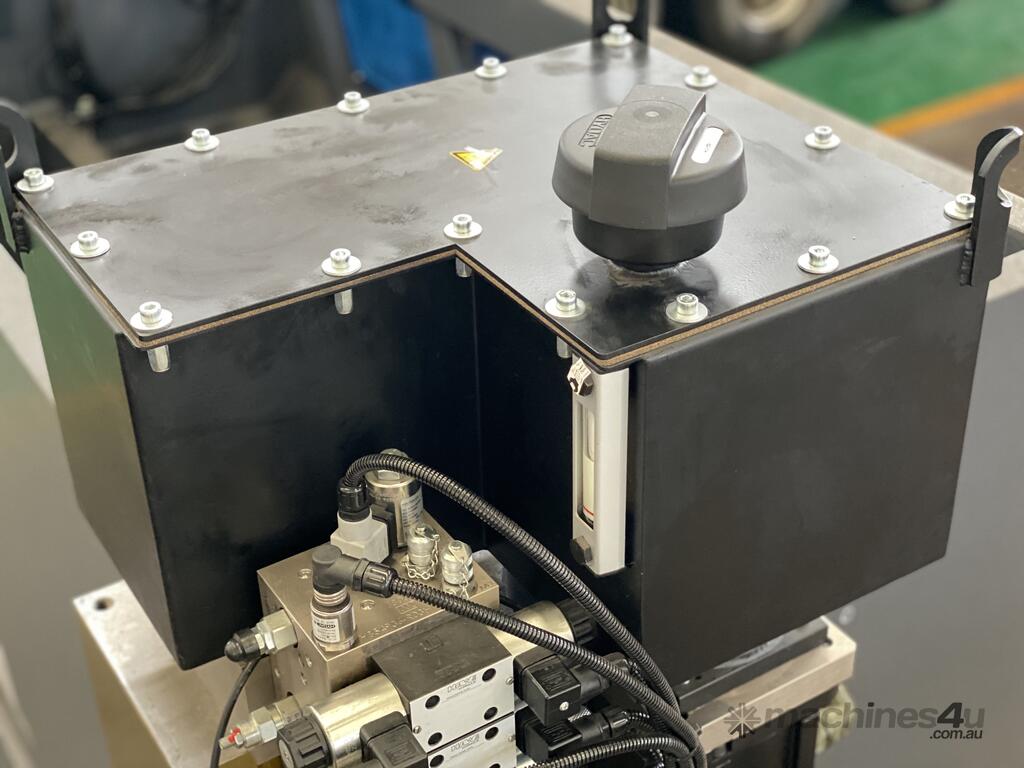

The NEW AccurlCMT Euro Master Hybrid press brake is the latest from the AccurlCMT stable utilising the newest technology available. The hybrid system use a small 20 litre oil tank on each cylinder with a bank of valves and a servo motor to drive the cylinder up and down giving you the power of hydraulics but without the large hydraulic tank and also a very quite and energy efficient press brake.

The Euro Master has extremely quick upper beam approach and return speeds and a redesigned back gauge with speeds to match ensuring cycle times are greatly enhanced. Multiple controller manufacturers can be optioned up on these machines depending on preference.

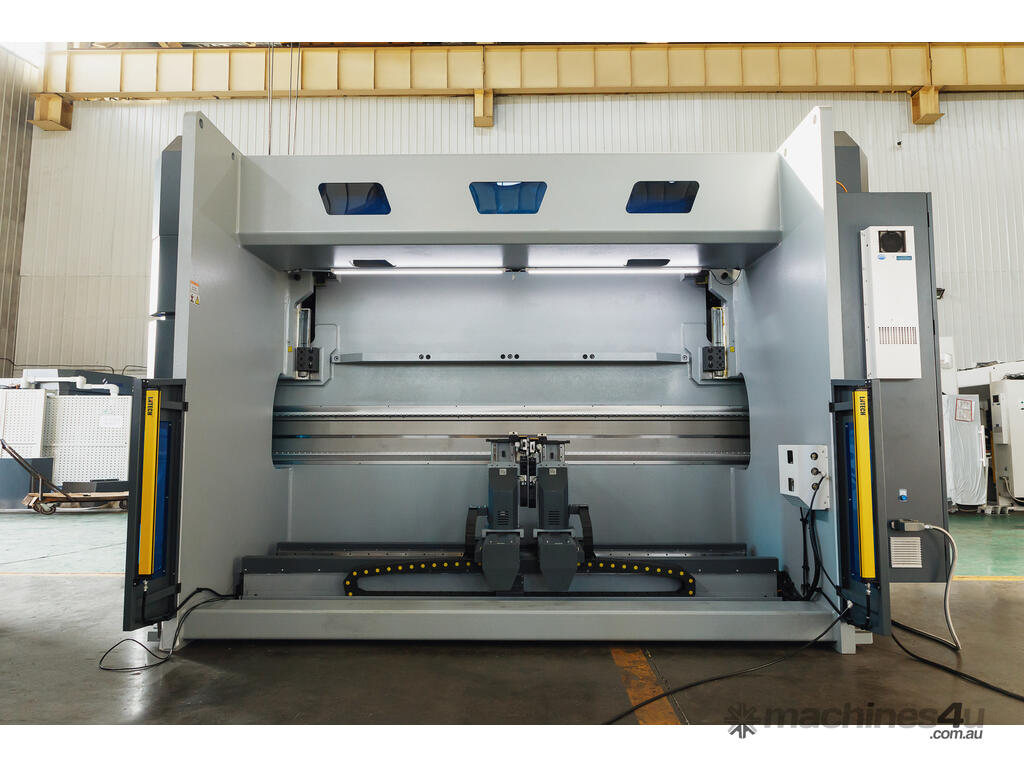

The 135 ton x 3m EuroMaster – Benefits and specs

1. 60 % less energy consumption thanks to new innovative drive system
2. 40 % faster cycle time
3. 90 % less oil consumption for more environment friendly
4. Lowered sound pressure level at 50 dB
5. Increased speed of descent and ascent up to 250 mm/s (Dependent on machine tonnage)
6. Increased bending speed 0 mm/s.

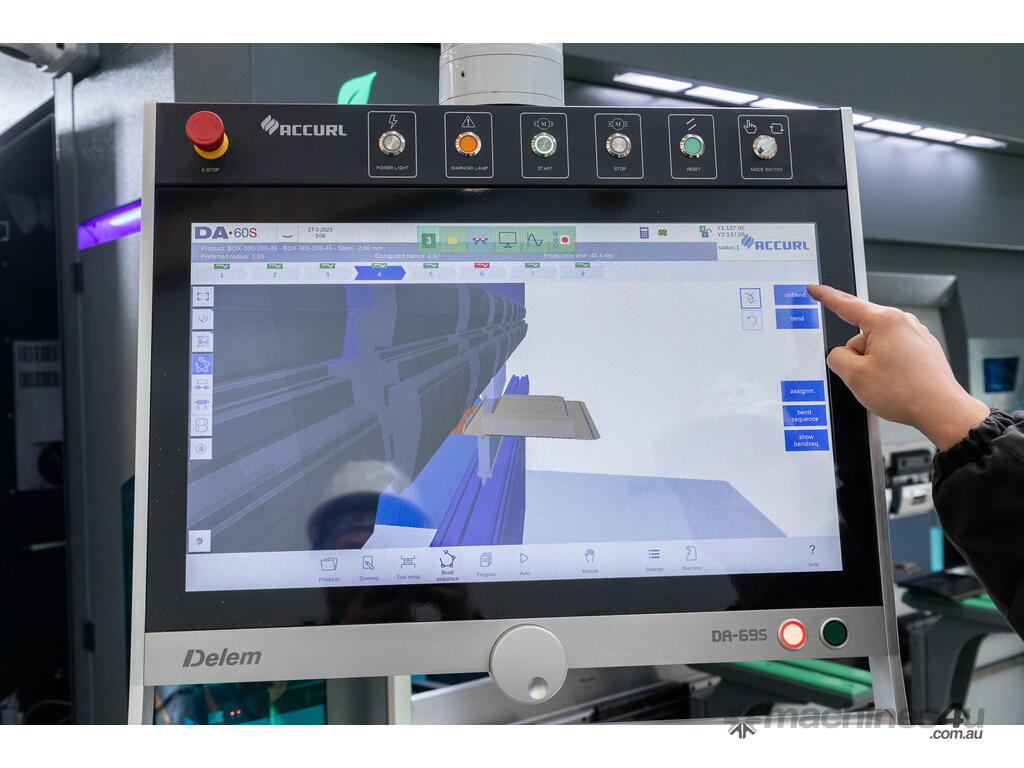

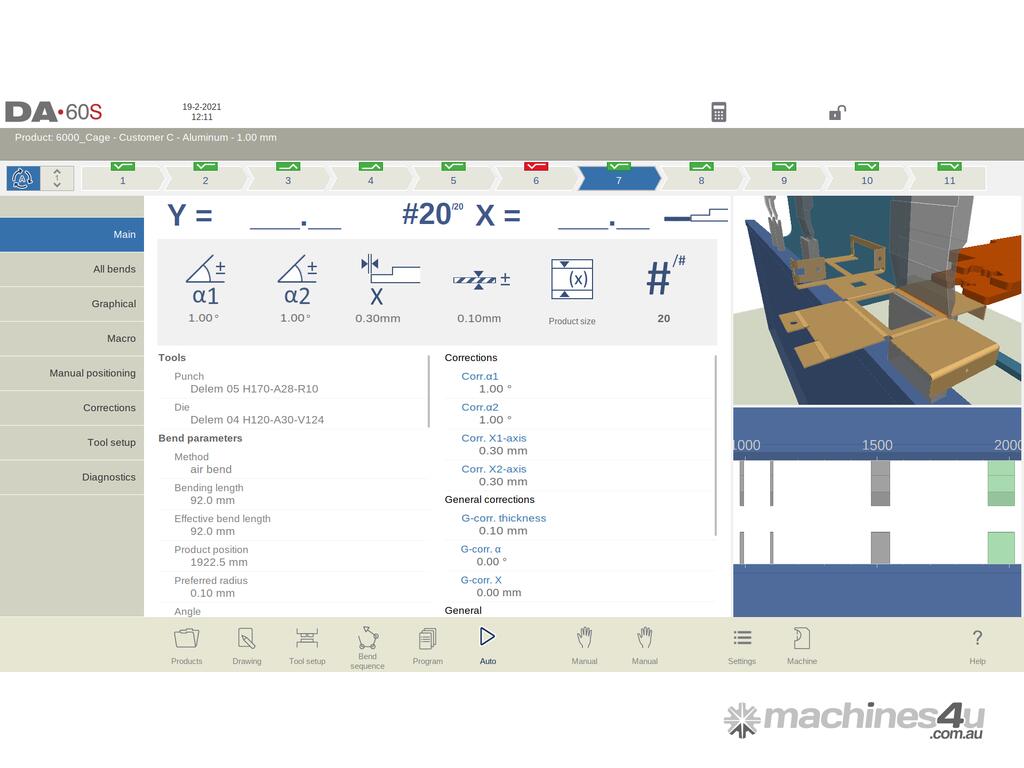

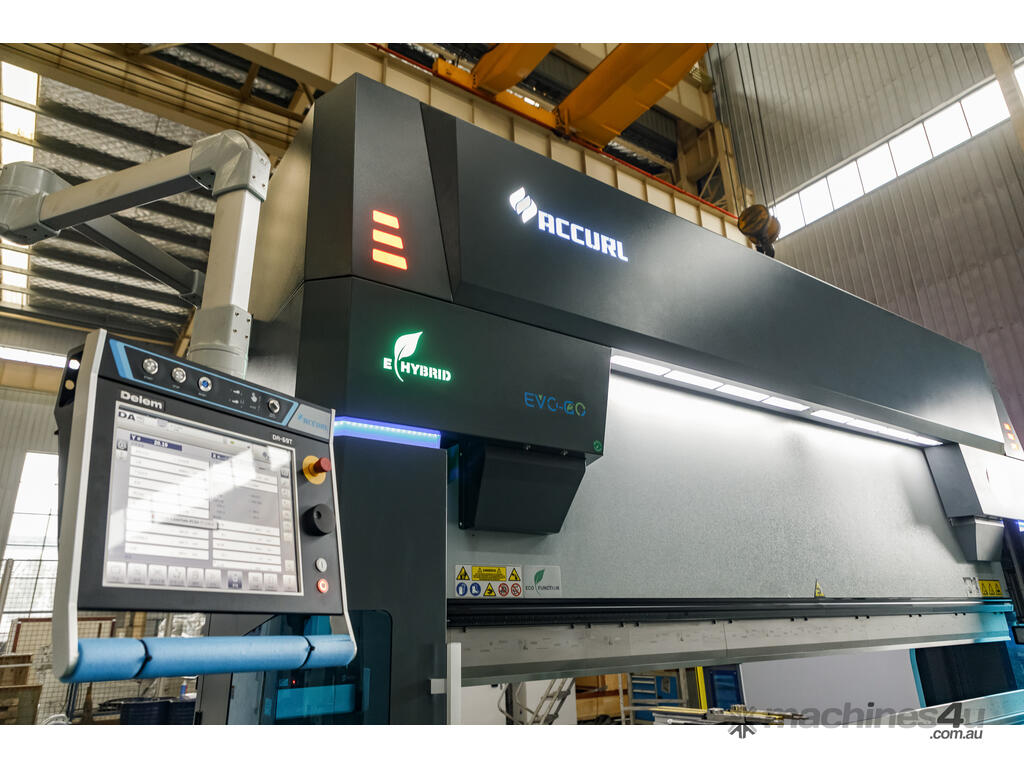

7. New intuitive and user-friendly 3D touch screen control system (Delem DA-69S)

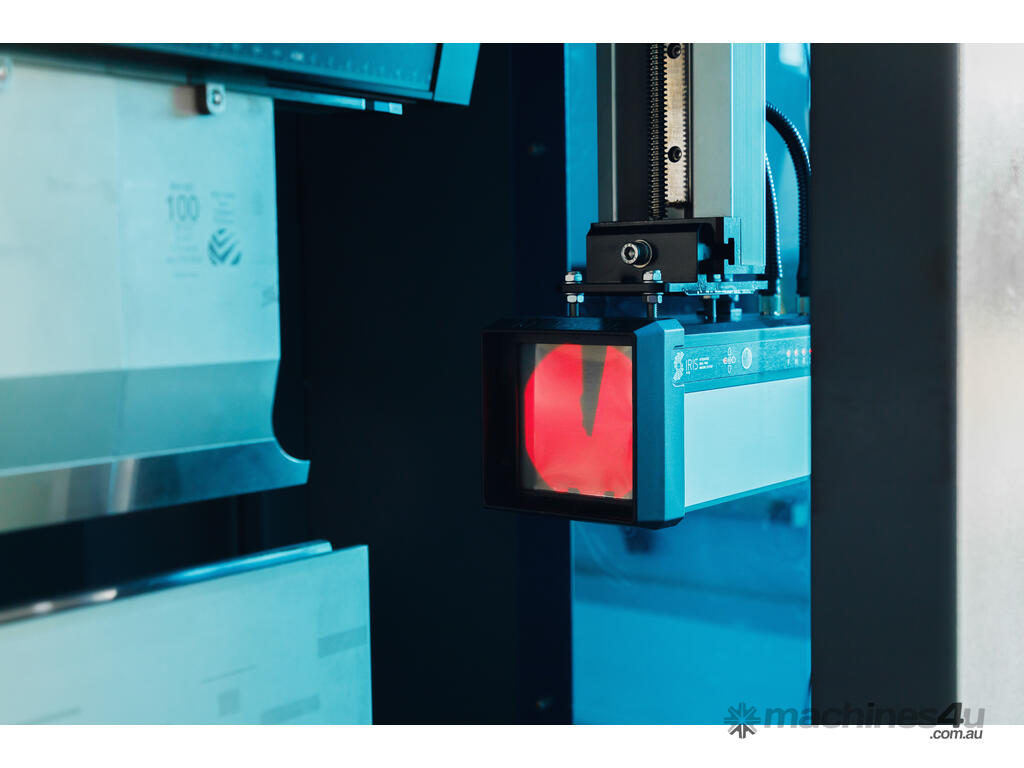

8. Lasersafe IRIS camera tool guarding (stopping distance up to 2mm above the job)
9.Tool crash protection
10. CNC crowning system
11. Standard 7 axis (Y1/Y2/X/R/Z1/Z2 & C)
12. Pneumatic upper and lower tool clamping for lightning quick tool changes
13. 60mm tri tool bottom table
14. Status LED lights inbuilt into the covers
15. Modern streamlined design
16. Back gauge fingers with multi position design
17. Top quality componentry

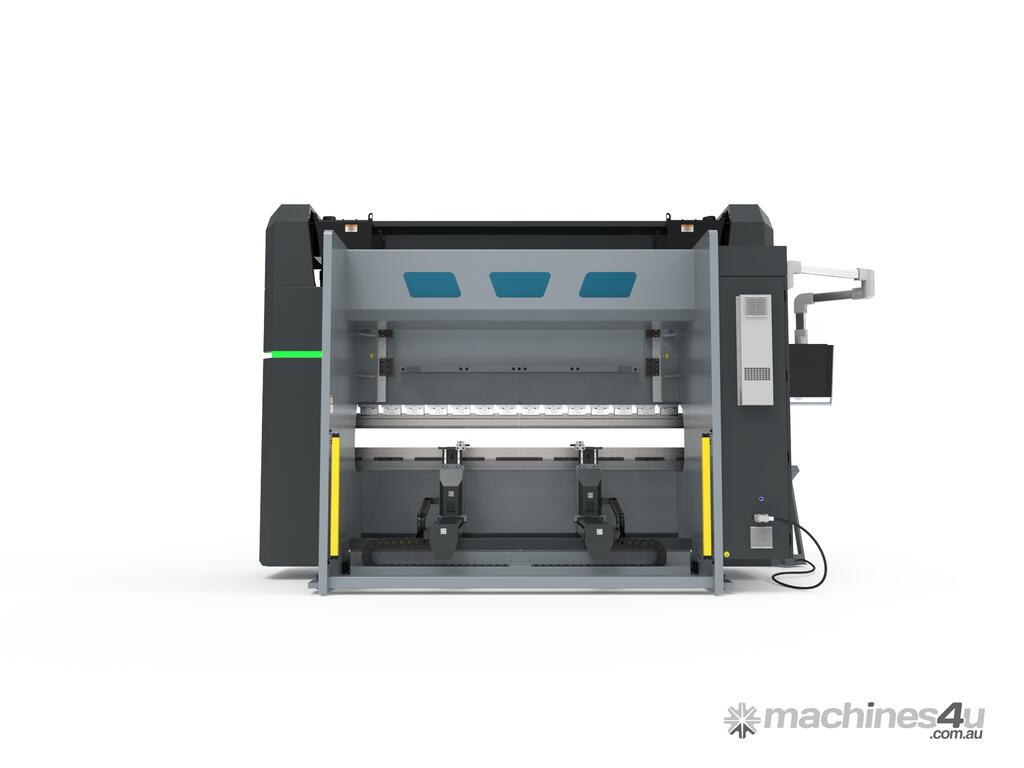

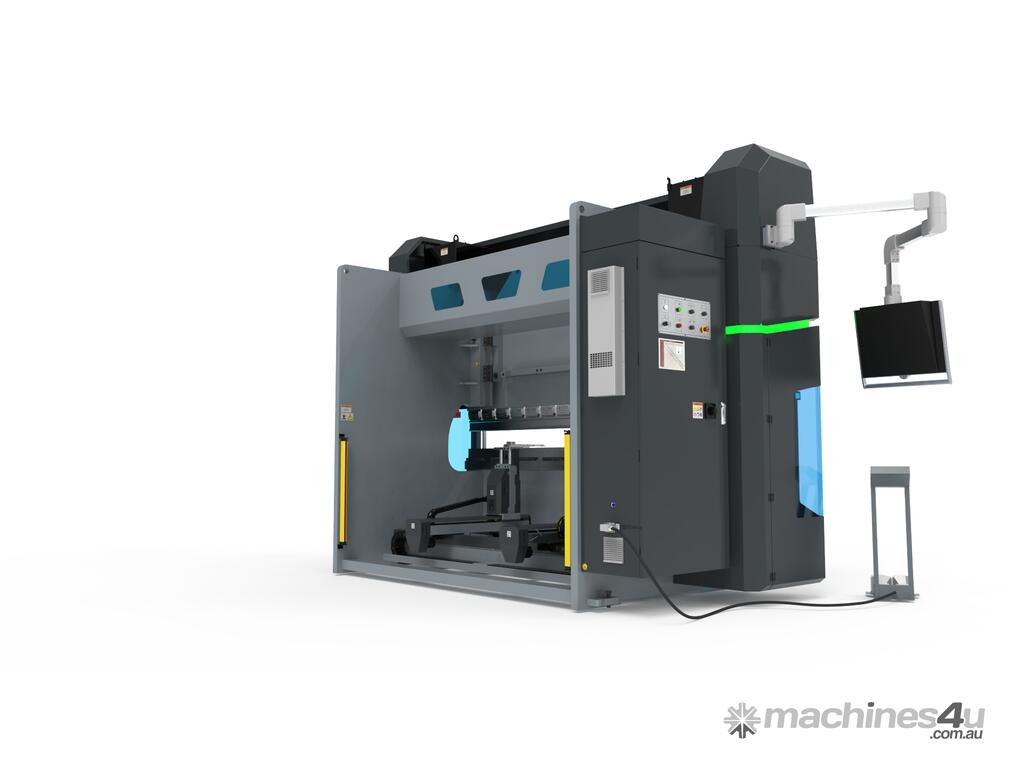

18. Open style design at rear of the machine

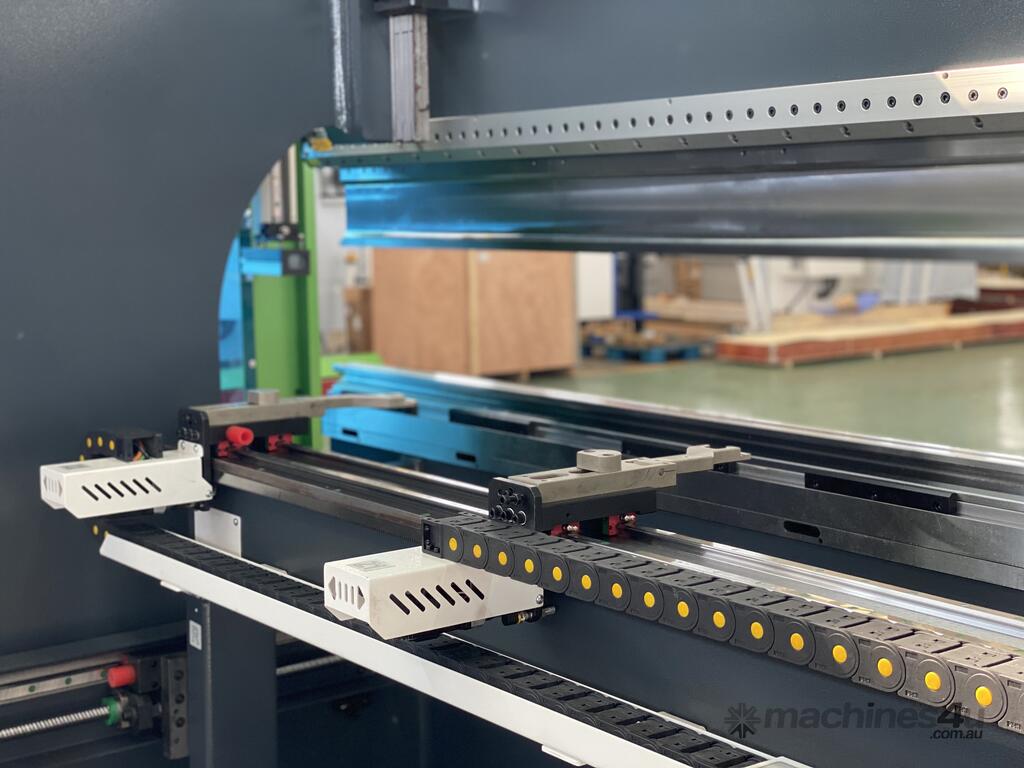

19. Ball screw and linear guided back gauge system
20. 60 x 60mm self centering multi vee bottom tool
21. Full length segmented top tooling
22. Double upper beam slideway design for extra rigidity
23. Copper upper beam slideways with graphite pads for better lubrication and free movement
24. Large opening and cylinder stroke
25. 550mm opening
26. 300mm cylinder stroke
27. 450mm throat
28. 210mm/sec approach and return speeds

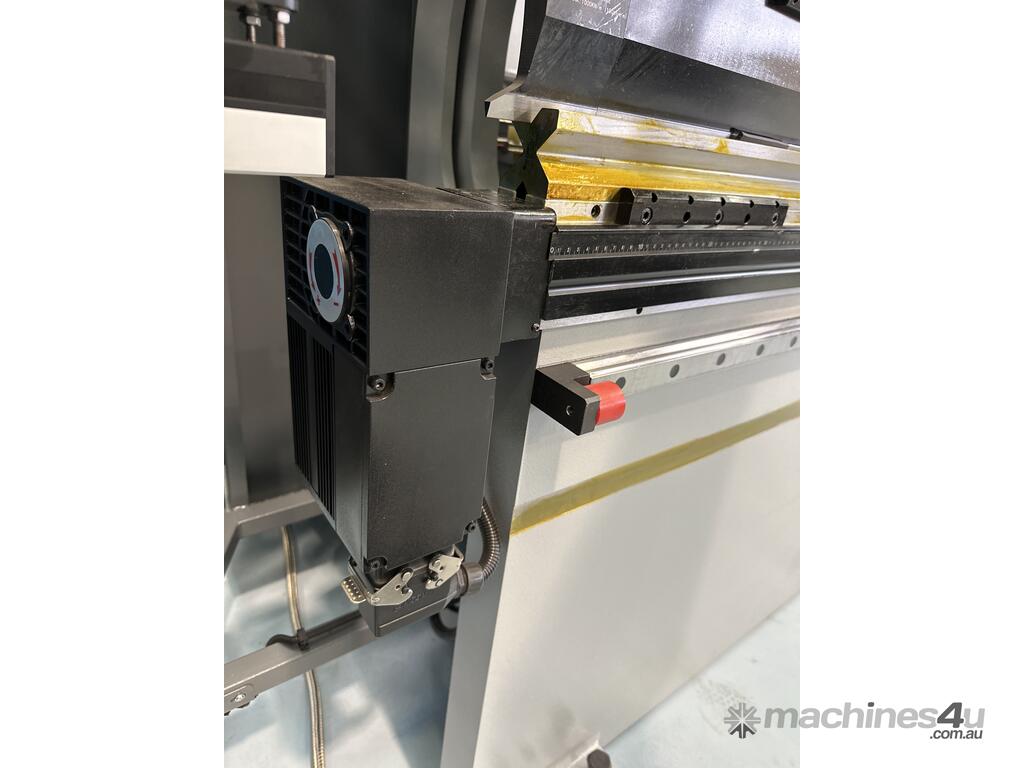

29. iMeasure motorised automatic angle detection and correction system
30. Dual screen setup with Delem productivity 4.0 setup.



NB - Some pics display optional extras
