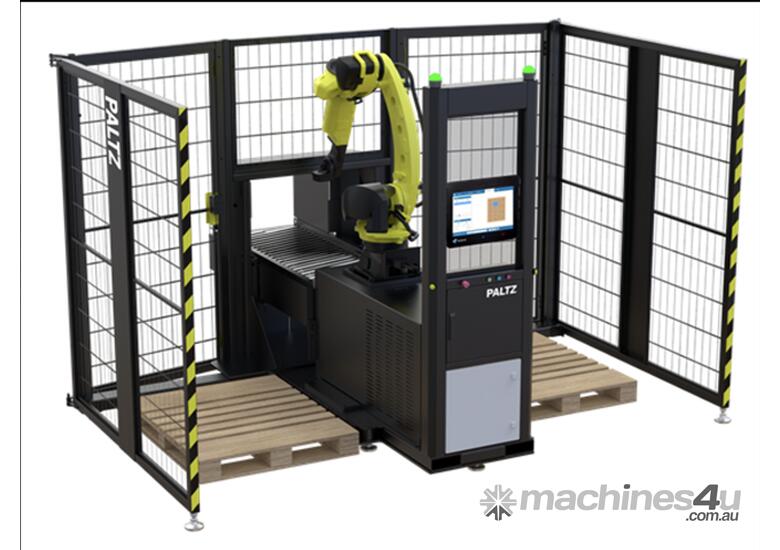

INSTANT PALLETISER i35: 35kg All-In-One Robot Work Cell

The INSTANT PALLETISER i35 is an all-in-one robotic palletising solution that simplifies the process without the need for programming, calibration, or technical skills. The system includes Fanuc M-20iD/35 and is powered by STACKiT software for intuitive operation. Operators can easily define box dimensions, weight, and pallet patterns, automatically generating the robot’s palletising program in seconds.

Key Features:
Maximum Capacity: 35kg per box
Two Palletising Zones: Allows simultaneous palletising for uninterrupted operation
Pallet Size: Customisable
Palletising Height: 2,100mm (including pallet)
Speed: Up to 12 cycles/min (24 cases/min)

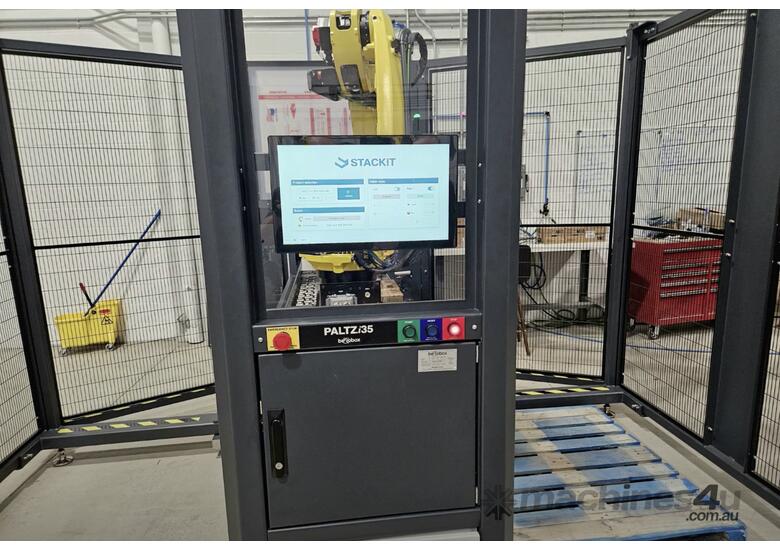

Software: STACKiT with 15" touch screen HMI
Structure: Painted steel frame, pneumatic kit (F+R 8mm)

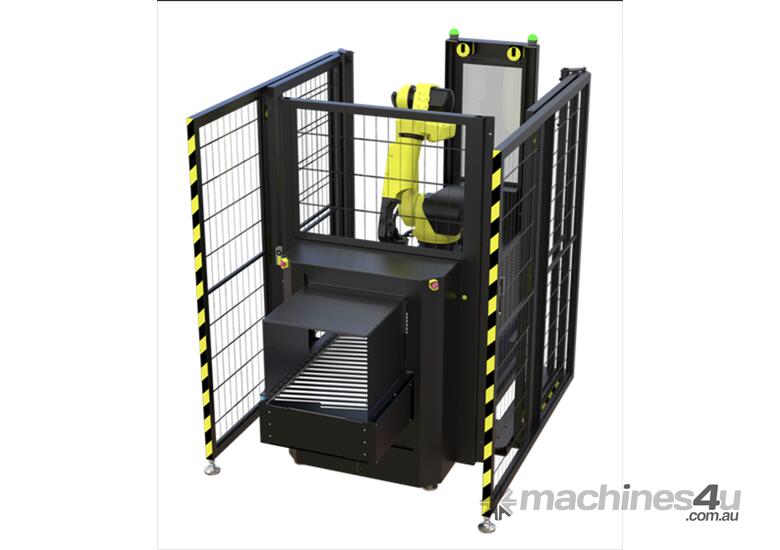

Conveyor: Skewed conveyor for product alignment
Vacuum Gripper: Custom adjustable with side grippers
Sensors: Product presence and mechanical pallet locators
Safety: Collapsible fencing and emergency stop button
Total Weight: 2,400 kg approx.
Power Requirements: 415 VAC 3-phase 20A, compressed air 80psi 10 CFM

Operation in 5 Simple Steps:
Move the work cell to position and connect to power
Power on the unit
Enter product details (box dimensions, weight)
Use automated stacking strategy generator
Start palletising

Enhanced Productivity:
Dual Palletising: Enables continuous operation with one pallet station in use while the other is unloaded
Indicator Lights: Show the status of each pallet station
Lift Gate: Controls product flow to ensure optimal pick position

Options:
Cardboard slip sheet rack and program
Dual palletising

Finance Options:
Lease to Buy: Spread payments over 5 years at low interest, with no balloon payment. Immediate cash flow benefits.

Peace of Mind:
Local Service & Support: Foodmach’s reliable after-sales service ensures ongoing peace of mind.

Foodmach delivers fast, powerful packaging line solutions with seamless integration. From filling to pallet wrapping, we provide flexible automation and full control through real-time data. With in-house manufacturing and Industry 4.0 expertise, we ensure the quickest lead times and 24/7 support. Order now and take your packaging to the next level.
