IRM2550x140 Motorised Plate Curving Rolls 2550 x 2.5mm Mild Steel Capacity Hardened Rolls, Motorised

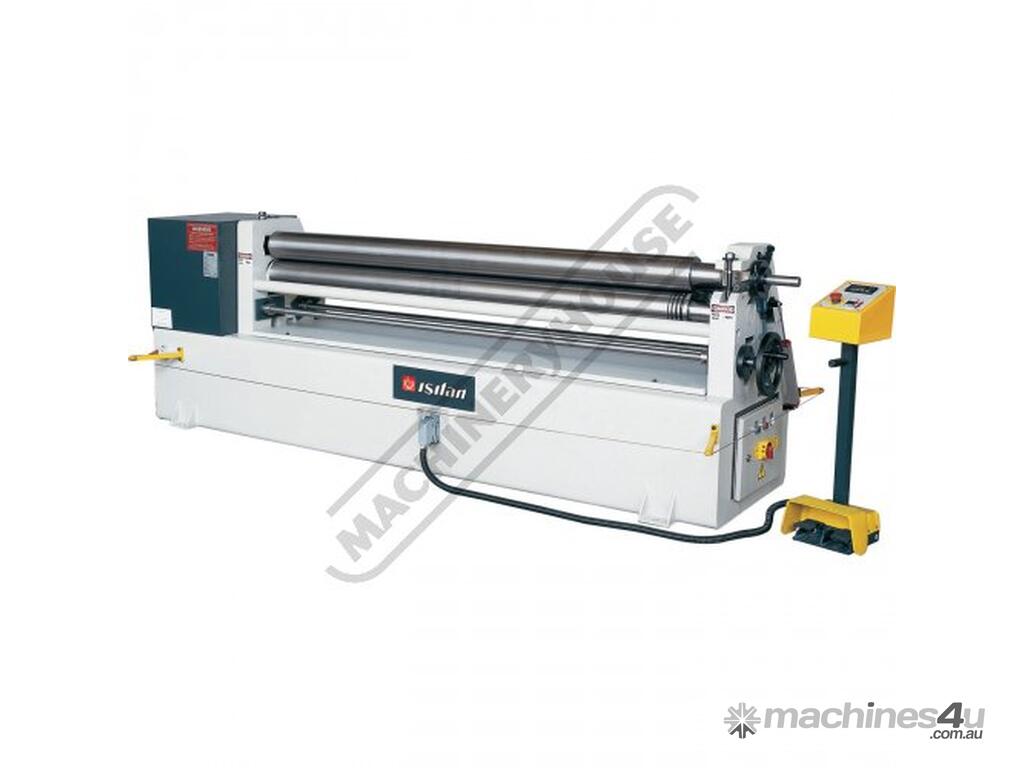

ISITAN IRM2550x140 Motorised Plate Curving Rolls 2550 x 2.5mm Mild Steel Capacity Hardened Rolls, Motorised Up/Down Rear Roll, DRO Control Panel & Initial Pinch Design
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S795D

Features:
SAE 1050 (CK45) certificated forged steel rolls with high tensile strength
Precision ground and hardened rolls
Cast Iron end frames
Brake motor standard for precision bending
Digital readout control panel with emergency stop
Safety trip wire (RM & IRM) or kick bar (IR) standard
Conical bending device
Single handle adjustment of bottom rolls
Made in Turkey
Models available to 2550 x 140mm

Mild steel capacity is rated on hot rolled material with 250MPA

Includes:
- Standard manual drop end



Specifications:
ORDER CODE: S795D
MODEL: IRM2550x140
Curving System Type: Initial Pinch
Curving Material Length (mm): 2550
Curving Plate Thickness - Mild Steel (mm): 2.5
Minimum Rolling Diameter (mm): 210
Roll Diameter (mm): 140
Motor Power (kW / hp): 2.2 / 3
Voltage / Amperage (V / amp): 415
Dimensions (LxWxH) (mm): 3700 x 750 x 1000
Floor Space (L x W x H) (mm): ~
Nett Weight (kg): 1850
