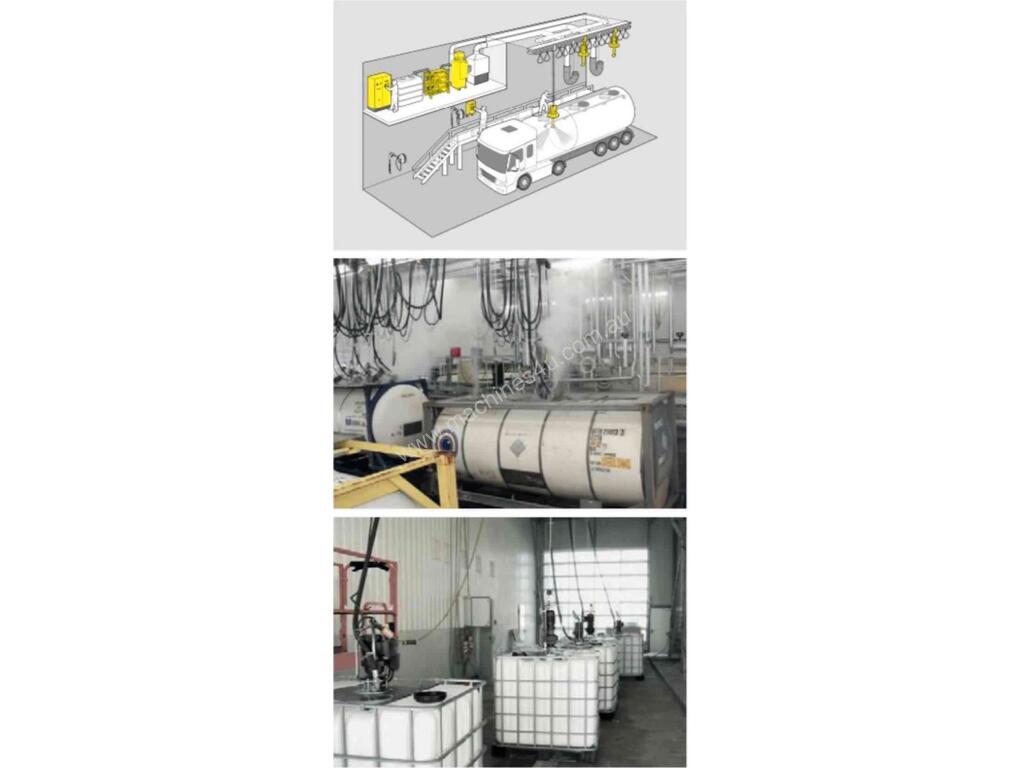

Tank washing system for industrial container cleaning ,

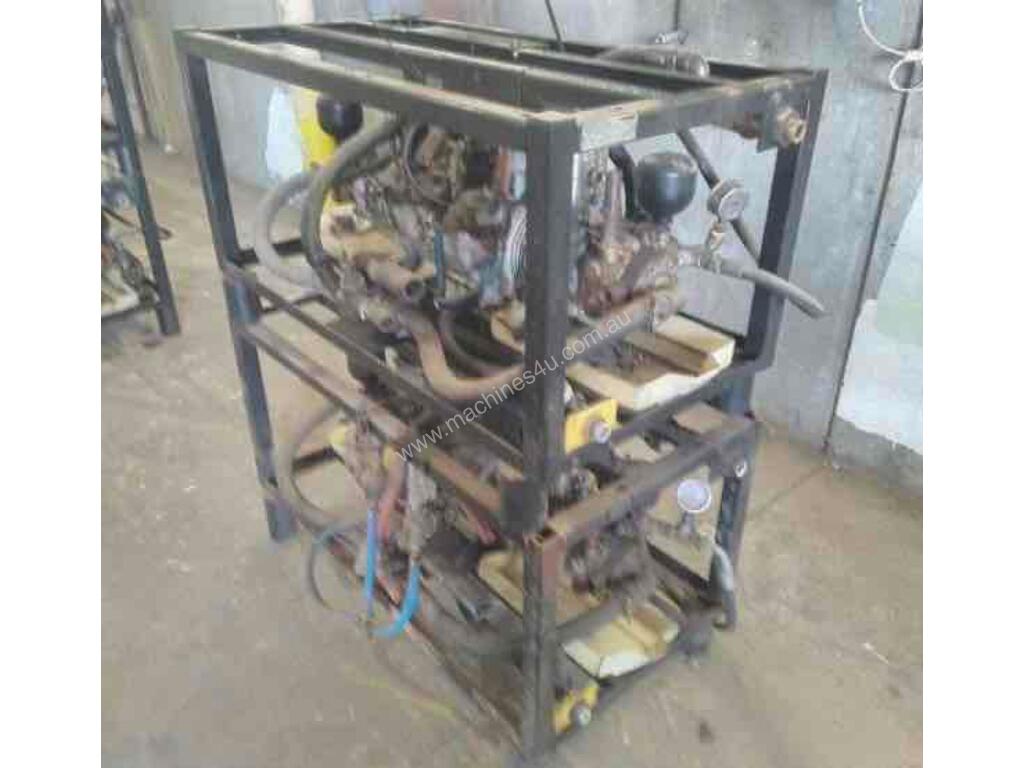

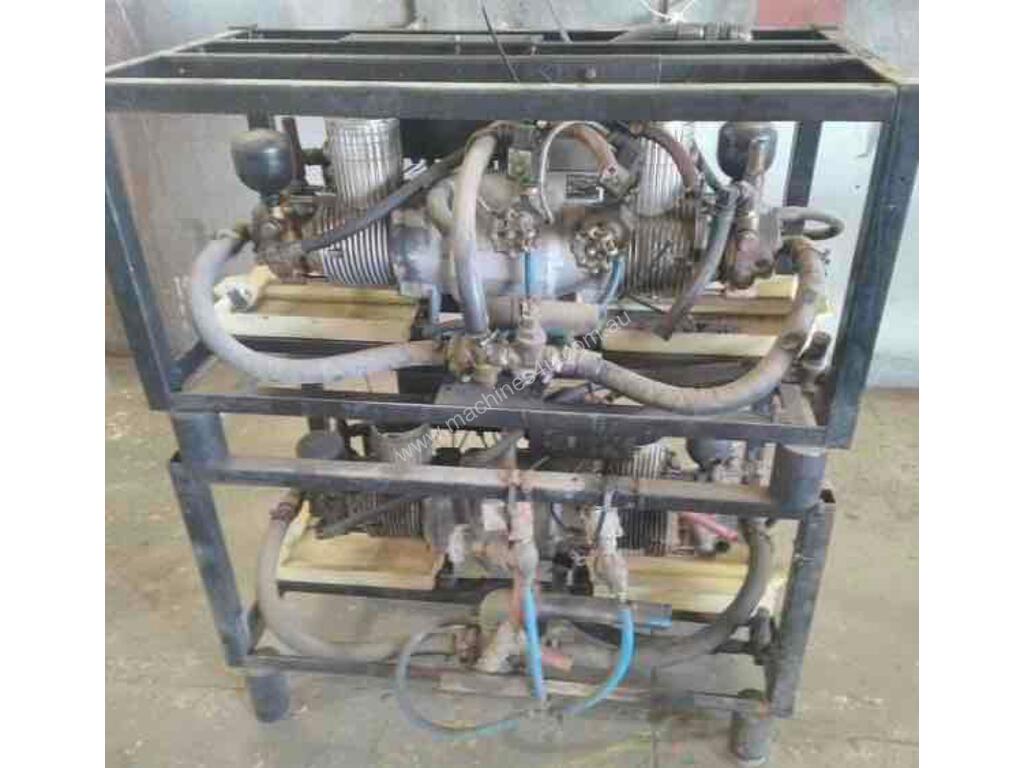

6x Karcher stationary HDI 30/10 high-pressure pumps
Flow rate (l/h) 3000
Pressure (bar) 100
Voltage (V) 400
Frequency (Hz) 50
Number of current phases (Ph) 3
Water feed temperature (°C) 60
Power rating (kW) 11
Weight without accessories (kg) 115
Weight (with accessories) (kg)1 90
Dimensions (L x W x H) (mm) 1150 x 650 x 480

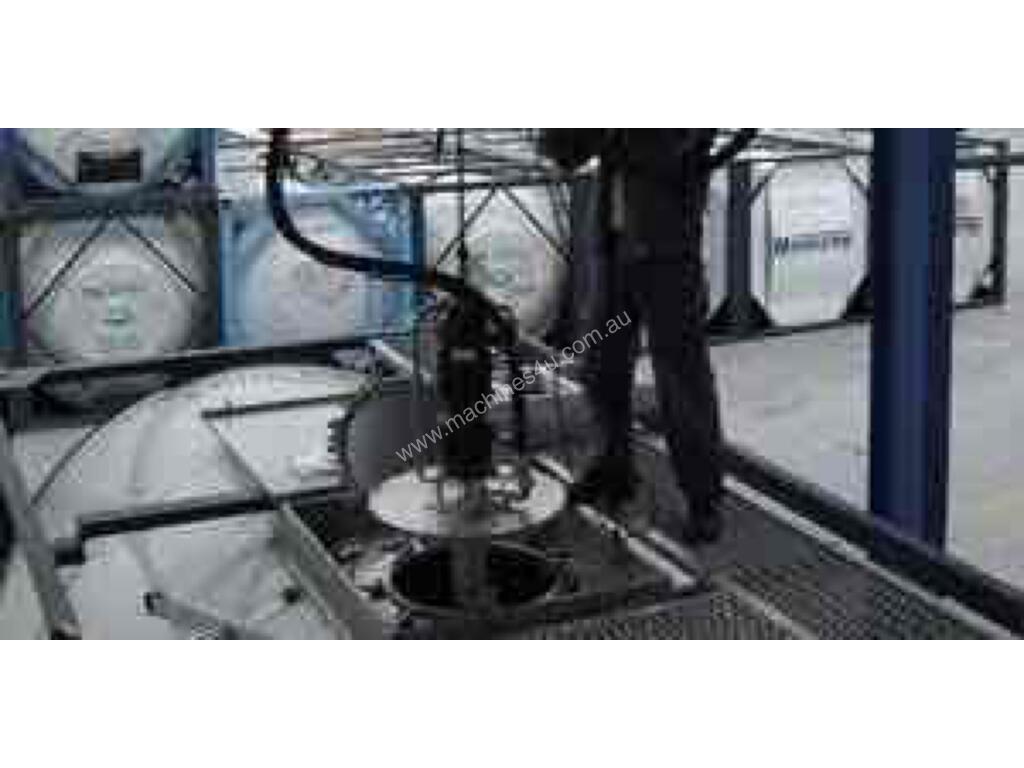

9x Karcher HKF200 Tank Cleaning units
High-pressure connection DN 13, M 22 x 1,5, DIN 3863
Ex-proof type (CE 94/9) Ex II 1/2 G c T4, Ex II 1/3 D c 120 °C
Drive Compressed air 4-7 bar 0.5 m³/min
Quantity of nozzles (Stück) 2
Operating pressure (bar) 200
Capacity (l/h) 10000
Speed (U/min) 12-18
Laid length (mm) 800
Weight without accessories (kg) 30

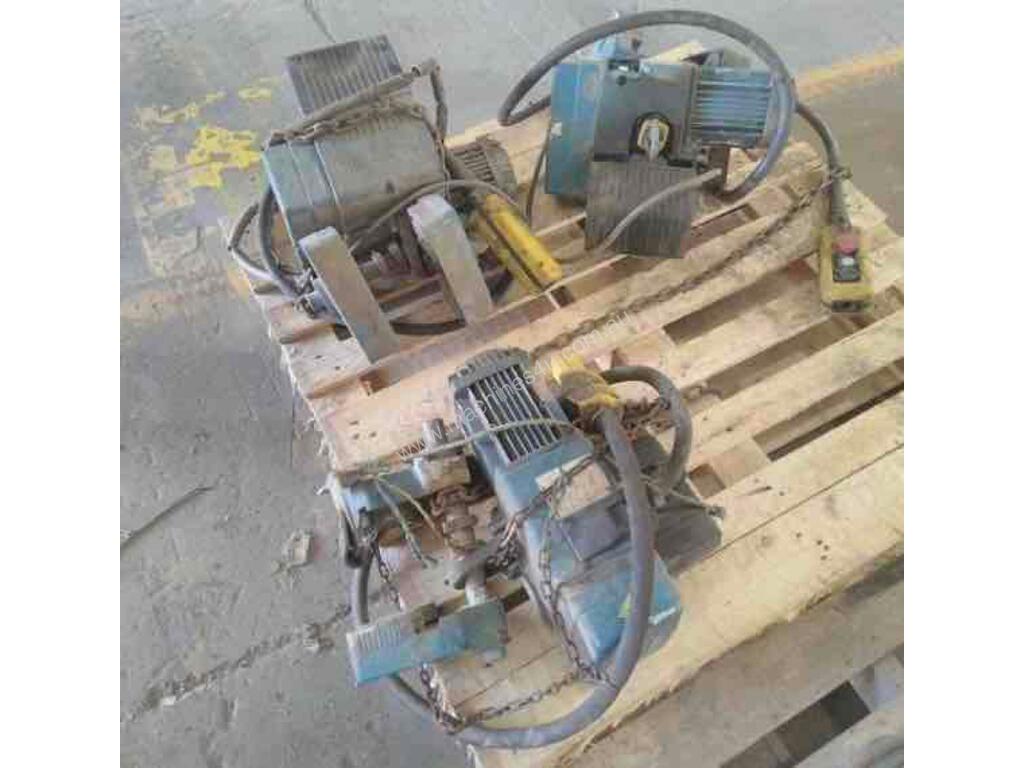

9x Remote Chain Hoist units details to be updated
