ITALMECC COMPACT WATER FILTRATION SYSTEM

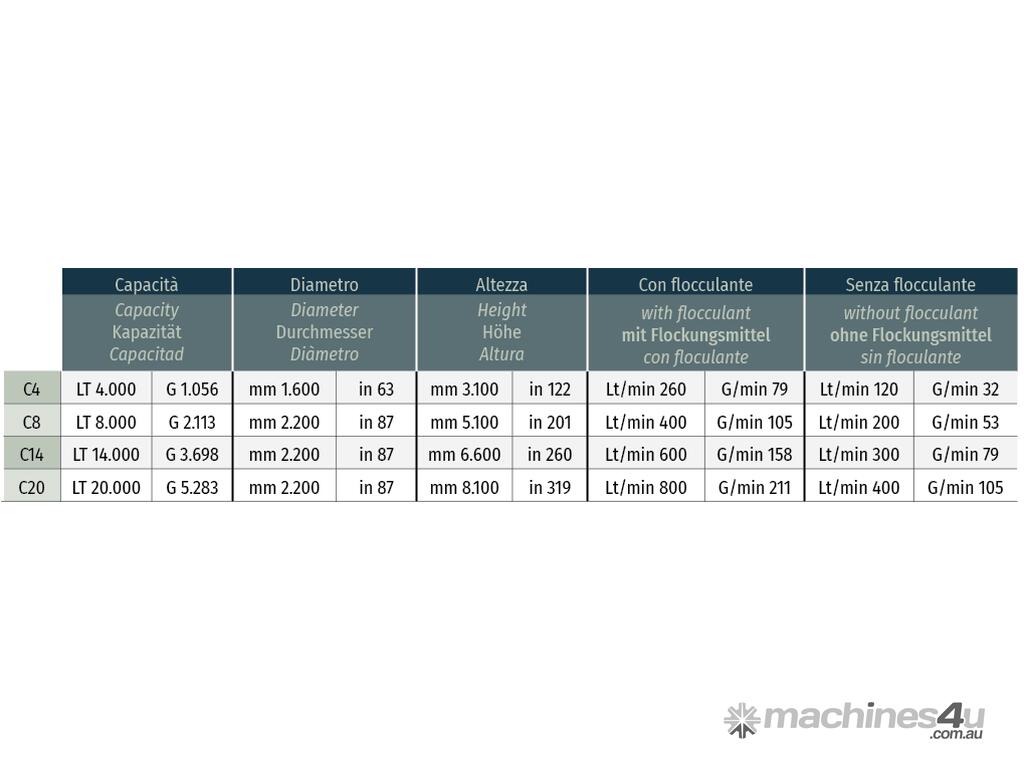

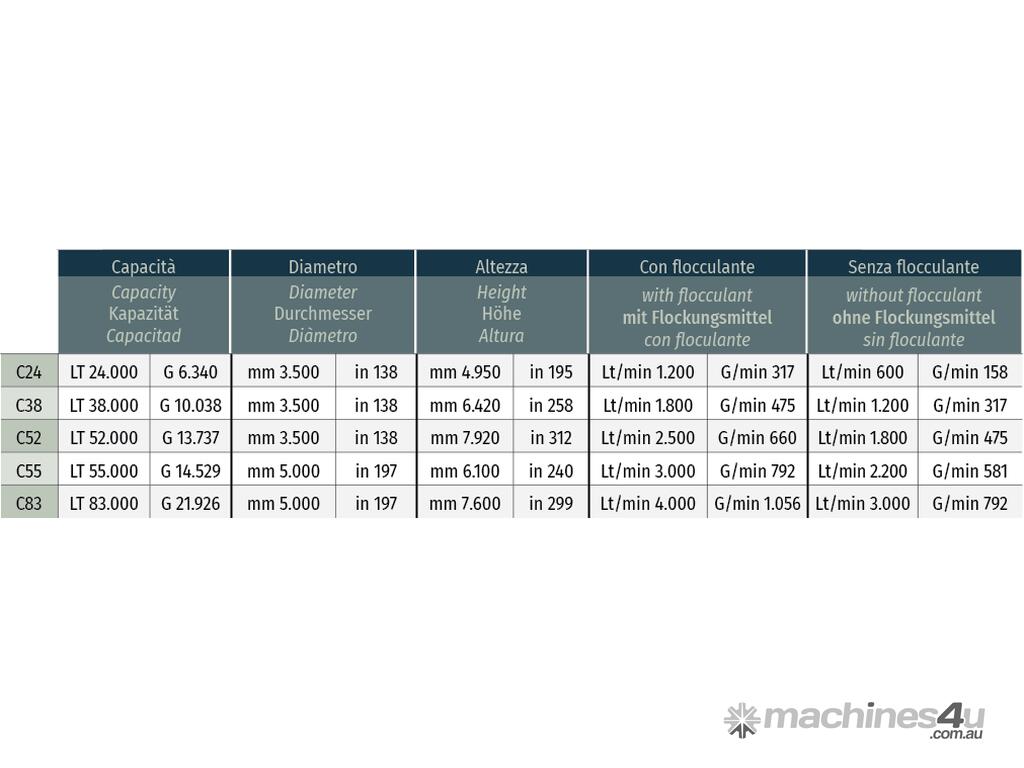

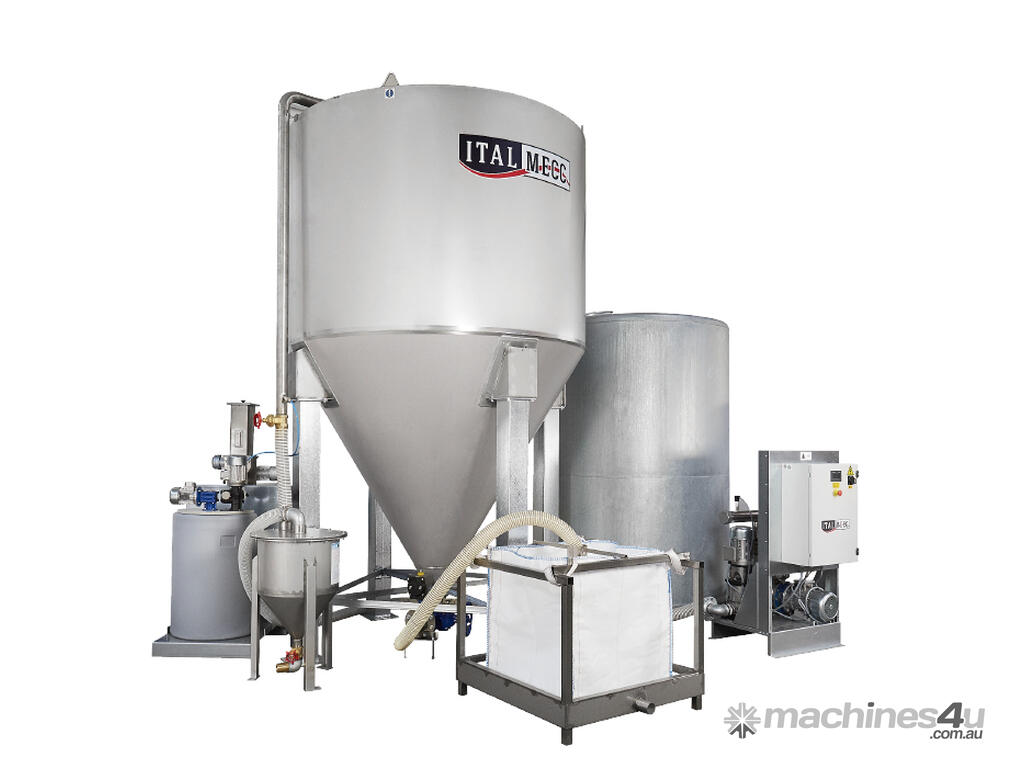

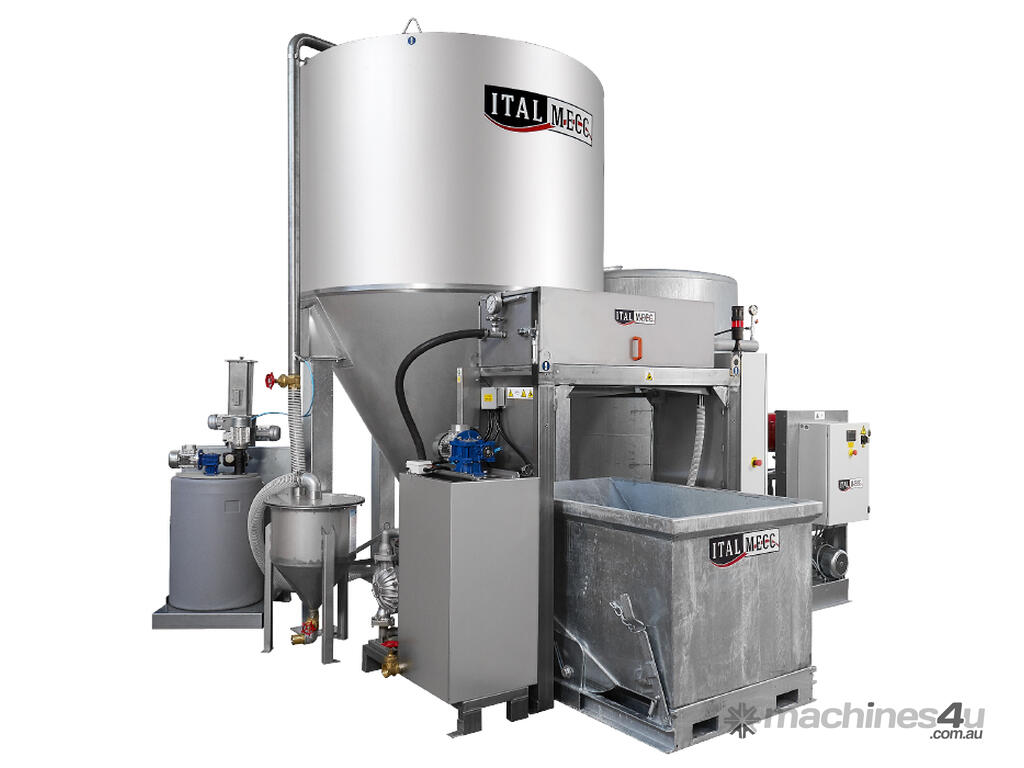

The stainless steel silo “C series”, with its multiple dimensions, is the most popular clarifier in the market. Its optimal construction characteristics combined with the positioning versatility, make this product suitable for almost the all workshops; ensuring flow rate included from 100 to 4.000 lt/min. It’s completely made of AISI 304 and it represents the flagship of water clarifiers.

How it works:

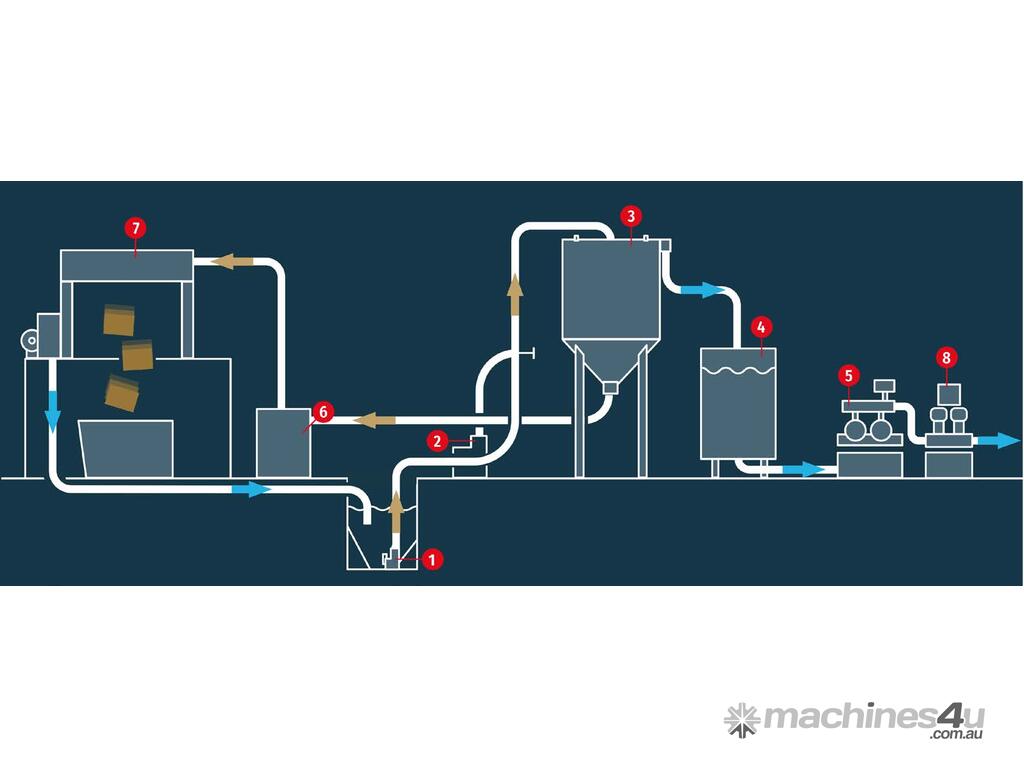

The dirty water is collected in a pit. The sump pump loads the water into the silo filtering system. A central inner tube releases them near the cone. The heavier water releases the suspended solids in the cone by gravity and then goes up clarified because lighter. The clean water, through overflow, is collected in a tank ready to be reused. A booster pump will send it back the workshop machinery for the cycle to happen again.

The “C series” is very modular and can be optioned according to the exact specifications of the customer. This includes:

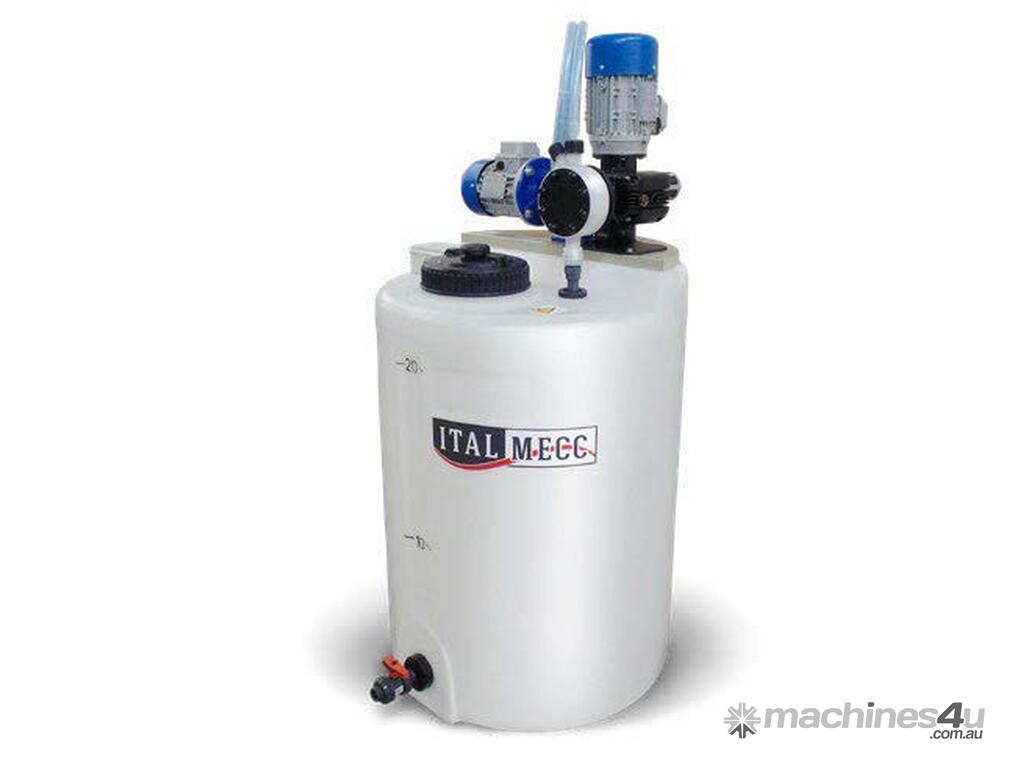

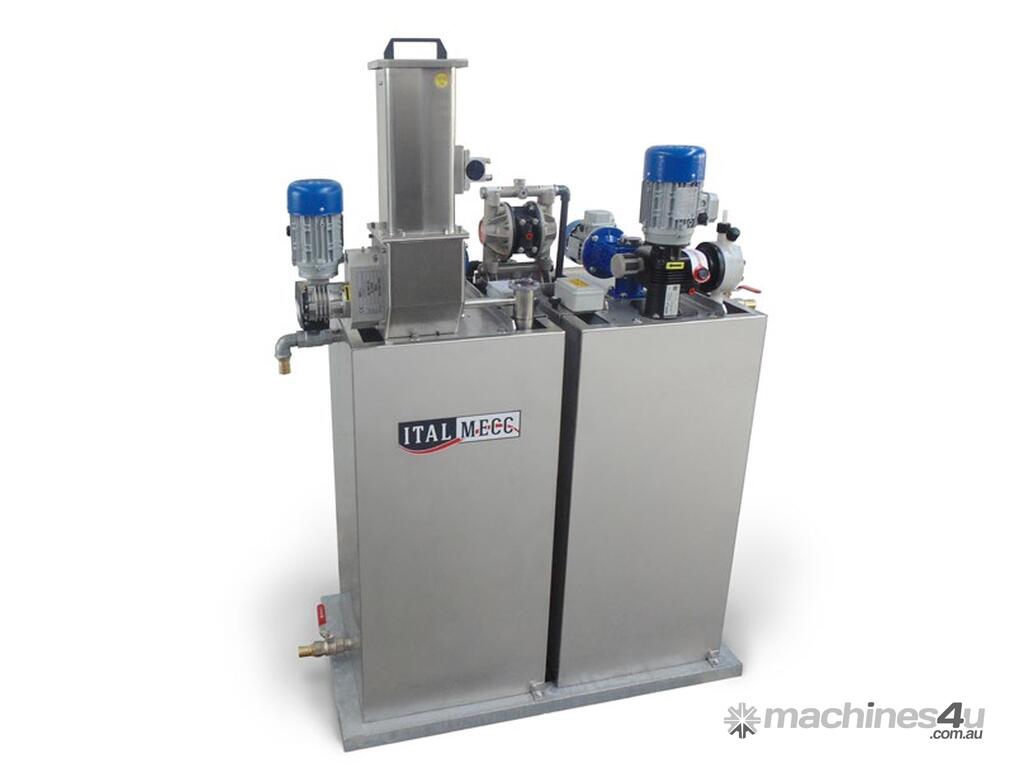

• Semi-automatic and Automatic Flocculant Stations
• Coagulant (polyamine) stations to aid the Filtration process further

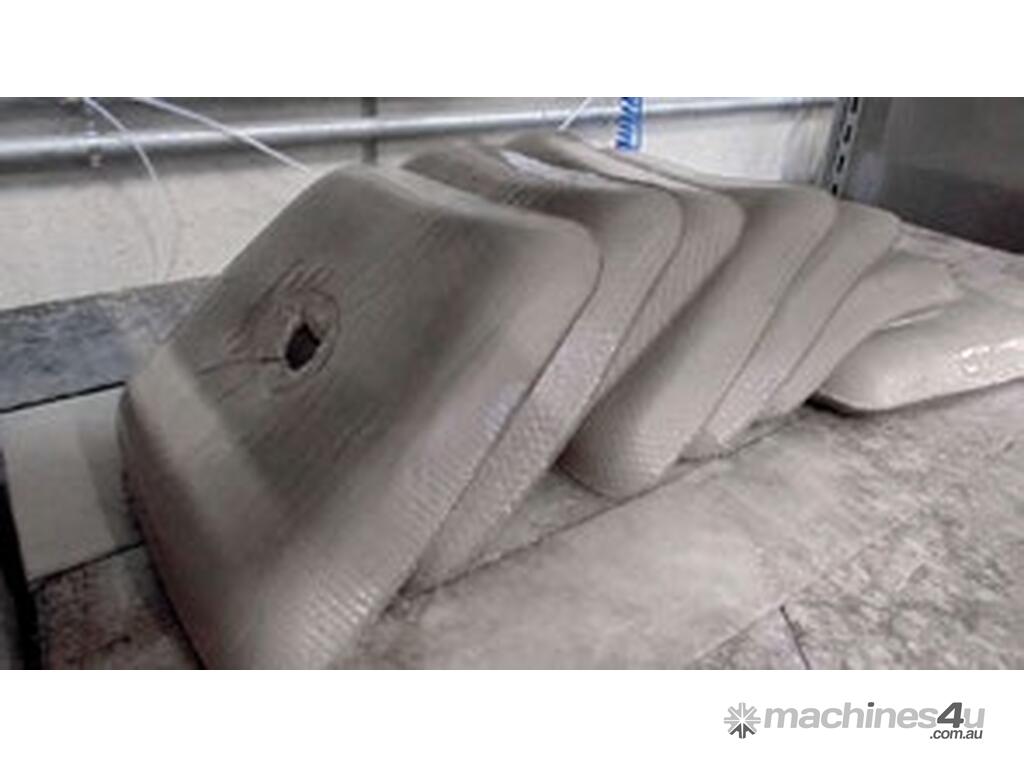

• Bag system to dry the sludge before disposal

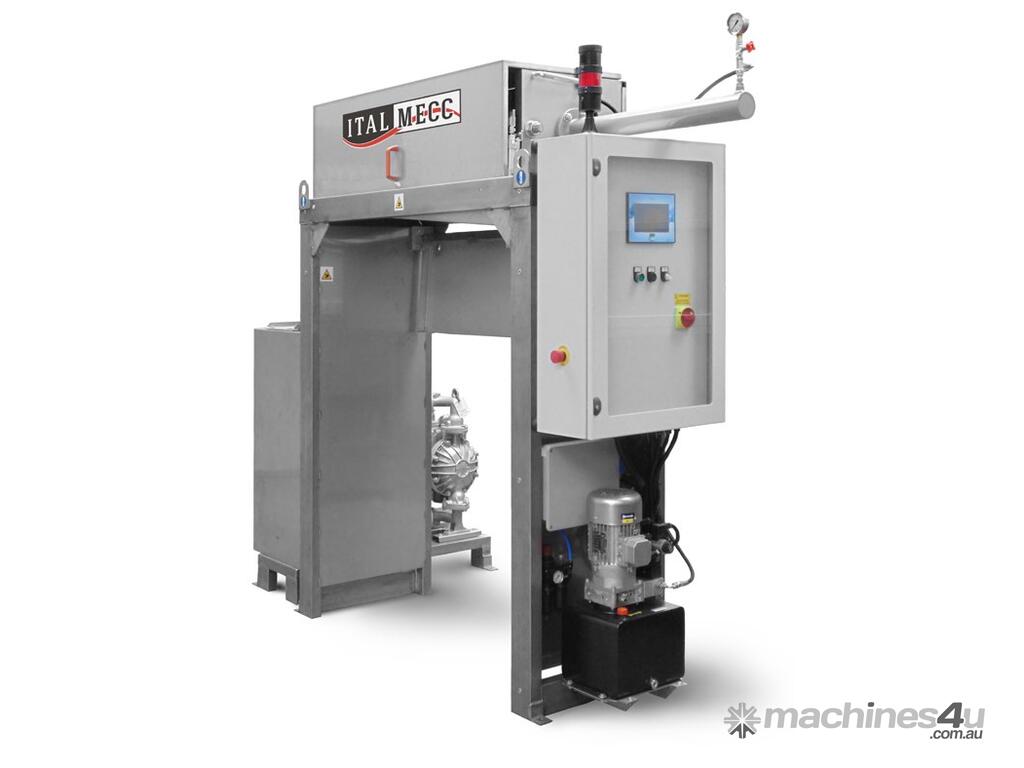

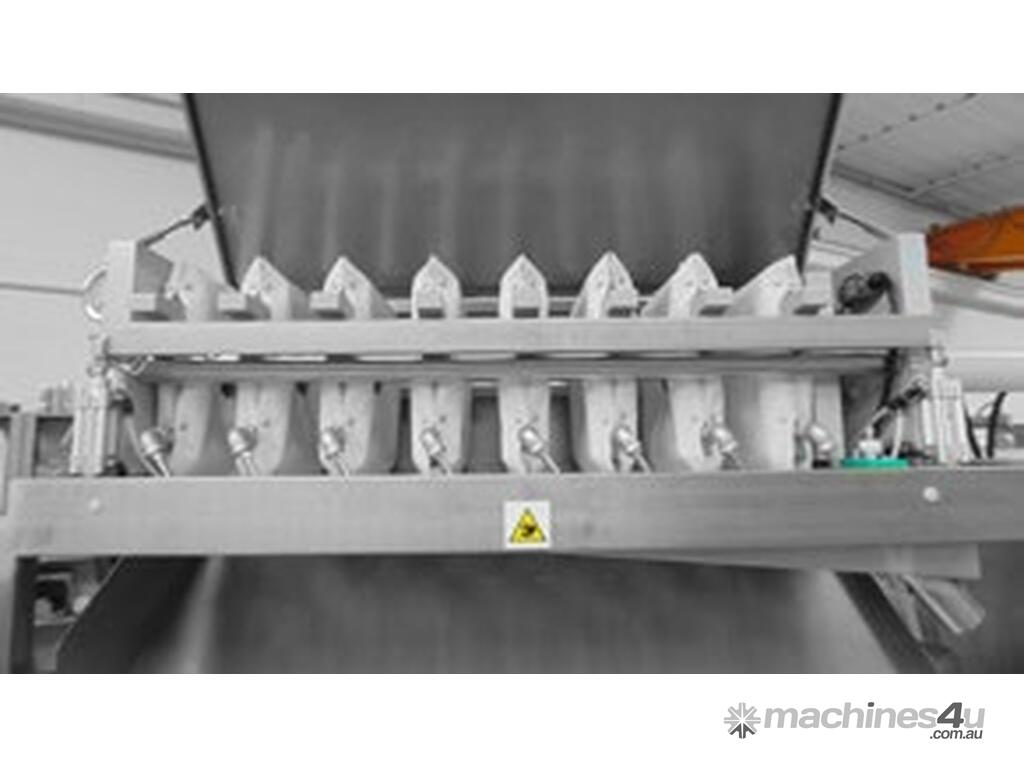

• Filterpress System which compresses the sludge into dry mud cakes for immediate disposal and less intervention by operator

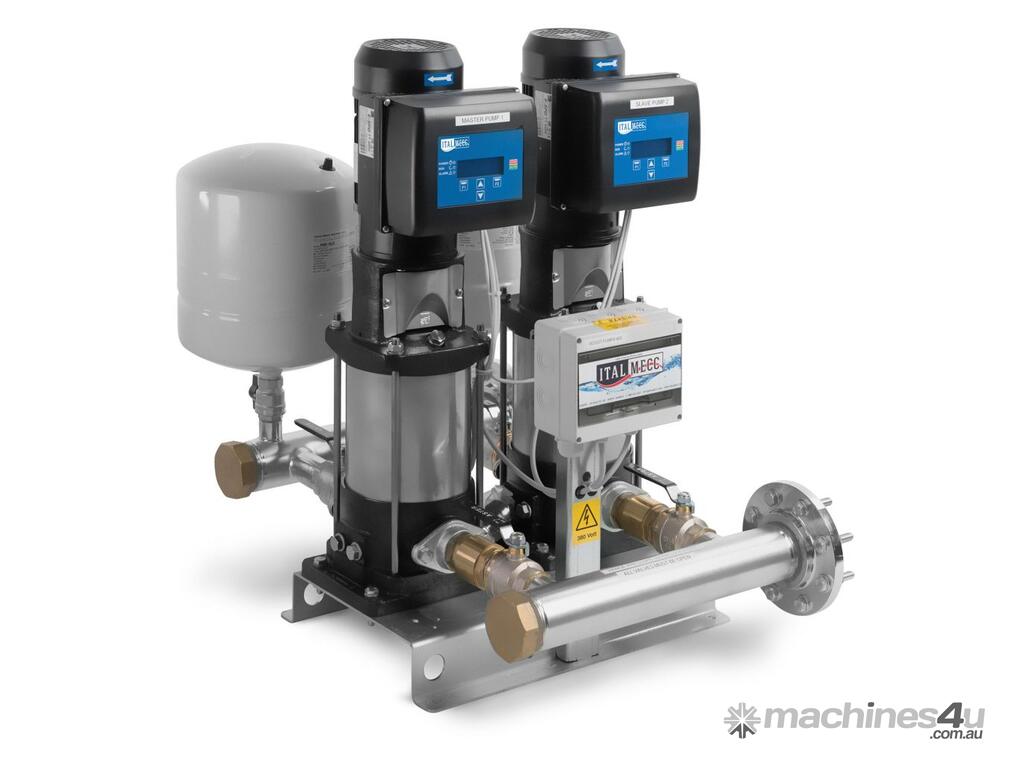

• Inverter Driven Booster Pumps to intelligently pump water back into the factory

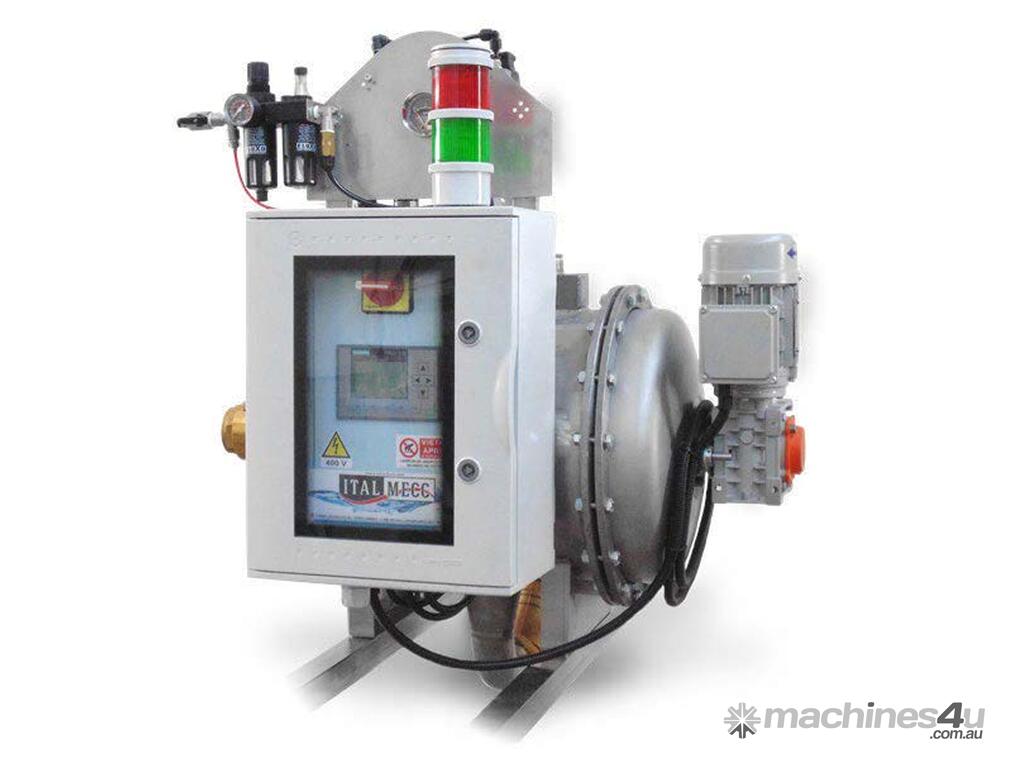

• Self-cleaning CNC filter to prepare the clean water ready for internal cooling of the CNC spindle (filter up to 30 micron)

FOR MORE INFO PLEASE CLICK THE PDF
