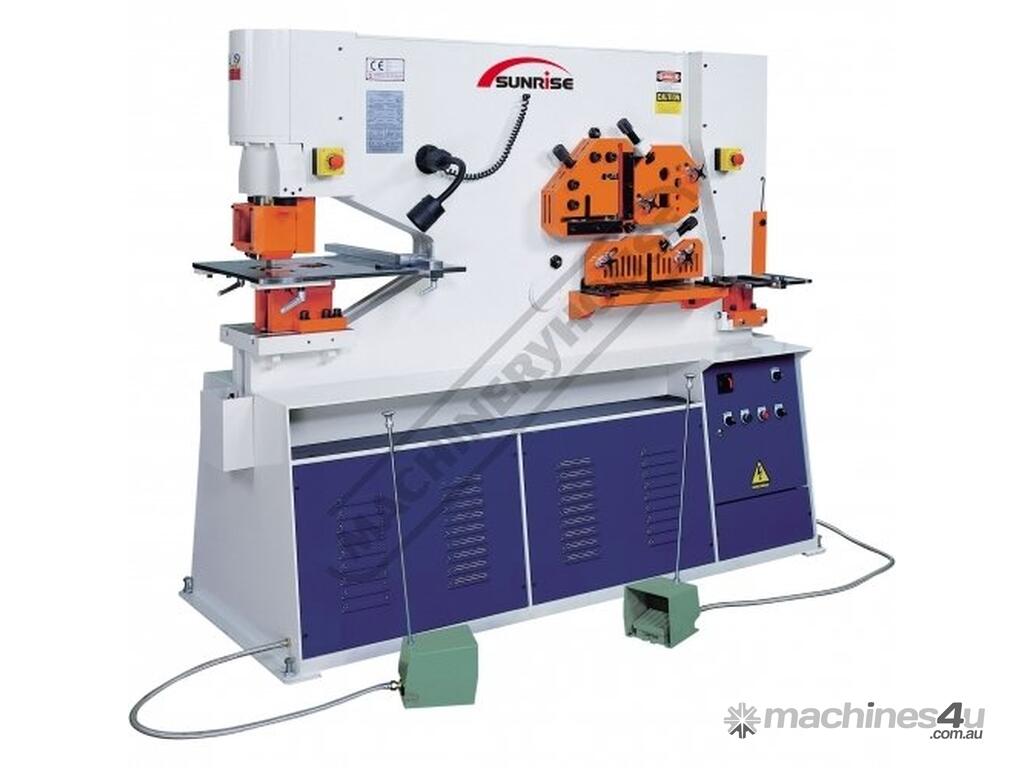

SUNRISE IW-125SD Hydraulic Punch & Shear - 125 Tonne Dual Hydraulic Cylinders with Independent Operating Stations & Deep Throat Punching Station Includes Auto Touch & Cut Systems, Laser Punch Guide & 6 Sets of Round Punches & Dies
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P177A

The Sunrise Punch & Shears are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

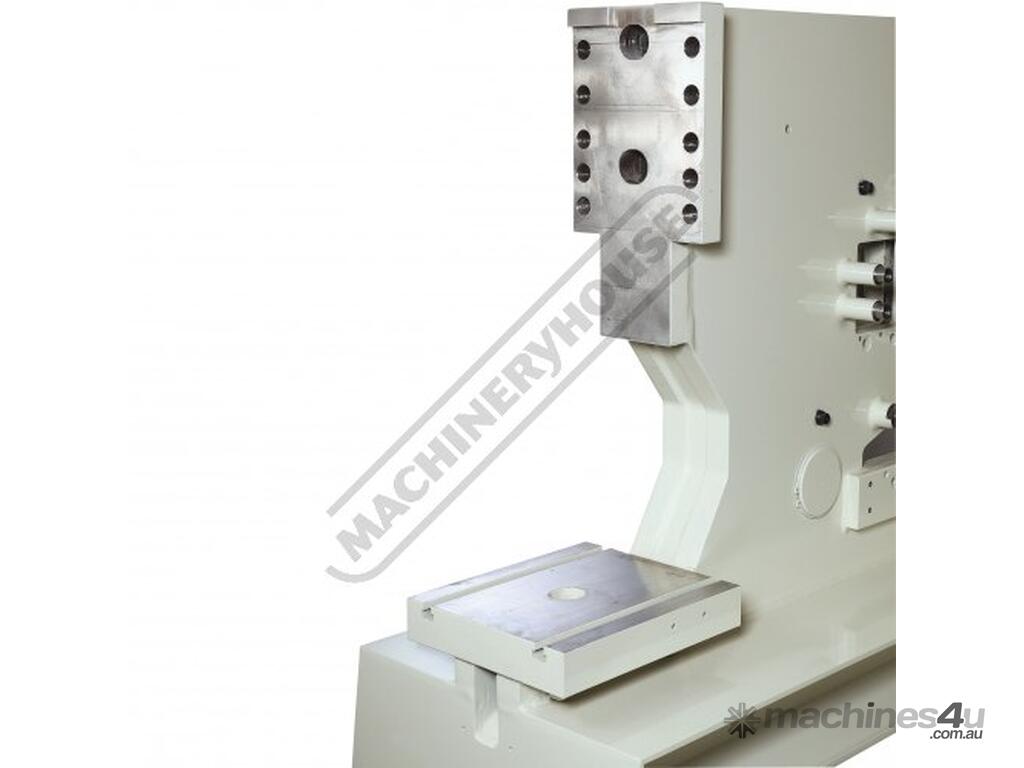

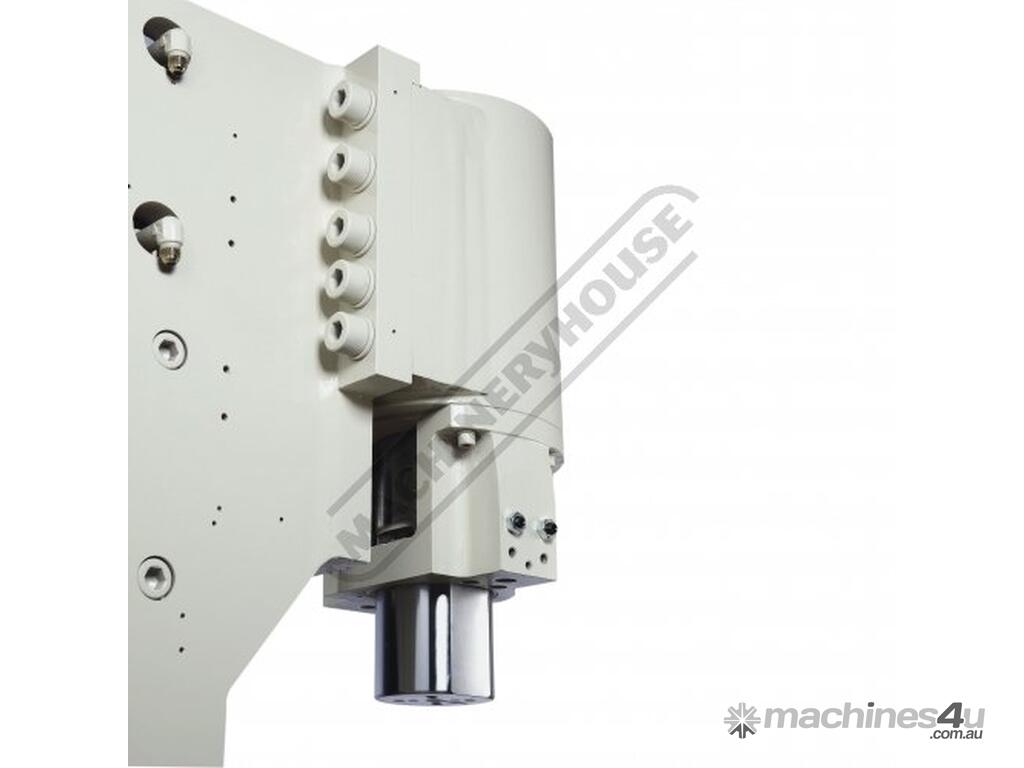

The double cylinder "S/SD" series have two control foot pedals, & separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke & deep throat enable mounting a wide range of special optional equipment. The large punching base with the "T-slot" fixing provide a solid base for securing the punching tooling, as well as a wide range of optional & custom designed tooling.

The hydraulic system & components that drives the shearing beam & punching head is considerably very quiet compared to most other machines and operates efficiently smooth in all modes. The electrical components & DC control circuit are operated at a low 24 volt system & provides full protection & safety with in the separate key locked cabinet.

The Sunrise machines have proven themselves over & over again to provide trouble free service for many years in production and we have references all around Australia to verify our statement.

Features:

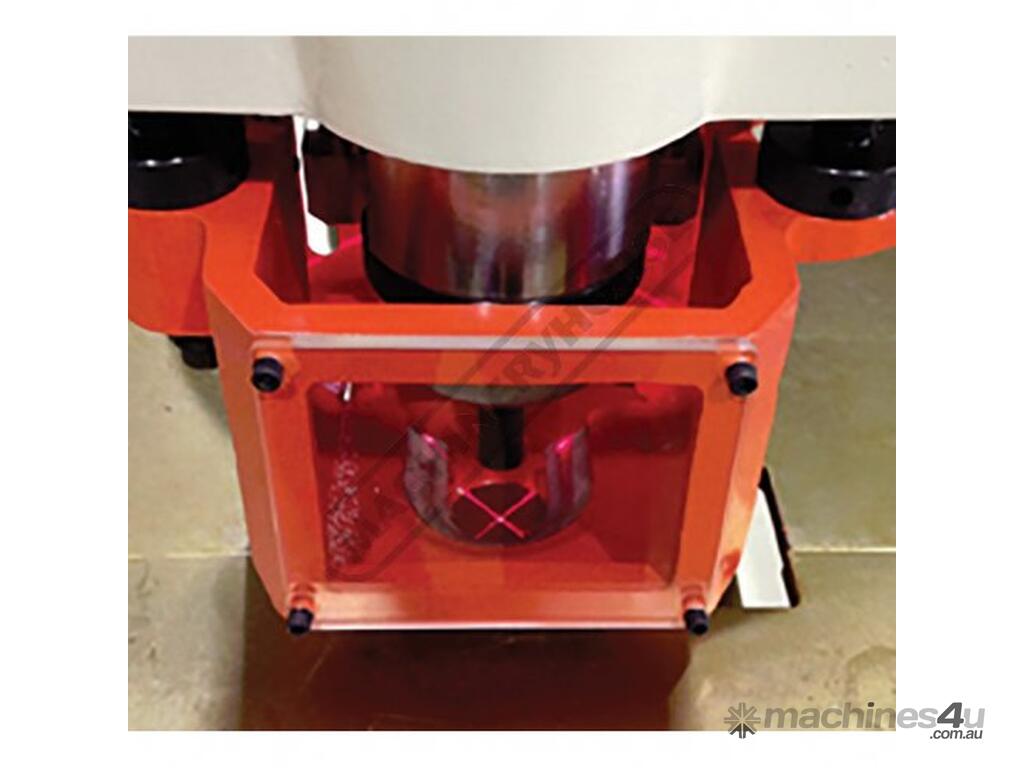

Laser punch guide system for easy alignment

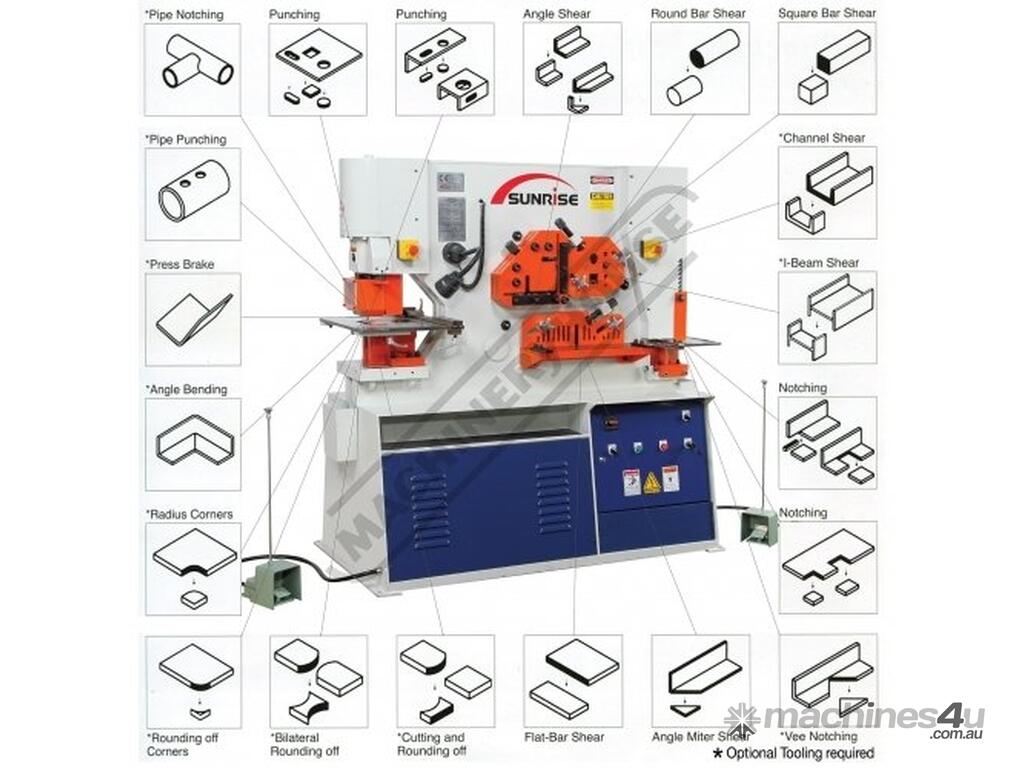

Five work stations Punching Notching Plate Shearing Angle Iron Shearing and Bar Shearing (all stations are guarded)
Dual hydraulic cylinders allows simultaneous operation without interference
Punching capacity up to 50mm standard

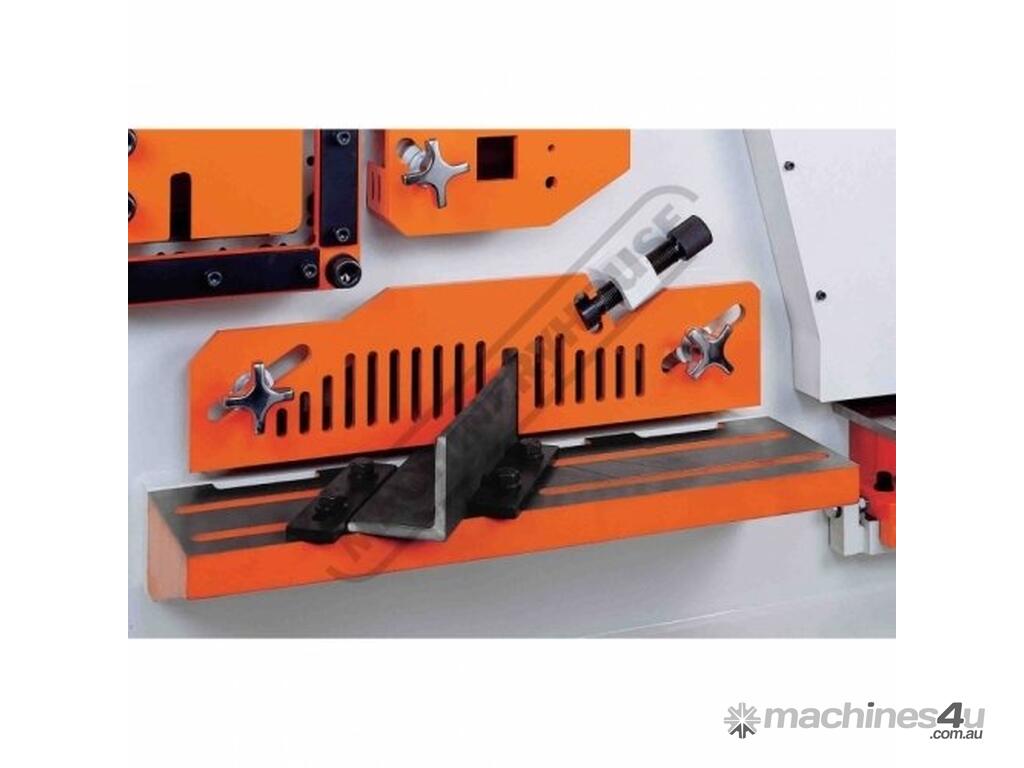

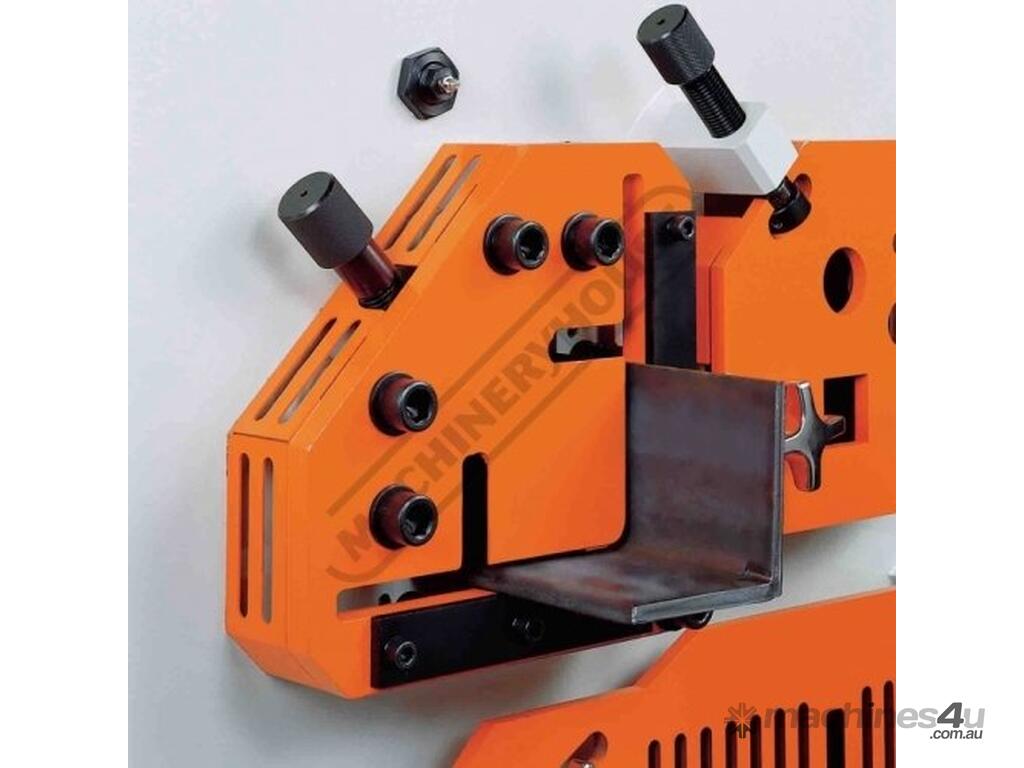

Mitre cutting of angle iron

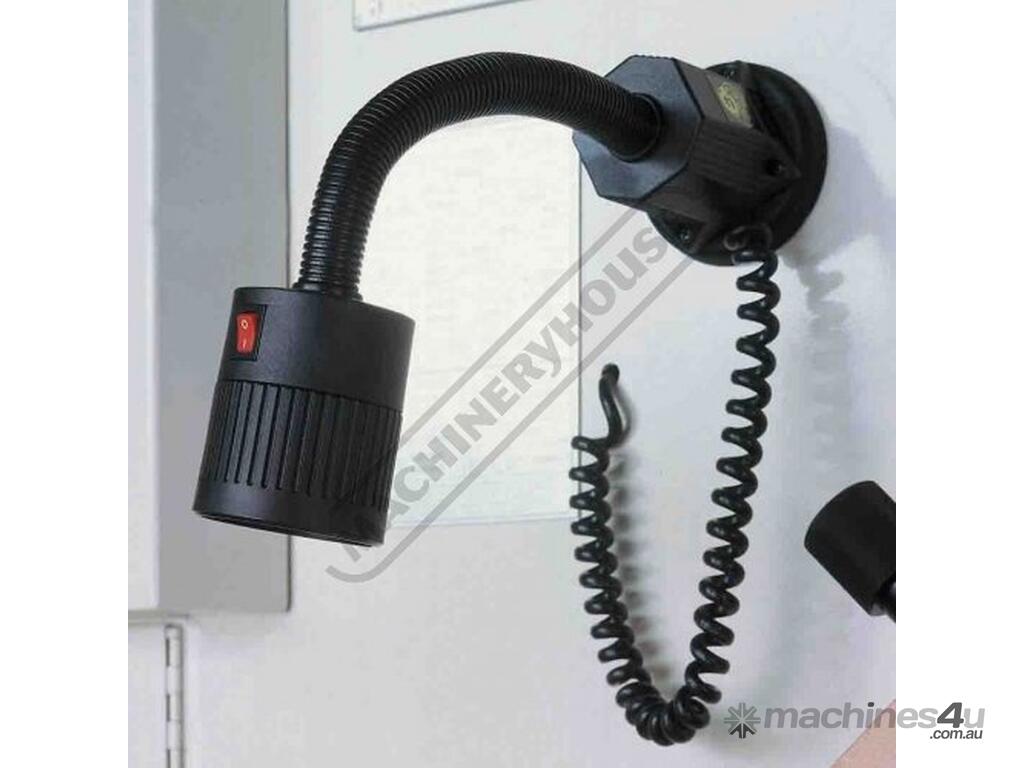

Magnetic base halogen lamp
Hydraulic system is protected with replaceable filter cartridge
Adjustable stroke for faster punching

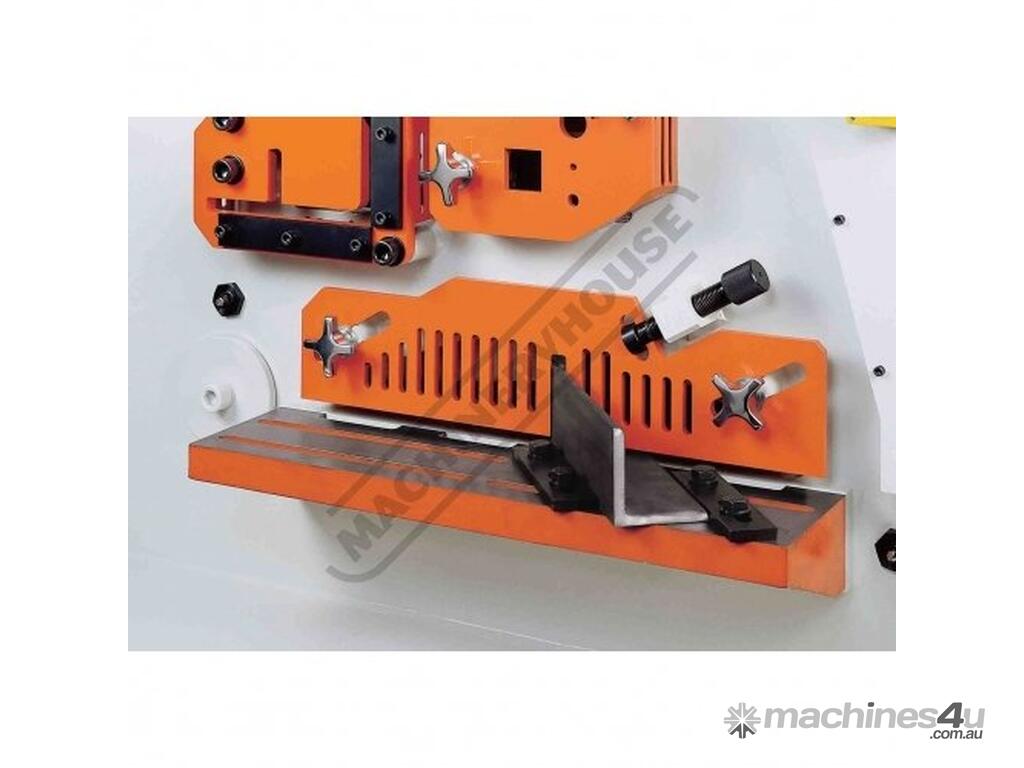

Curved shear blade for minimal job distortion
Most cutting blades are four-sided for long life
Punch shear & notching table fitted with stops & guides as standard
Two-pedal operation allows two people to work machine to greatly speed up production
Large punch table with multi-purpose bolster featuring a removable block for channel and beam flange punching
Adjustable length stop with one-touch electronic backgauge for greater efficiency in repetitious work

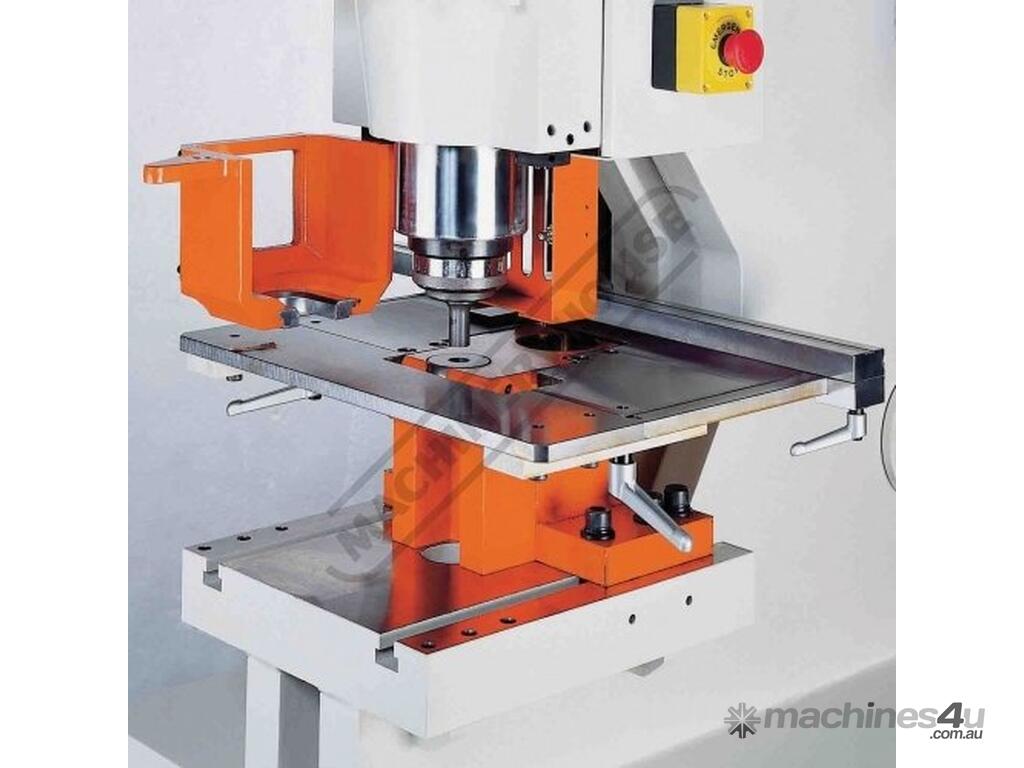

PUNCHING
Large hole punching up to Ø50mm as standard
Overhang bolster for punching channel & beam flanges
Large ruled support table with removable front section for leg down punching in angle or section
Easily adjustable stripper & safety guard

Pre-Commissioning:
1. Punch & Shear is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- 6 sets of round punches & dies:
- Punches: 26 28 & 30mm
- Dies: 20.7 23.2 25.2 27.2 29.2 & 31.2mm
- Full safety guarding at all workstations
- Tooling to all workstations
- Punch Shear & Notch support tables
- Now with Quick Change Tooling

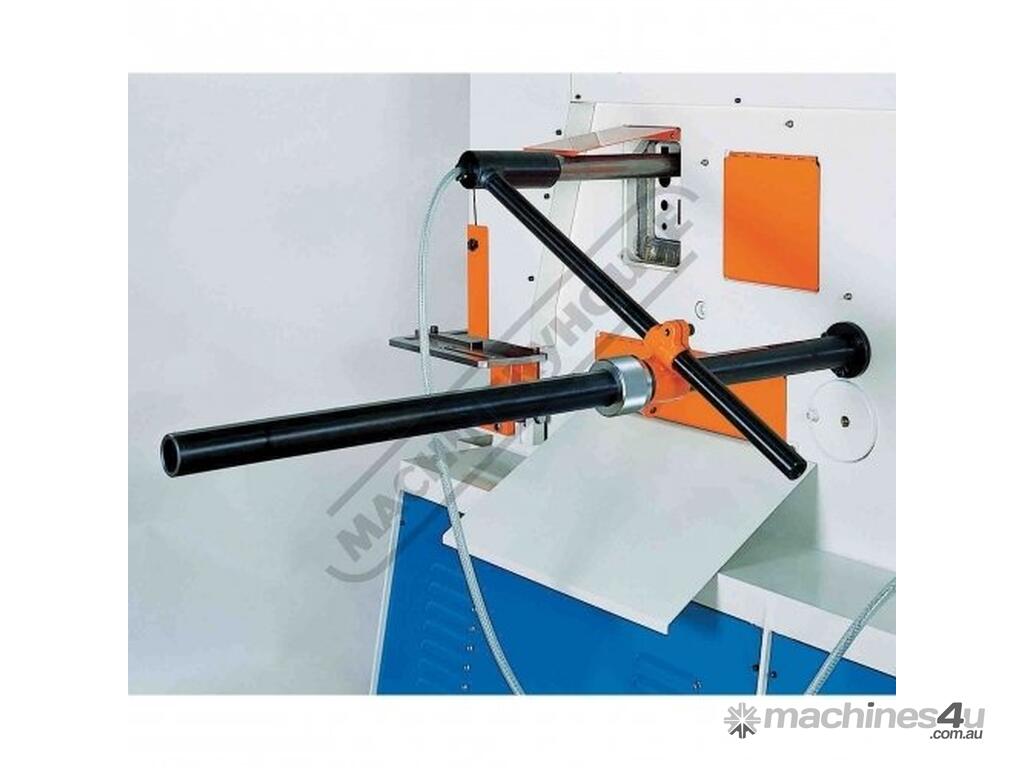

- 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece



Specifications:
ORDER CODE: P177A
MODEL: IW-125SD
Punching Pressure (Tonne): 125
Punching Table Type: Manual with Guides and
Punching Table Type: Adjustable Stops
Punching (Diameter x Thickness) - MS (mm): Ø33 x 27, Ø50 x 18
Punching Throat Depth (mm): 510
Punching Maximum Stroke Length (mm): 100
Punching Cycles (15mm Stroke) - MS (cpm): 28
Punching Work Table Height (mm): 1069

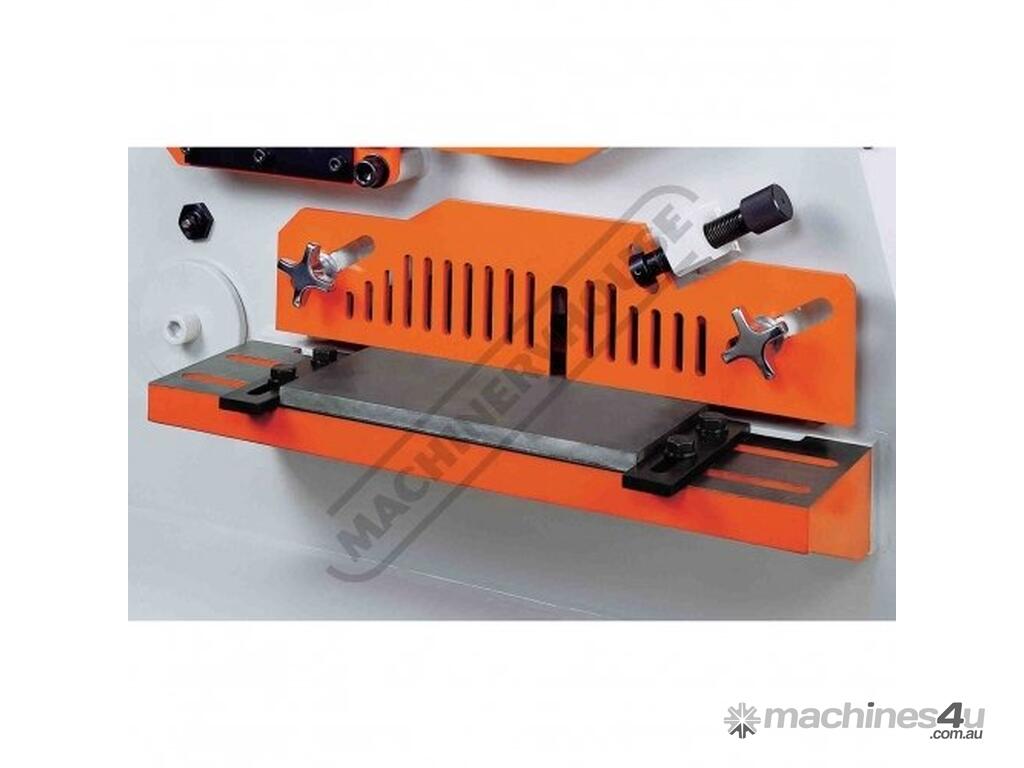

Flat Bar Shear (W x Thickness) - MS (mm): 610 x 18, 400 x 25
Flat Bar Shear - Blade Length - MS (mm): 620
Flat Bar Shear Work Table Height (mm): 920
Angle Shear 90º - MS (mm): 152 x 152 x 18
Angle Shear 45º - MS (mm): 80 x 80 x 10
Angle Flange Trim (mm): 100
Angle Shear Work Table Height (mm): 1185
Round Solid Bar Shear - MS (mm): Ø50
Square Solid Bar Shear - MS (mm): 50 x 50
Solid Bar Shear Work Table Height (mm): 1310
Notching - Rectangle - MS (mm): 63.5 x 90 x 13
Notching Work Table Height (mm): 920
Multi Vee Die Block (mm): ~
Vee Opening Sizes (mm): ~
Max. Tonne Capacity (T): ~
Bending Work Table Height (mm): ~
Motor Power (kW / hp): 11 / 15
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 4220
