IW-45K Hydraulic Punch & Shear - 45 Tonne Single Hydraulic Cylinder System Includes Auto Touch & Cut

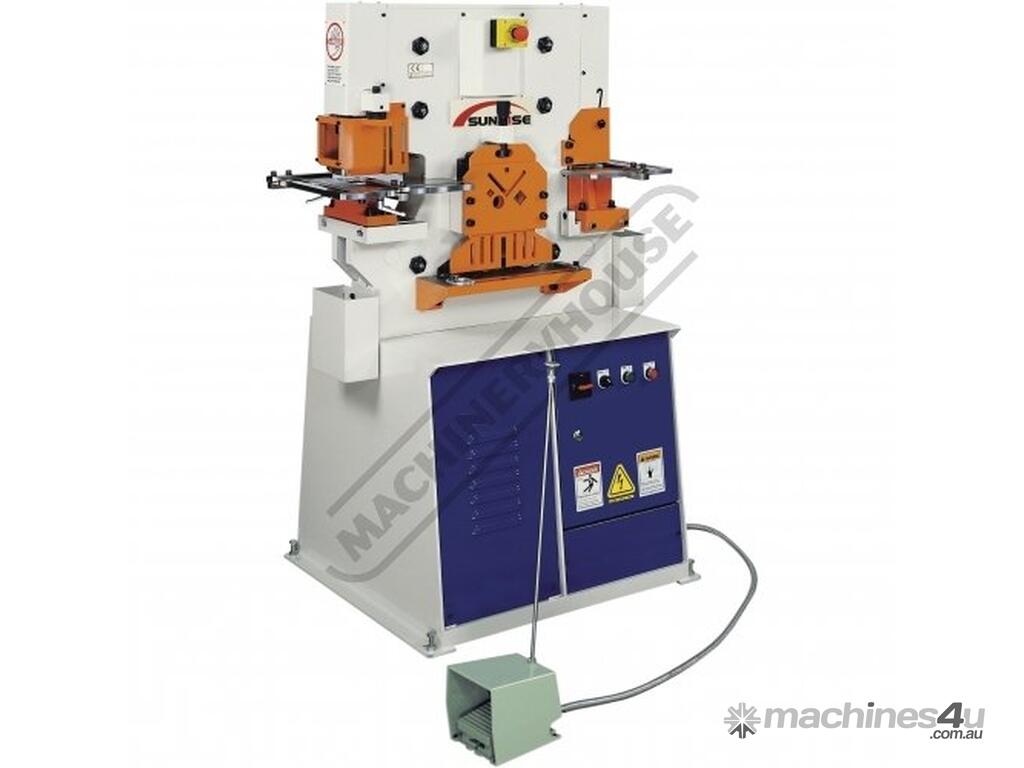

SUNRISE IW-45K Hydraulic Punch & Shear - 45 Tonne Single Hydraulic Cylinder System Includes Auto Touch & Cut Systems & 6 Sets of Round Punches & Dies
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P171

The Sunrise Punch & Shears are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

The hydraulic system & components that drives the shearing beam & punching head is considerably very quiet compared to most other machines and operates efficiently smooth in all modes. The electrical components & DC control circuit are operated at a low 24 volt system & provides full protection & safety with in the separate key locked cabinet.

The Sunrise machines have proven themselves over & over again to provide trouble free service for many years in production and we have references all around Australia to verify our statement.

Features:
Punching capacity up to 40mm standard
Power inching for easy job set up
Adjustable stroke for faster punching
Punch table and shear table both fitted with guides as standard
All work stations guarded
Most cutting blades are four-sided for long life
Adjustable length stop with rule
Five work stations including notcher
Fully-filtered hydraulic system
Telemecanique electrical components

FLAT BAR SHEAR
Easily adjustable hold-down
Good visibility to blade line
Table support with guides
Angle flange trim/mitre to 45º
Shaped blade to give minimum distortion

SOLID BAR SHEAR
Adjustable hold-down for cleaner cut
Single multi-hole hold-down
Optional equipment for cropping channel tee and I-beam sections

ANGLE SHEAR
Safety guarding around hold-down
Easily adjustable hold-down
Four cutting edges to all blades
Mitre cut at 45º

NOTCHING SHEAR
Ideal for notching of flat bars and angles
Electrically interlocked safety guard for maximum safety and visibility
Gauging table included with stops for precise positioning

Pre-Commissioning:
1. Punch & Shear is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- 6 sets of round punches & dies:
- Punches: 26 28 & 30mm
- Dies: 20.7 23.2 25.2 27.2 29.2 & 31.2mm
- Full safety guarding at all workstations
- Tooling to all workstations
- Punch Shear & Notch support tables

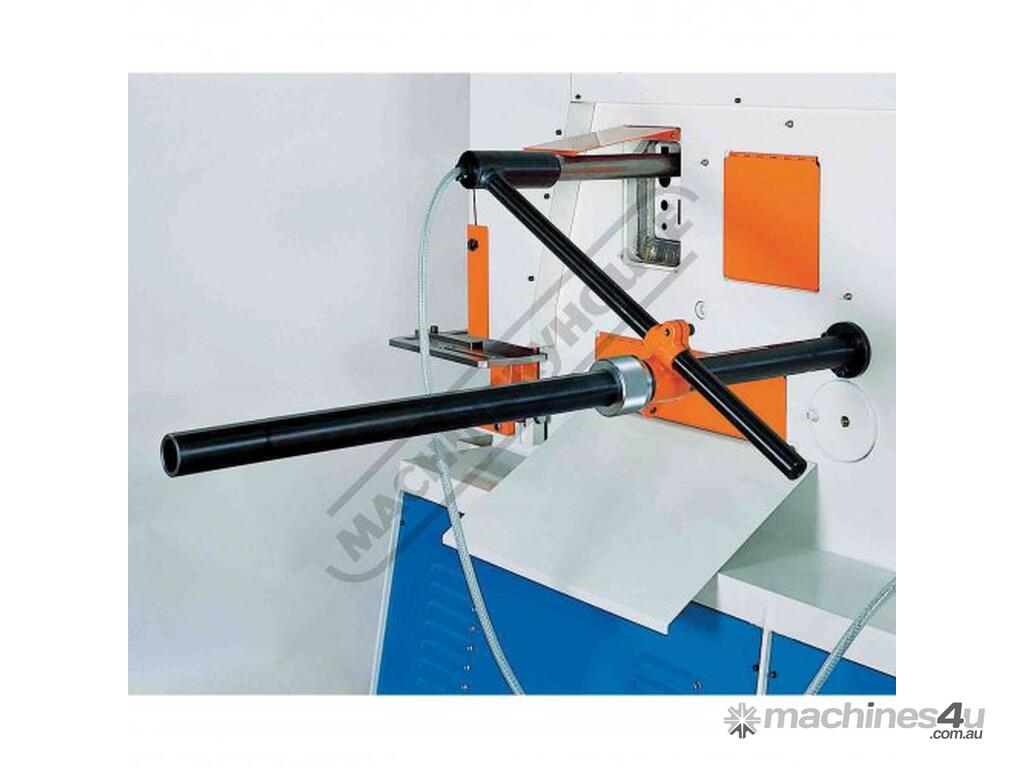

- 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece



Specifications:
ORDER CODE: P171
MODEL: IW-45K
Punching Pressure (Tonne): 45
Punching Table Type: Manual with Guides and
Punching Table Type: Adjustable Stops
Punching (Diameter x Thickness) - MS (mm): Ø22 x 15, Ø40 x 8
Punching Throat Depth (mm): 165
Punching Maximum Stroke Length (mm): 30
Punching Cycles (15mm Stroke) - MS (cpm): 37
Punching Work Table Height (mm): 1050
Flat Bar Shear (W x Thickness) - MS (mm): 300 x 10
Flat Bar Shear - Blade Length - MS (mm): 310
Flat Bar Shear Work Table Height (mm): 800
Angle Shear 90º - MS (mm): 75 x 75 x 6
Angle Shear 45º - MS (mm): ~
Angle Flange Trim (mm): ~
Angle Shear Work Table Height (mm): 1000
Round Solid Bar Shear - MS (mm): Ø30
Square Solid Bar Shear - MS (mm): 25 x 25
Solid Bar Shear Work Table Height (mm): ~
Notching - Rectangle - MS (mm): 50.8 x 90 x 7
Notching Work Table Height (mm): 1050
Multi Vee Die Block (mm): ~
Vee Opening Sizes (mm): ~
Max. Tonne Capacity (T): ~
Bending Work Table Height (mm): ~
Motor Power (kW / hp): 3.75 / 5
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 940
