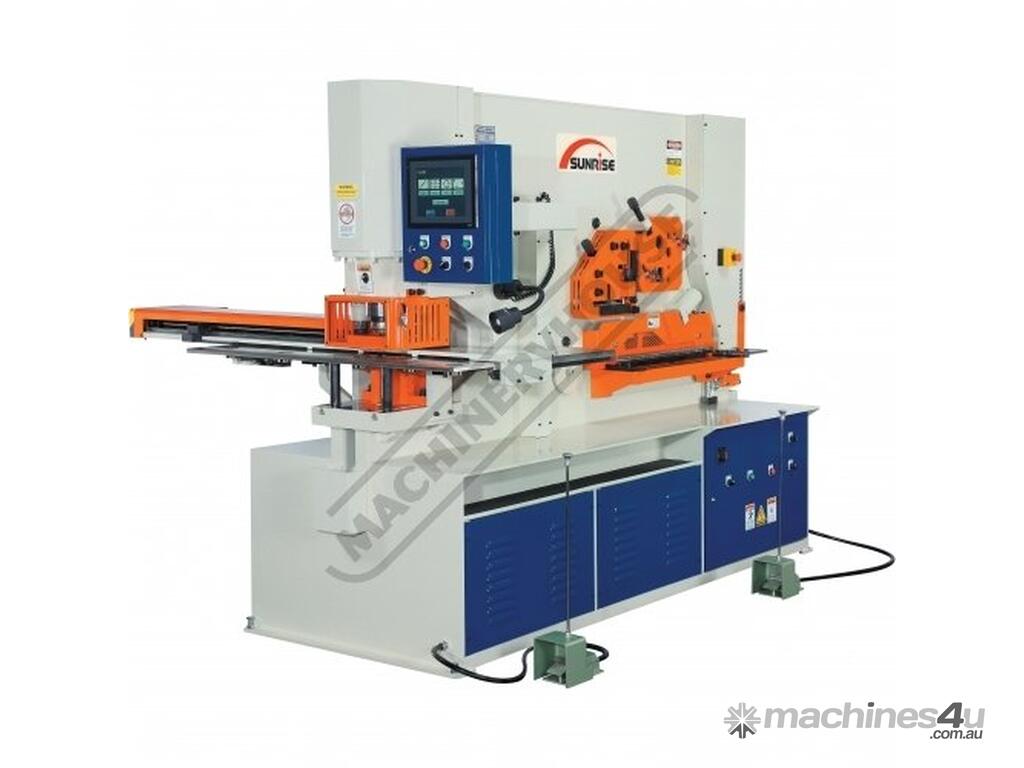

SUNRISE IWNC-80SD Hydraulic Punch & Shear with NC Table - 80 Tonne Dual Hydraulic Cylinders with Independent Operating Stations Includes NC Programmable Positioning Table 1000 x 400mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P175C

The Sunrise Punch & Shears are manufactured in Taiwan, also known as Ironworkers are well recognised in our Australian market for the machines being reliable & durable due to their structurally well manufactured unique design & engineering excellence. Sunrise is ISO-9001 certified by BVQI, and our products meet the CE safety requirements and regulations. Sunrise relentlessly seeks continuous improvement and product development to keep a step ahead of their competitors.

The Semi-Automatic CNC positioning tables from SUNRISE are plate and angle positioning systems with touch-screen interfaces. The CNC positioning table is available as a factory-installed option on any dual-cylinder ironworker or punching machine with a 510mm or larger throat depth. The operation and programming are CNC controlled using a pendant mounted controller featuring simple programming and a virtually indestructible design. The operator simply positions the material against the CNC-controlled X and Y stops and initiates the punch program.

The Windows based PC Controller features a 15? Touch-Screen, WiFi and all flash-memory based Nexcom computer. The software provided handles a wide variety of programming needs whilst also being simple to operate.

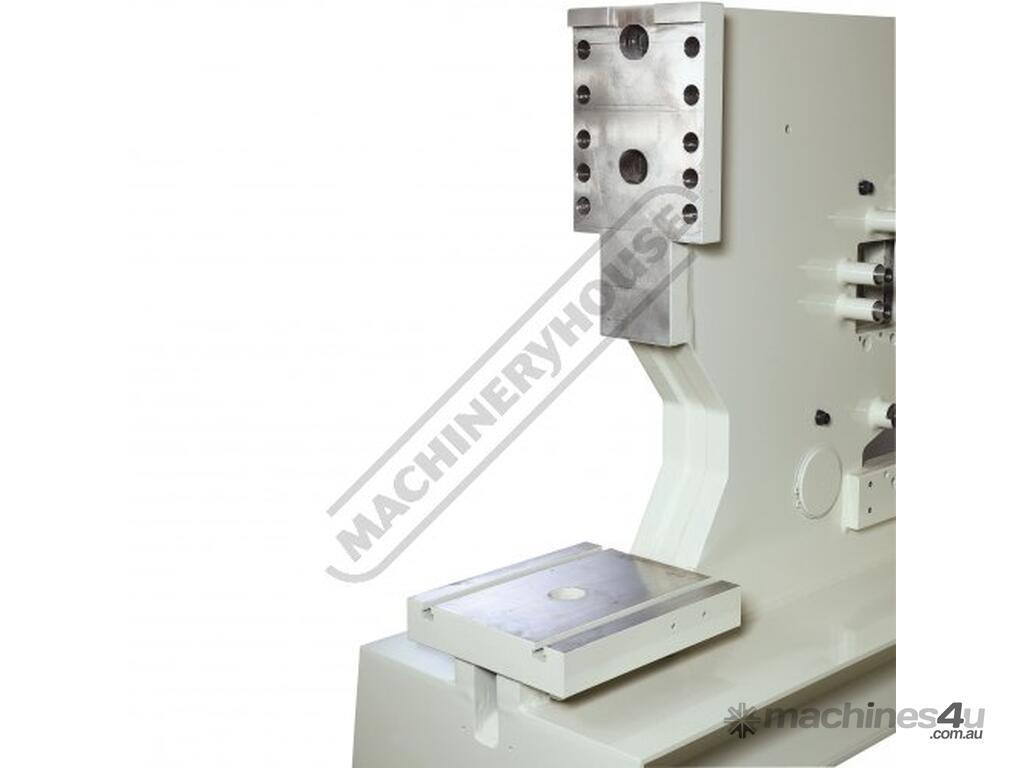

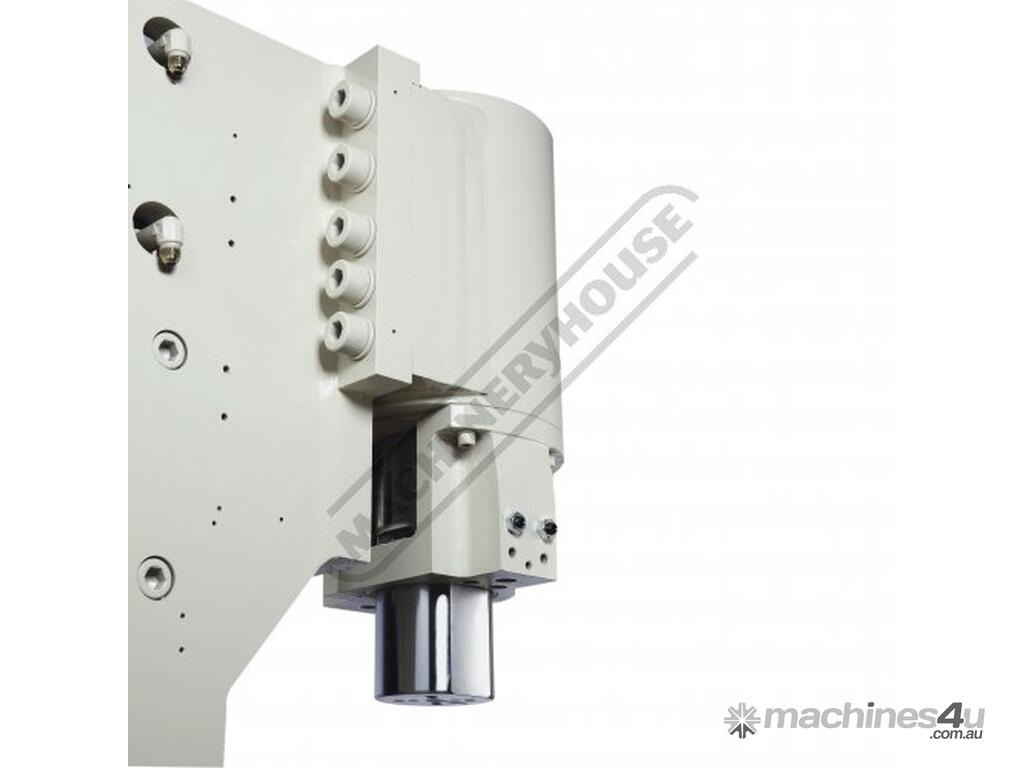

The double cylinder "S/SD" series have two control foot pedals, & separate operations can be safely performed simultaneously without interference. The low pressure setting for tool change provides maximum operation safety. The long punching cylinder stroke & deep throat enable mounting a wide range of special optional equipment. The large punching base with the "T-slot" fixing provide a solid base for securing the punching tooling, as well as a wide range of optional & custom designed tooling.

The hydraulic system & components that drives the shearing beam & punching head is considerably very quiet compared to most other machines and operates efficiently smooth in all modes. The electrical components & DC control circuit are operated at a low 24 volt system & provides full protection & safety with in the separate key locked cabinet.

The Sunrise machines have proven themselves over & over again to provide trouble free service for many years in production and we have references all around Australia to verify our statement.

Features:
NC programmable positioning table 1000 x 400mm
Stores up to 100 programs and each consisting up to 5 patterns
Pre-programmed patterns: line array arc and custom
Dual hydraulic cylinders allows simultaneous operation without interference

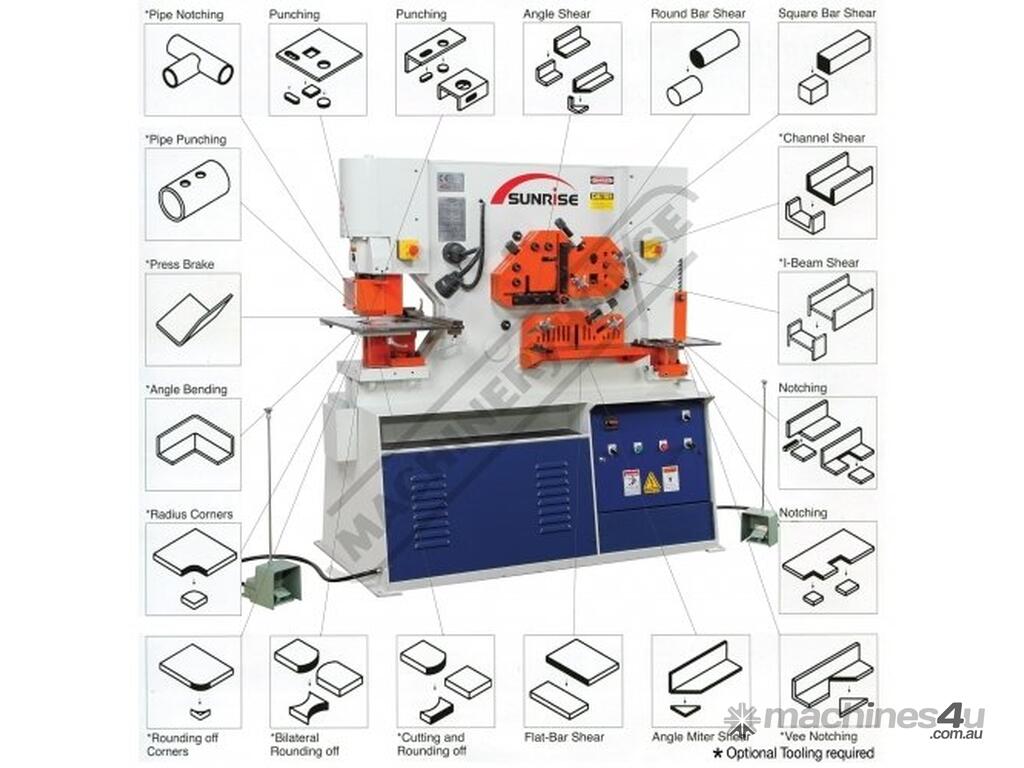

Five work stations Punching Notching Plate Shearing Angle Iron Shearing and Bar Shearing (all stations are guarded)
Punching capacity up to 50mm standard

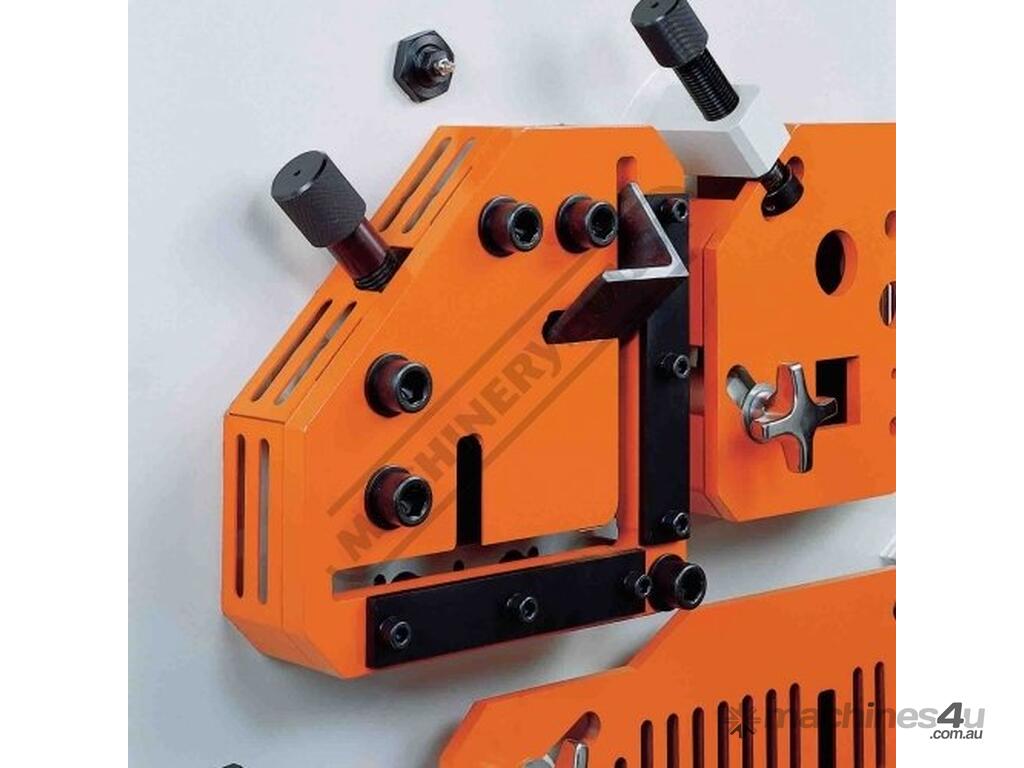

Mitre cutting of angle iron

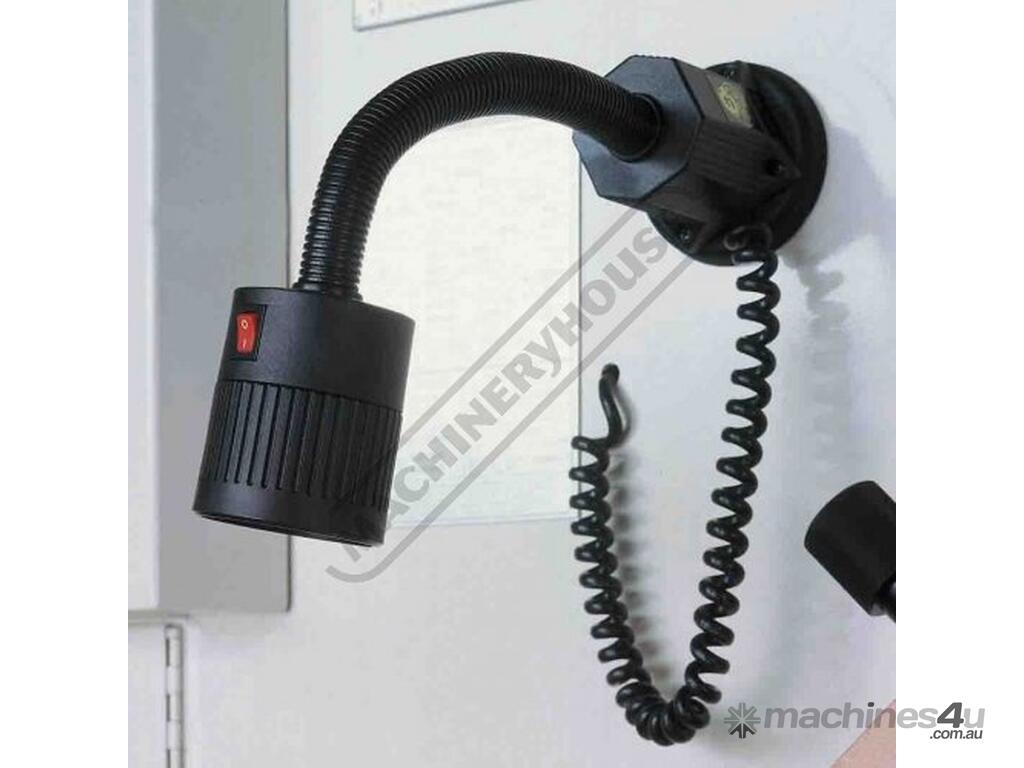

Magnetic base halogen lamp
Hydraulic system is protected with replaceable filter cartridge
Adjustable stroke for faster punching
Curved shear blade for minimal job distortion
Most cutting blades are four-sided for long life
Punch shear & notching table fitted with stops & guides as standard
Two-pedal operation allows two people to work machine to greatly speed up production
Adjustable length stop with one-touch electronic backgauge for greater efficiency in repetitious work

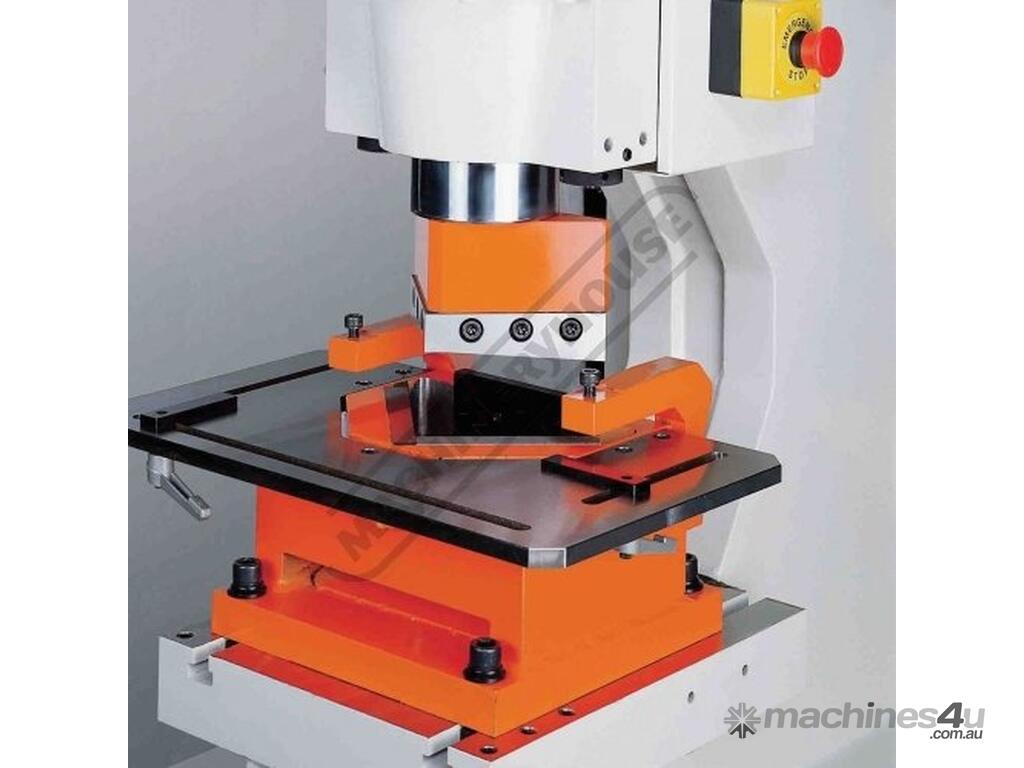

PUNCHING
Large hole punching up to Ø50mm as standard
Overhang bolster for punching channel & beam flanges
Large ruled support table with removable front section for leg down punching in angle or section
Easily adjustable stripper & safety guard

Pre-Commissioning:
1. Punch & Shear is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes:
- Full safety guarding at all workstations
- Tooling to all workstations
- Punch Shear & Notch support tables
- Now with Quick Change Tooling
- 1 metre adjustable "Auto touch length stop" once the material has pushed the micro-switch stop the hydraulic system is activated to shear work piece



Specifications:
ORDER CODE: P175C
MODEL: IWNC-80SD
Punching Pressure (Tonne): 80
Punching Table Type: NC Positioning
Punching Table Type: 1000 x 400mm (X & Y-Axis)
Punching (Diameter x Thickness) - MS (mm): Ø26 x 22, Ø50 x 12
Punching Throat Depth (mm): 510
Punching Maximum Stroke Length (mm): 100
Punching Cycles (15mm Stroke) - MS (cpm): 29
Punching Work Table Height (mm): ~

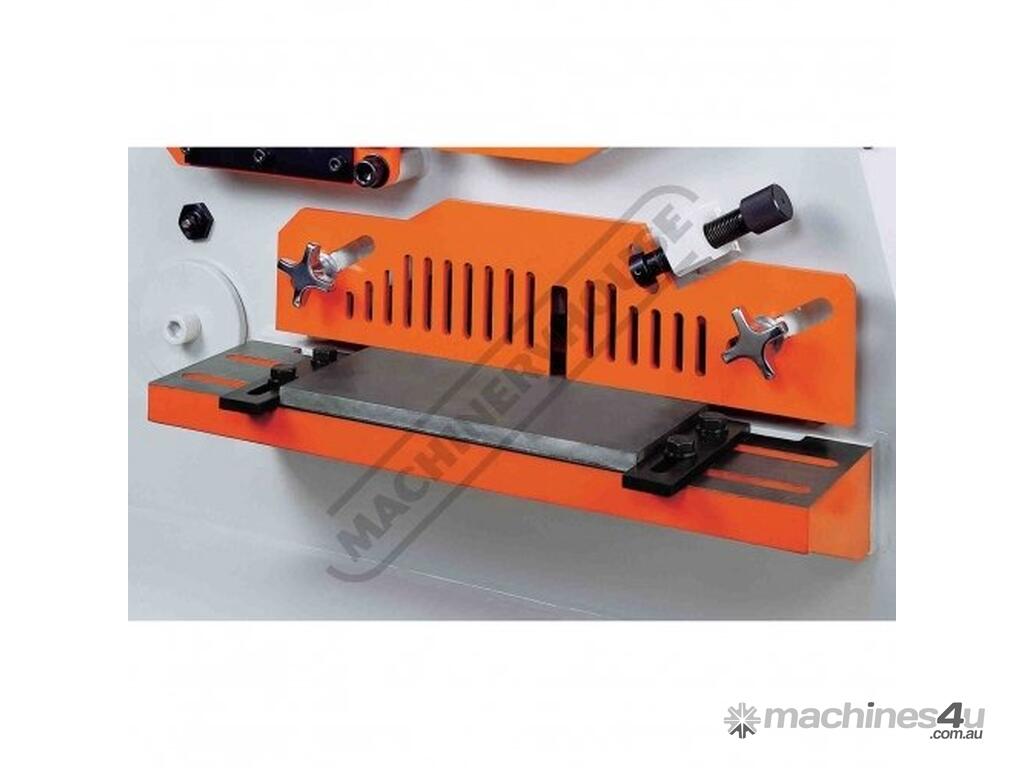

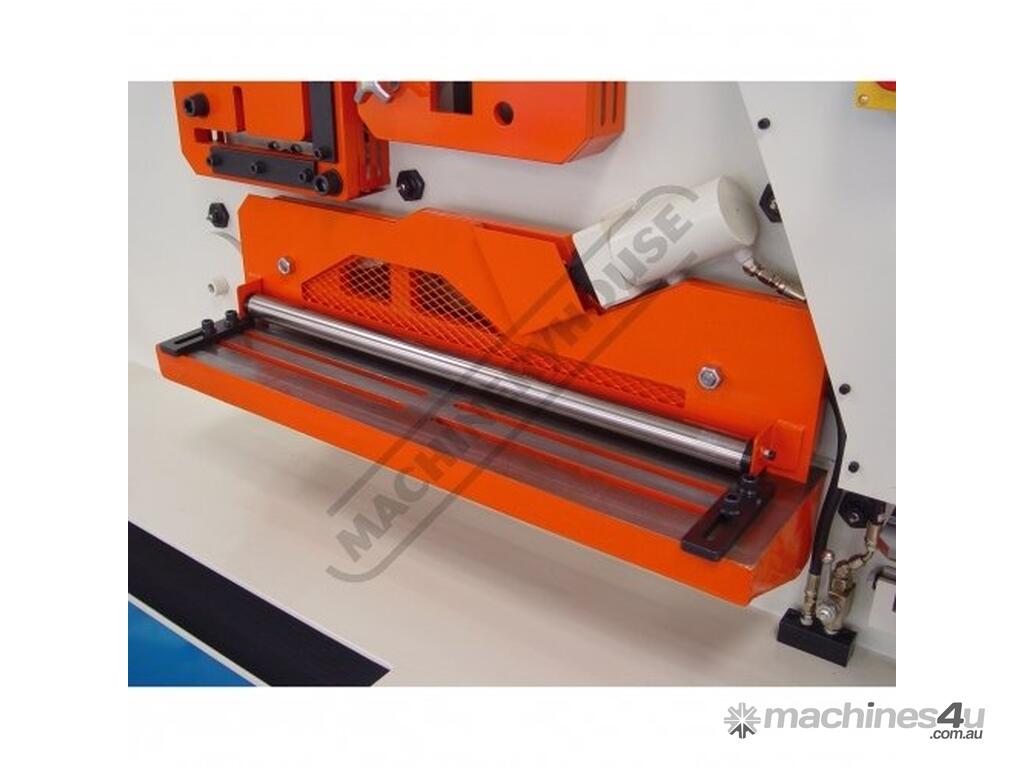

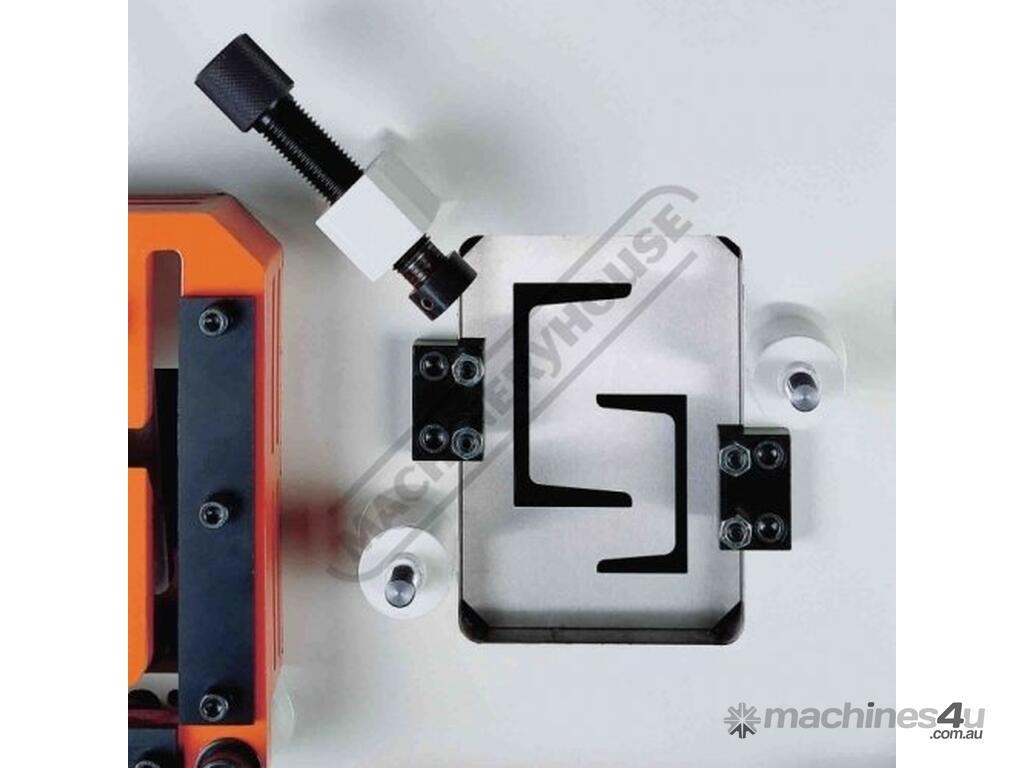

Flat Bar Shear (W x Thickness) - MS (mm): 460 x 15, 300 x 20
Flat Bar Shear - Blade Length - MS (mm): 465
Flat Bar Shear Work Table Height (mm): ~

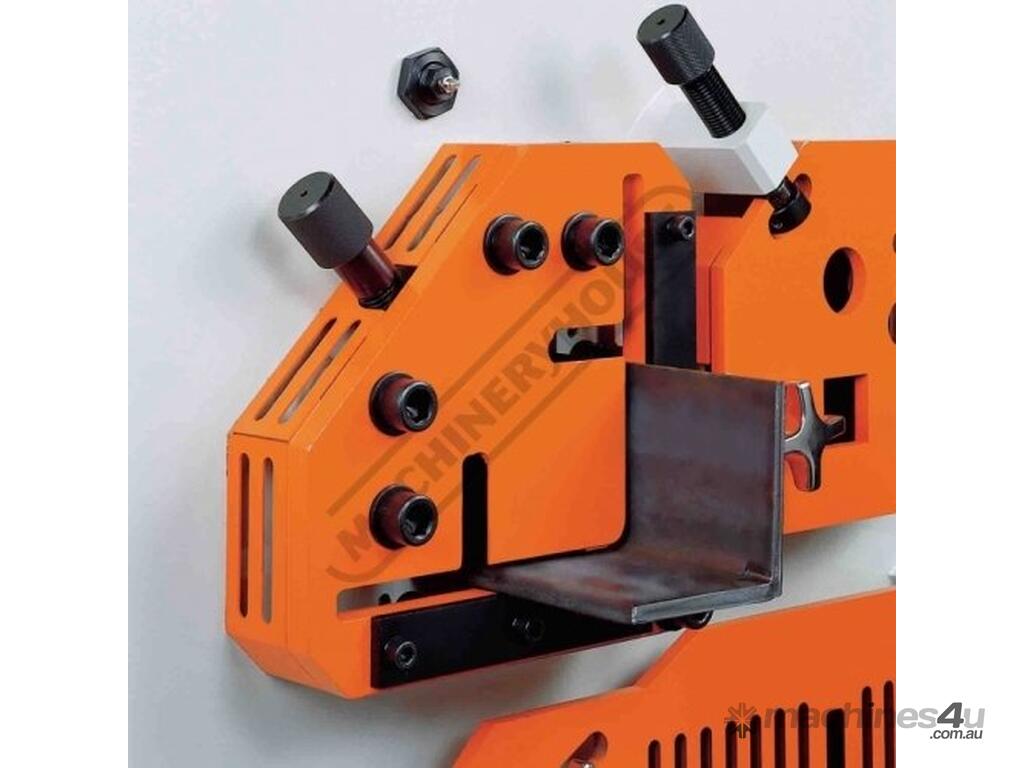

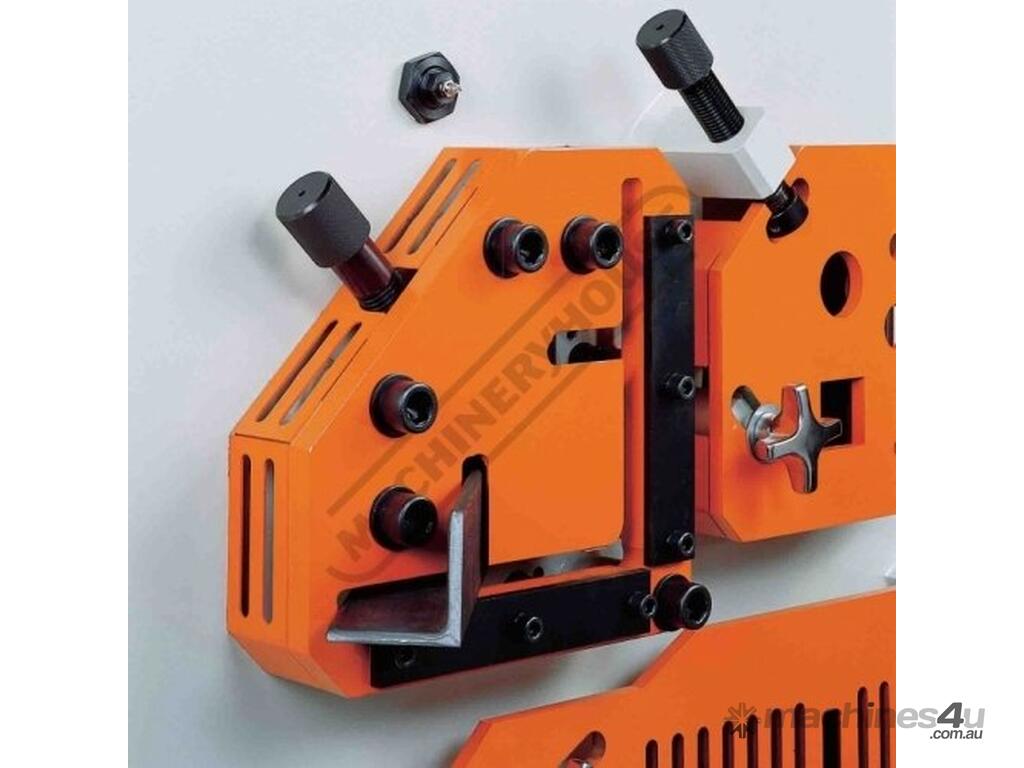

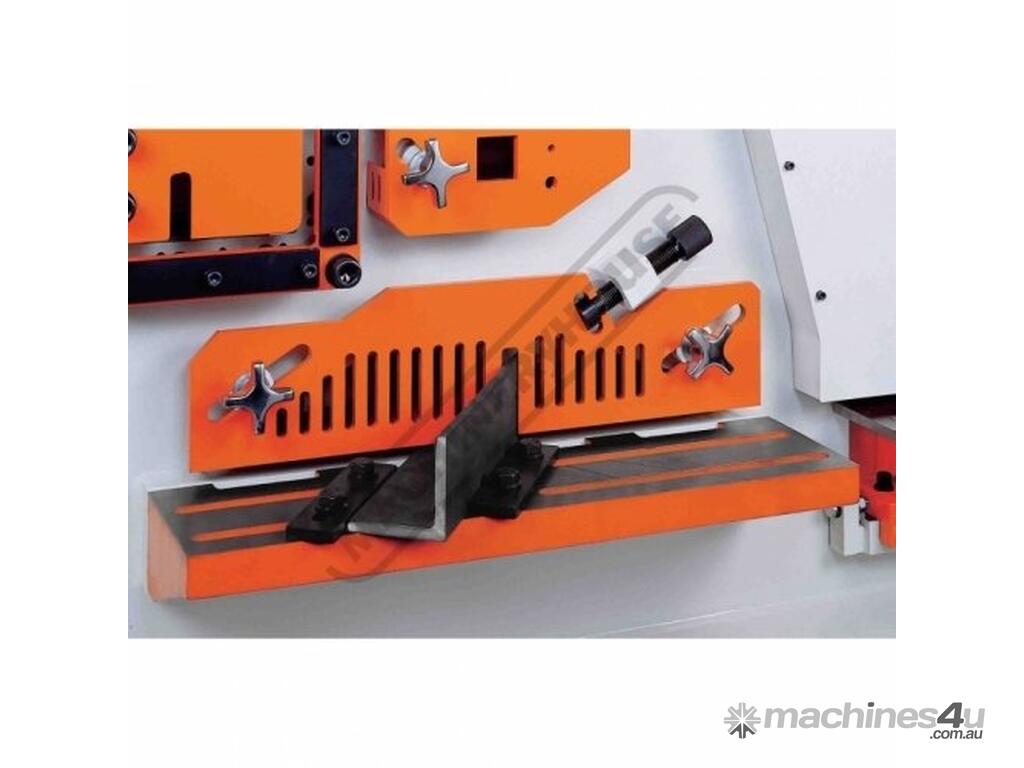

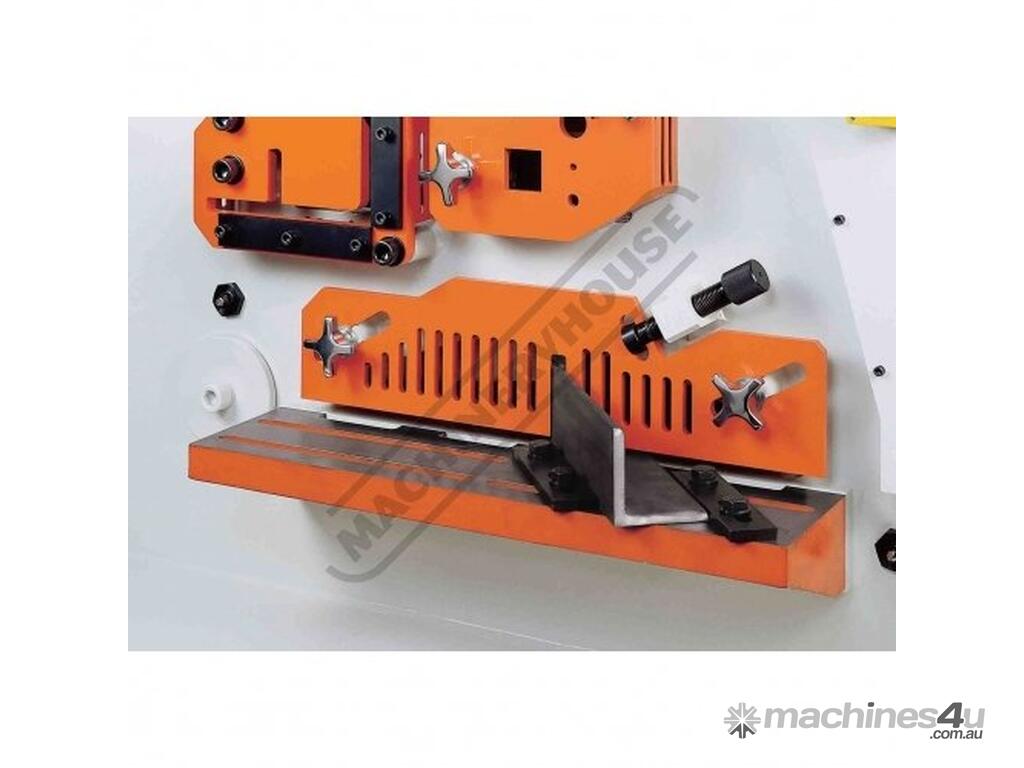

Angle Shear 90º - MS (mm): 152 x 152 x 13
Angle Shear 45º - MS (mm): 80 x 80 x 10
Angle Flange Trim (mm): ~
Angle Shear Work Table Height (mm): ~

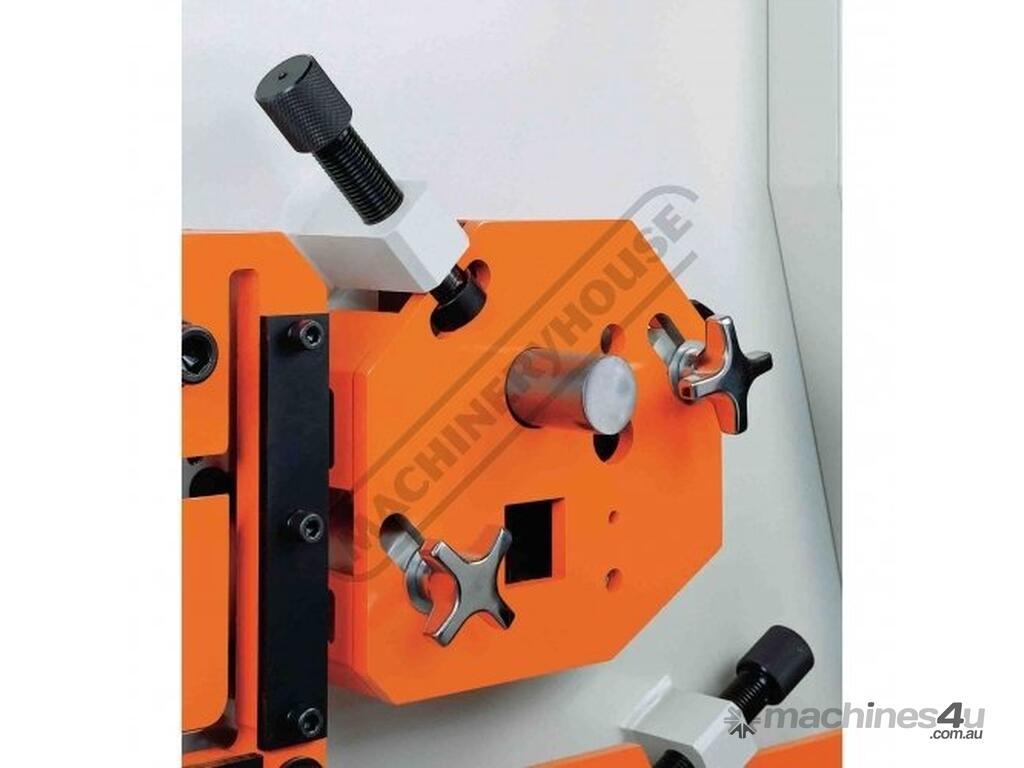

Round Solid Bar Shear - MS (mm): Ø45

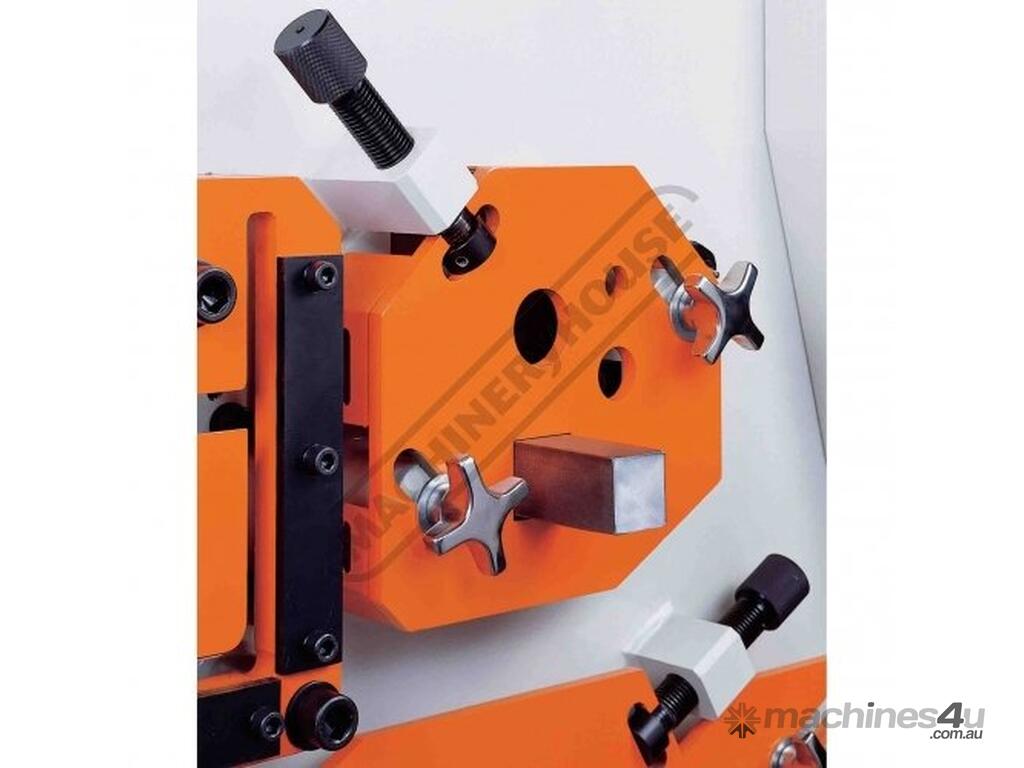

Square Solid Bar Shear - MS (mm): 45 x 45
Solid Bar Shear Work Table Height (mm): ~
Notching - Rectangle - MS (mm): 50.8 x 90 x 12
Notching Work Table Height (mm): ~
Multi Vee Die Block (mm): ~
Vee Opening Sizes (mm): ~
Max. Tonne Capacity (T): ~
Bending Work Table Height (mm): ~
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 3080
