In Stock ! Snorkel A62JRT Articulated Boom Lift

Max. Working Height: 20.8m
Max. Working Outreach: 11.1m
Platform Capacity: 227kg
Weight: 11,300kg

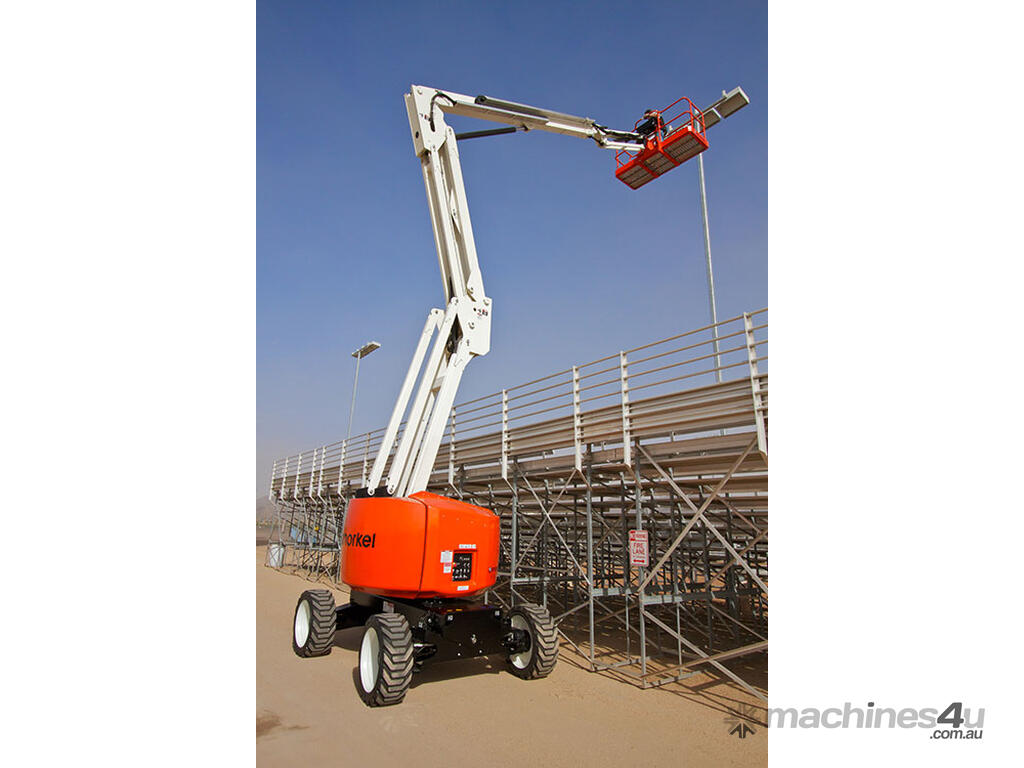

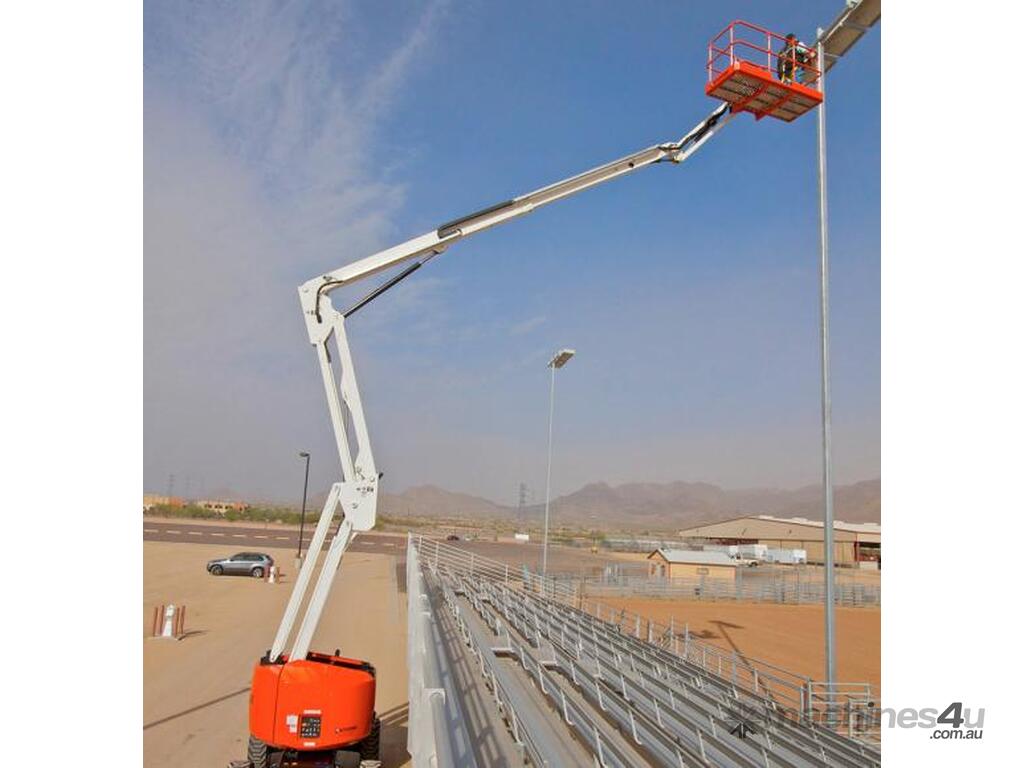

Launched in 2012, the Snorkel A62JRT is a high performance articulated boom lift, featuring a class-leading working envelope. With compact dimensions, zero tailswing and an ultra-tight turning radius, this lift is ideal for working in confined spaces, and also has powerful hydrostatic 4 wheel drive for tackling rough terrain jobsites. Ideal for construction and industrial applications.

STANDARD FEATURES
Snorkel Guard™ secondary guarding system
Powerful hydrostatic 4 wheel drive
Oscillating axle
Zero tailswing
Ultra-tight turning radius

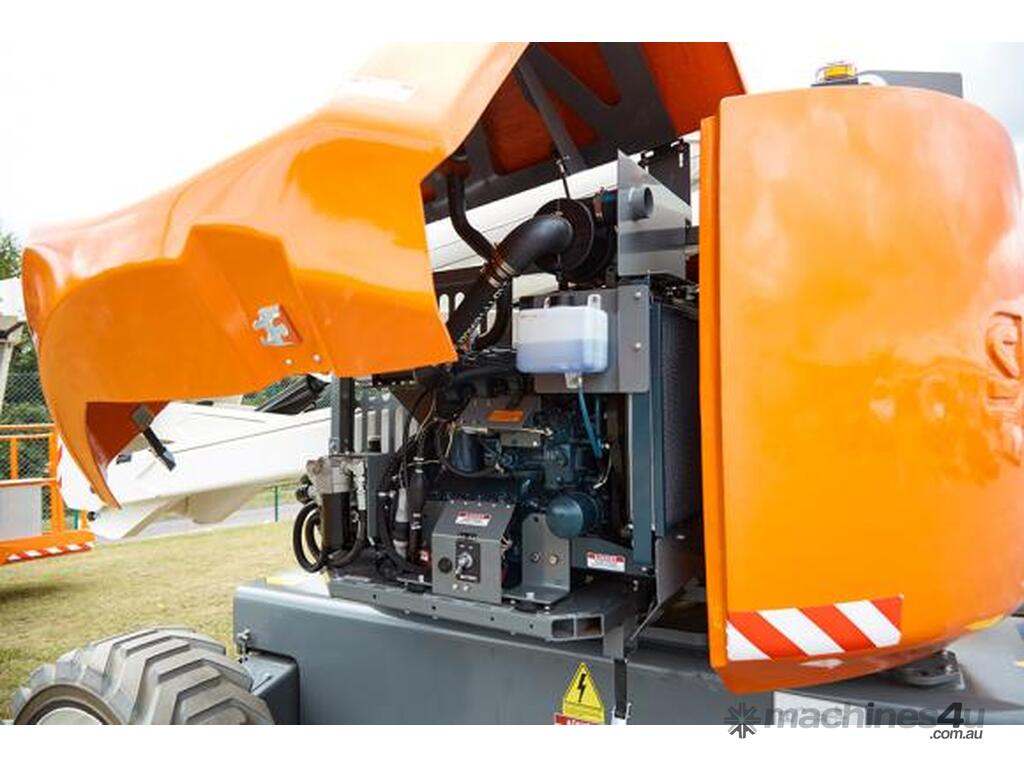

Swing-out engine tray

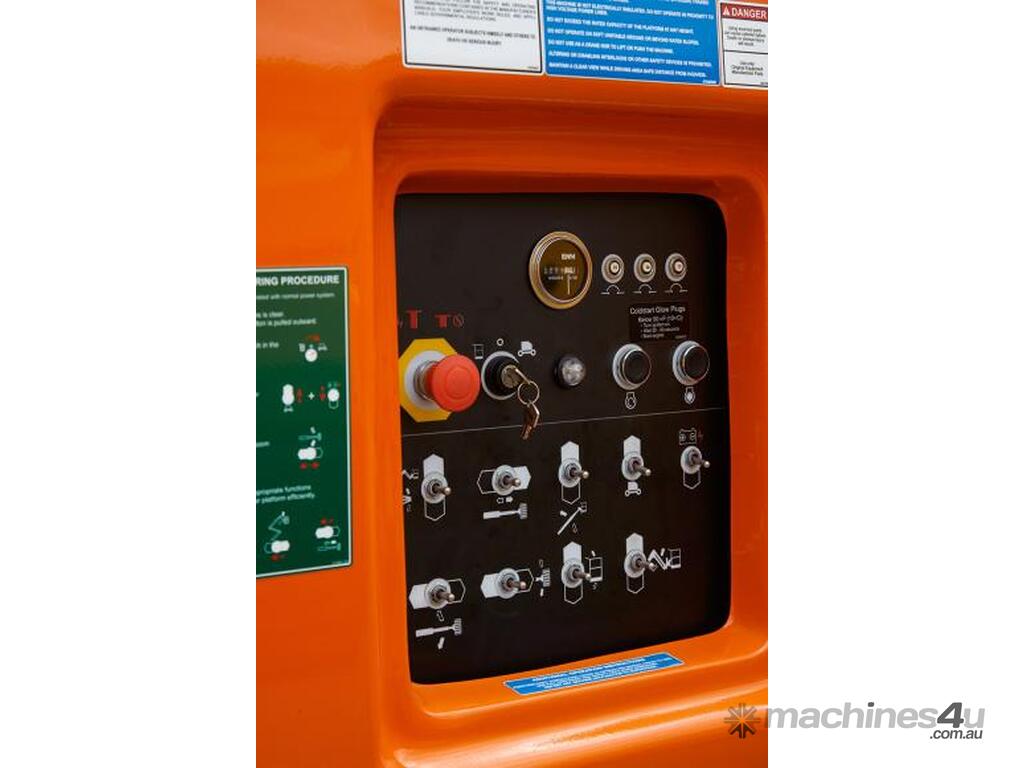

Hour meter & on-board diagnostic display
Motion alarm
Horn
Power line to platform
Flashing amber light
Tri-entry platform
DC emergency operation
2 year parts & labour, 5 year structural warranty
CE approved


Max Working Height
20.8m

Max. Platform Height
18.8m

Max Working Outreach
11.1m

Clearance Height at Max. Outreach
9.0m

Platform Size
2.44 x 0.91m

Overall Width
2.4m

Transport Length
8.5m

Overall Length
8.6m

Stowed Height
2.6m

Ground Clearance
350mm

Platform Capacity (SWL)
227kg

Max Drive Height
18.8m

Max. Wind Speed
12.5m/s

Max Drive Speed (stowed)
6.1km/h

Max Drive Speed (elevated)
1.2km/h

Jib Length
1.8m

Jib Arc
136°

Platform Rotation
180°

Turret Rotation
360° continuous

Tailswing
0m

Gradeability
45%

Inside Turning Radius
1.4m

Outside Turning Radius
4.6m

Tyres
355/55 D625 foam filled lug

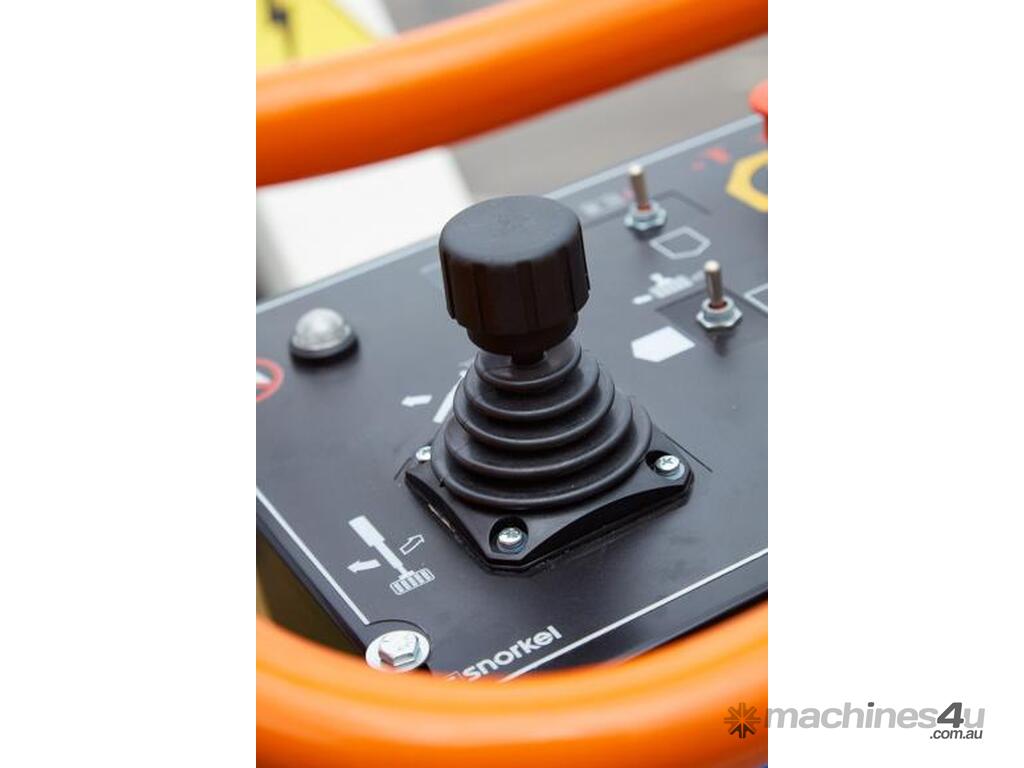

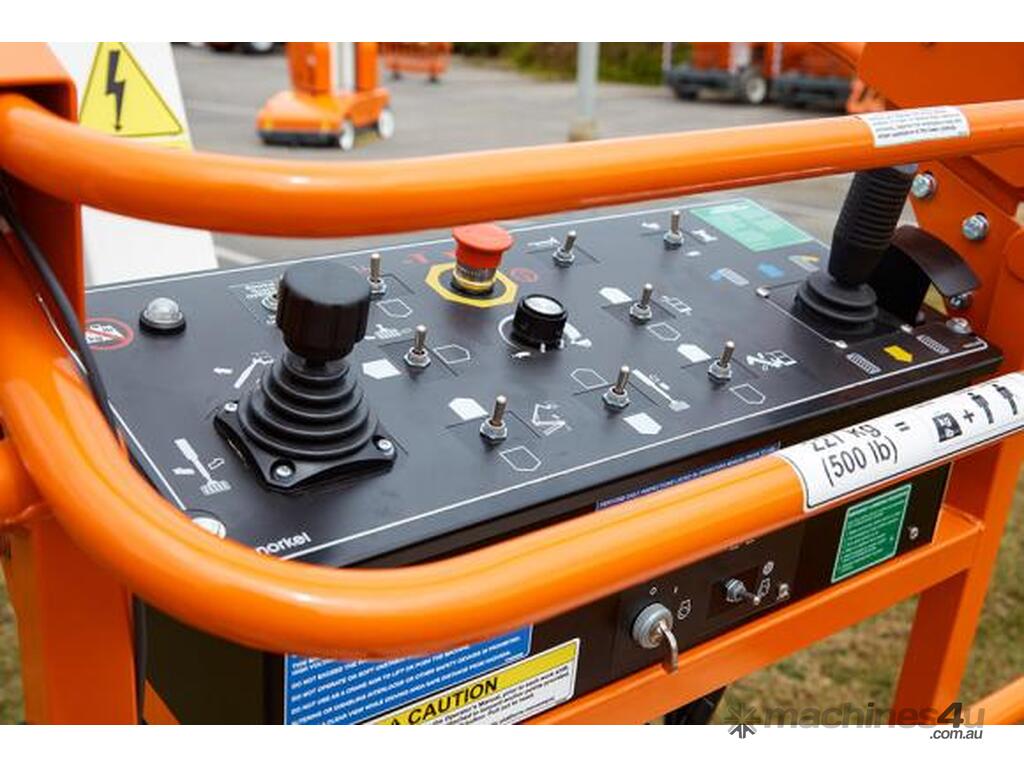

Controls
multi-function, proportional drive, raise & slew

Drive System
4WD hydrostatic with oscillating axle

Power Source
Kubota V2403M 48kW/65hp – EU Stage V*

Weight
10,659kg
