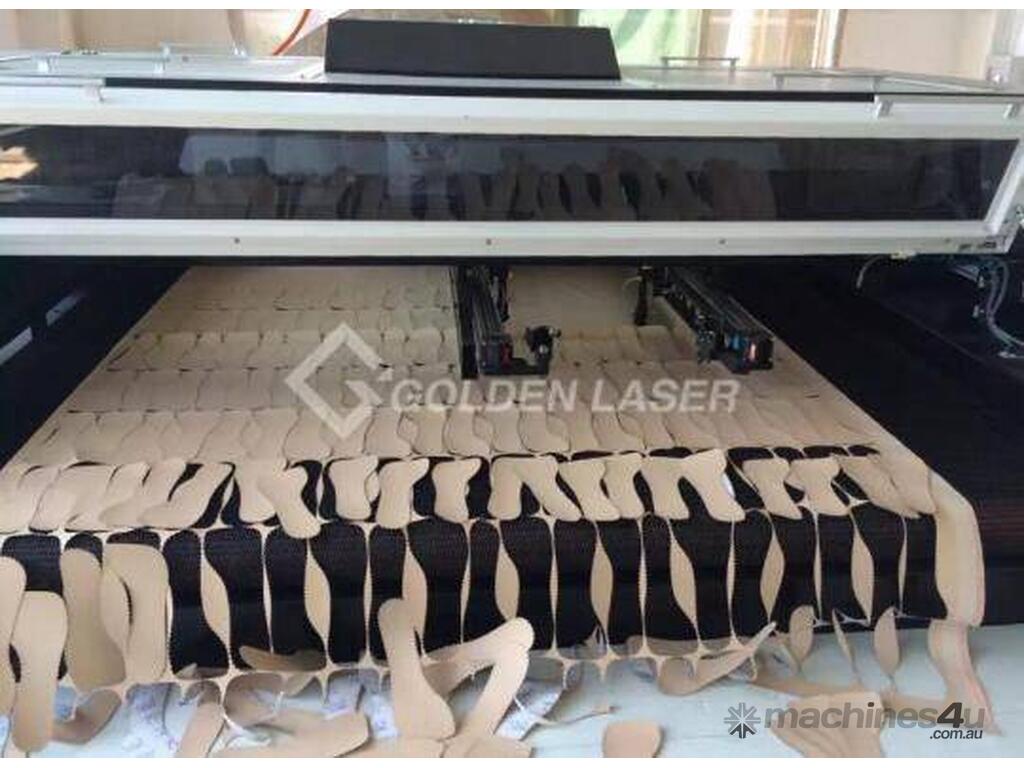

Independent Dual Head Leather Laser Cutting Machine for Footwear

Model No.: XBJGHY-160100LD II

Introduction:
Two laser heads work independently and cut different graphics simultaneously.
A variety of graphic mixed nesting to maximize material utilization.
High quality laser perforation, scribing, engraving, cutting at high speed.
High processing efficiency.
Support automatic feeding and collecting.


Model NO. : XBJGHY-160100LD
Laser type : CO2 DC glass tube
Laser power : 150W×2
Working area : 1600mm×1000mm
Working table : Automatic vacuum conveyor working table
Moving system : Servo motor
Power supply : AC220V±5%, 50/60Hz
Standard collocation : Constant temperature water chiller, exhaust fans, air compressor
Optional configuration : Filtration device, auto feeder, CO2 RF metal laser tube
