Industrial Built Geared Head Mill Drill With 3 Axis Digital Readout, Power Quill Feed,

### NEW Z AXIS POWER FEED NOW FITTED & 3 AXIS DIGITAL READ OUT##

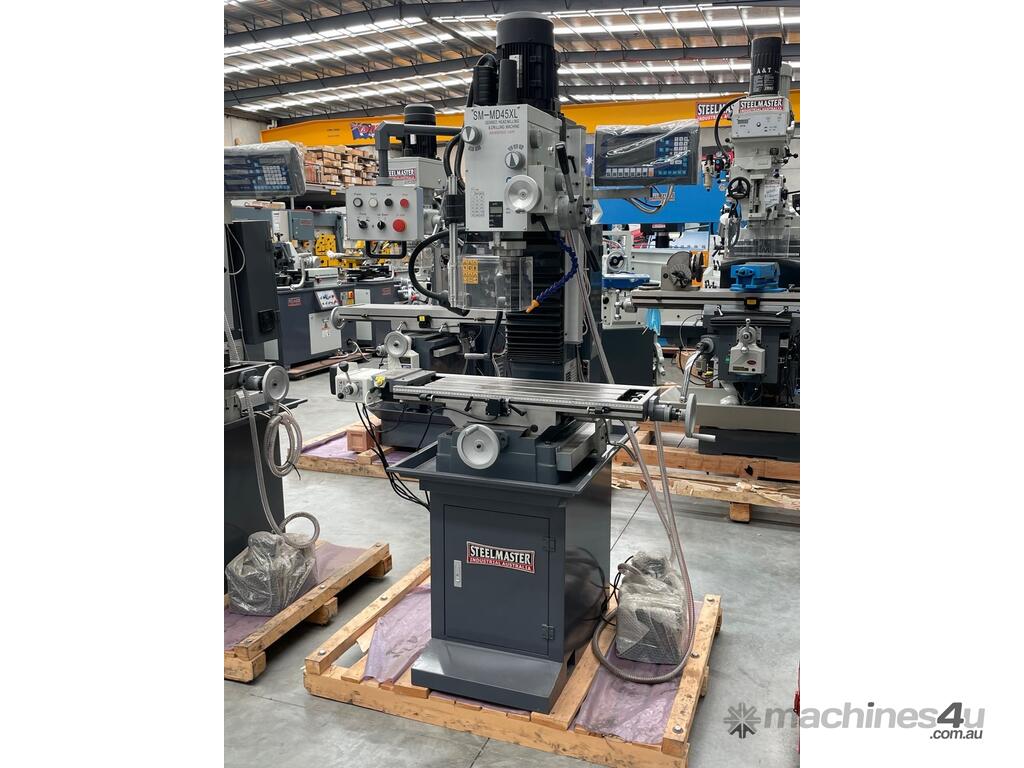

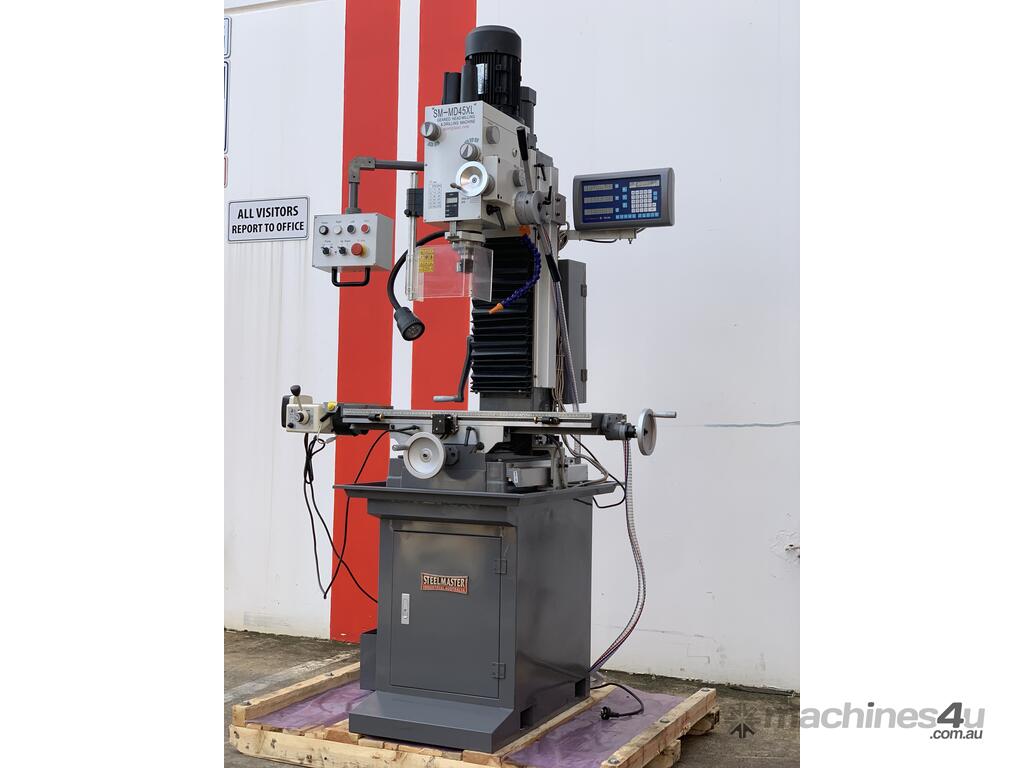

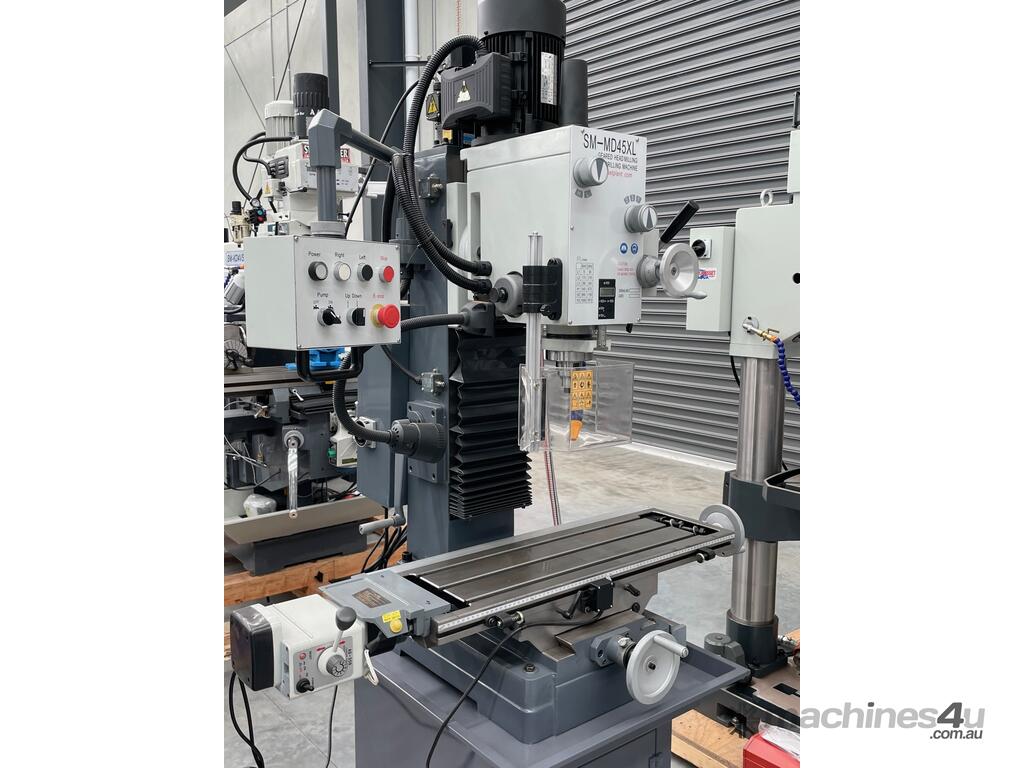

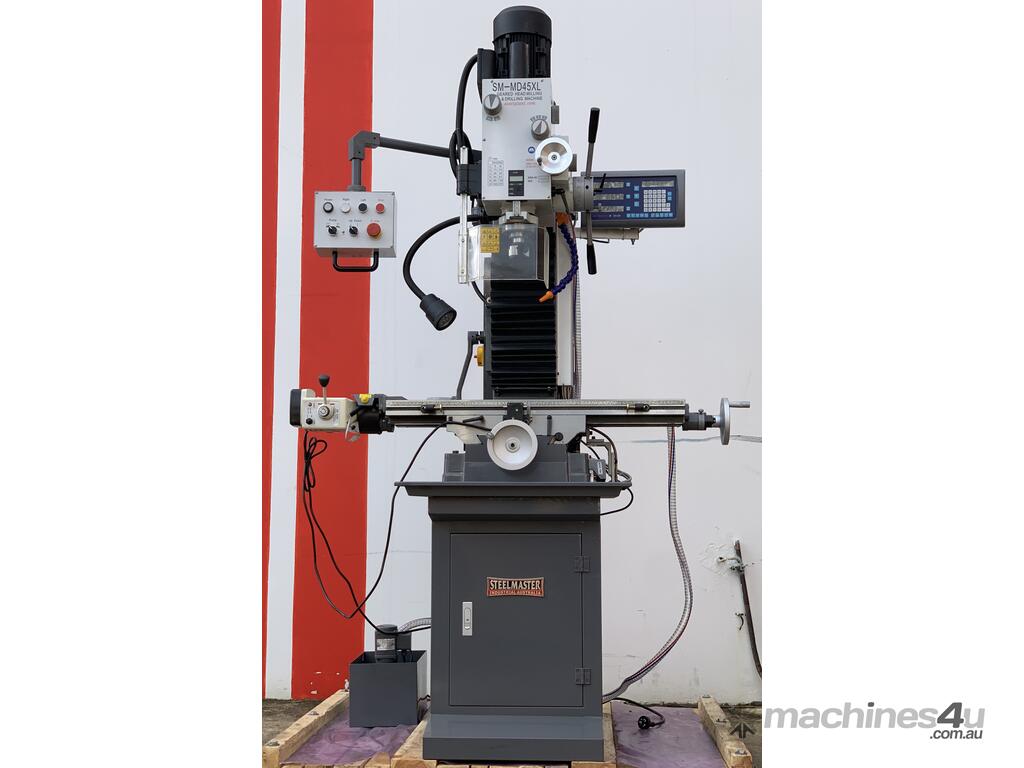

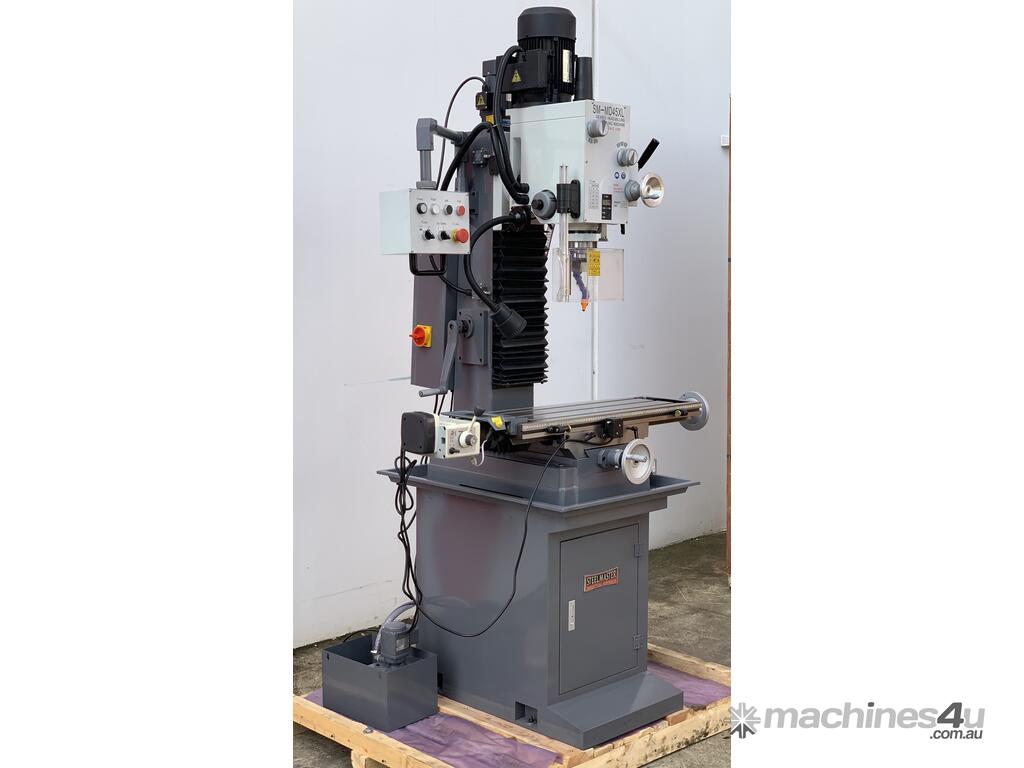

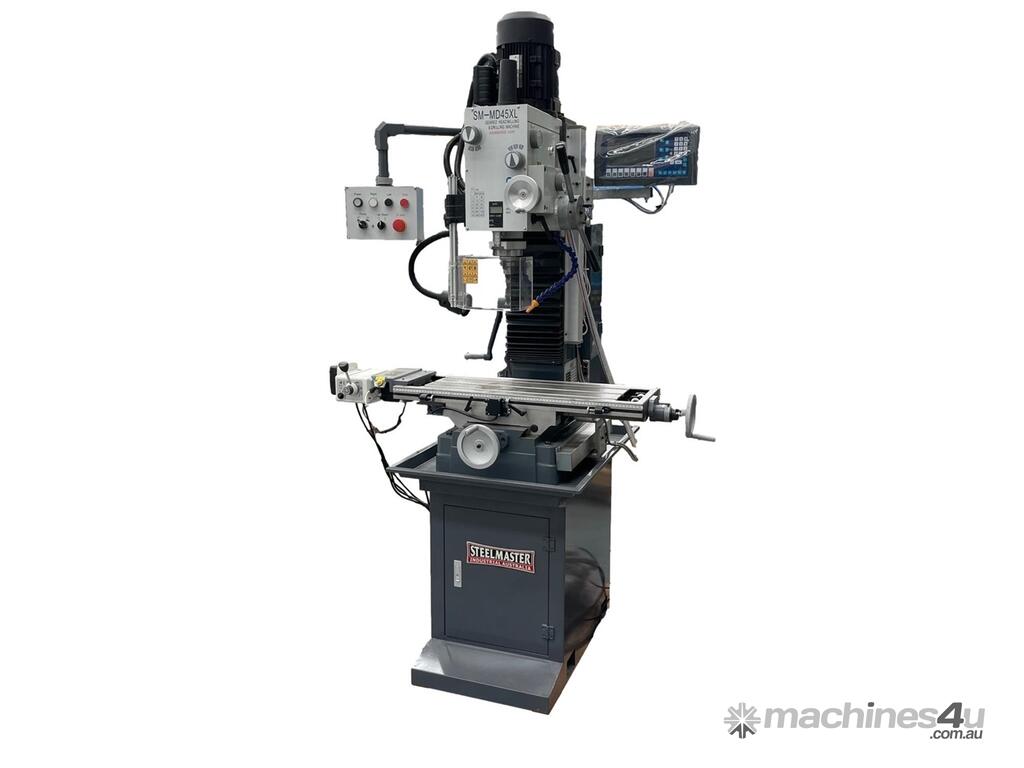

SM-MD45XL. Mill Drill with DRO. Steelmaster Geared Drive Mill Drill, Coolant, Dovetail Guides,Swivel Head, 4 MT Spindle, 820mm x 240mm Table, 75 ~ 1600 Speeds, 560/190/460mm X-Y-Z Travel, 240V

## NEW Z AXIS POWER FEED ALSO NOW INCLUDED & CARBIDE FACE CUTTER ##
Description
The latest addition to our line of milling/drilling machines sports a dovetail column with a power feed & 3 Axis Digital Read Out. That’s right! No more cranking the head up and down for tool changes or clearance, just push a button and save yourself the trouble. And there’s more great features, too! A stand is supplied that has a coolant return trough. This adds mass and convenience to an already exceptional gear head mill. Check out the specs and don’t forget the tooling. You’ll want to fire this puppy up the minute it’s delivered!

Features

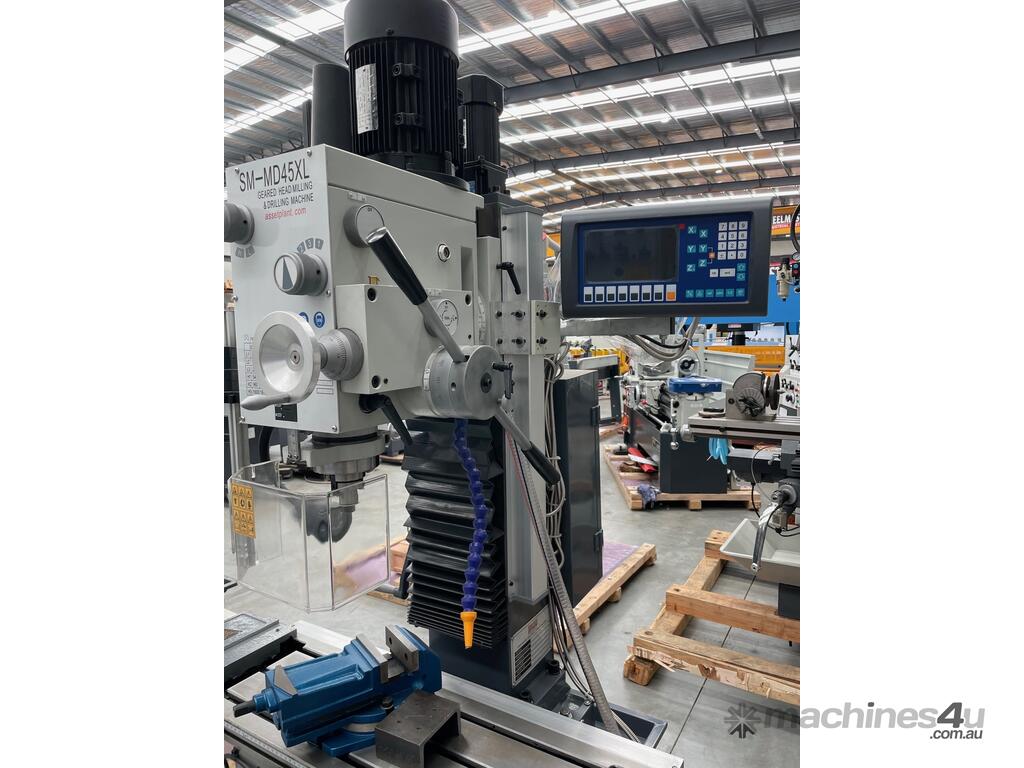

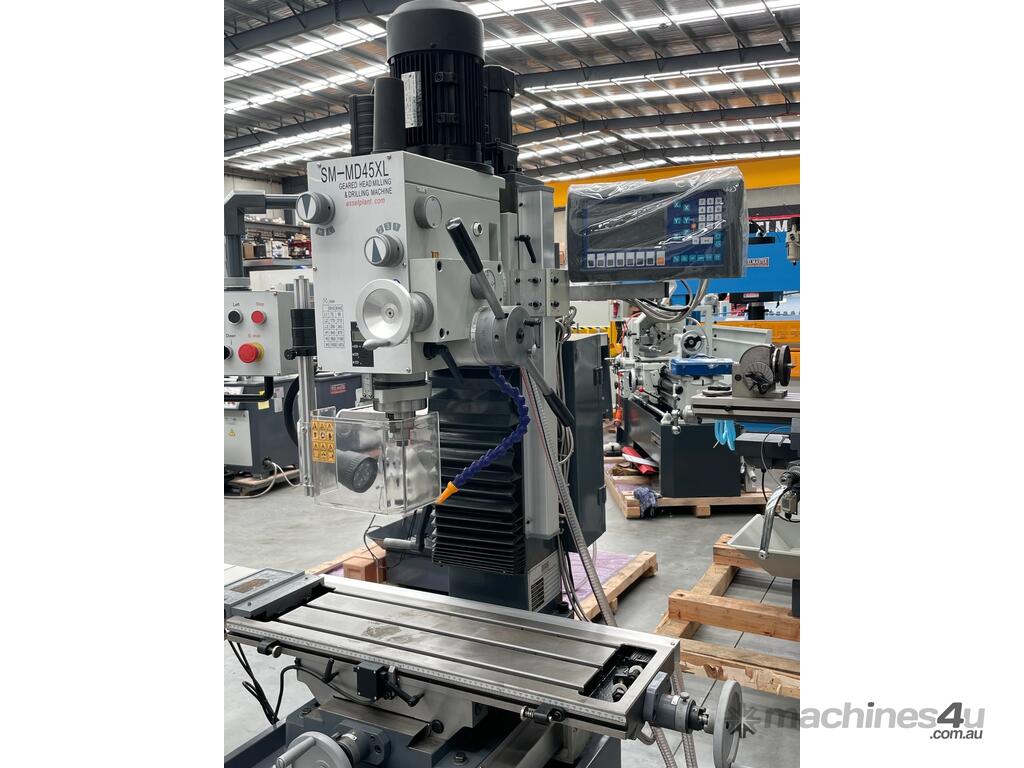

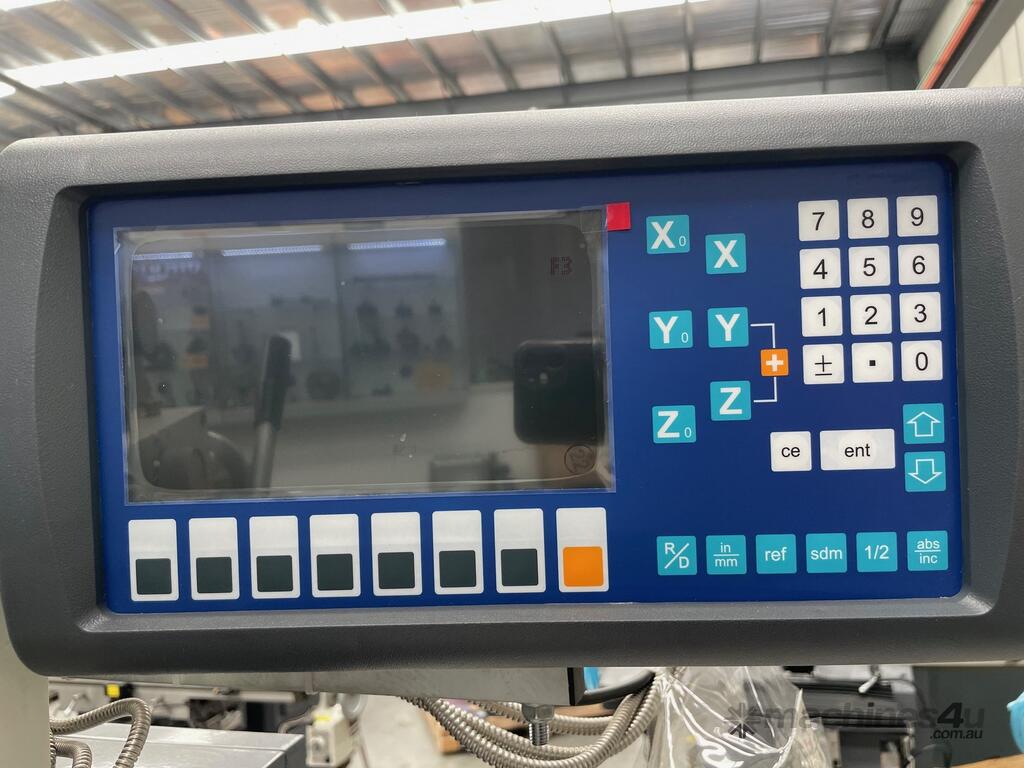

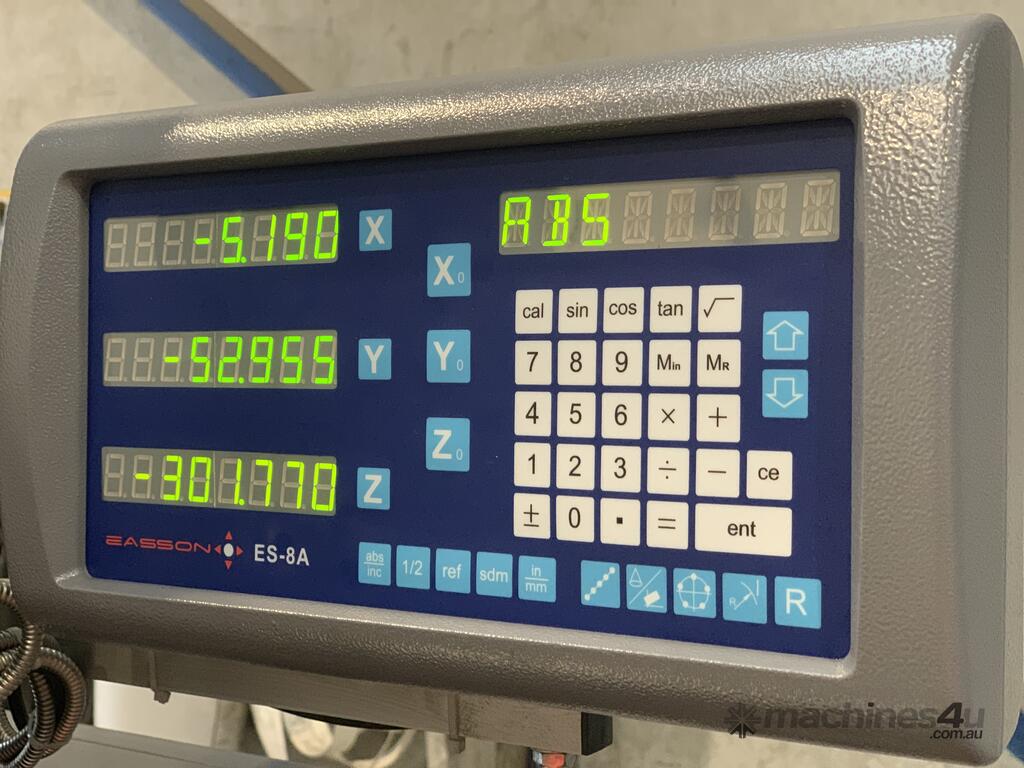

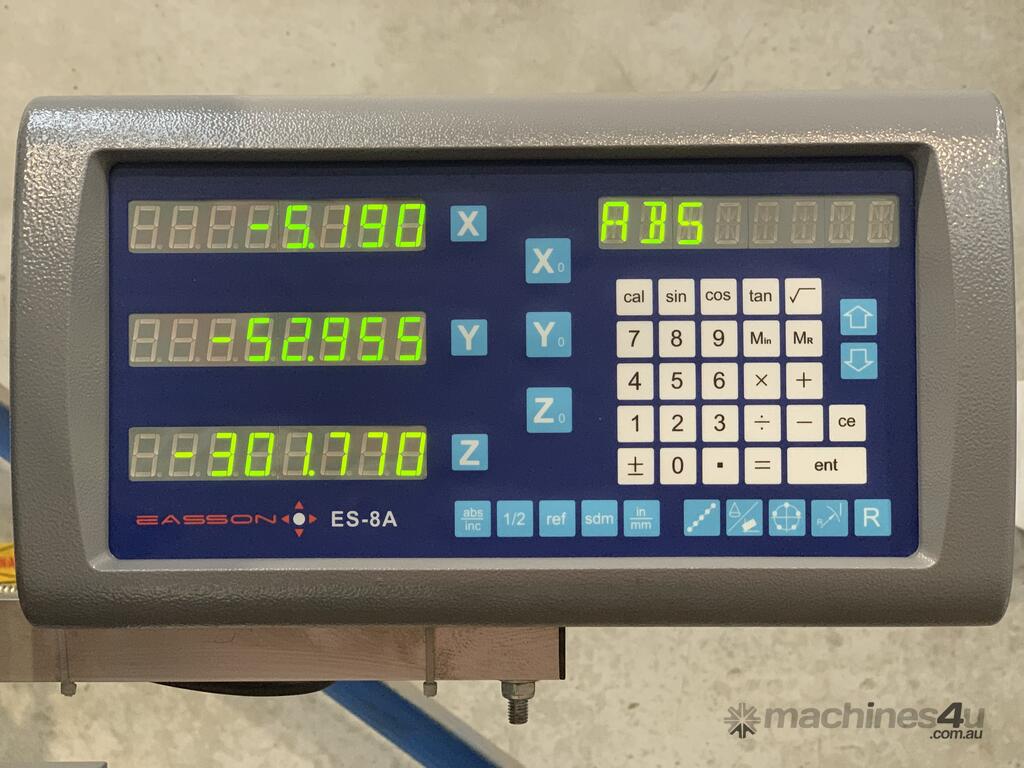

?3 axis DRO

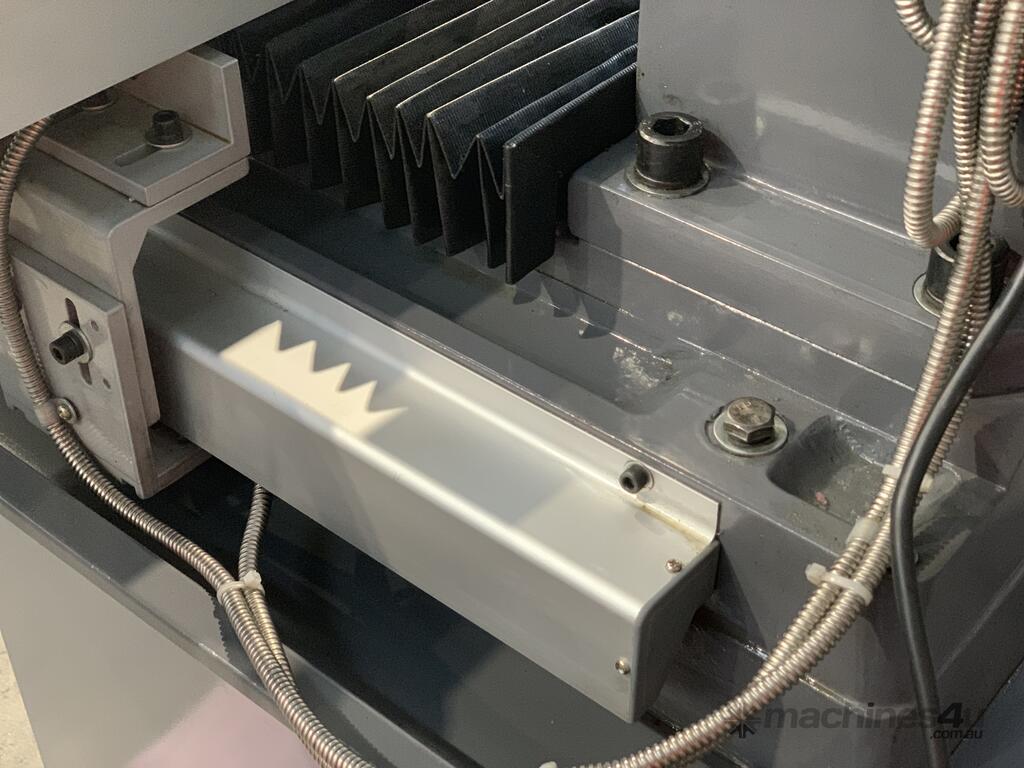

?power up & down via dovetail guides

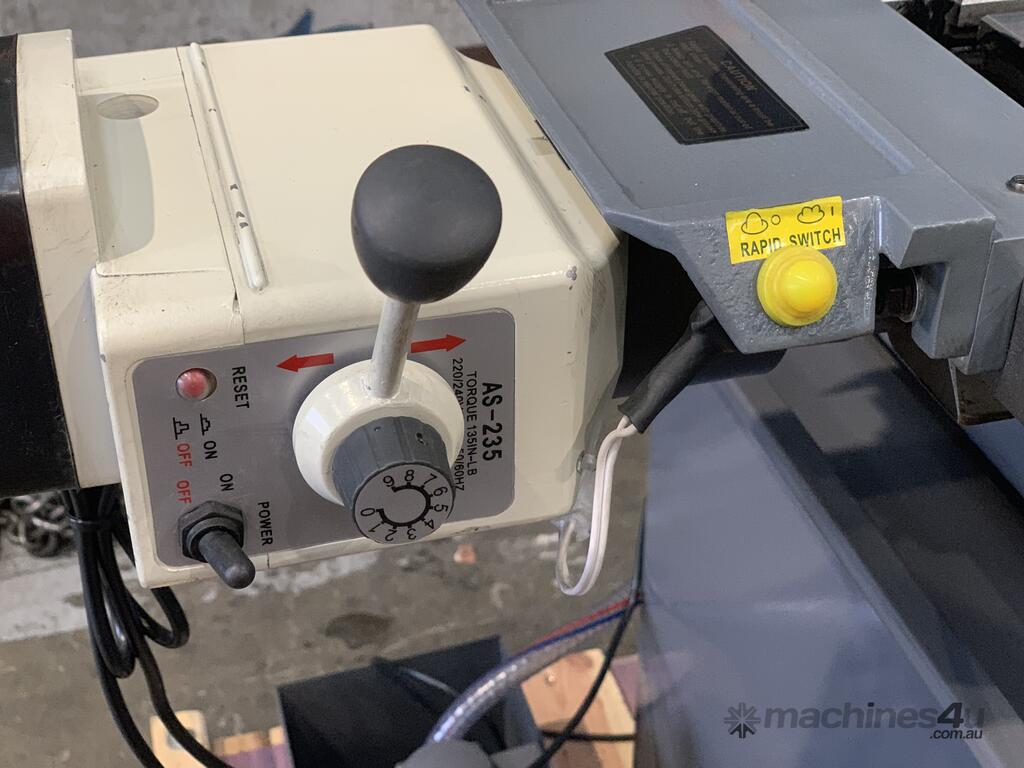

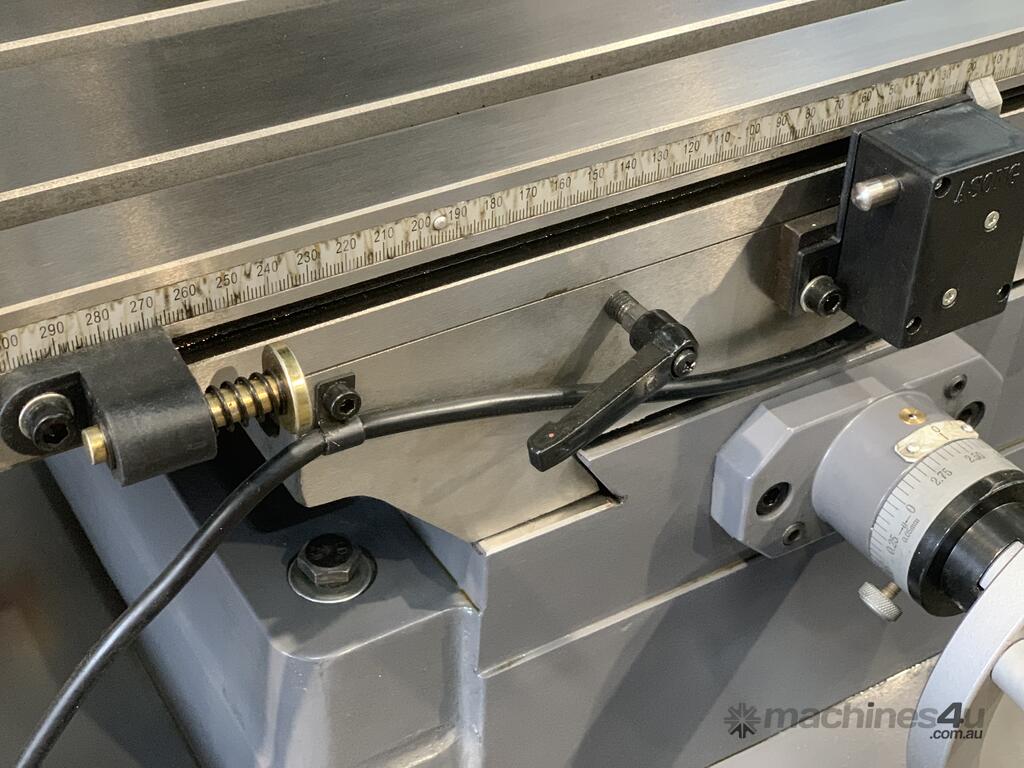

?power feed of work table
?draw bar spindle for milling
?large MT4 (morse taper)
?forward and reverse operation

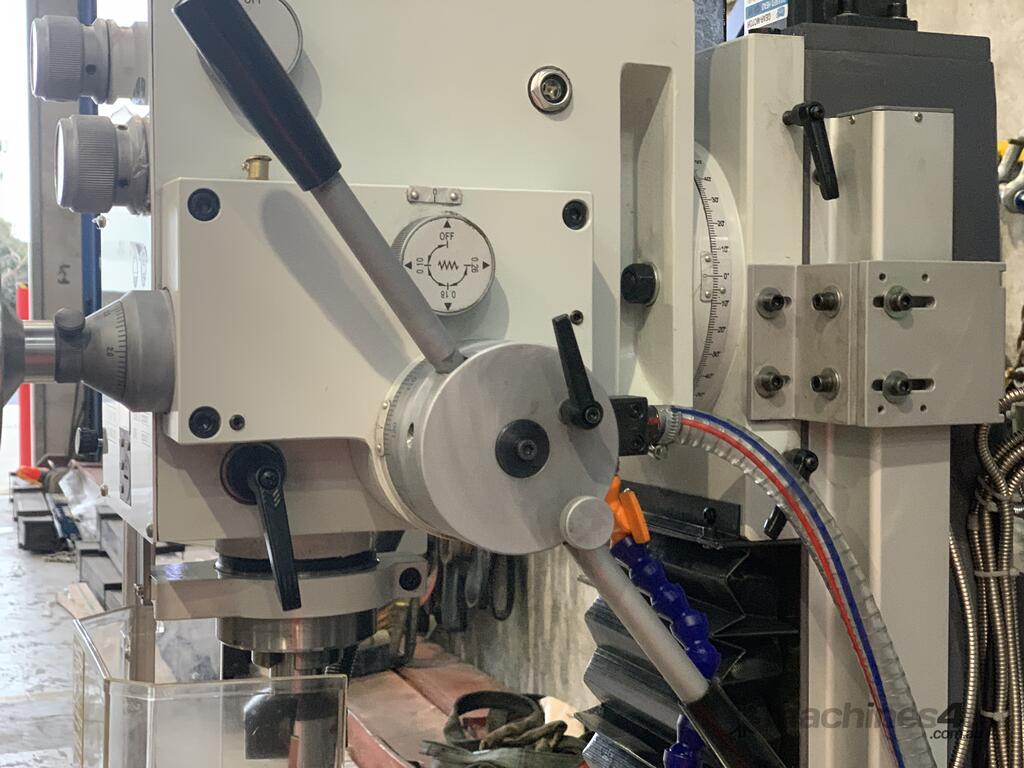

?adjustable depth stop
?digital depth display with zero position
?tapping feature fitted to all models
?ideal workshop drill for all applications
?heavy duty tapered roller bearing spindle offering stability and long life
?positive spindle lock standard
?perspex safety guard
?gear drive with low noise

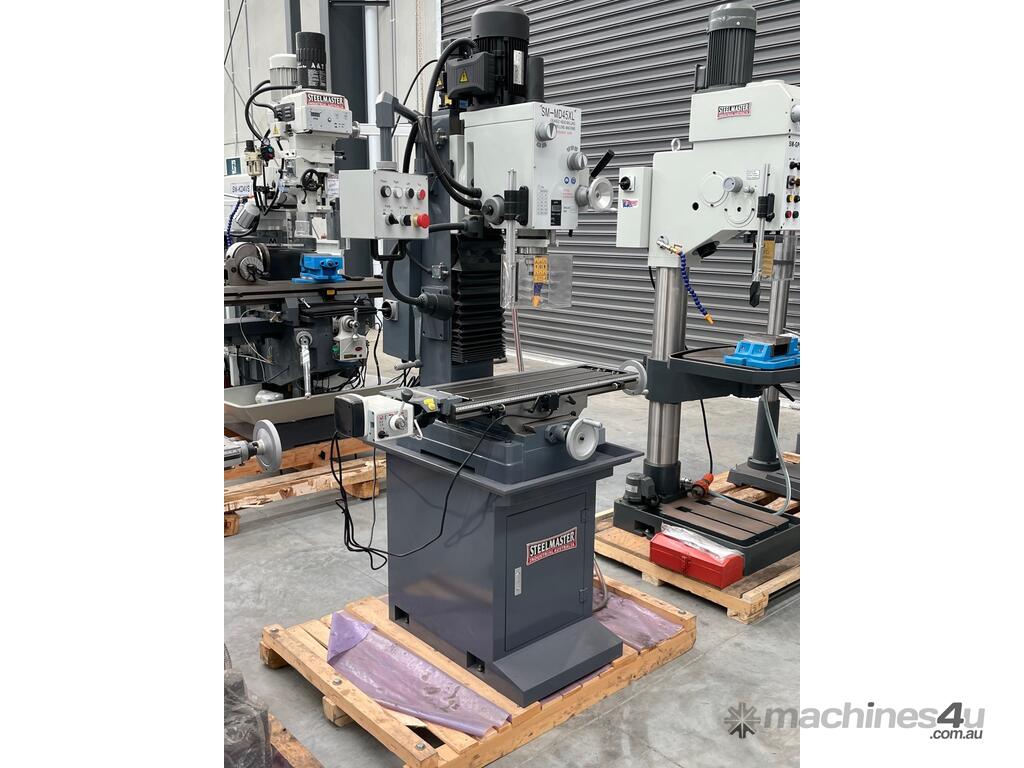

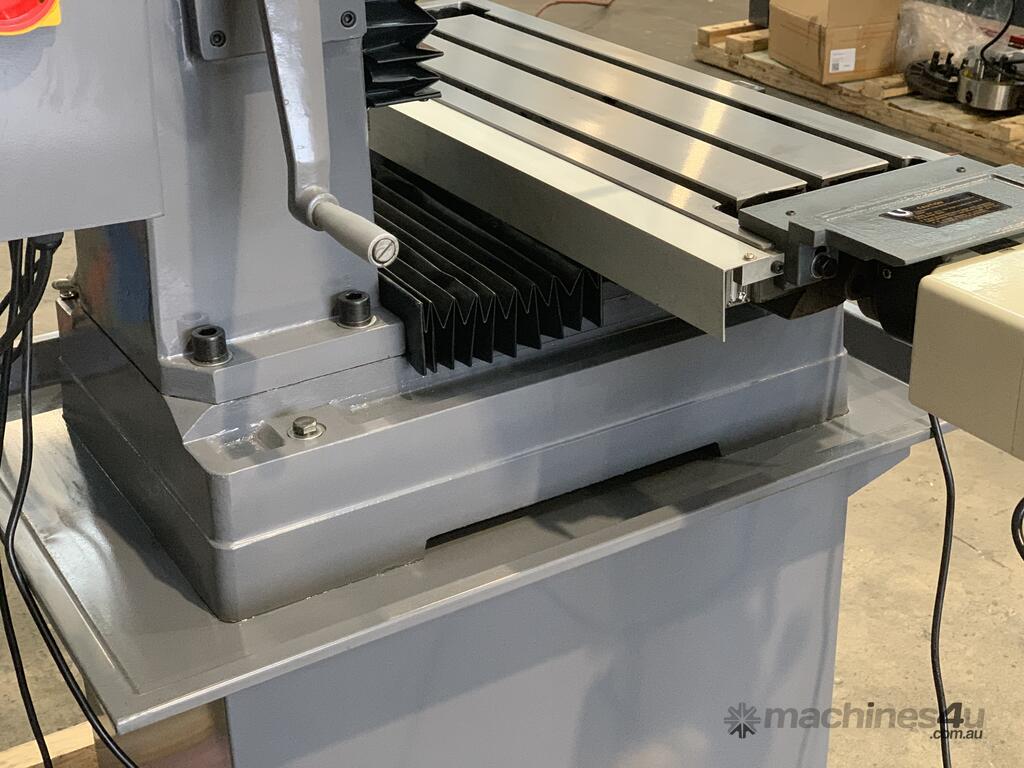

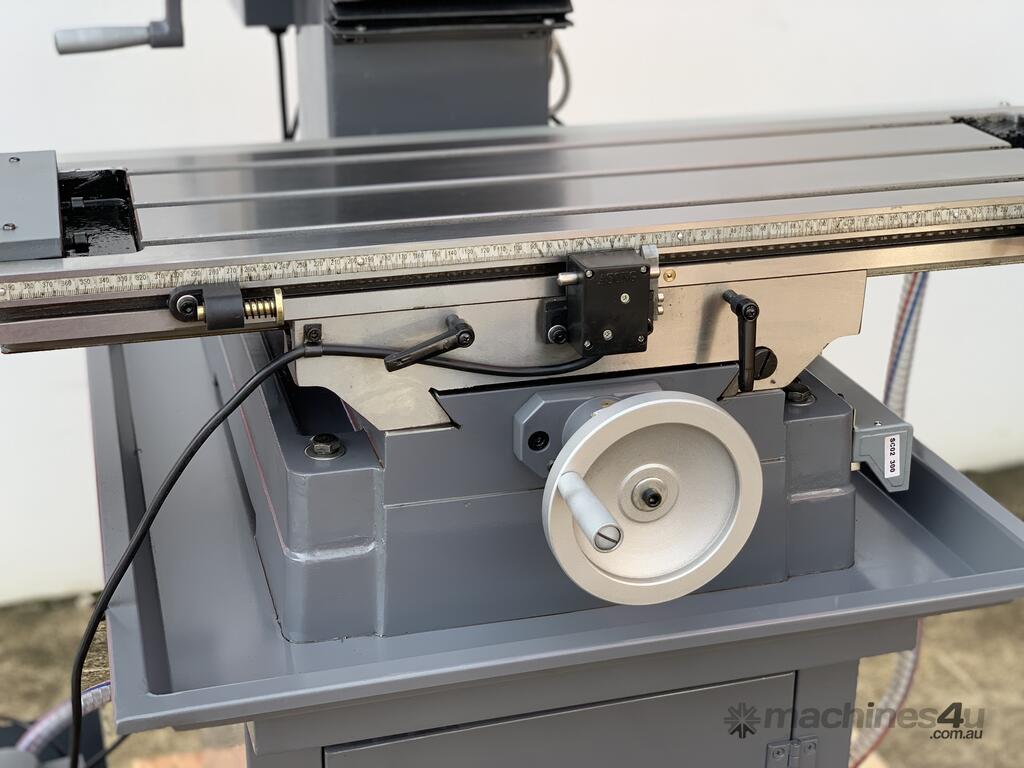

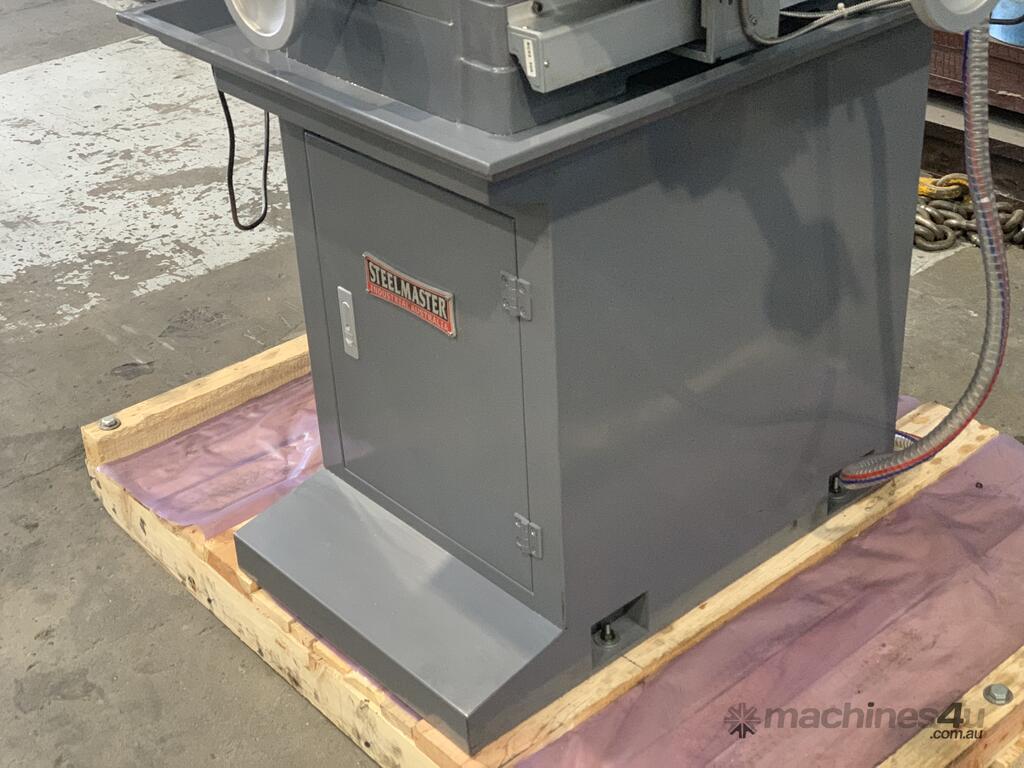

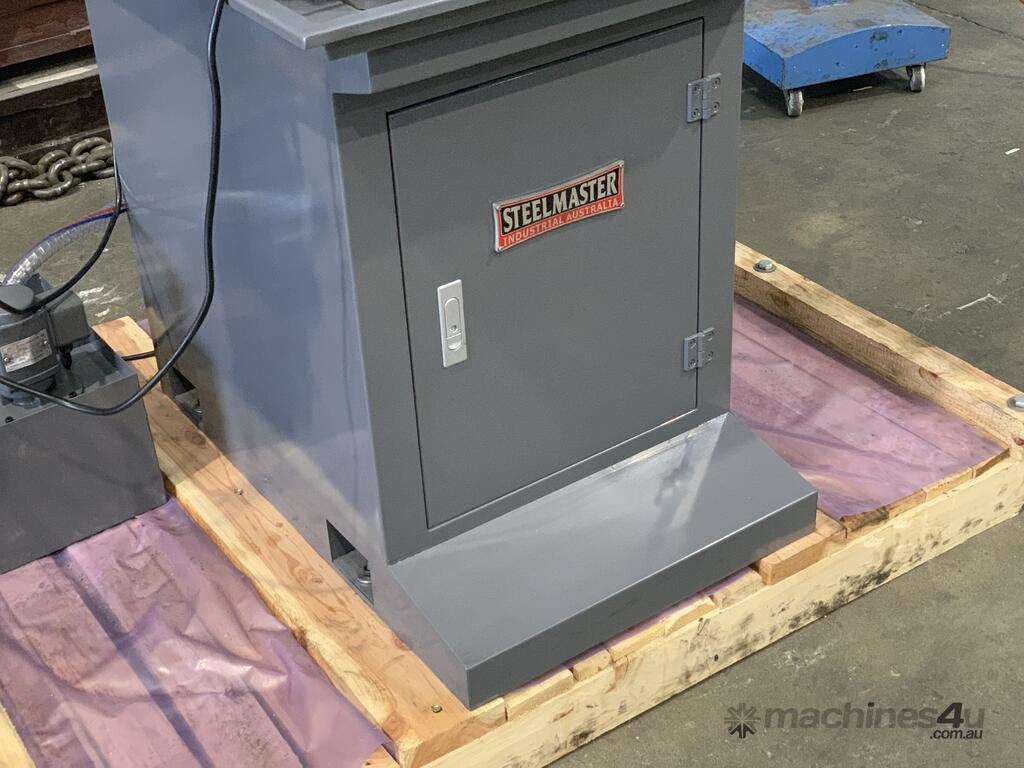

?heavy duty stand with coolant tray
?coolant system supplied standard
?halogen work light fitted
?240 Volt operation
? CE compliant

?same machine builder at Grizzly model G0755

Technical Data Snap-Shot

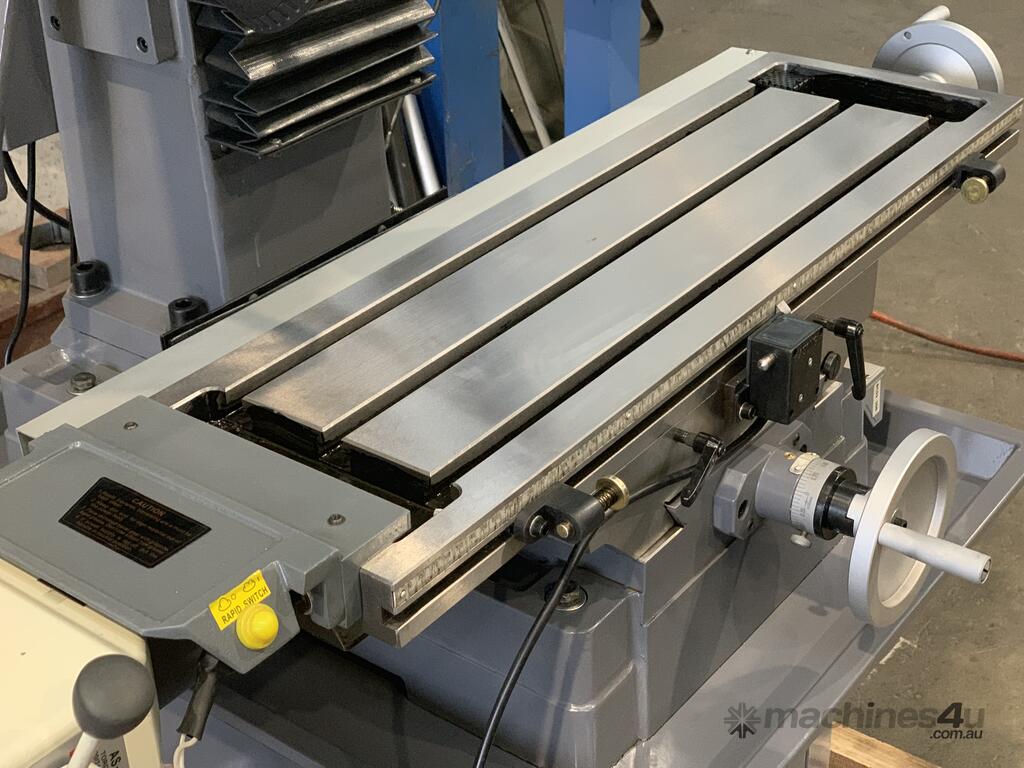

?820mm x 240mm tee slotted work table
?travel (x,y,z) 560mm, 190mm, 420mm
?4 morse taper spindle
?95mm spindle diameter
?490mm spindle to table
?273mm throat depth
?speeds range - 75 ~ 1600 variable
?motor capacity - 1.5Kw x 240Volt
?machine dimensions - 850mm x 780mm x 1650mm
?shipping dimensions - 930mm x 1240mm x 2100mm
?approx weight: 450kg
