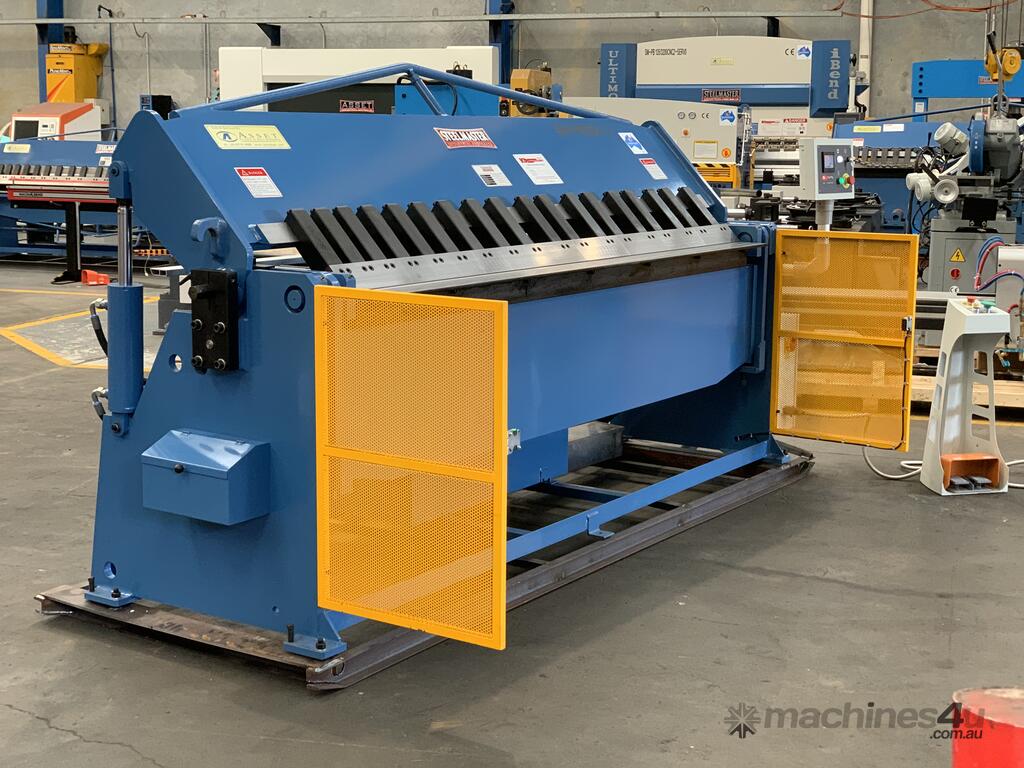

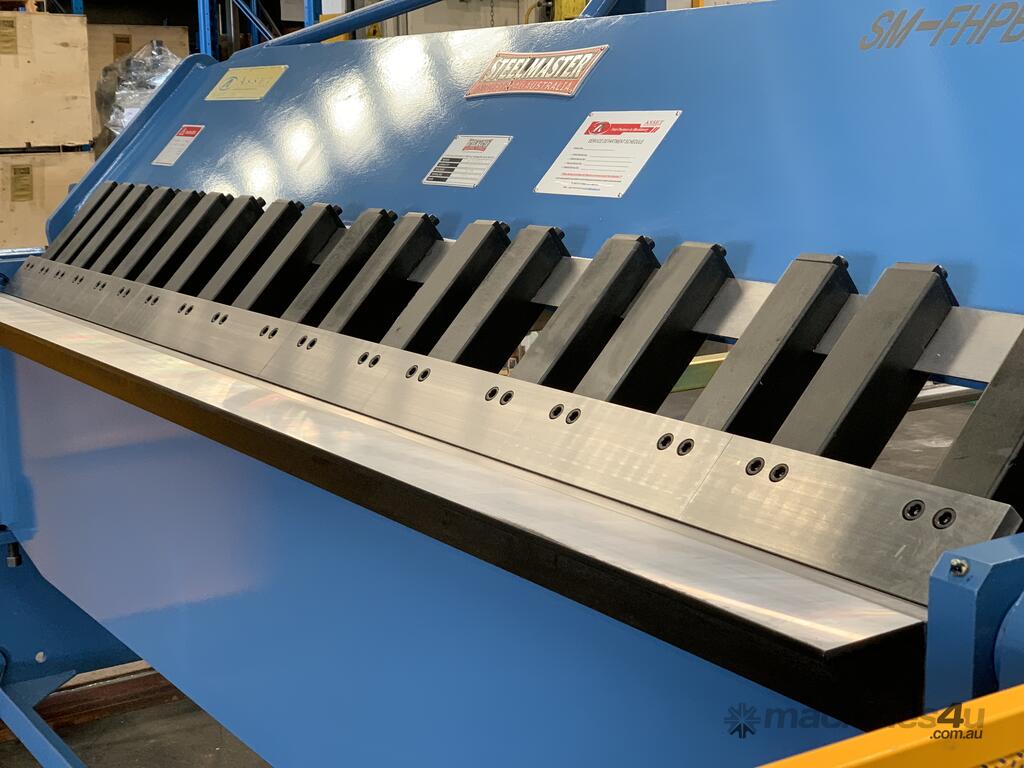

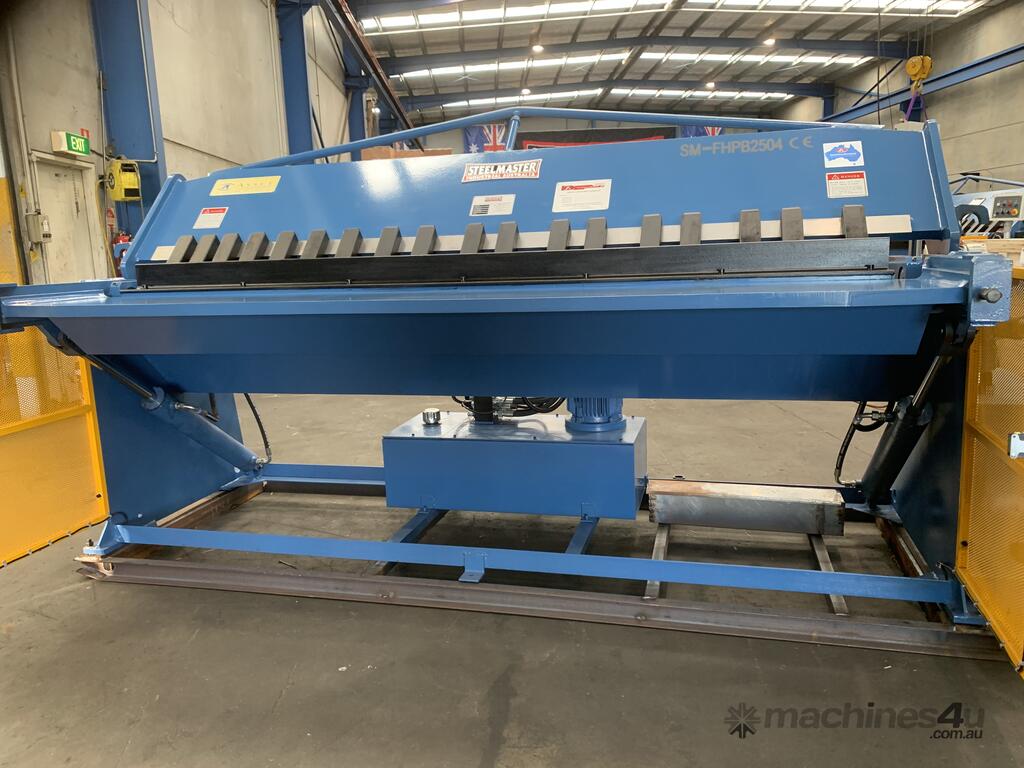

Industrial Built Heavy Duty 2500mm x 4mm Hydraulic Panbrake with Digital Angle Setting.

SM-FHPB2504. Panbrake Folder. Full Hydraulic. 2500mm x 4mm with Quick Set Digital Angle Setting.

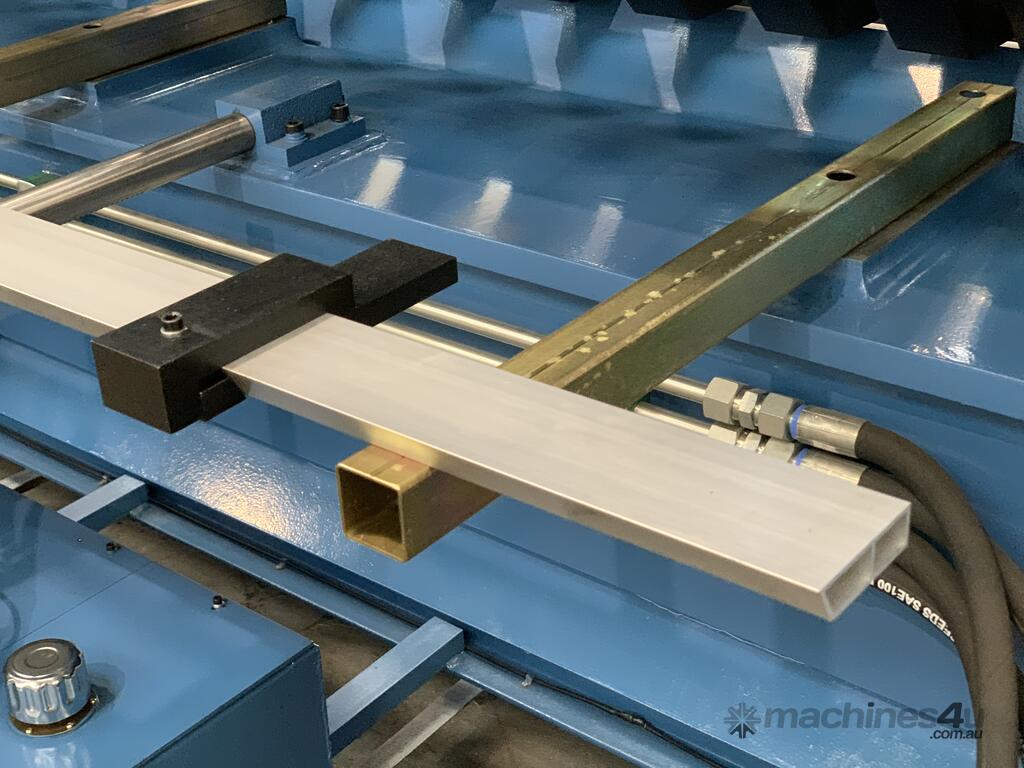

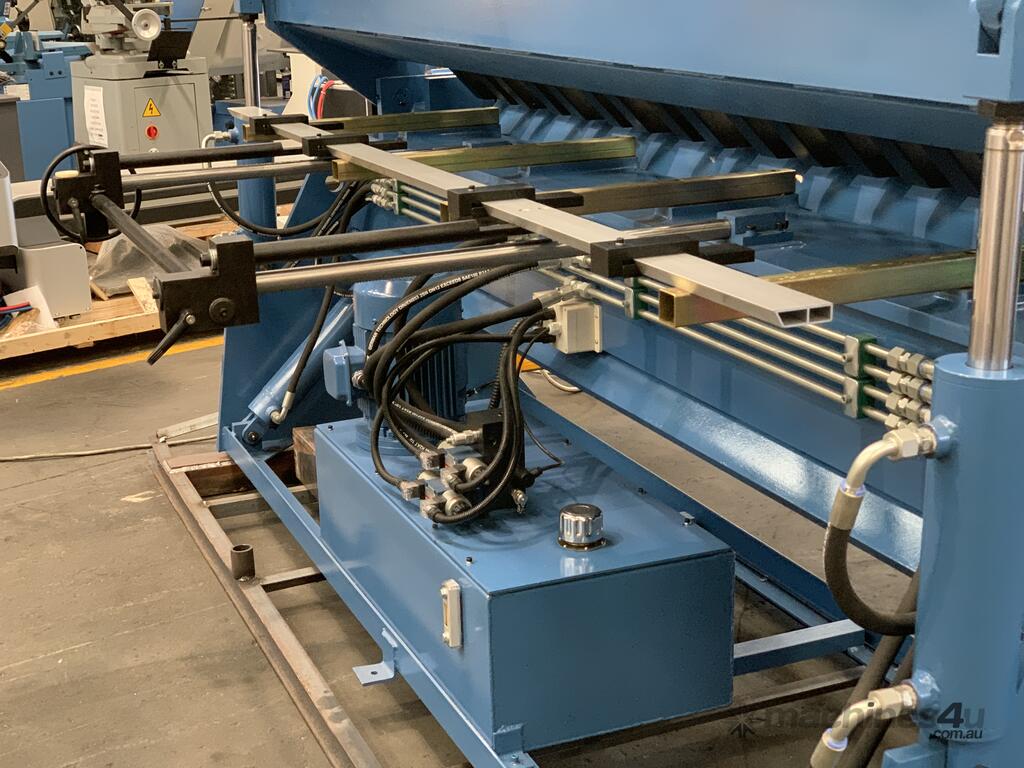

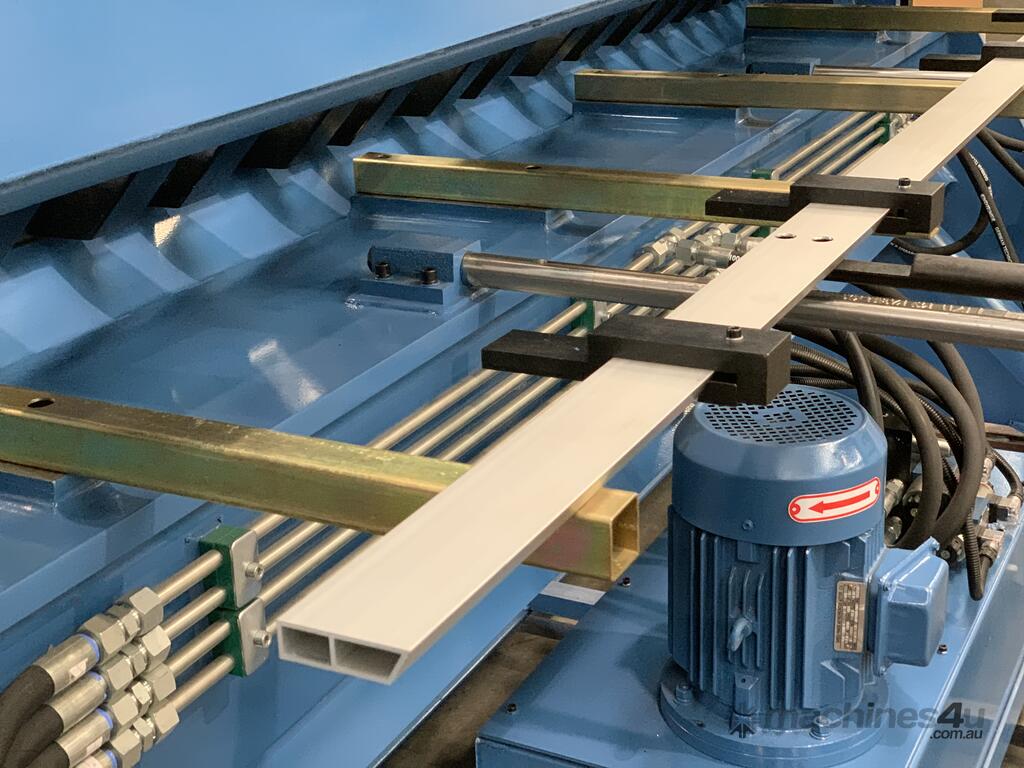

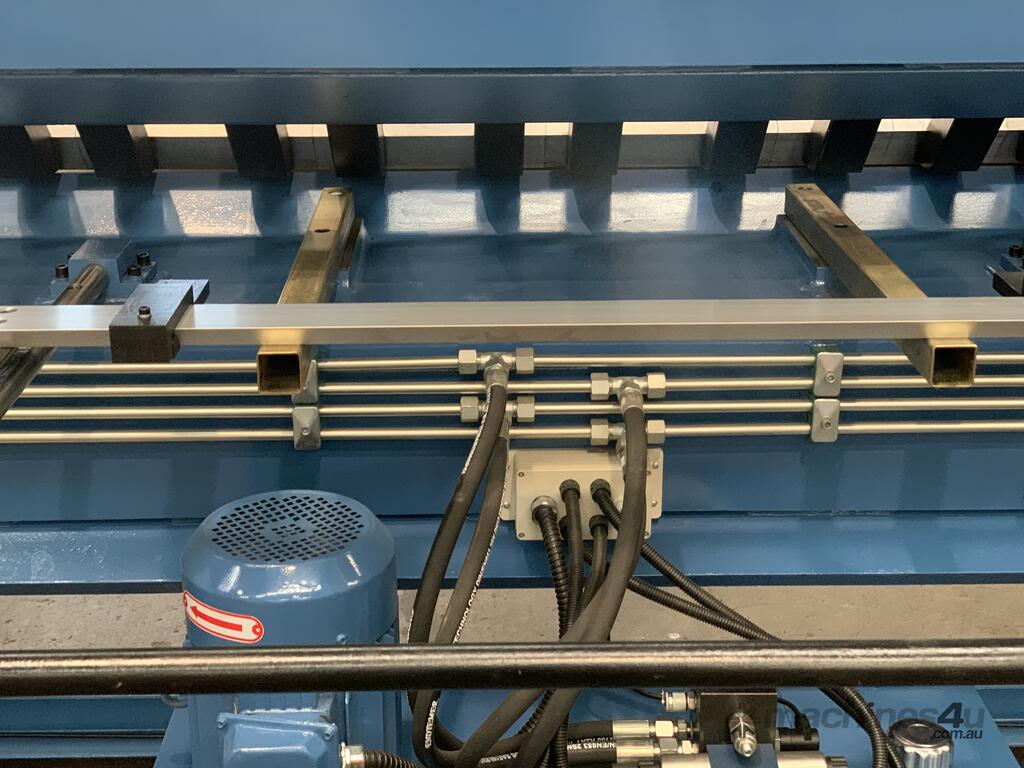

Hardened & Ground Fingers, Back gauge with 4 Adjustable Fingers, Safety Guards, Australian Designed.

Description
Our Australian designed & engineered Full hydraulic Panbrake will blow the competition away.
Quality and ease of operation, our standard machine offers a quick set digital angle controller for quick and accurate folding of all applications.
Produced exclusively for Asset by Australian Engineers.

Structural & Operating Features
?hydraulically operated bending and clamping beam for efficient heavy duty operation
?high structural rigidity from heavy plate steel box construction with continuous welded seams
?bending beam powered by dual hydraulic cylinders

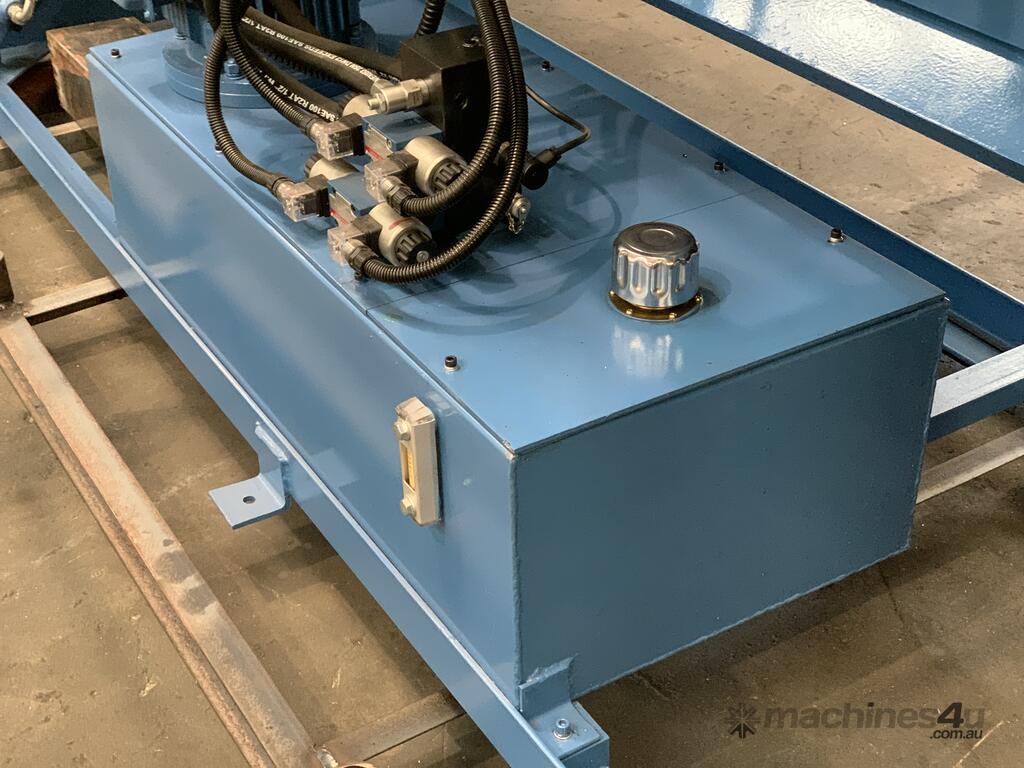

?fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature

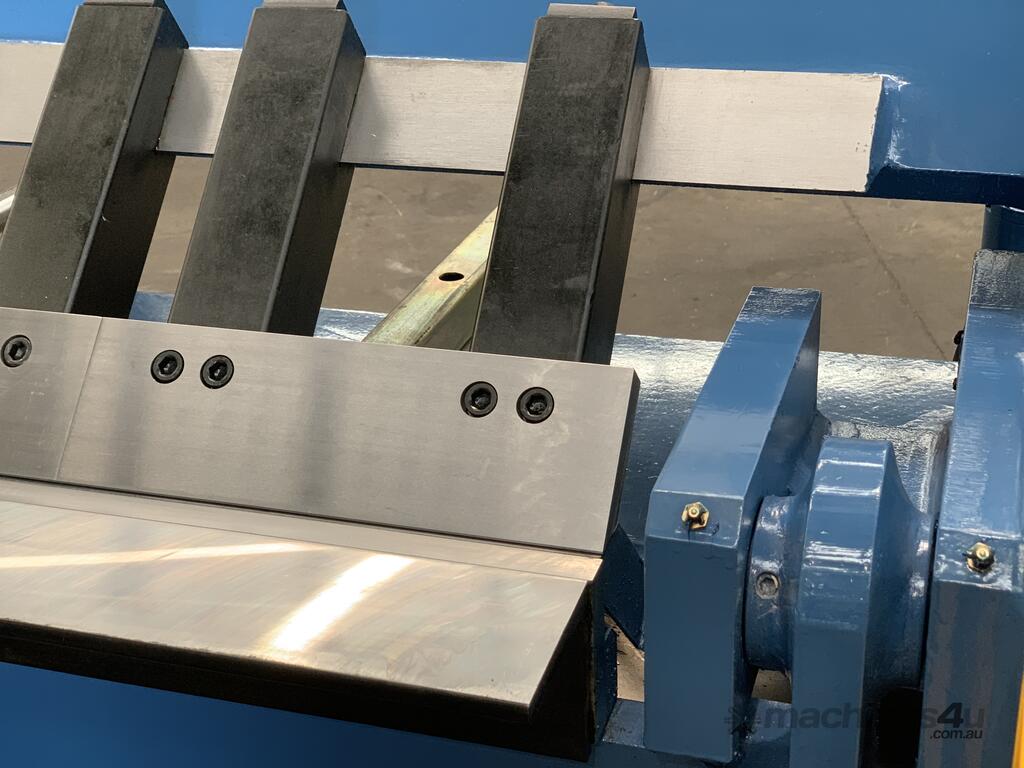

?high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings

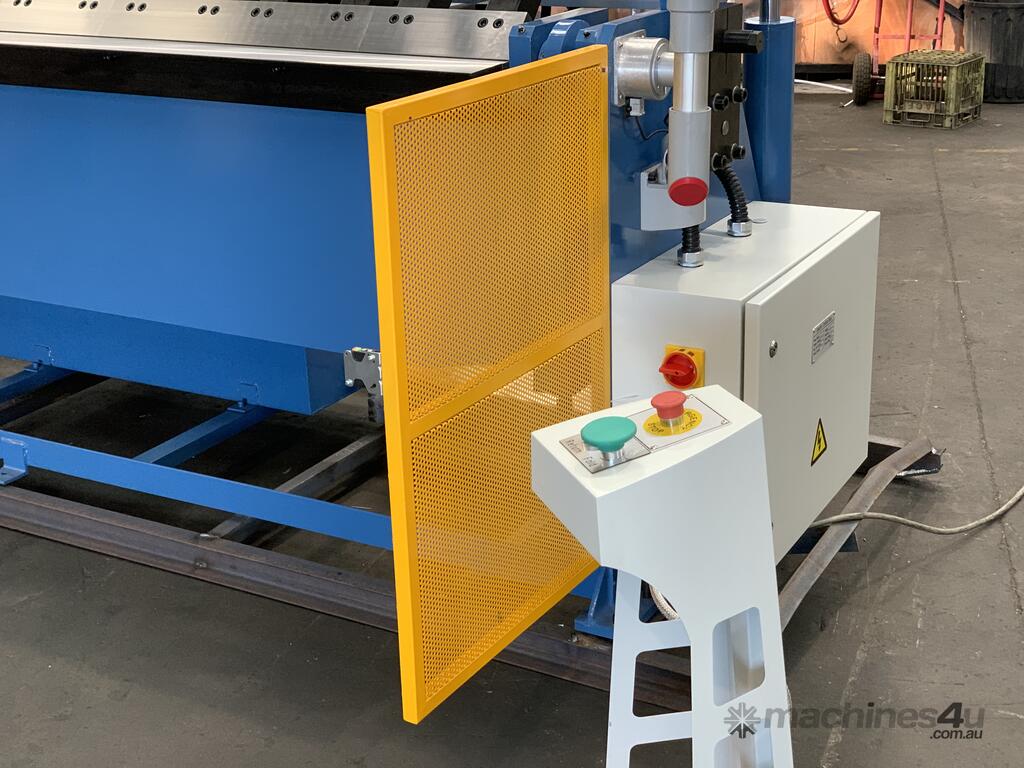

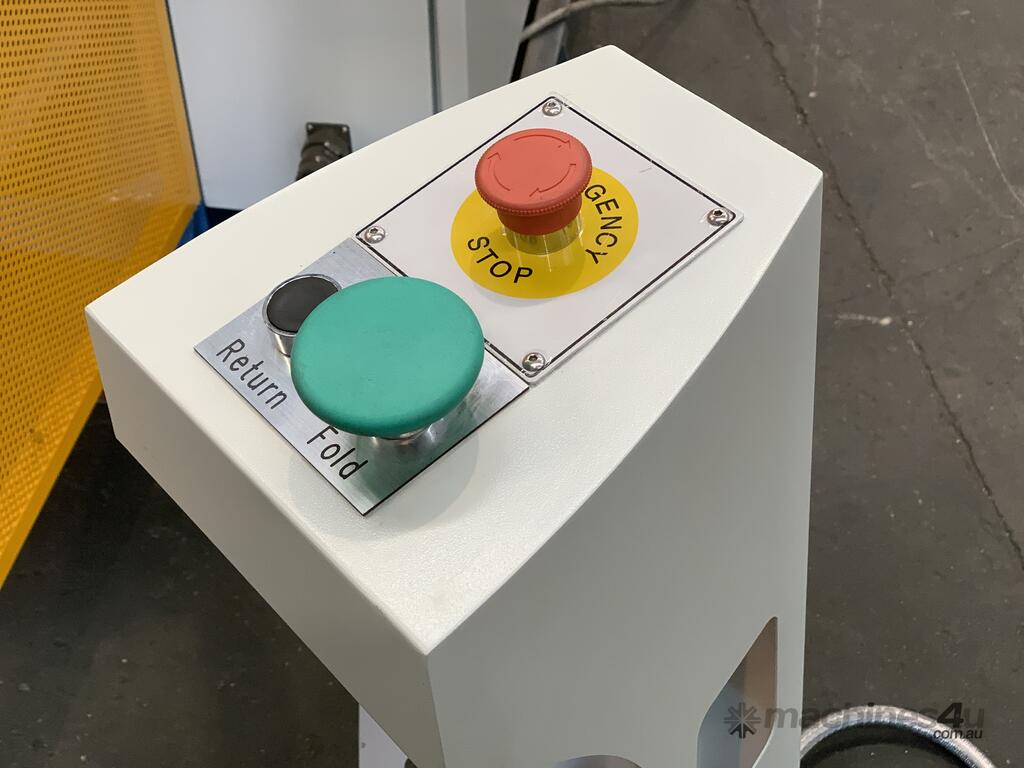

?precise electric / hydraulic controls with manual inching of bending beam
?utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
?comprehensive equipment protection from electric and hydraulic overload systems

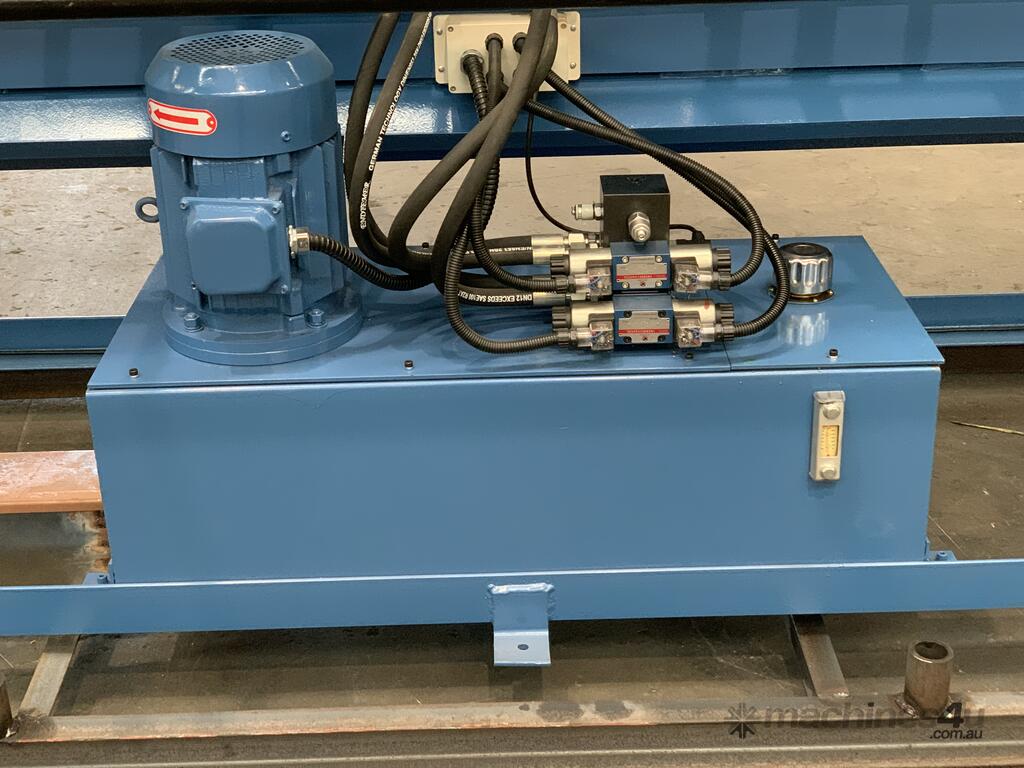

Hydraulic System
?high quality componentry ensures reliable performance for years of continuous operation
?powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
?unique electric / hydraulic control ensures safe and simple operation

Specifications
?high bending angle of 0-135°
?greatest depth of box bent 160 mm
?powerful motor
?200 mm 8"lift of clamping beam
?hydraulically operated bending and clamping beam for efficient heavy duty operation
?24 volt control wiring

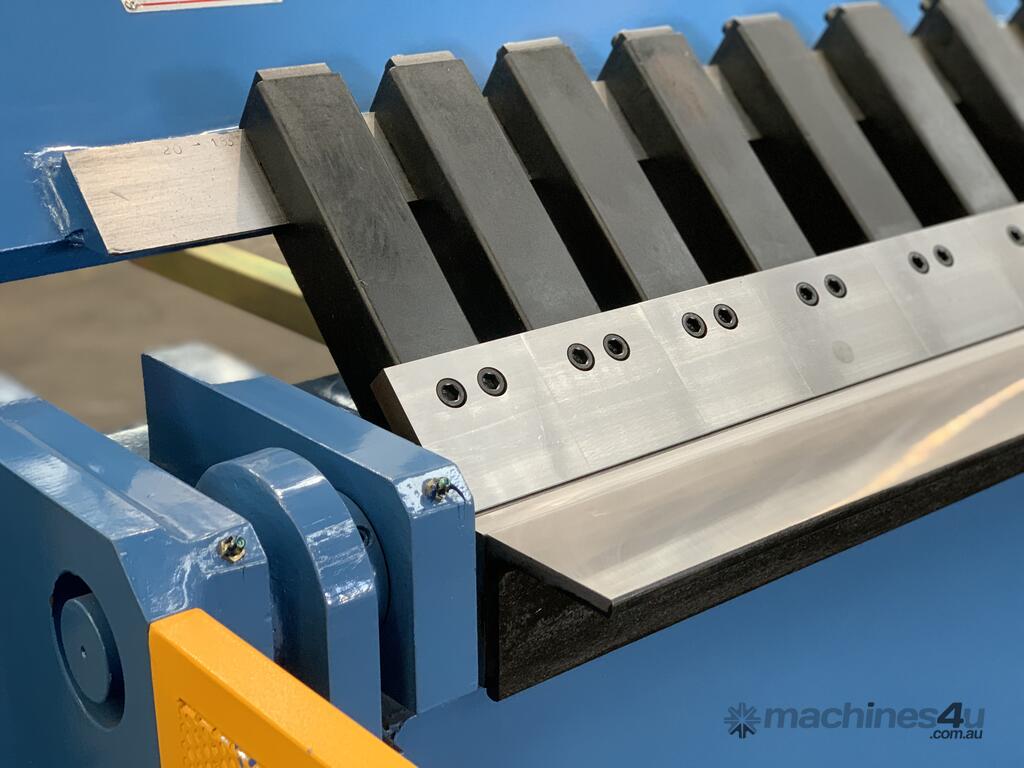

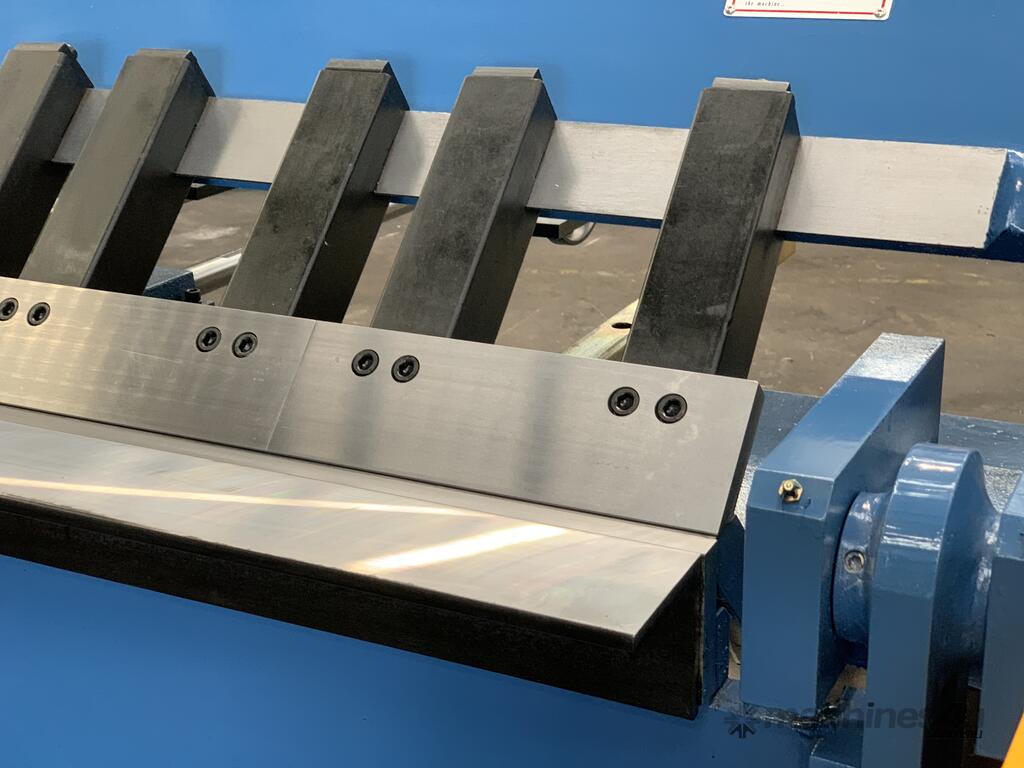

?bending fingers made from hardened material, maximizing life

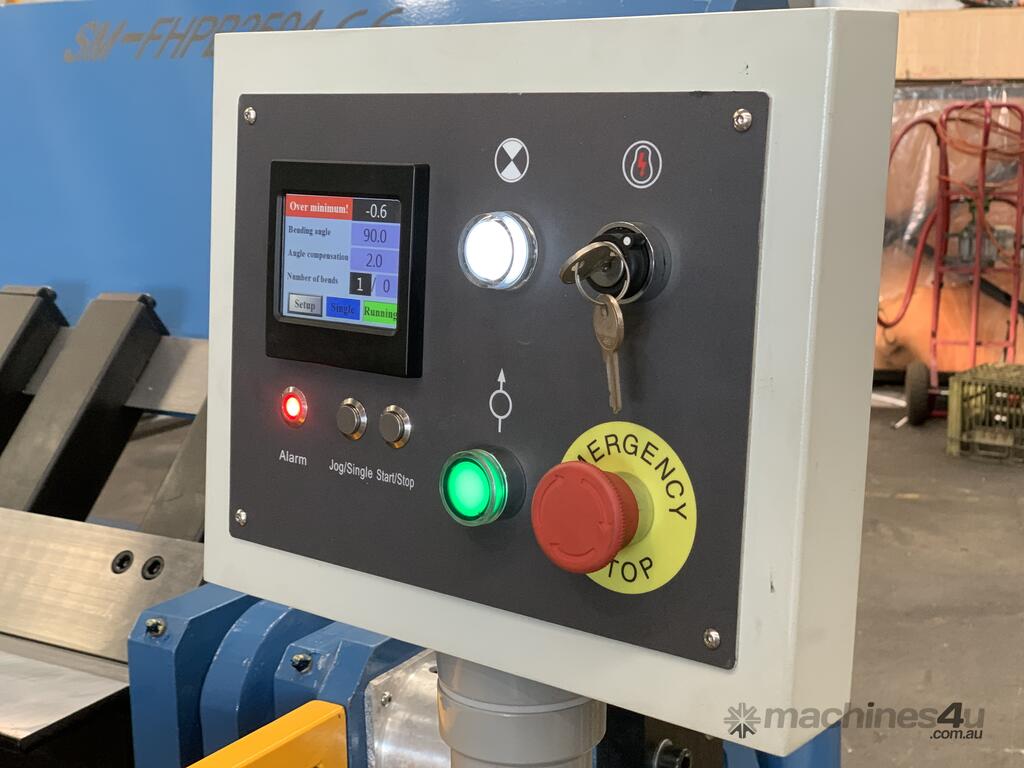

Standard Quick Set Digital Angle Setting Option
?offering quick action angle setting via a digital setting in Jog & Single Folder with Correction Option

Technical Data Snap-Shot
?2500mm x 4.0mm bending capacity
?0 ~ 135 bending range
?shipping dimensions - 3050mm x 850mm x 1550mm
?power - V 4Kw
?approx weight: 3300kg


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
