Industrial Built Quality at Best Price & Service

If your looking for a 30Ton or a 600Ton Pressbrake, NC or CNC,
With our national service network, go with a brand you can trust!

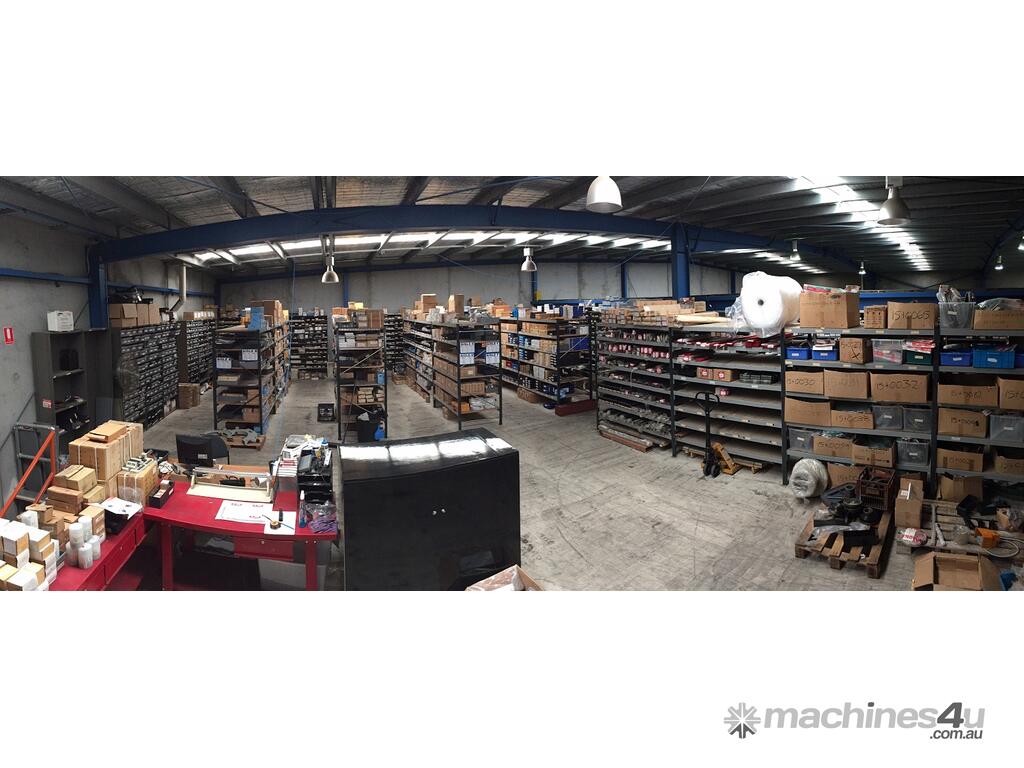

Our spare parts and accessories department also offers great back up support to all our customers that have purchased from us over the last 20 years!
You need pressbrake tooling - we have a huge rage as well!

Call us or us and we are ready to assist.

Our Pressbrakes are sold to Industry, Training Colleges, Mining, Government Departments bending customers requirements 24/7

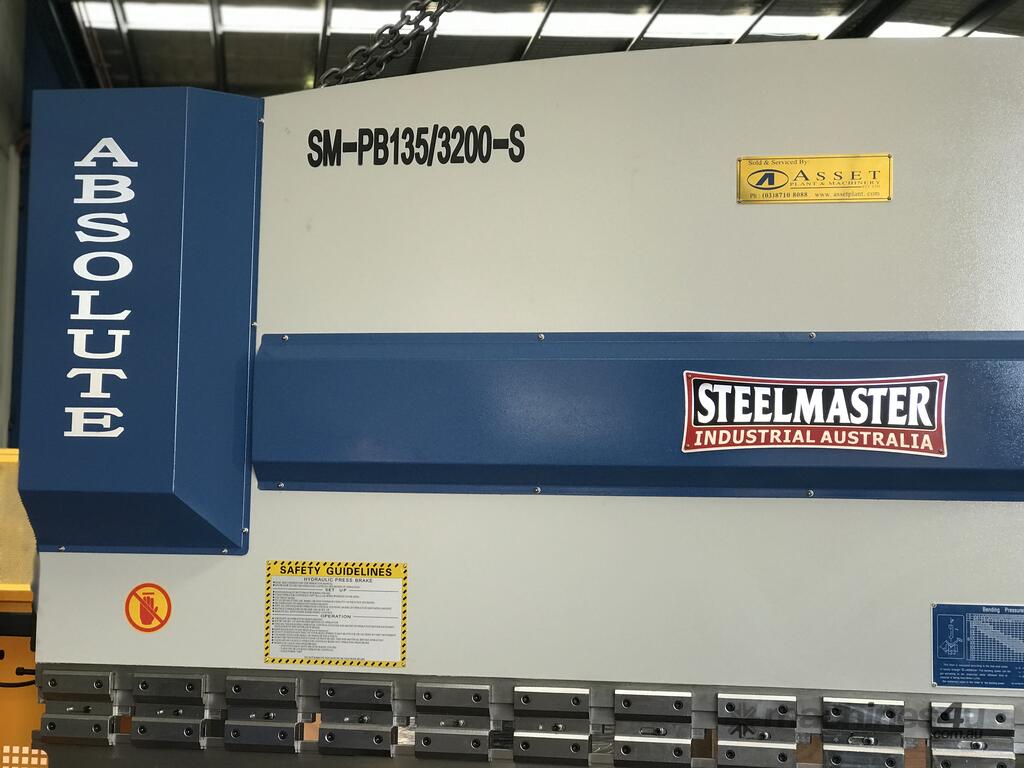

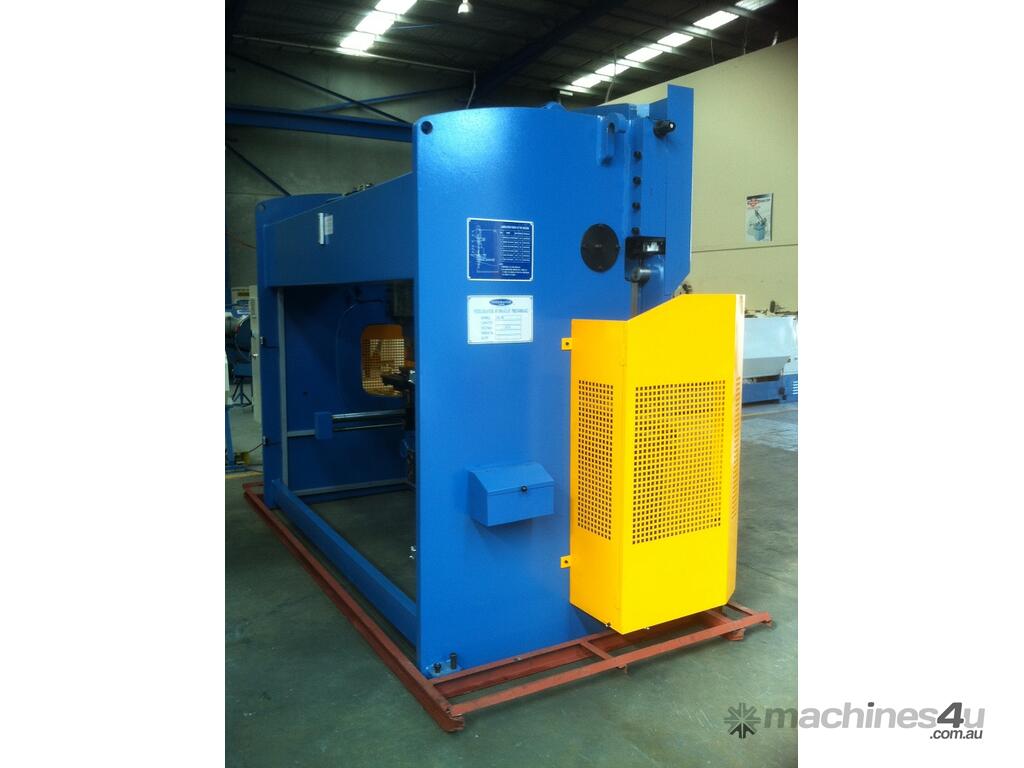

SM-PB135/3200NC - ABSOLUTE. Hydraulic Pressbrake. 3200mm x 135Ton. 2 Axis NC Estun E21 ControlleR Top & Bottom Tooling, 425mm Side Throat, 2900mm Between Frames, Ballscrew Backgauge with 4 Fingers.

Description
Our feature packed, ``market leading`` now offers a powerful Etsun E21 NC programmable controller as standard.

Years ago these “now standard” features were out of buyer price range. However now, deep side throats, wall mounted precision ball screw back gauges, Powerful NC controllers with fast efficient operation including ``Backguage retract feature`` - the list goes on!

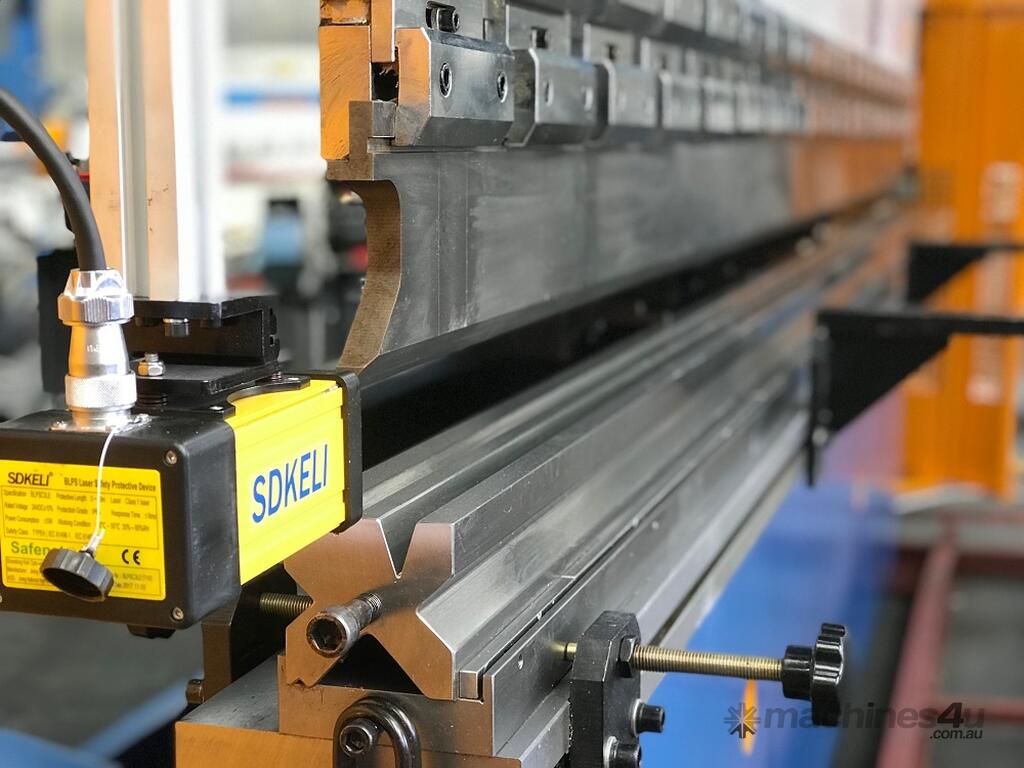

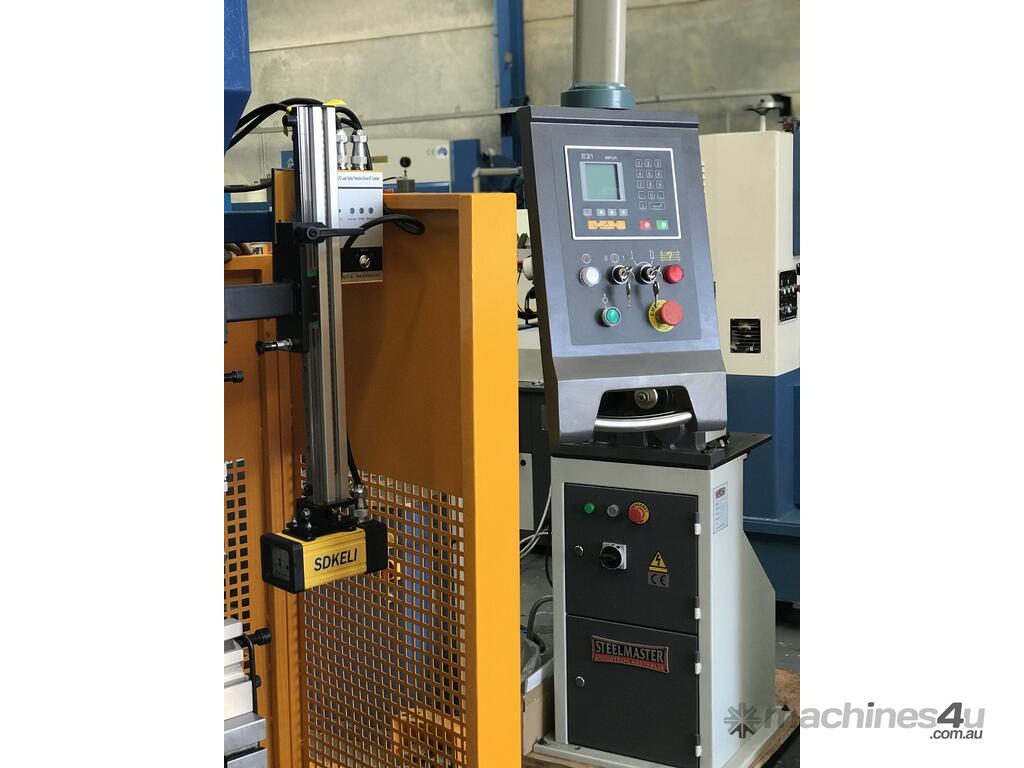

On top of this we offer the SDKelli Laser Guards - Allowing operators to work in close to their bending application instead of having to stand back 400mm plus!
Operators absolutely love this!

Features

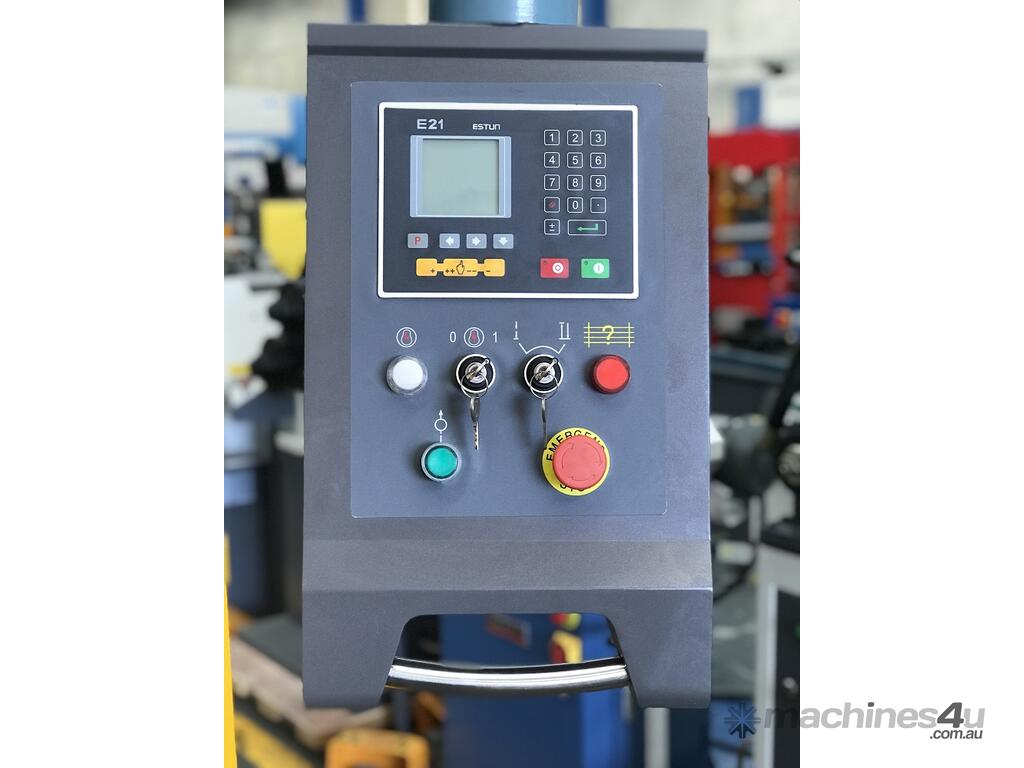

hydraulic synchronised positive stop design, electronically controlled by Etsun E21 NC programmable controller assuring accurate repeatability and ease of use.
deep side throats and wider distances between the vertical frames offering you more application scope.

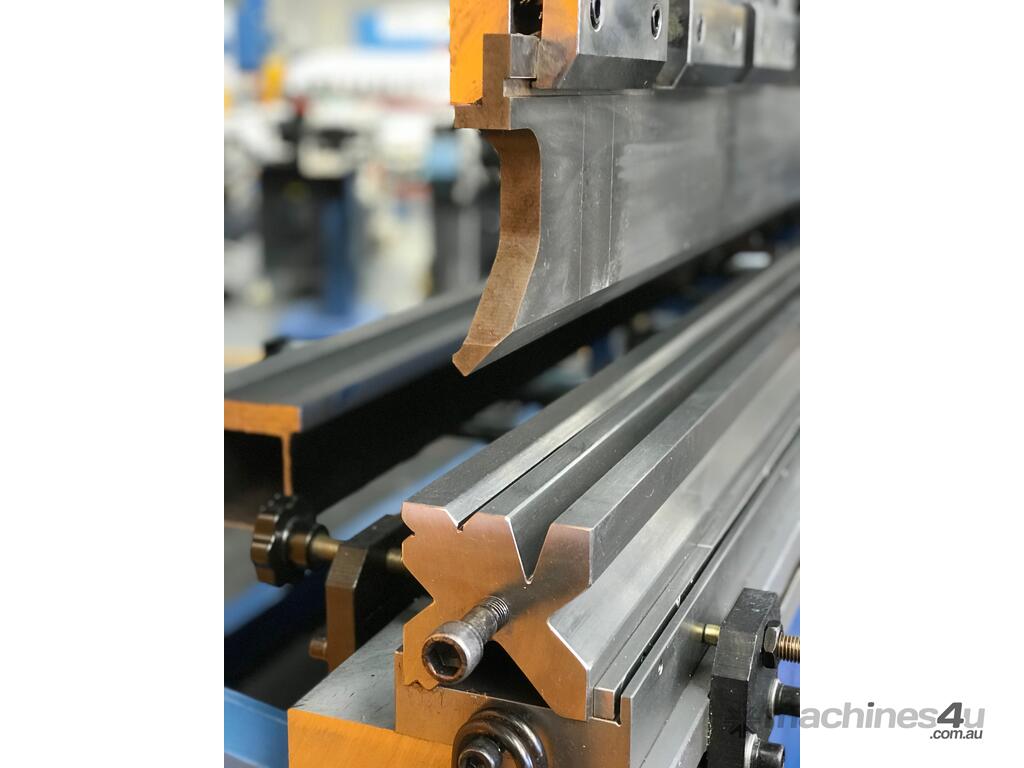

segmented heavy duty 86° offset top tool, segmented for return bend clearance.
full length Multi Vee bottom block with a smart selection of openings also including safety edge vee ('V') for over bending.

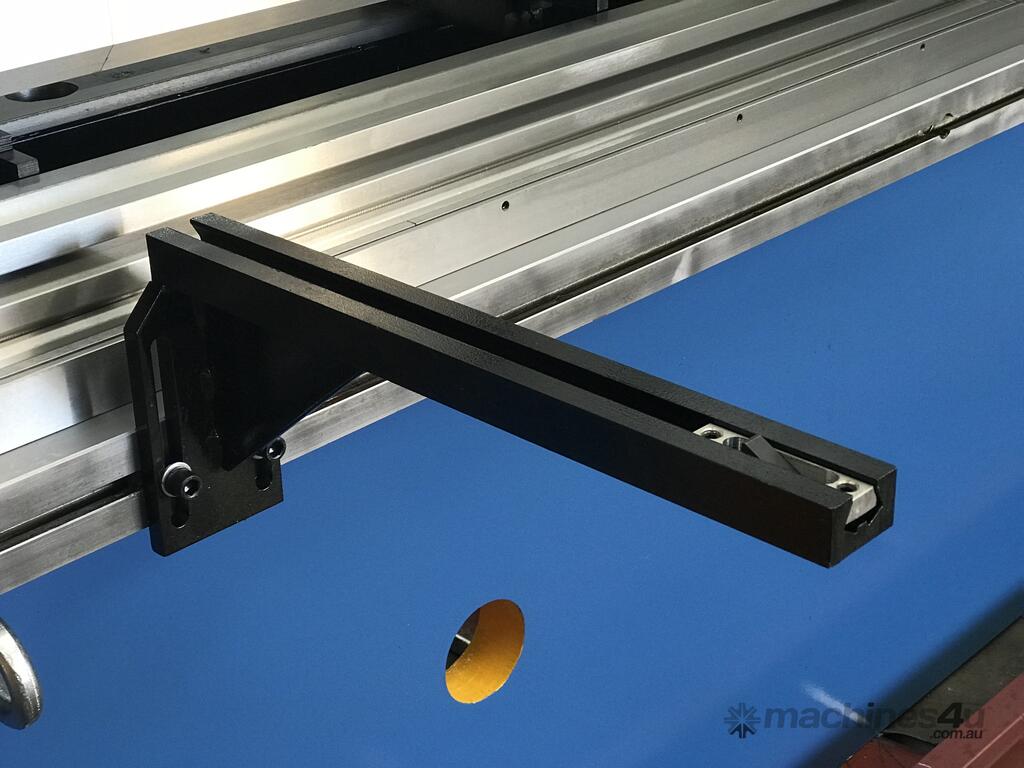

ball screw drive back gauge with quality support fingers also with vertical adjustment
front sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height.
conveniently mounted control box on pendant for quick swivel and adjustments.
integrated hydraulic system allowing rapid approach switching automatically to slow bend.

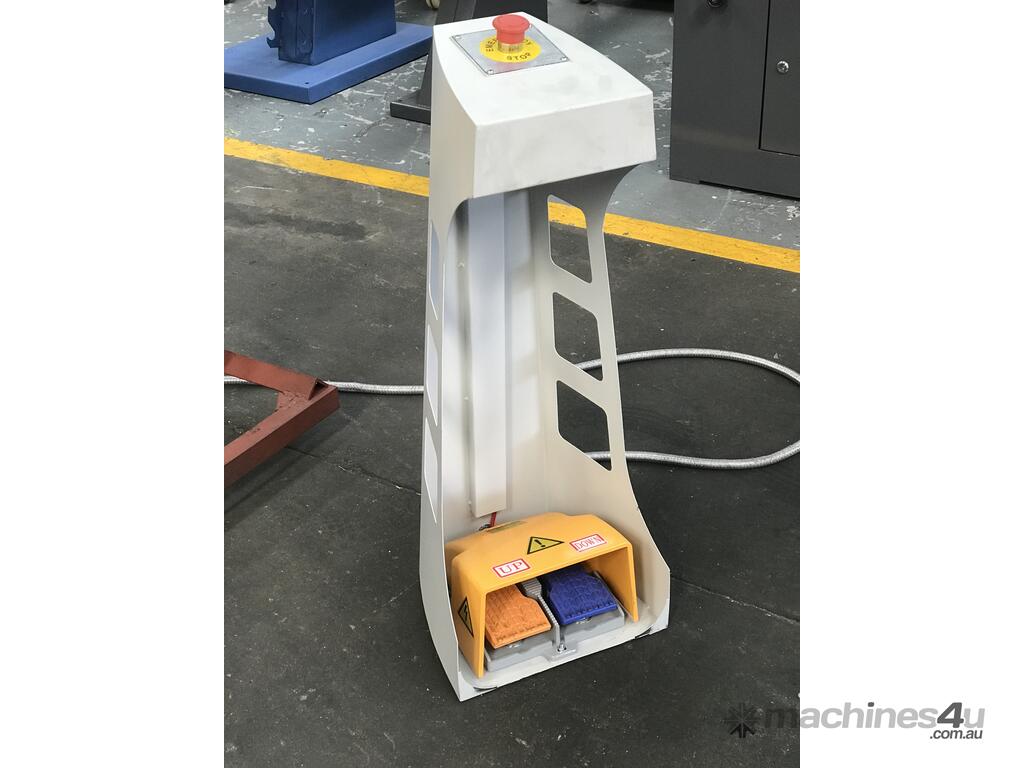

modern designed pendant foot pedal operation with stainless braided cable.
variable hydraulic pressure control valving fitted standard
safety and material selection bending charts mounted on front beam for easy access.
supplied pre commissioned and full off hydraulic 46 grade oil prior to delivery.
pre commissioned prior to delivery.
CE compliant.

Technical Data Snap-Shot
135 Ton Bending Capacity
3200mm Bending Length
2900mm Distance Between Frames
420mm Side Throat Depth
150mm Ram Stroke
mm Open Height
600mm Back Gauge Travel
7.5Kw / V Motor Power
3580mm x 1850mm x 2690mm Footprint
9800Kg Weight
*Safety Laser Guards are at additional cost $4,995.00 + GST
