Industrial Dust Extractor Extraction System - Nederman Filtermax F30

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!

PRODUCT INFORMATION:

FilterMax F is a complete filter solution for the entire workshop. With it’s integrated pre-separator the FilterMax F is ideal for applications with fume and coarse particles. FilterMax F is an efficient and compact filter with a large capacity.

The FilterMax F is designed for industrial handling of none explosive dry dust and fume. The compact and efficient integrated pre-separator captures up to 80% of coarse particles and heavy sparks which will extend the lifetime of the filter cartridge. The small inner volume in combination with the air distributing support cage gives efficient cleaning. Shallow open pleats allows efficient removal of dust.

With it’s sturdy design, smooth inner surfaces, optimized angles of repose and digital control system, the filter fulfills stringent demands for continuous operation and effective filtration.

The modular design makes it easy to to expand the capacity of an installed system and will also make transportation, handling and installation as easy as possible. To simplify use and guarantee optimum performance, FilterMax F is equipped with Nederman’s automatic cleaning system. The pulse-jet system shoots short, powerful jets of air into the filter cartridges. The dirt is released from the filter surface and falls down into a container. The pulse-jet system cleans the filter cartridges in sequence while the filter is in operation.

• Automatic control system
• Pulse-jet cleaning system
• Pulse-jet cleaning system
• Integrated pre-separator / spark trap

Noise level (dB(A)): 50 dBA

Acc to ISO 11203
Protection class IP 54
Filter efficiency (%) 99

Compressed air requirement: 4–6 bar / 60 - 90 psi, water and oil free

Compressed air consumption -
70 N-litres/min at 30 sec intervals,
35 N-litres/cleaning pulse
2.5 cfm/min at 30 sec intervals,
1.25 cfm/cleaning pulse

Installation: Indoor, Outdoor
Material: 3 mm painted steel, epoxy based zinc primer and top coat(C4 acc. to EN ISO 12944)

Filter cleaning method: PulseJet
Application: dust, fumes

Working pressure (kPa): 0 to - 5, not over pressure
Capacity (max airflow m3/h): 3500 m3/h

Operating Temperature -
-20°C to +60 C
Process air, 0°C to +60 C

Dimensions

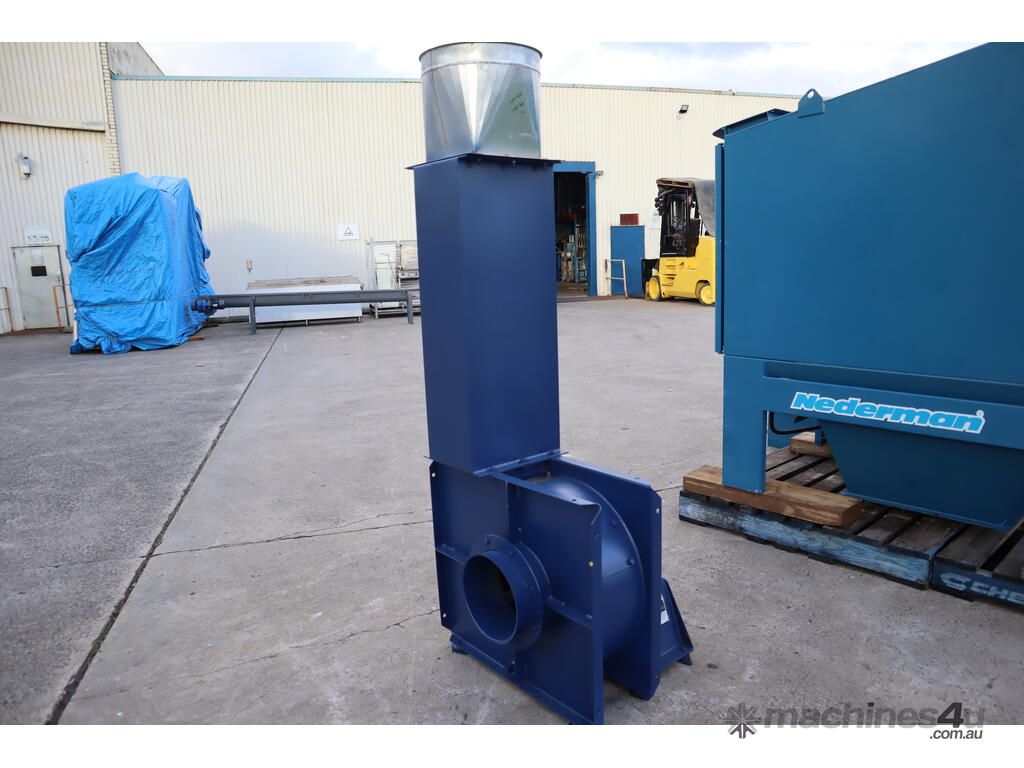

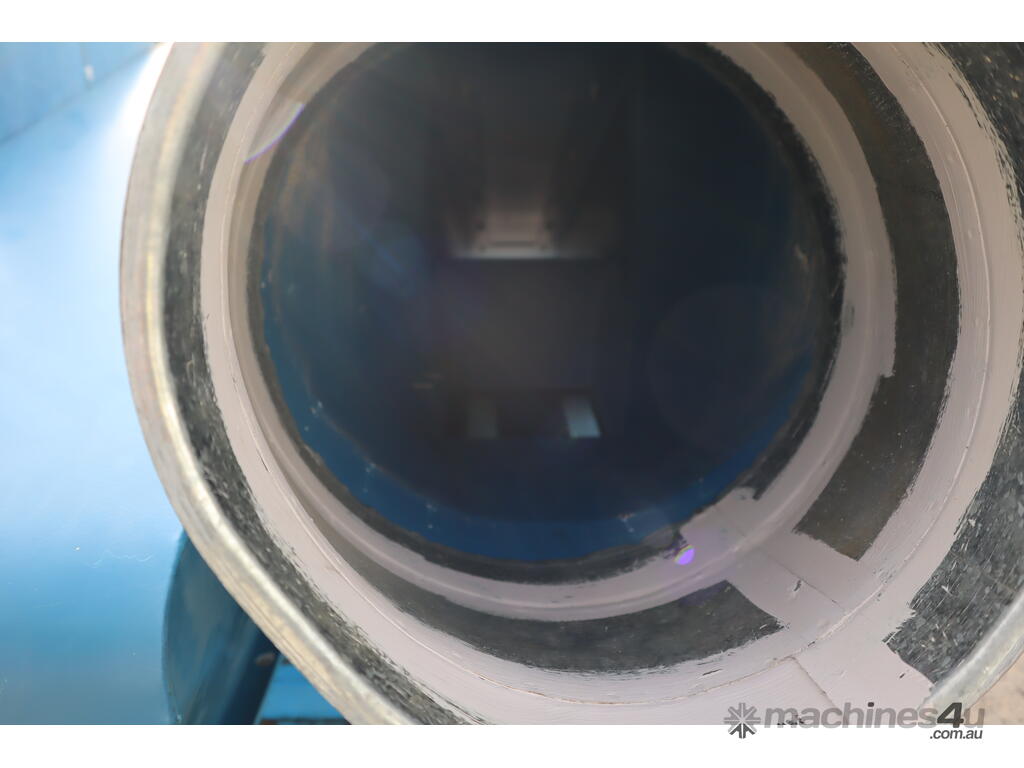

Attachment Exhaust outlet part 1 680 mm(L) x 470mm (H) x 370mm (W) Diameter 280mm
Exhaust outlet part 2 620mm(L) x 220mm(H) x 420mm (W)
4qty x Legs 200mm (L) x 200mm(W) x 490mm (H)

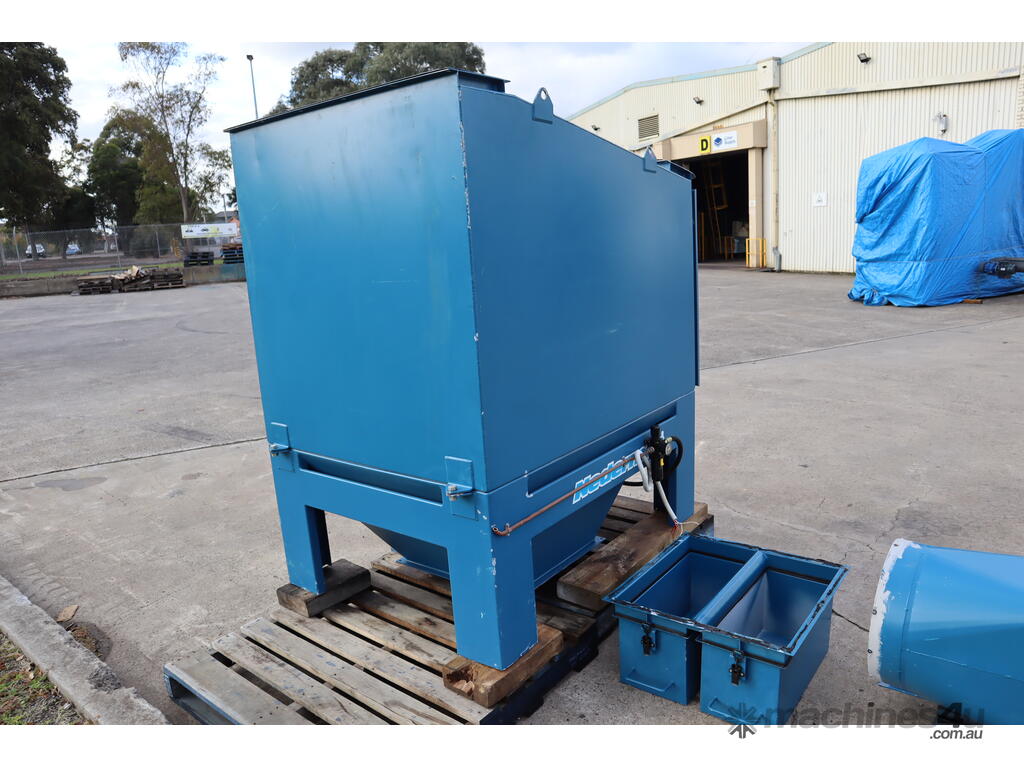

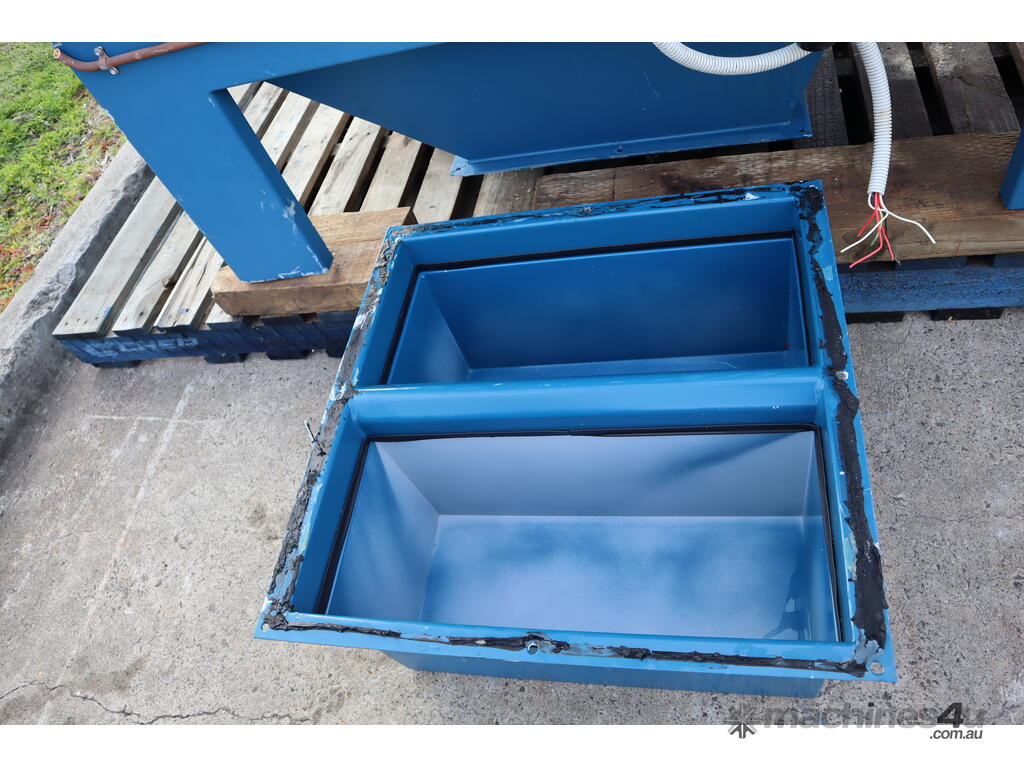

Twin Collector Box: ~ 240L approx. capacity ea. with overall dimension 690mm (L) x 220mm(H) x 350mm(D)

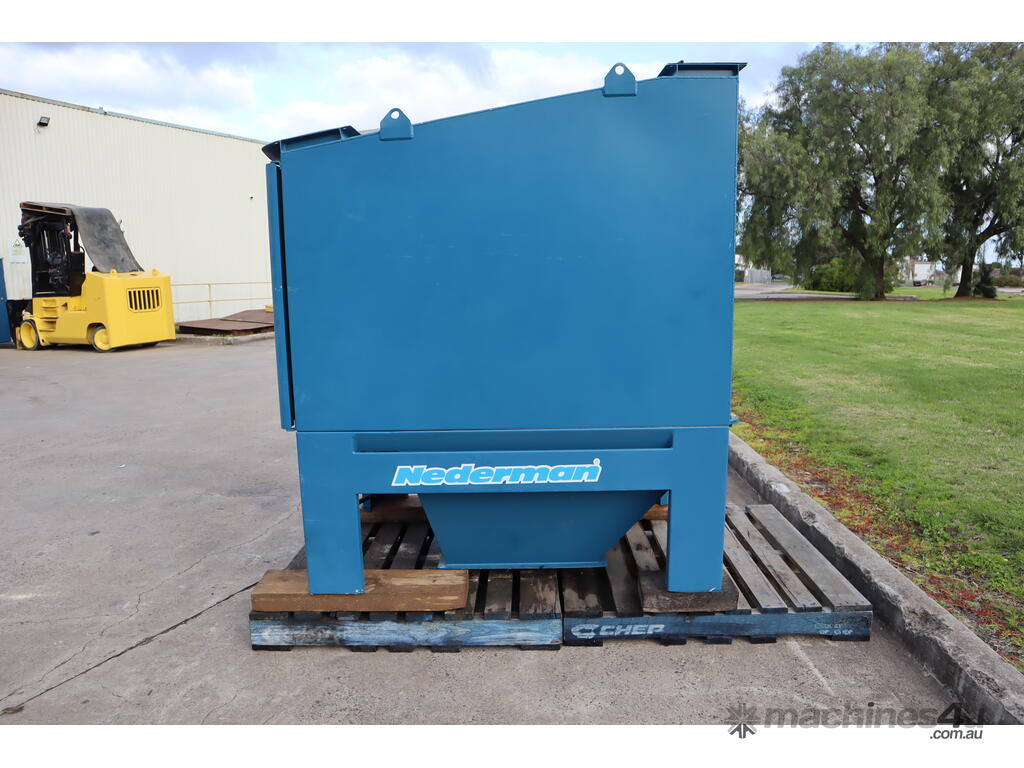

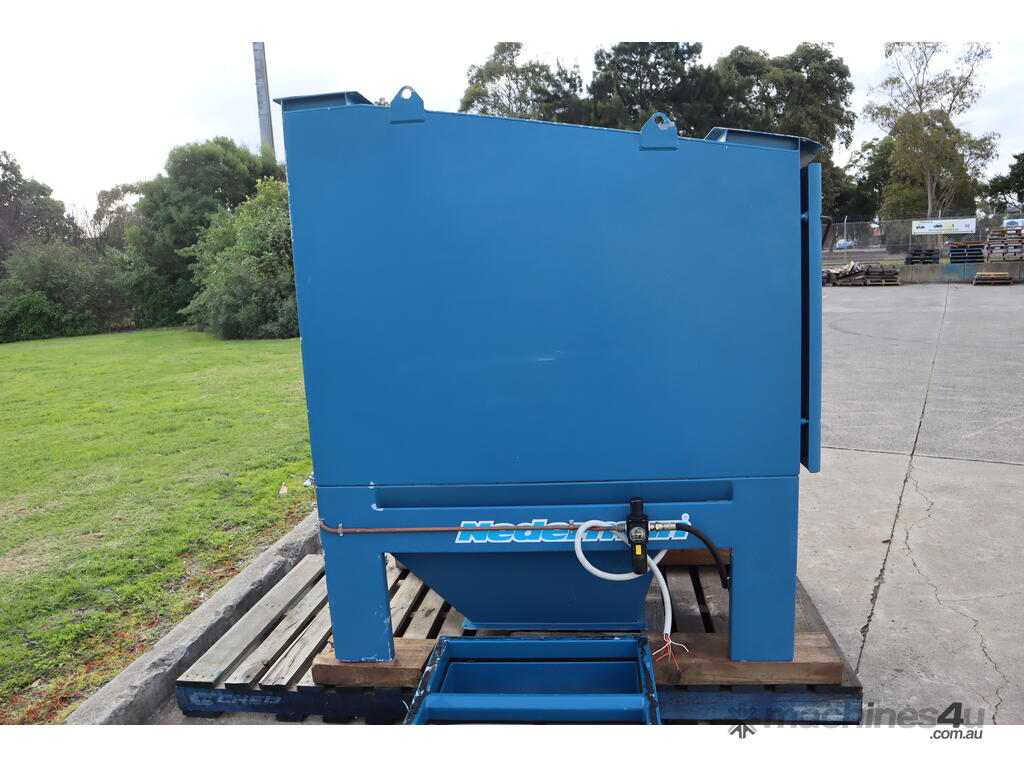

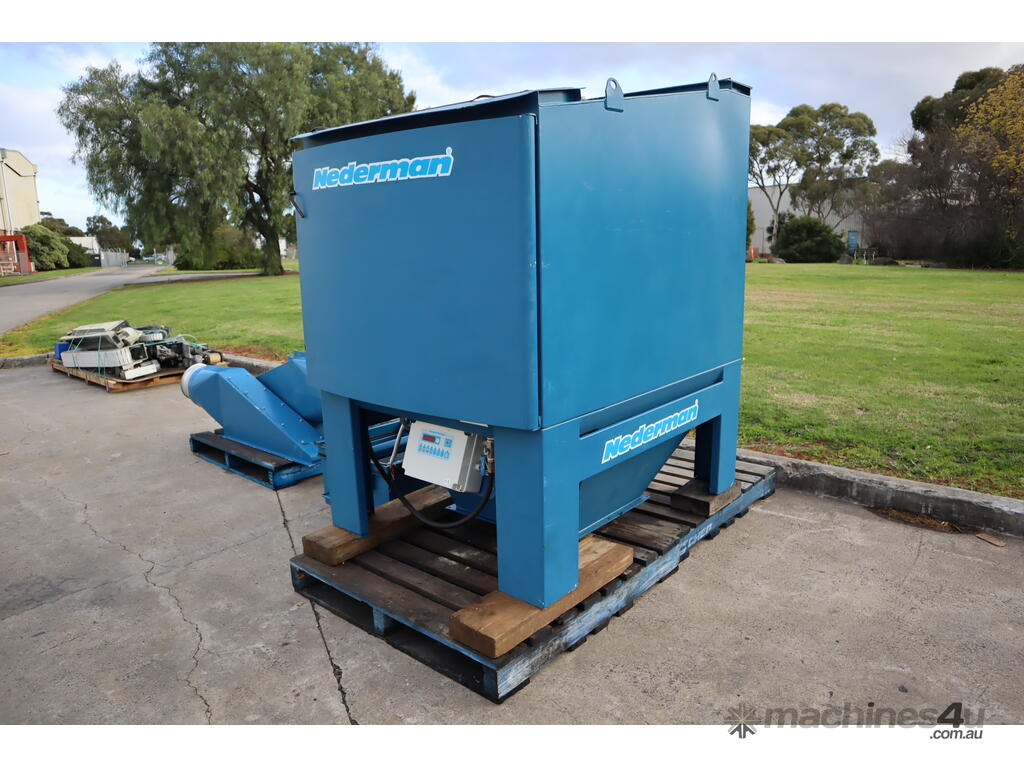

Main extraction system dimensions
1850mm(L) x1520mm (H) x 1150mm (W)

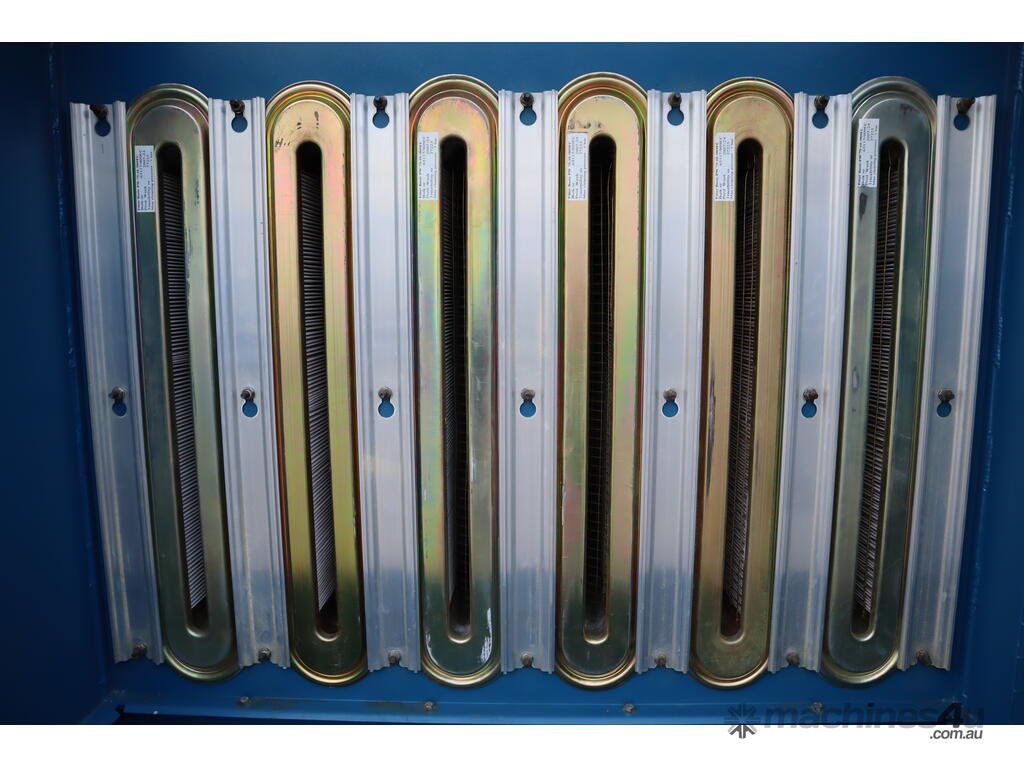

Filter box Dimensions
1120mm (L) x 800mm (H) with each filter 10mm wide and 50mm open for air jet/pulse operation

The FilterMax F30 can also be cleaned after operation if so desired. The FilterMax F30 cartridge is a high performance, compact filter cartridge. The design is optimized for efficient media usage with good cleaning properties.



NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
