Industrial Mitre Cutting 350mm Coldsaw, Stand & Coolant - Made in Taiwan

Available in 240V or V Models
Description

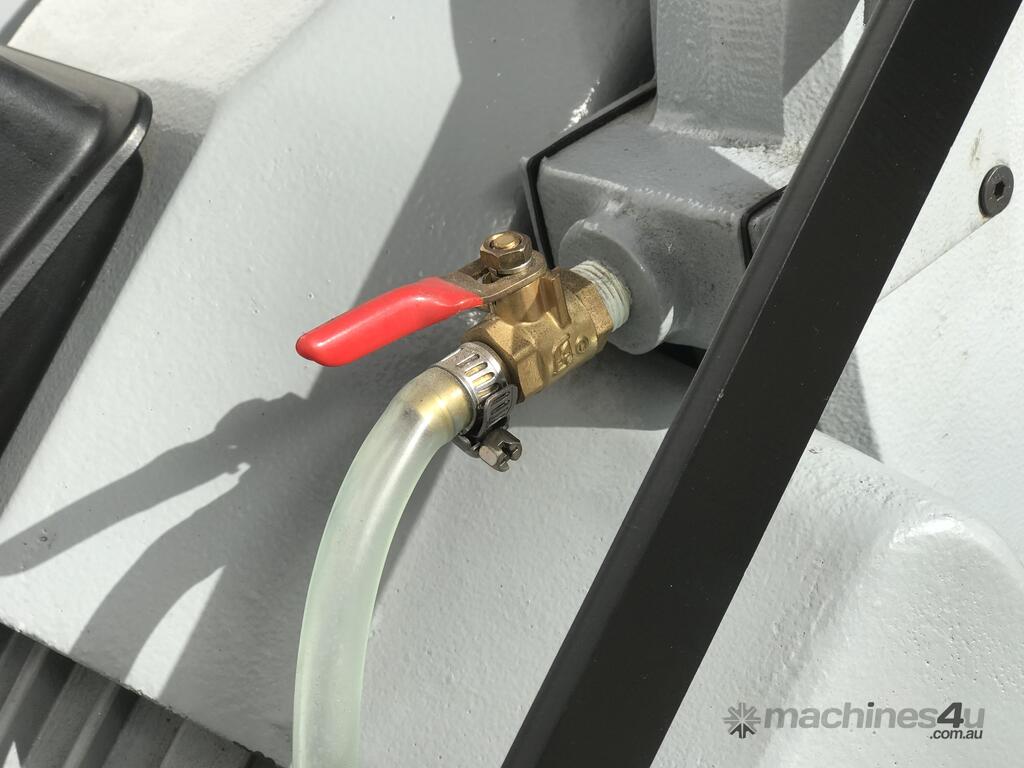

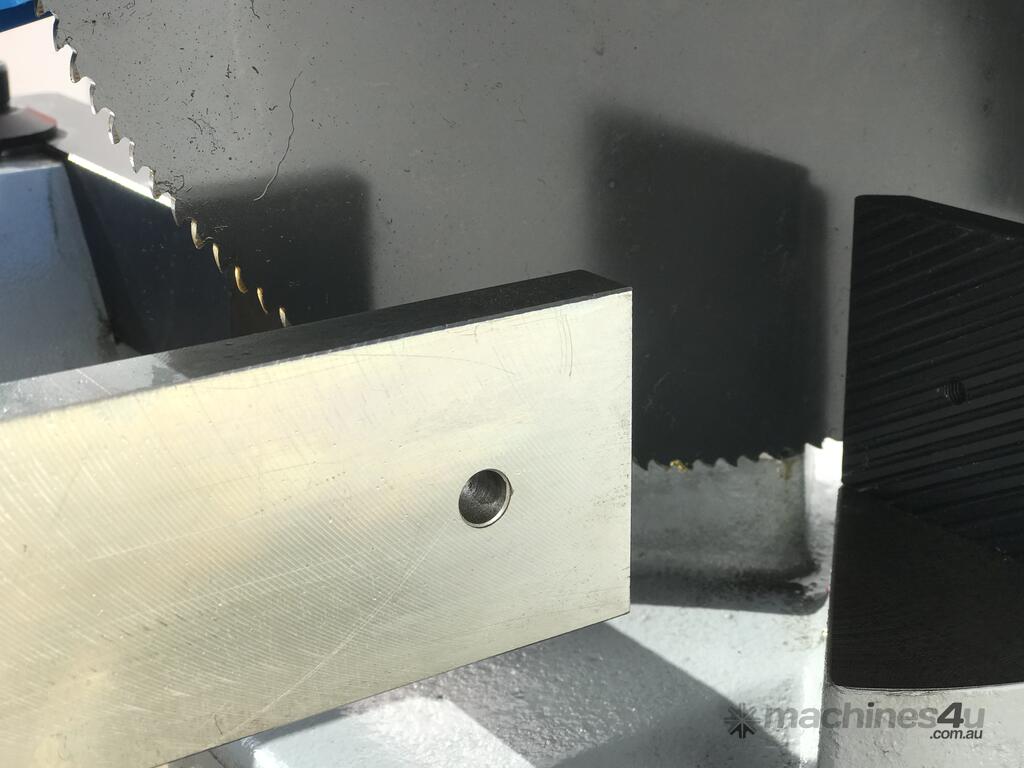

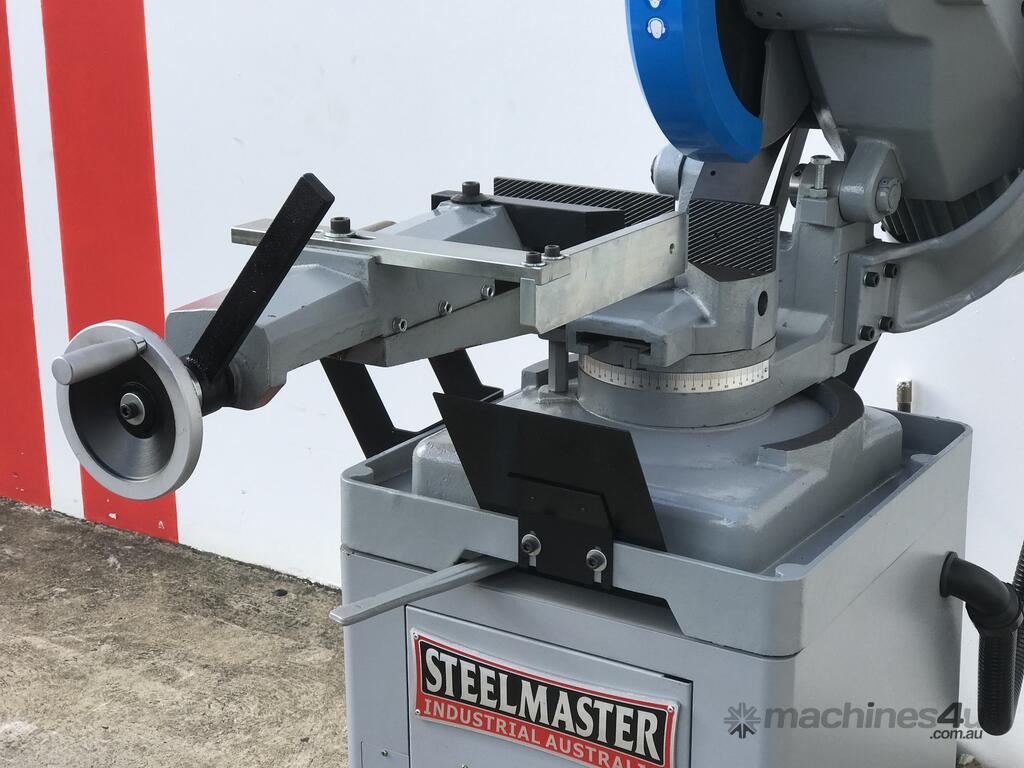

This feature packed cold saw is ideally suited to shops that cut a lot of thin walled tubing. It includes a V-notched vice that supports the work piece on both sides of the cut, a quality HSS blade, a coolant pump to ensure optimum blade life and finish cut and a robust gear box that transfers all of the horsepower into the blade. Use the work stop to set your length of cut, clamp in your work piece and go!

Features
COLT coldsaws are Taiwanese Engineered & Designed.
Heavy duty design and construction
Simple, quick action 45° left and right hand mitre cutting

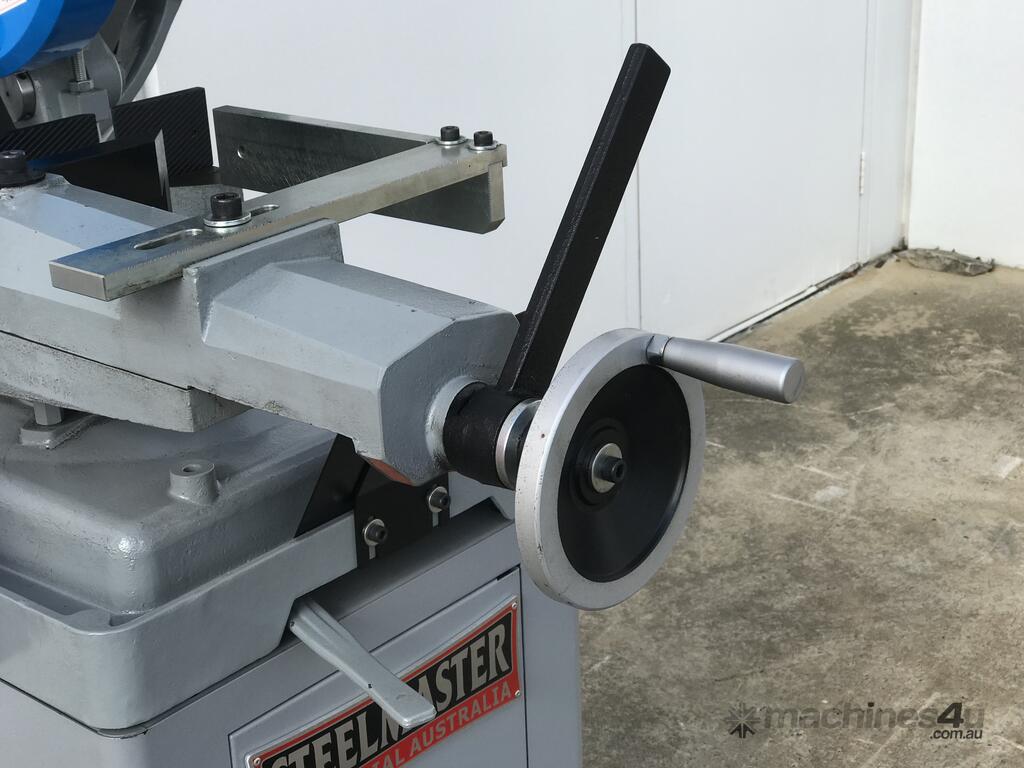

Quick lock dual clamping system
Anti-burr jaw

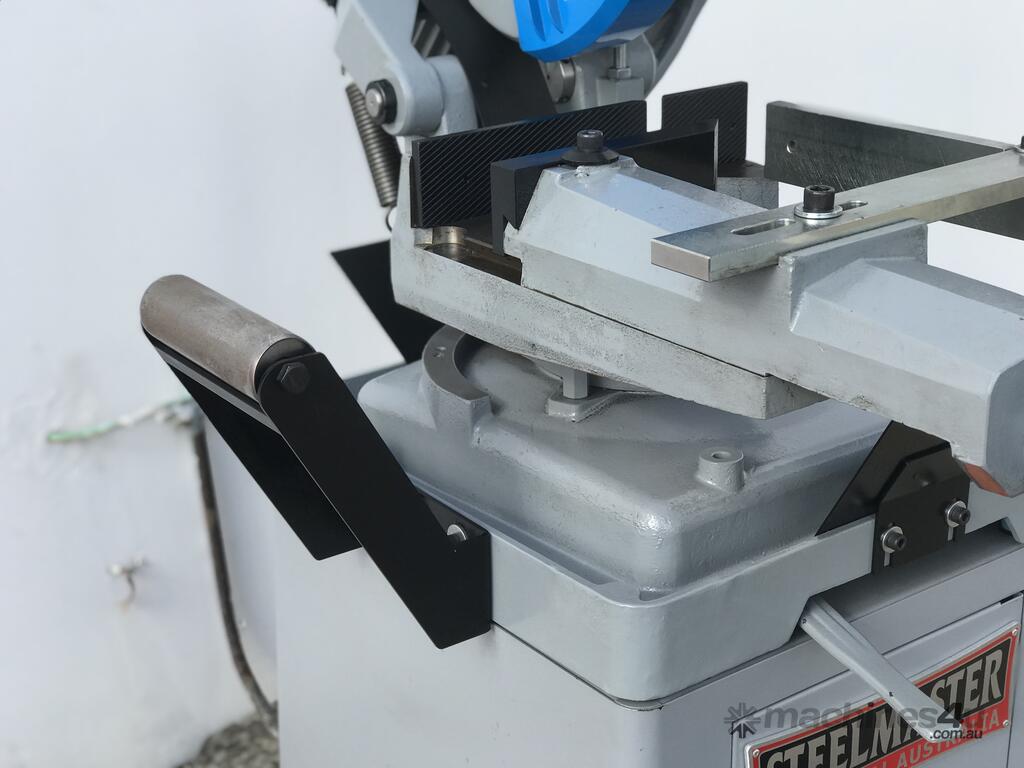

In-feed roller guide standard
Adjustable length stop standard
Available in single or three phase with a full range of options

BONUS stand included
CE compliant

Specifications:
Model: 350 COLT
Voltage 240 Volt - Single Phase (15-0128S)
Voltage Volt - 3 Phase (15-0127S)

Notes & Accessories:
Equipment & Accessories Supplied:
In-feed roller guide, length stop, fitted blade, coolant system operating manual and tool kit.

Machine Dimensions with stand:
Length: 1200 (mm)
Width: 990 (mm)
Height: 1830 (mm)
Weight: 250 (kg)

Technical Data
Cutting capacities ø (w x h)
Round hollow
90°: 120mm
45° 100mm

Square hollow
90° 105mm
45° 85mm

Rectangle hollow
90° 160mm x 90mm
45° 90mm x 70mm

Square/Round solid
90° 85mm

Blade size 350m x 2.5mm x 32mm(od x w x id)
RPM range / 240V (rpm) 24-120 Variable
RPM range / V (rpm) 24-120 Variable
Table working height 1000mm (on stand)
Motor power (kw) 2.2 / 240 (SKU 15-0128S)
Motor power (kw) 2.2 / (SKU 15-0127S)

Please contact Asset sales team for further information
