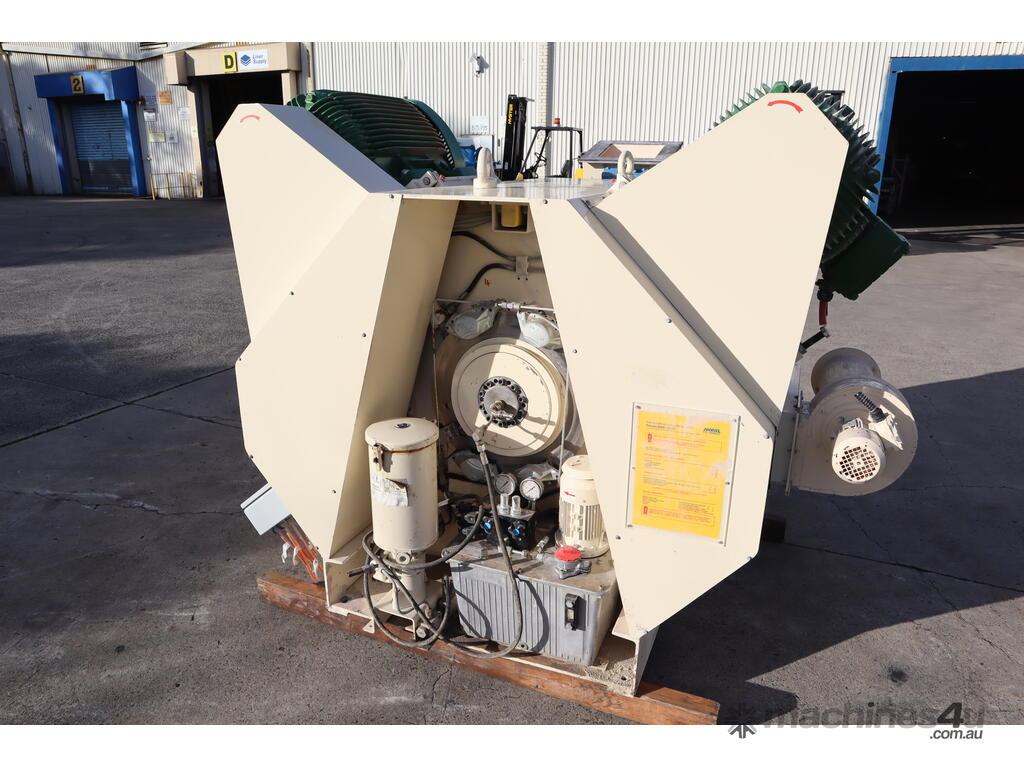

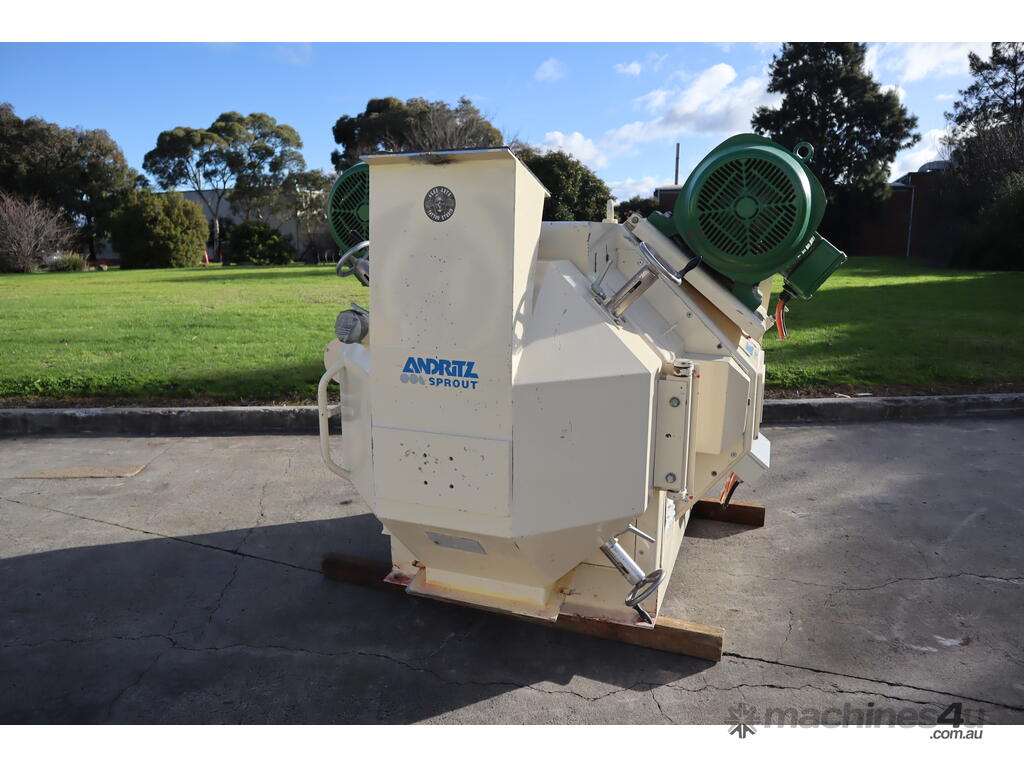

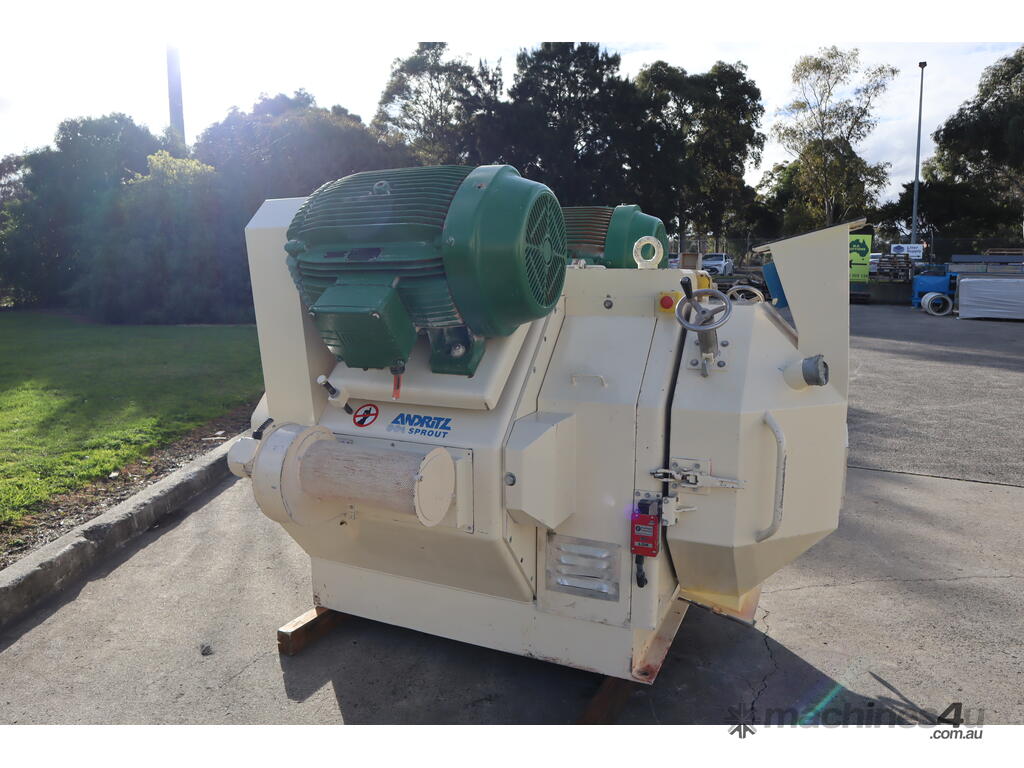

Industrial Pellet Press Mill - Andritz Paladin 600B

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!

PRODUCT INFORMATION:

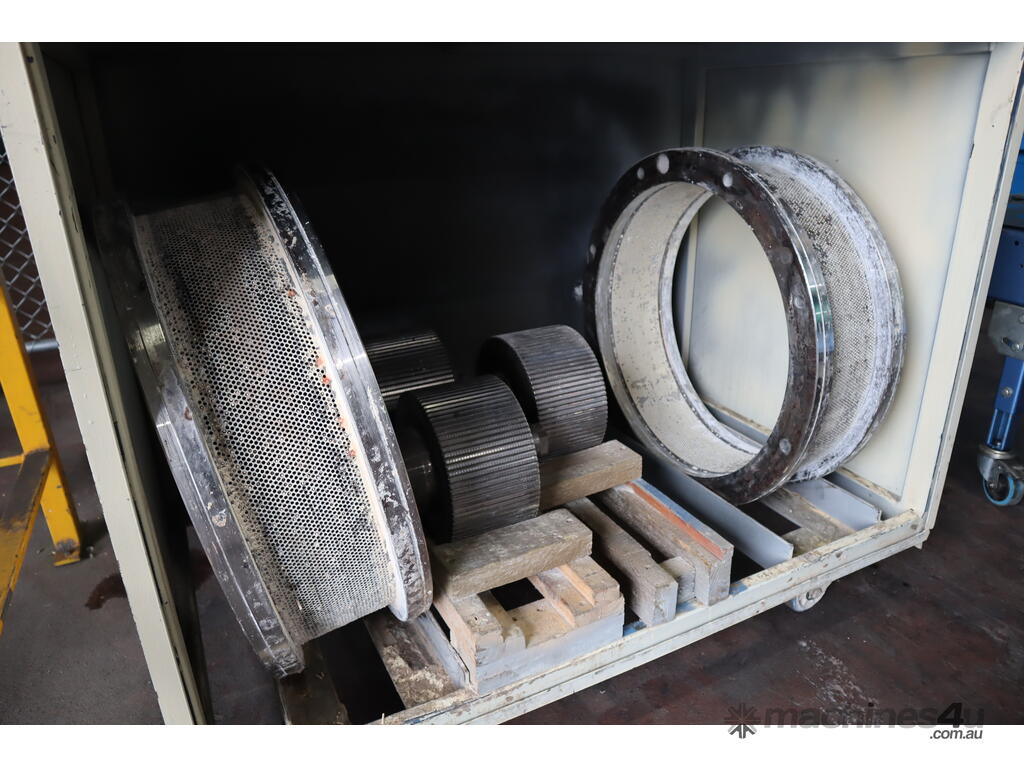

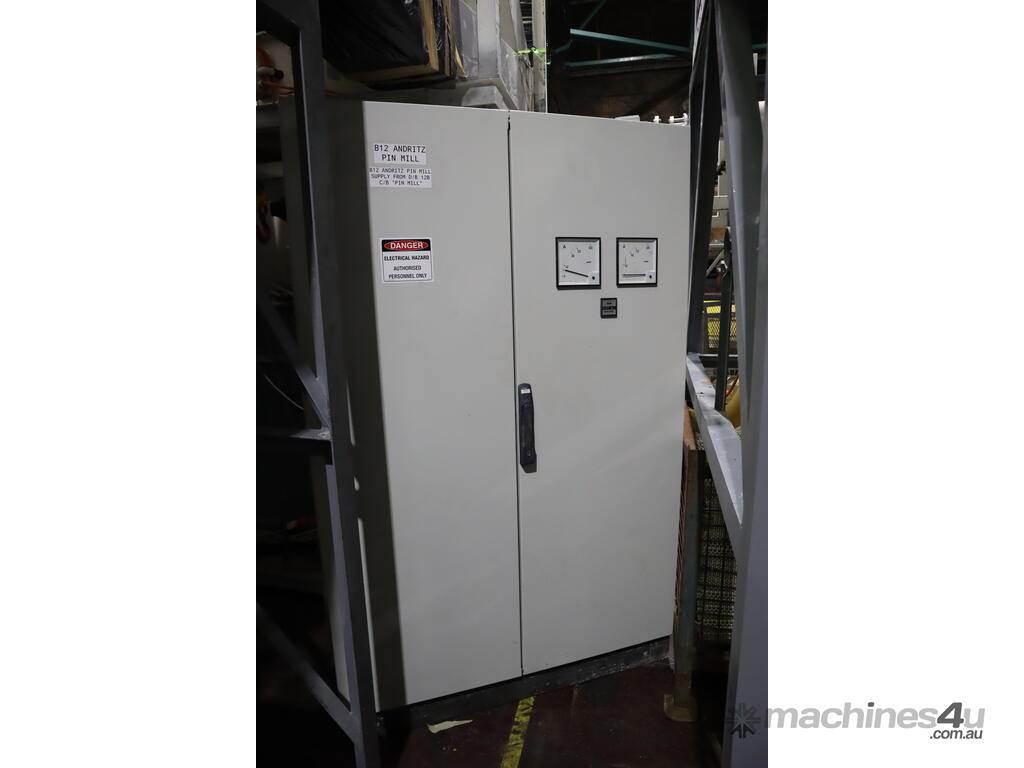

This machine is in great working condition. Comes with power cabinet and some spare parts.

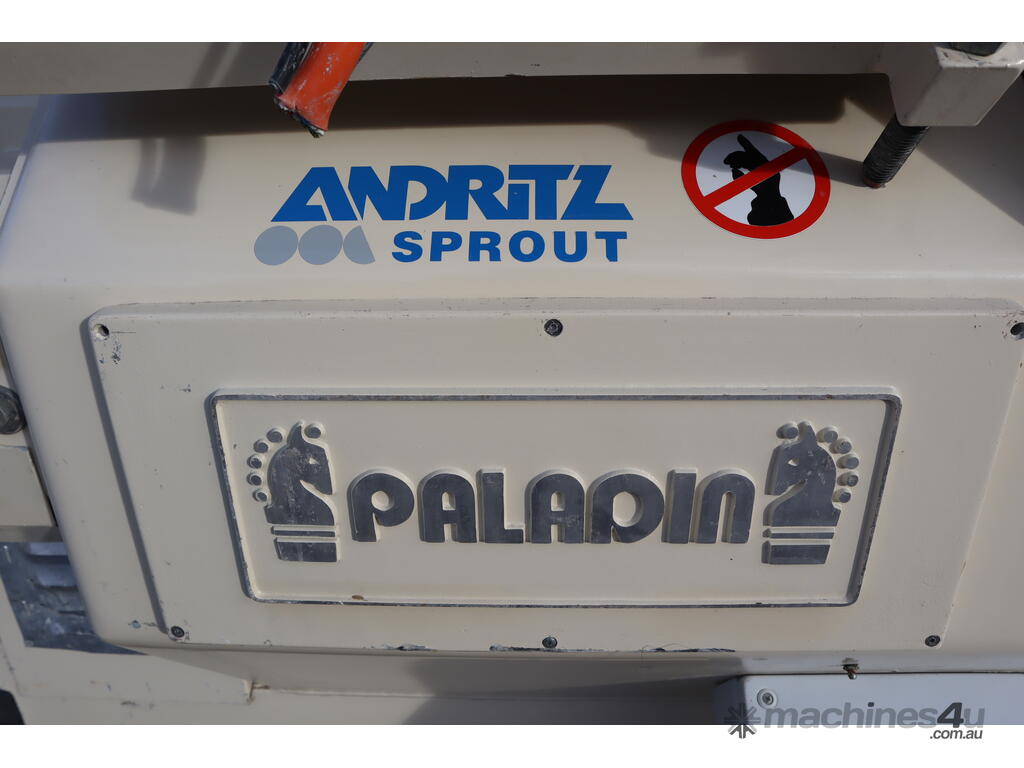

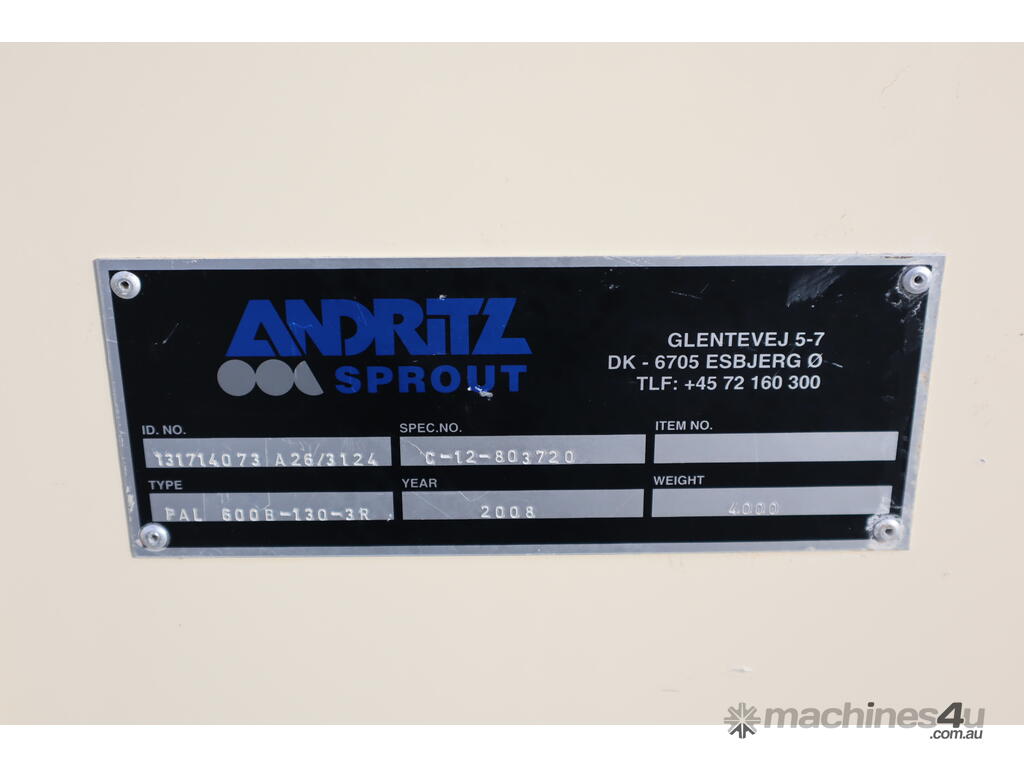

Make: Andritz
Type: Paladin 600B-130-3R
DoM: 2008

APPLICATION:

- SRF pellet
- Wood pellet
- Feedstuff Pellet

PRODUCT DESCRIPTION:
(taken from the official product brochure for Type Paladin 600 B)

``The authentic and sturdy Paladin design is constructed with a balanced twin drive system, where the transmission consists of a combination of V-belts and a toothed belt. The design of the main shaft and rotor allows maximum torque to be applied in the pelleting section. These features make the Paladin pellet mill range universally adaptable machines, ensuring that maximum reliability is provided under all working conditions.``

``The twin drive ensures smooth operation with low levels of vibrations. Furthermore, the twin drive provides a symmetrical load on the main shaft. The symmetrical load is provided by two intermediate shafts driving the main toothed belt pulley and ensures a long life time for the main shaft. The die speed is chosen based on the application. If the die speed needs to be adjusted, the easily accessible V-belt pulleys can be changed.``

HYDRAULIC SYSTEM FOR TWIN DRIVE AND BRAKE ON MAIN SHAFT:

``The V-belts mounted between the main motor pulleys and the intermediate shaft pulleys are tensioned automatically by means of hydraulic cylinders. The hydraulic system is also used to secure the main shaft with a specially designed brake system. If the main shaft is turned due to overloading, it will require a small amount of downtime to return it to the original position.``

SYMMETRICAL DIE WITH TAPERED FIT:

``The Paladin vertical ring dies are all fully reversible. The correct number of bolts is applied to ensure a sturdy fit, which can be dismantled easily in case of die changing, for example.``

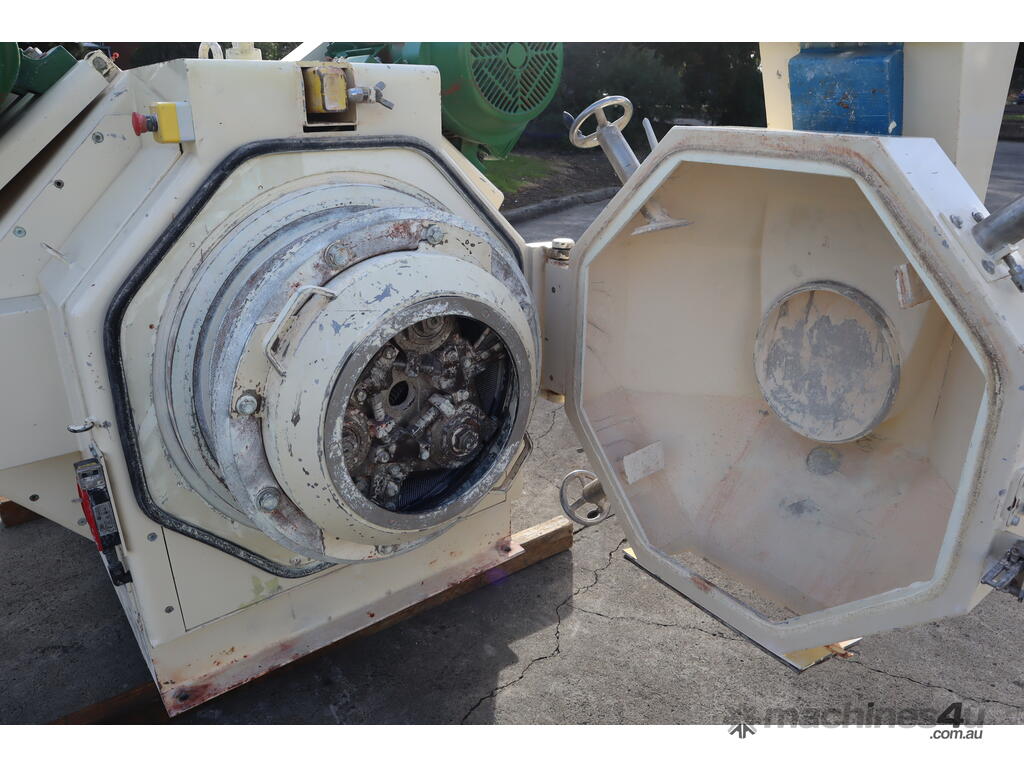

PELLETING CHAMBER:

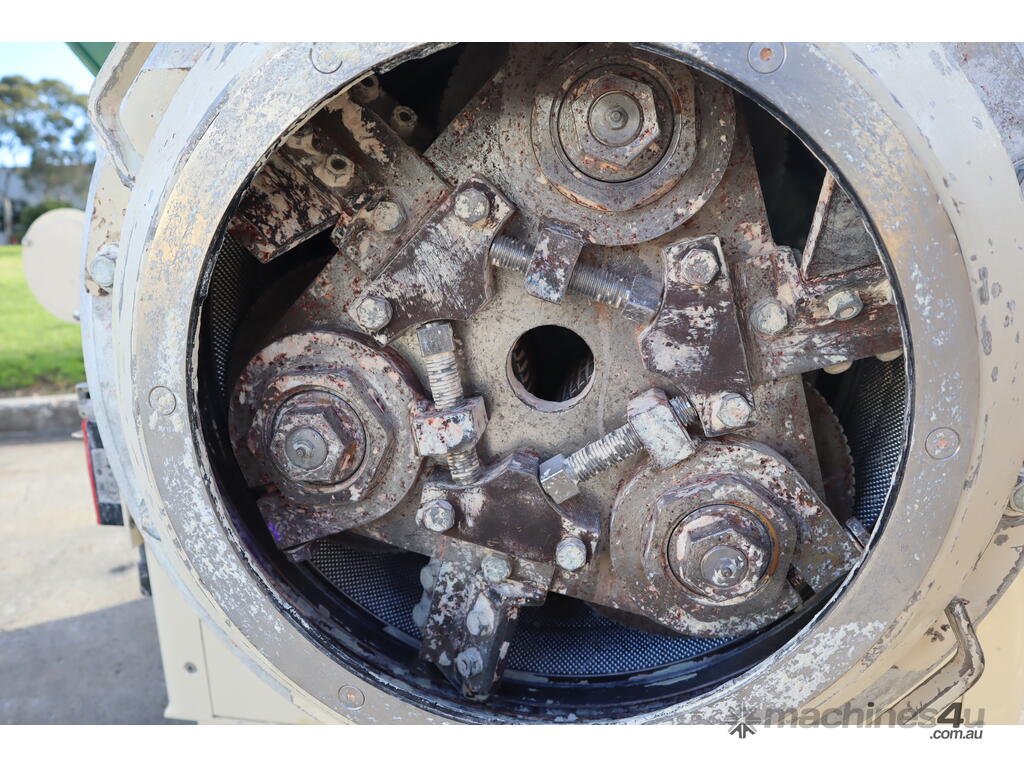

``All Paladin pelleting chambers are produced in sandwich-like construction, consisting of an outer metal sheet, insulation material, and an inner metal sheet. It is constructed in this particular way in an effort to reduce the noise level of the machine. The inlet has a pneumatically operated bypass that can be used for overload protection as well. Each Paladin is equipped as standard with an adjustable knife assembly. The roller head is either in 2- or 3-roll design, depending on the application. Based on 40 years of experience, the design of the front-plate has resulted in a system with deflectors to ensure optimum feed distribution.``

ELECTRICAL SYSTEM:

``The Paladin is equipped with all necessary switches and sensors to allow safe handling and operation of the machine.``

HOIST FOR EXCHANGING DIES AND ROLLERS:

``The Paladin 600B is equipped as standard with a heavy-duty retractable beam inside the housing. When rollers and/or dies are in need of replacement, they can be handled easily with the special tools supplied in the tool kits.``

ACCESSORIES:

- Electric motors
- Tool kits

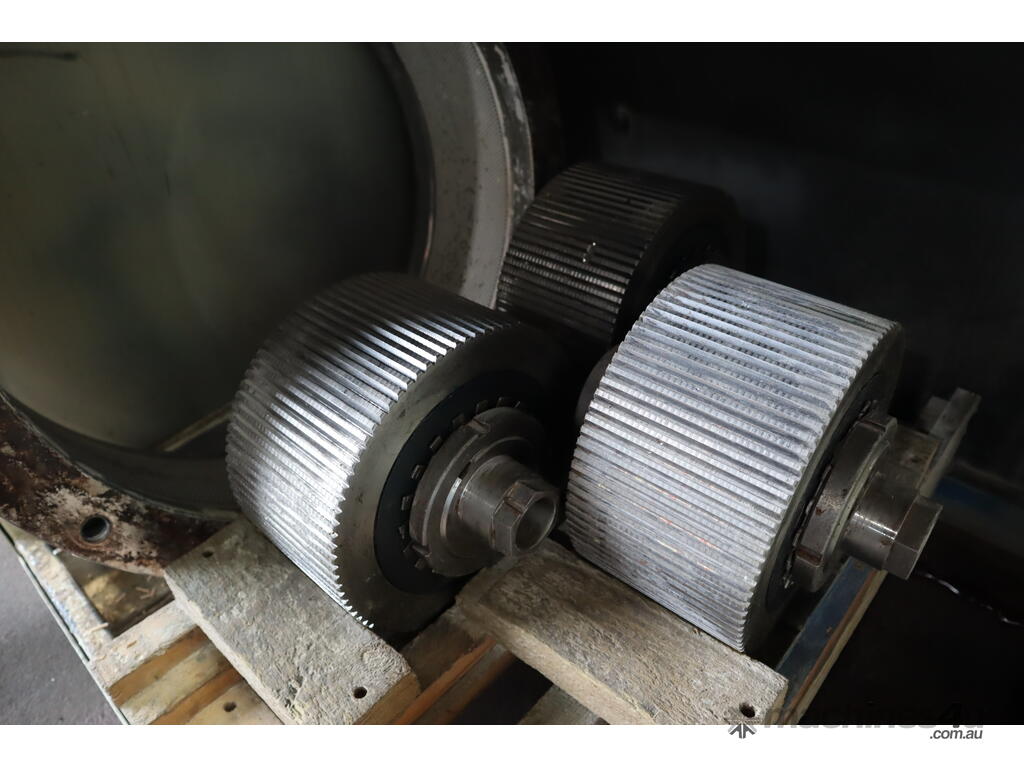

- Rolls with surface profile for the specific application
- Automated electrical or pneumatic greasing system with flow control
- Electric fan
- Additional knives in the pellet chamber

TECHNICAL DATA:

Type Paladin 600 B
Die dimensions
Die track diameter 550 mm
Width of die track 130 –170 mm
Die speed 5.1 – 6 m/sec

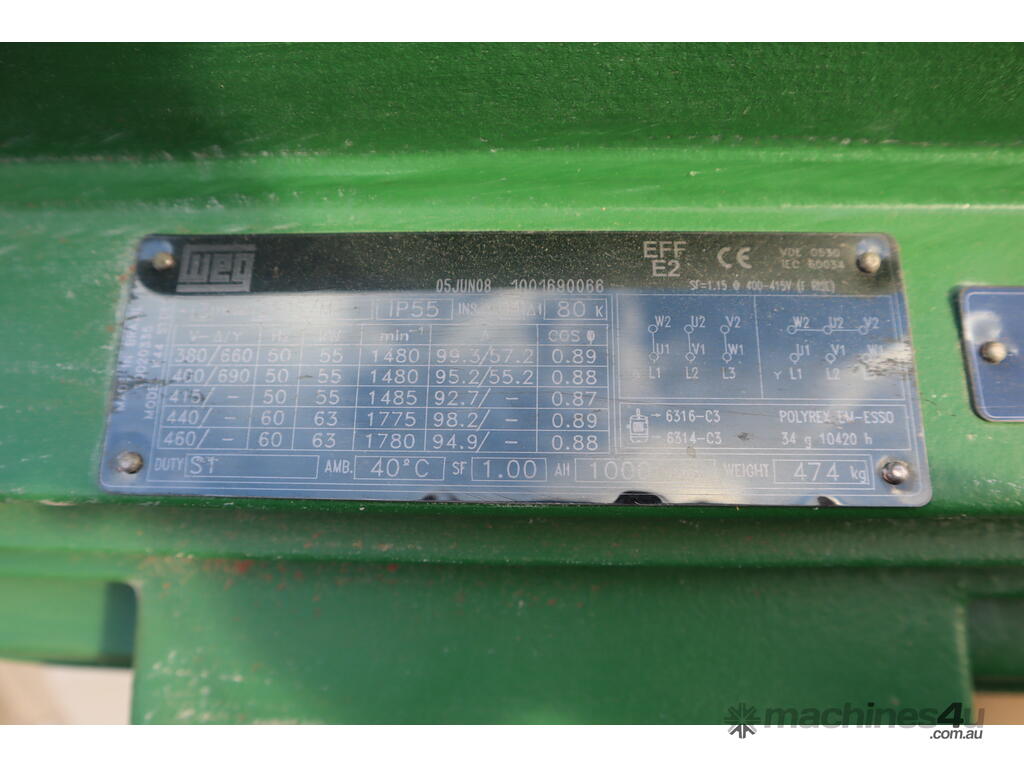

MAIN DRIVE MOTORS:

Number: 2
Maximum power each: 55 kW
Speed: 1500 rpm (1780, 60 Hz)
Electrical: 415V

HYDRAULIC OIL PUMP:

Motor power 0.37 kW

EXTERNAL DIMENSIONS

Overall Dimensions (mm): 1950 (L) x 1900 (W) x 1650 (H)
Weight: 4000kg

WEIGHTS:

Press with rolls: 30 kN max.
Die: 4 kN max.
Motors: 8 kN max.
Static weight including motors: 42 kN max.
Dynamic weight including motors: 60 kN max.


NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
