Industrial Tube & Pipe Notcher With $1000 Formers Included - 20mm ~ 76mm Diameter Capacity

$1000 Worth Added Formers Included For Promo Deal! - 7 Sets With Each Machine

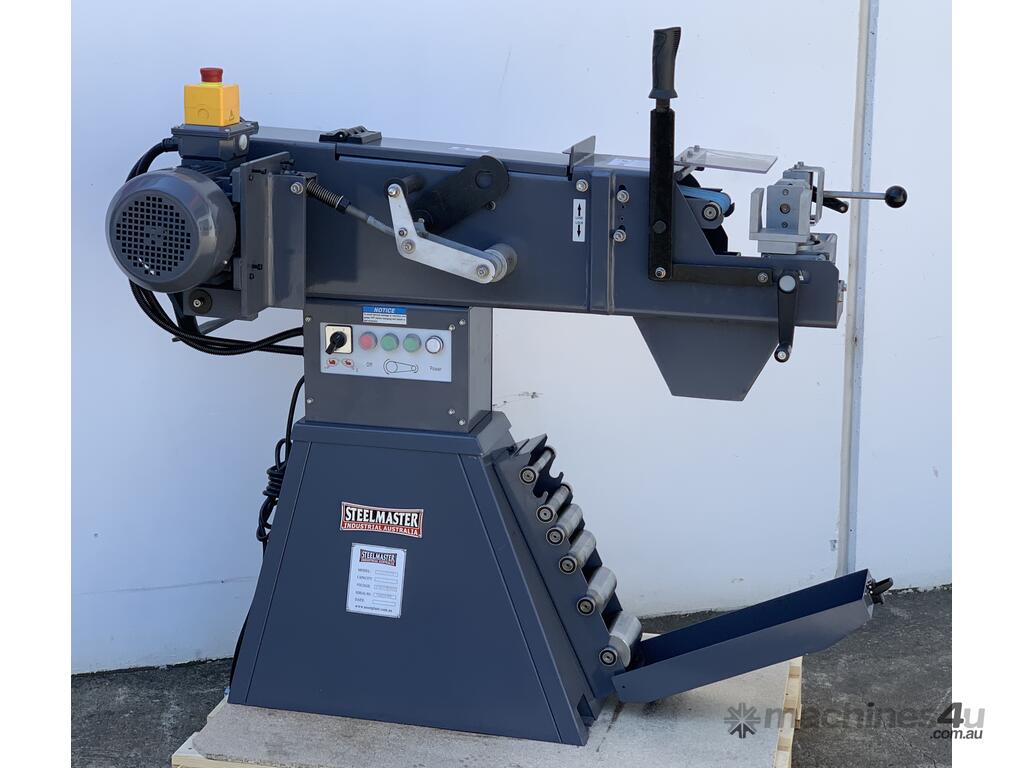

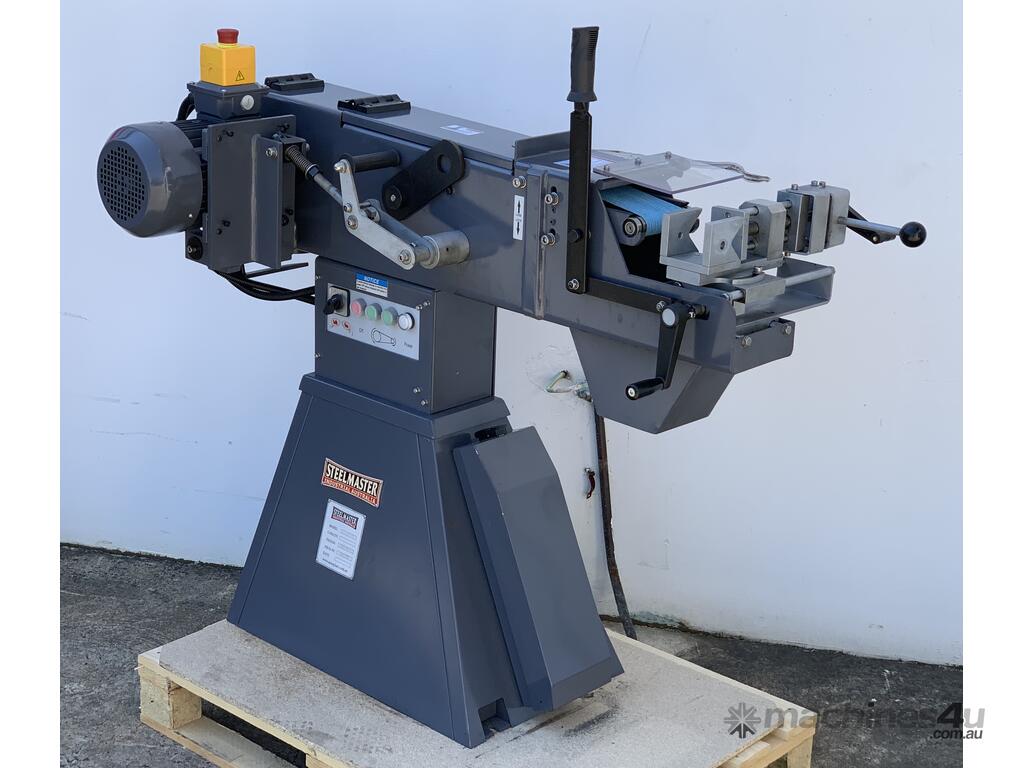

SM-TN76. Industrial Tube/Pipe Grinding Linisher. Steelmaster, Adjustable Tilt Angle - 30 ~ 90 Degree 7 Sets Formers Included Including Tool Rack, Rear Linisher Head, 100mm x 2000mm Belt. 3.0Kw, Volt

Description

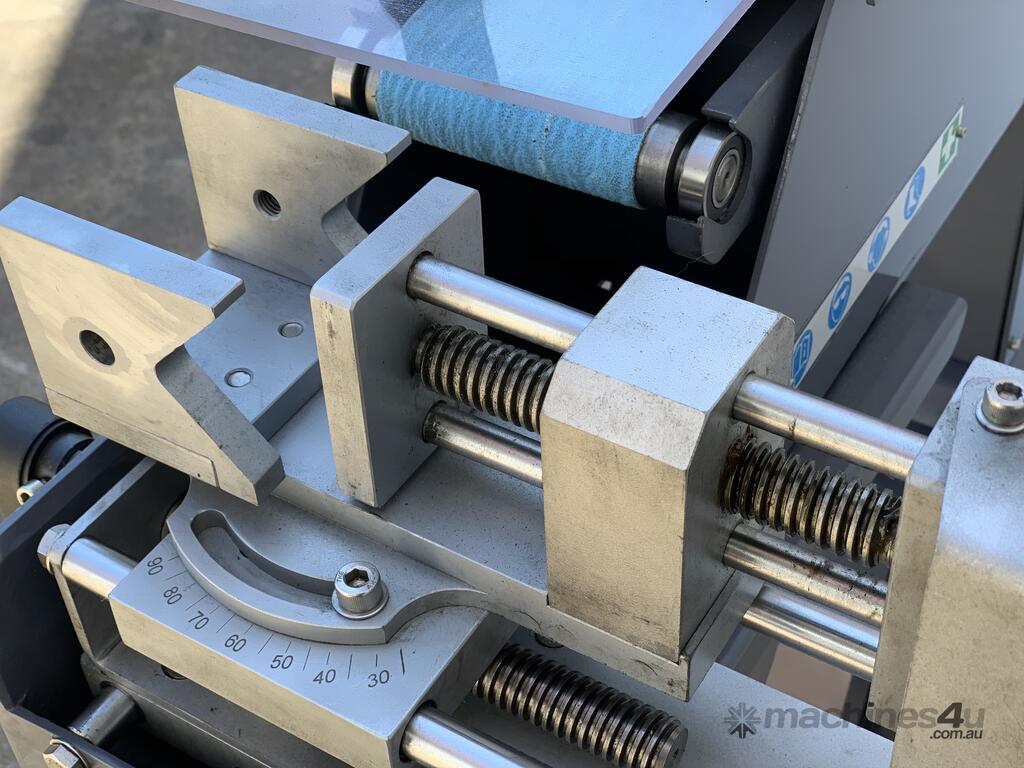

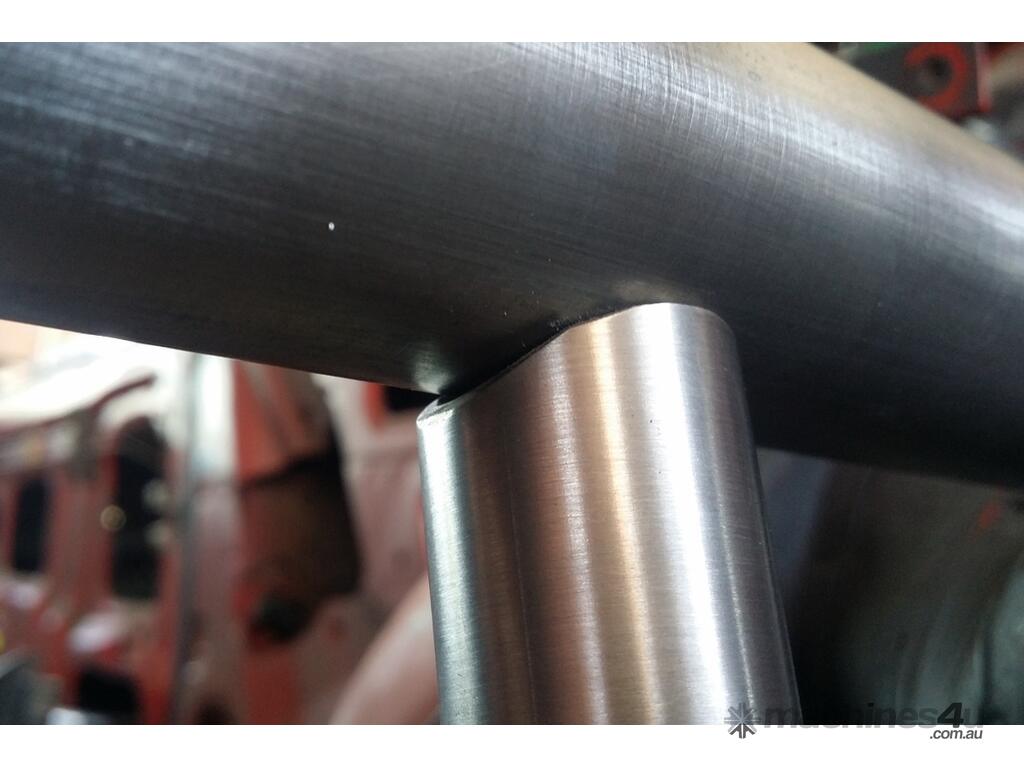

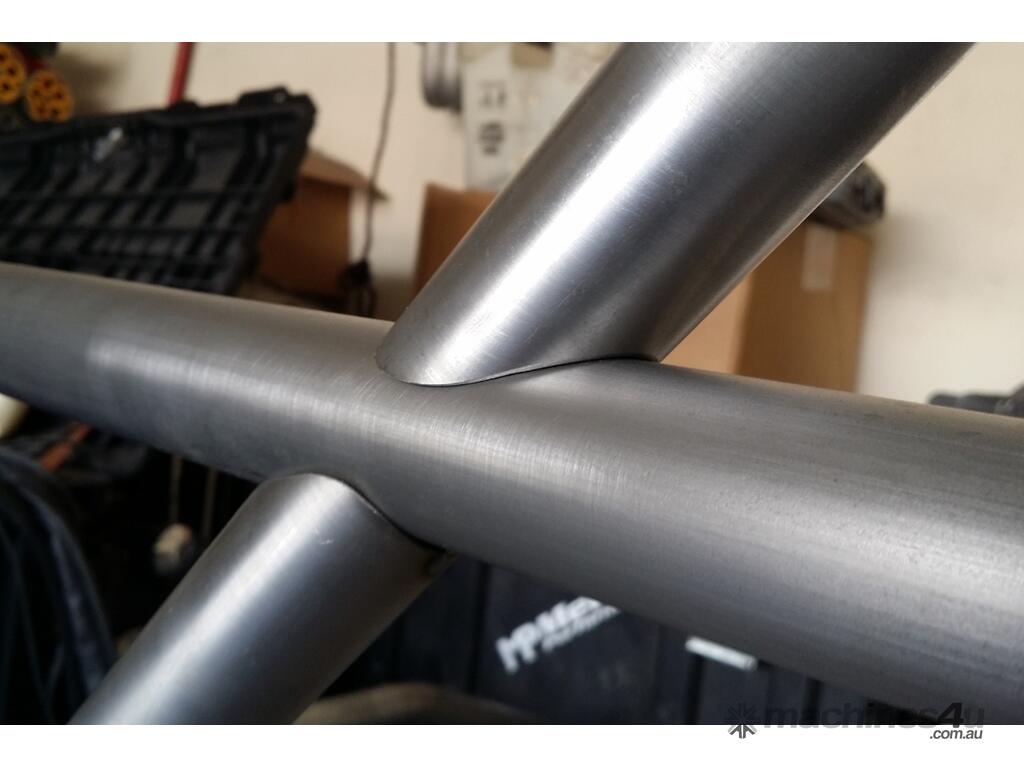

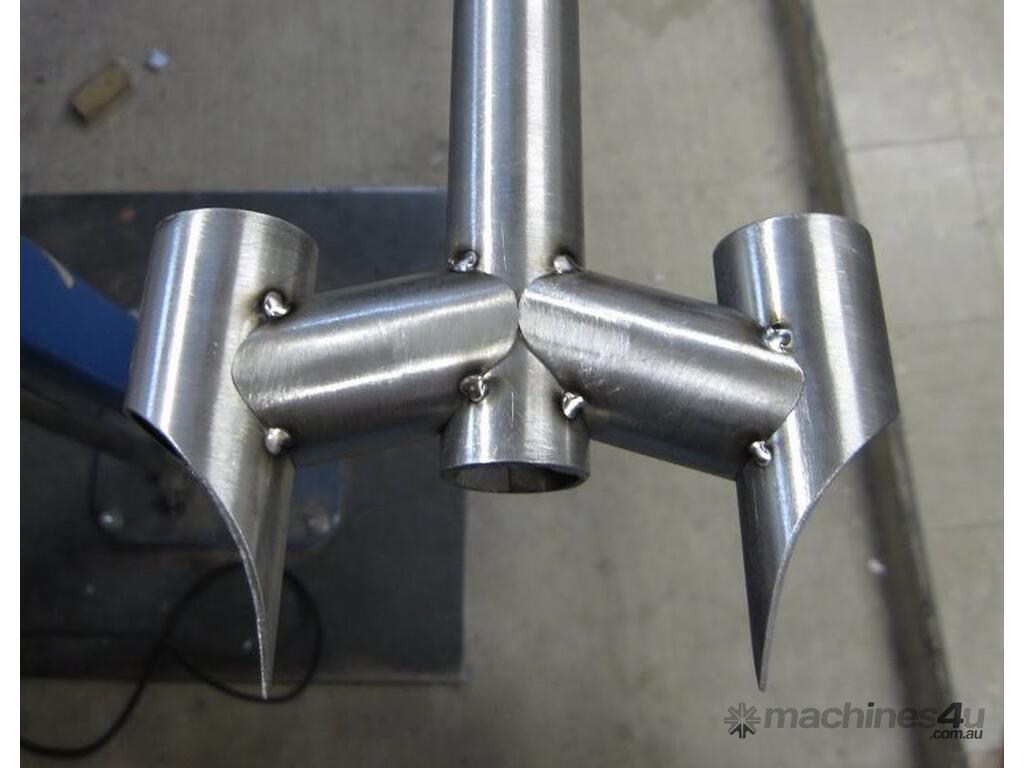

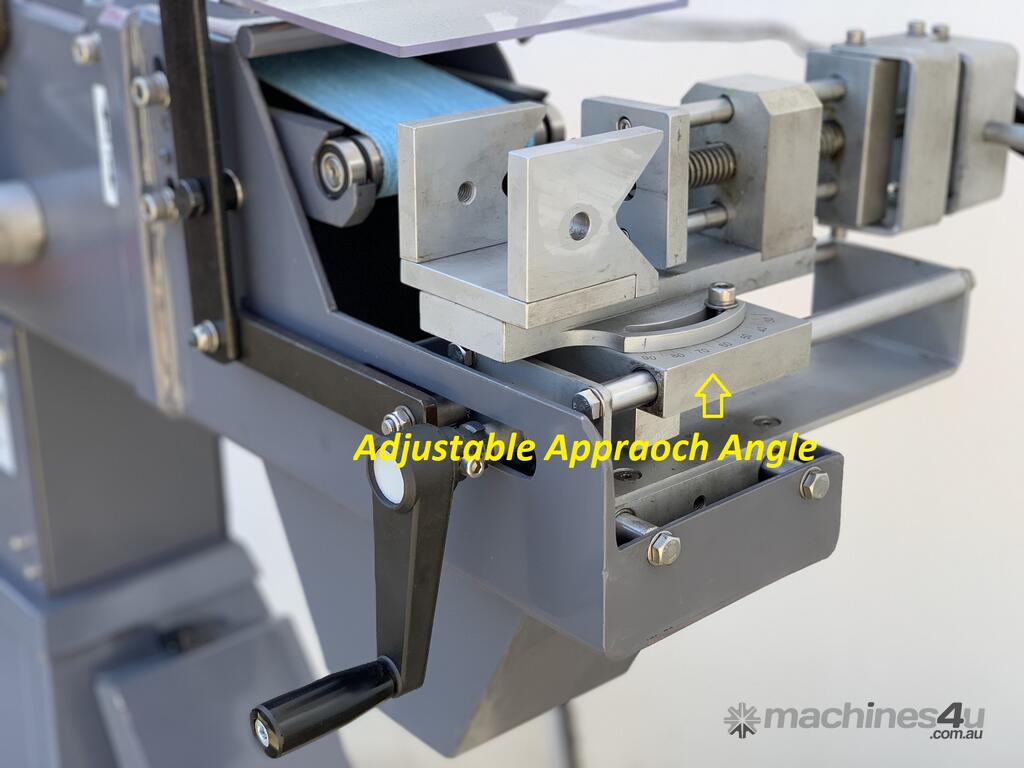

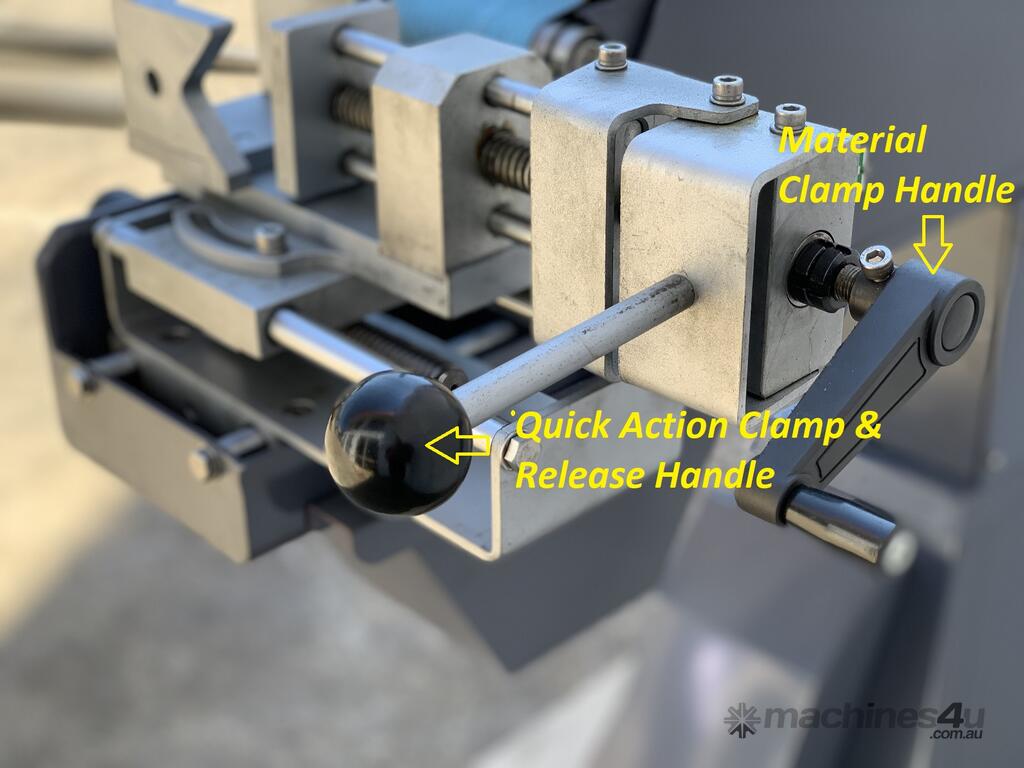

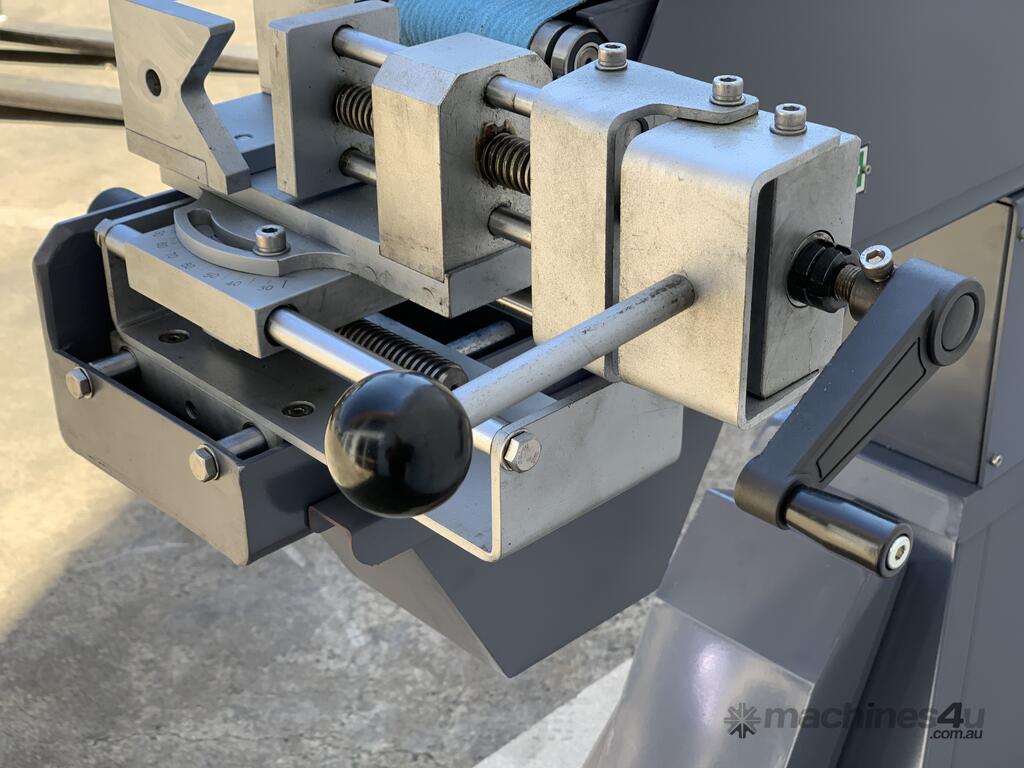

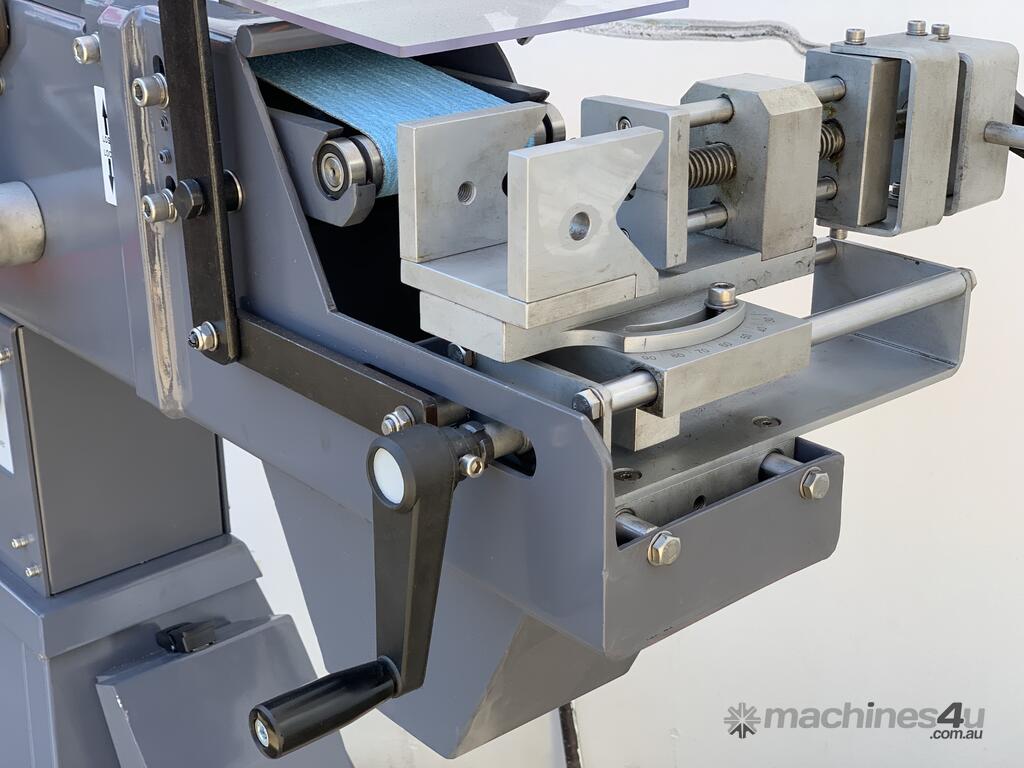

Ideally suited to metal tube & pipe fabrication, this 100mm x 2000mm Abrasive Tube & Pipe Notcher makes perfect butt joints in 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" diameter tubing. The quick-release tube vice is adjustable from 90° to 30° and can be laterally positioned for even belt wear. The large feed handle is also designed for maximum control. The quick-release belt mechanism makes belt and roller changes fast and simple. Also includes a 110mm x 380mm platen and work stop for flat sanding operations.

Features
?heavy duty industrial preferred machine
?quick and cost effective solution for all industrial pipe grinding applications

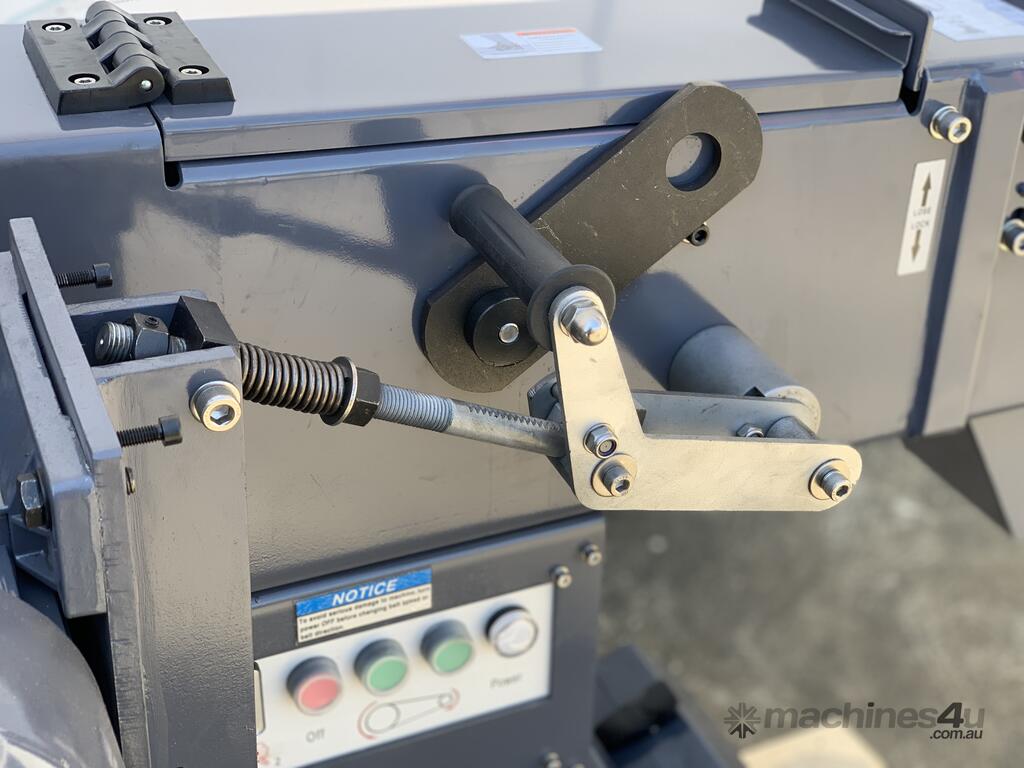

?quick action belt change system
?stand included as standard
?easy operation, rotating design
?grinds at any angle from 30° to 90°
?grinds at any diameter from Ø 19 to Ø 76.1 mm
?front grit catchment tray
?rear grit dust outlet

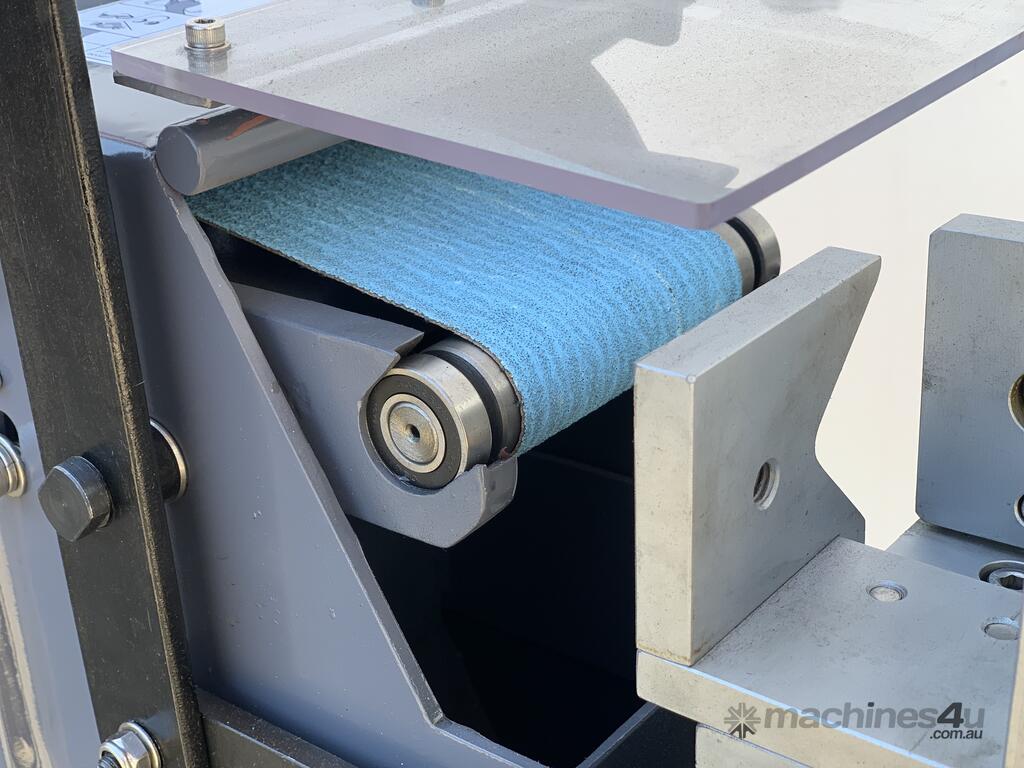

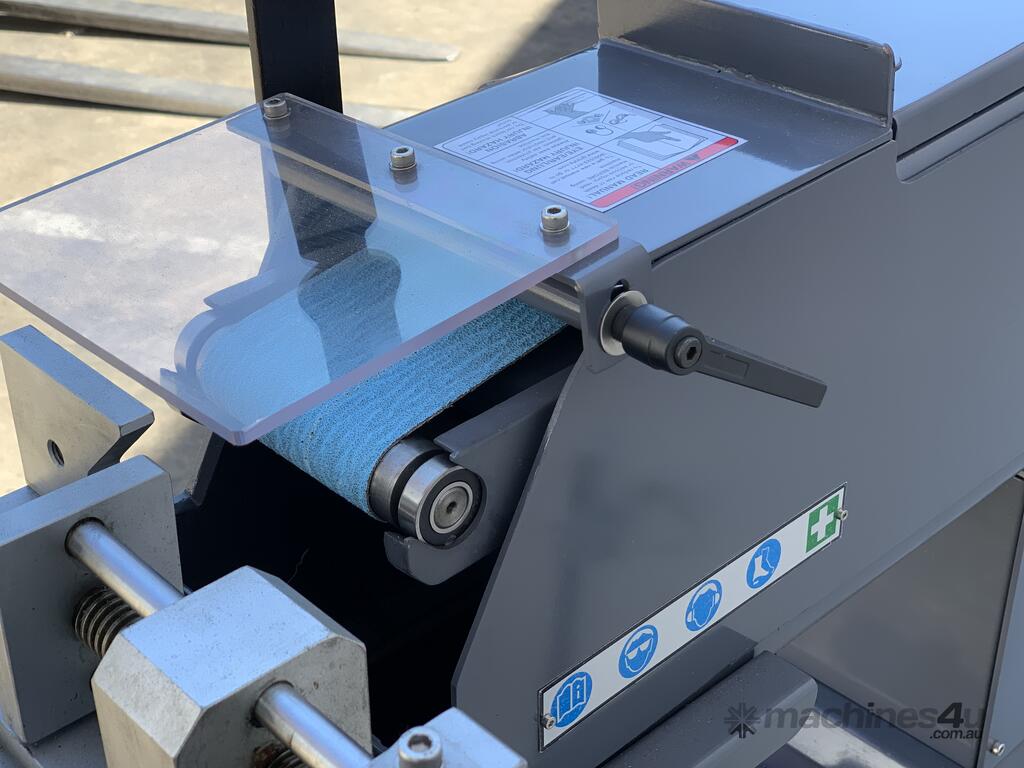

?perspex safety guard
?grinds all major materials
?suitable for tubes and profiles

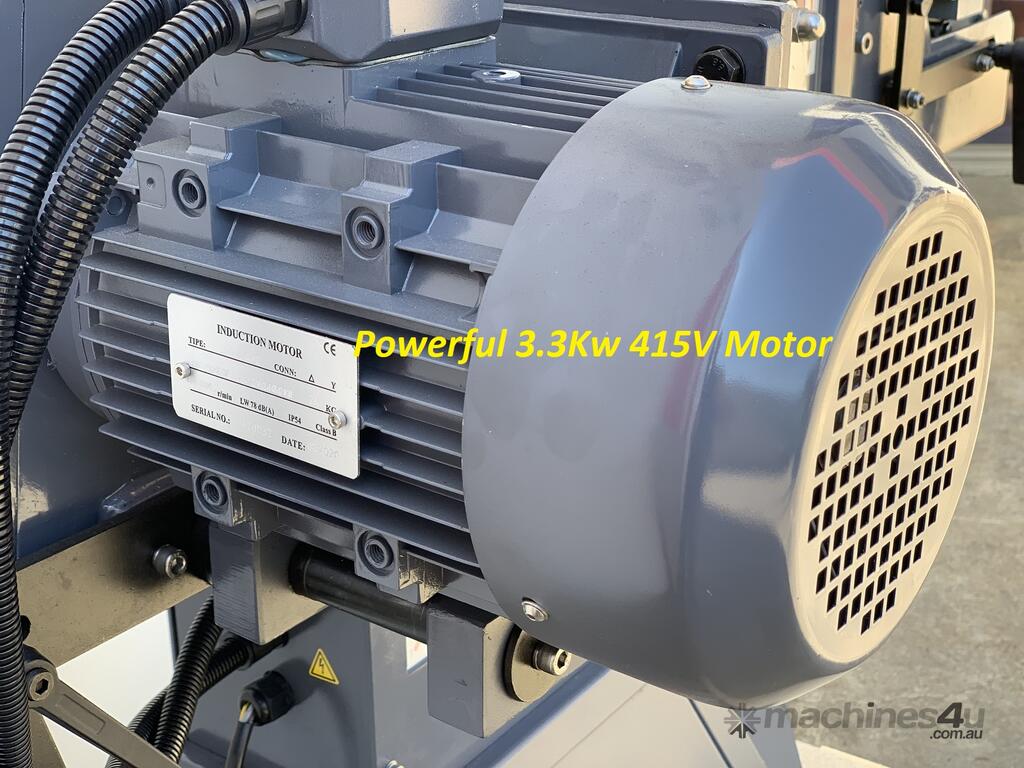

?powerful 3 kW motor

Technical data
?100mm x 2000mm belt dimensions

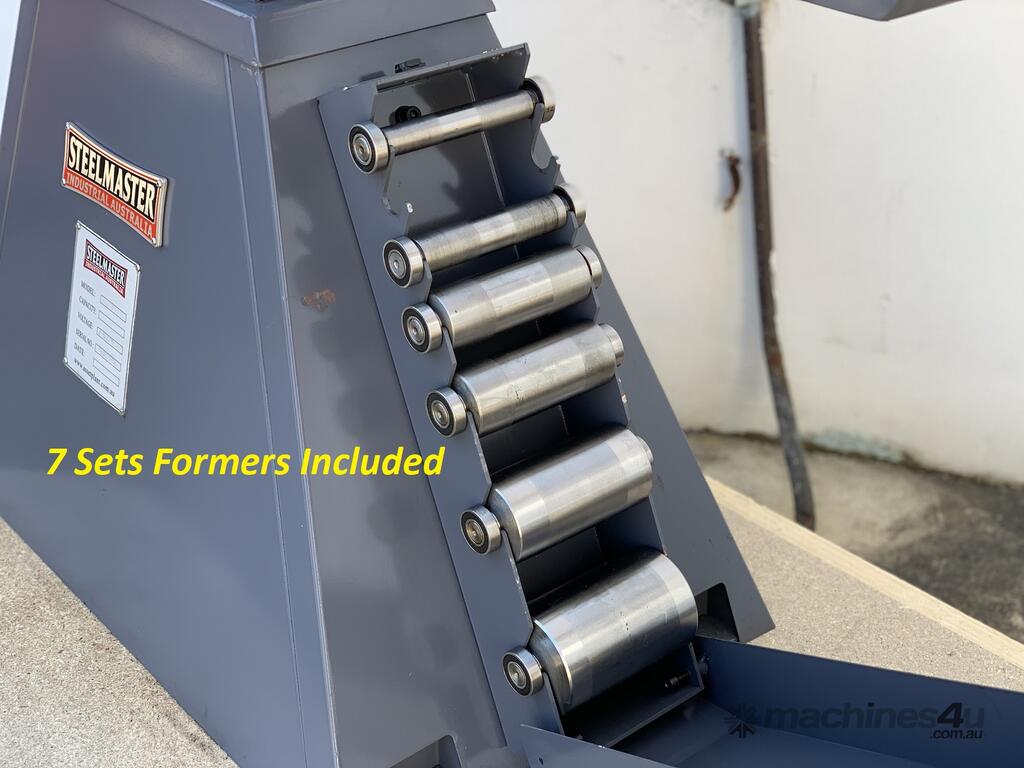

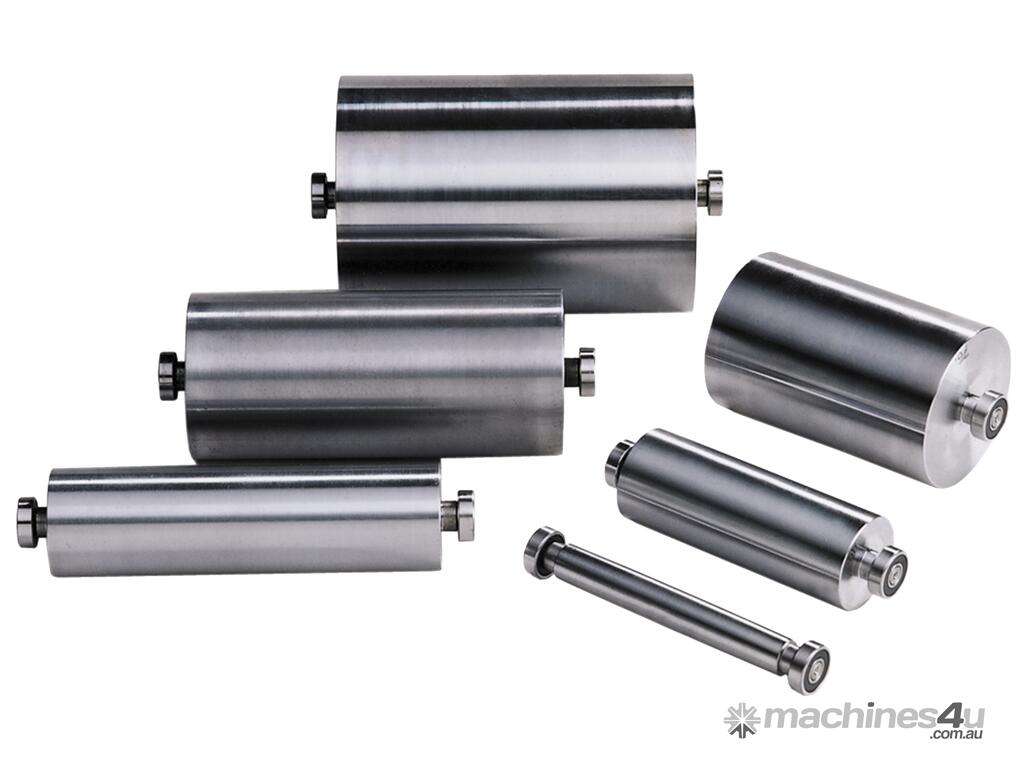

?Includes 7 sets formers: 20mm (3/4”), 26mm (1”), 32mm (1 ¼”), 42mm (1 ½”), 48mm (2”), 60mm (2 ½”) & 76mm (3”)
? 30m/sec belt speeds
?30 ~ 90 degree angle notching

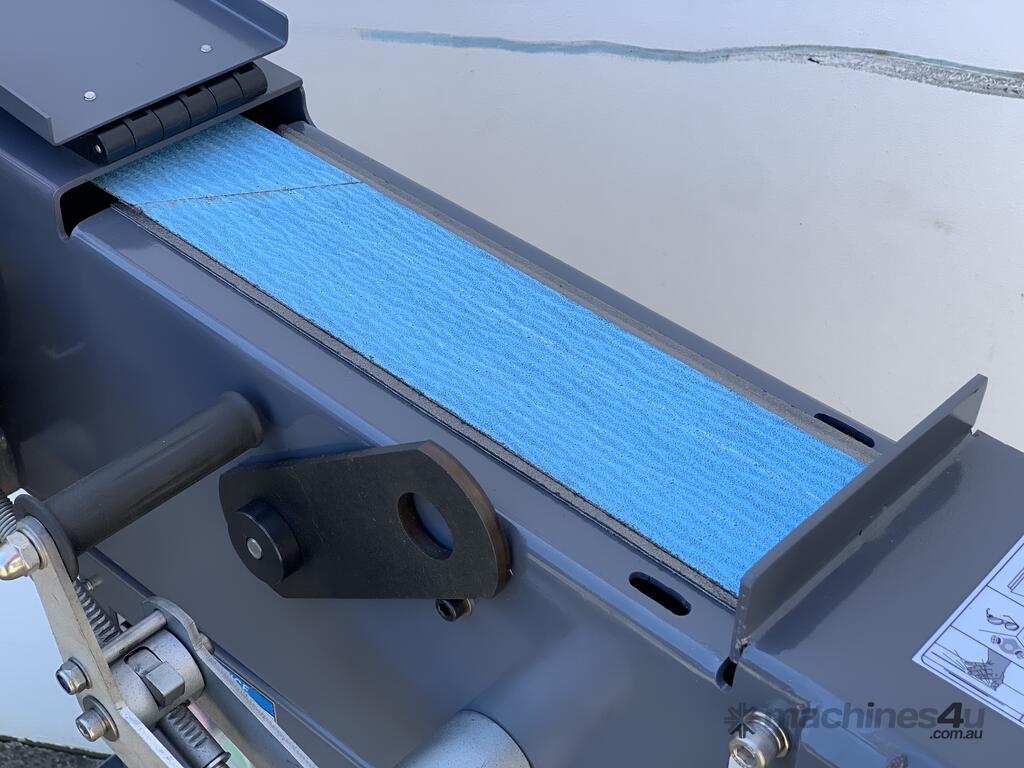

?110mm x 360mm Top Linishing Platen
?1250mm x 750mm x 1140mm overall dimensions
?1330mm x 730mm x 640mm shipping dimensions
?188kg – shipping weight
?3.3Kw x V power

Recommended Add On Accessories
?14+0011 - SM-BL100 Industrial Belt Linisher Belts 80 Grit Fine. Belt Size 2000mm L x 100mm W.
?14+0012 - SM-BL100 Industrial Belt Linisher Belts 40 Grit Course. Belt Size 2000mm L x 100mm W.
?14+0001 SM-TN76 Former to suit Profile Grinder-1/2" (12.7mm)
?14+0002 SM-TN76 Former to suit Profile Grinder-3/4" (19.5mm)
?14+0042 SM-TN76 Former to suit Profile Grinder - 20mm
?14+0025 SM-TN76 Former to suit Profile Grinder - 22mm
?14+0026 SM-TN76 Former to suit Profile Grinder - 25.4mm
?14+0043 SM-TN76 Former to suit Profile Grinder - 26mm
?14+0027 SM-TN76 Former to suit Profile Grinder - 27mm (20mm NB Pipe)
?14+0043 SM-TN76 Former to suit Profile Grinder - 26mm
?14+0028 SM-TN76 Former to suit Profile Grinder - 32mm (25mm NB Pipe)
?14+0029 SM-TN76 Former to suit Profile Grinder - 34mm
?14+0030 SM-TN76 Former to suit Profile Grinder - 38mm
?14+0031 SM-TN76 Former to suit Profile Grinder - 42mm (32mm NB Pipe Size)
?14+0032 SM-TN76 Former to suit Profile Grinder - 44mm
?14+0033 SM-TN76 Former to suit Profile Grinder - 48mm (40mm NB Pipe Size)
?14+0034 SM-TN76 Former to suit Profile Grinder - 50.8 mm
?14+0023 SM-TN76 Former to suit Profile Grinder - 57mm
?14+0035 SM-TN76 Former to suit Profile Grinder - 60mm (50mm NB Pipe Size)
?14+0036 SM-TN76 Former to suit Profile Grinder - 63.5mm
?14+0037 SM-TN76 Former to suit Profile Grinder - 76mm (65mm NB Pipe Size)
